Code: SIP04387

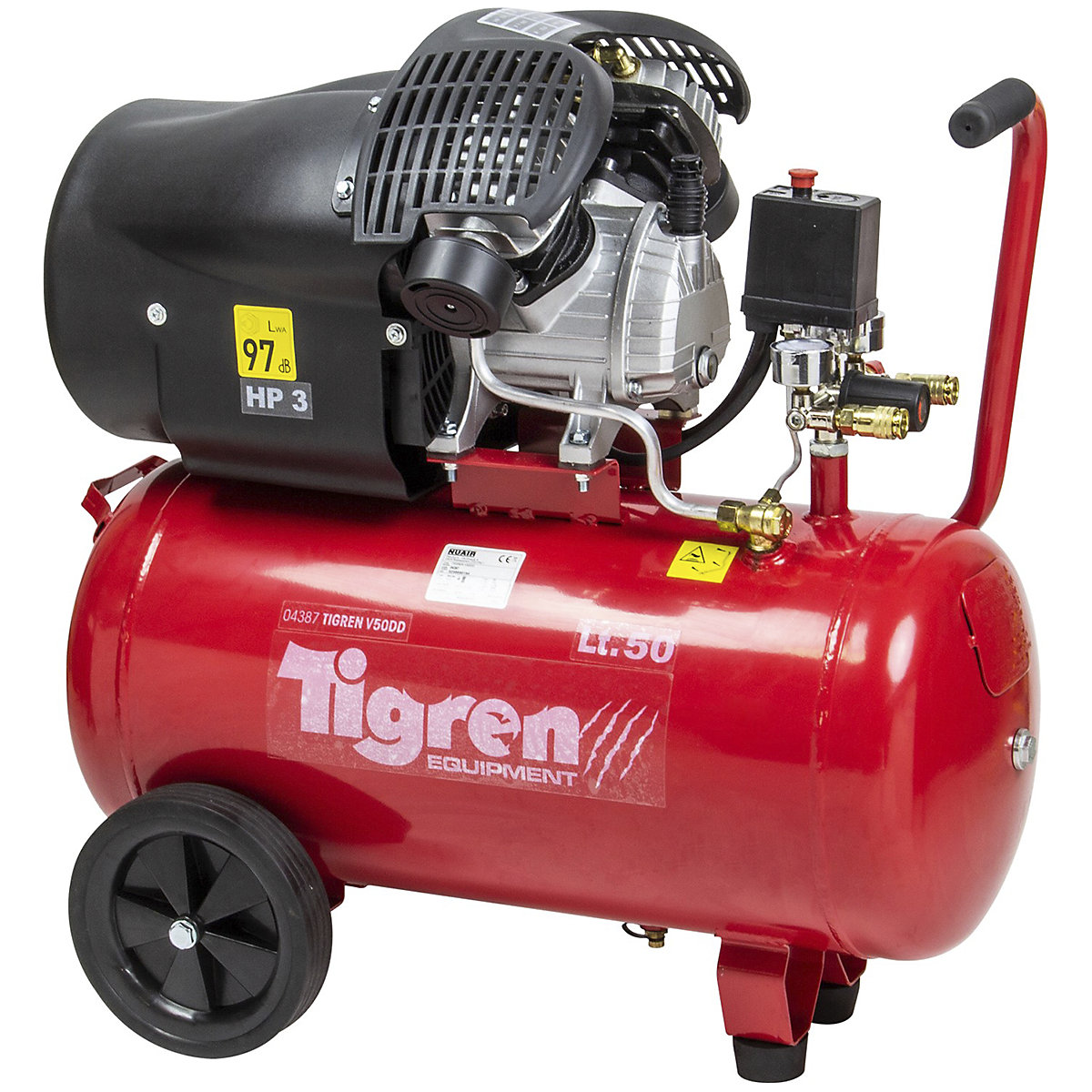

SIP TIGREN V50DD 3HP Direct-Driven Compressor | 850h x 350w x 1350d mm | 50 Litre

SIP TIGREN 3HP Direct-Driven Compressors
SIP TIGREN 3HP Direct-Driven Compressors, SIP TIGREN 3HP Direct-Driven Compressors, SIP TIGREN V50DD 3HP Direct-Driven Compressor | 850h x 350w x 1350d mm | 50 Litre-0
SIP TIGREN 3HP Direct-Driven Compressors (Product illustration 2)-1
SIP TIGREN 3HP Direct-Driven Compressors (Product illustration 3)-2
SIP TIGREN 3HP Direct-Driven Compressors (Product illustration 4)-3
SIP TIGREN 3HP Direct-Driven Compressors (Product illustration 5)-4
Size
NEW PRODUCT
Delivery time: 4-5 Working Days
Product description

The TIGREN 3HP Direct-Driven Compressor utilises a heavy-duty V-configuration pump unit which helps to keep the physical footprint of the compressor minimal, meaning a more compact and lightweight design ensuring easy and effortlessly portability.

  • No-nonsense workhorse compressor
  • Direct-driven model that is fully ready-for-use

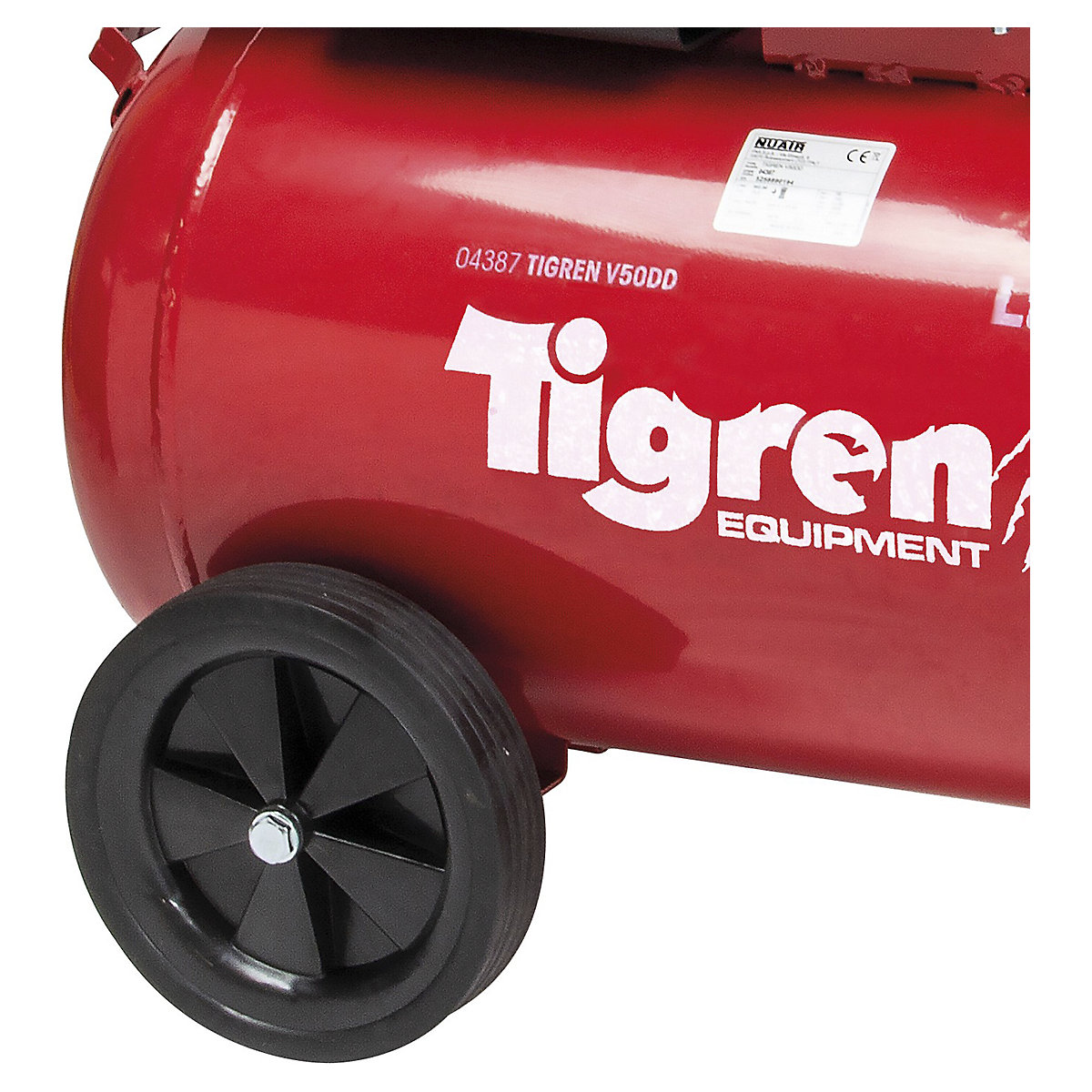

  • Wheel-mounted for easy manoeuvrability and positioning
  • Anti-vibration rubber mounts for tank and pump protection

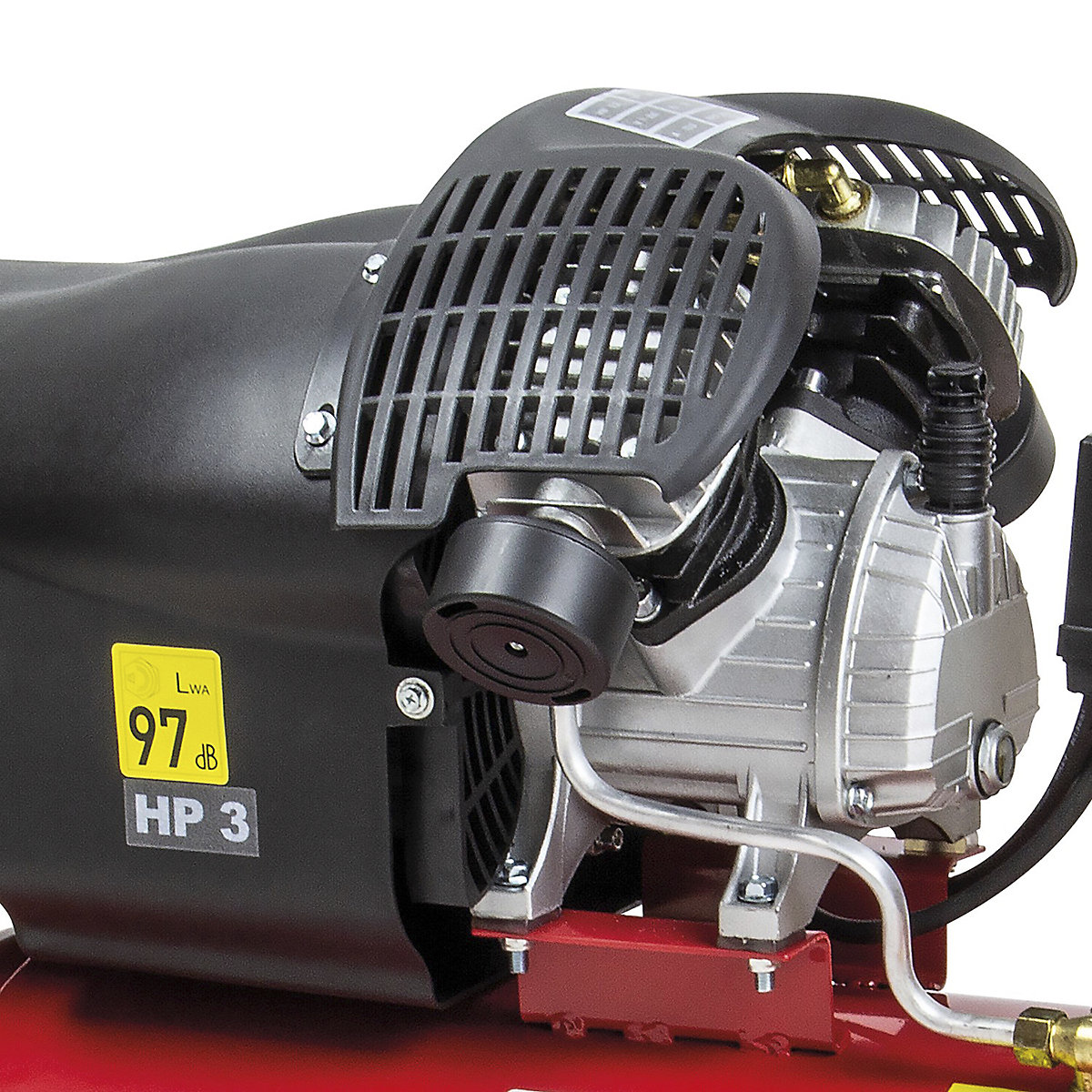

  • 2-cylinder V-configuration splash oil-lubricated pump
  • TIGREN 1-Year Warranty

Specifications

Specifications SIP04387 SIP04388
Input Supply: 230v (13A) 230v (13A)
Motor Power: 2.2kW (3hp) 2.2kW (3hp)
Receiver Size: 50ltr 100ltr
Piston Displacement: 13.00CFM (368ltr/min) 13.00CFM (368ltr/min)
Free Air Delivery (FAD): 8.00CFM (227ltr/min) 8.00CFM (227ltr/min)
Max. Air Pressure: 116psi (8bar) 116psi (8bar)
Net Weight: 41.74kg 59.10kg
Gross Weight: 44.50kg 62.50kg
Product Dimensions: 850(H) x 350(W) x 1350mm(D) 850(H) x 350(W) x 1350mm(D)
Packaged Dimensions: 1090(H) x 890(W) x 390mm(D) 1090(H) x 820(W) x 390mm(D)
‌
‌
‌
‌
‌
