Code: JRISSGSF

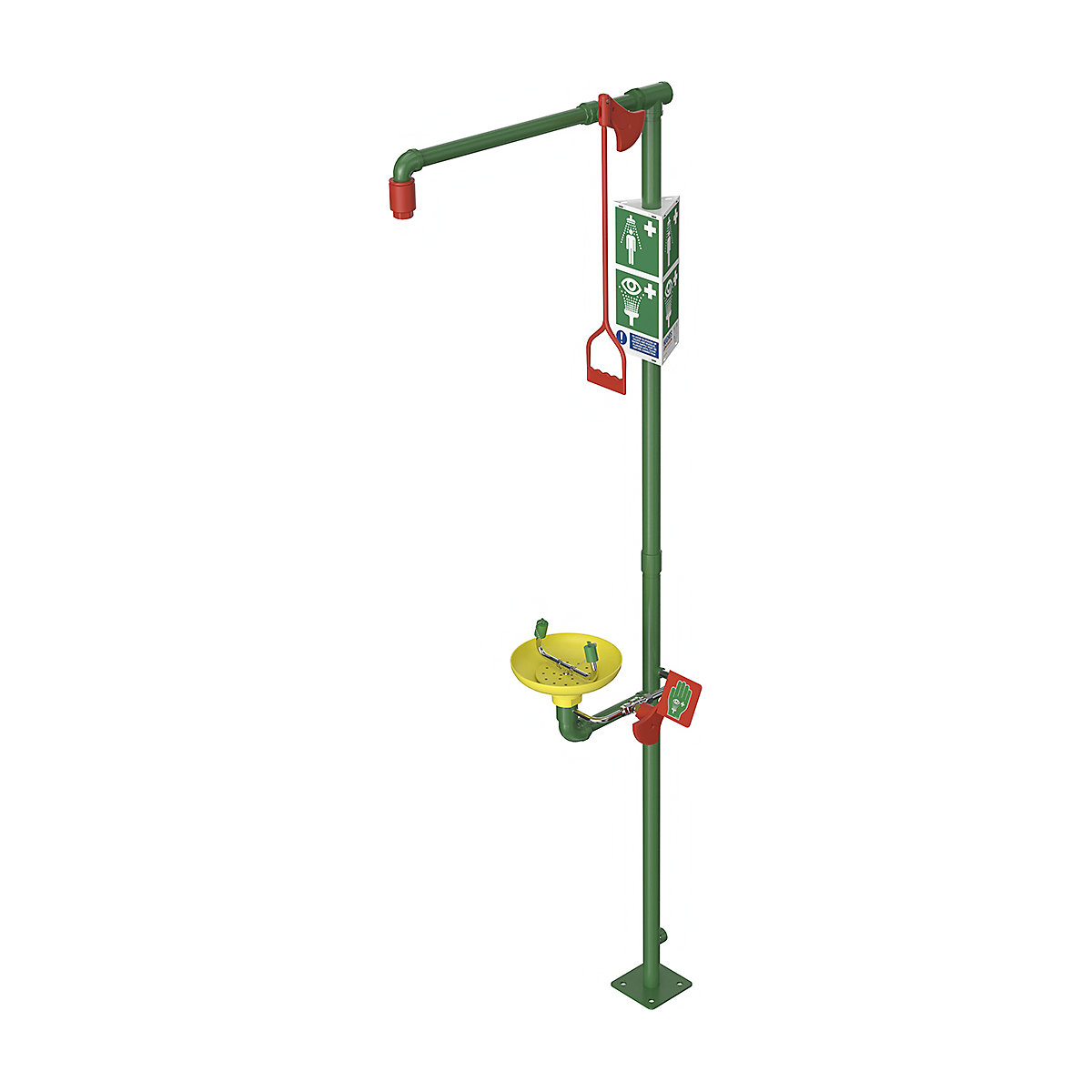

Indoor Unheated Emergency Safety Shower | 2617h x 314w x 751d mm | Stainless Steel Pipework | Open ABS Bowl Combination

Indoor Unheated Emergency Safety Showers
Type
Delivery time: 16-20 Working Days
Product description

Provide fast and effective emergency decontamination with these indoor combination emergency safety showers. Designed for workplaces where there is a risk of hazardous chemical exposure, they combine a full-body drench shower with an eye/face wash in one durable, corrosion-resistant unit. Manufactured to comply with ANSI Z358.1, they provide reliable emergency response when every second counts.

  • Combination emergency shower and eye/face wash for rapid emergency decontamination
  • Suitable for indoor applications where there is no risk of freezing or overheating
  • Durable stainless steel pipework for excellent corrosion resistance
  • Floor-mounted design with top water inlet for straightforward installation
  • High-performance 316 stainless steel stay-open shower valve for reliable operation
  • Corrosion-resistant powder-coated pull handle enables quick shower activation
  • Eye/face wash features aerated diffusers for a gentle, effective cleansing action
  • Delivers a minimum flow rate of 76 L/min for the shower and 11.4 L/min for the eye/face wash
  • Supplied with a universal emergency shower and eyewash sign for enhanced visibility
  • Available with closed ABS, open ABS, or open stainless steel eyewash bowl configurations to suit different workplace requirements

Specifications

Specification JRISSSS JRISSGSF JRISSGS
Net Weight 16kg 16kg 16kg
External Dimensions 2617h x 768w x 504d mm 2617h x 751w x 314d mm 2617h x 751w x 314d mm
Height Without Sign 2344mm 2344mm 2344mm
Water Inlet Size 1-1/4" BSP Female 1-1/4" BSP Female 1-1/4" BSP Female
Operating Pressure 2-6 bar (29-87 PSI) 2-6 bar (29-87 PSI) 2-6 bar (29-87 PSI)
Shower Flow Rate 76 L/min 76 L/min 76 L/min
Eye/Face Wash Flow Rate 11.4 L/min 11.4 L/min 11.4 L/min
Shower Head Material Nylon 6 Nylon 6 Nylon 6
Eye/Face Wash Diffusers Chrome-plated brass with stainless steel mesh Chrome-plated brass with stainless steel mesh Chrome-plated brass with stainless steel mesh
Operating Valve Material 316L Stainless Steel 316L Stainless Steel 316L Stainless Steel
Eye/Face Wash Bowl Material Closed ABS Open ABS Open Stainless Steel
Mounting Type Floor Floor Floor
Pipework Material Stainless Steel Stainless Steel Stainless Steel
Shower Activation Pull Handle Pull Handle Pull Handle
Eye/Face Wash Activation Push Plate Push Plate Push Plate
Eye/Face Wash Bowl Size 260 × 260 mm 248 × 248 mm 260 × 260 mm
Ambient Operating Temperature 5–35°C (41–95°F) 5–35°C (41–95°F) 5–35°C (41–95°F)

Please Note: This product is made to order and therefore cannot be cancelled once ordered. As these items are made specifically to your request, they are also excluded from our returns policy unless damaged or faulty. Please contact our friendly sales team should you need further help or advice before ordering: 0333 200 5299.

‌
‌
‌
‌
‌
