Code: BDGT30

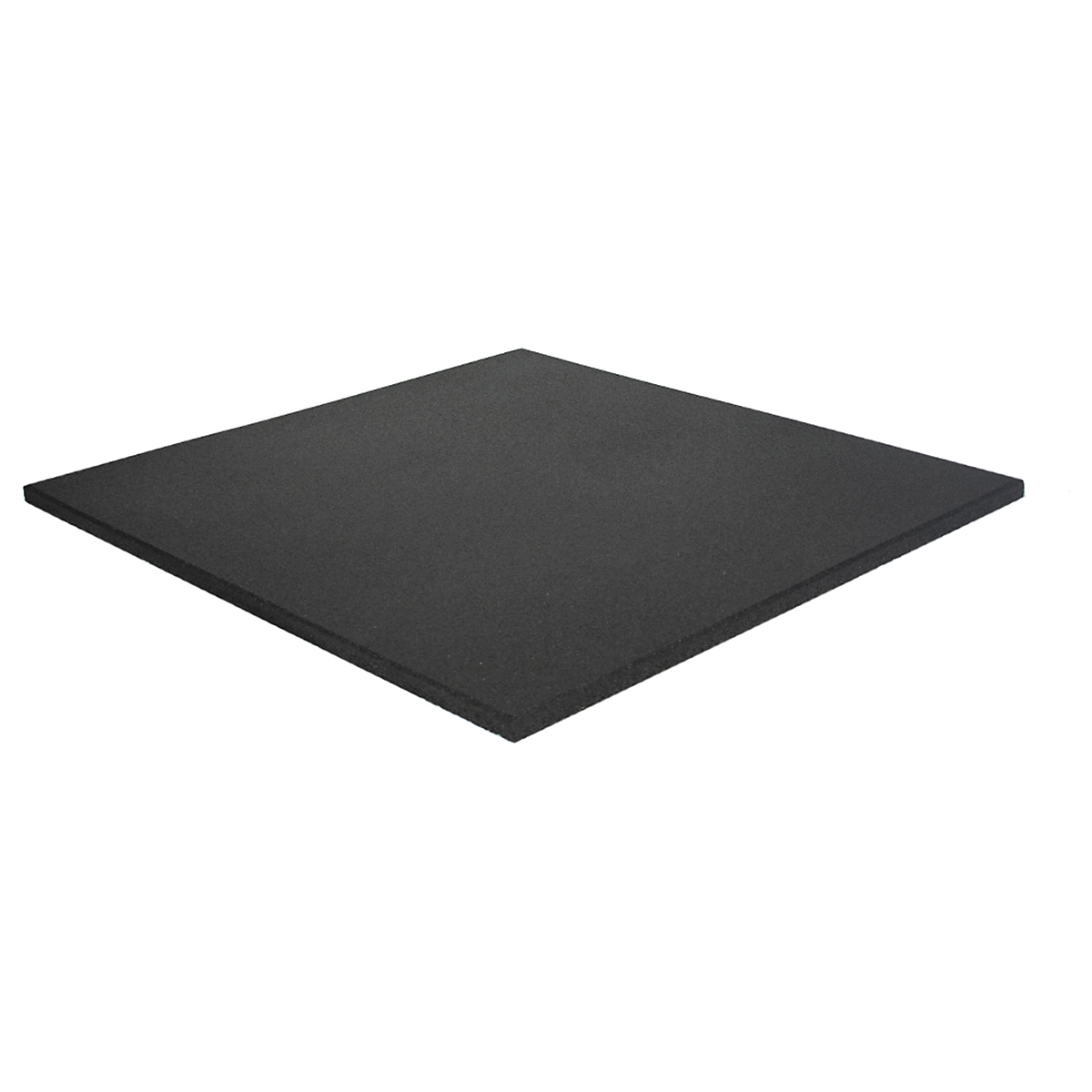

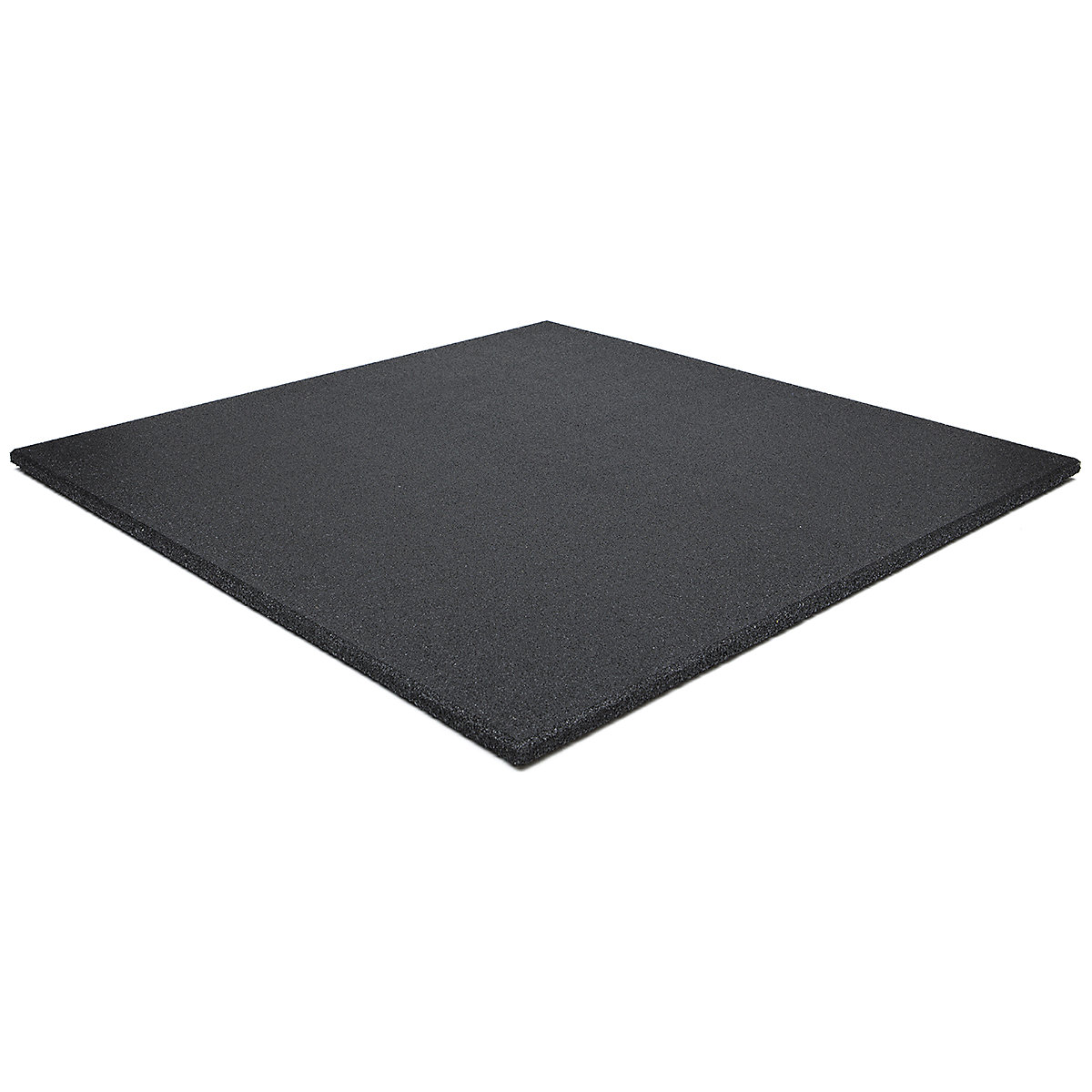

BiGDUG 30mm Rubber Anti Shock Gym Tile | 1000w x 1000d mm | Black

BiGDUG Rubber Anti Shock Gym Tiles
BiGDUG Rubber Anti Shock Gym Tiles, BiGDUG Rubber Anti Shock Gym Tiles, BiGDUG 30mm Rubber Anti Shock Gym Tile | 1000w x 1000d mm | Black-0
BiGDUG Rubber Anti Shock Gym Tiles (Product illustration 2)-1
BiGDUG Rubber Anti Shock Gym Tiles (Product illustration 3)-2
BiGDUG Rubber Anti Shock Gym Tiles (Product illustration 4)-3
BiGDUG Rubber Anti Shock Gym Tiles (Product illustration 5)-4
Height [mm]
Delivery time: 2-3 Working Days
Order until 15:00 for next day delivery
Product description

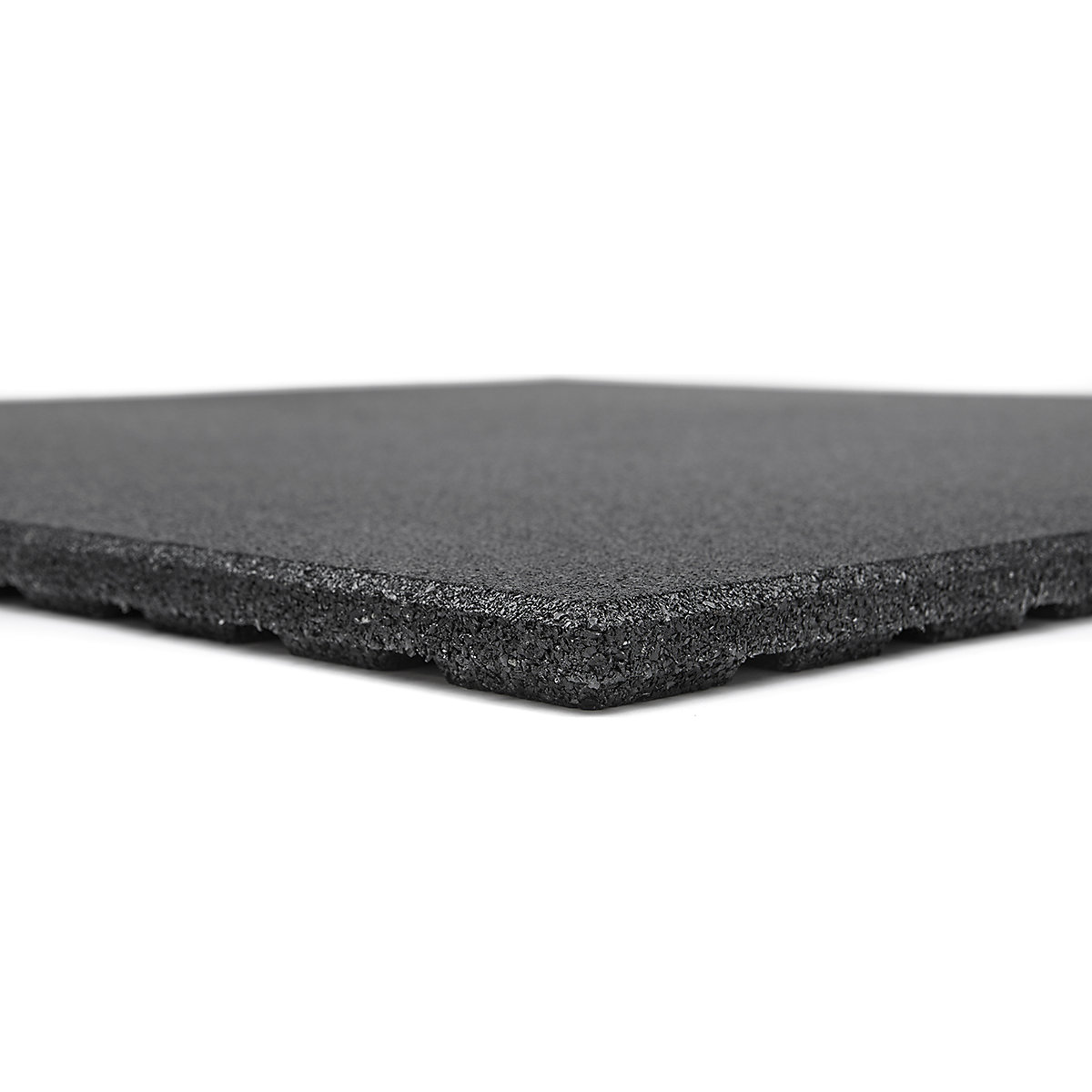

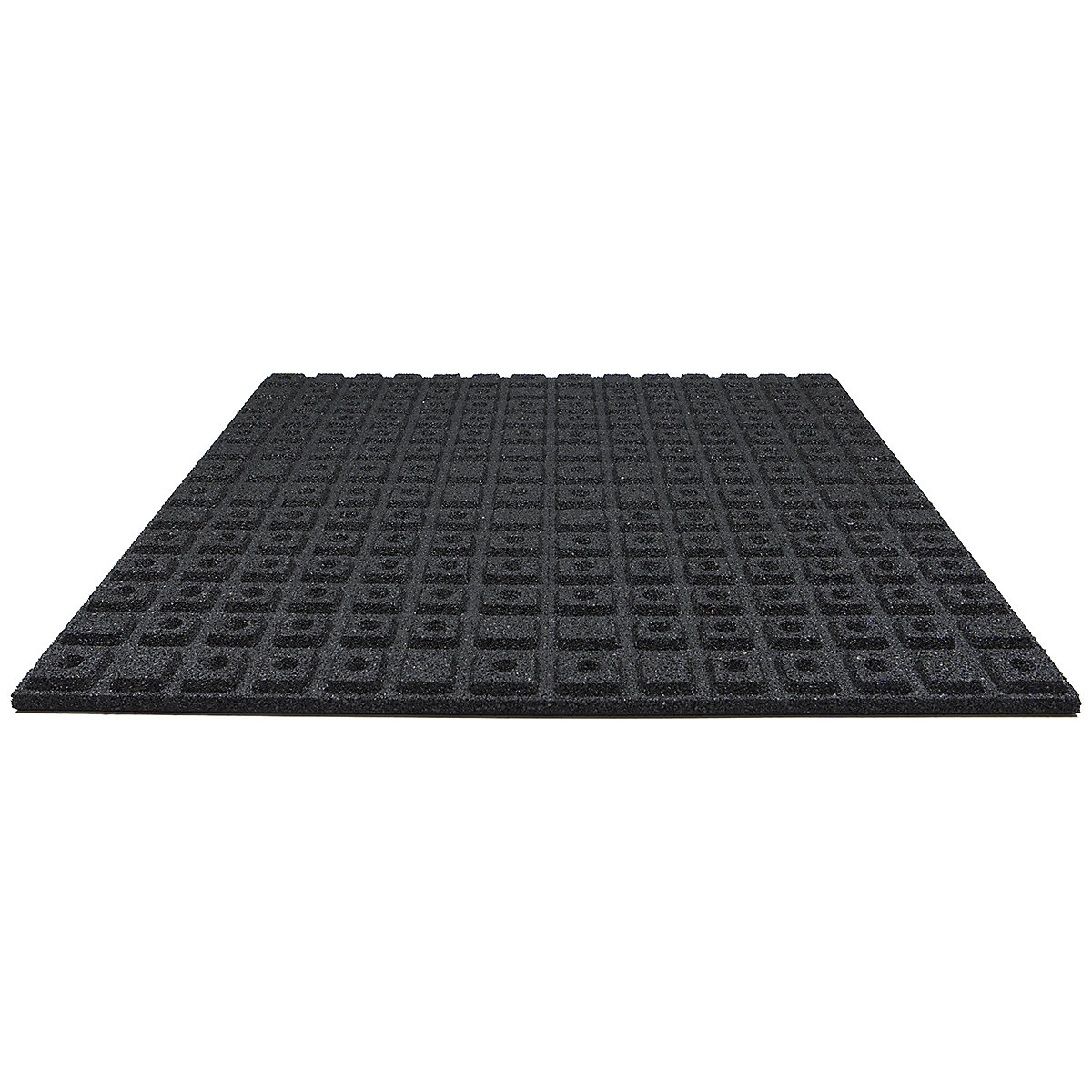

The BiGDUG Rubber Anti Shock Gym Tile is manufactured with a 2-layer system with coarse granules on the bottom and the top 5mm using fine granules. Designed for heavyweight areas in gyms and cross fit centres to provide shock absorption, sound insulation and a non-slip surface

  • Dimensions: 1000mm x 1000mm
  • Ideal for heavy weight areas
  • Nonslip surface
  • Protection of the subfloor
  • Provides sound isolation

The tiles and edges can be loose laid or bonded using suitable adhesive. Using a utility knife or jigsaw, the tiles and edges can be trimmed to size. We advise that the subfloor is dry and flat prior to fitting and that tiles are laid in a half brick pattern.

Suitable for use with under floor heating.

For basic guidelines on cleaning and installation please see the downloadable attachment.

  • TOLERANCES: Length and width ± 1.5%, thickness ± 2 mm
  • SLIP RESISTANCE DRY CONDITIONS: “<105PTV EN 13036-4:2004
  • SLIP RESISTANCE WET CONDITIONS: “<75PTV EN 13036-4:2004
  • ABRASION RESISTANCE, MG: “<560EN ISO 5470-1:2001
  • TENSILE STRENGHT, MPA: >0,65
  • ELONGATION AT BREAK: >40% EN 12230:2005
  • HARDNESS: 55 up to 75 SHORE A ISO 868 PN-93 / C-04206
  • DENSITY: 950 to 1,000kg/m3 EN ISO 845:2010
  • FIRE CLASSIFICATION: EFL s1 (DFL & CFL Available) NOT TESTED

Applications

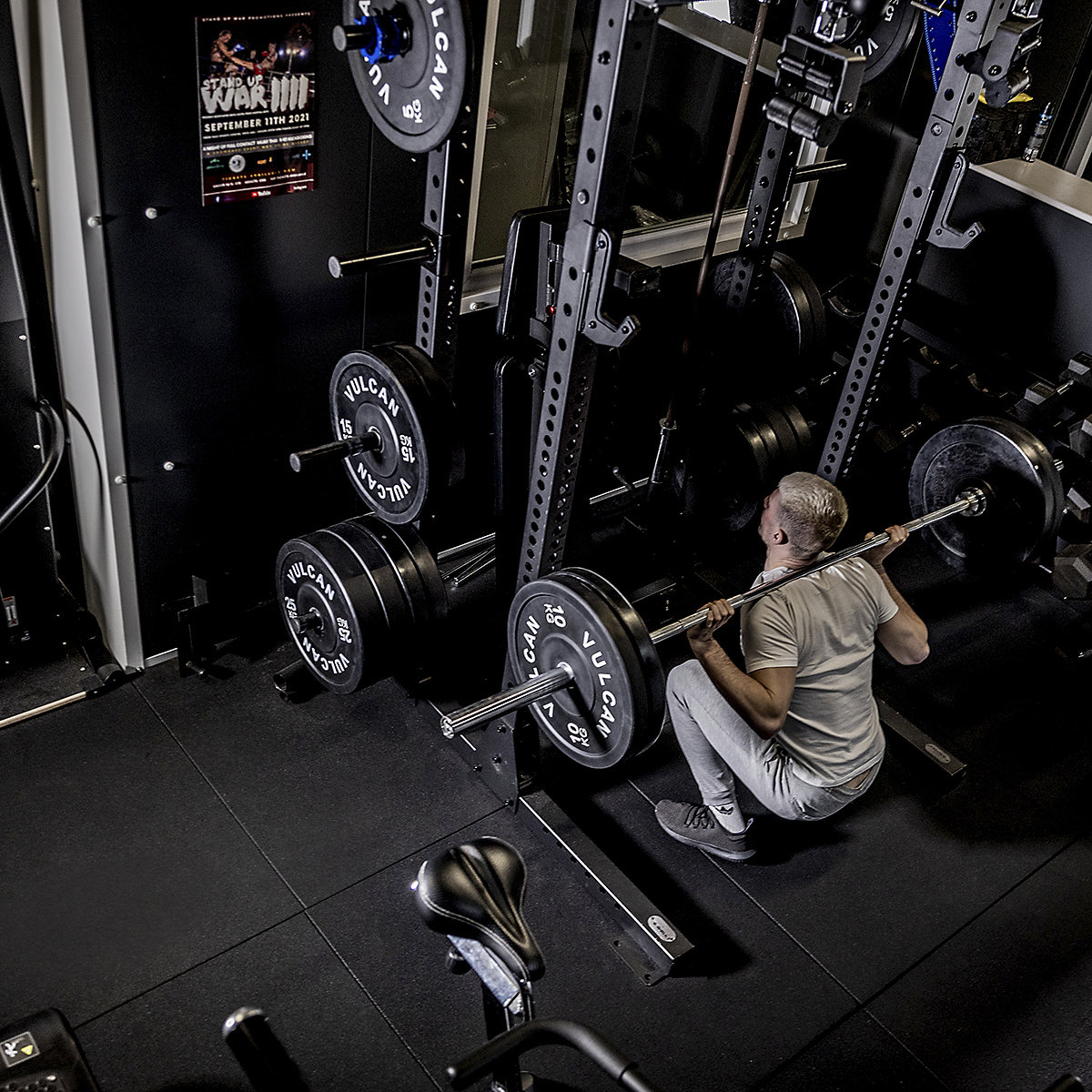

  • 30mm - Heavy weights areas, best protection of subfloor and good sound isolation

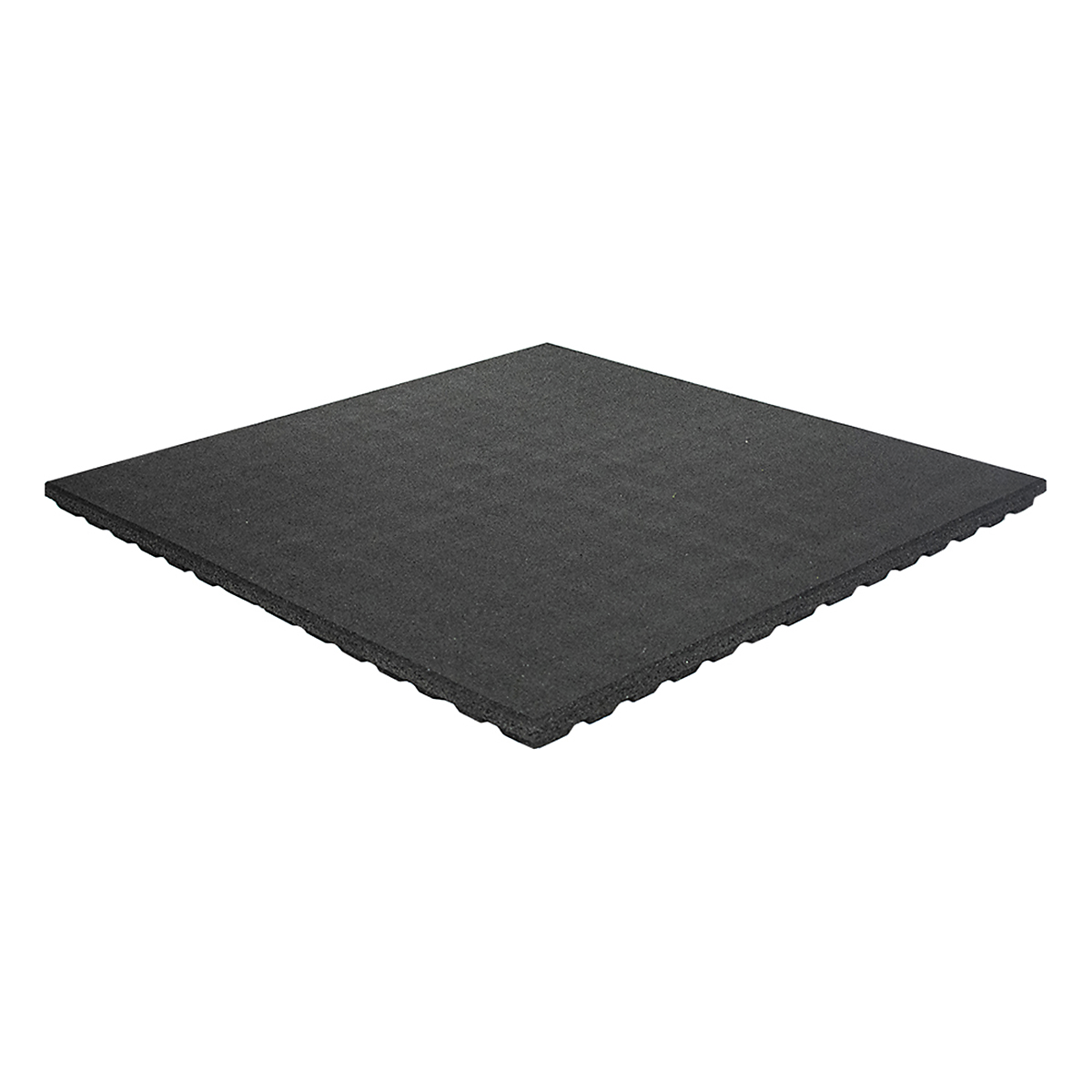

  • 43mm - Heavy weights areas, good protection of the subfloor and the best sound isolation
