Code: ENHYPK9

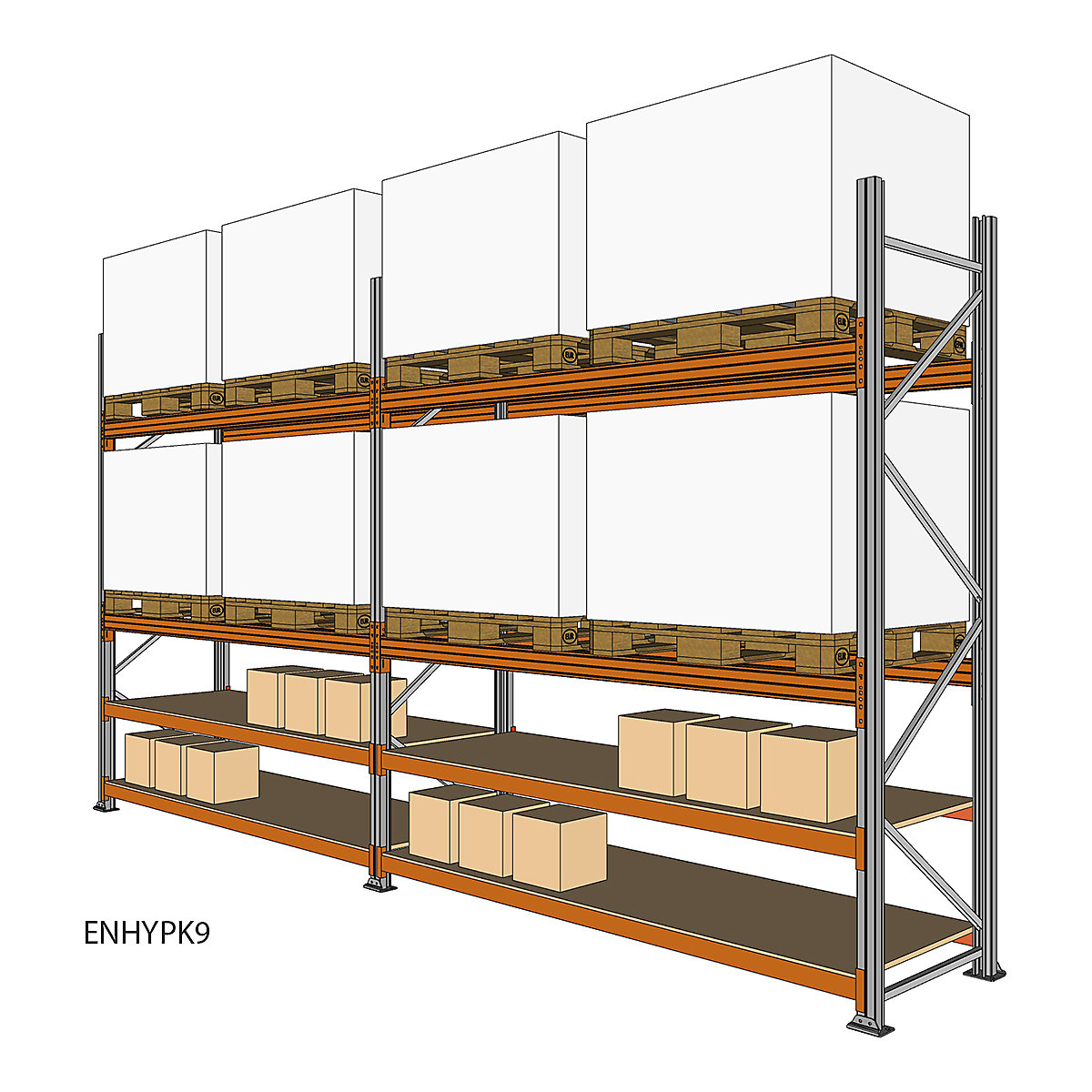

BiGDUG Pallet Racking Hybrid Kit, with 2x 18mm Chipboard Hand-Picking Levels, 3000h x 4065w x 1100d mm (Holds 8 Pallets 1000h x 800w x 1200d mm)

BiGDUG Pallet Racking Kits With Picking Levels
Height [mm]
Width [mm]
Depth [mm]
£1,146.00
£1,019.00
Price From (Excl. VAT)
Free delivery on orders over £1000 ex VAT / £1200 inc VAT
Delivery time: 5-7 Working Days
Product description

Streamline warehouse storage with BiGDUG Pallet Racking Kits with Picking Levels, offering two hand-picking levels for easy access alongside pallet beam levels rated up to 2100kg UDL* per level, built to European FEM standards for safety and reliability.

  • Manufactured from durable European steel, supporting up to 2100kg UDL* per level
  • Choice of three heights (3M, 3.5M, 4.5M) and two depths (900mm, 1100mm) to suit your space
  • Includes two or three chipboard picking levels and pallet beam levels for flexible storage
  • Powder-coated steel beams in a high-visibility orange finish for easy identification
  • Pre-assembled end frames with galvanised cross-bracing for quick, secure installation

Pallet Racking With Shelves For Flexible Warehouse Storage

  • FEM-tested to an independent, industry-recognised standard, ensuring safety and durability
  • Store palletised stock on upper levels and hand-pick items from the lower levels
  • First level positioned at a 1500mm maximum height for safe, comfortable picking
  • Backed by a 5-year manufacturer warranty for genuine long-term peace of mind
  • Adapt with timber or wire mesh decks and racking protectors, available separately

*UDL - Uniformly Distributed Load

Pallet Racking Kits Include:

  • 2x or 3x BiGDUG Hand-loading / Picking Levels - 18mm thick, P2 chipboard decks
  • 2x or 3x BiGDUG Pallet Racking Beam Levels - heavy duty, powder-coated steel beams
  • 3x Pre-assembled, pre-galvanised steel end frames
  • End frames include reinforced horizontal & diagonal galvanised cross bracing
  • BiGDUG steel under-shelf supports for picking levels
  • Footplates with floor bolts & fixings
  • 1.5mm rigid plastic BiGDUG Pallet Racking Safety Load Chart Pallet Racking Levels
  • Supplied with steel levelling plates & floor fixings

Chipboard Picking Levels:

  • Improve picking operations with use of the lower shelves
  • Picking levels are strictly for manual loading & hand-picking only and must not be loaded using a forktruck
  • Load capacity: hold up to 550kg per level UDL* (2700mm wide bays)
  • Supplied with either 2x or 3x 18mm thick, P2 Chipboard shelves
  • High-visibility orange steel beams
  • Beams securely lock into place with safety clips
  • Shelf levels adjust in height every 50mm to fit the items you're storing
  • Steel deck supports enhance the resilience of the shelves, preventing local distortion

Please note: product is not compatible with Mecalux Pallet Racking or accessories.

Safety Information:

Please note: Frames over 2000mm will require a forklift or additional personnel on site to unload. Pallet Racking load capacities given assume a run of at least two bays; having 2 levels per bay, with the first level at a 1500mm maximum height. For other configurations, please contact businessservices@bigdug.co.uk for further advice on maximum load capacities.

Stated beam level and bay weight capacities are dependent upon the exact layout and configuration and this product must never be used in a single bay nor single beam configuration. Please ensure that you download the installation and safety sheet. Should you require further advice on pallet racking, or would like a quotation for Installation, please either e-mail  businessservices@bigdug.co.uk or call 01452 221445.

Made to Order

This product is made to order and therefore cannot be cancelled once ordered. As these items are made specifically to your request, they are also excluded from our returns policy unless damaged or faulty. Please do not hesitate to contact our friendly sales team should you need further help or advice: 0333 200 5299.

Fitting Guide:

Please check our guides for each range when planning your shelving space.

Nominal Shelf Width mm: Clear Entry mm: Initial Bay External mm: Next Bay External mm:
1850* 1840 2105 1960
2225* 2215 2480 2335
2700* 2690 2955 2810
3300* 3290 3555 3410

*4065w kits are made up of 2x 1850w bays, 4815w kits are made up of 2x 2225w bays, 5702w kits are made up of 2x 2700w bays & 6965w kits are made up of 2x 3300w bays

Pitch = 50

Clear height between levels = (No. x pitch) -140 for Pallet Levels / -65 for Picking Levels

All dimensions in Millimetres

Does This Pallet Racking Meet FEM Standards?

Safety and durability are at the core of our pallet racking kits. They're manufactured from galvanised, heavy-duty European steel and certified to FEM standards, ensuring quality and workplace safety. Each level supports up to 2100kg UDL*, with the first beam level positioned at a 1500mm maximum height for accessibility. Backed by a 5-year warranty for long-term peace of mind.

What Size Are the Pallet Racking Kit​s?

The BiGDUG Pallet Racking Kit offers flexibility with its choice of heights (3M, 3.5M, and 4.5M). Each kit includes two or three 18mm P2 chipboard levels, allowing you to configure the setup to suit your specific storage needs. Adapt further with racking accessories like timber decks, wire mesh decks, and racking protectors, available separately.

Where Can You Use BiGDUG Pallet Racking Kits?

Thanks to the flexibility of two hand-picking levels and pallet beam levels, you can efficiently store and access a variety of inventory using both pallet racking and picking shelves. From large pallets to smaller, frequently accessed items within arm's reach, this kit suits warehouses, factories, and commercial spaces alike.
