Code: BLSPB40S

BiGDUG Longspan Shelving Starter Unit | 2000h x 1250w x 900d mm | 2 x 18mm Chipboard Levels With 40 x Correx® Euro Stacking Pick Bins | 341 x 300 x 400mm | 300kg UDL | Double-sided Picking Access

BiGDUG Longspan Shelving With Correx Euro Stacking Pick Bins
Width [mm]
Delivery time: 5-7 Working Days
Product description

BiGDUG’s Longspan Shelving Starter Unit with Correx® Pick Bins offers a robust and versatile storage solution, perfectly combining heavy-duty shelving capacity with efficient organisation. Designed for commercial and industrial use, this shelving unit provides a substantial load capacity of up to 1000kg UDL* per level, while the included stackable, double-sided Correx® bins ensure quick and easy access to accessories, clothing and other lightweight items, optimising picking operations.

Please note: This kit only includes the starter bay. Extension bays are sold separately.

  • Load up to 1000kg per level UDL*
  • 2 x 18mm thick P2 chipboard shelves

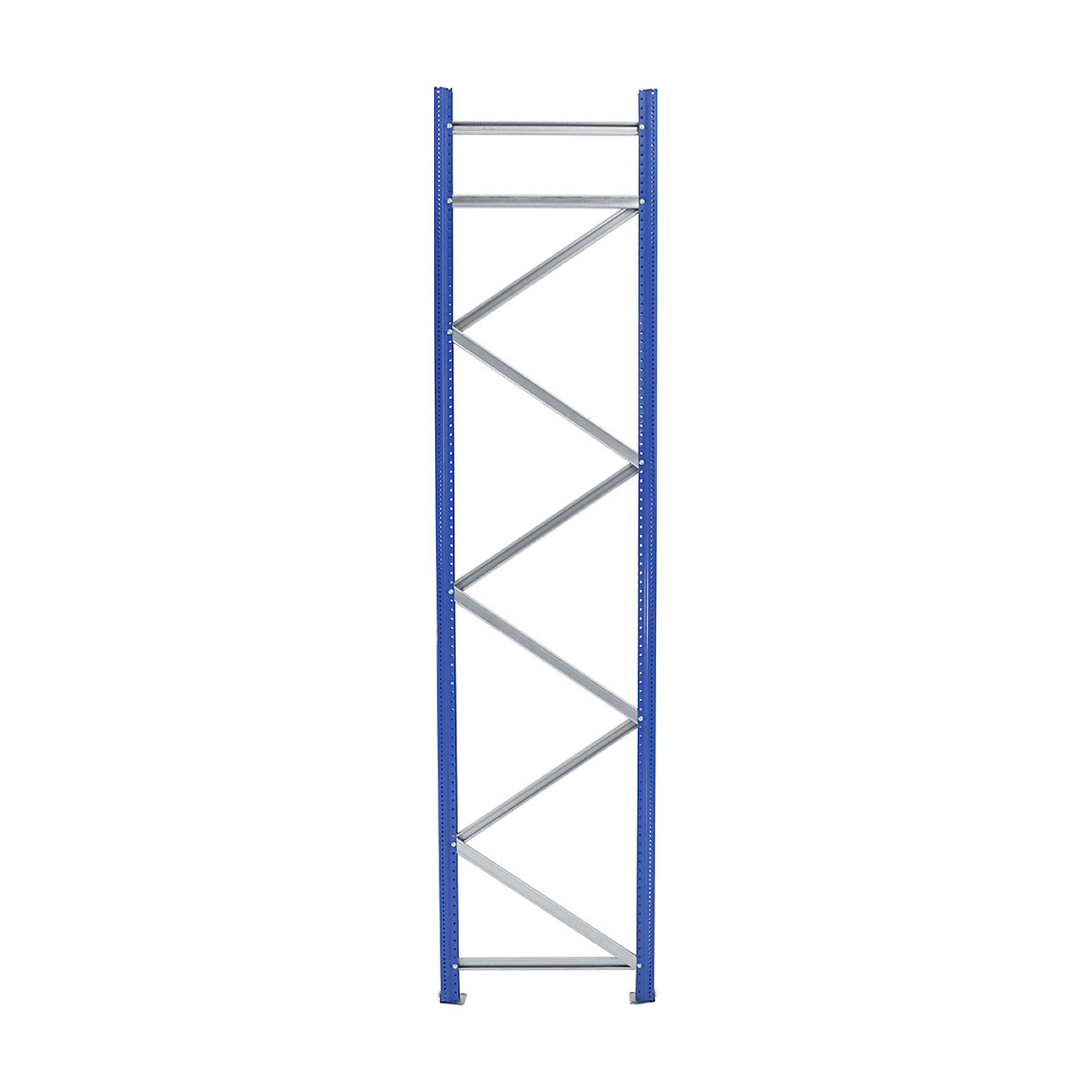

  • Pre-assembled end frames with bracing
  • Strong, twin fluted, corrugated polypropylene pick bins
  • Each level can be adjusted in height every 25mm

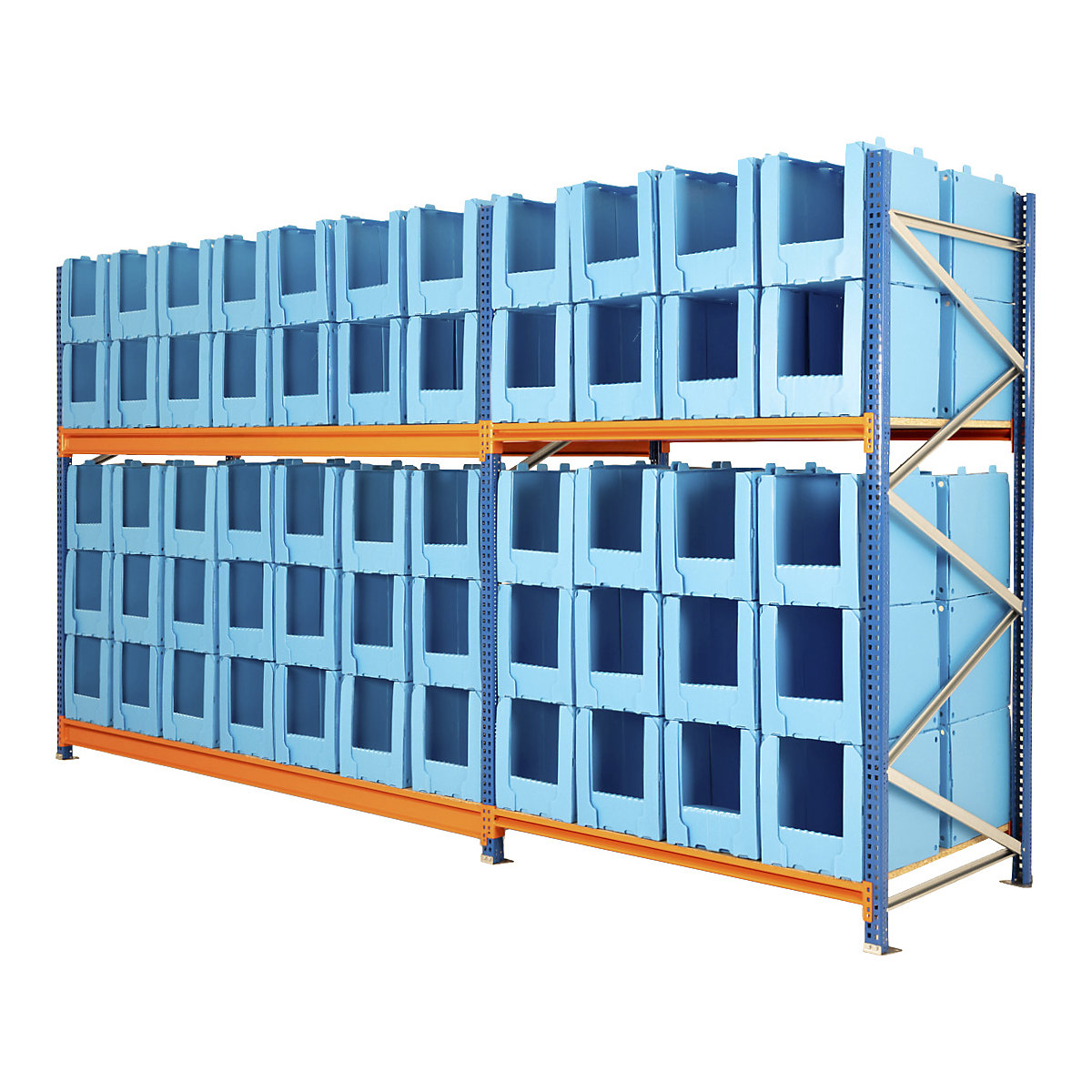

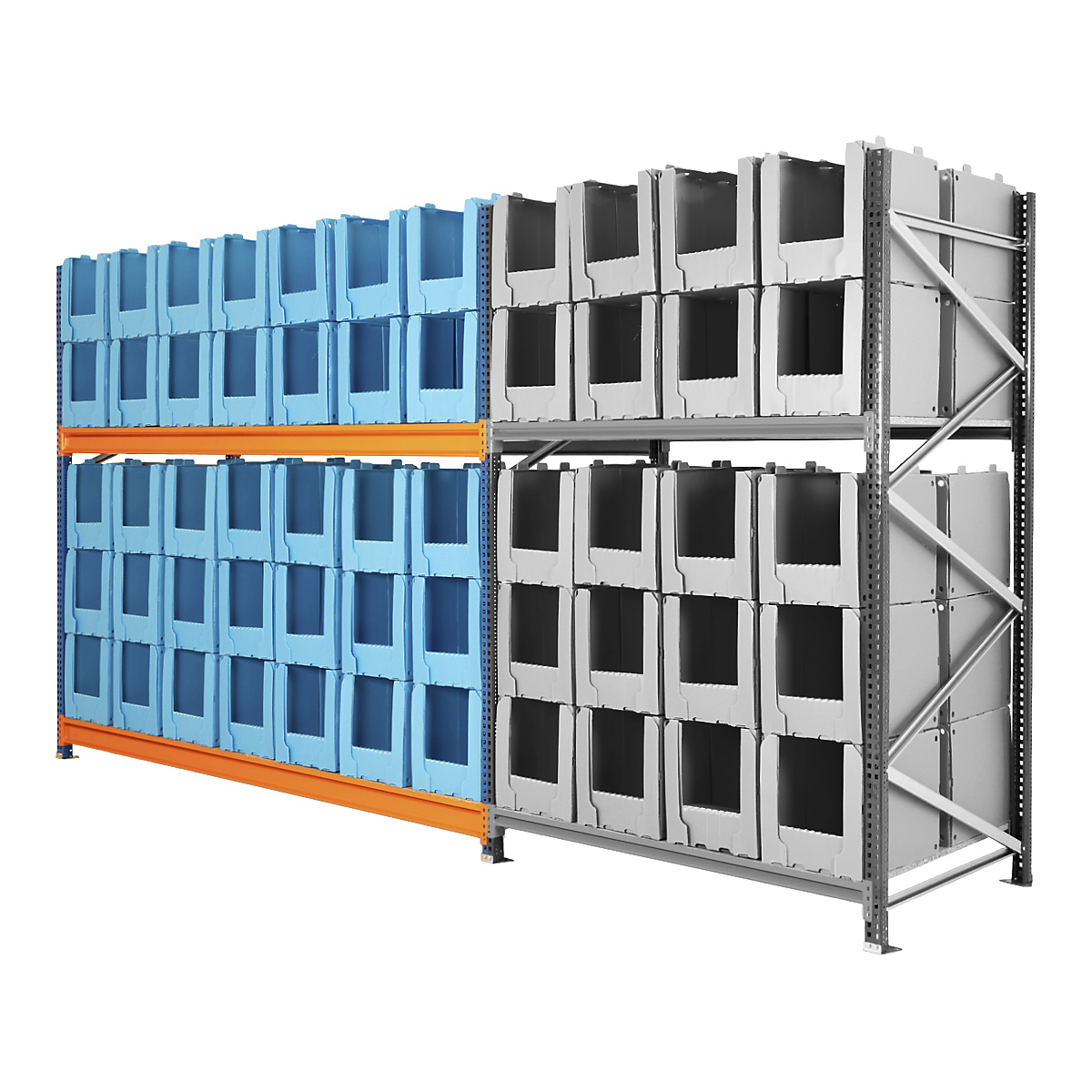

    Longspan Shelving System (Starter Unit) With Bins

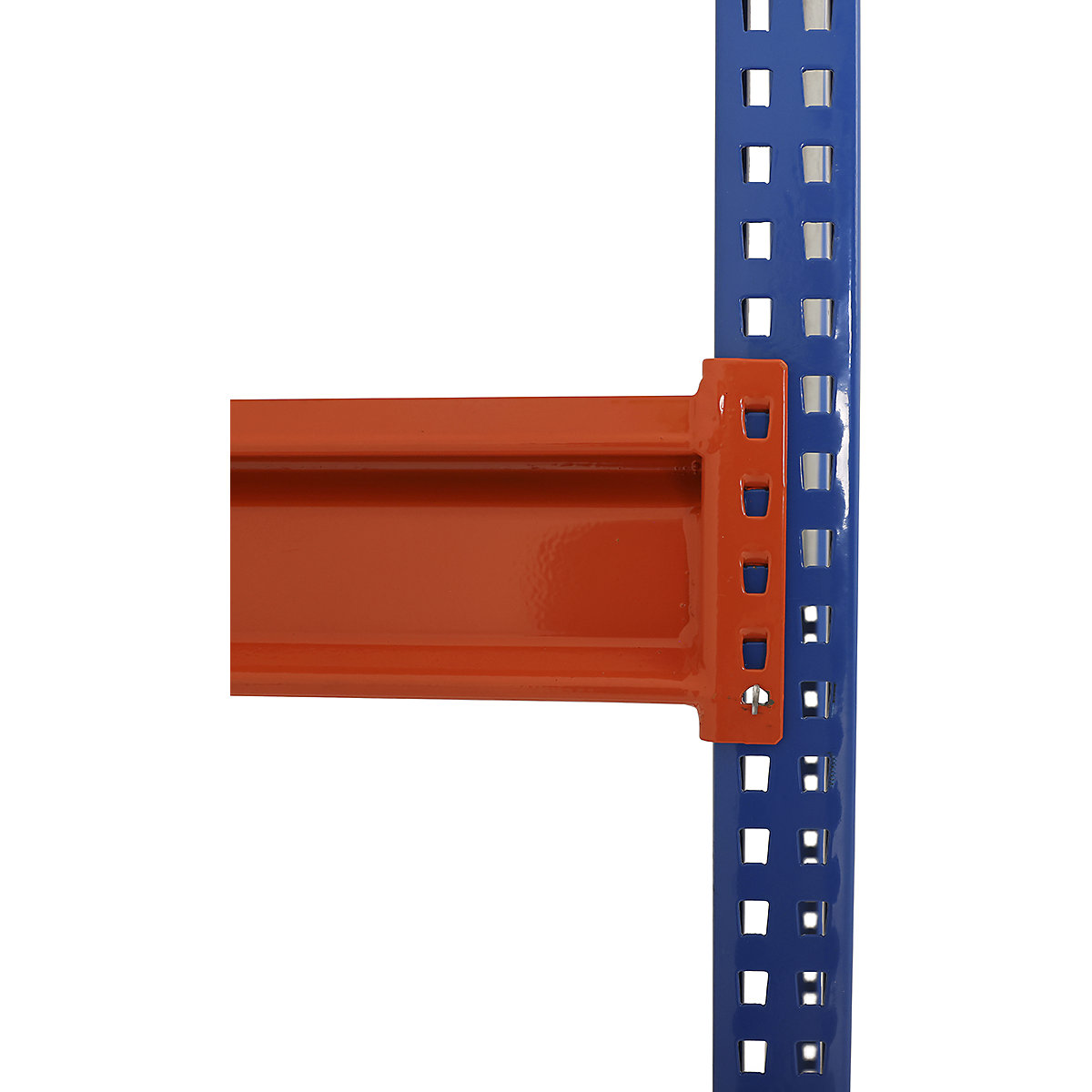

  • Includes safety clips to prevent beams from being dislodged accidentally
  • Suitable for floor-level pallet storage if lower level is raised

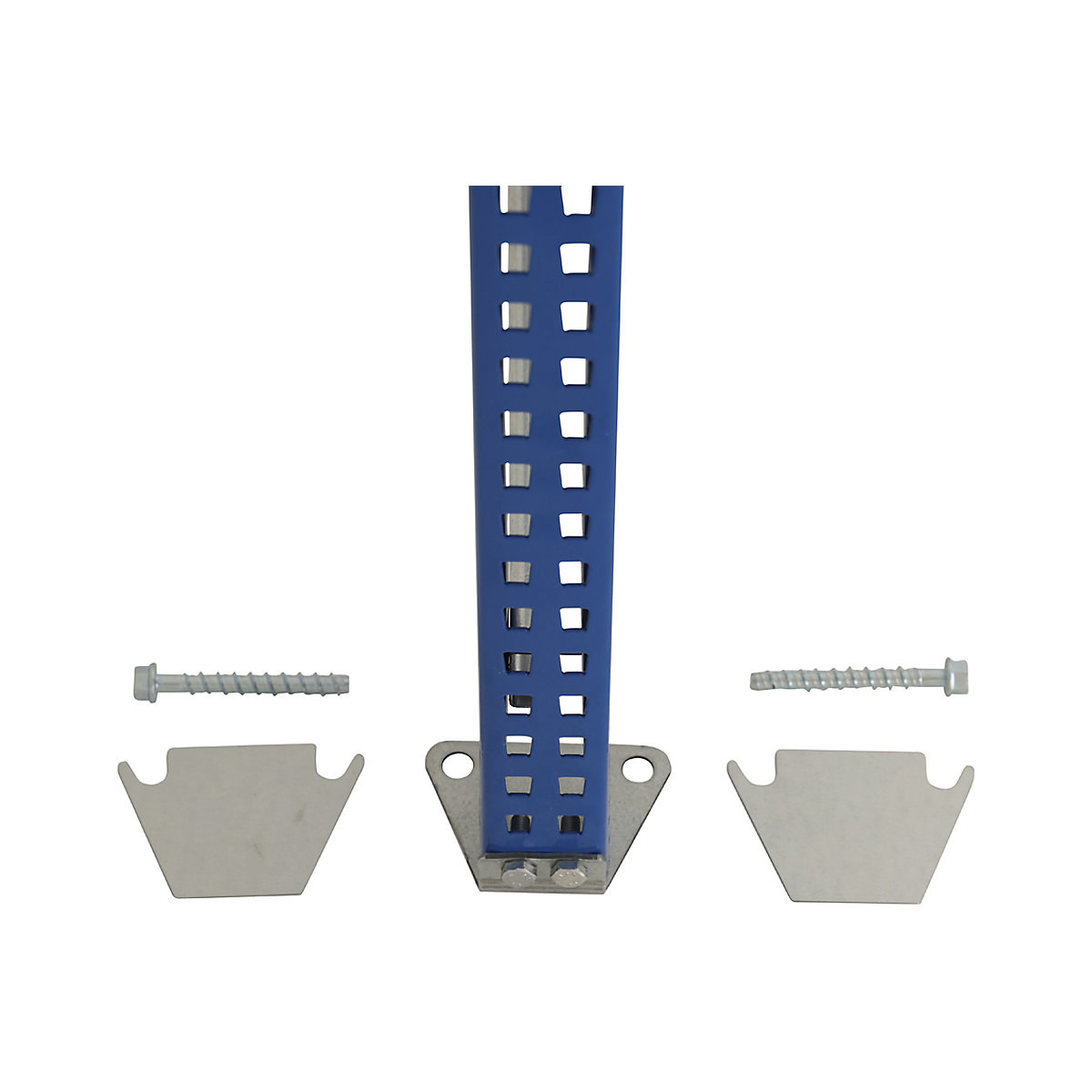

  • Starter Bay includes: 2x end frames with bracing, support beams (2 per 1250w level, 3 per level for 2315 or 2500w), beam safety clip (2 per beam), 2x chipboard shelves, 8x levelling plates, floor fixings and Correx® Pick Bins
  • Extension Bay includes: 1x end frame with bracing, support beams (2 per 1250w level, 3 per level for 2315 or 2500w), beam safety clip (2 per beam), 2x chipboard shelves, 4x levelling plates, floor fixings and Correx® Pick Bins

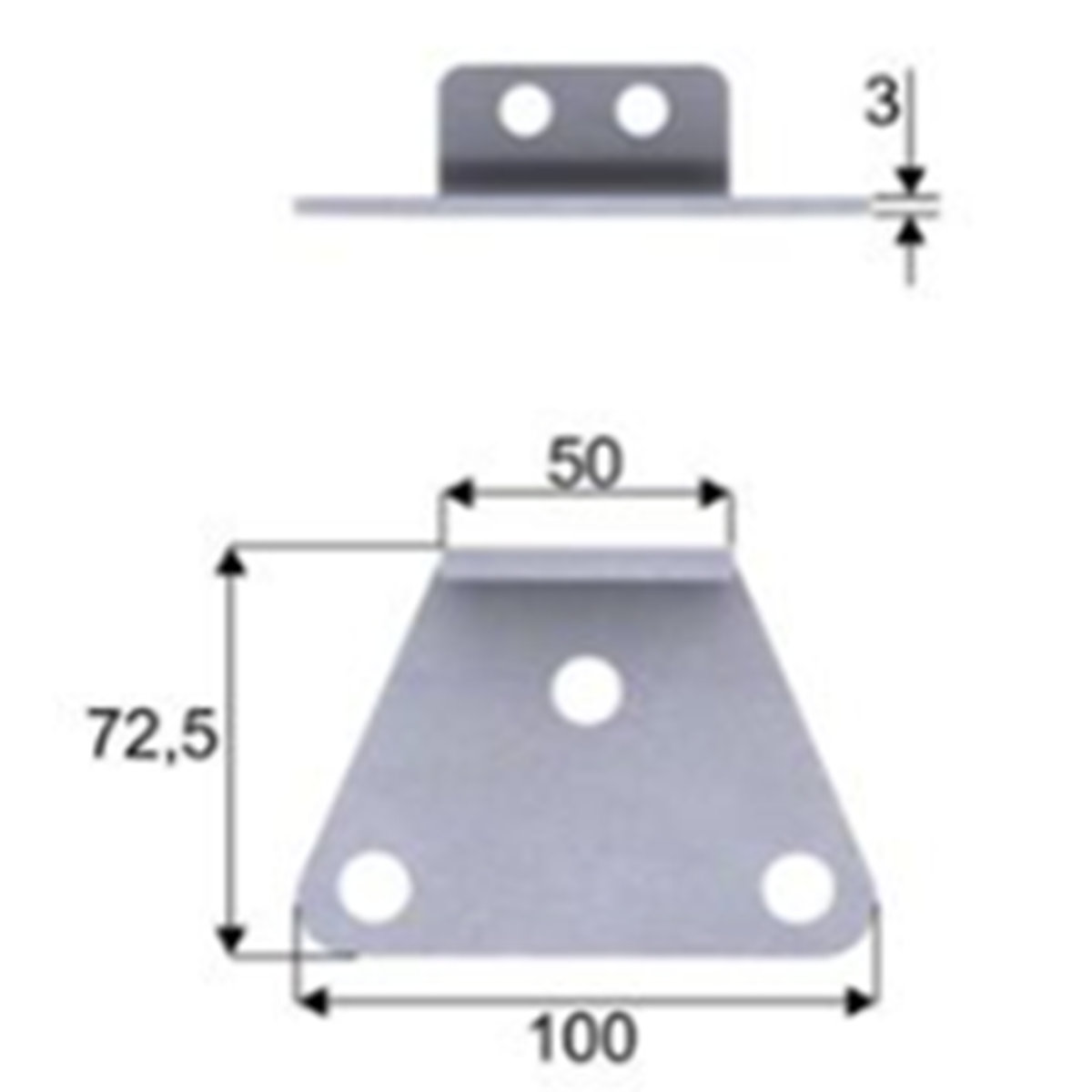

  • Footplate dimensions: 100mm x 72.5mm

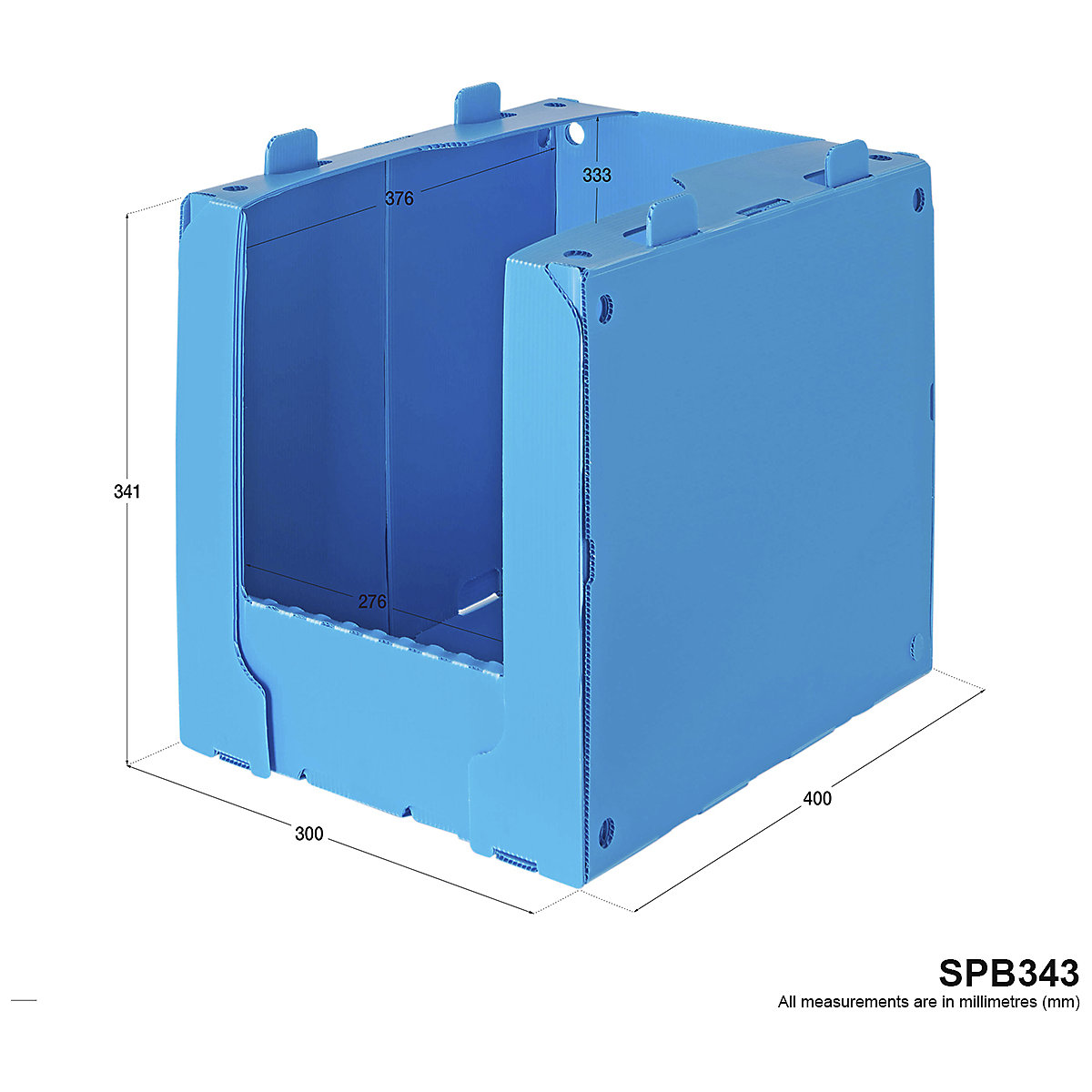

    • Correx® Euro Stacking Pick Bins

    • Correx® Pick Bins are manufactured from twin-fluted, recyclable polypropylene-based plastic sheets
    • Bins are supplied in multiple packs of 10
    • Stackable, freestanding design available in blue
    • Wide front opening to maximise picking access
    • Wipe-clean, moisture resistant surface
    • Self-locking tabs
    • Integrated holes allow bins to be cable tied together for extra stability
    • Each pick bin carries up to 15kg UDL*

    *UDL = Uniformly Distributed Load

    Please note:

    This product is not compatible with Mecalux Longspan Shelving or accessories.

    Please note: frames over 2000mm will require a forklift or additional personnel on site to unload.

    Please note: that image shown may not match the width / number of bins you have selected.

    Code Bay Type External Shelving Dimensions - H x W x D (mm) No. of Correx® Bins per bay No. of Correx® Bins supplied Pick Access From Both Sides?
    BLSPB40S Starter 2000 x 1250 x 900 40 40 Yes
    BLSPB70S Starter 2000 x 2315 x 900 70 70 Yes
    BLSPB80S Starter 2000 x 2500 x 900 80 80 Yes
    BLSPB40E Extension 2000 x 1250 x 900 40 40 Yes
    BLSPB70E Extension 2000 x 2315 x 900 70 70 Yes
    BLSPB80E Extension 2000 x 2500 x 900 80 80 Yes

    What Can Be Stored In Euro Stacking Pick Bins?

    The Correx® Euro stacking pick bins are ideal for storing smaller, loose items that require frequent and easy access, such as hardware, accessories, clothing, fixings, and lightweight products. Their 15kg UDL* capacity and wide front opening make them perfect for optimising organisation and efficiency in picking operations within warehouses, retail backrooms, and workshops.

    What’s The Benefit Of Double-Sided Picking Access?

    Double-sided picking access can significantly enhance efficiency and workflow, particularly in high-volume picking operations. By allowing staff to access the pick bins from either side of the shelving bay, it enables multiple workers to pick items simultaneously without obstruction. This reduces congestion in aisles and saves valuable time, making it an excellent solution for busy commercial and warehouse environments.

    How Secure Is This Longspan Shelving Kit?

    The BiGDUG Longspan Shelving kit provides highly secure and durable storage. It features safety clips that prevent the support beams from being accidentally dislodged and a robust construction that allows for a substantial load capacity of up to 1000kg UDL* per level, ensuring stability. Additionally, the kit includes floor fixings and levelling plates to ensure the end frames are firmly secured and stable on the floor.
