Code: ENLSRS100FX

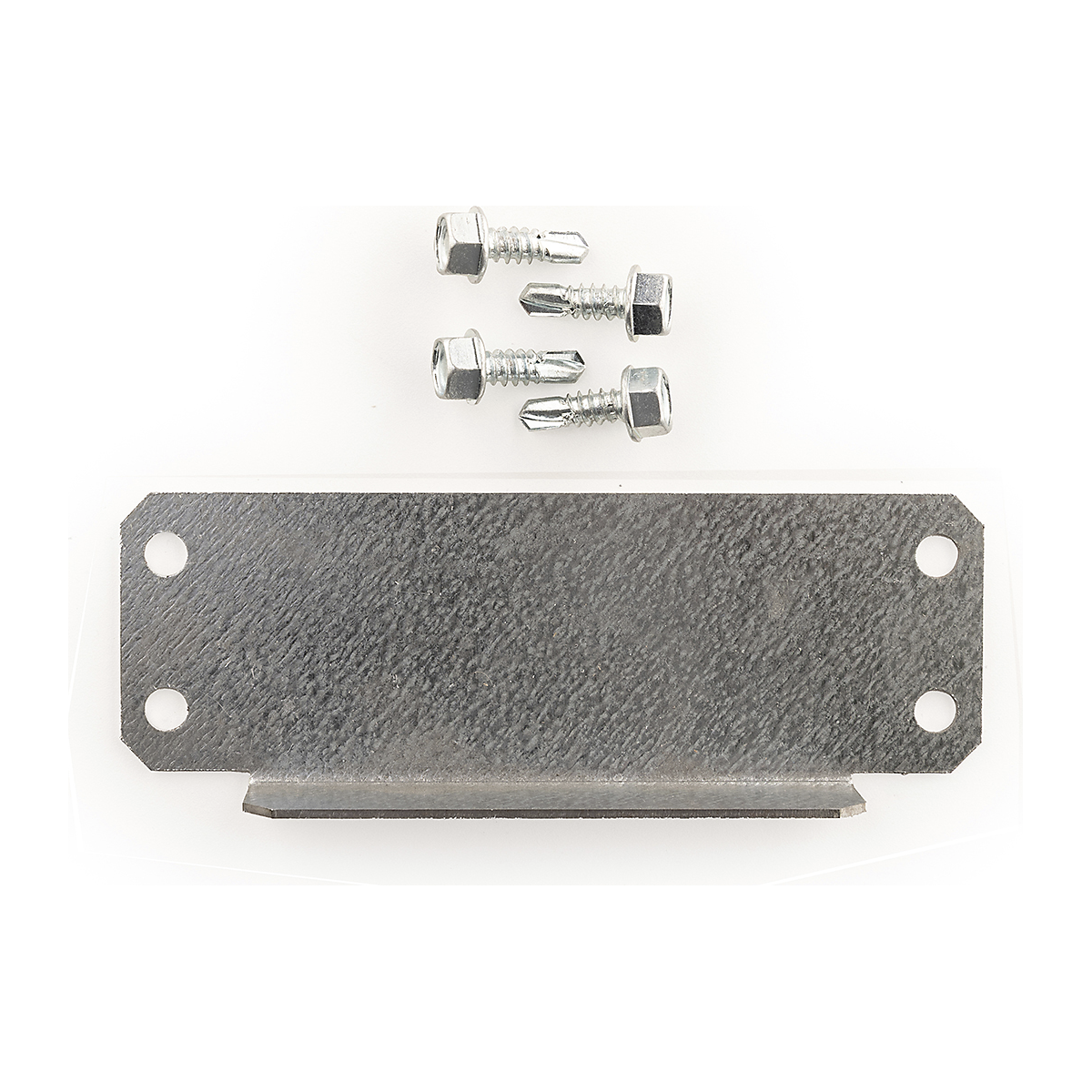

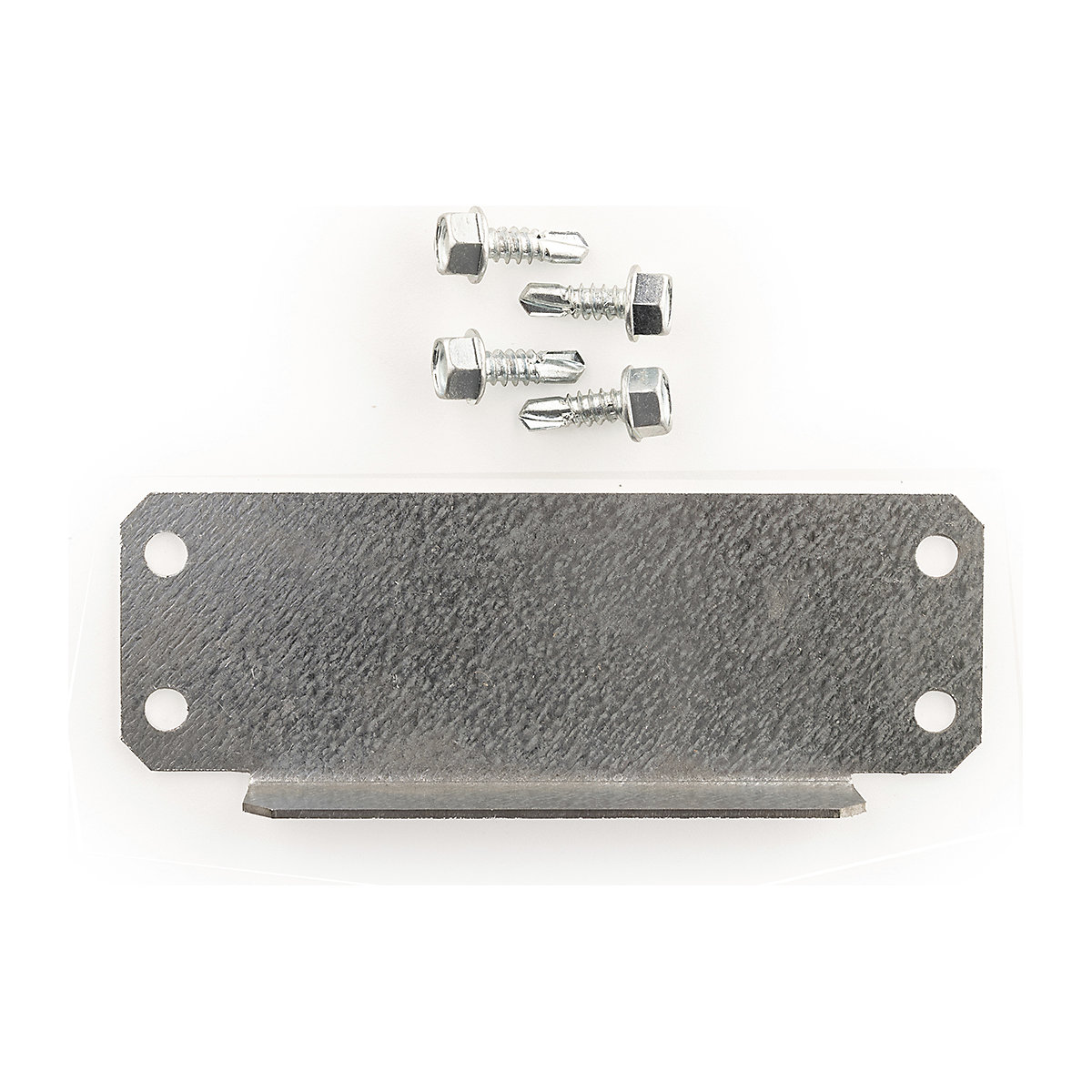

BiGDUG Longspan Row Spacer 100mm Galvanised with Fixings

(5)
BiGDUG Longspan Shelving System
Type
Height [mm]
Width [mm]
Depth [mm]
Optional Extras
Delivery time: 2-3 Working Days
Order until 15:00 for next day delivery
Product description

Build your ideal storage solution with the BiGDUG Longspan Shelving System. Designed for warehouses, factories, and commercial spaces, it supports up to 4000kg UDL* per frame. Featuring adjustable shelves, pre-assembled steel frames, and modular expansions, it's ideal for storing bulky stock, equipment, and heavy materials. Create single bays or continuous runs to suit your space.

  • Load capacity: 4000kg UDL* per frame (1100kg UDL* capable per level)
  • Pre-assembled end frames with blue powder-coated finish and galvanised cross-bracing
  • Choice of 18mm chipboard levels, wire mesh decks or galvanized panel levels
  • Each level can be adjusted in height every 25mm
  • Create a single bay or continuous runs up to 2675mm per bay

If you're planning a large project and need some personal assistance, we can call to your site for a visit to assess your requirements. For anything else, please contact us on 0333 200 5299.

Modular Longspan Shelving

  • First level at a 500mm maximum height
  • Suitable for storing pallets on the floor under the lowest shelf only
  • Wire mesh decks are suitable for damp environments and sprinkler systems
  • Corrosion-resistant steel panel levels are ideal for storing oily or greasy products
  • Splice Kits available, please contact us for more information

*UDL = Uniformly Distributed Load

Please note:

  • This product is component-form based, and you must select frames, beams and levels individually to form a bay.
  • This product is not compatible with Mecalux Longspan Shelving or accessories.
  • Frames over 2000mm will require a forklift or additional personnel on site to unload.

Shelving Specifications

Data Field 1250mm Width 1785mm Width 2140mm Width 2315mm Width 2500mm Width 2675mm Width
Upright Type One Piece One Piece One Piece One Piece One Piece One Piece
Upright Steel Thickness 1.5mm 1.5mm 1.5mm 1.5mm 1.5mm 1.5mm
Beam Steel Thickness 1.5mm 2mm 2mm 2mm 2mm 2mm
Shelf Adjustment Increments 25mm 25mm 25mm 25mm 25mm 25mm
Chipboard Thickness 18mm 18mm 18mm 18mm 18mm 18mm
Steel Shelf Panel Thickness 1mm 1mm 1mm 1mm 1mm 1mm
Total Bay Capcacity 600mm & 900mm deep 4000kg 4000kg 4000kg 4000kg 4000kg 4000kg
Clear Width 1250mm 1785mm 2140mm 2315mm 2500mm 2675mm
Extra Levels Available Y Y Y Y Y Y

* Maximum frame capacity 4000kg UDL when distance between levels is 500mm

Fitting Guide

Please check our guides for each range when planning your shelving space.

Widths mm: Initial Bay External Width mm: Next Bay External Width mm:
1250mm 1407 1307
1785mm 1942 1842
2140mm 2297 2197
2315mm 2472 2372
2500mm 2657 2557
2675mm 2832 2732

What’s The Benefit Of BiGDUG’s Modular Longspan Shelving?

Modular shelving offers great flexibility, allowing you to build and expand bays to precise requirements for optimising storage space. This modular longspan shelving system’s high load capacity (4000kg UDL* per frame) makes it reliable for heavy, bulky items in industrial settings, while the choice of decking materials (chipboard, mesh, or galvanised steel) provides suitability for various environments and storage needs. The system's component form also ensures easy replacement of parts and simple customisation.

Where Can Industrial Longspan Shelving​ Be Used?

BiGDUG’s industrial longspan shelving system is versatile and robust, making it suitable for a wide range of commercial and industrial environments. Common applications include use in warehouses, factories, manufacturing plants, distribution centres, commercial workshops, and large retail stockrooms. It is ideal for storing heavy, bulky, or odd-shaped items that require secure, high-capacity, and easily accessible storage.

What’s The Difference Between Chipboard, Mesh, And Galvanised Levels?

Chipboard levels are the standard and most economical option for general storage in dry environments. Wire mesh decks are beneficial in damp areas or where fire safety requires sprinkler penetration and airflow. Galvanised steel panels offer superior resistance to corrosion, making them the best choice for storing items that may be oily, greasy, or require frequent cleaning.
