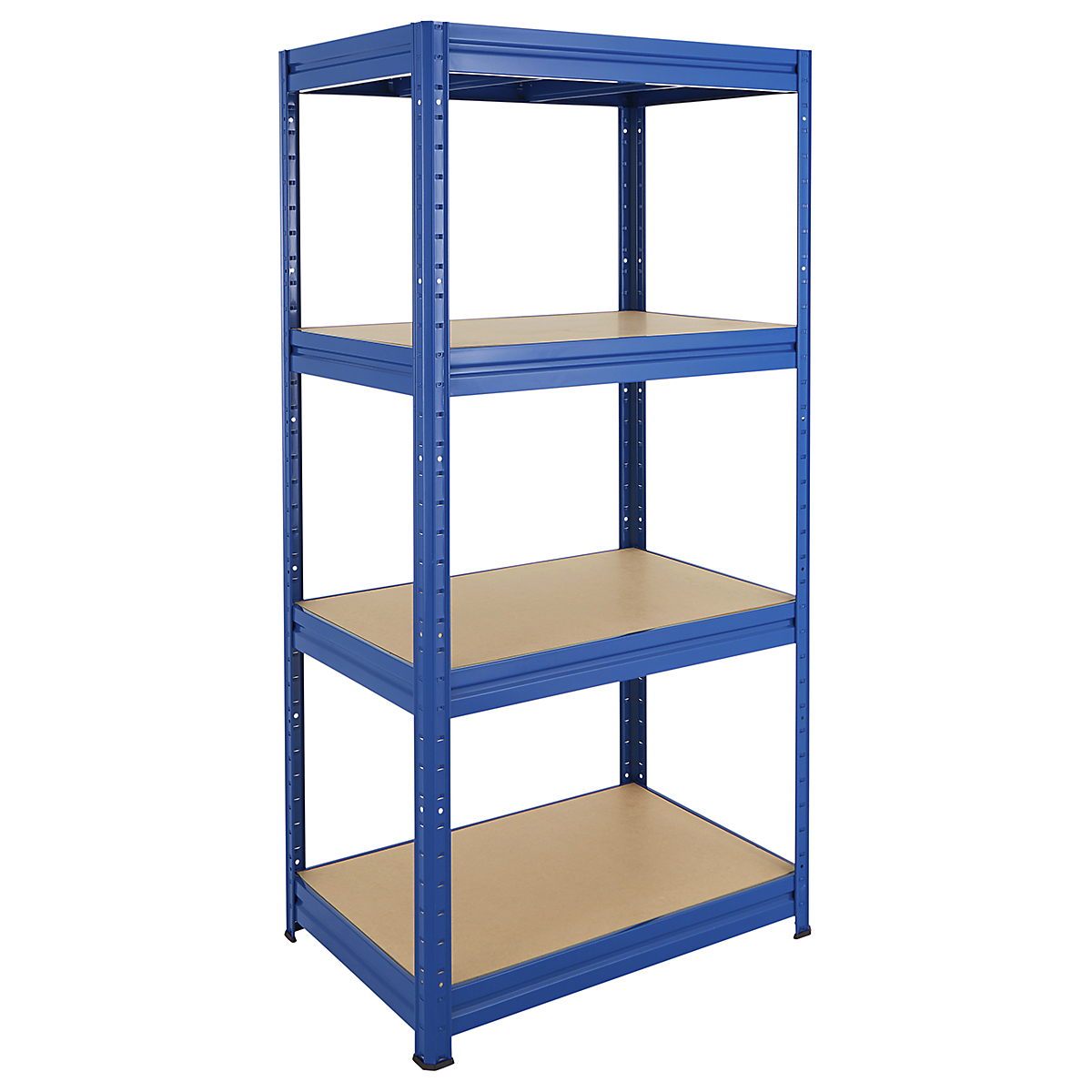

BiGDUG Garage Heavy Duty Shelving | 1770h x 900w x 450d mm | Blue | 4 Levels | 600kg UDL
BiGDUG Garage Heavy Duty Shelving | 1770h x 900w x 450d mm | Blue | 4 Levels | 600kg UDL
- Next day delivery available, in stock products only
- Find a lower price & we'll match it
- Large Project? Call for site visit & quote
Friday 8am - 4:30pm
Excluding Bank Holidays

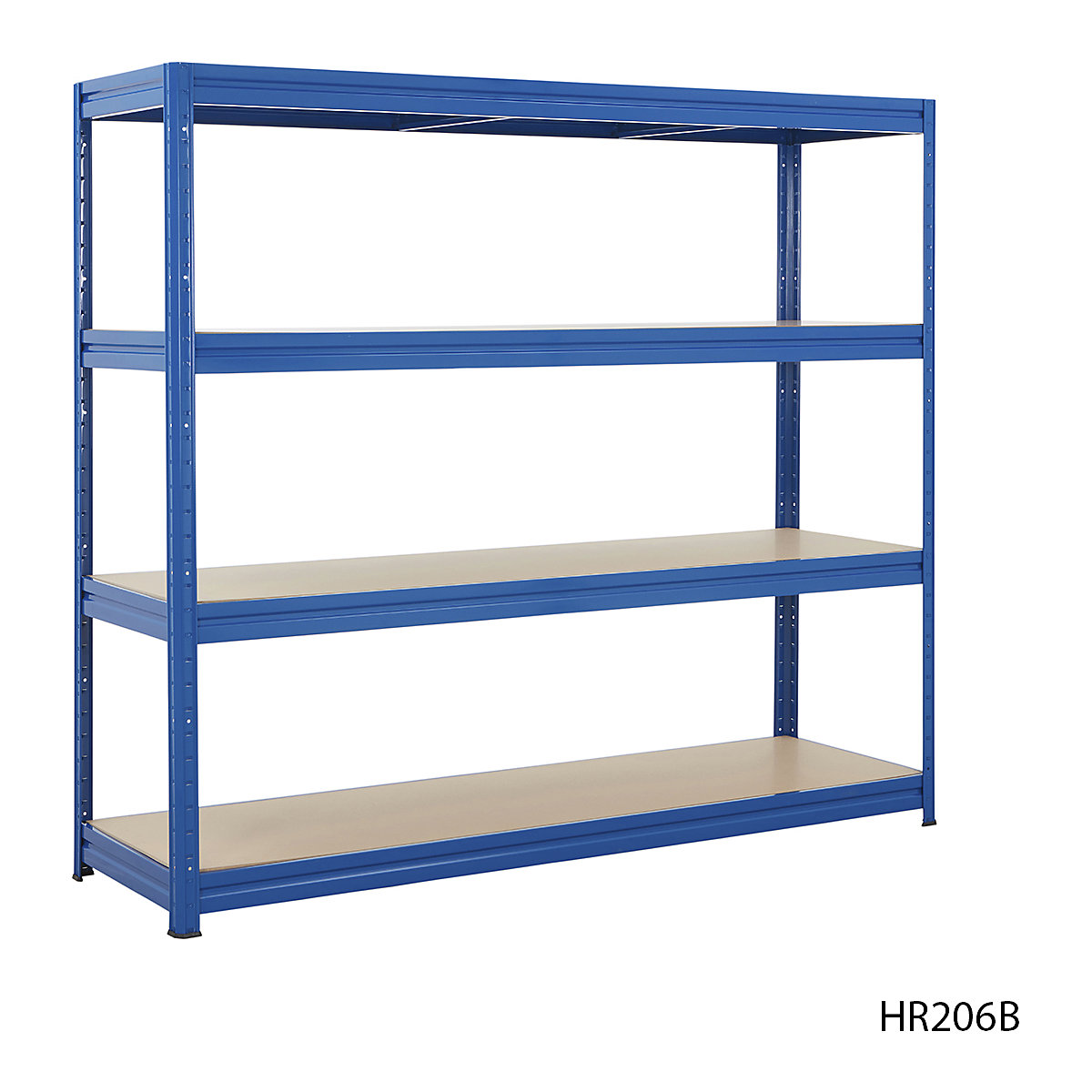

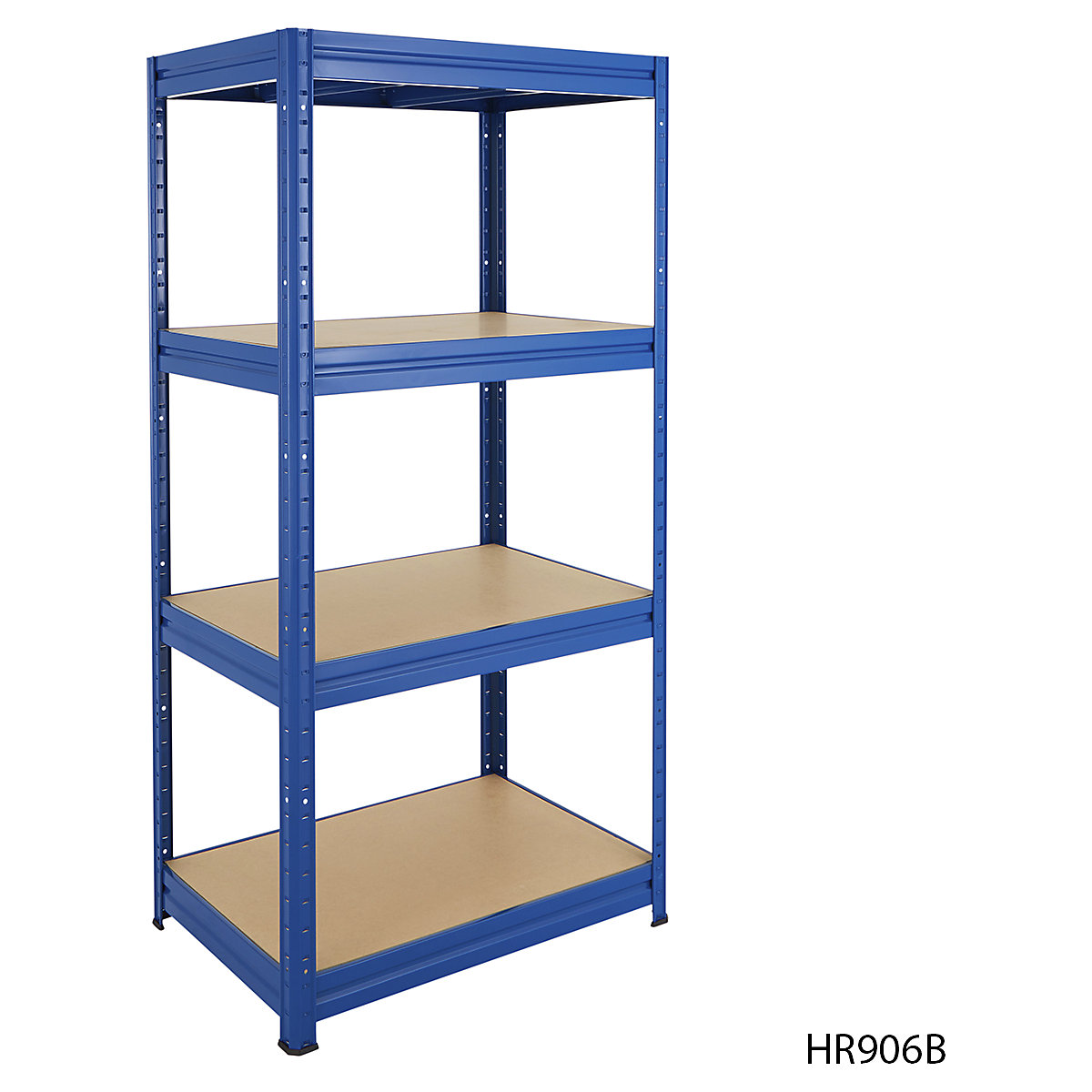

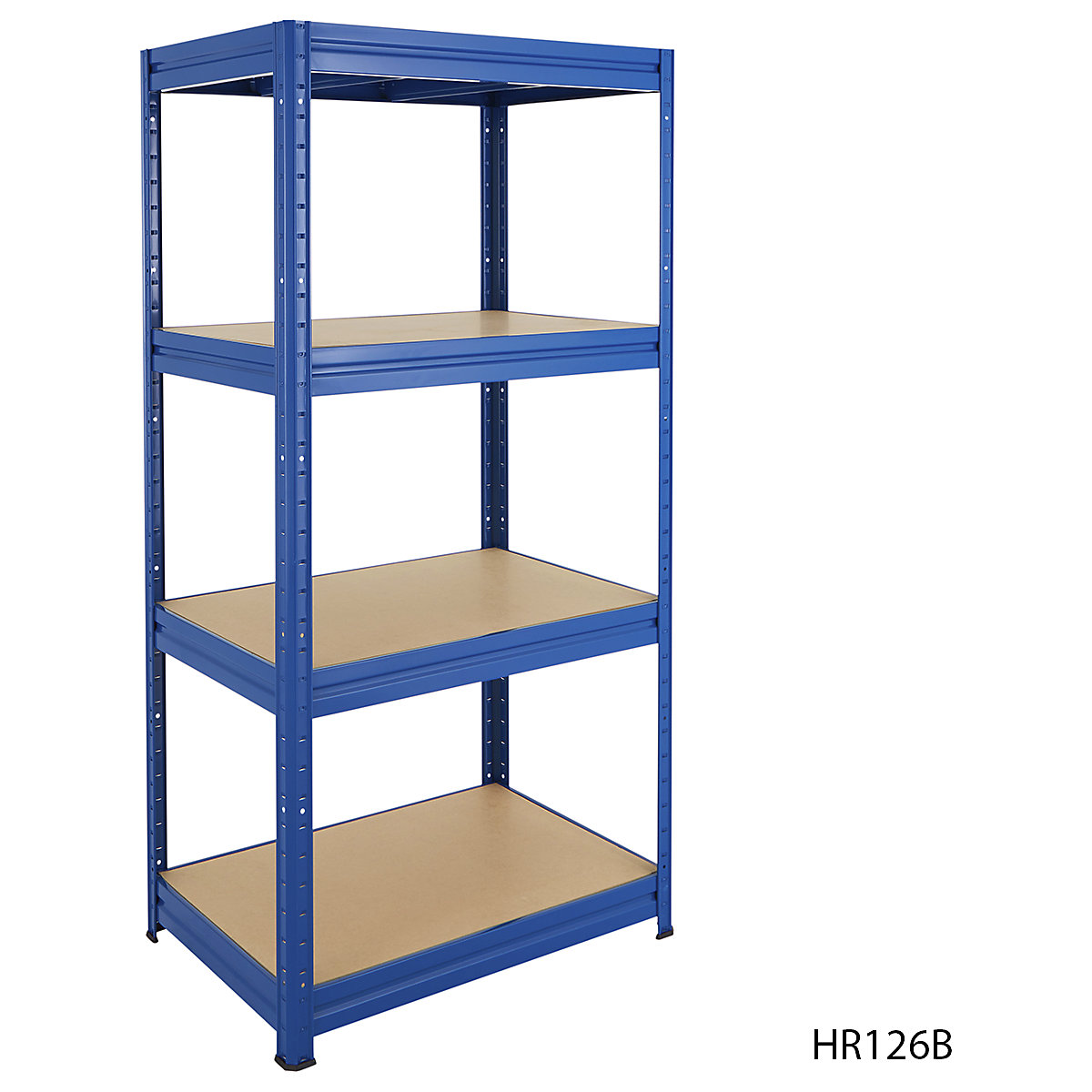

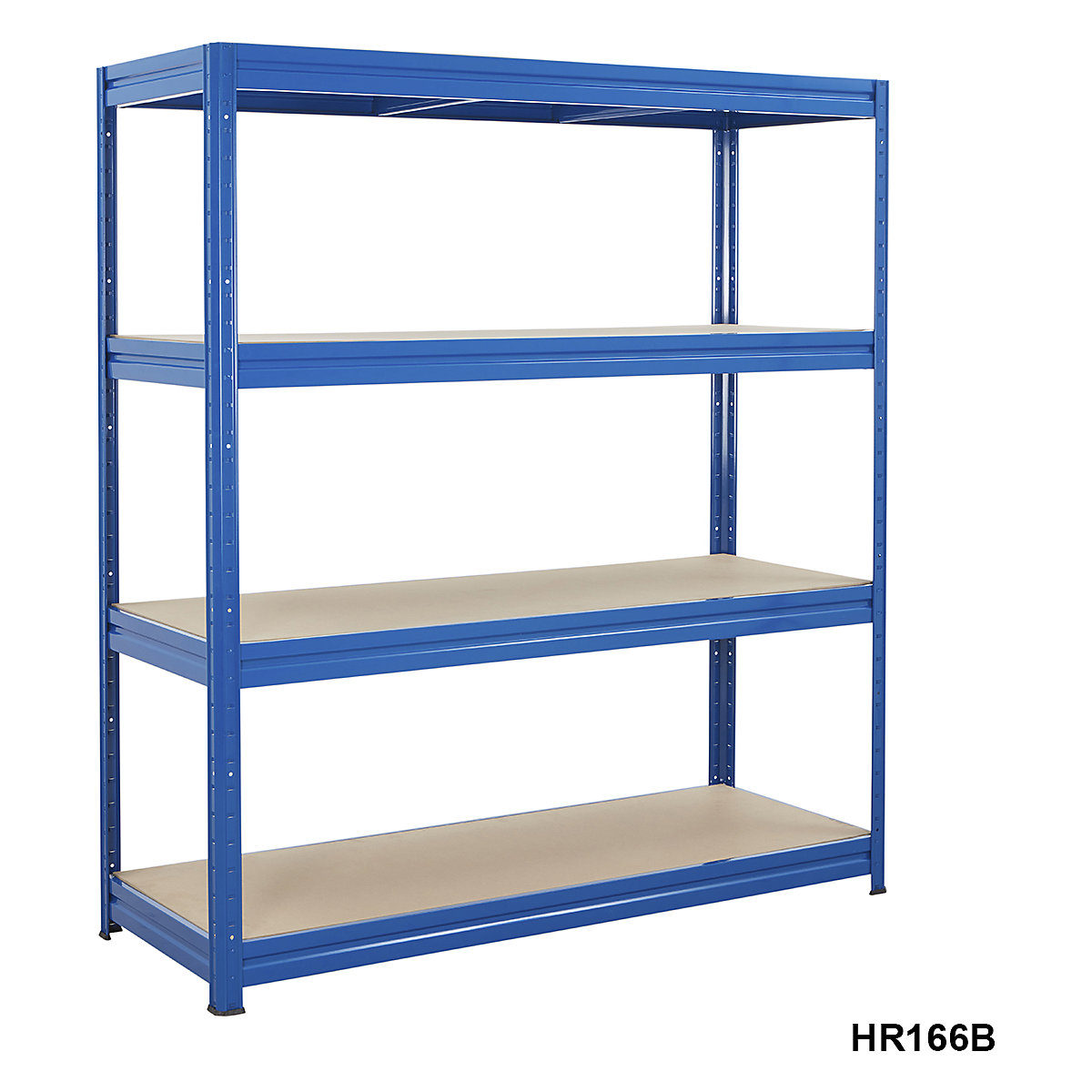

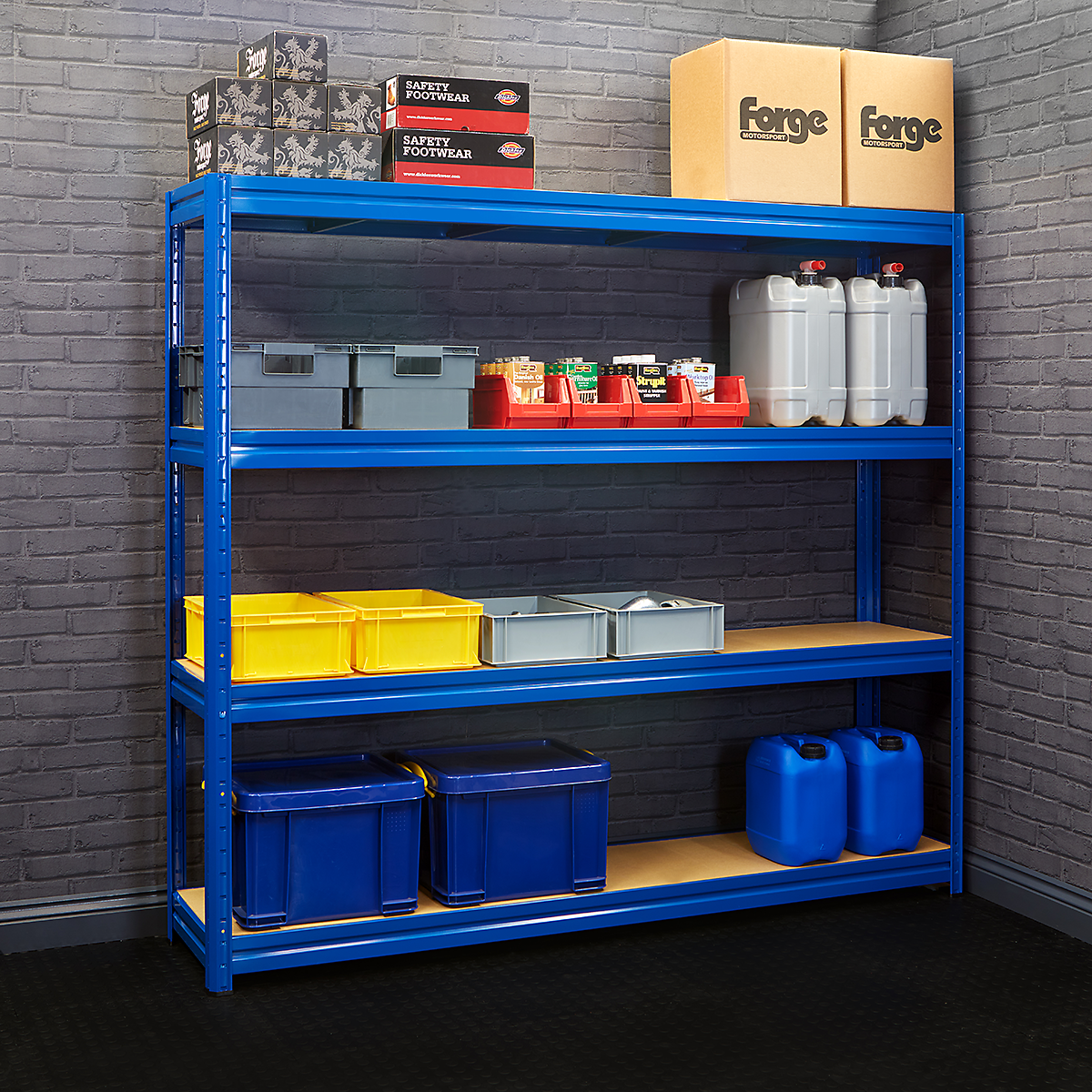

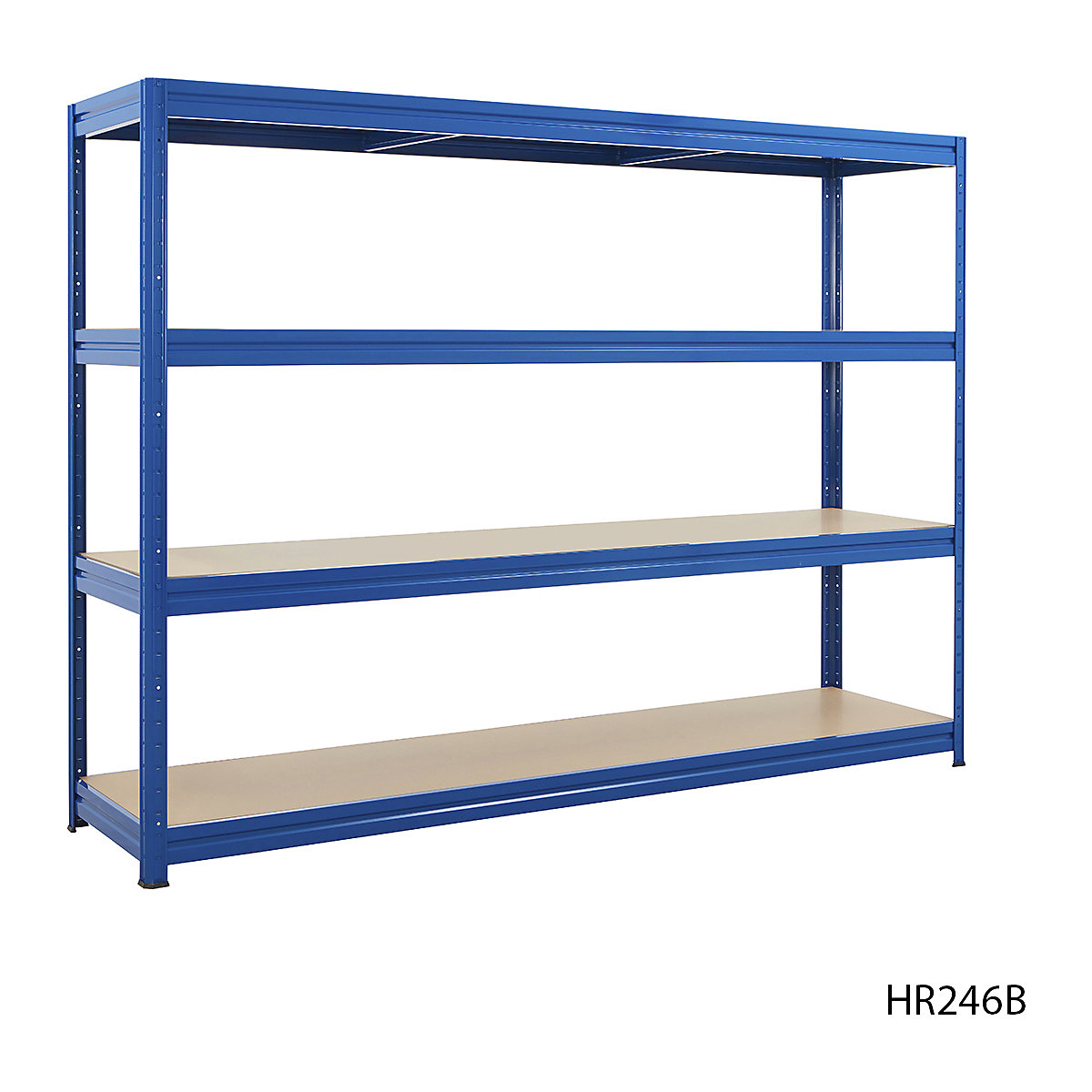

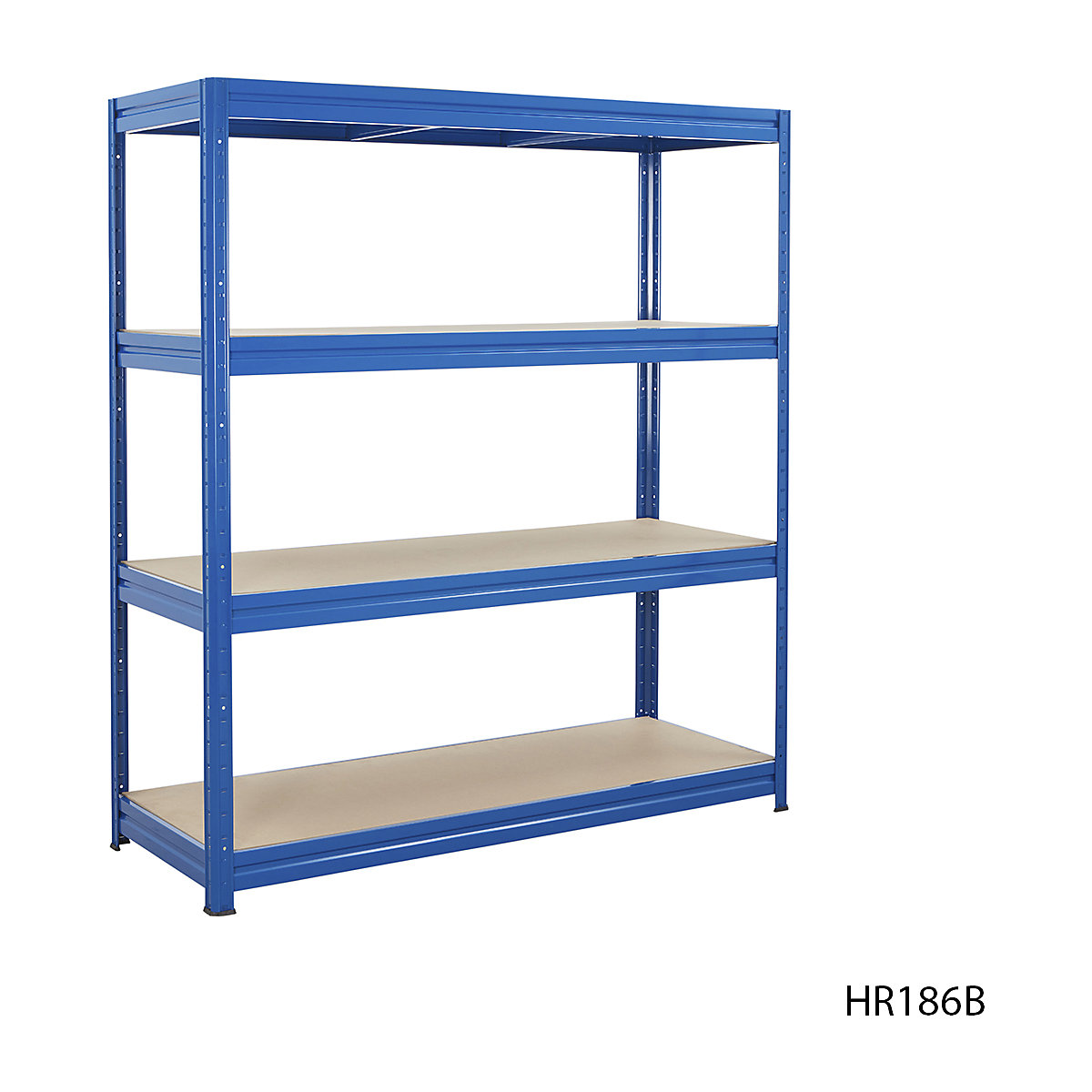

Transform your garage or workshop with BiGDUG Heavy Duty Garage Shelving, a strong and reliable storage solution designed to easily handle heavy loads. This robust shelving unit eliminates clutter and welcomes a well-organised garage. It features a powder-coated steel frame, adjustable MDF shelves, and a simple boltless assembly.

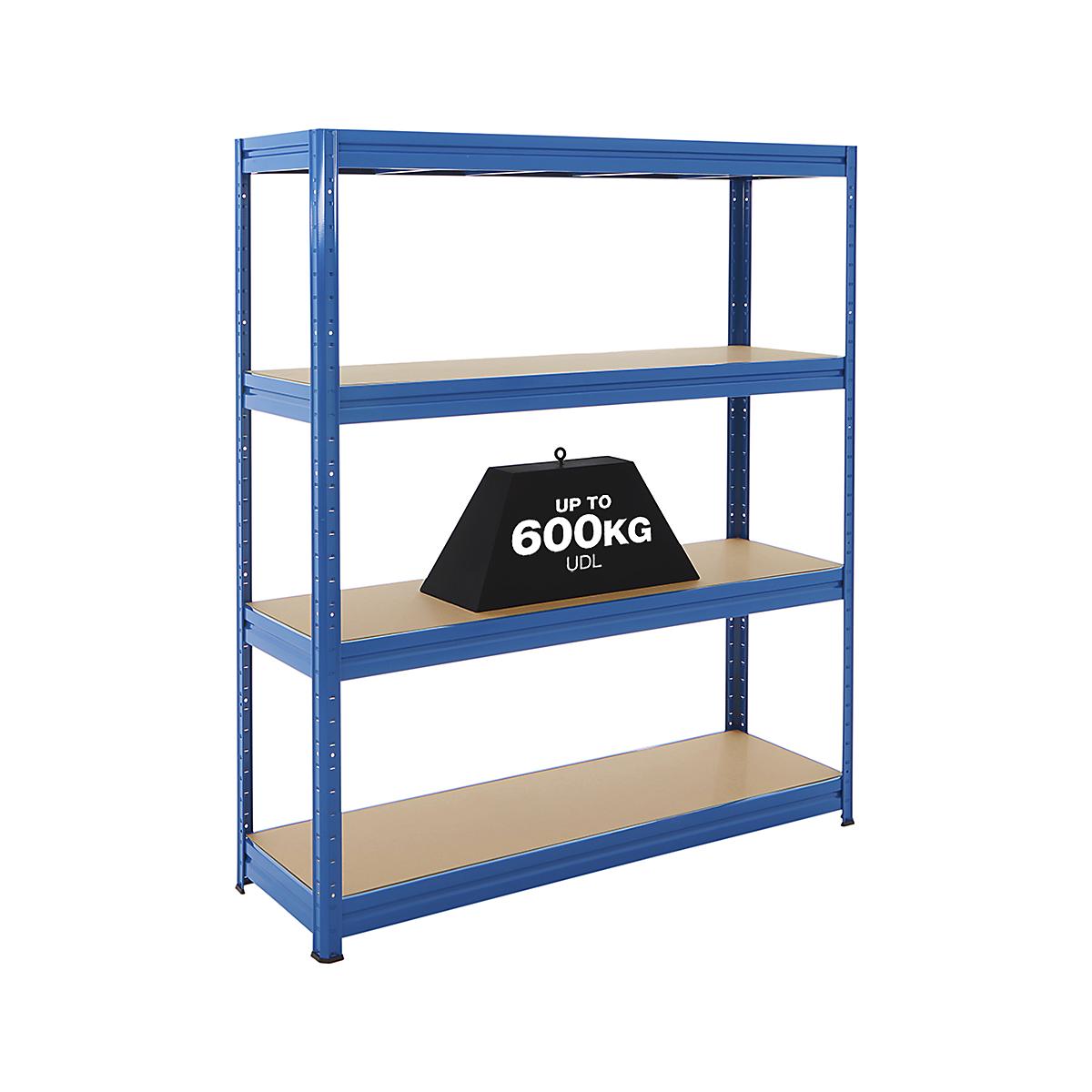

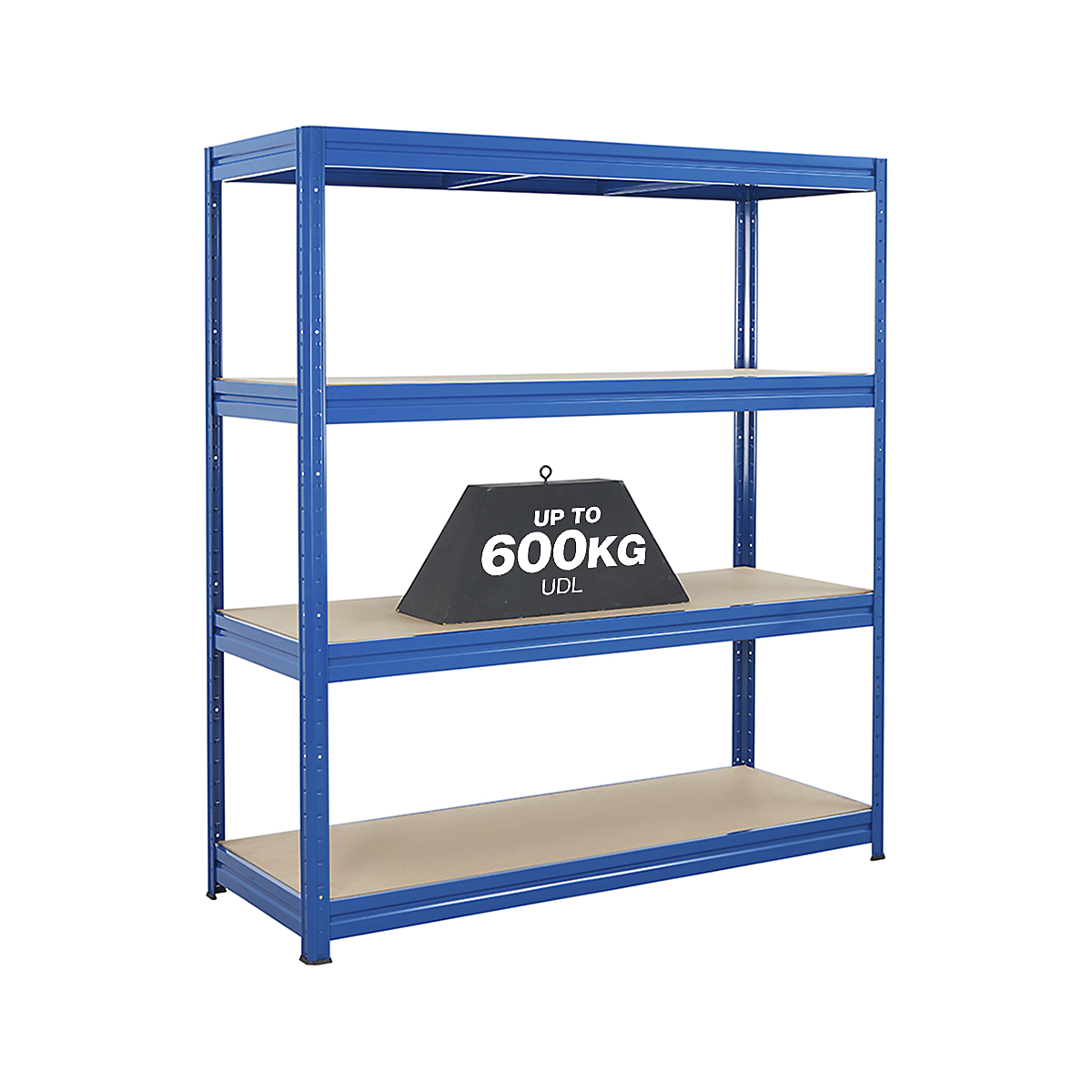

- Load capacity of up to 600kg UDL* per shelf

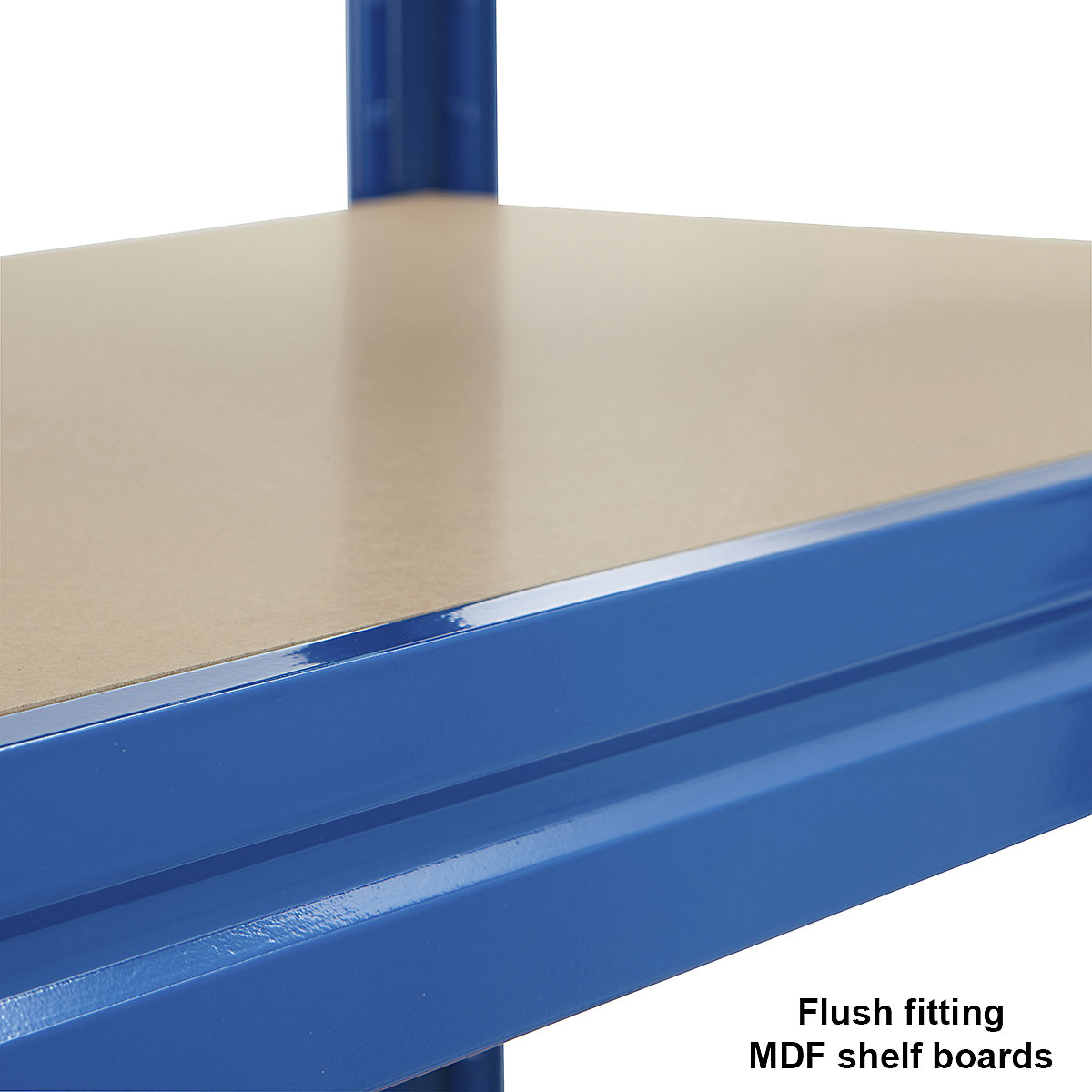

- Fitted with four adjustable MDF shelves and supports
- Available in widths up to 2.4m for greater storage capacity

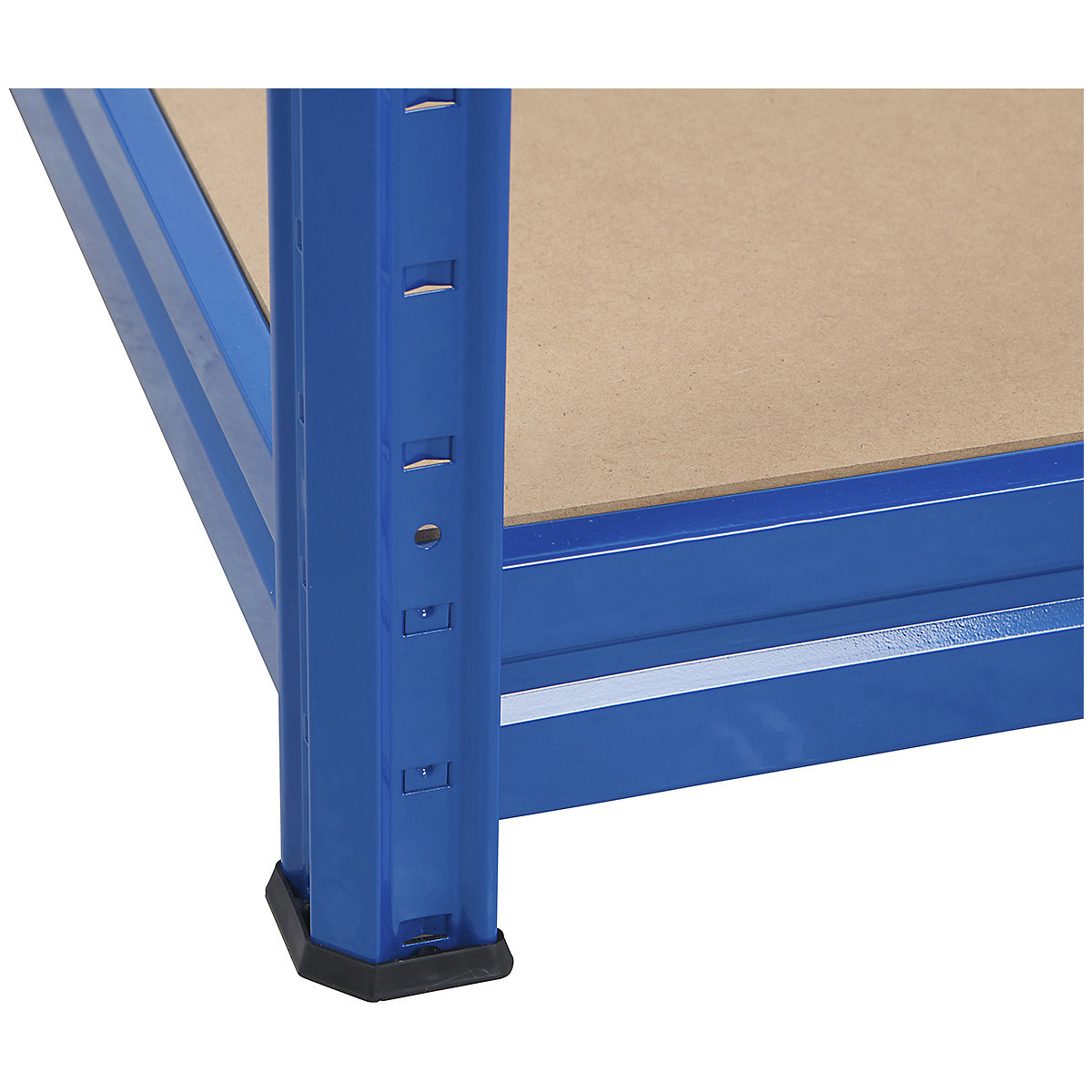

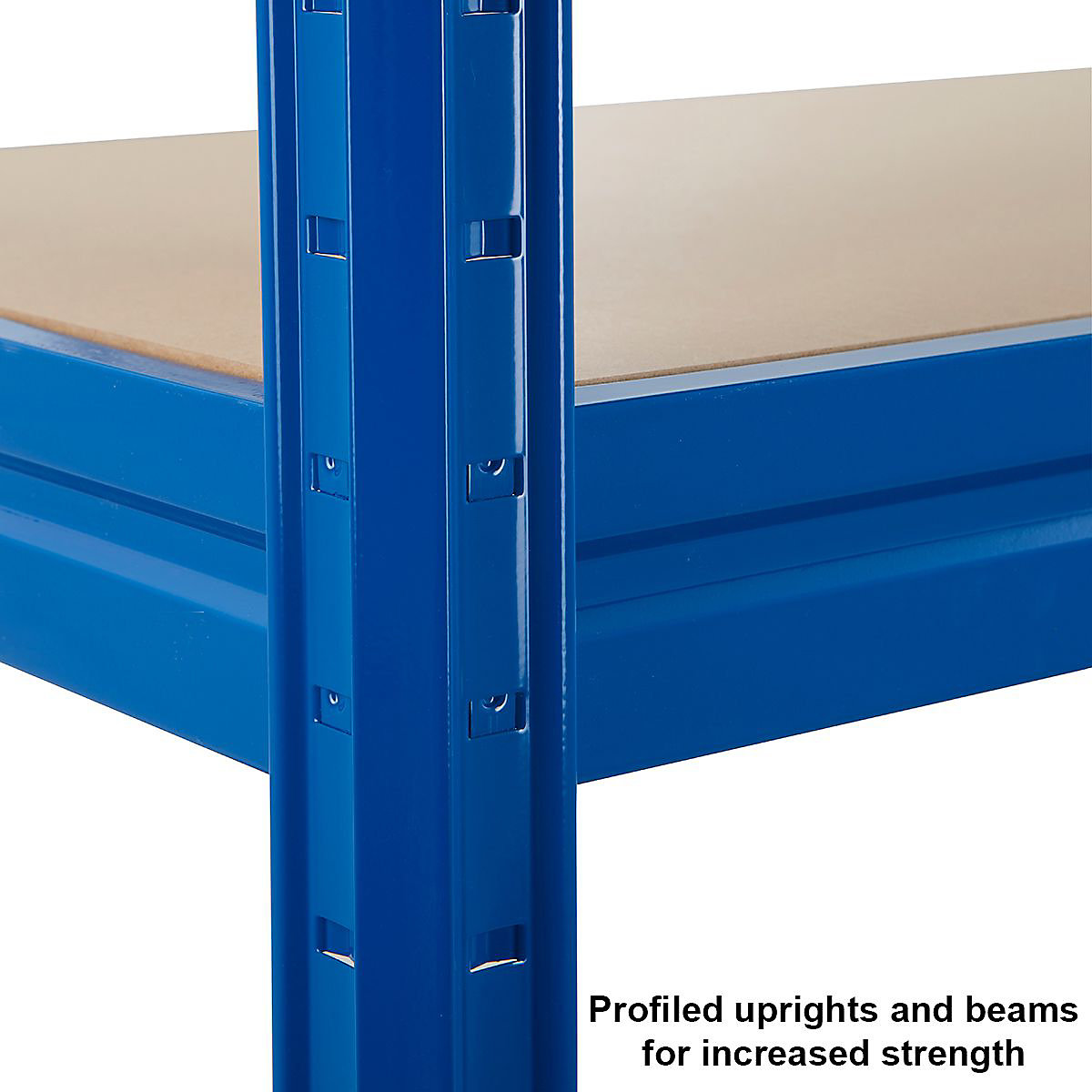

- Powder-coated European steel frame manufactured to ISO 9001 with a five-year warranty
- Available in 450mm and 600mm depths
- Adjustable levels can be raised or lowered every 50mm
- No cross-bracing ensures productive double-sided access

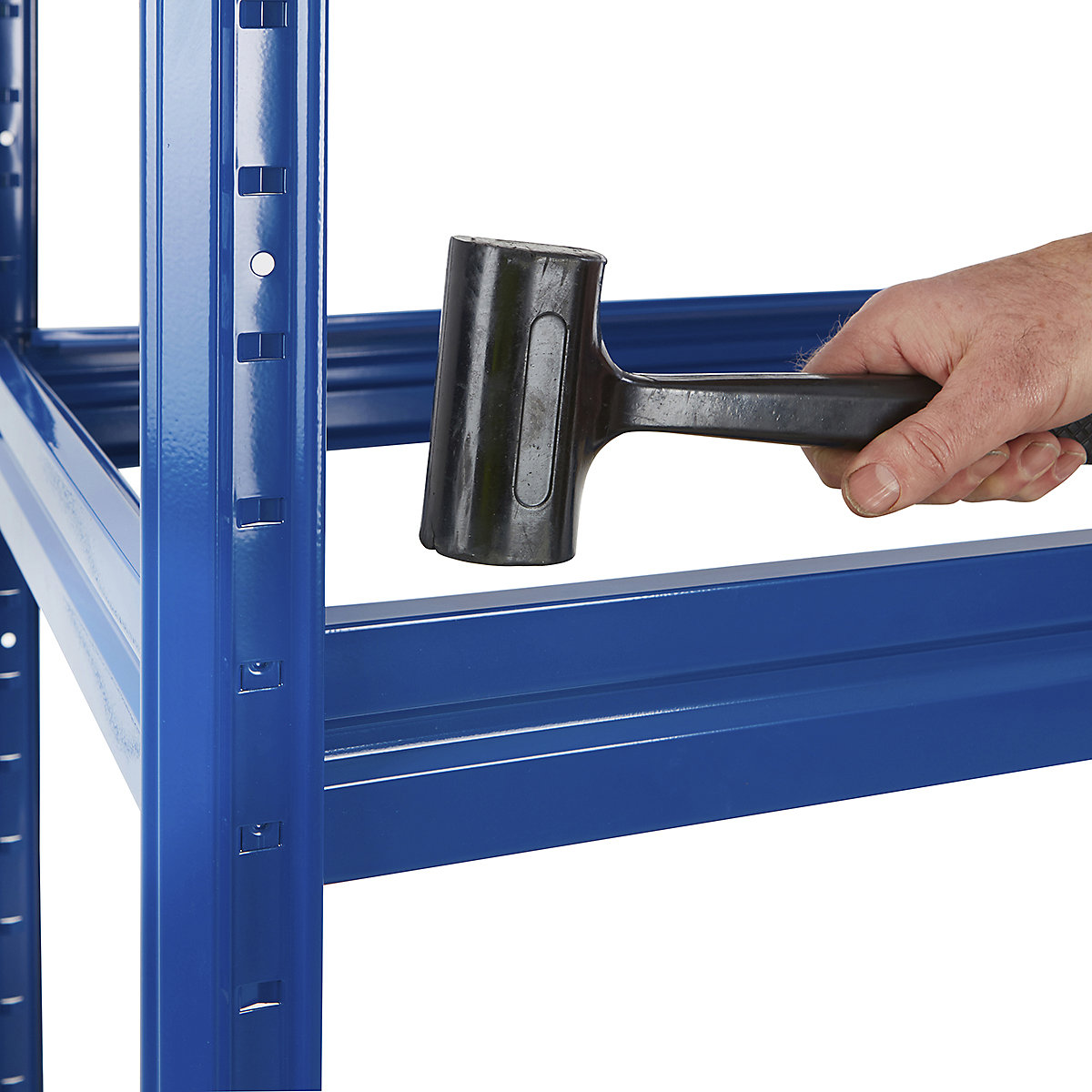

- Simple boltless assembly, just tap together with a rubber mallet

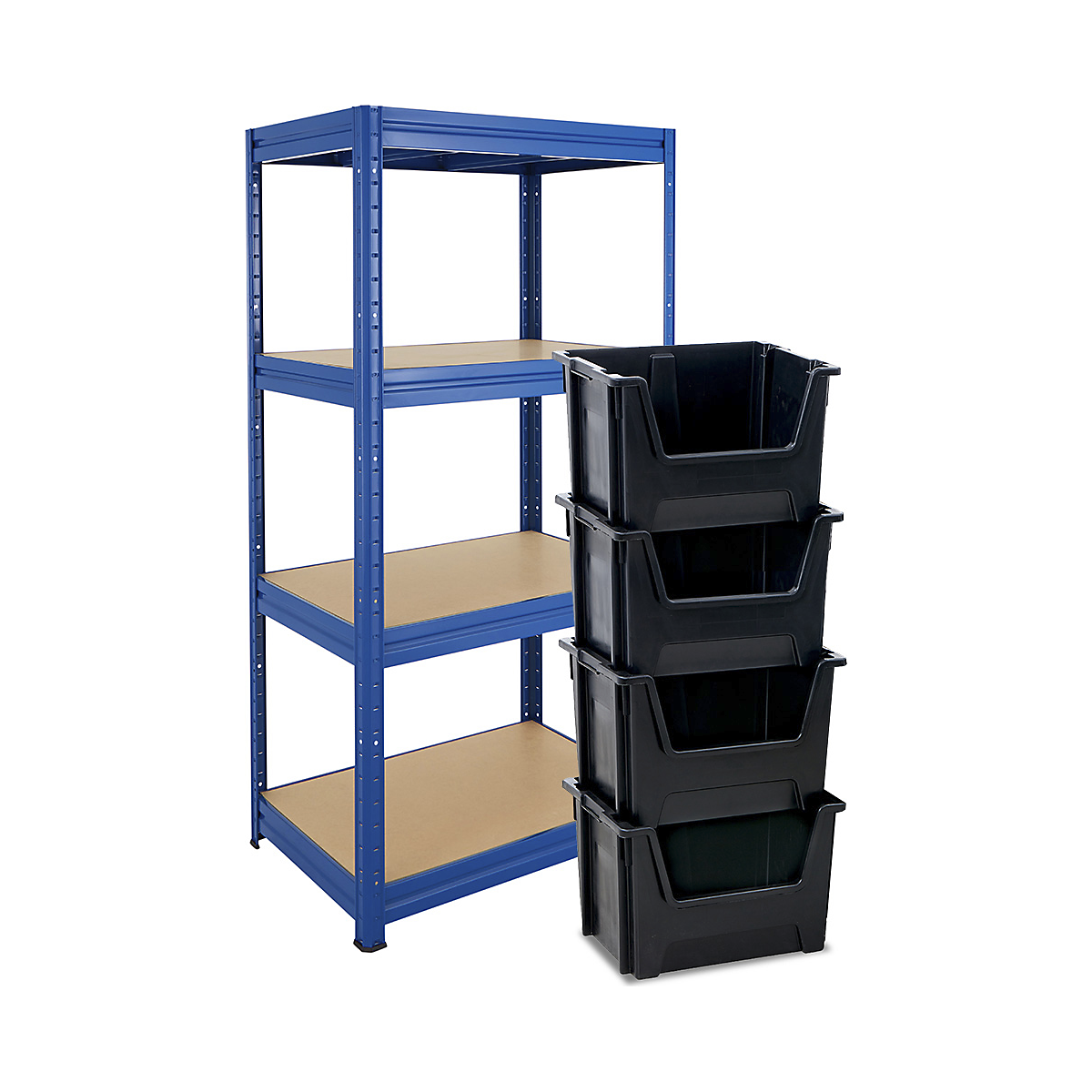

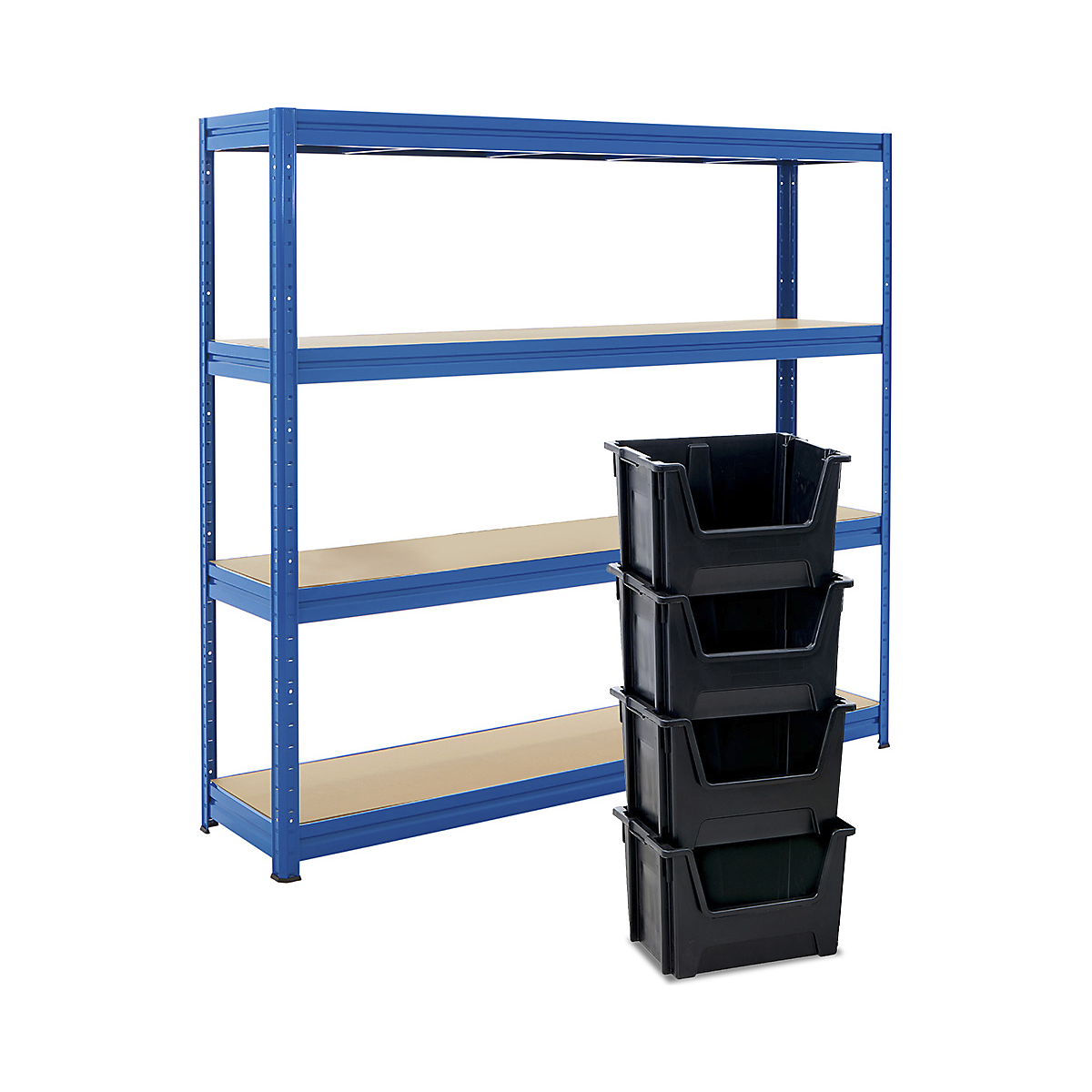

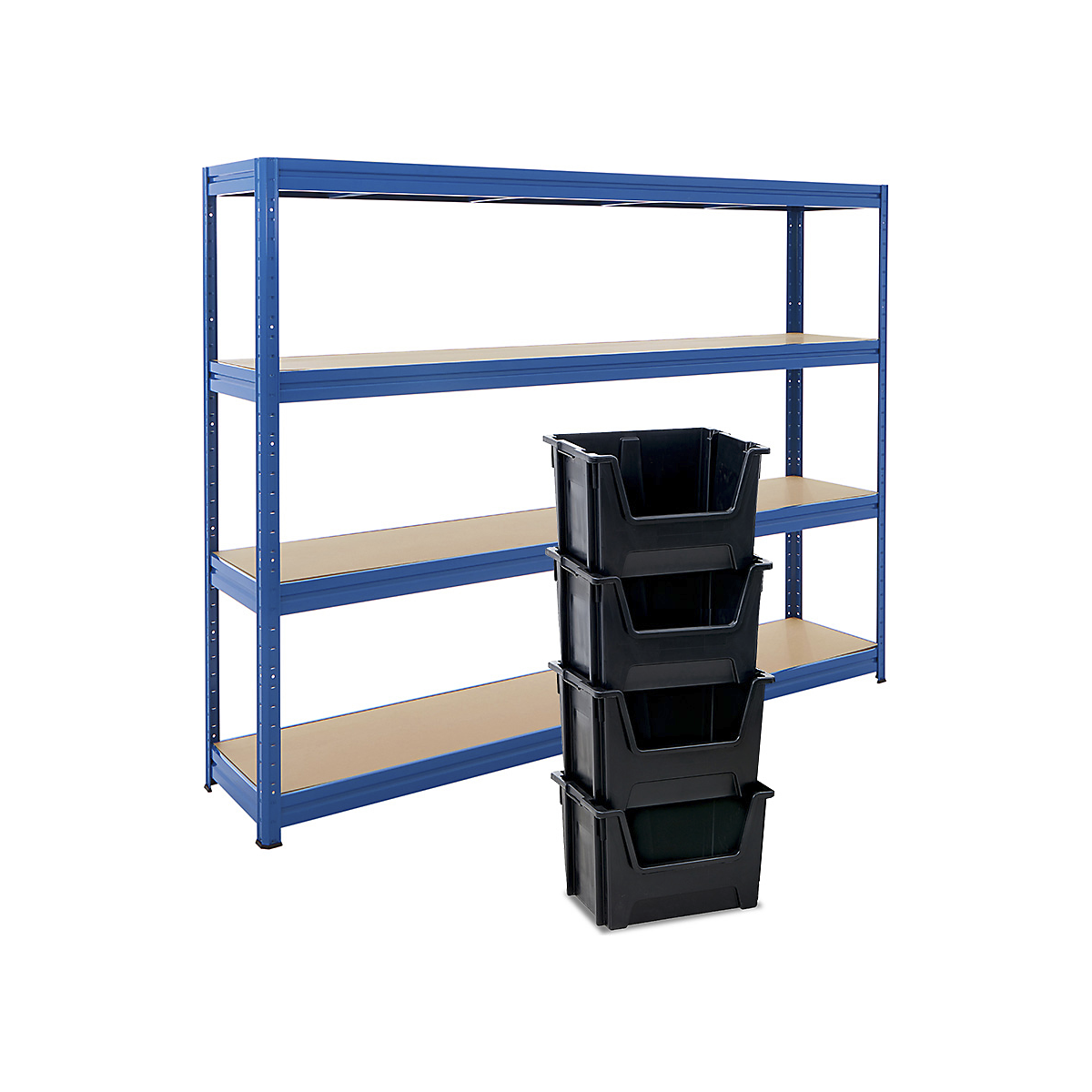

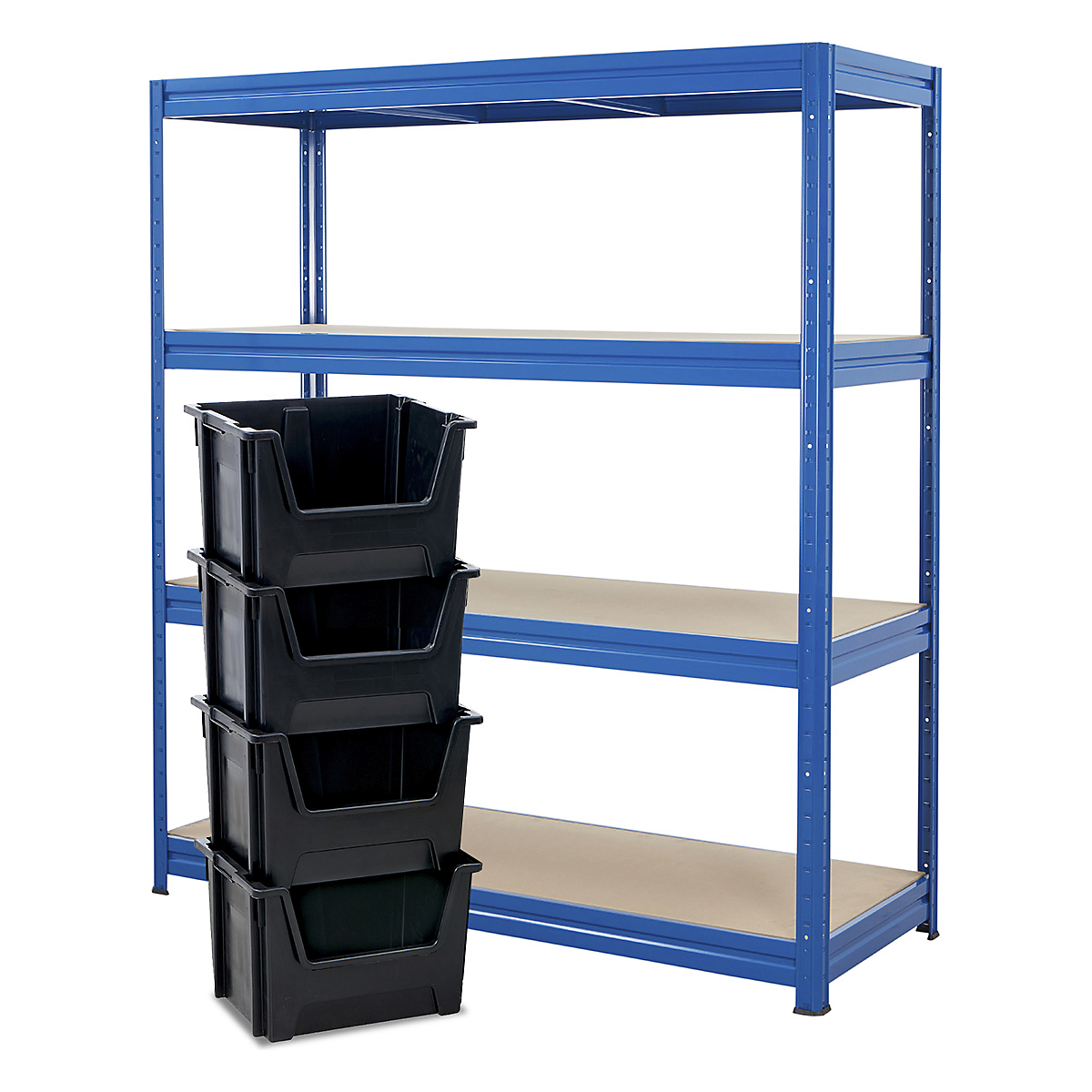

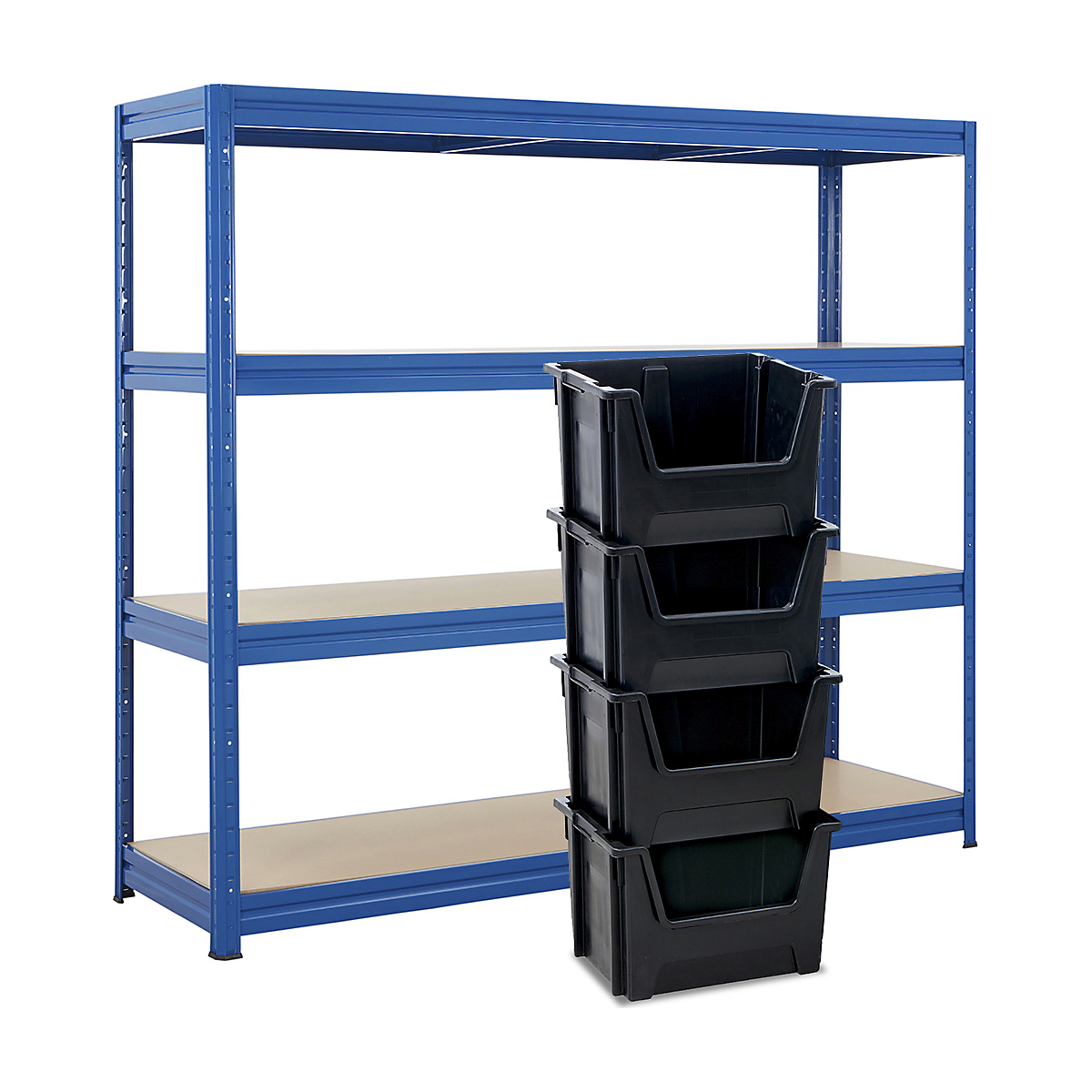

- Upgrade to include 4x Large Black Plastic Stacking Pick Bins
- Can be wall-mounted for extra stability (wall fixings sold separately)

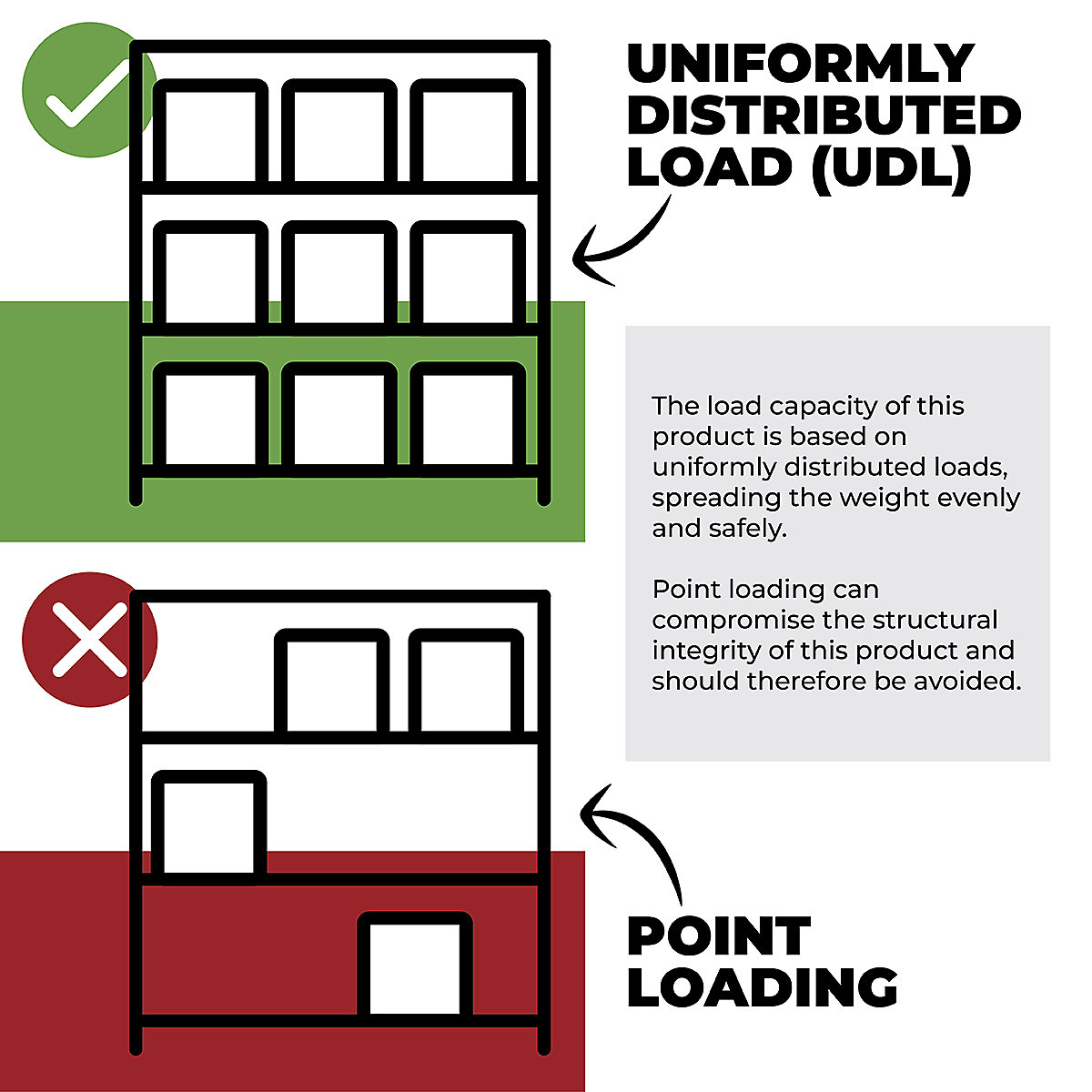

*UDL - Uniformly Distributed Load
Please note: If used in a damp or humid environment, BiGDUG recommends MDF shelving decks are treated with a high quality wood varnish or sealant
Please note: These shelving bays are not recommended for the storage of fitness weights - please see our gym racking range for specialist products
Shelving Specifications
| Data Field | 900mm Wide | 1200mm Wide | 1600mm Wide | 1800mm Wide | 2000mm Wide | 2400mm Wide |
|---|---|---|---|---|---|---|
| Upright Type | One Piece | One Piece | One Piece | One Piece | One Piece | One Piece |
| Upright Steel Thickness | 0.7mm | 0.7mm | 0.7mm | 0.7mm | 0.7mm | 0.7mm |
| Beam Steel Thickness | 0.7mm | 0.7mm | 0.7mm | 0.7mm | 0.7mm | 0.7mm |
| Shelf Adjustment Increments | 50mm | 50mm | 50mm | 50mm | 50mm | 50mm |
| Shelf Height | 82mm | 82mm | 82mm | 82mm | 82mm | 82mm |
| MDF Thickness | 6.5mm | 6.5mm | 6.5mm | 6.5mm | 6.5mm | 6.5mm |
| Total Bay Capacity | 2400kg | 2400kg | 2400kg | 2000kg | 2000kg | 1800kg |
| Clear Width | 805mm | 1105mm | 1505mm | 1705mm | 1905mm | 2305mm |
| Extra Levels Available | N | N | N | N | N | N |

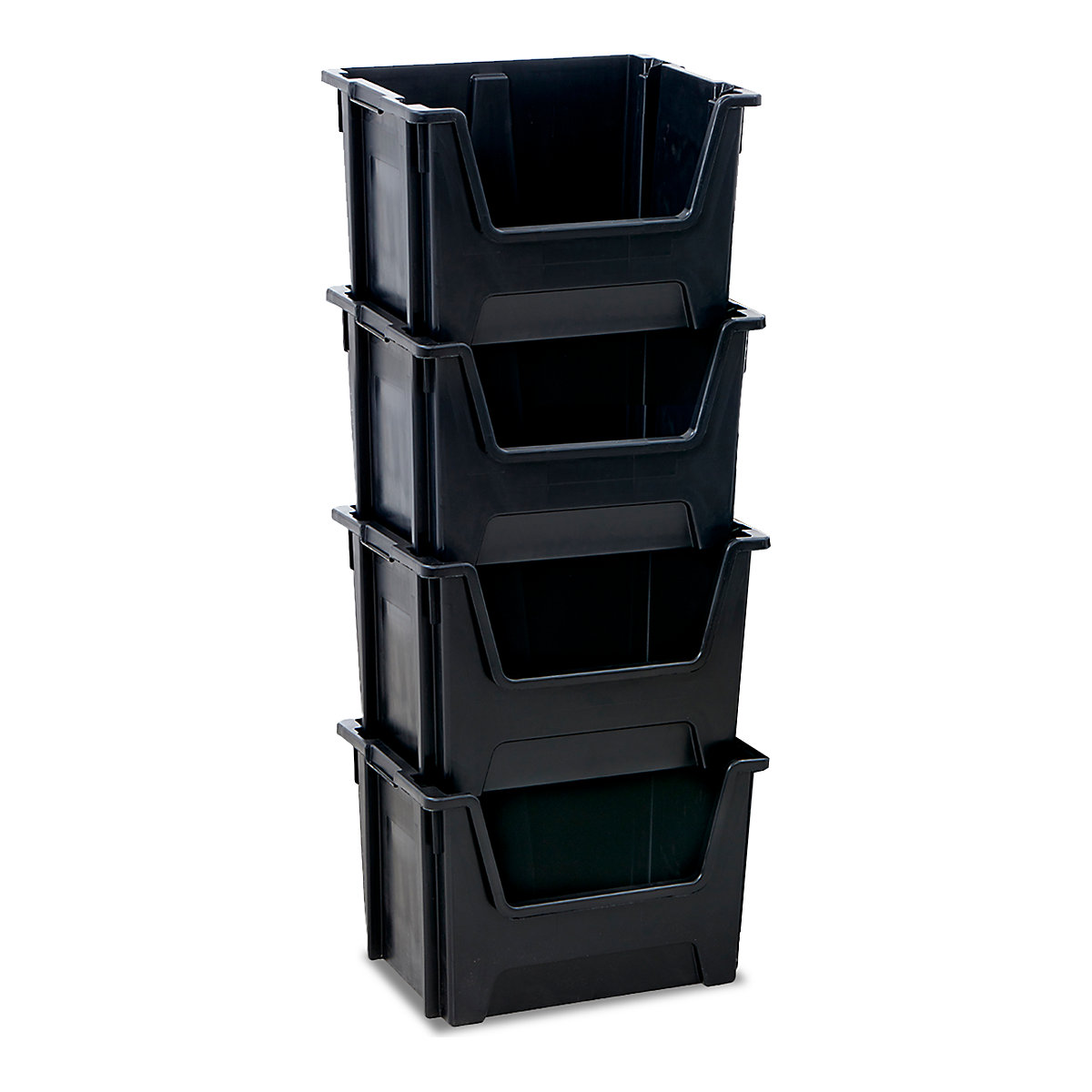

BiGDUG Essentials Large Plastic Stacking Pick Bin Specifications:
- Storage Capacity: 50 Litres. Load Capacity: 15kg
- Internal Dimensions: 315h x 440w x 340d mm
- External Dimensions: 320h x 495w x 390d mm
Shelving Fitting Guide
Please check our guides for each range when planning your shelving space.
| Nominal Shelf Width mm: | Clear Entry mm: | Initial Bay External mm: | Next Bay External mm: |
|---|---|---|---|
| 900 | 805 | 905 | 910 |
| 1200 | 1105 | 1205 | 1210 |
| 1600 | 1505 | 1605 | 1610 |
| 1800 | 1705 | 1805 | 1810 |
| 2000 | 1905 | 2005 | 2010 |
| 2400 | 2305 | 2405 | 2410 |
What Is BiGDUG Garage Shelving Made From?
BiGDUG Heavy Duty Garage Shelving is crafted from high-quality materials for strength and durability. It has a powder-coated European steel frame for durability and structural integrity, making it ideal for garage and workshop environments. The shelves are made from MDF, offering a smooth, sturdy surface that can support heavy loads. Built to ISO 9001 certification, this shelving system is built to last, ensuring your garage remains organised and clutter-free for years.
What Can Be Stored On Heavy Duty Garage Shelving?

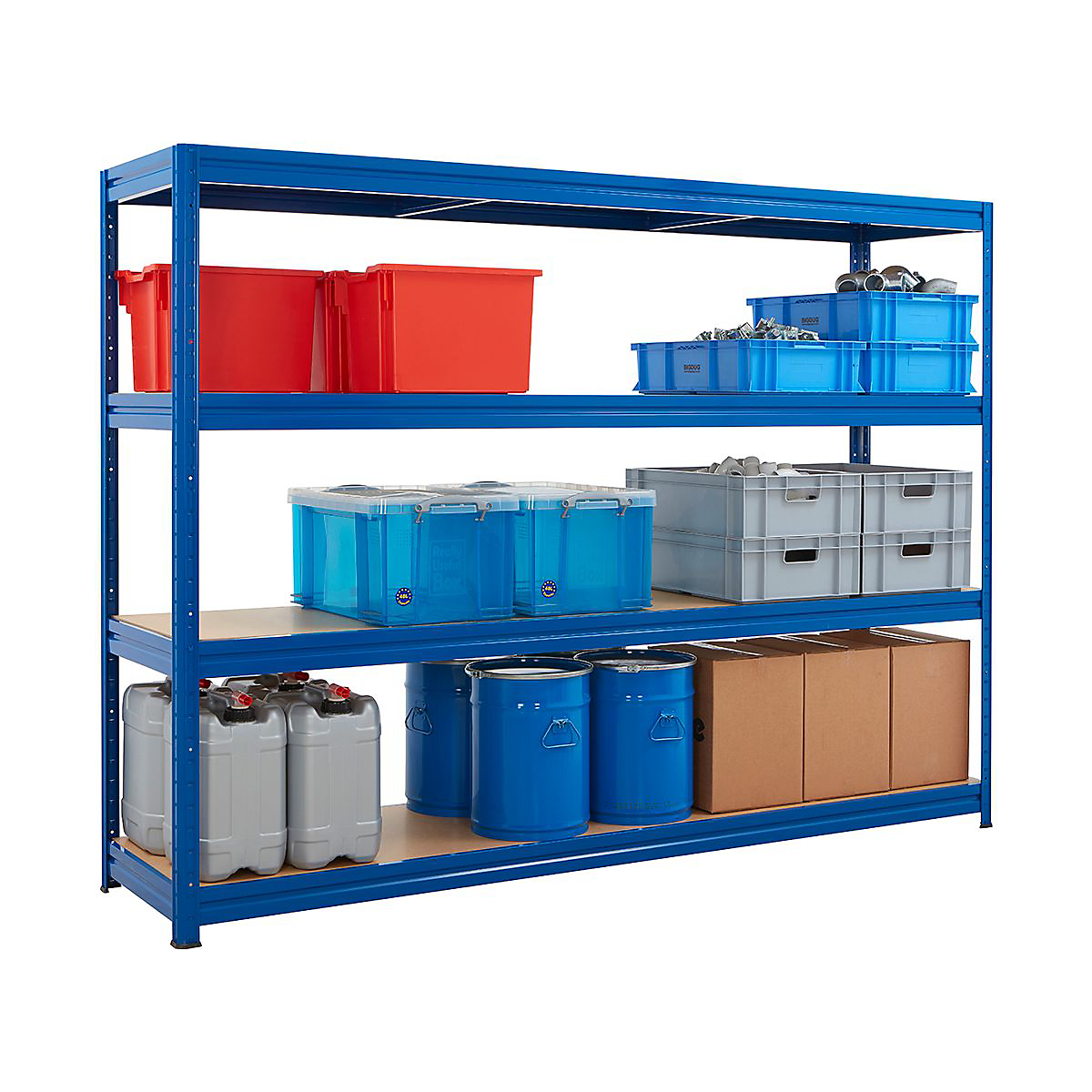

This heavy-duty shelving is designed to store a wide range of garage and workshop essentials, thanks to its high load capacity of up to 600kg UDL* per shelf. With width sizes ranging from 900 to 2400mm, you can store power tools, toolboxes, workshop equipment, storage bins, plastic containers, and heavy-duty materials such as metal or spare parts. Whether you're organising a home garage or workshop, BiGDUG’s shelving is the ideal solution for easily storing large and bulky items. If you need a more personalised storage solution for your space, contact our experts to discuss bespoke storage units.
Is BiGDUG’s Garage Shelving Easy To Assemble?
Yes, BiGDUG Heavy Duty Garage Shelving features a boltless design, allowing for quick and simple assembly. The components tap together using a rubber mallet; no special tools are required. The shelving can also be fixed to a wall for additional support and extra stability (fixings sold separately).
