Code: AR25

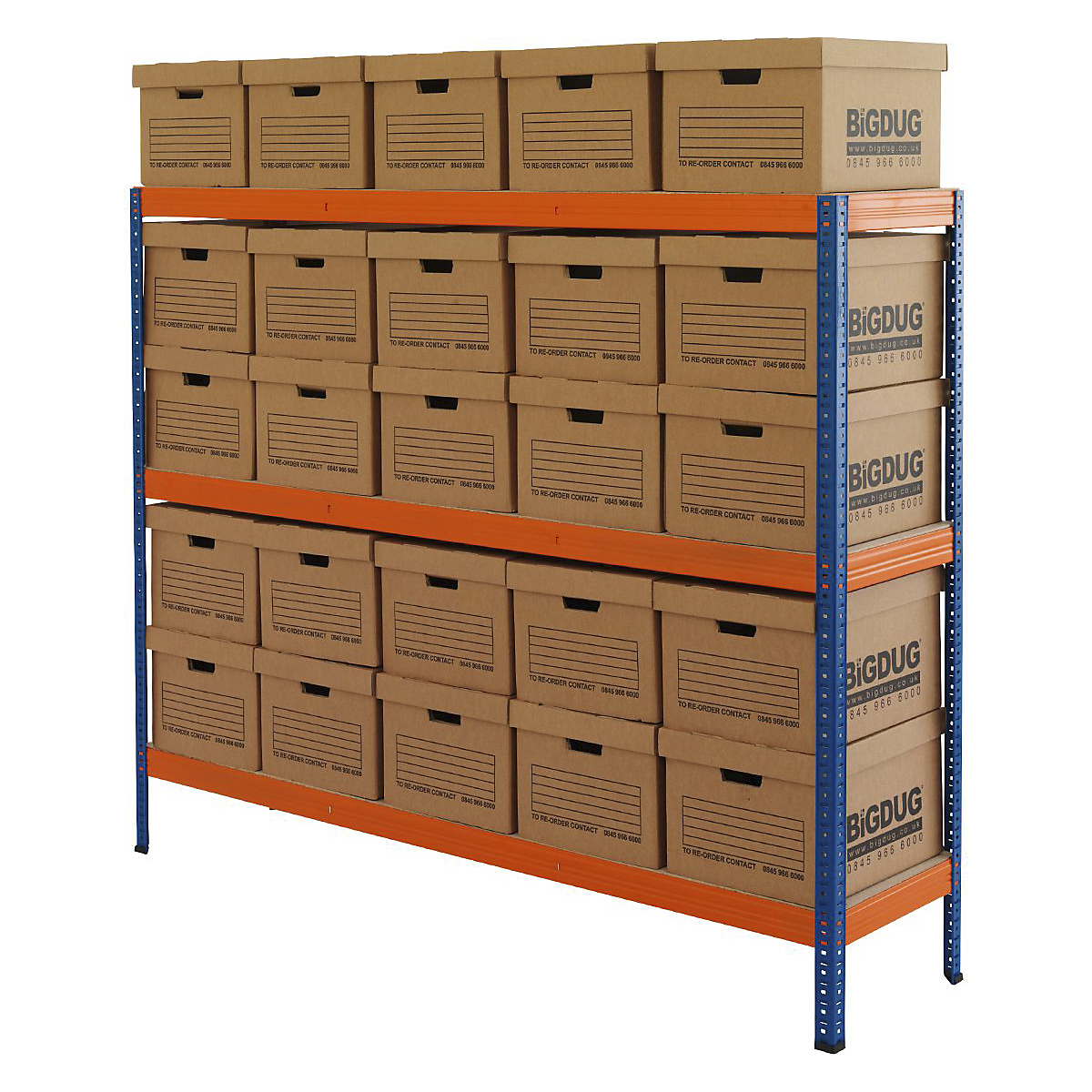

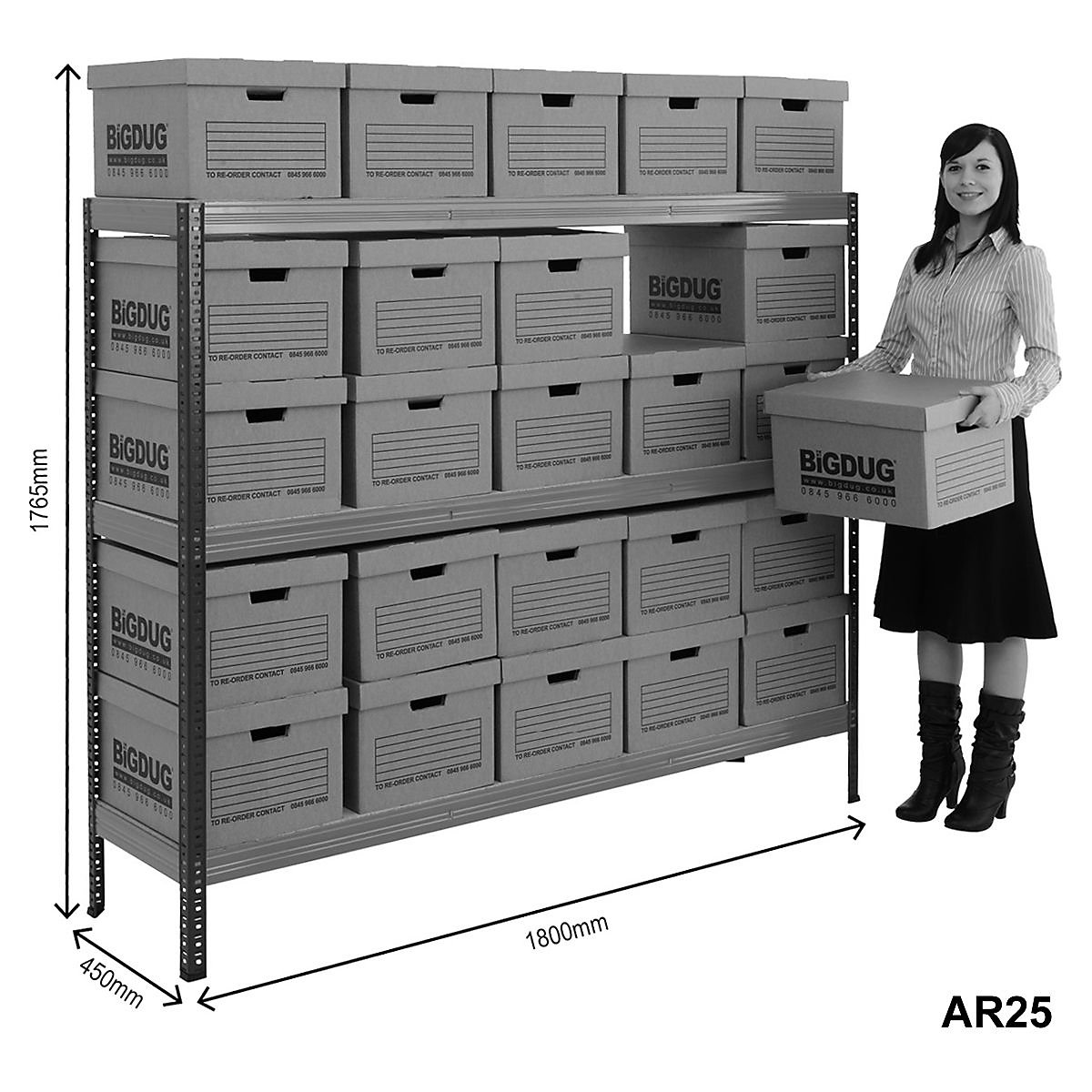

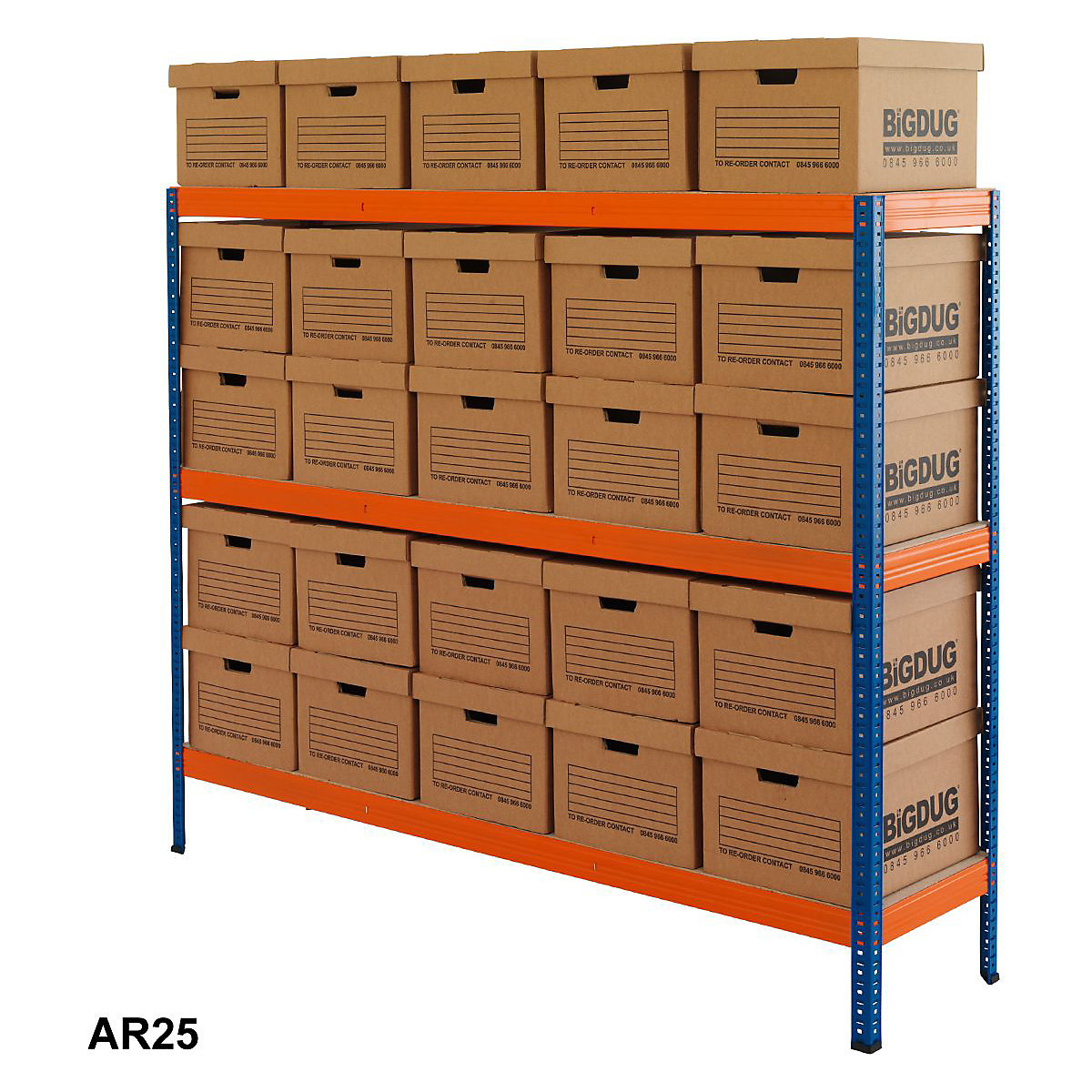

BiGDUG Essentials Industrial Shelving | 1765h x 1800w x 450d mm | 3 Levels | Blue & Orange | 300kg UDL with 25x Brown Document Boxes | 265h x 338w x 445d mm

(4)
BiGDUG Essentials Industrial Shelving with Archive Document Boxes Kit
Type
Delivery time: 2-3 Working Days
Order until 15:00 for next day delivery
Product description

BiGDUG Essentials Shelving combined with our bestselling Document Boxes to create ideal archive storage solutions.

  • 300kg per shelf/1200kg per bay UDL*
  • Chipboard Shelves
  • Powder-coated steel uprights and beams
  • Double sided access - no cross bracing required

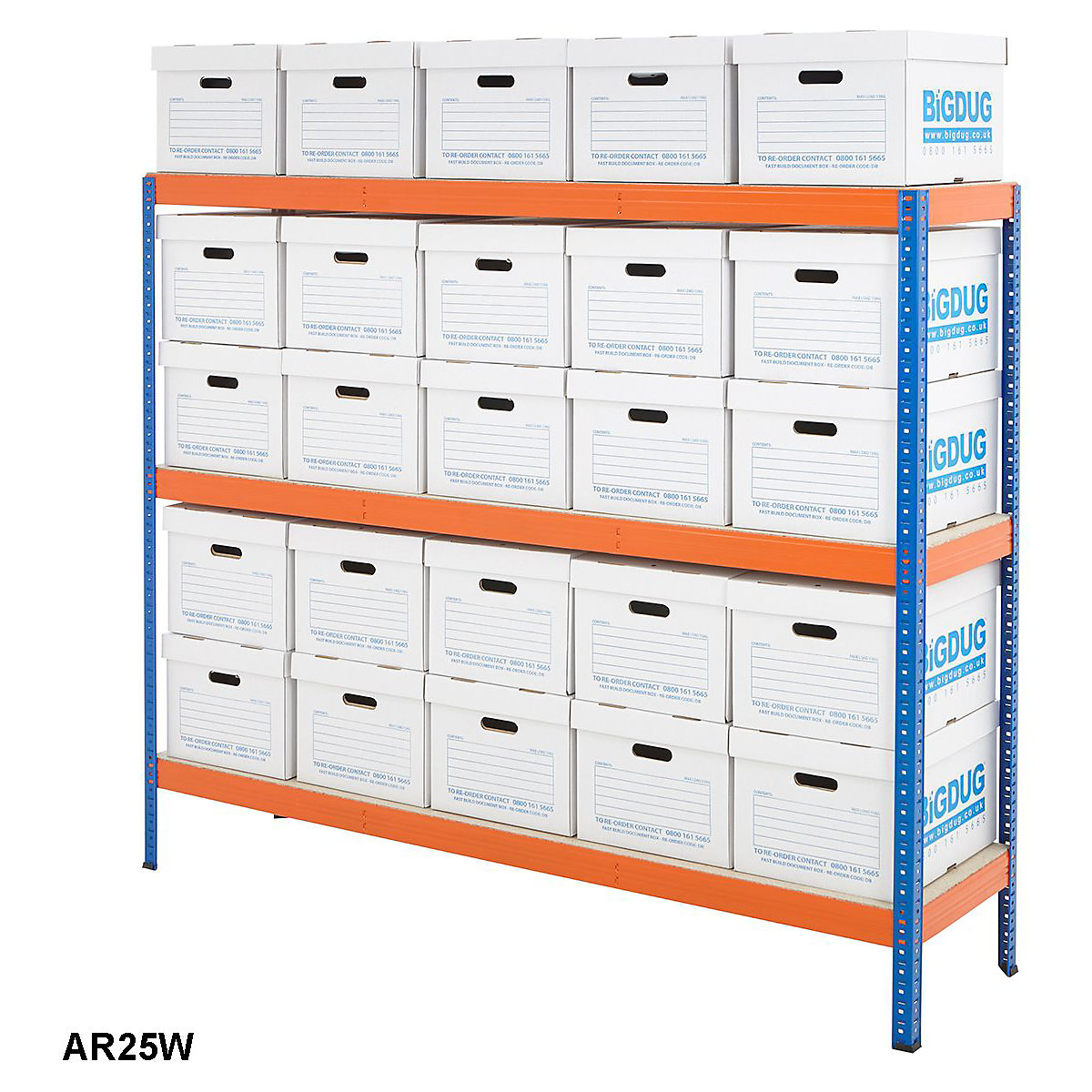

  • Complete with Brown or White Document Boxes
  • European-sourced steel frame finished in powder-coated blue and high visibility orange
  • High-density chipboard shelves with steel central supports
  • Load capacity per shelf: 300kg UDL*
  • Shelves adjustable every 35mm
  • Simple boltless assembly - just tap sections together with a rubber assembly mallet
  • No cross bracing so can be used for double-sided access
  • Use Bay Connectors (available separately) to join multiple shelving bays into runs - either back-to-back or side-by-side
  • Tested and certified to European manufacturing and safety standards
  • Please note: the uprights for this product may be split to minimise the packaging length

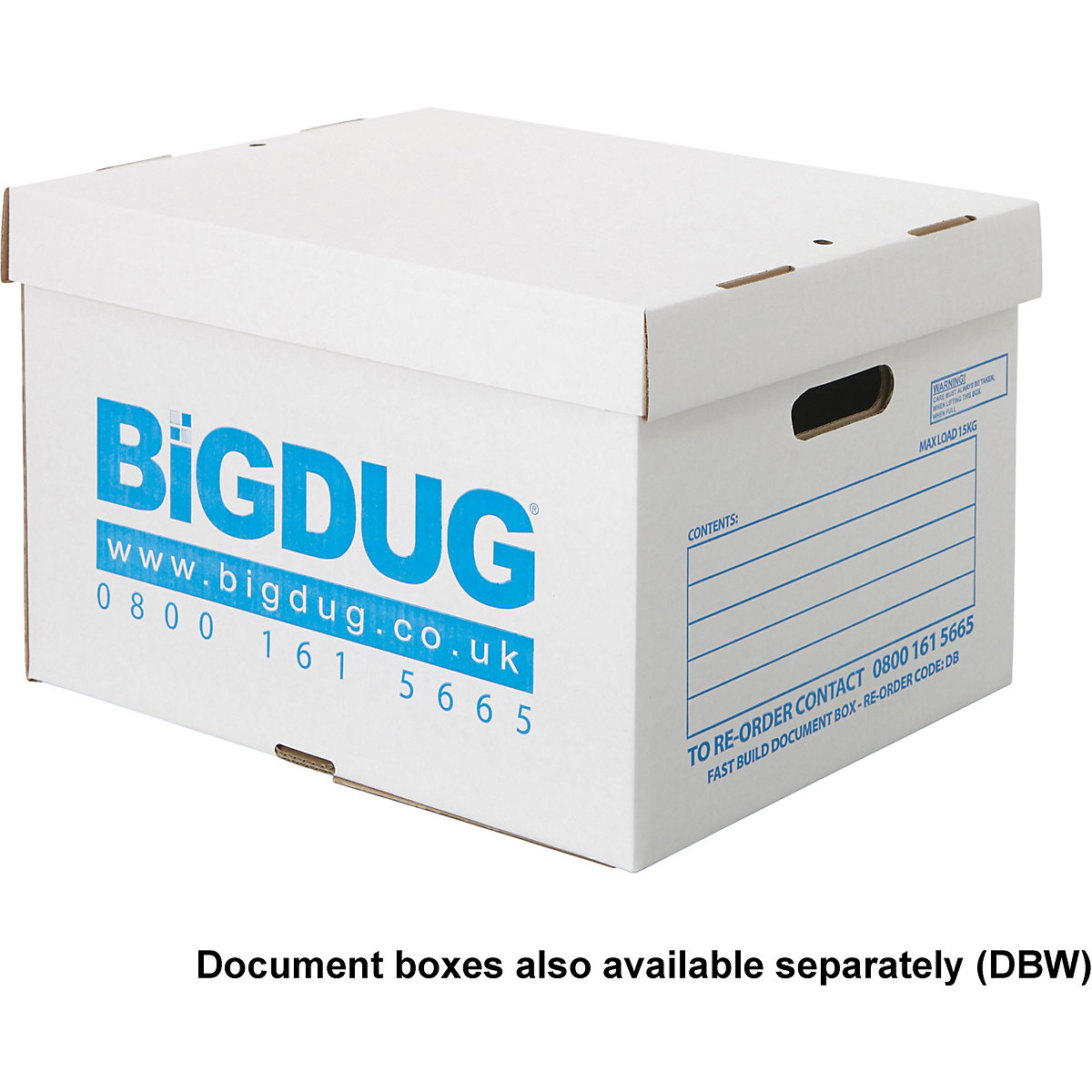

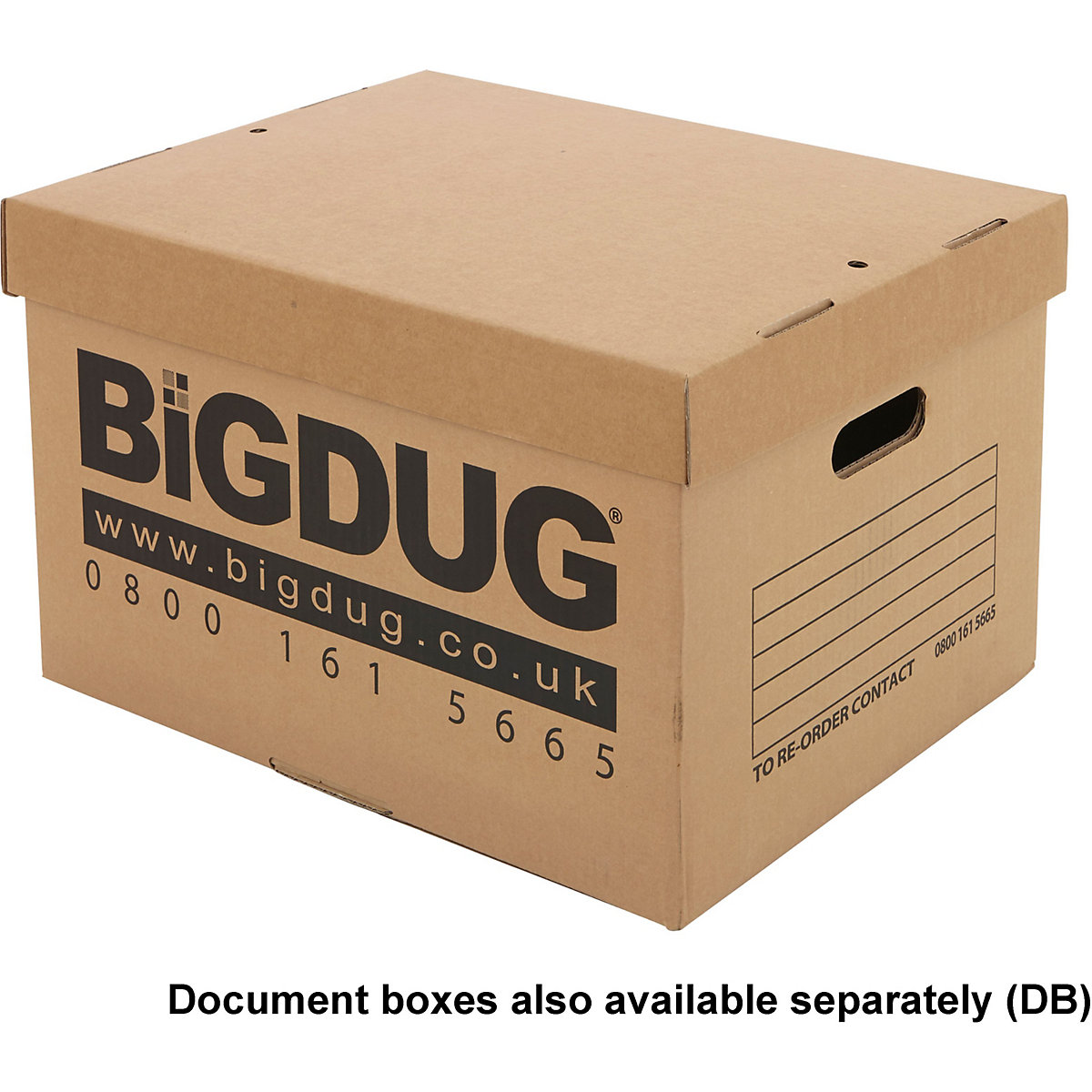

  • Double-walled cardboard document boxes
  • Suitable for files, folders, ring-binders and A4 documents
  • Box dimensions: 265h x 338w x 445d mm
  • Box capacity: 15kg

*UDL = Uniformly Distributed Load

**Heights given for shelving are to the top of the shelved boxes

Shelving Specifications

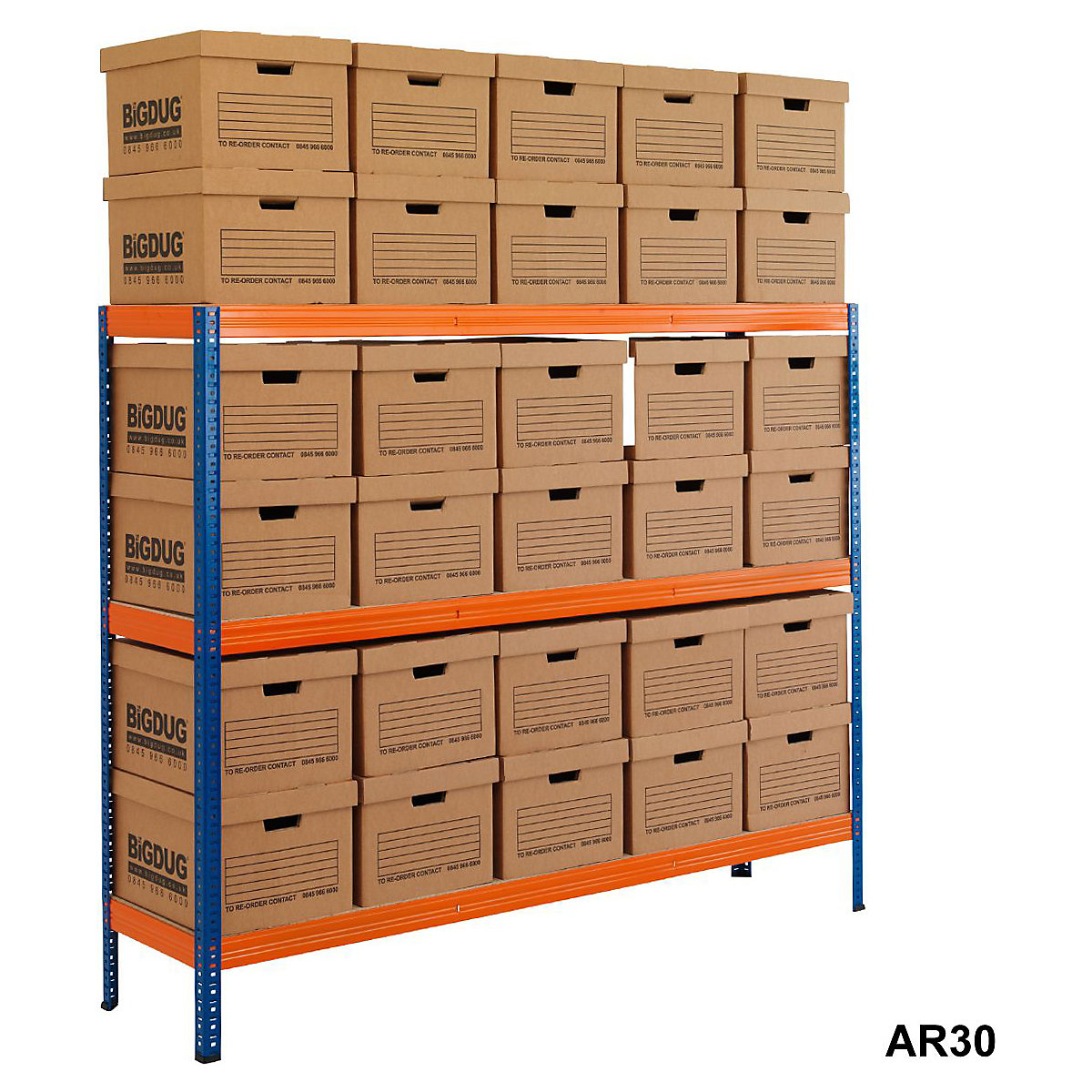

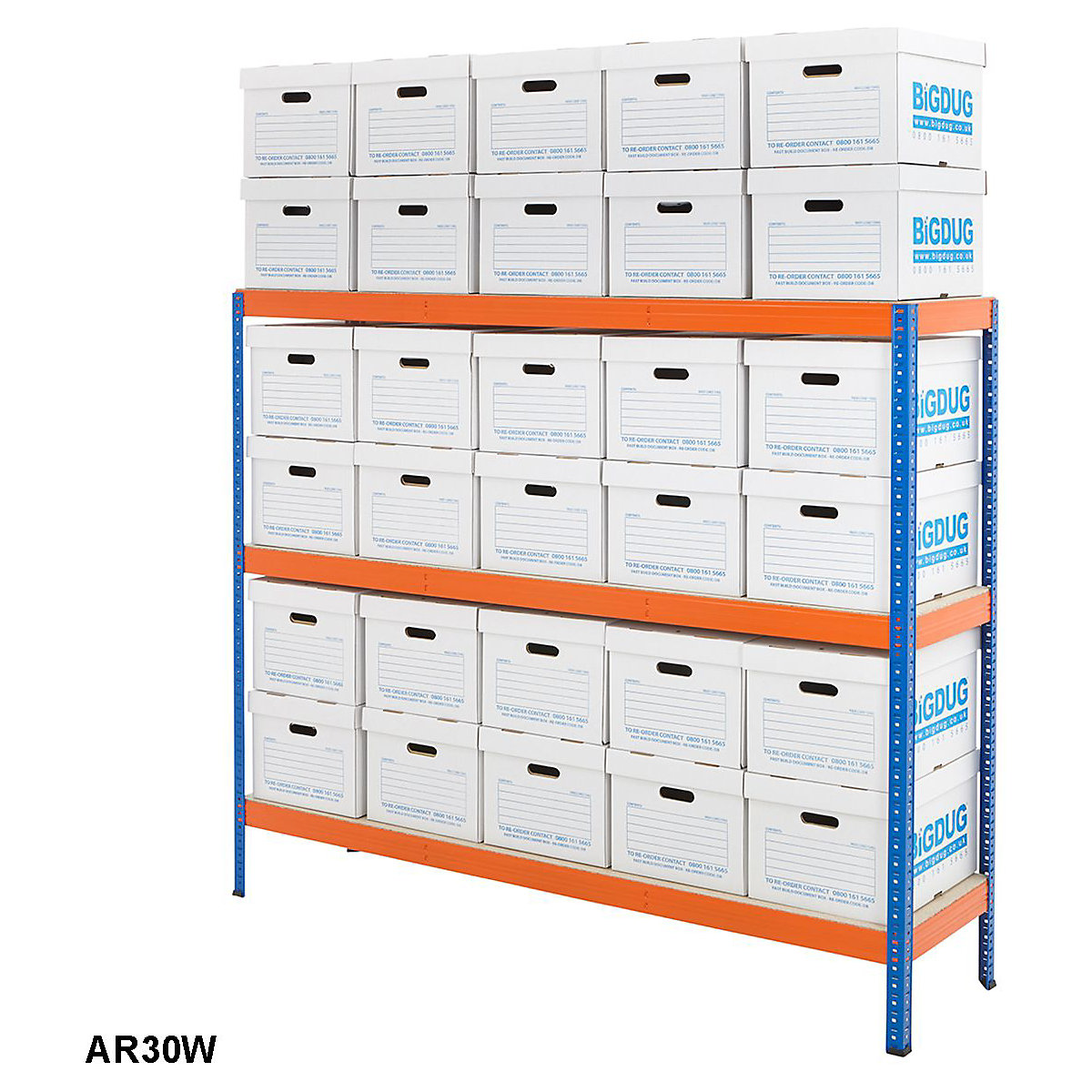

Data Field AR25*/30*
Upright Type One Piece
Upright Steel Thickness 1.3mm
Beam Steel Thickness 1.3mm
Shelf Adjustment Increments 34.5mm
Shelf Thickness 68mm
Chipboard Thickness 9mm
MDF Thickness N/A
Melamine Thickness N/A
Steel Panel Thickness N/A
Total Bay Capacity 1200kg
Clear Width 1424mm

Fitting Guide

Please check our guides for each range when planning your shelving space.

Nominal Shelf Width mm: Clear Entry mm: Initial Bay External mm: Next Bay External mm:
1800 1724 1805 1810

External Height = H+5       Pitch = 35

Clear height between shelves = (No. x pitch) -48

All dimensions in Millimetres
