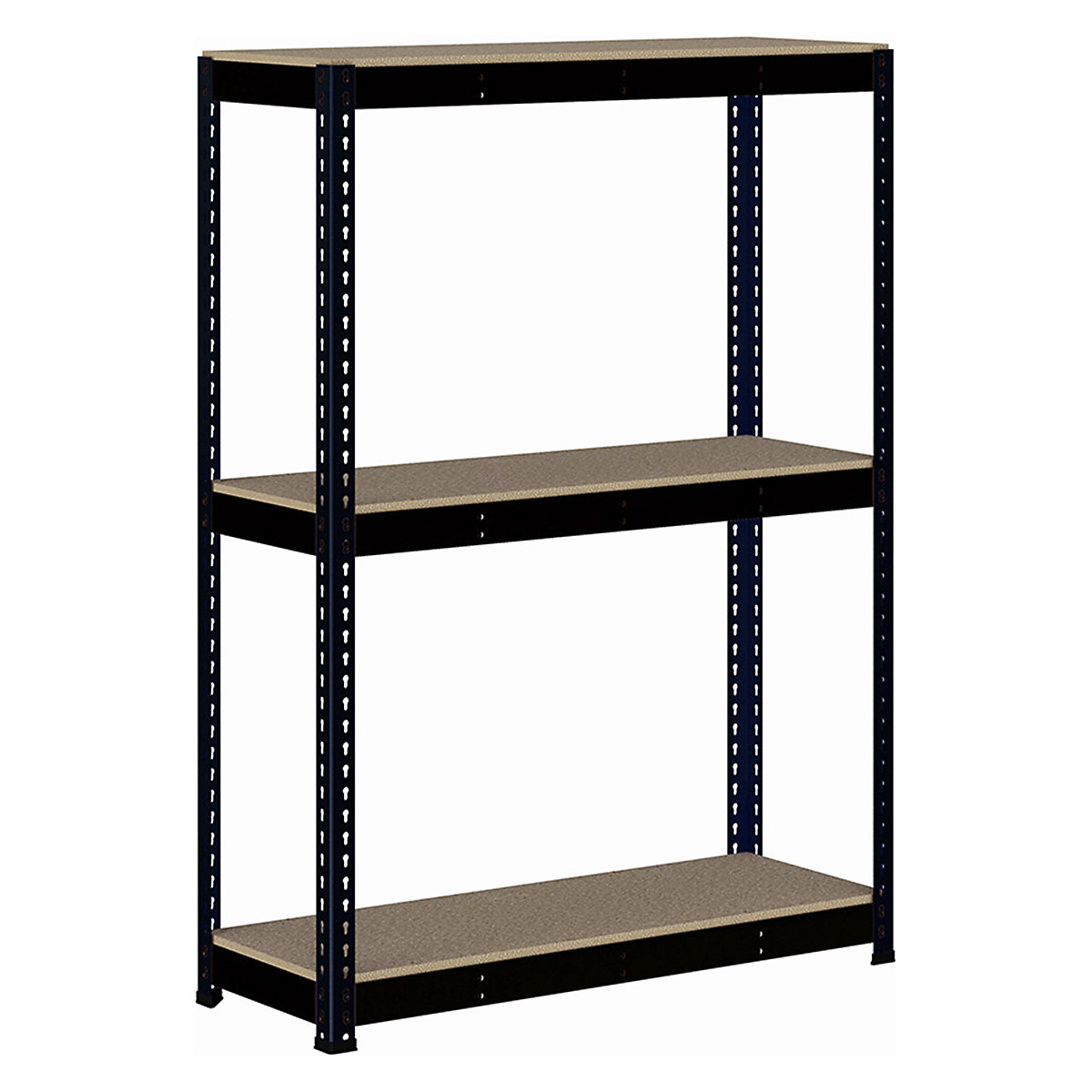

BiG400 Racking 1677h x 1220w x 455d mm 3 Levels 375kg UDL Black
BiG400 Racking 1677h x 1220w x 455d mm 3 Levels 375kg UDL Black
- Next day delivery available, in stock products only
- Find a lower price & we'll match it
- Large Project? Call for site visit & quote
Friday 8am - 4:30pm
Excluding Bank Holidays
With its simple boltless design, BiG400 Racking is easy to assemble and adjust, allowing you to optimise your storage space effortlessly. This commercial racking system is a versatile and adaptable system, perfect for stockrooms and workshops.

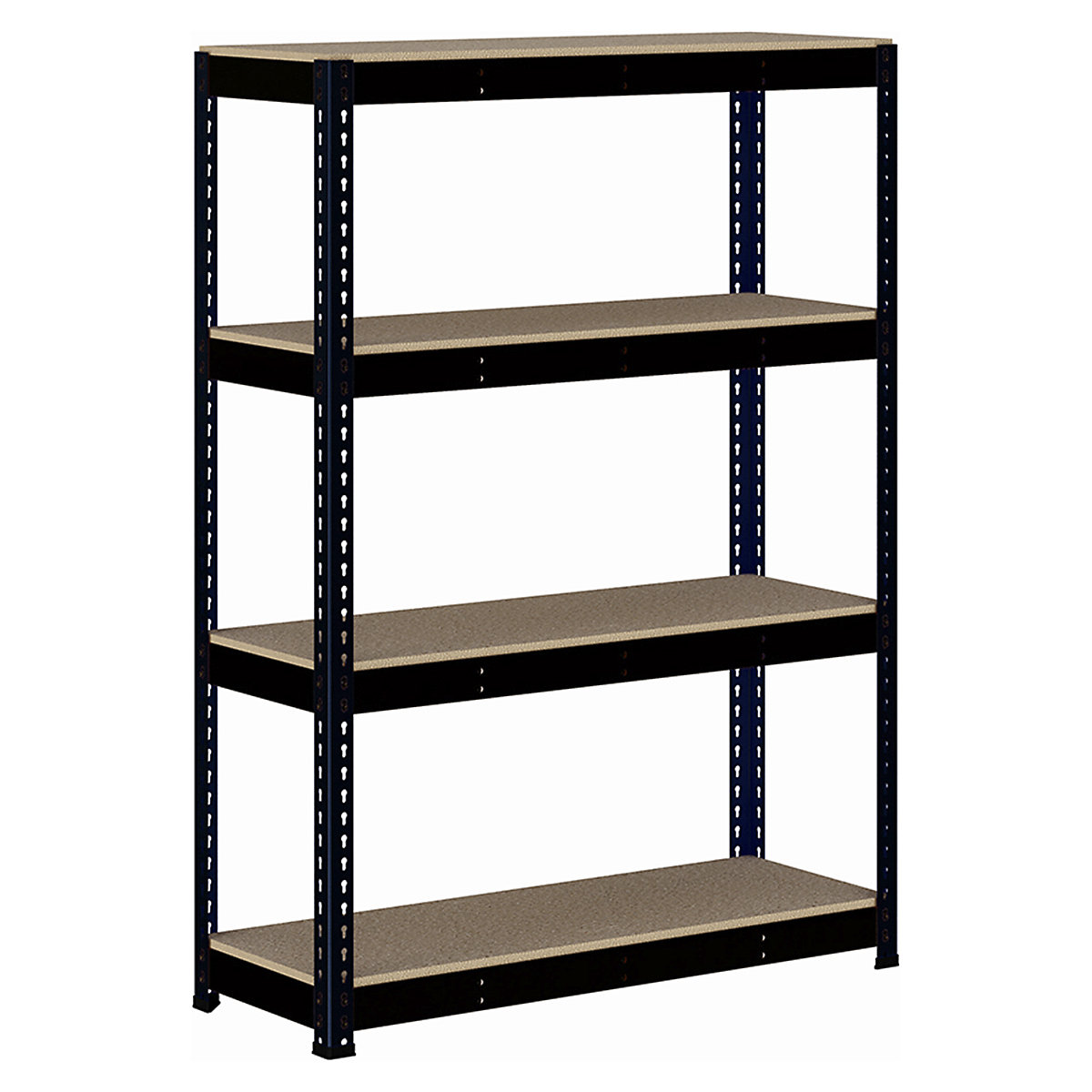

- Up to 375kg UDL per shelf level for 3/5 level bays & up to 400kg UDL per shelf level for 4 level bays
- Manufactured from premium, industrial-grade European steel
- Select from Black or Silver & Black powder-coated finishes
- Ideal heights for hand picking and storage
- 15mm chipboard shelf decks
- Manufactured to certified FEM standards
- Simple boltless design - just tap together with a rubber assembly mallet
- Requires no cross-bracing, so it is suitable for double-sided access
- Select from 3 x width and 4 x depth options
Please note: The black finish on this range is not compatible with our BiG400 Matt Black range. Extra shelf levels are not available
BiGDUG is a reliable supplier of BiG400 Racking. If you're planning a large project and need some personal assistance, we can call to your site to assess your requirements.
* UDL = Uniformly Distributed load. Actual capacity varies according to shelf size
Shelving Specifications
| Data Field | 1220mm Width | 1525mm Width | 1830mm Width |
|---|---|---|---|
| Upright Type | One Piece | One Piece | One Piece |
| Upright Steel Thickness | 1.5mm | 1.5mm | 1.5mm |
| Beam Steel Thickness | 1.5mm | 1.5mm | 1.5mm |
| Shelf Adjustment Increments | 38.1mm | 38.1mm | 38.1mm |
| Shelf Thickness | 94mm | 94mm | 94mm |
| Chipboard Thickness | 15mm | 15mm | 15mm |
| Clear Width | 1135mm | 1440mm | 1745mm |
| Extra Levels Available | N | N | N |

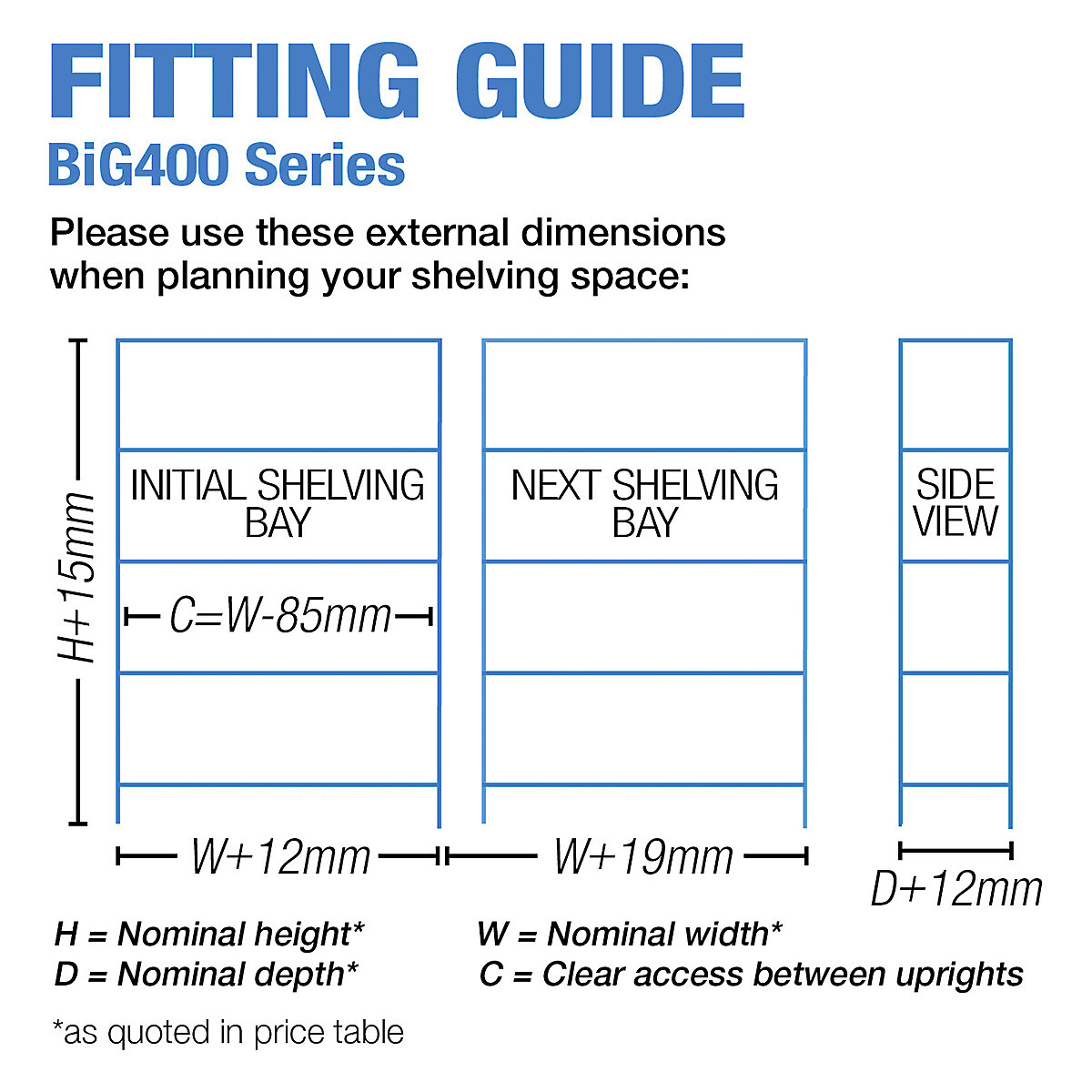

Fitting Guide
Please check our guides for each range when planning your shelving space.
| Nominal Shelf Width mm: | Clear Entry mm: | Initial Bay External mm: | Next Bay External mm: |
|---|---|---|---|
| 1220 | 1135 | 1232 | 1239 |
| 1525 | 1440 | 1537 | 1544 |
| 1830 | 1745 | 1842 | 1849 |
External Height = H+12 Pitch = 38.1
Clear height between shelves = (No. x pitch) -94
All dimensions in Millimetres
