Code: B3BK1B

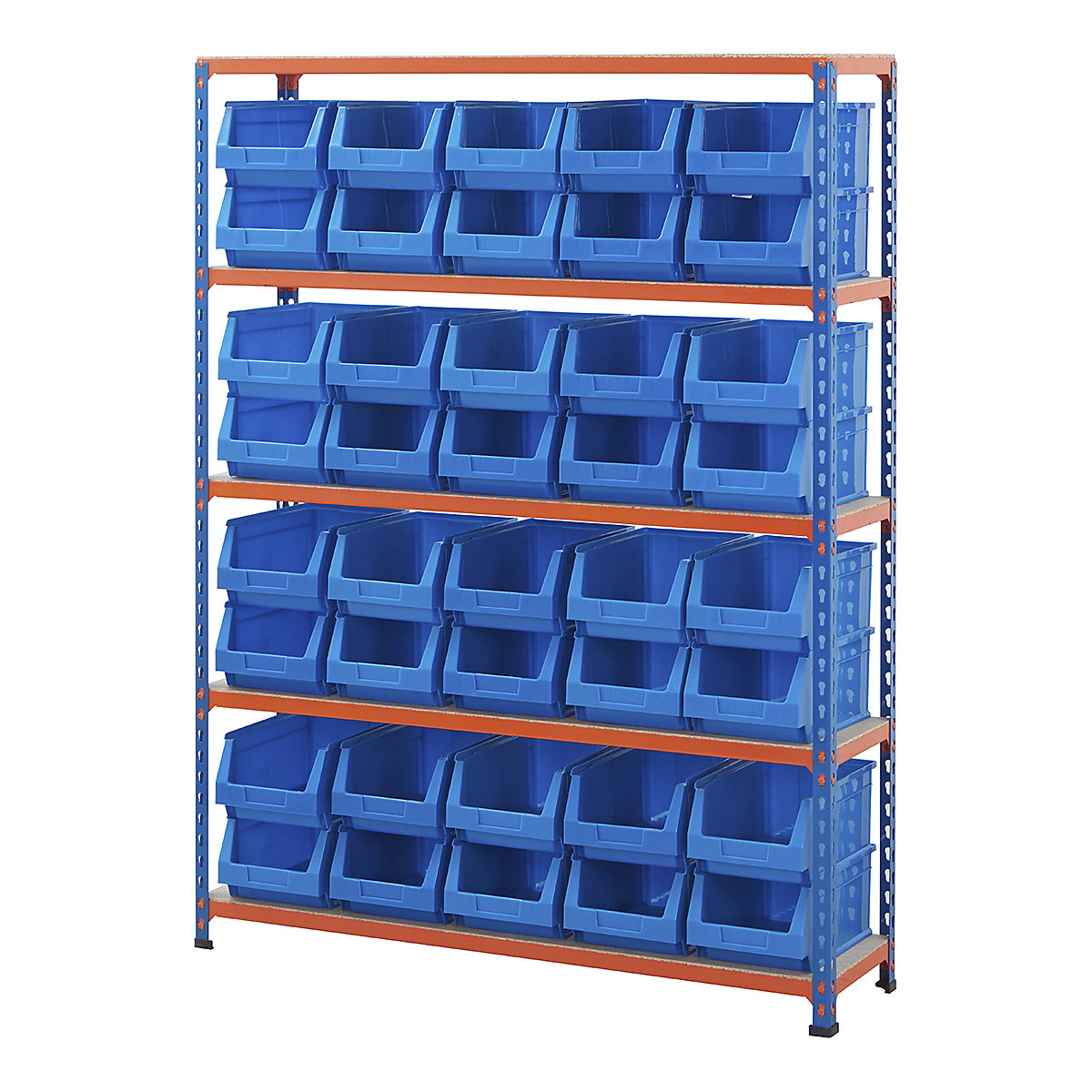

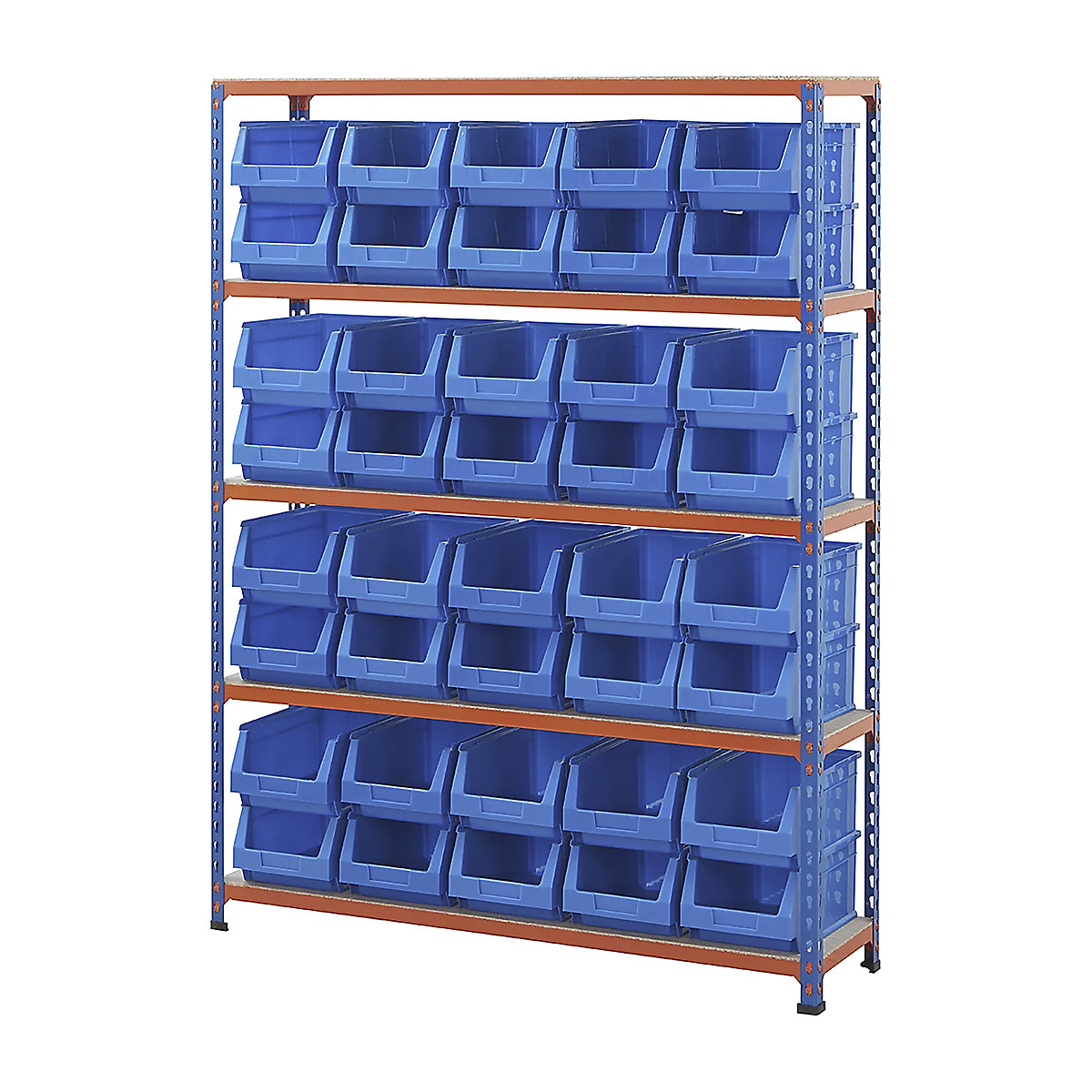

BiG200 Shelving with Plastic Parts Bins | 1600h x 1220w x 305d mm | 140kg UDL | 40x Blue B54 Bins | Blue & Orange

(5)
BiG200 Small Parts Storage Shelving Kits
Optional Extras
Delivery time: 2-3 Working Days
Order until 15:00 for next day delivery
Product description

Small parts have a habit of ending up everywhere… until now. These shelving and bin kits bring together our popular BiG200 shelving and best-selling plastic parts bins to create one seriously organised storage setup. From screws and fittings to components and supplies, the open-front bins make it easy to see, pick and put away exactly what you need. Strong, colourful and built for busy workshops and warehouses, it's a simple way to turn small-parts chaos into an organised workspace.

Please note: Images showing all available shelving colours are coming soon. In the meantime, please refer to the beam colour images in the main image carousel to view the available colour combinations.

  • Load capacity of up to 140kg UDL per shelf*

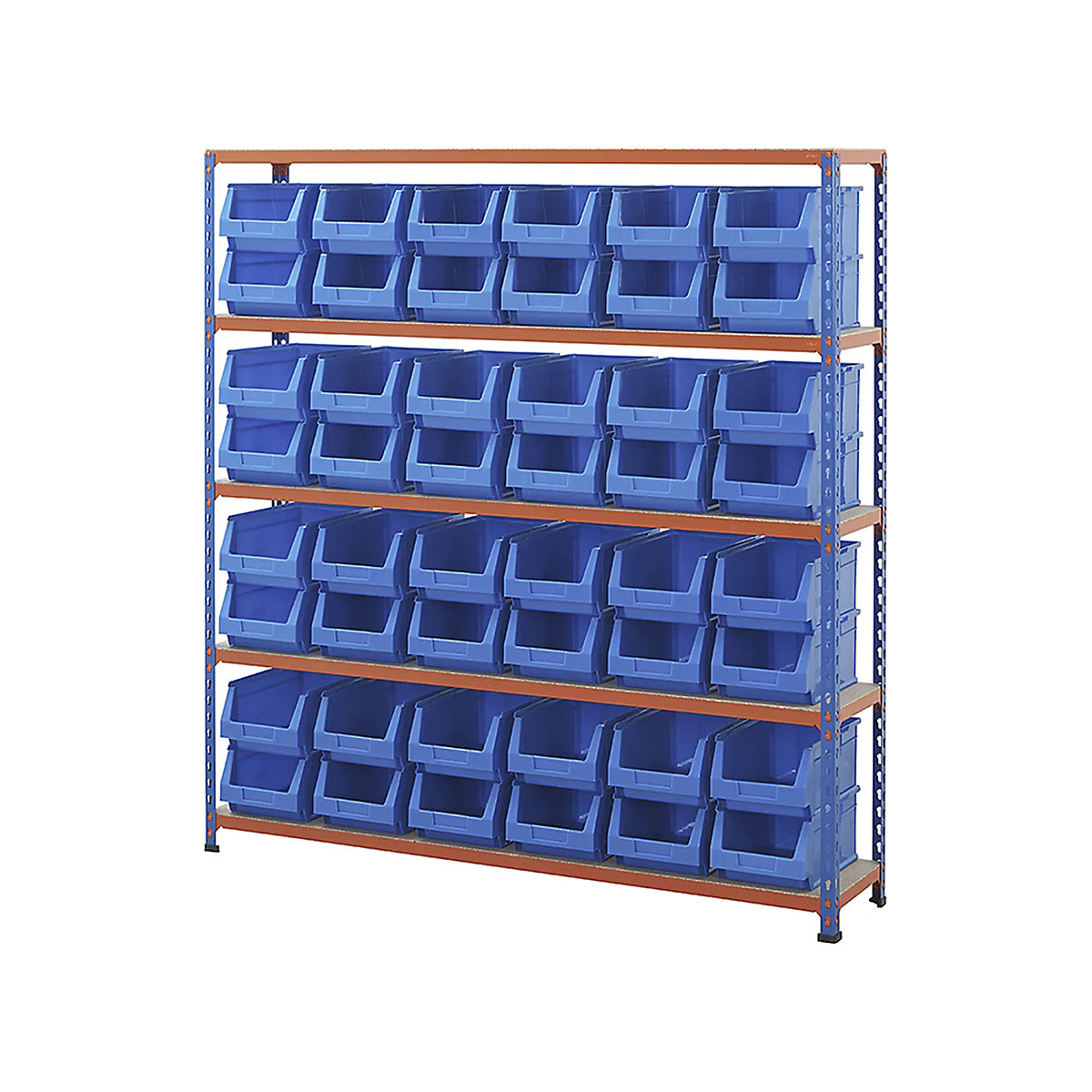

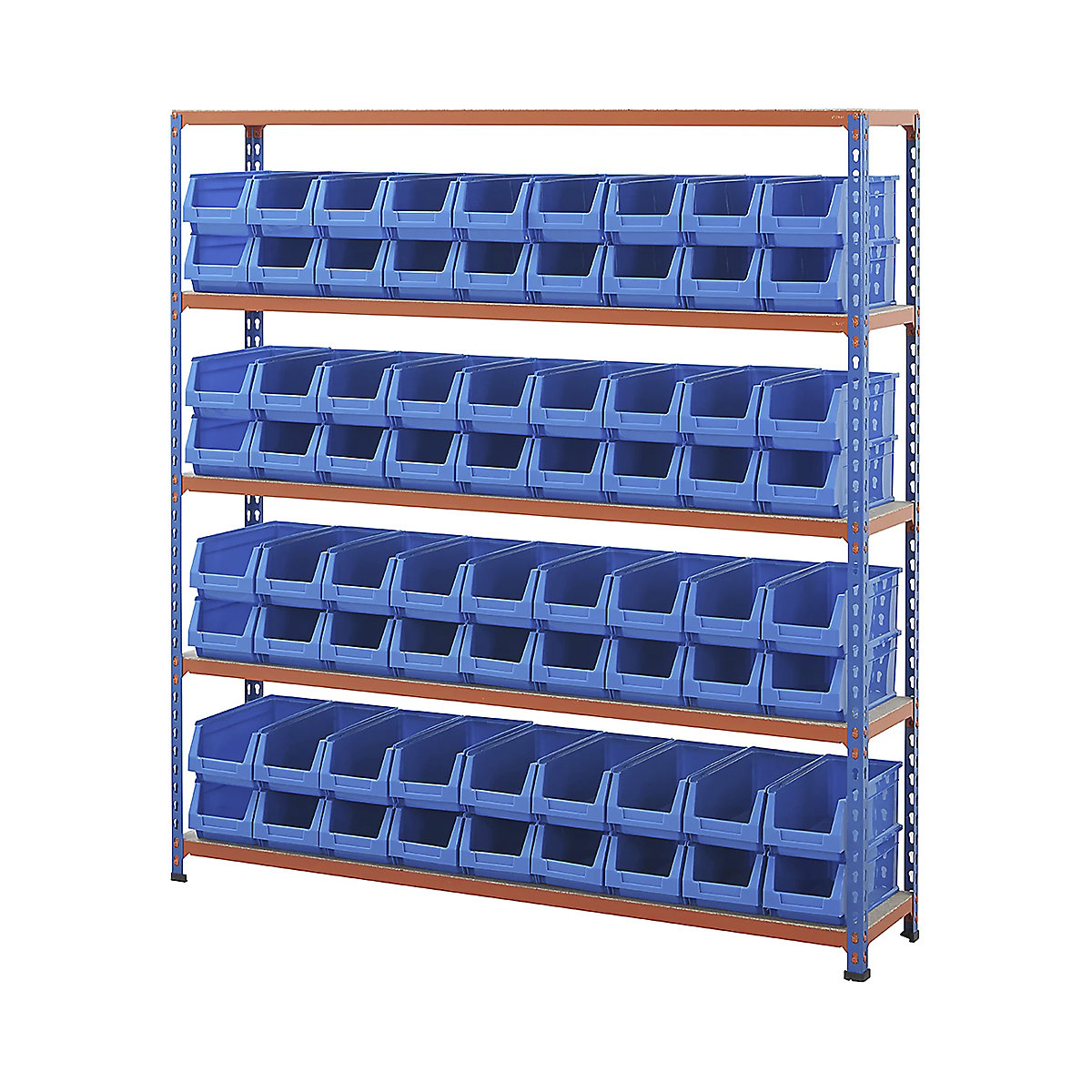

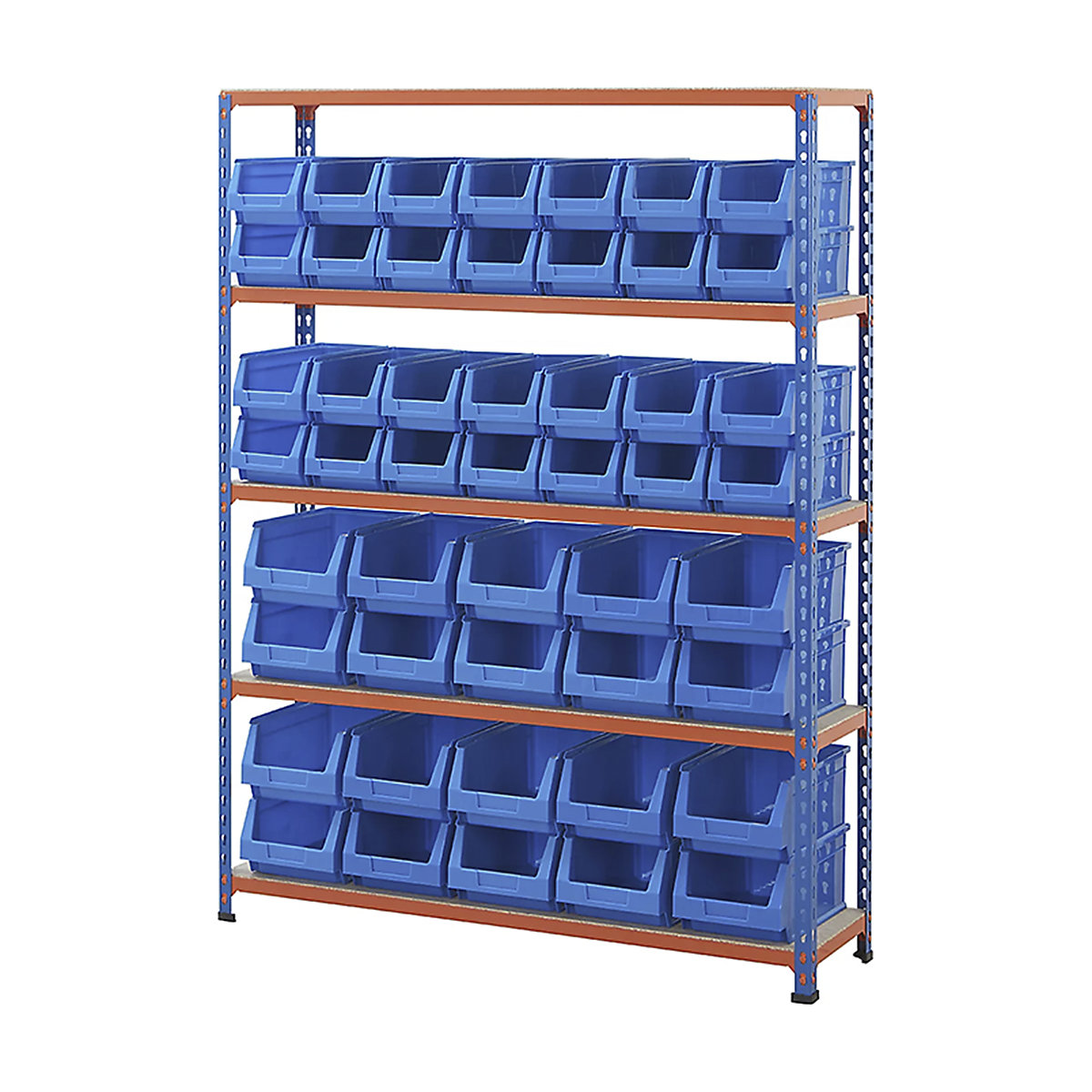

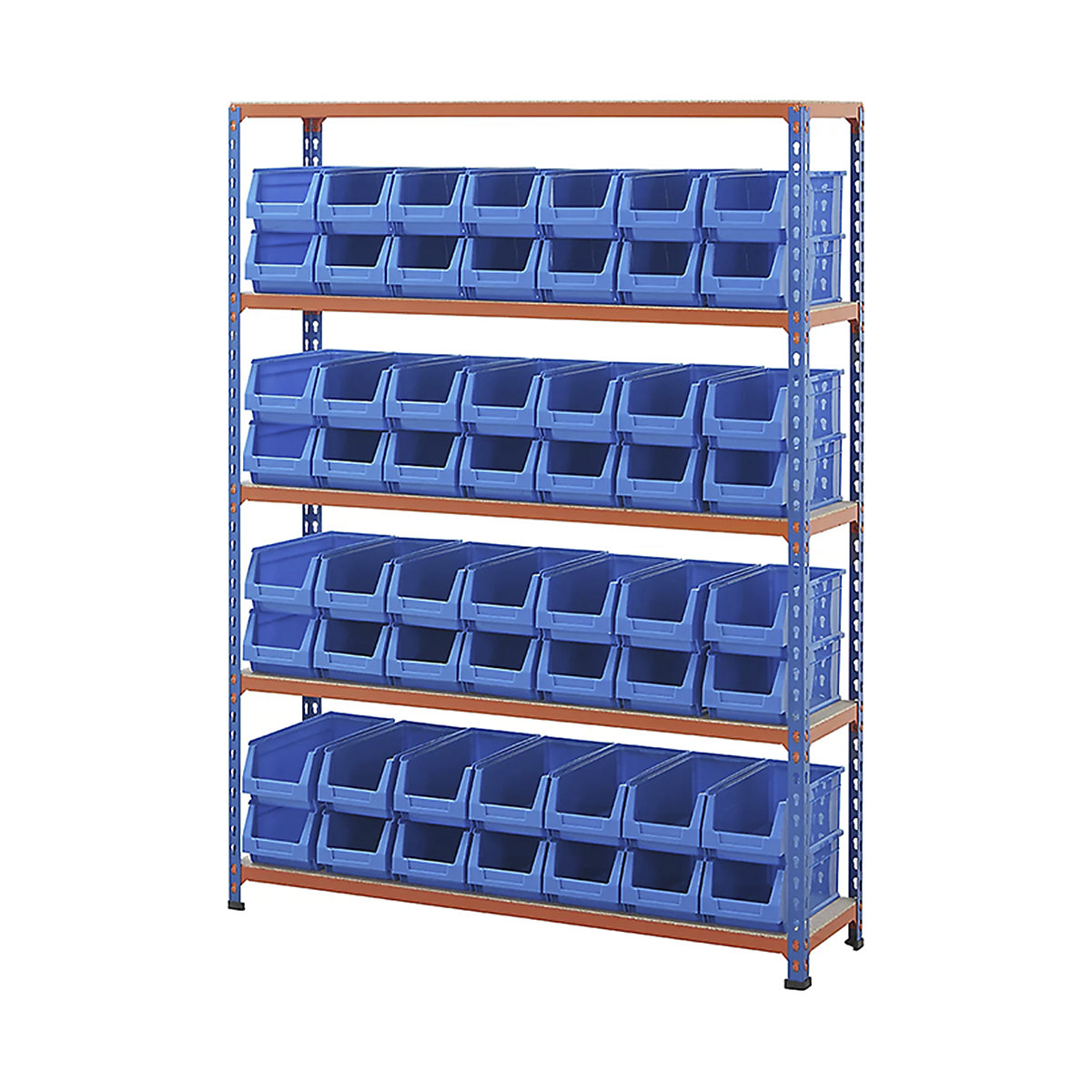

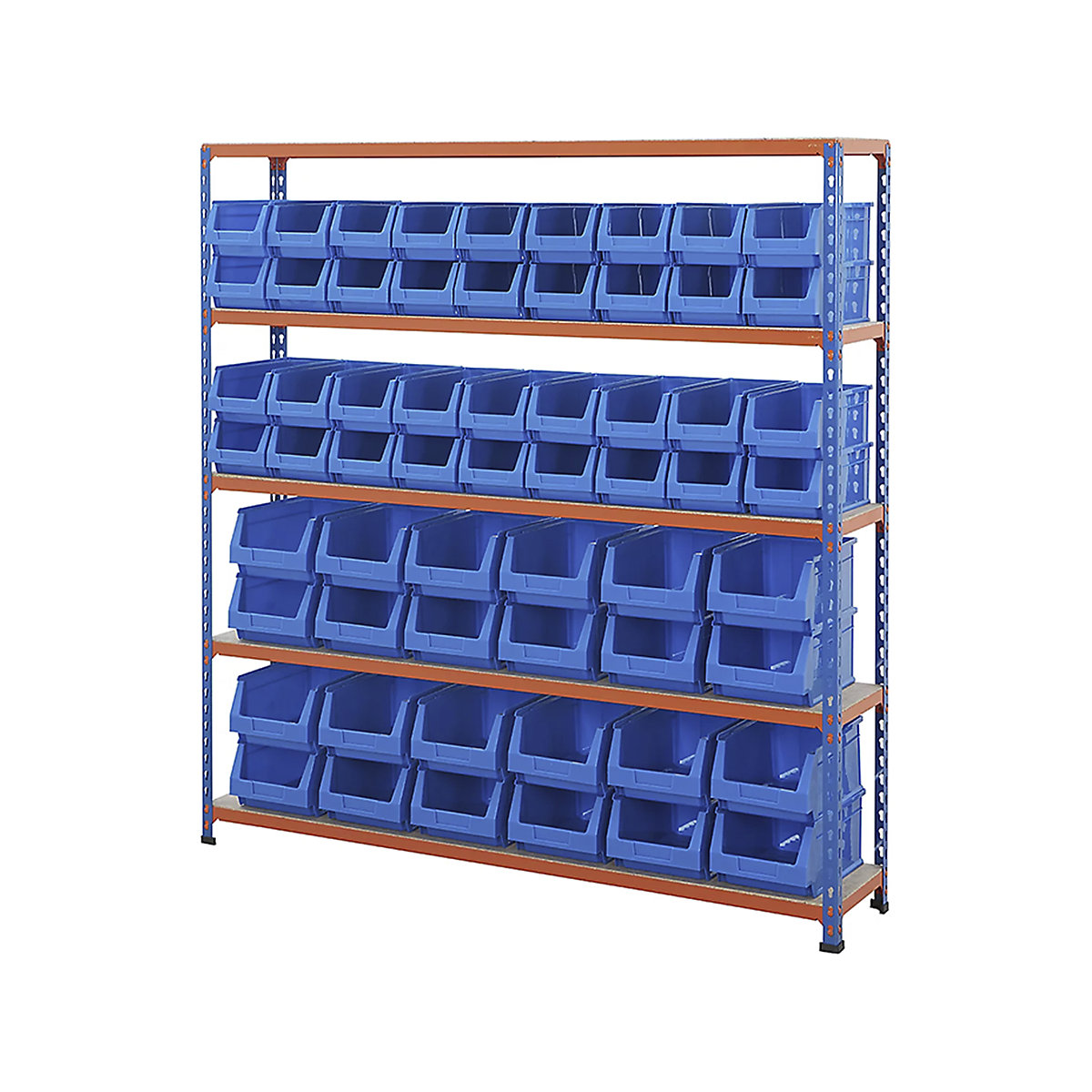

  • Six shelving and bin kit combinations available

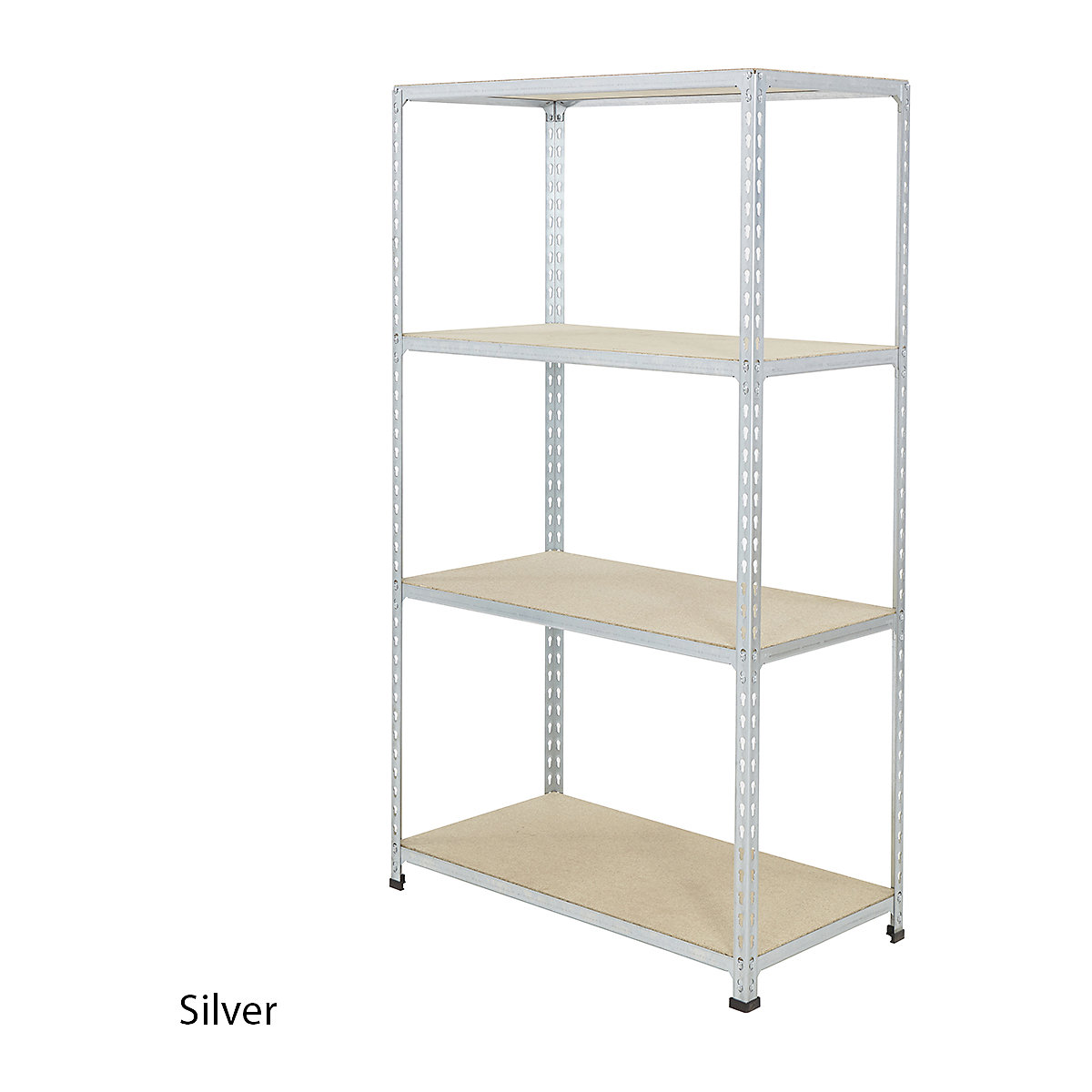

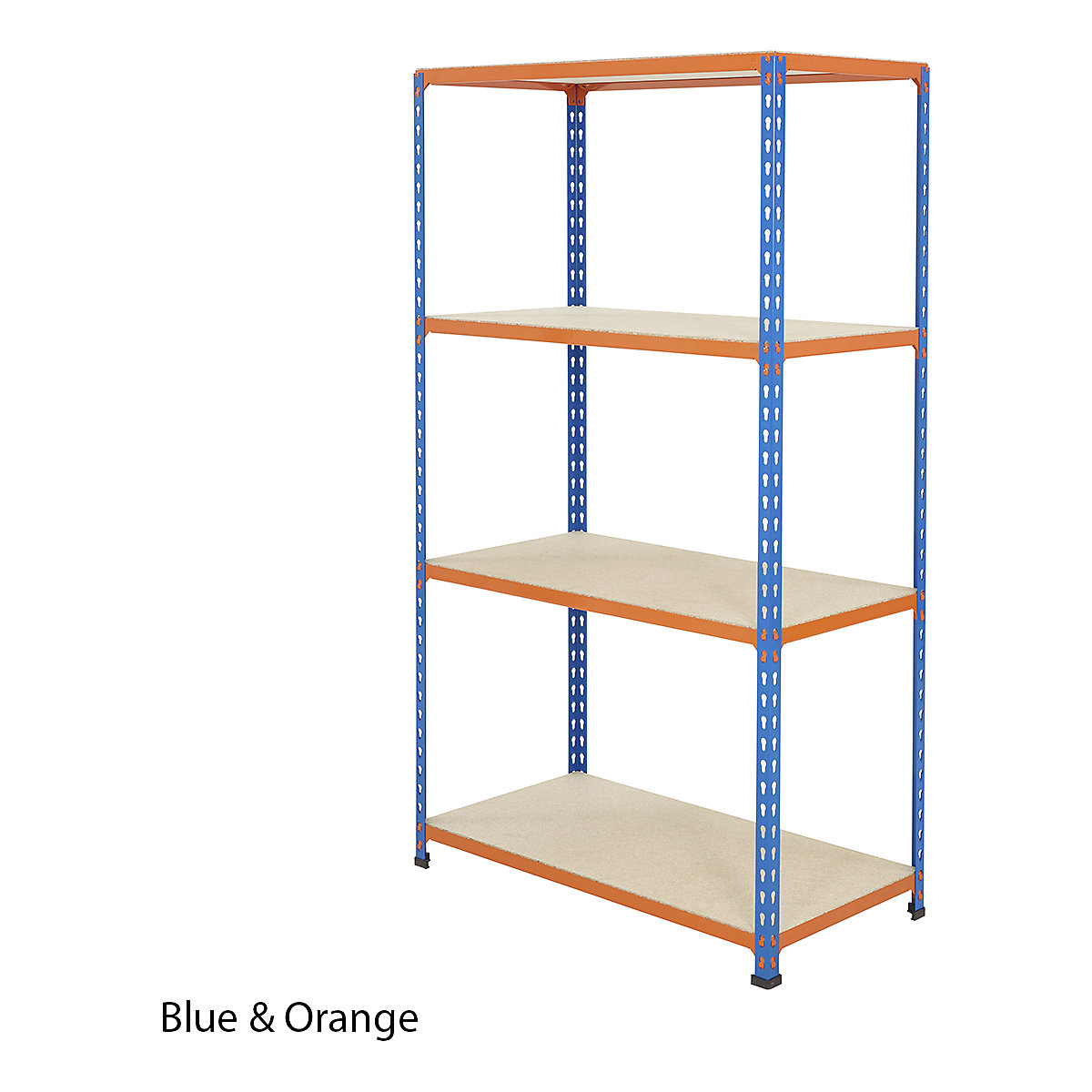

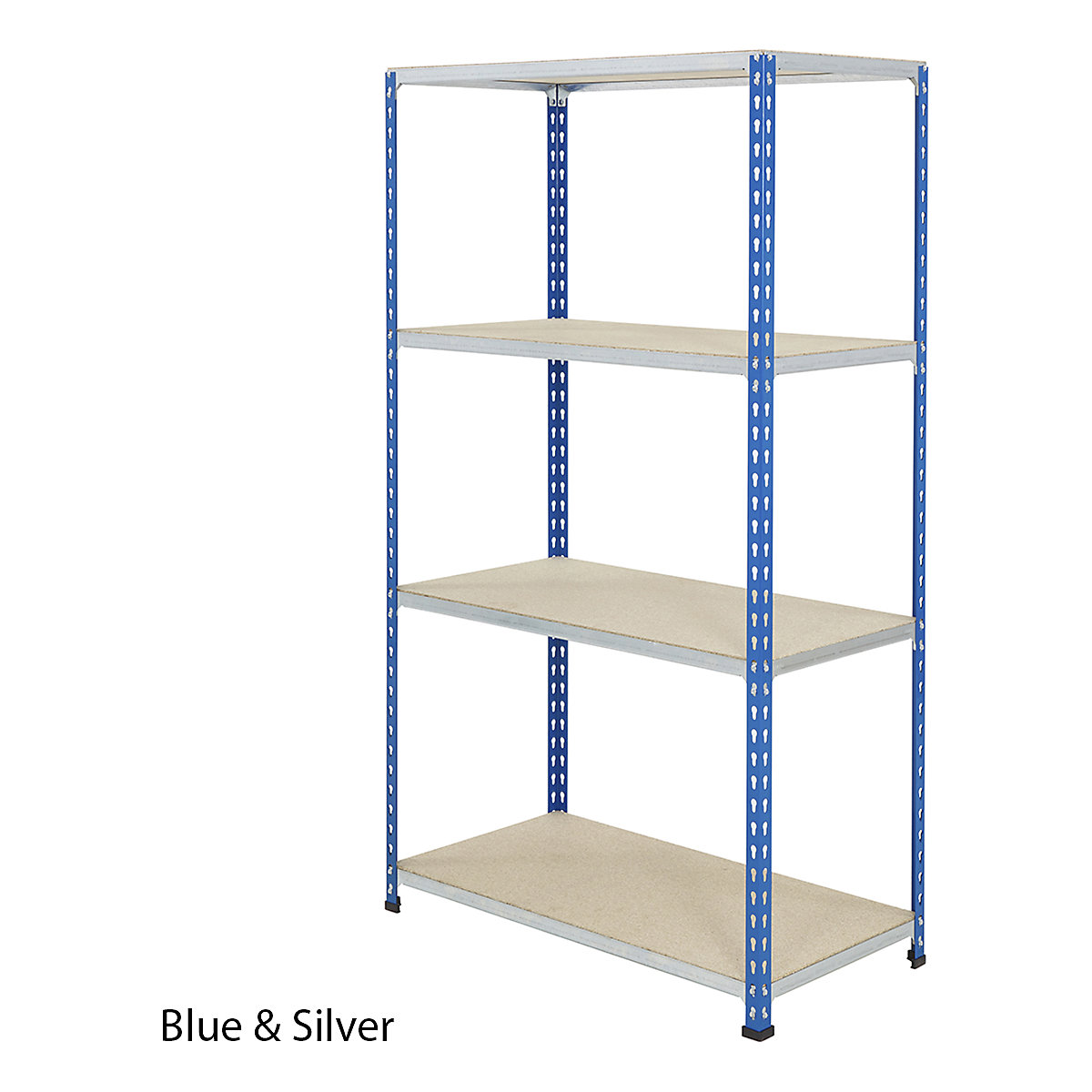

  • Choose from three shelving colour options: Blue & Orange, Blue & Silver or Silver
  • Shelving bays measure 1600mm high x 305mm deep, with a choice of 1220mm or 1525mm widths
  • Simple self-assembly required

    Shelving With Plastic Bins

  • Supplied with protective plastic feet
  • Shelving manufactured from premium-grade European steel
  • Flush-fitting decks provide snag-free storage with the edge protection of surrounding steel beams
  • Choose from fully stackable plastic parts bins in two sizes: B53 (130h x 160w x 336d mm) or B54 (155h x 216w x 336d mm)
  • Impact-resistant, food-grade thermoplastic bins feature reinforced sides and bases, plus an integral label holder (labels available separately)

    • * UDL= Uniformly Distributed Load. Please note that actual capacity varies according to shelf size.

    Shelving Specifications

    Data Field     1220mm Width         1525mm Width
    Upright Type One Piece One Piece
    Upright Steel Thickness 1.5mm 1.5mm
    Beam Steel Thickness 1.5mm 1.5mm
    Shelf Adjustment Increments 38.1mm 38.1mm
    Shelf Thickness 30mm 30mm
    Chipboard Thickness 15mm 15mm
    MDF Thickness n/a n/a
    Melamine Thickness 15mm 15mm
    Steel Panel Thickness 0.8mm 0.8mm
    Total Bay Capacity 1600h mm 1200kg 1200kg
    Total Bay Capacity 1830h mm 1200kg 1200kg
    Clear Width 1156mm 1461mm

    Fitting Guide

    Please check our guides for each range when planning your shelving space.

    Nominal Shelf Width mm: Clear Entry mm: Initial Bay External mm: Next Bay External mm:
    1220 1156 1230 1237
    1525 1461 1535 1542

    External Height = H+12       Pitch = 38.1

    Clear height between shelves = (No. x pitch) -30

    All dimensions in Millimetres

    What Are The Advantages Of Shelving With Bins?

    Shelving with plastic bins can improve efficiency in any environment where small parts and components are stored. The combination of open shelving and labelled bins allows users to easily identify and retrieve items without sorting through cluttered drawers or boxes. This system supports inventory accuracy, faster picking times, and a tidier workspace, which is especially beneficial in workshops, warehouses, and retail backrooms.

    How Many Bins Does My Shelving Need?

    The number of bins included in each shelving kit depends on the configuration and size you select. Our kits are carefully designed to maximise bin storage capacity while keeping access clear and functional. The B53 bins are more compact, ideal for storing small parts or lightweight components. The B54 bins are larger and better suited to medium-sized items. If you're unsure which kit best matches your inventory, consider measuring the size and volume of your most frequently stored parts and comparing them with the bin dimensions listed above.

    Is BiGDUG’s Shelving With Plastic Bins Easy To Assemble?

    Yes, the BiG200 shelving system is designed for simple assembly. Tap the components into place using a  rubber mallet; no bolts, screws or specialist tools required. Each shelf level slots securely into the frame, and the chipboard decks fit flush within the steel beams for a clean, snag-free finish. The bins arrive ready to use and fit perfectly on the shelves. Browse our ‘Downloads’ tab for full assembly instructions. BiGDUG BiG200 Blue Orange Shelving with Plastic Bins Kits are eligible for our Next Day Delivery service.
