Code: AUMAB001

Autopa Manual Arm Barrier | 3000w mm | Galvanised & Red | Concrete-In

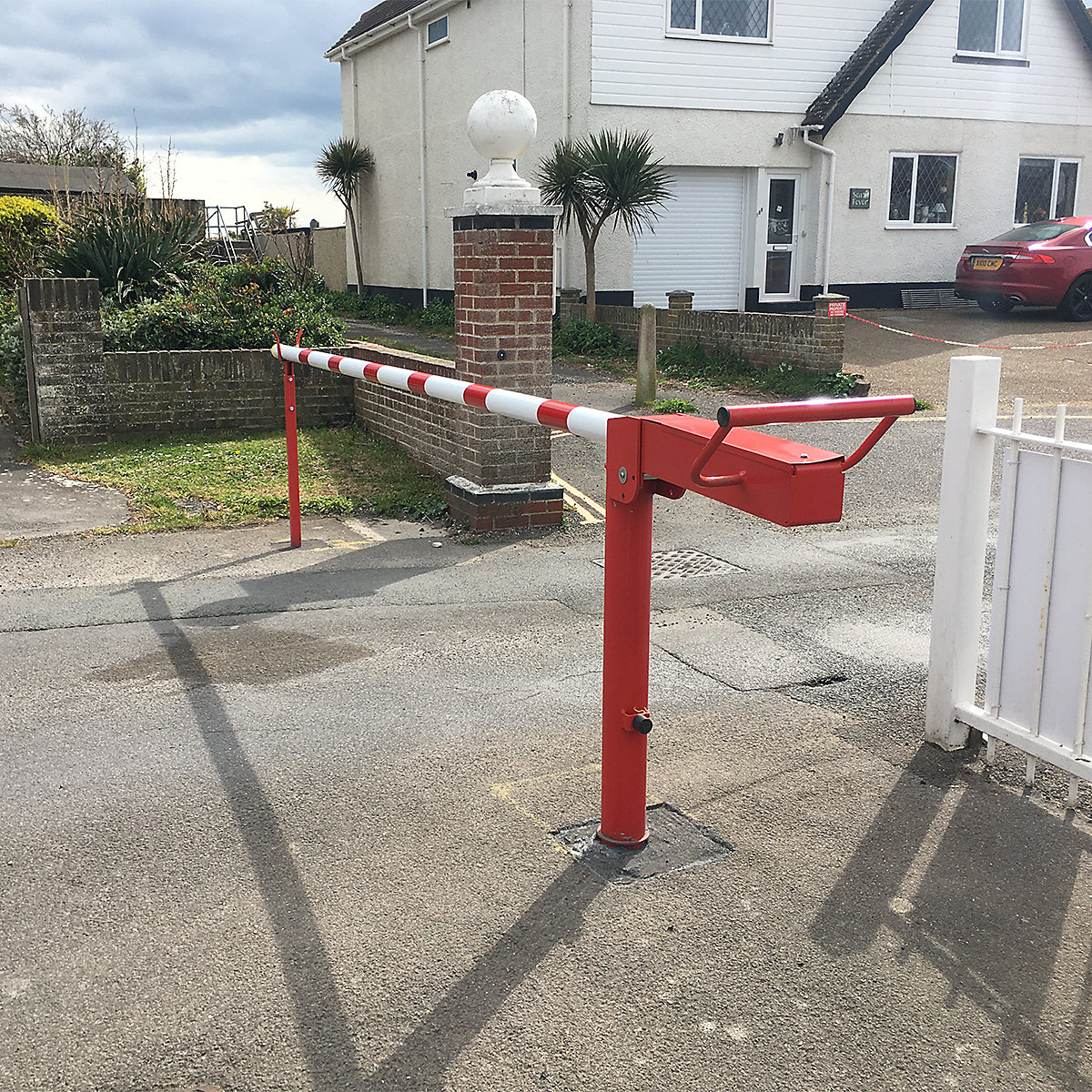

Autopa Manual Arm Barrier
Width [mm]
Type
Delivery time: 11-15 Working Days
Product description

The Autopa Manual Arm barrier has a slimline design and is suitable for use protecting car parks and other entrances to commercial property sites.

  • This barrier is ideal for areas where access only needs to be restricted during certain times of the day
  • The barrier can be locked in the raised and lowered positions offering complete peace of mind when the parking area is not in use
  • Manufactured from galvanised mild steel with an aluminium boom, the body of the barrier is powder coated red as standard
  • 1200mm (approx) overall height
  • Arm lengths from 3.0m - 7.0m
  • The type of bolt required for bolting down is dependent on ground conditions
  • The barrier must be either ragged into or bolted onto a concrete foundation at least 600mm3. Allow 50-55mm of chipping for drainage
  • The catch post must be either ragged into or bolted onto a concrete foundation at least 300mm3. Allow 50-55mm of chipping for drainage
  • Ragged version 600mm below ground for barrier and 300mm below ground for catch post

Please note: This product cannot be cancelled or returned once ordered unless it is damaged or faulty. If you require any further information or advice before placing your order, please contact our friendly sales team on 0333 200 5299.

‌
‌
‌
‌
‌
