Heavy-Duty 4M High Single-Sided Cantilever Racking System

Delivery 8-14 Days

Improve stock accessibility with our fully-adjustable, single-sided Cantilever Racking. Designed for storing heavy lengths of steel, pipes, plastic & timber.

Load Capacity: 500kg-1000kg per arm UDL*
Powder-coated Blue & Orange steel frame
Supplied with 6x height-adjustable arms
4M high racking in a choice of 2 widths & 4 depth options
Add-on extension bays to create additional storage space

More Info

Loading...

Code Product Information 1+ Quantity Qty

CL496S

CL496S Heavy-Duty Single-Sided Cantilever Racking Starter Bay, 6 Arms, 4000h x 900w x 600d mm 1+ £837.00 (ex. VAT)

£837.00 (ex. VAT)

1

CL497S

CL497S Heavy-Duty Single-Sided Cantilever Racking Starter Bay, 6 Arms, 4000h x 900w x 750d mm 1+ £971.00 (ex. VAT)

£971.00 (ex. VAT)

1

CL4910S

CL4910S Heavy-Duty Single-Sided Cantilever Racking Starter Bay, 6 Arms, 4000h x 900w x 1000d mm 1+ £1,069.00 (ex. VAT)

£1,069.00 (ex. VAT)

1

CL4912S

CL4912S Heavy-Duty Single-Sided Cantilever Racking Starter Bay, 6 Arms, 4000h x 900w x 1200d mm 1+ £1,147.00 (ex. VAT)

£1,147.00 (ex. VAT)

1

CL4156S

CL4156S Heavy-Duty Single-Sided Cantilever Racking Starter Bay, 6 Arms, 4000h x 1500w x 600d mm 1+ £908.00 (ex. VAT)

£908.00 (ex. VAT)

1

CL4157S

CL4157S Heavy-Duty Single-Sided Cantilever Racking Starter Bay, 6 Arms, 4000h x 1500w x 750d mm 1+ £1,042.00 (ex. VAT)

£1,042.00 (ex. VAT)

1

CL41510S

CL41510S Heavy-Duty Single-Sided Cantilever Racking Starter Bay, 6 Arms, 4000h x 1500w x 1000d mm 1+ £1,140.00 (ex. VAT)

£1,140.00 (ex. VAT)

1

CL41512S

CL41512S Heavy-Duty Single-Sided Cantilever Racking Starter Bay, 6 Arms, 4000h x 1500w x 1200d mm 1+ £1,218.00 (ex. VAT)

£1,218.00 (ex. VAT)

1

Total: £0.00 (No VAT)

Specifications
Reviews
Downloads

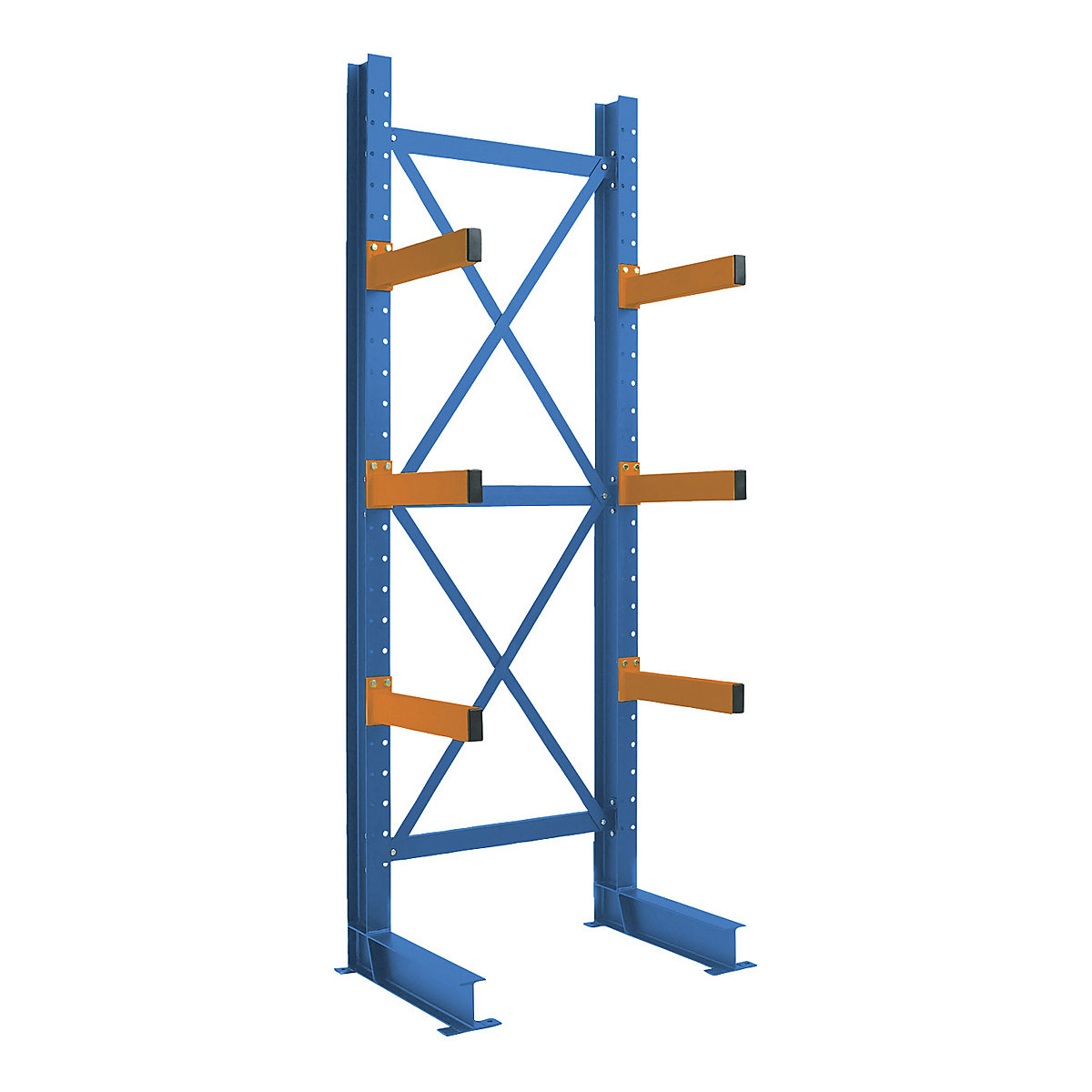

Heavy-Duty 4M High Single-Sided Cantilever Racking System

4000mm High Cantilever Racking
Designed for heavy-duty applications storing lengths of timber, piping & steel
Manufactured from industrial-grade steel
Powder-coated blue steel frame with high-visibility orange arms
Available in three industry standard heights, 2 widths & 4 depth options
Load Capacity (per arm): 500kg - 1000kg UDL*
Supplied with 6x height-adjustable arms
Arms can be adjusted every 150mm & are secured with 2x high-tensile steel bolts
Tested & certified to British Safety Standards
Also available as double-sided, back-to-back bays

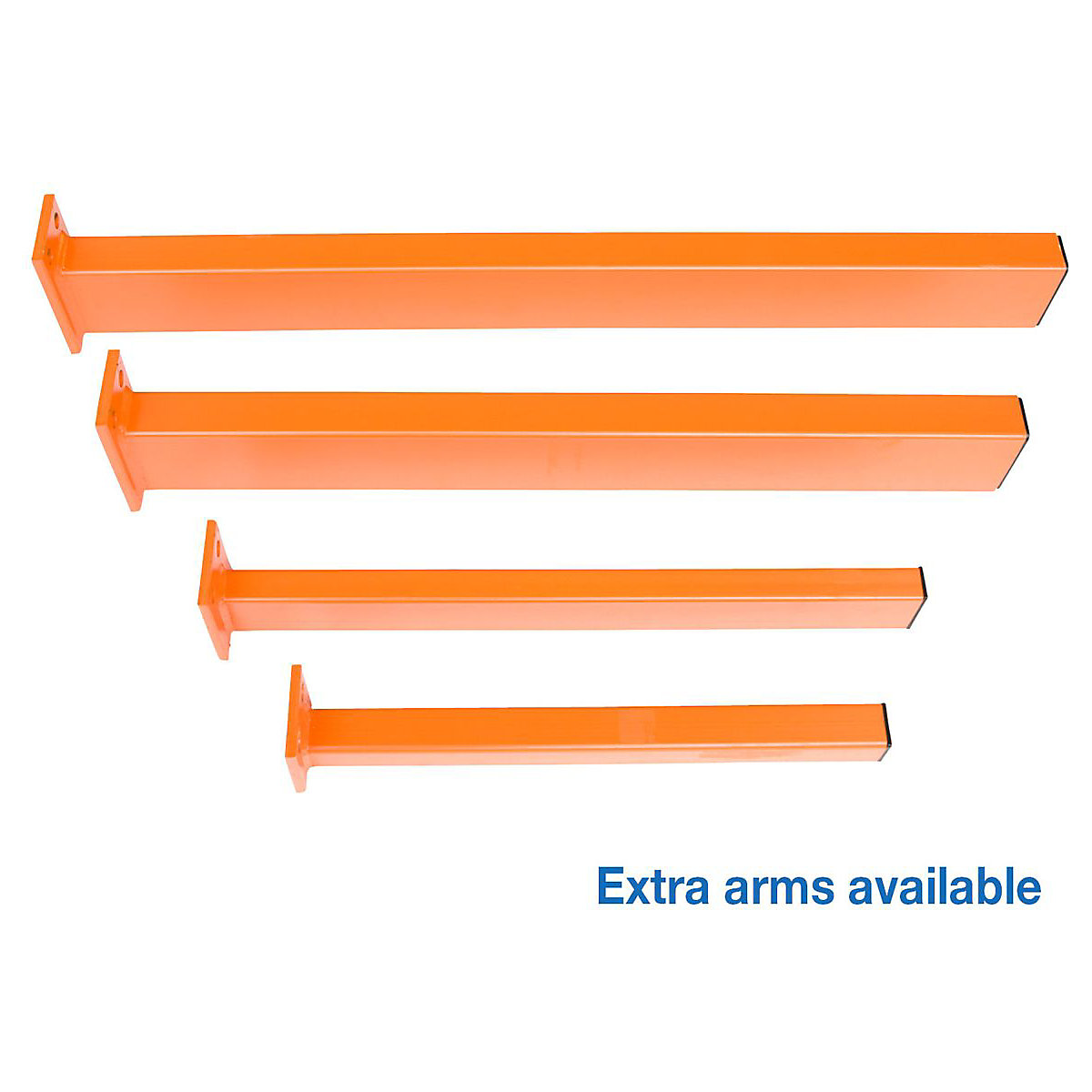

Extension bays & additional arms can be purchased separately to create further storage space

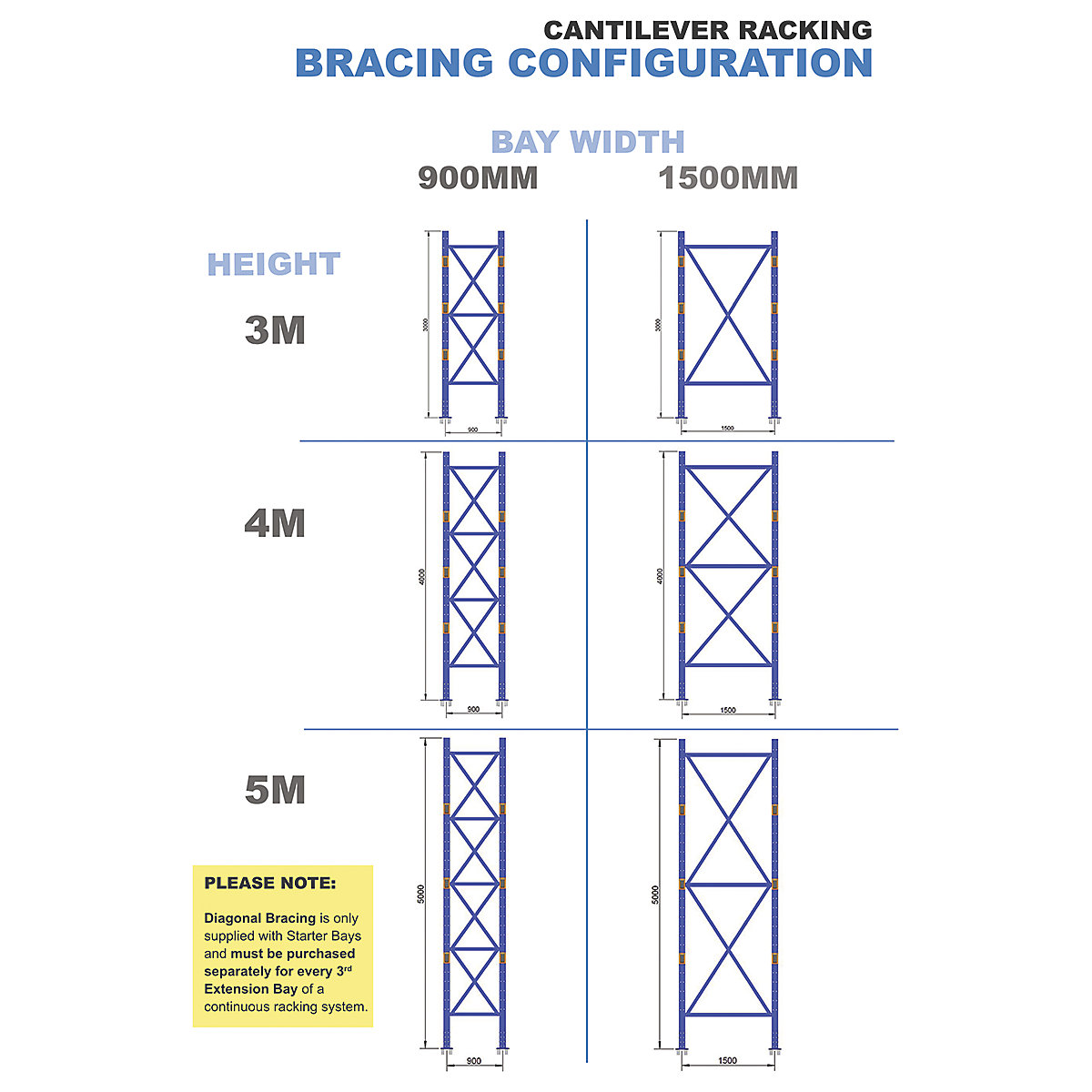

Note: When extending your racking, cross bracing is required for every 4th bay in a continuous run (bracing available separately)

* UDL = Uniformly Distributed Load

Maximum Load Capacity:

Arm size:	Load Capacity per arm (UDL):
600mm	500kg
750mm	500kg
1000mm	1000kg
1200mm	1000kg

Please note: Load capacities given are per arm and should not be exceeded. Additional arms may be added, providing the total bay capacity of 6 tonnes is not exceeded for each starter bay, and 3 tonnes per each extension bay.

Please note: this product is made to order and therefore cannot be cancelled once ordered. As these items are made specifically to your request, they are also excluded from our returns policy unless damaged or faulty. Please contact our friendly sales team should you need further help or advice before ordering: 0800 088 6300.

Be the first to review Heavy-Duty 4M High Single-Sided Cantilever Racking System. Write a review

4M Heavy Duty Cantilever Racking Assembly Sheet
