Code: BLXL269OMD

BiGDUG Longspan Shelving Wire Mesh Deck Level 2675w x 900d mm 120kg UDL

(5)
BiGDUG Longspan Shelving System
Type
Height [mm]
Width [mm]
Depth [mm]
Total (Excl. VAT)
£549.00
Delivery time: 12-14 Working Days
Product description

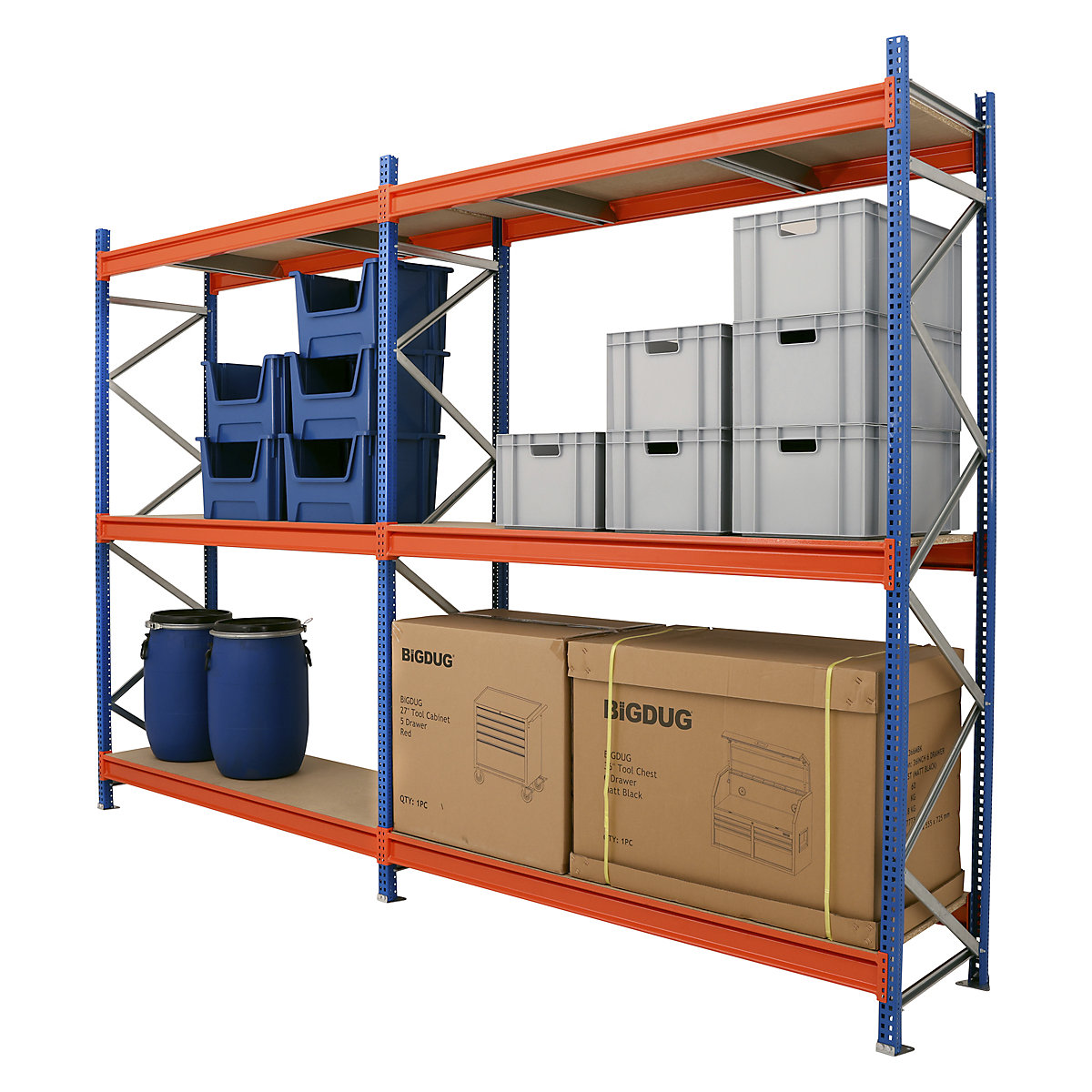

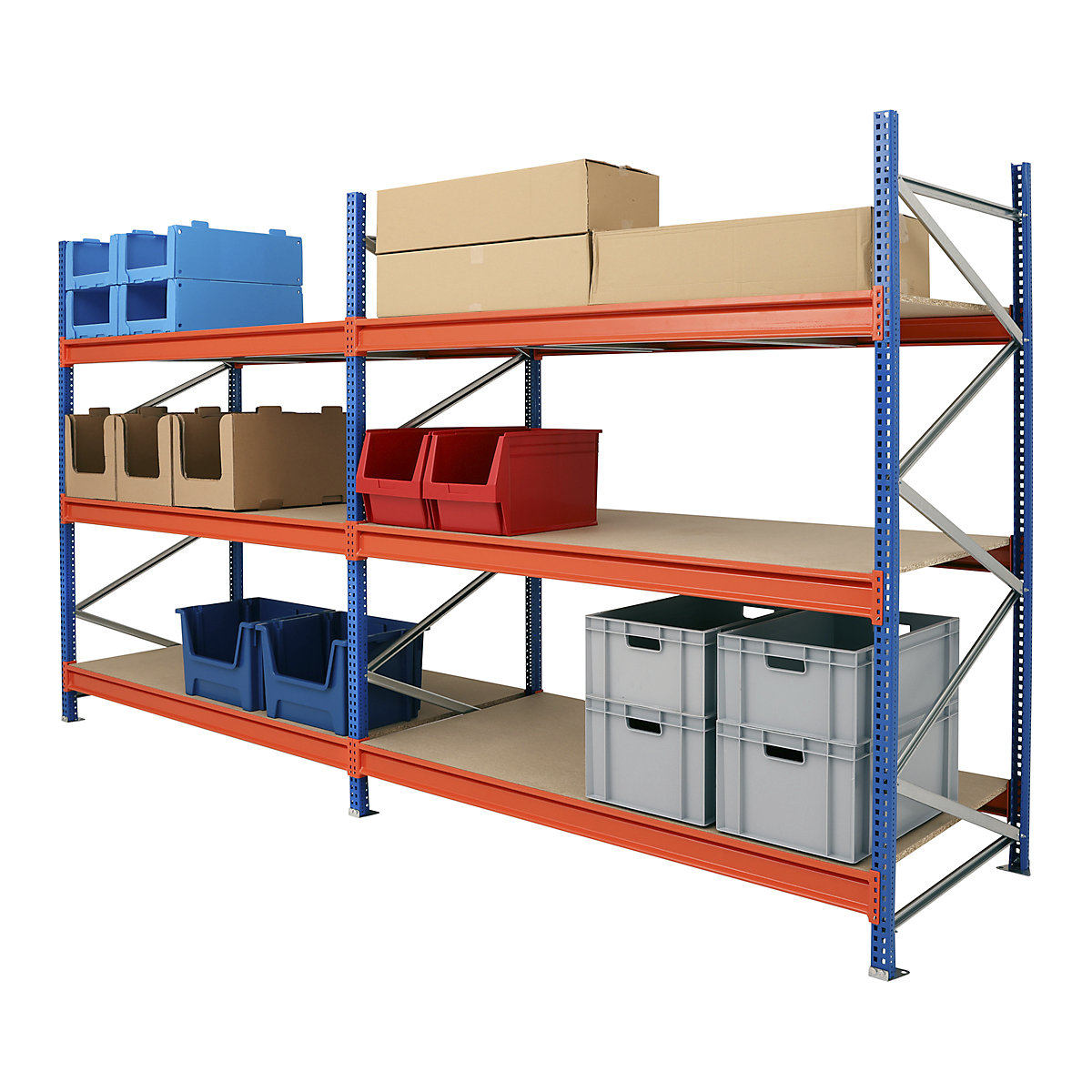

Build your ideal storage solution with the BiGDUG Longspan Shelving System. Designed for warehouses, factories, and commercial spaces, this heavy duty shelving supports high load capacities per frame, with adjustable levels for flexible, efficient storage of bulky stock and equipment.

  • High load capacity: 4000kg UDL* per frame (1100kg UDL* capable per level)

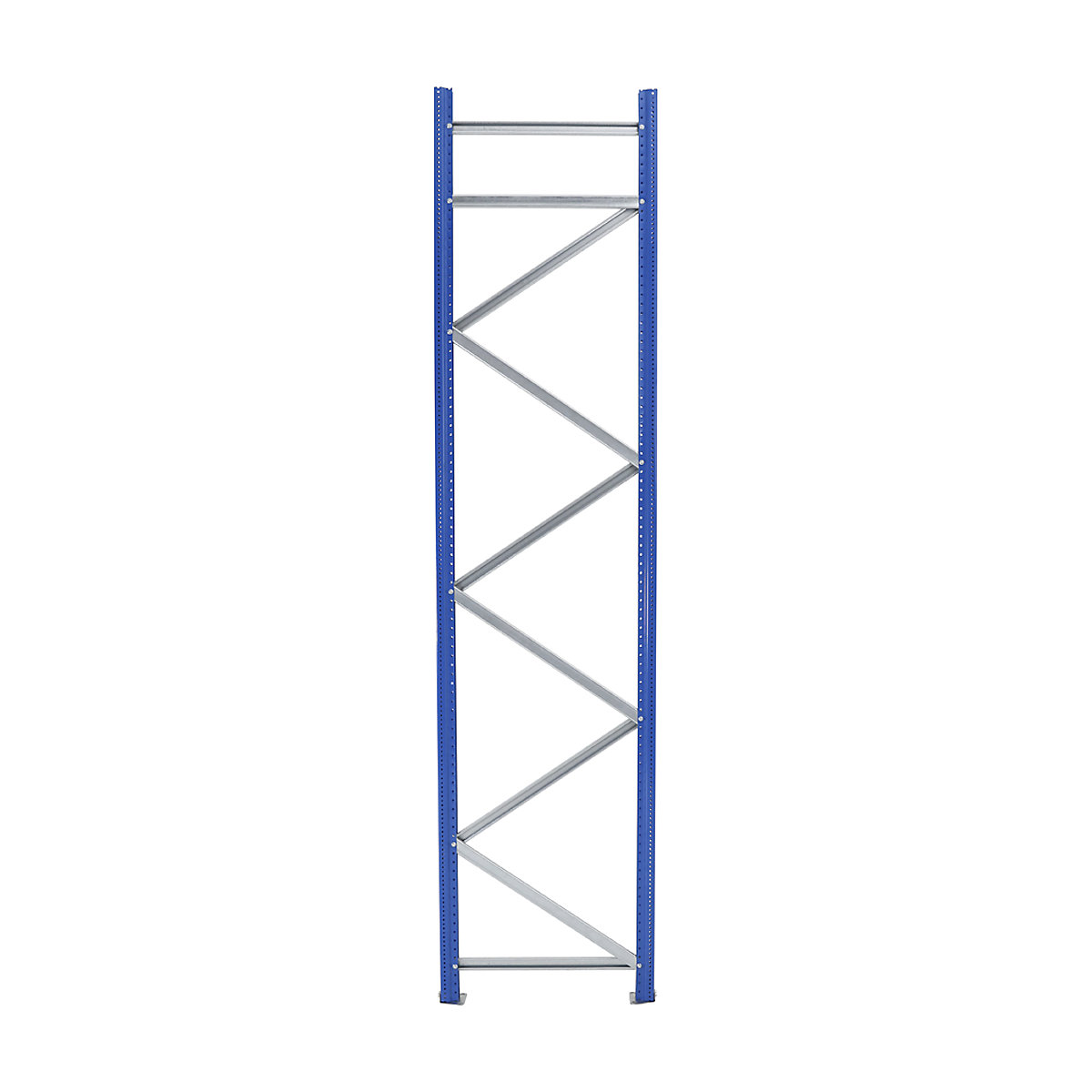

  • Pre-assembled end frames with blue powder-coated finish and galvanised cross-bracing for durability

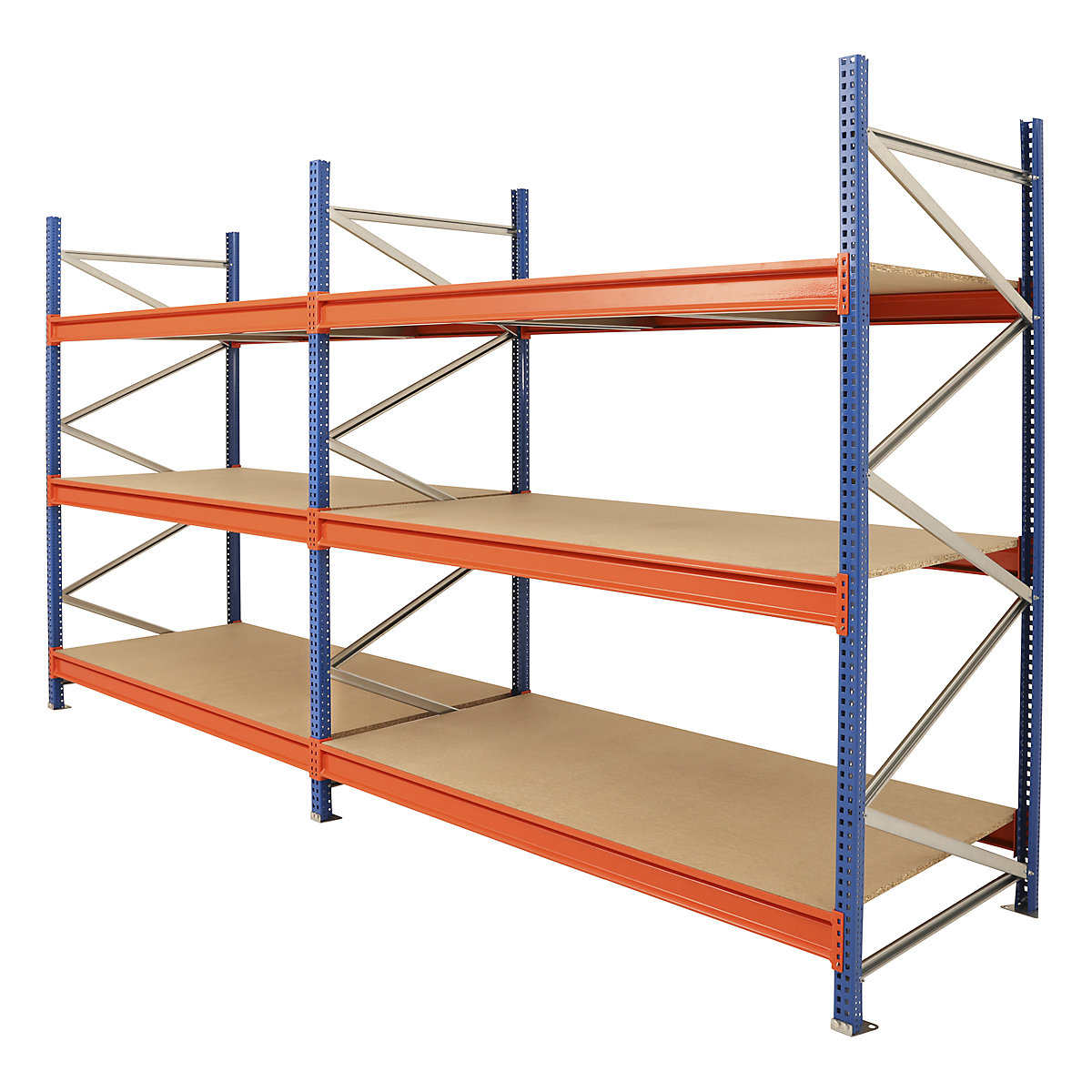

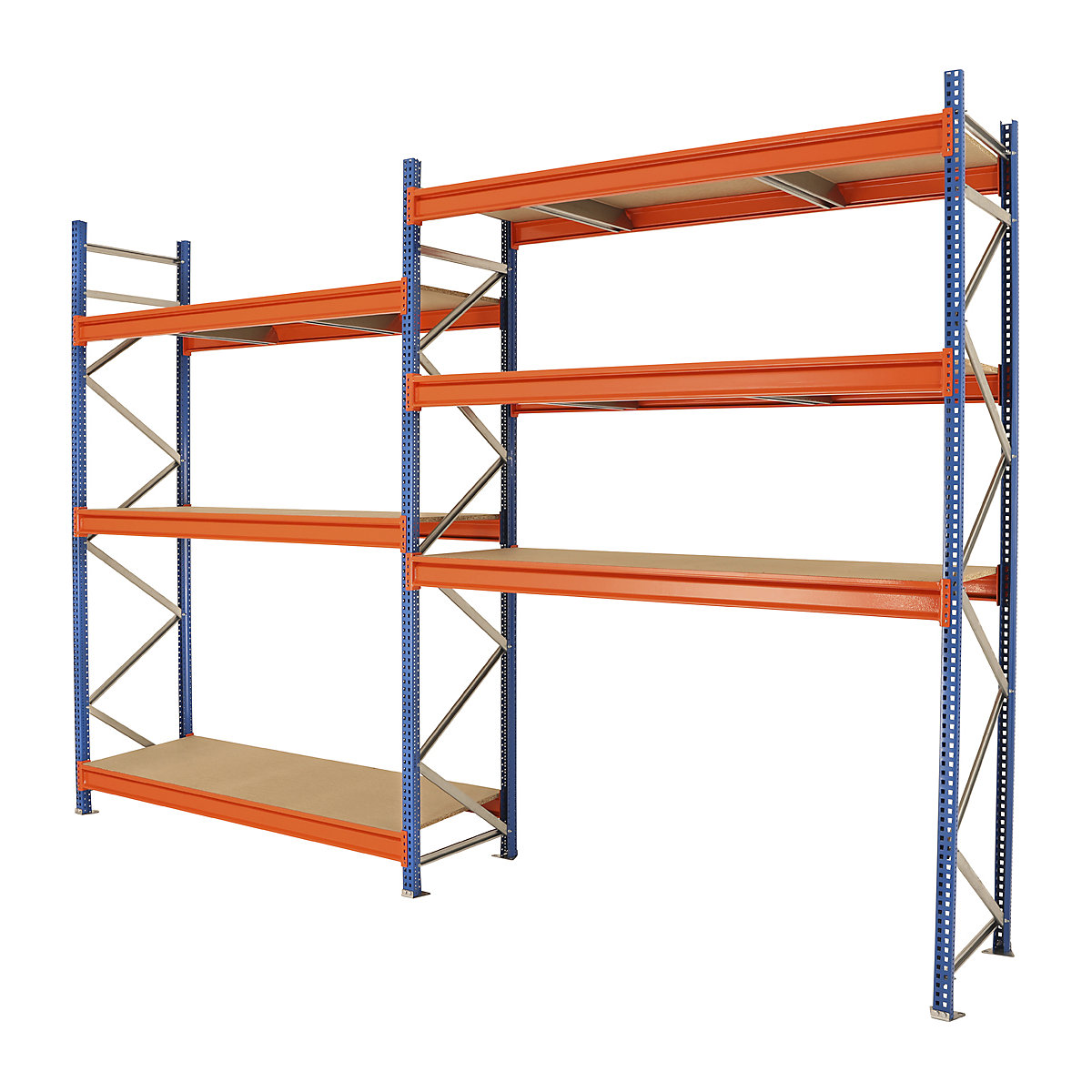

  • Create a single bay or build continuous runs up to 2675mm per bay for full flexibility

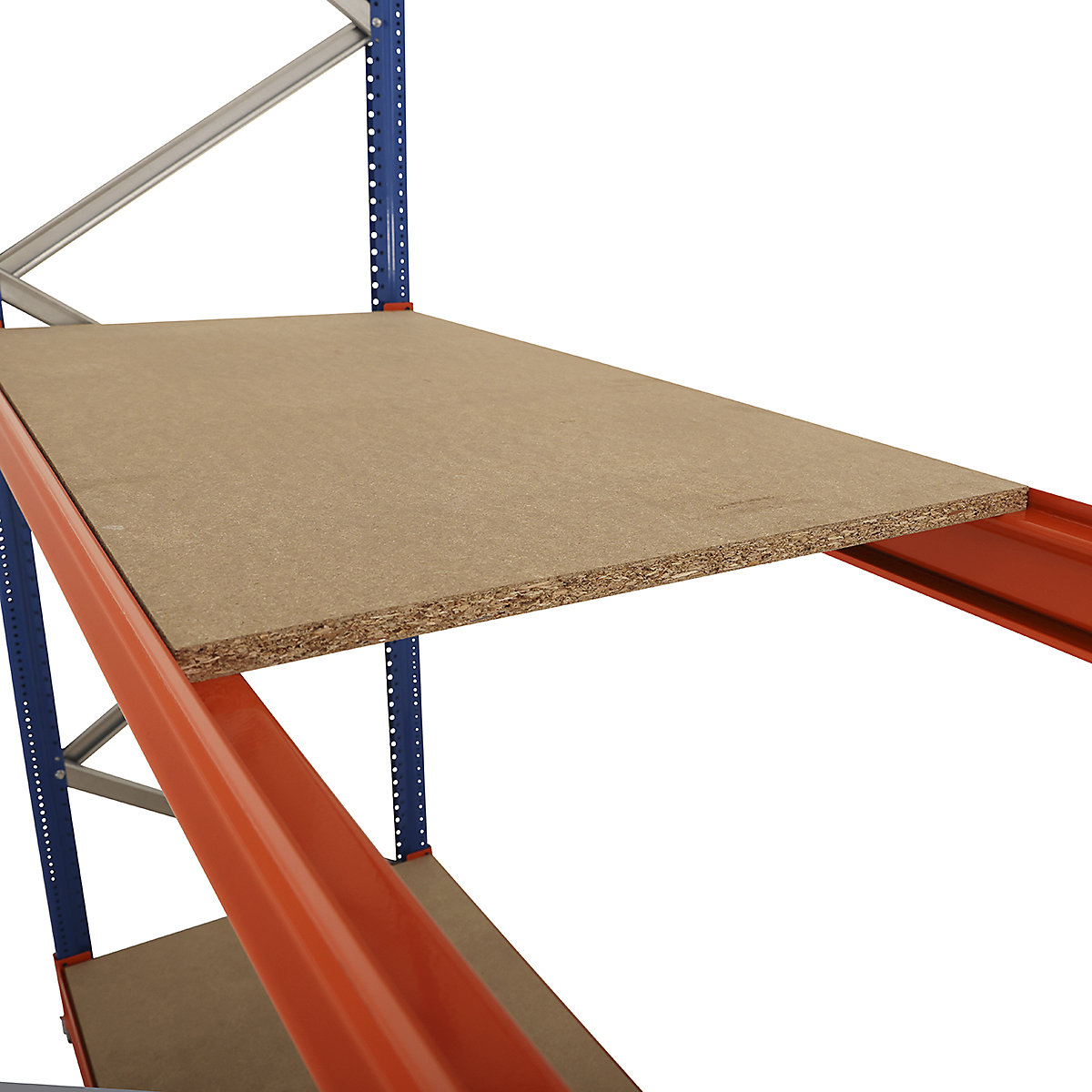

  • Choice of 18mm chipboard levels, wire mesh decks or galvanised panel levels

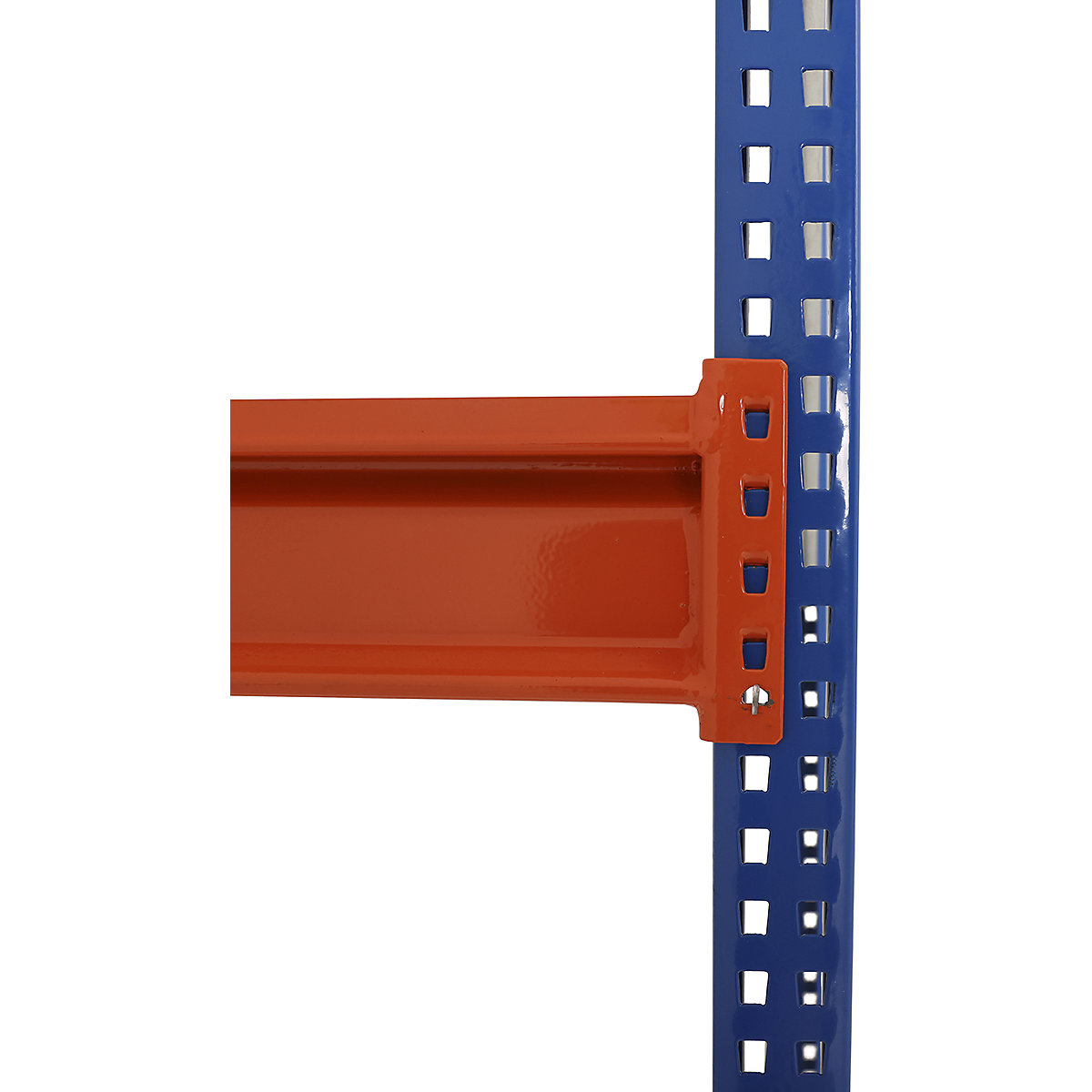

  • Each level adjusts in height every 25mm, offering a tailored storage fit

If you're planning a large project and need some personal assistance, we can call to your site for a visit to assess your requirements. For anything else, please contact us on 0333 200 5299.

Modular Longspan Shelving

  • First shelf level sits at a 500mm maximum height for easy, ergonomic access
  • Suitable for storing pallets on the floor under the lowest shelf only

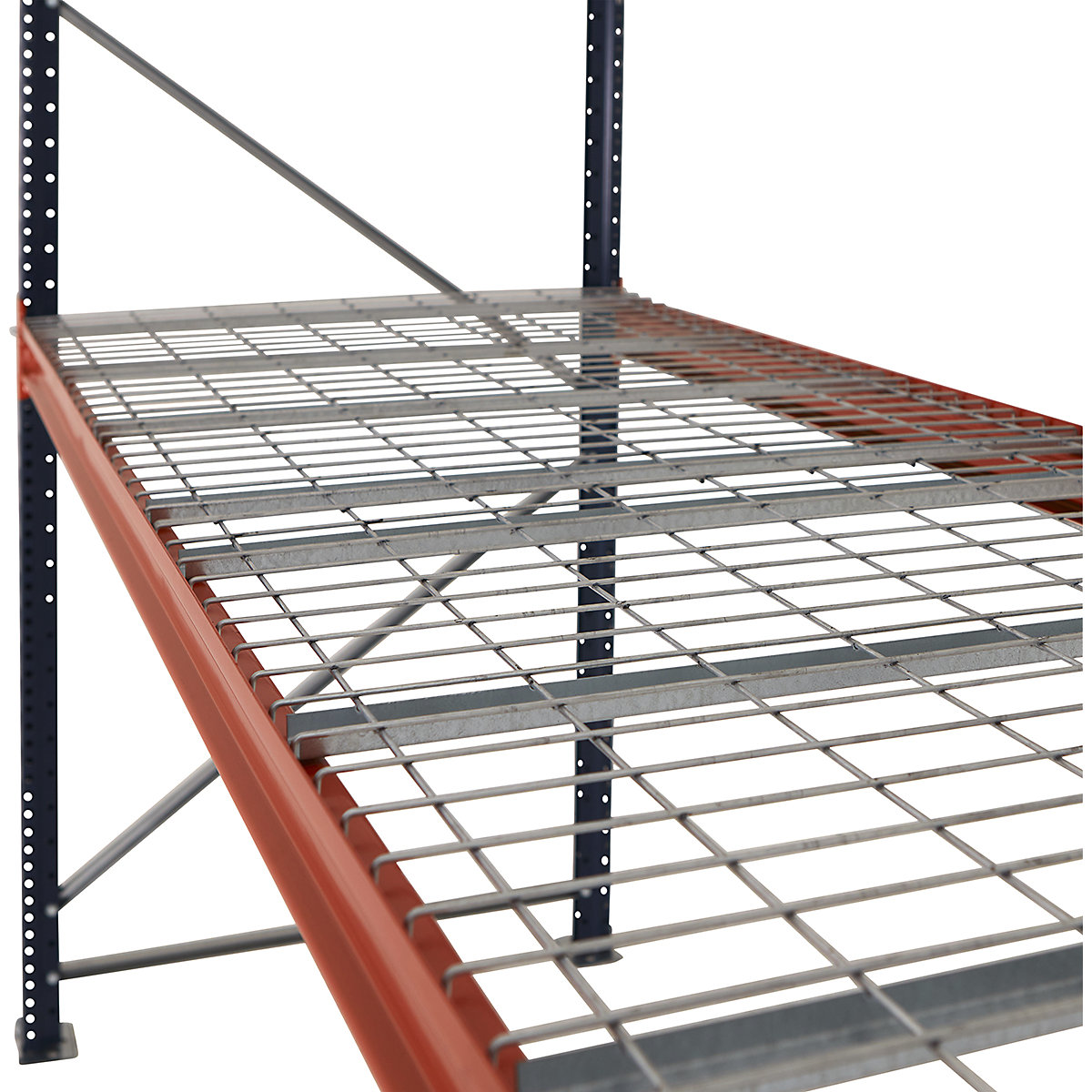

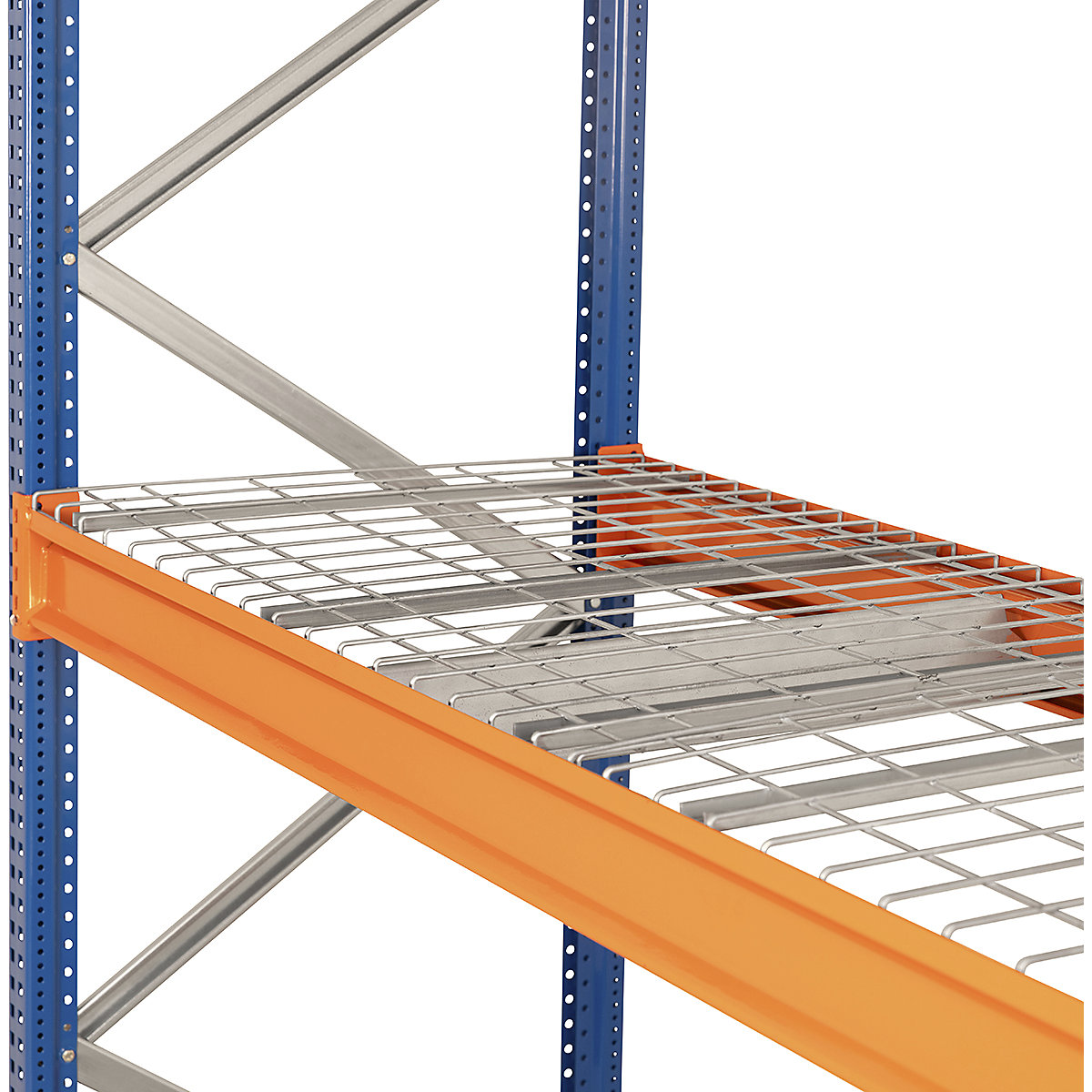

  • Wire mesh decks are suitable for damp environments and sprinkler systems

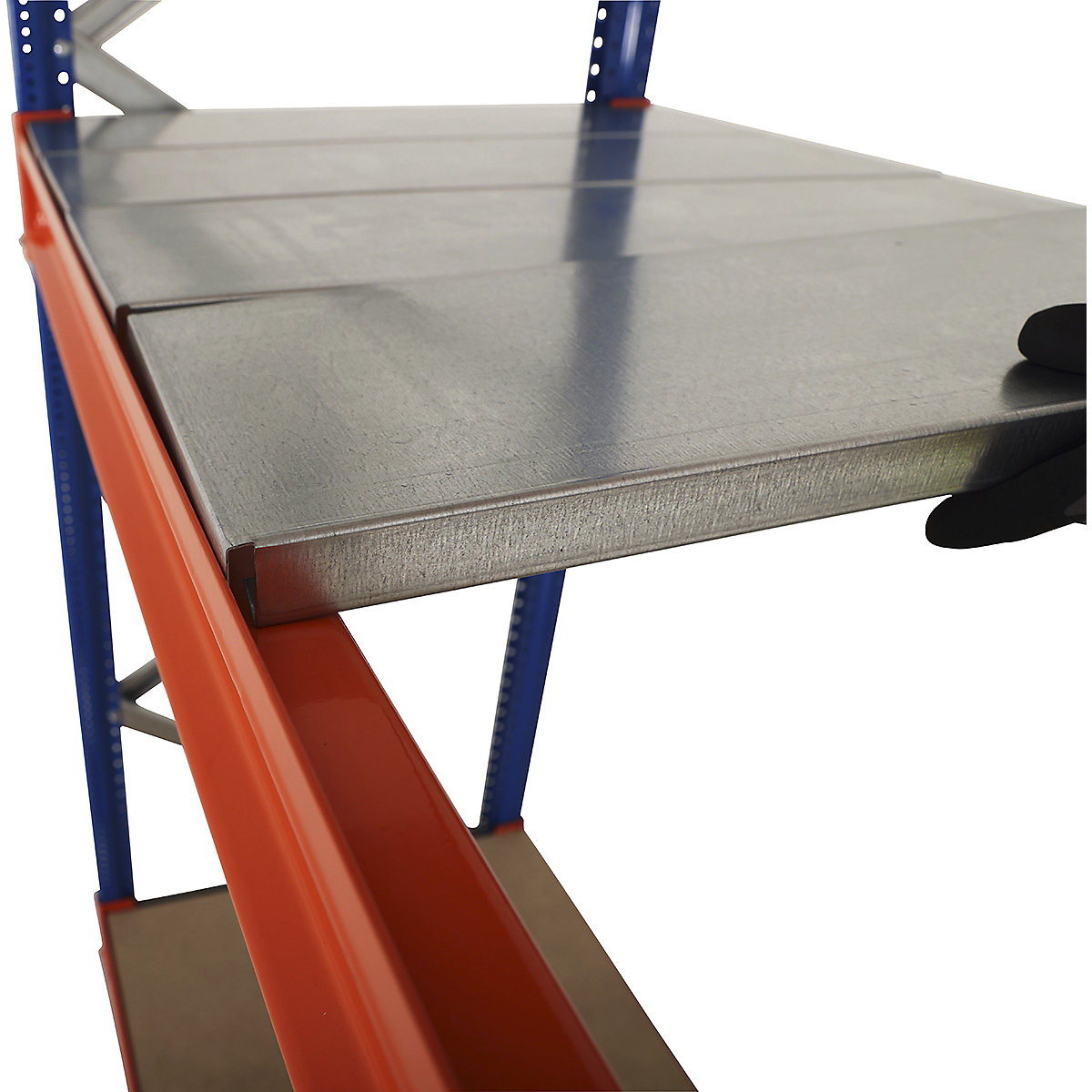

  • Corrosion-resistant steel panel levels are ideal for storing oily or greasy products
  • Splice Kits are available separately; please contact us for more details

*UDL = Uniformly Distributed Load

Please note:

  • This product is component-form based, and you must select frames, beams and levels individually to form a bay.
  • This product is not compatible with Mecalux Longspan Shelving or accessories.
  • Frames over 2000mm will require a forklift or additional personnel on site to unload.

Shelving Specifications

Data Field 1250mm Width 1785mm Width 2140mm Width 2315mm Width 2500mm Width 2675mm Width
Upright Type One Piece One Piece One Piece One Piece One Piece One Piece
Upright Steel Thickness 1.5mm 1.5mm 1.5mm 1.5mm 1.5mm 1.5mm
Beam Steel Thickness 1.5mm 2mm 2mm 2mm 2mm 2mm
Shelf Adjustment Increments 25mm 25mm 25mm 25mm 25mm 25mm
Chipboard Thickness 18mm 18mm 18mm 18mm 18mm 18mm
Steel Shelf Panel Thickness 1mm 1mm 1mm 1mm 1mm 1mm
Total Bay Capcacity 600mm & 900mm deep 4000kg 4000kg 4000kg 4000kg 4000kg 4000kg
Clear Width 1250mm 1785mm 2140mm 2315mm 2500mm 2675mm
Extra Levels Available Y Y Y Y Y Y

* Maximum frame capacity 4000kg UDL when distance between levels is 500mm

Fitting Guide

Please check our guides for each range when planning your shelving space.

Widths mm: Initial Bay External Width mm: Next Bay External Width mm:
1250mm 1407 1307
1785mm 1942 1842
2140mm 2297 2197
2315mm 2472 2372
2500mm 2657 2557
2675mm 2832 2732

What’s The Benefit Of BiGDUG’s Modular Longspan Shelving?

This modular longspan shelving system offers excellent flexibility, letting you build single bays or expand into continuous runs to suit your storage needs. With a high load capacity of up to 4000kg UDL* per frame, it's built for heavy, bulky items, while a choice of decking materials suits a variety of industrial environments, and pre-assembled frames make installation quick and simple.

What's The Difference Between Chipboard, Mesh, And Galvanised Levels?

Chipboard levels are the standard, cost-effective option for general storage in dry environments. Wire mesh decks suit damp areas or spaces where fire safety requires sprinkler penetration and airflow. Galvanised steel panels offer strong corrosion resistance, making them well suited to oily, greasy, or frequently cleaned items. Choose based on your storage environment and stock type.

Where Can Longspan Shelving Be Used?

This longspan shelving system suits warehouses, factories, distribution centres, and commercial workshops needing heavy duty, high-capacity storage. Its modular design lets you create single bays or link multiple frames into continuous runs using splice kits, making it ideal for storing bulky, palletised, or oddly-shaped stock securely and efficiently across a variety of industrial settings.
