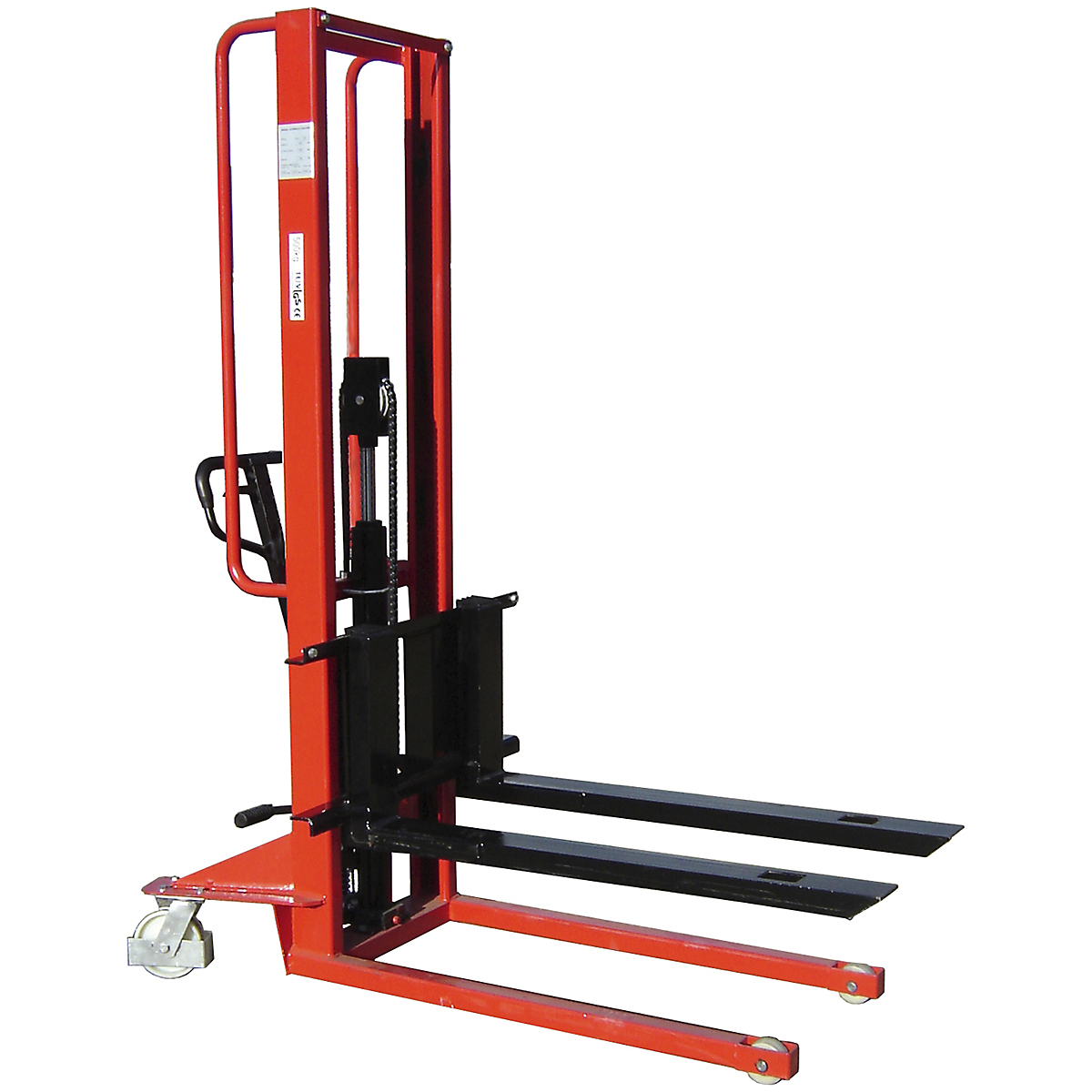

Code: LOMPS0516A

Manual Pallet Stacker | Capacity 500kg | Lift Height 1600mm | Adjustable fork width

Manual Pallet Stacker
Manual Pallet Stacker, Manual Pallet Stacker, Manual Pallet Stacker | Capacity 1000kg | Lift Height 2500mm | Adjustable fork width | Straddle Legs-0

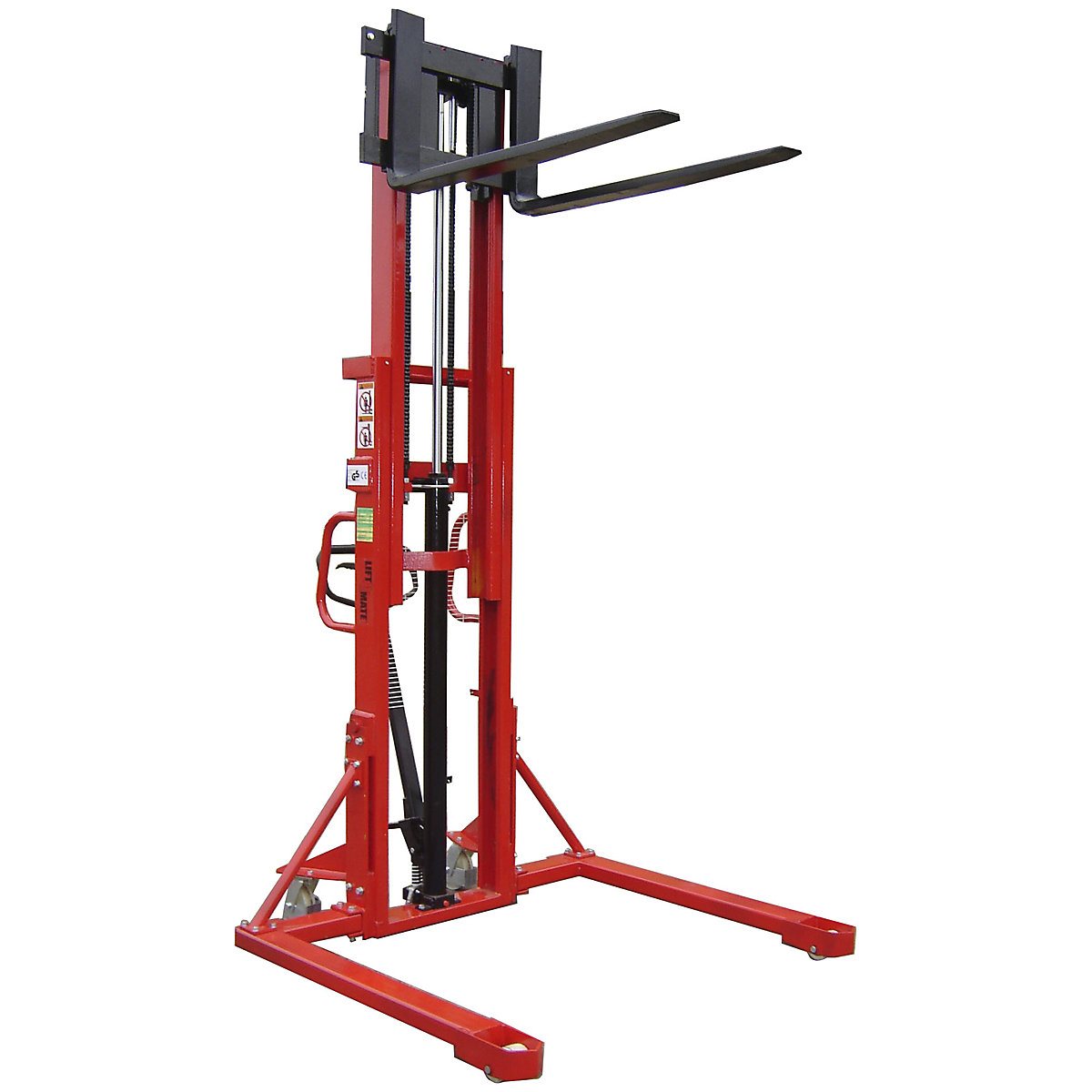

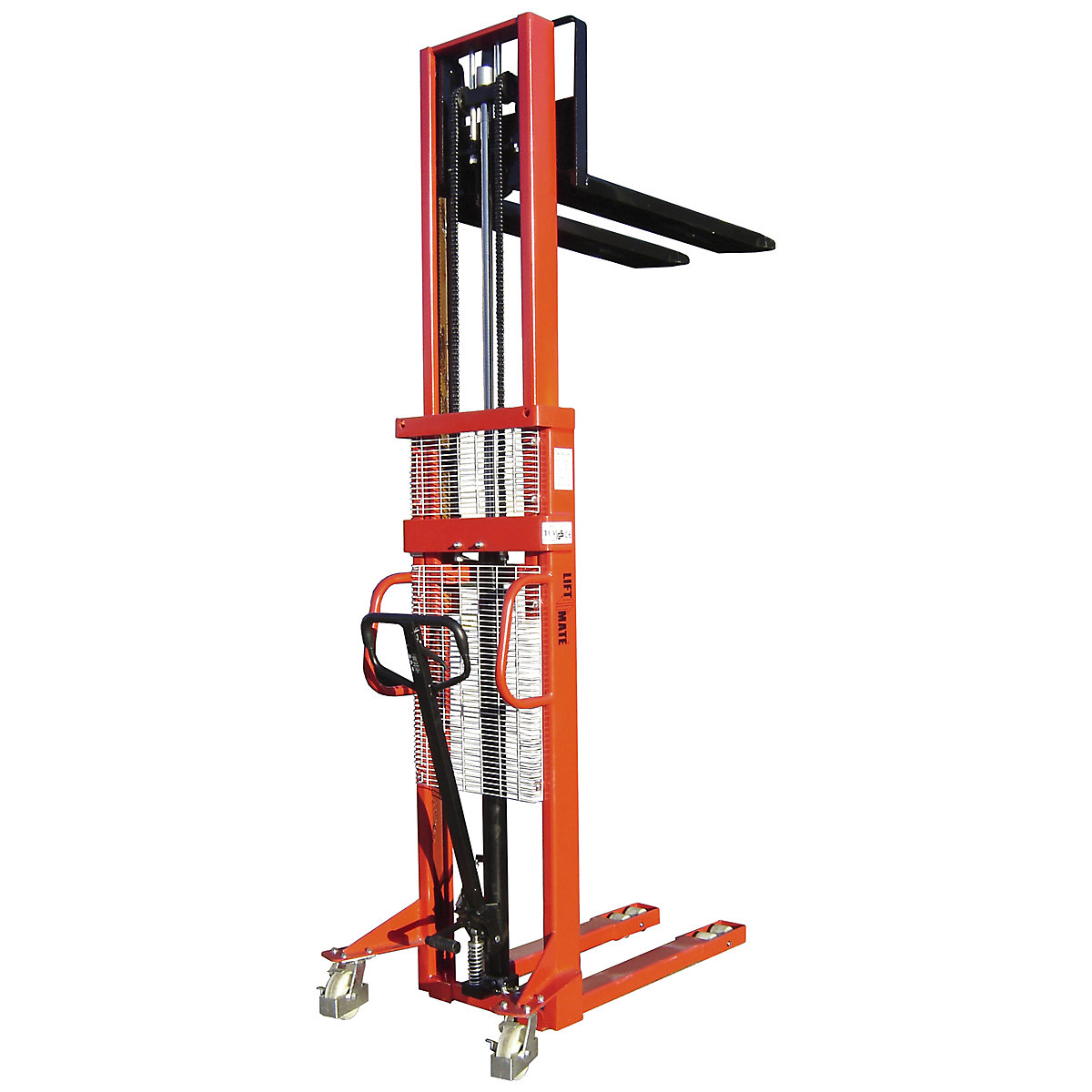

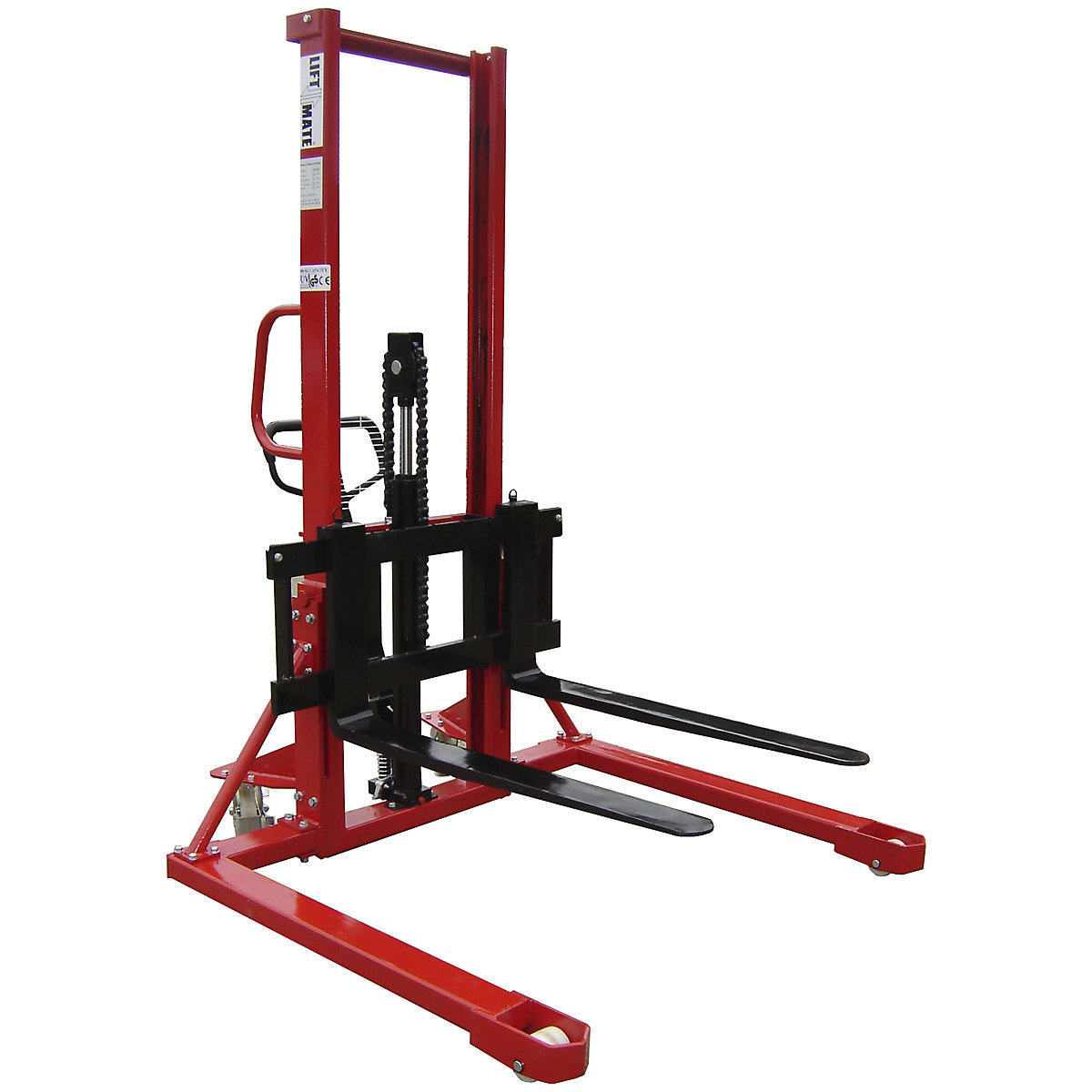

Manual Pallet Stacker (Product illustration 2)-1
Manual Pallet Stacker (Product illustration 3)-2
Manual Pallet Stacker (Product illustration 4)-3
Manual Pallet Stacker (Product illustration 5)-4
Capacity
Type
Key Feature
Delivery
Delivery time: 2-3 Working Days
Product description

The manual pallet stacker has an ergonomic pump handle and foot pump, giving you a choice of operation. The stackers are sturdy and compact constructed from robust steel profiles.

  • Width-adjustable forks fitted as standard so it can also handle other (smaller or larger) open bottom pallets with ease
  • Fully adjustable lowering speed
  • 150mm Nylon Wheels
  • 500kg Capacity

Specifications

Data Field     LOMPS 1012         LOMPS 1016         LOMPS 1025         LOMPS 1030         LOMPS 1516         LOMPS 0516A         LOMPS 1016A         LOMPS 1025A         LOMPS 1016SA         LOMPS 1025SA
Capacity (kg) 1000 1000 1000 1000 1500 500 1000 1000 1000 1000
Lift Height (mm) 1200 1600 2500 3000 1600 1600 1600 2500 1600 2500
Fork Length (mm) 1100 1000 1150 1100 1060 1100 1060 1060 1060 1060
Width over forks (mm) 550 550 585 858 585 220-780 310-920 310-840 240-940 240-700
Individual fork Width (mm) 170 170 170 170 170 100 145 100 100 100
Overall Width (mm) 740 740 860 840 910 800 965 840 1500 1500
Overall Length (mm) 1640 1640 1685 1640 1640 1560 1640 1600 1540 1600
‌
‌
‌
‌
‌
