Code: WZTK5

Zinc & Walnut 5 Tower Display Kit - Includes 2x 2, 2x 3 & 1x 5 Level Tower 100kg UDL, Includes Free Assembly Mallet

BiGDUG Zinc & Walnut Table and Island Units
Type
Delivery time: 2-3 Working Days
Order until 15:00 for next day delivery
Product description

Zinc & Walnut units can be easily combined to build flexible island display areas that engage customers as soon as they walk into a store.

Used extensively by shopfitters for back of shop storage, the sturdy steel frames simply tap together with a mallet meaning no fiddly nuts or bolts. The 18mm thick Walnut effect MFC shelves feature robust 2mm ABS edging on 4 sides for impact protection. The system is very quick to build, dismantle and adjust, so ideal for short term lets, pop ups, trade shows, markets or even franchise/concession areas in larger stores.

Choose from our great value table and island kits, or combine single units to create your own unique display. It is so easy to assemble it does not require expensive specialist installation, saving you both time and money. Kits can be quickly moved, adjusted or re-located, making it perfect for both permanent and temporary applications.

  • Zinc coated metal frame with Walnut effect MFC shelves

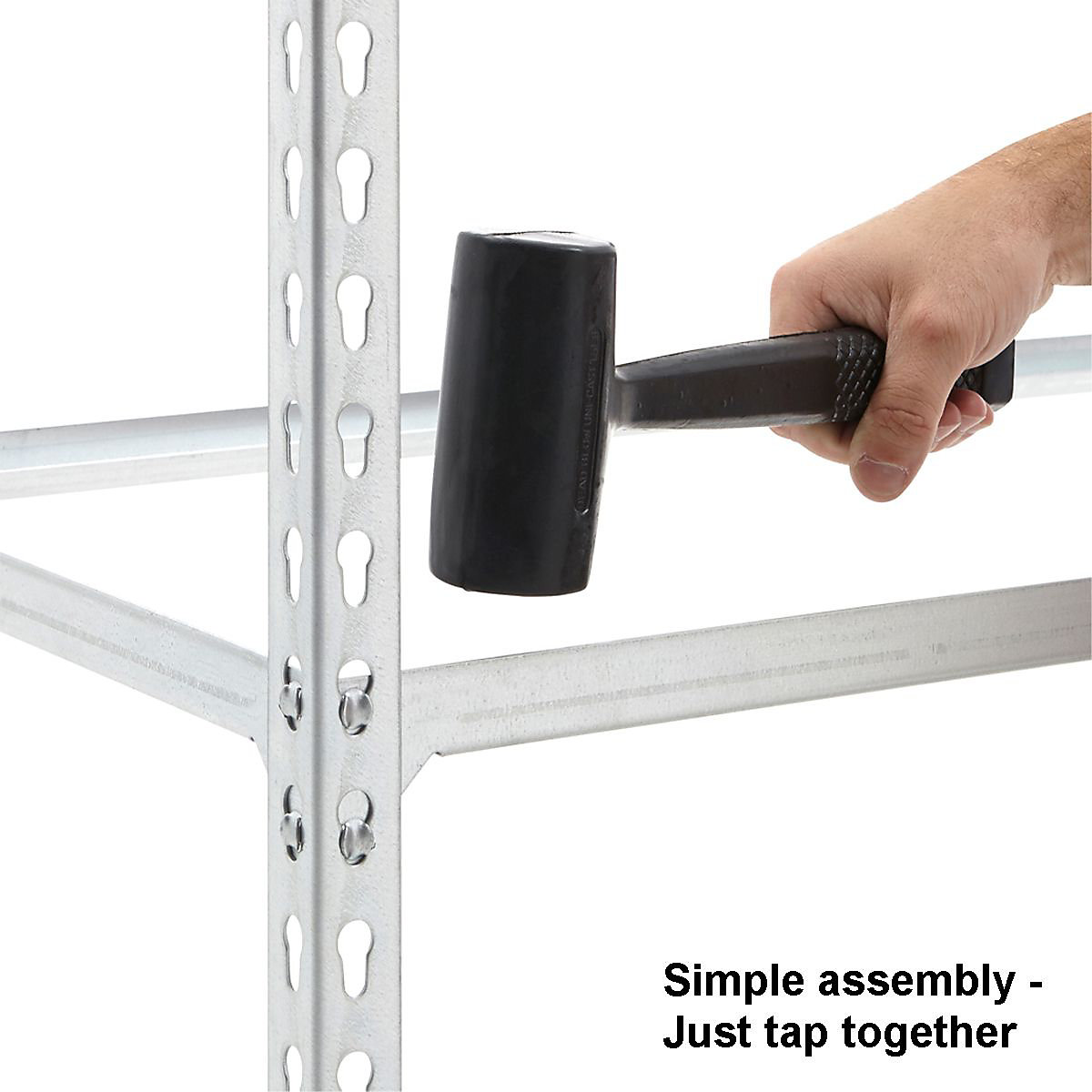

  • Boltless frame construction - assembles in minutes
  • Fully adjustable shelves - in 38mm height increments

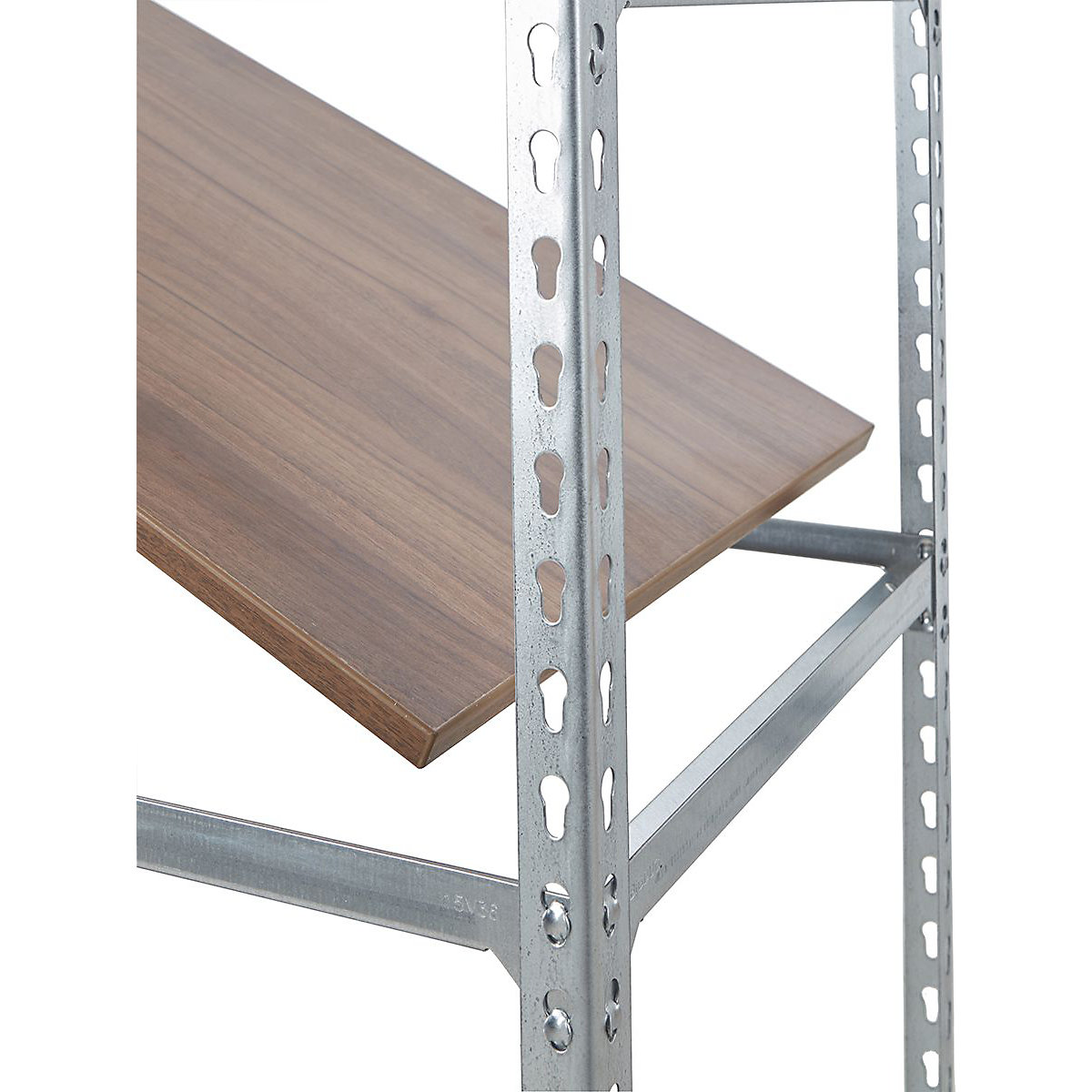

  • 18mm thick Walnut effect MFC shelves give a contemporary, natural look
  • Completely free standing - can be easily moved or re-located
  • Units can be linked together or fixed to walls and floor for added stability
  • Shelves support up to 100kg UDL each
  • All kits include Tie Plate joiners
  • Free design service available

* UDL = Uniformly Distributed Load

Zinc & Walnut Table & Island contents:

  • WZTK2: 2 Level Table (455h x 915w x 915d mm) 3 Level Tower (915h x 455w x 455d mm)
  • WZTK3: 2 Level Tower (455h x 455w x 455d mm), 3 Level Tower (915h x 455w x 455d mm), 5 Level Tower (1600h x 455w x 455d mm)
  • WZTK4: 2x 2 Level Towers (455h x 455w x 455d mm), 2x 3 Level Towers (915h x 455w x 455d mm)
  • WZTK5: 2x 2 Level Towers (455h x 455w x 455d mm), 2x 3 Level Towers (915h x 455w x 455d mm), 1x 5 Level Tower (1600h x 455w x 455d mm)

* UDL = Uniformly Distributed Load

Fitting Guide

Please check our guides for each range when planning your shelving space.

Nominal Shelf Width mm: Clear Entry mm: Initial Bay External mm: Next Bay External mm:
455 391 465 472
915 851 925 932

External Height = H+12       Pitch = 38.1

Clear height between shelves = (No. x pitch) -30

All dimensions in Millimetres

‌
‌
‌
‌
‌
