Code: BDGTR30

BiGDUG 30mm Rubber Heavy Duty Gym Tile Ramped Edge | 1080w x 160d mm | Black

(1)
BiGDUG Rubber Heavy Duty Gym Tile Ramped Edges
Type
Delivery time: 2-3 Working Days
Order until 15:00 for next day delivery
Product description

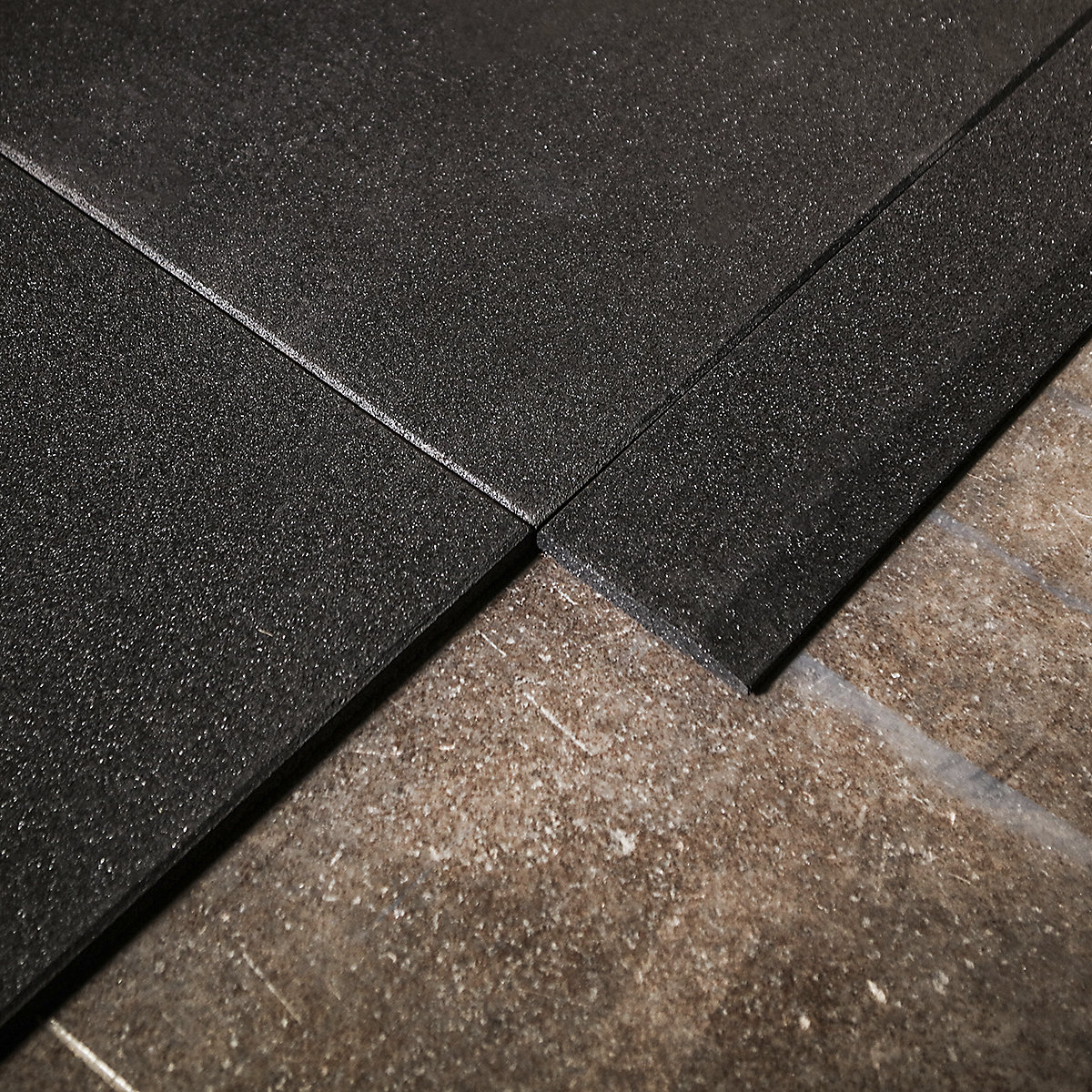

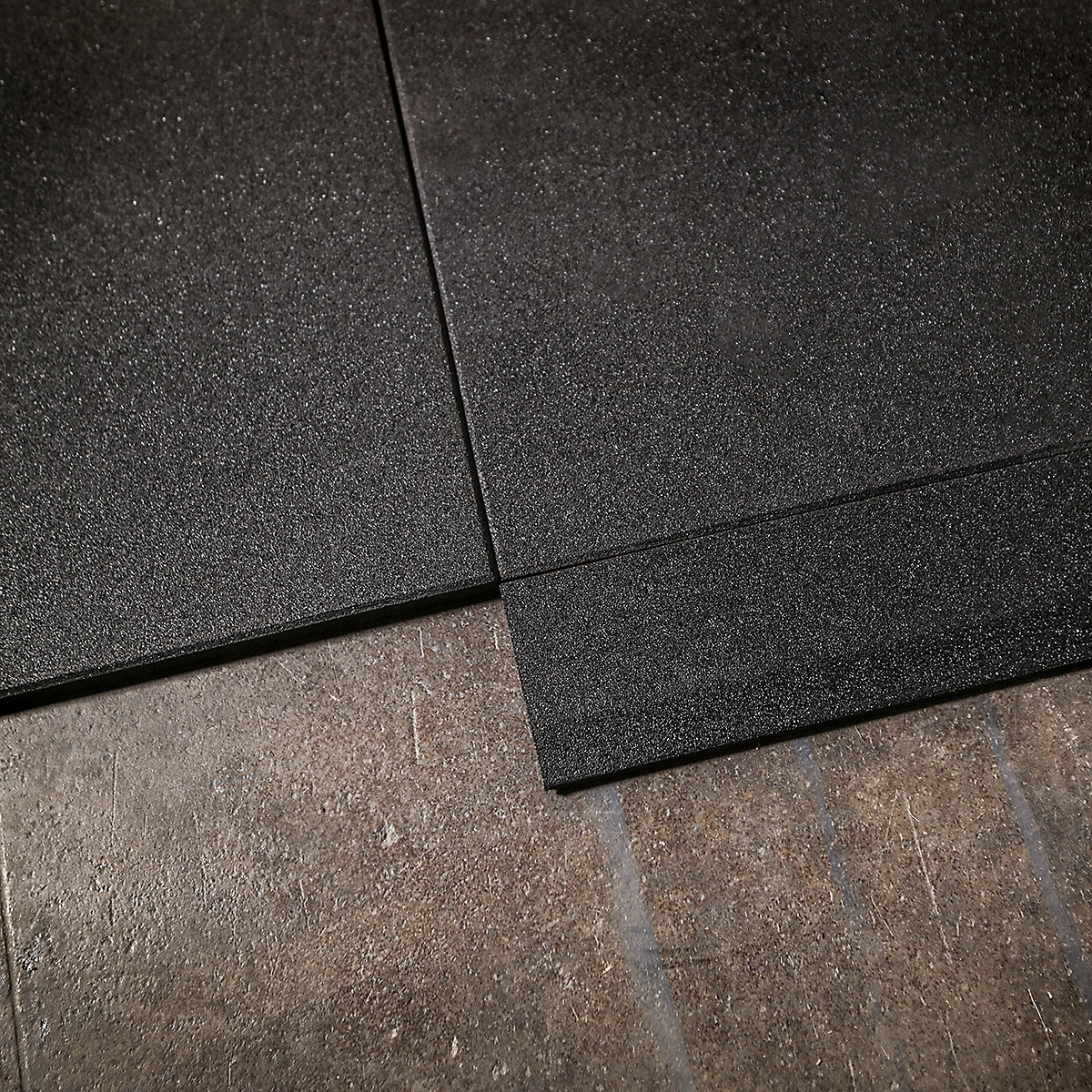

Made from the same material as the BiGDUG Heavy Duty Rubber Gym Tiles, these ramped edges offer a seamless transition, avoiding trip hazards and providing a non-slip surface

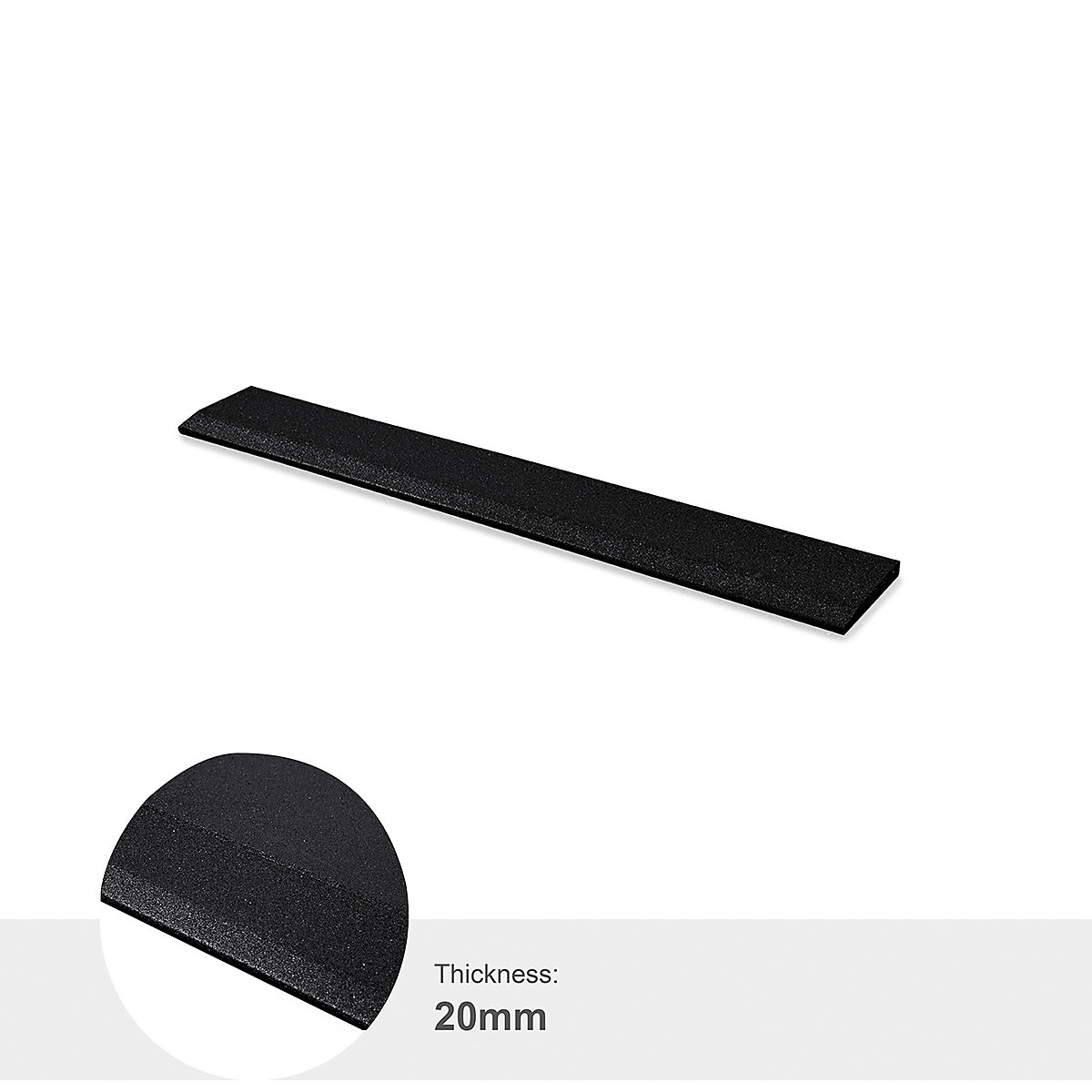

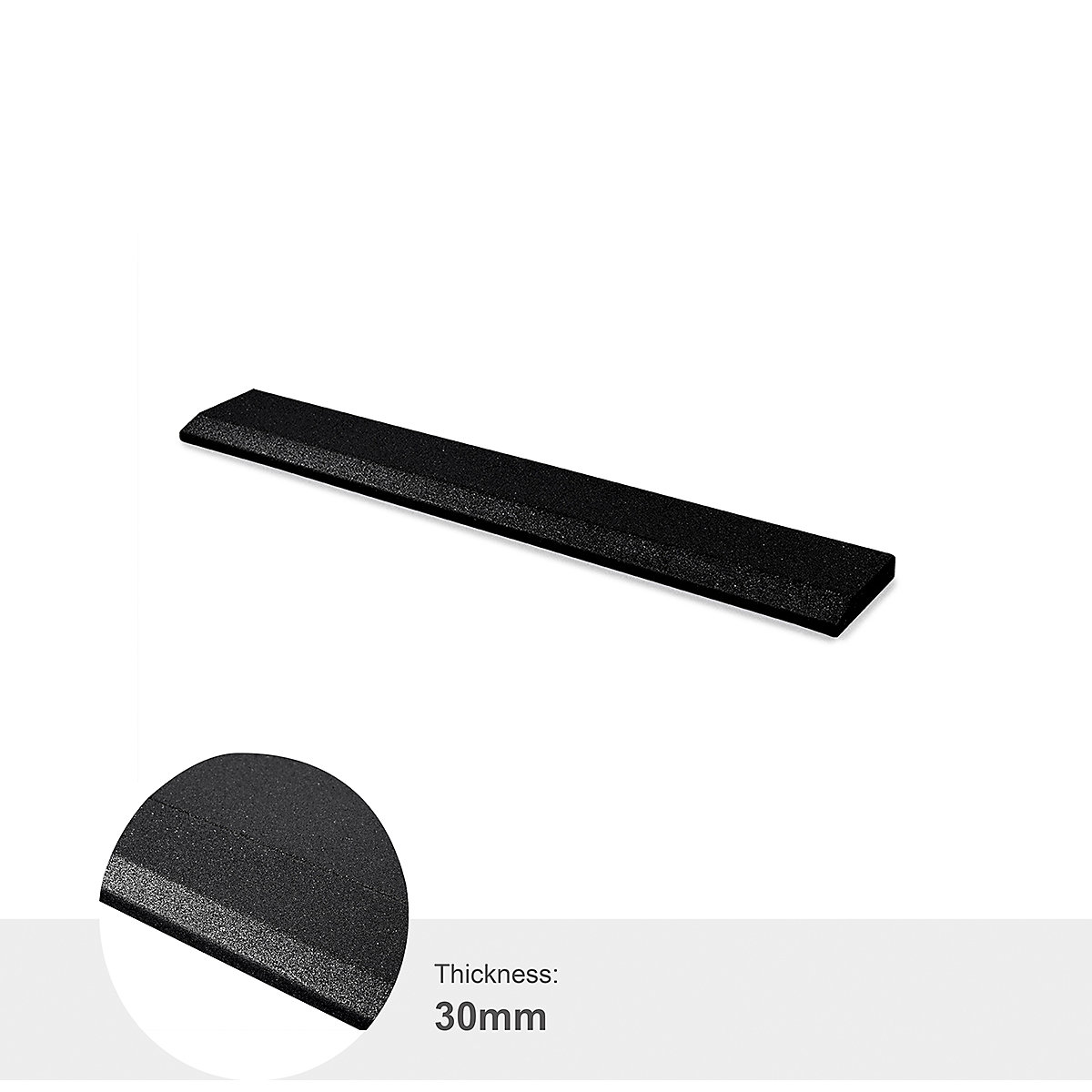

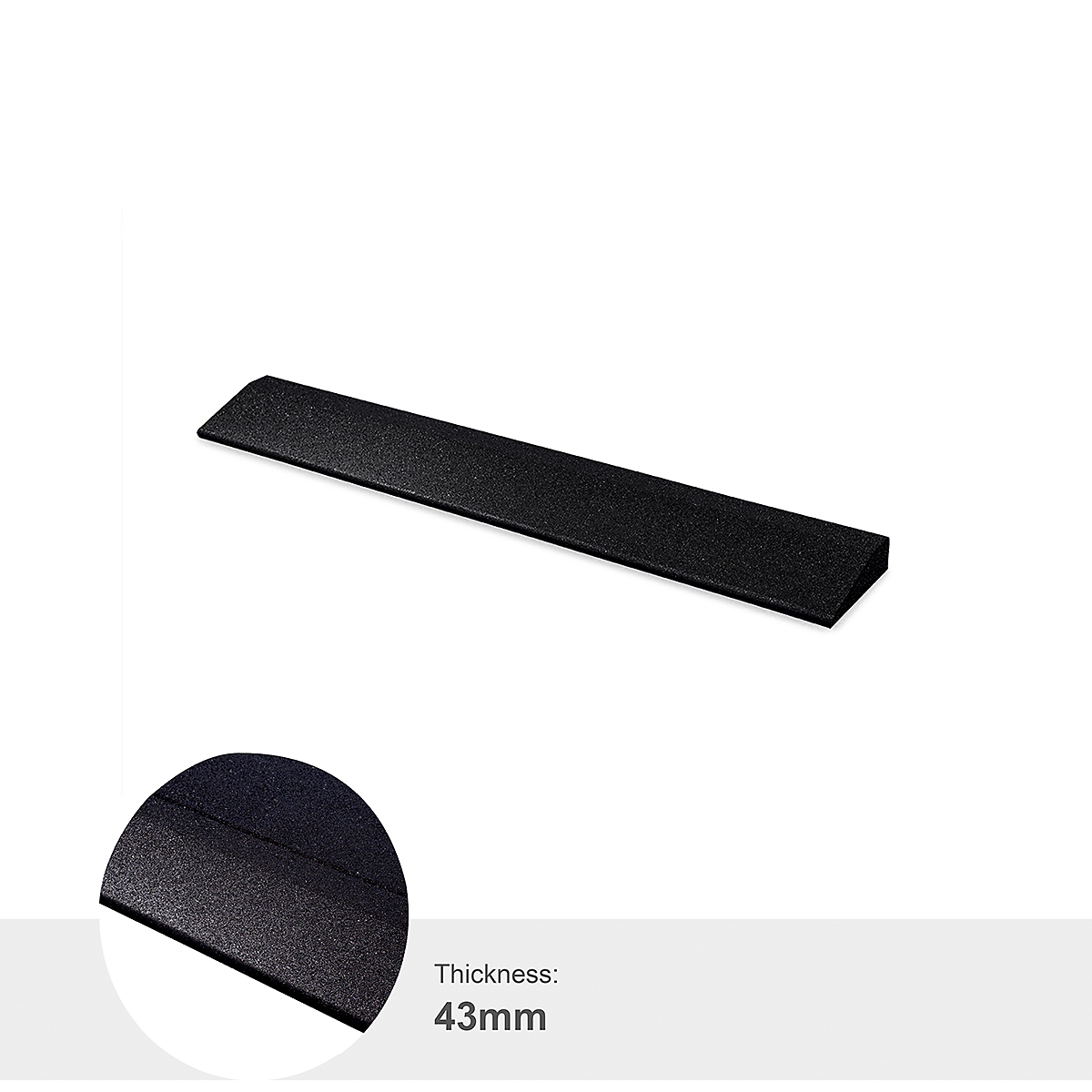

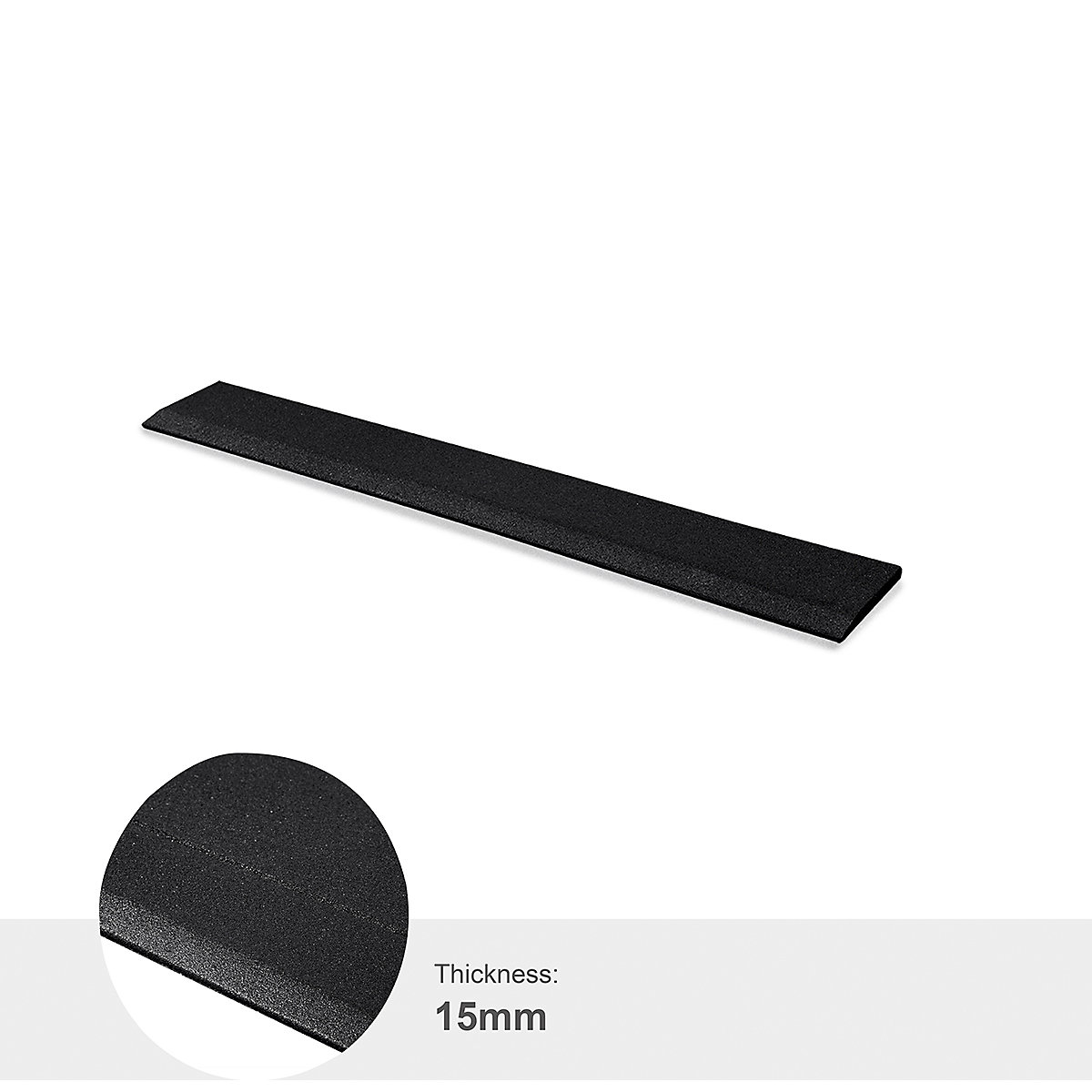

  • Available in four heights: 15mm, 20mm, 30mm, 43mm
  • Dimensions: 160mm x 1080mm
  • Prevents trip hazards
  • Nonslip surface

The tiles and edges can be loose laid or bonded using suitable adhesive. Using a utility knife or jigsaw, the tiles and edges can be trimmed to size. We advise that the subfloor is dry and flat prior to fitting and that tiles are laid in a half brick pattern.

Suitable for use with under floor heating.

For basic guidelines on cleaning and installation please see the downloadable attachment.

  • TOLERANCES: Length and width ± 1.5%, thickness ± 2 mm
  • SLIP RESISTANCE DRY CONDITIONS: <105PTV EN 13036-4:2004
  • SLIP RESISTANCE WET CONDITIONS: <75PTV EN 13036-4:2004
  • ABRASION RESISTANCE, MG: >560 EN ISO 5470-1:2001
  • TENSILE STRENGHT, MPA: >0,65
  • ELONGATION AT BREAK: >40% EN 12230:2005
  • HARDNESS: 55 up to 75 SHORE A ISO 868 PN-93 / C-04206
  • DENSITY: 950 to 1.000kg/m3 EN ISO 845:2010
  • FIRE CLASSIFICATION: EFL s1 (DFL & CFL Available) NOT TESTED

Applications

  • 11mm - Small/light dumbbell areas in gyms, protection of the subfloor and sound isolation
  • 15mm - Small/light dumbbell areas in gyms, better protection of the subfloor and sound isolation
  • 20mm - Medium weight dumbbell areas, protection of the subfloor and sound isolation
  • 30mm - Heavy weights areas, best protection of subfloor and good sound isolation
  • 43mm - Heavy weights areas, good protection of the subfloor and the best sound isolation
‌
‌
‌
‌
‌
‌
