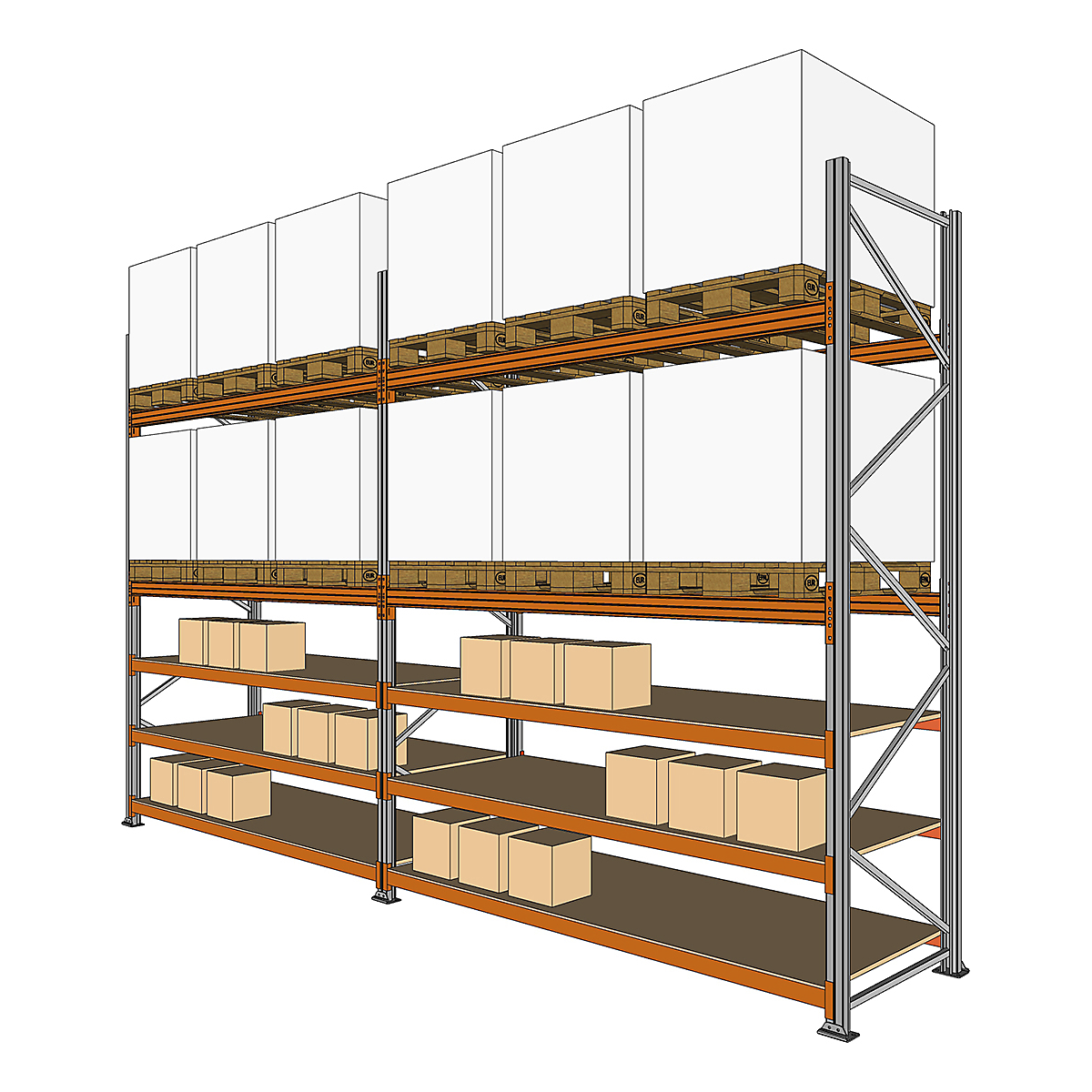

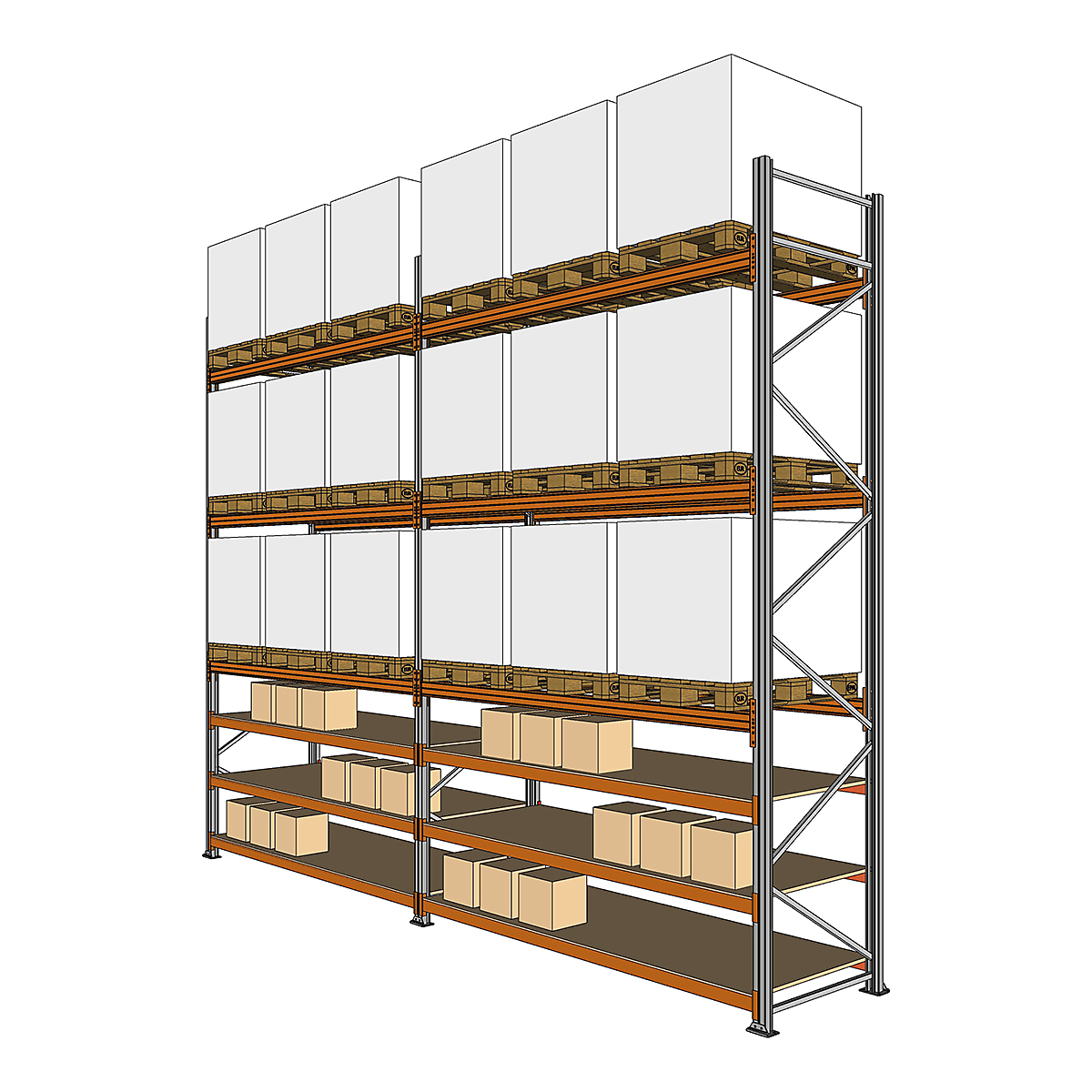

BiGDUG Pallet Racking Hybrid Kit, with 3x 18mm Chipboard Hand-Picking Levels, 4500h x 5702w x 900d mm (Holds 12 Pallets 1000h x 1200w x 1000d mm)

• First level should be at a 1500mm maximum height
• Tested to an independent, industry-recognised standard - FEM (European Federation of Materials Handling), ensuring safety and durability for workplaces
• Store pallets on upper levels and hand-pick stock from lower levels
• Adapt with timber or wire mesh decks and racking protectors (available separately)
• 5-year manufacturer warranty for added peace of mind

*UDL - Uniformly Distributed Load

Please Note: frames over 2000mm will require a forklift or additional personnel on site to unload.

Please note: product is not compatible with Mecalux Pallet Racking or accessories.

Pallet Racking Kits Include:

• 2x or 3x BiGDUG Hand-loading / Picking Levels - 18mm thick, P2 chipboard decks
• 2x or 3x BiGDUG Pallet Racking Beam Levels - heavy duty, powder-coated steel beams
• 3x Pre-assembled, pre-galvanised steel end frames
• End frames include reinforced horizontal & diagonal galvanised cross bracing
• BiGDUG steel under-shelf supports for picking levels
• Footplates with floor bolts & fixings

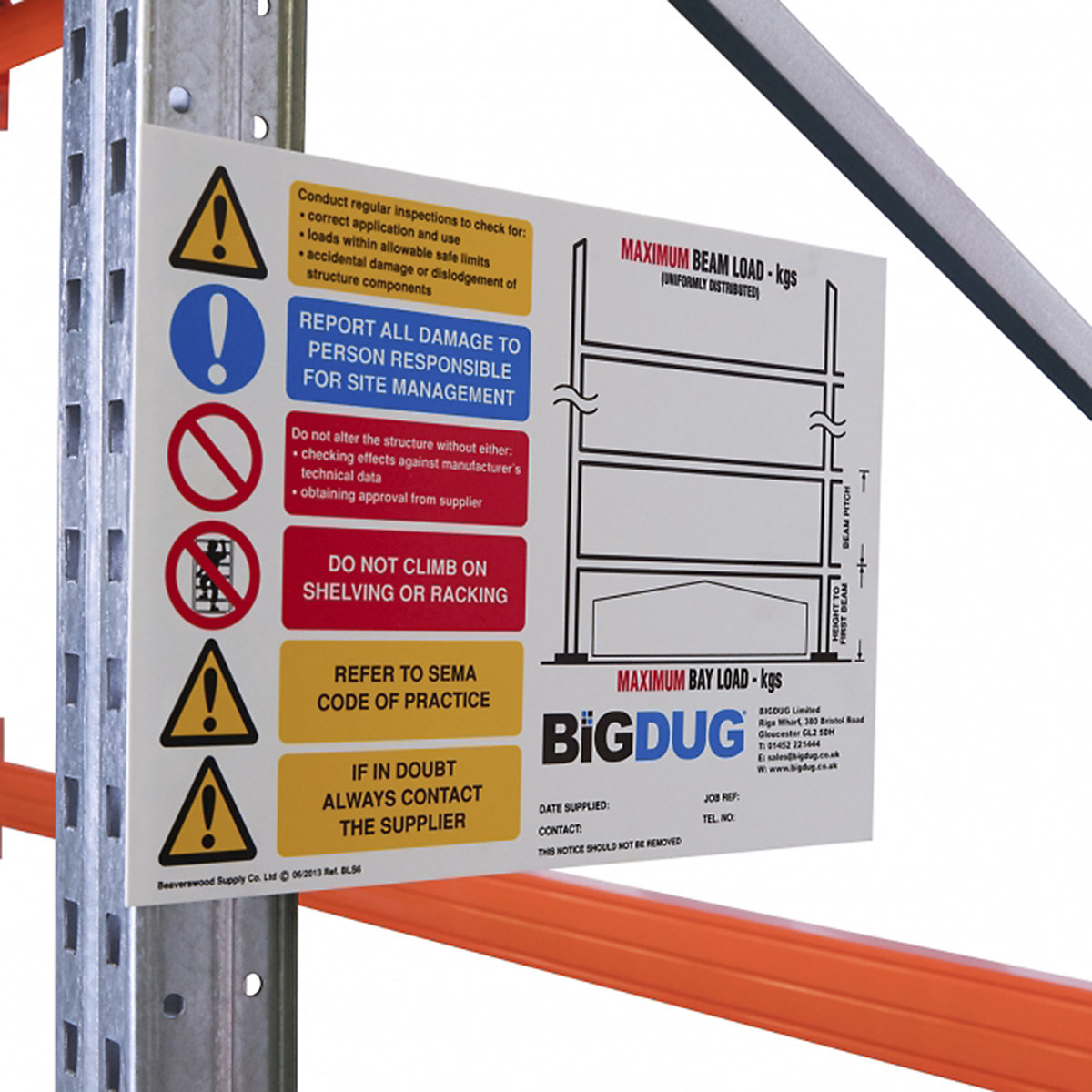

• 1.5mm rigid plastic BiGDUG Pallet Racking Safety Load Chart Pallet Racking Levels
• Supplied with steel levelling plates & floor fixings

Chipboard Picking Levels:

• Improve picking operations with use of the lower shelves
• Picking levels are strictly for manual loading & hand-picking only and must not be loaded using a forktruck
• Load capacity: hold up to 550kg per level UDL* (2700mm wide bays)
• Supplied with either 2x or 3x 18mm thick, P2 Chipboard shelves
• High-visibility orange steel beams

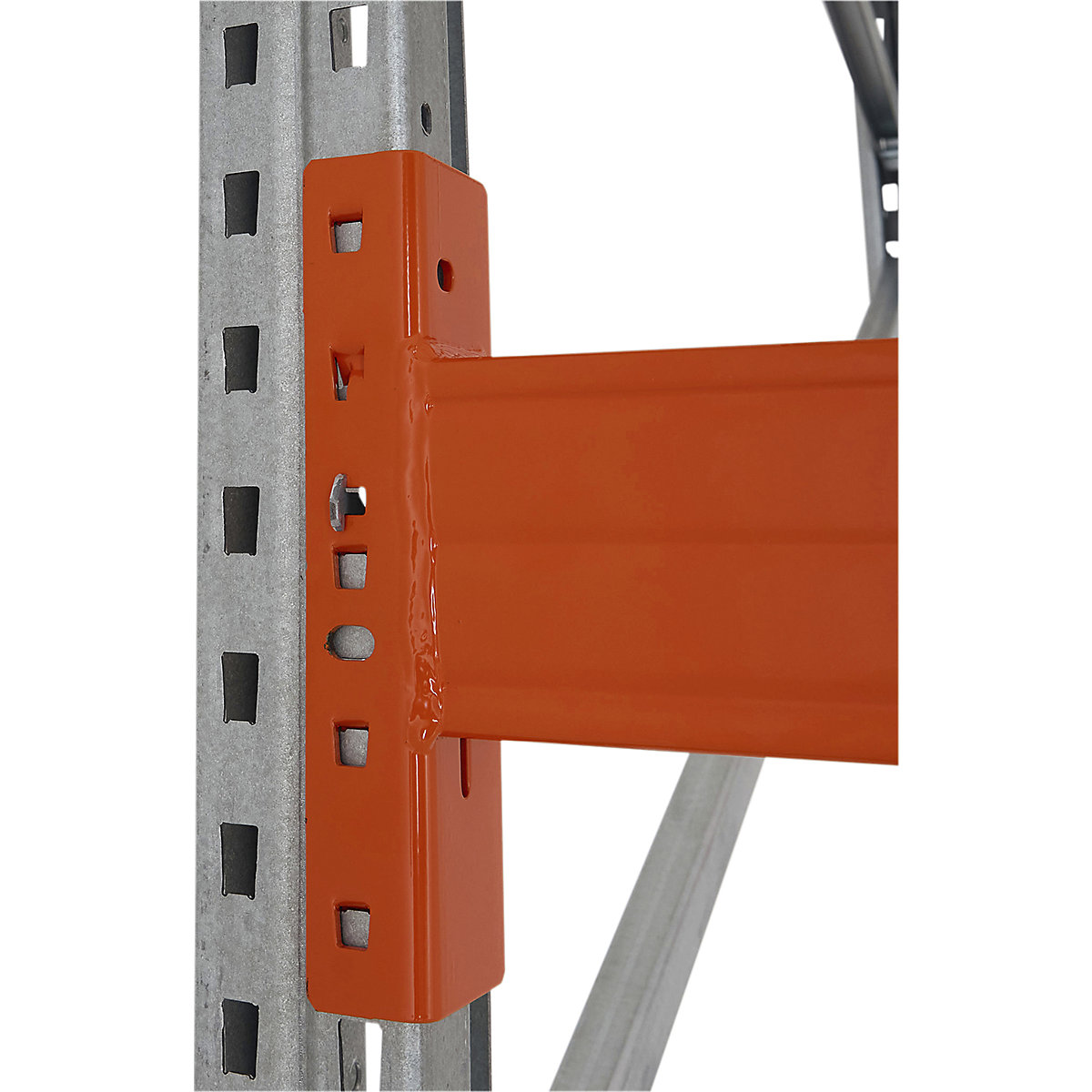

• Beams securely lock into place with safety clips
• Shelf levels adjust in height every 50mm to fit the items you're storing
• Steel deck supports enhance the resilience of the shelves, preventing local distortion

Safety Information:

Please note: Pallet Racking load capacities given assume a run of at least two bays; having 2 levels per bay, with the first level at a 1500mm maximum height. For other configurations, please contact  businessservices@bigdug.co.uk for further advice on maximum load capacities.

Stated beam level and bay weight capacities are dependent upon the exact layout and configuration and this product must never be used in a single bay nor single beam configuration. Please ensure that you download the installation and safety sheet. Should you require further advice on pallet racking, or would like a quotation for Installation, please either e-mail  businessservices@bigdug.co.uk or call 01452 221445.

Made to Order

This product is made to order and therefore cannot be cancelled once ordered. As these items are made specifically to your request, they are also excluded from our returns policy unless damaged or faulty. Please do not hesitate to contact our friendly sales team should you need further help or advice: 0333 200 5299.

Fitting Guide:

Please check our guides for each range when planning your shelving space.

Nominal Shelf Width mm:	Clear Entry mm:	Initial Bay External mm:	Next Bay External mm:
2700	2690	2955	2810

Pitch = 50

Clear height between levels = (No. x pitch) -140 for Pallet Levels / -65 for Picking Levels

All dimensions in Millimetres

Where Can You Use BiGDUG Pallet Racking Kits?

Thanks to the flexibility provided by our BiGDUG Pallet Racking Kits with Picking Levels, you can efficiently store and access a large range of inventory by utilising both  pallet racking and picking shelves. From large quantities of palletised goods to smaller, frequently accessed items within arm’s reach, our BiGDUG Pallet Racking Kits with Picking Levels are perfect for many environments like warehouses, factories, and commercial spaces.

As these kits are made using a combination of two beam types, there will be variable specifications for both pallet storage levels & hand-picking shelf levels. Please refer to the specification guides below for maximum load capacities and technical information on these two systems.

What Size Are the Pallet Racking Kit​s?

The BiGDUG Pallet Racking Kit offers flexibility with its choice of heights (3M, 3.5M, and 4.5M) and depths (900mm and 1100mm). Each kit includes two or three 18mm P2 chipboard levels, allowing you to configure the setup to suit your specific storage needs. The hand-picking levels are ideal for organising frequently accessed stock, whilst the upper levels are perfect for palletised goods. Additional  racking accessories like timber decks, wire mesh decks, and racking protectors (available separately) make it easy to adapt the system as your business grows.

Does this Pallet Racking Meet FEM-Standards?

Safety and durability are at the core of our pallet racking kits. They're manufactured with galvanised, heavy-duty European steel for durability and certified to FEM standards, ensuring quality, reliability, and workplace safety. Each level supports up to 2100kg UDL*, so you can stock heavy equipment with ease. The first beam level should be positioned at a maximum height of 1500mm for optimal safety and accessibility. Backed by a 5-year warranty, this kit is designed to provide secure, long-term storage for your warehouse or workplace.
