Code: AR30

BiGDUG Essentials Industrial Shelving | 2030h x 1800w x 450d mm | 3 Levels | Blue & Orange | 300kg UDL with 30x Brown Document Boxes | 265h x 338w x 445d mm

(3)

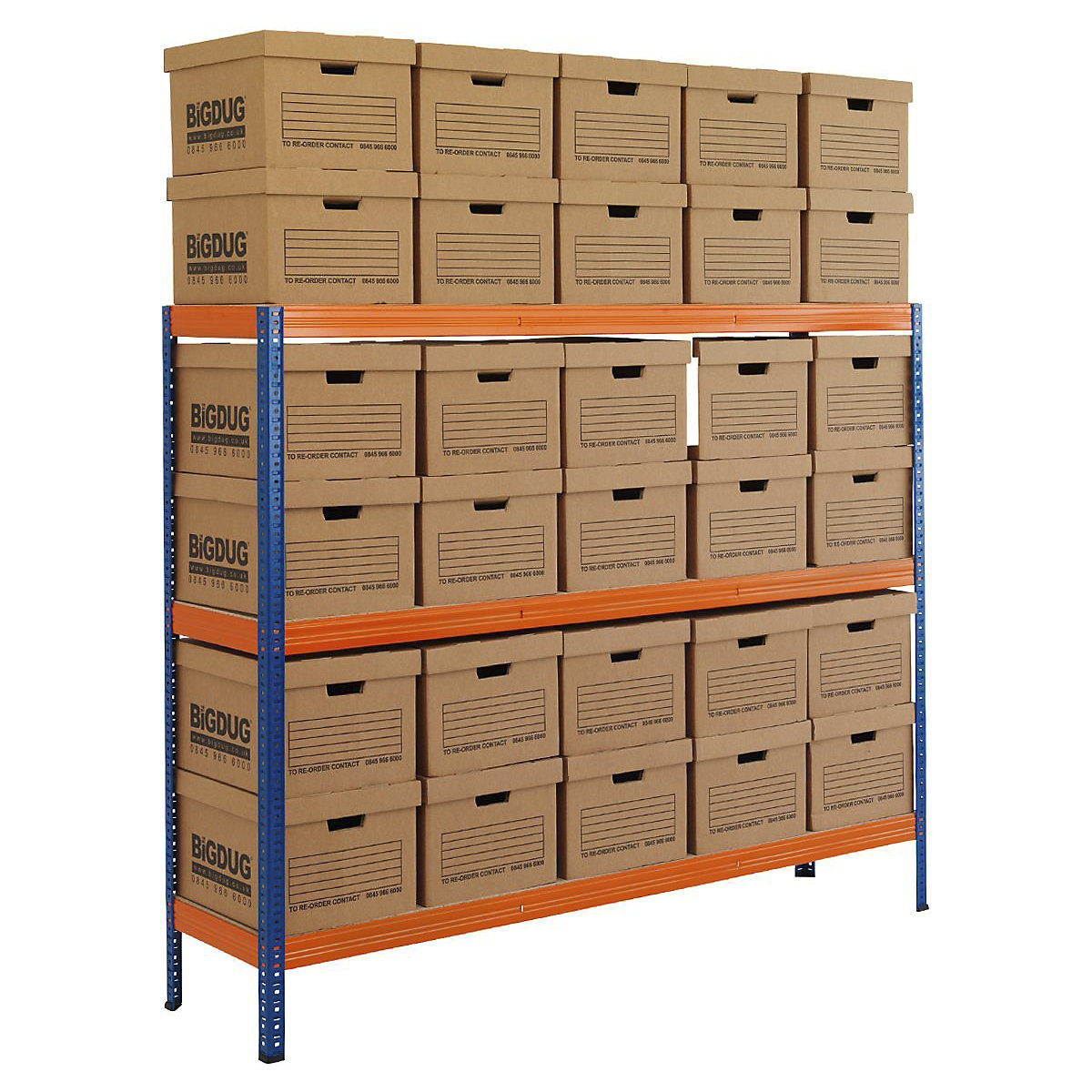

BiGDUG Essentials Industrial Shelving with Archive Document Boxes Kit
Type
£217.00
£173.00
Price / pack (Excl. VAT)
Free delivery on orders over £1000 ex VAT / £1200 inc VAT
Delivery time: 2-3 Working Days
Order until 15:00 for next day delivery
Product description

BiGDUG Essentials Shelving combined with our bestselling Document Boxes to create ideal archive storage solutions.

  • 300kg per shelf/1200kg per bay UDL*
  • Chipboard Shelves
  • Powder-coated steel uprights and beams
  • Double sided access - no cross bracing required
  • Complete with Brown or White Document Boxes
  • European-sourced steel frame finished in powder-coated blue and high visibility orange
  • High-density chipboard shelves with steel central supports
  • Load capacity per shelf: 300kg UDL*
  • Shelves adjustable every 35mm
  • Simple boltless assembly - just tap sections together with a rubber assembly mallet
  • No cross bracing so can be used for double-sided access
  • Use Bay Connectors (available separately) to join multiple shelving bays into runs - either back-to-back or side-by-side
  • Tested and certified to European manufacturing and safety standards
  • Please note: the uprights for this product may be split to minimise the packaging length
  • Double-walled cardboard document boxes
  • Suitable for files, folders, ring-binders and A4 documents
  • Box dimensions: 265h x 338w x 445d mm
  • Box capacity: 15kg

*UDL = Uniformly Distributed Load

**Heights given for shelving are to the top of the shelved boxes

Shelving Specifications

Data Field AR25*/30*
Upright Type One Piece
Upright Steel Thickness 1.3mm
Beam Steel Thickness 1.3mm
Shelf Adjustment Increments 34.5mm
Shelf Thickness 68mm
Chipboard Thickness 9mm
MDF Thickness N/A
Melamine Thickness N/A
Steel Panel Thickness N/A
Total Bay Capacity 1200kg
Clear Width 1424mm

Fitting Guide

Please check our guides for each range when planning your shelving space.

Nominal Shelf Width mm: Clear Entry mm: Initial Bay External mm: Next Bay External mm:
1800 1724 1805 1810

External Height = H+5       Pitch = 35

Clear height between shelves = (No. x pitch) -48

All dimensions in Millimetres

BiGDUG Essentials

Explore BiGDUG Essentials, your go-to choice for cost-effective, great quality workplace solutions. From shelving and workbenches to office furniture and packaging, we've got you covered. All items come with a 3-year warranty* and are available from stock for super fast delivery. With the BiGDUG Essentials product family you can upgrade your workplace today for a more efficient and comfortable workspace within budget, click here to see full range.

Please note: this product is made to order and therefore cannot be cancelled once ordered. As these items are made specifically to your request, they are also excluded from our returns policy unless damaged or faulty. Please contact our friendly sales team should you need further help or advice before ordering: 0333 200 5299.

‌
‌
‌
‌
‌
‌
