Code: HEWRTSB550

Warrior Manual Counterbalanced Crane | Max Lift: 2900mm | 1760h x 1050w x 2100d mm | 550kg Capacity

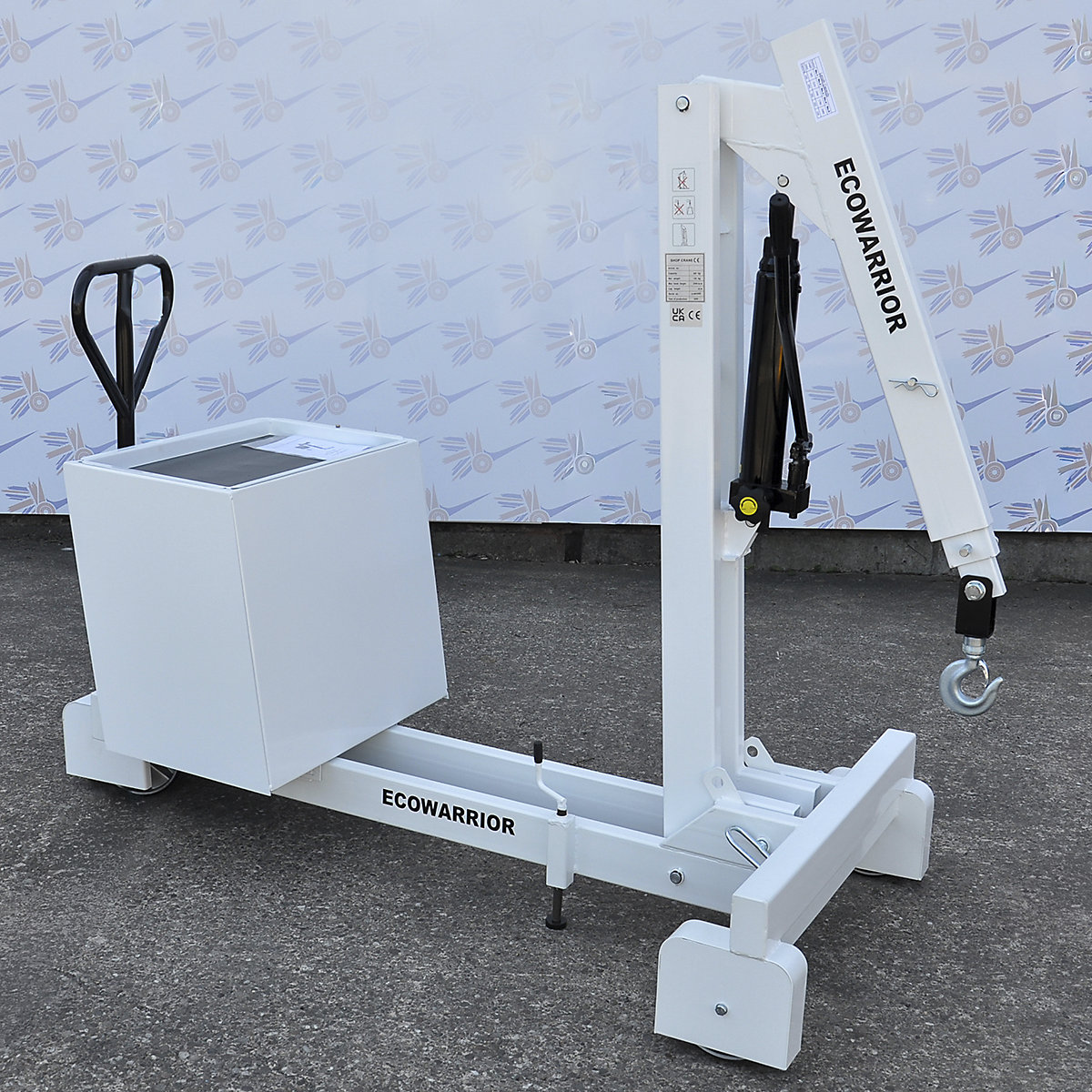

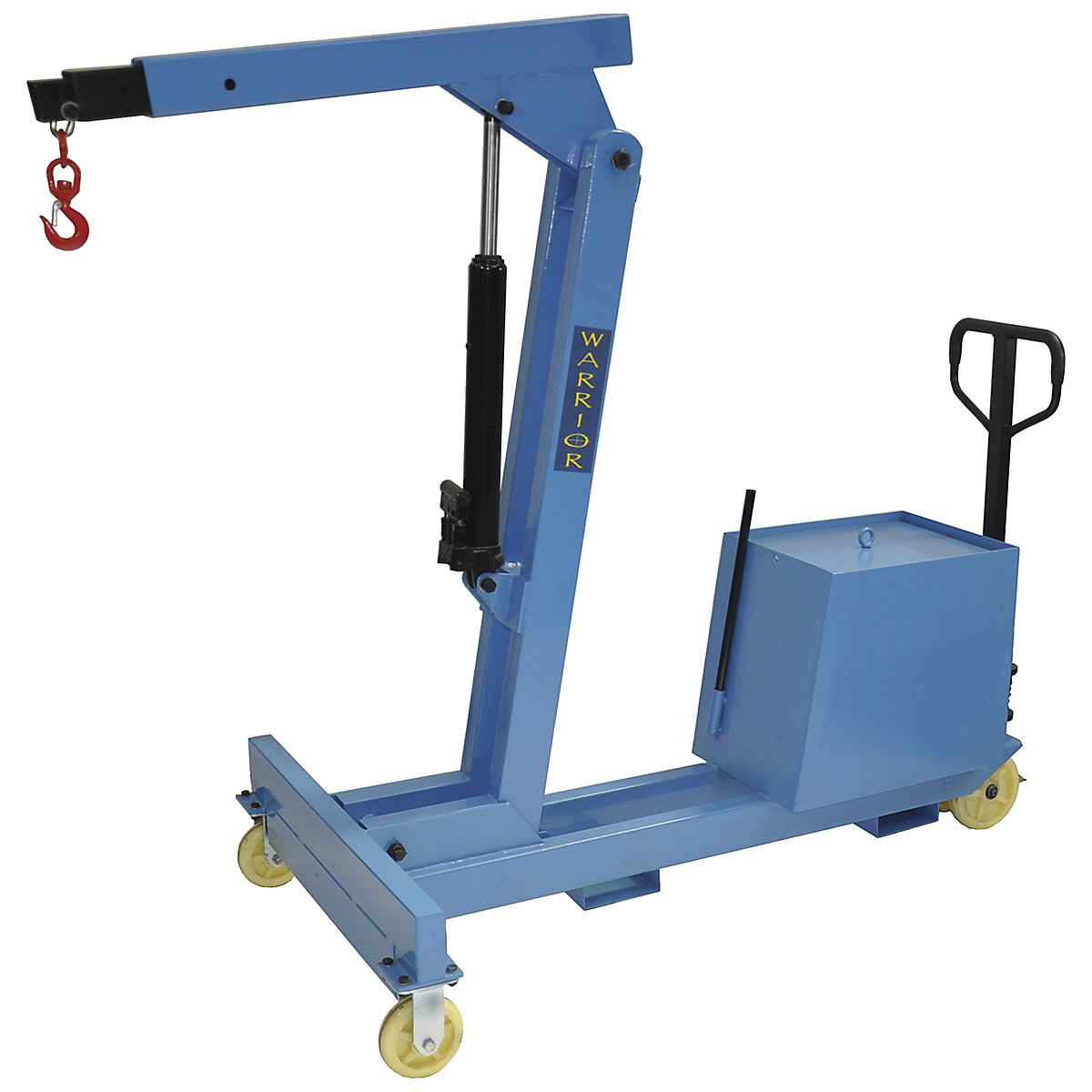

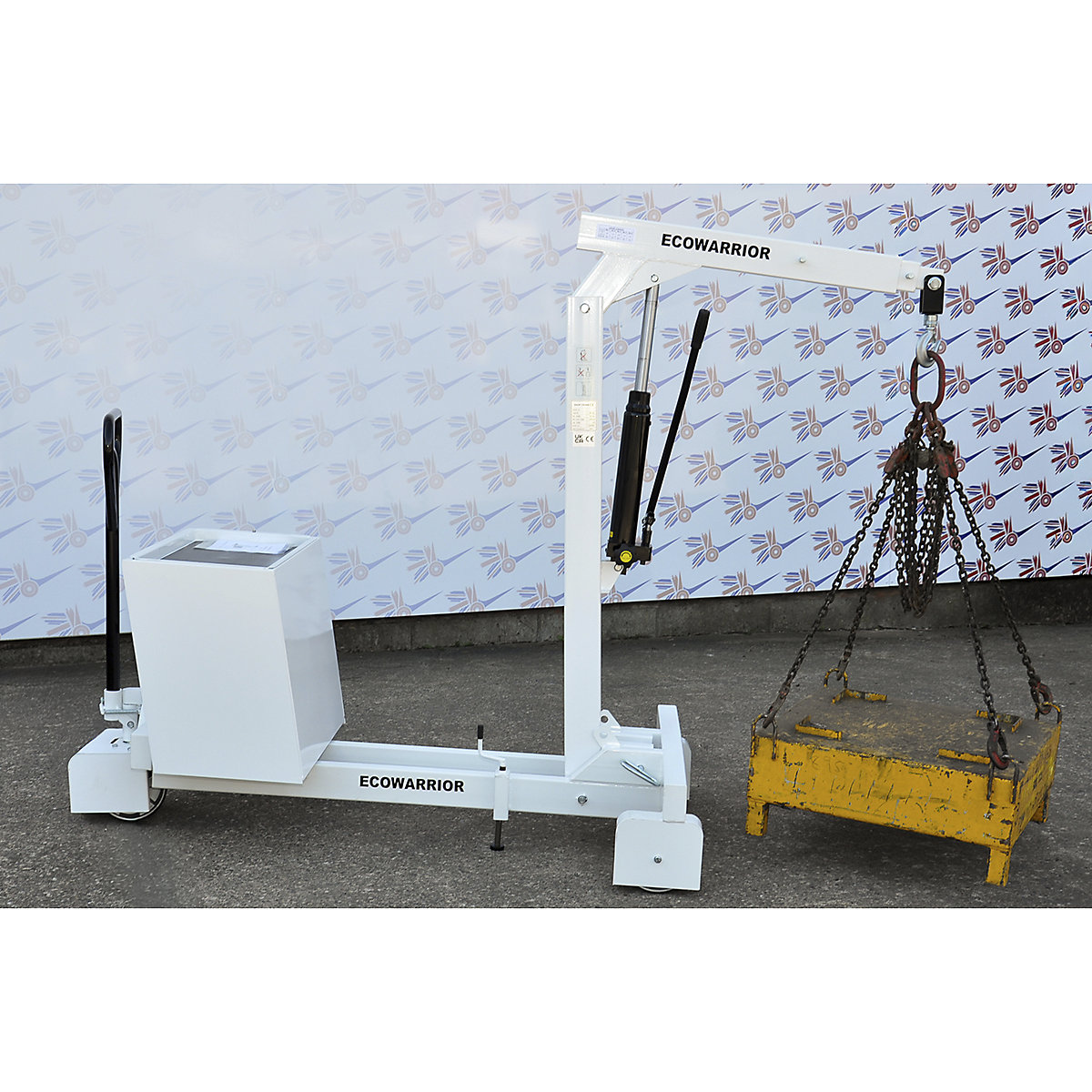

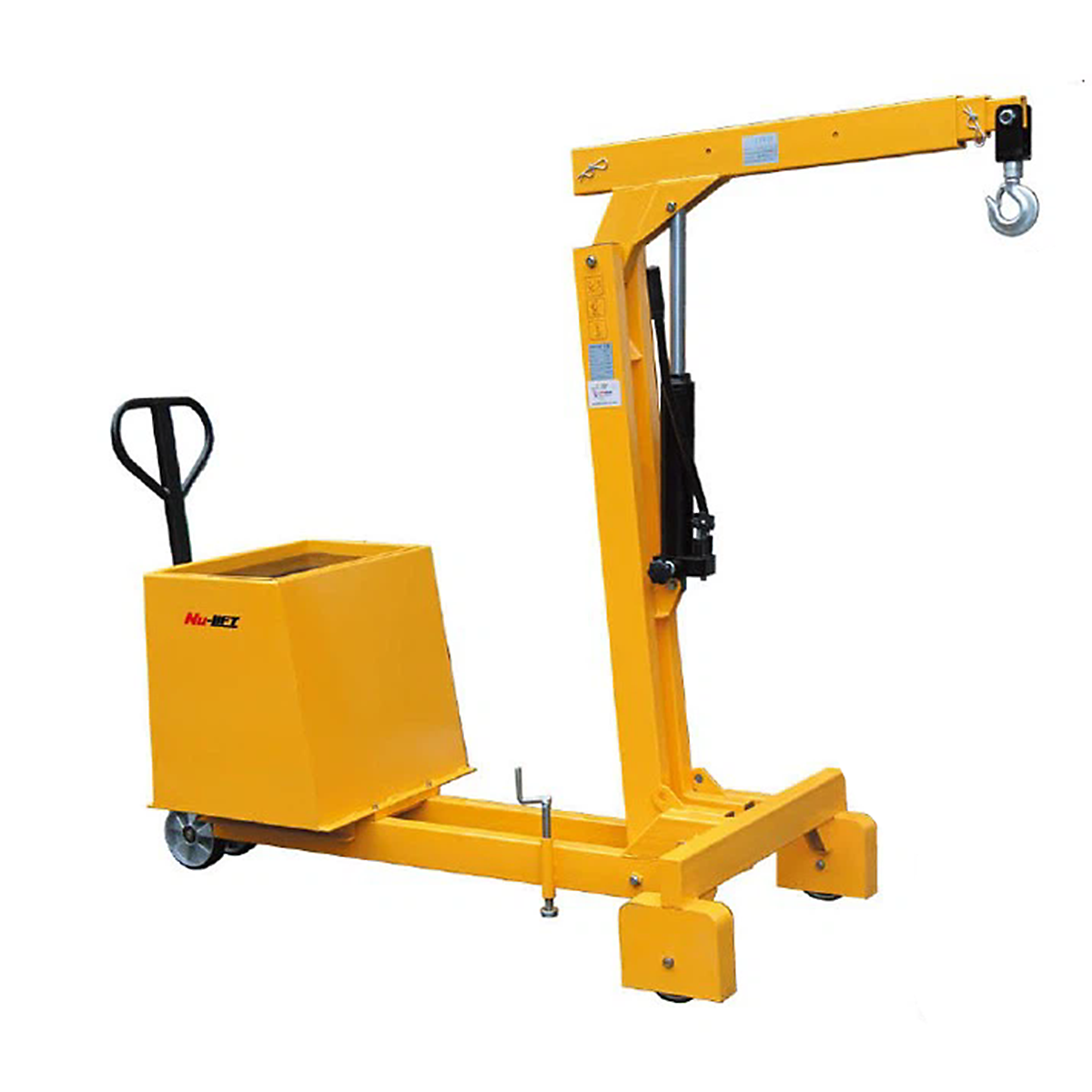

Warrior Manual Counterbalanced Crane
Delivery time: 6-10 Working Days
Product description

The Warrior Manual Counterbalance Workshop Crane is a freestanding unit designed for effcient lifting in restricted spaces. Ideal for industrial environments, it features an integrated counterbalance, telescopic jib, and double-acting hydraulic pump.

  • Load capacity of up to 550kg
  • Compact design for confined spaces
  • Integrated counterbalance for full jib access without stabilizers

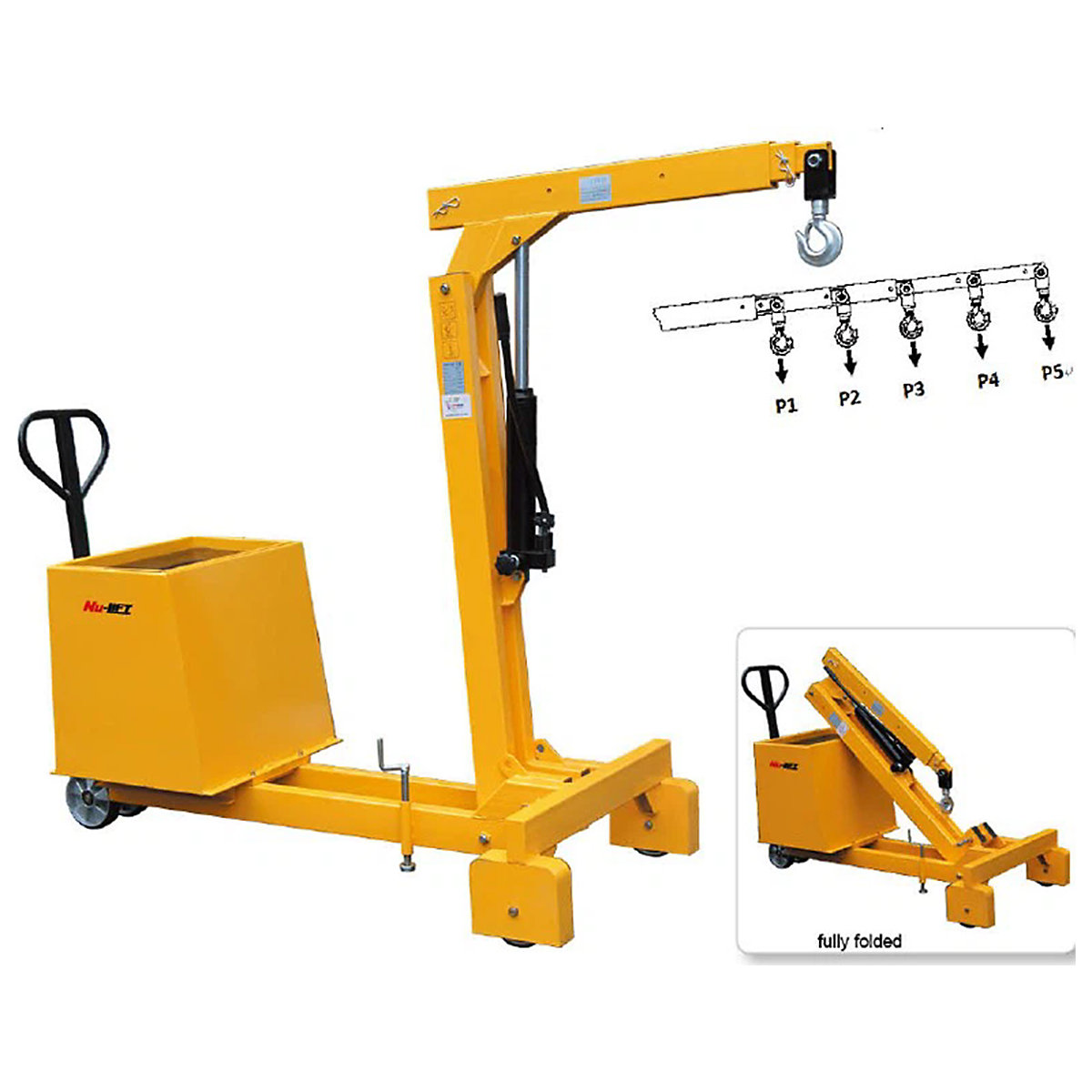

  • 5-position telescopic jib for adjustable capacity settings
  • Double-acting hand hydraulic pump ensures smooth operation
  • Hook height ranges from ground level to 2700mm
  • Safety catch and pressure relief valve protect against overloading
  • CE marked, ensuring compliance with essential safety and quality standards

Specifications

Specifications Warrior Manual Counterbalanced Crane
Maximum clear reach in front of wheels 1600mm
Maximum lift height 2900mm
Overall dimensions 2100l x 1050w x 1760h mm
Chassis dimensions 1650l x 910w x 1730h mm (jib level)
Overall height folded 870mm
Capacity 550kg (minimum jib)
Capacity @ jib position 2 500kg
Capacity @ jib position 3 450kg
Capacity @ jib position 4 400kg
Capacity @ maximum extent 350kg
Capacity @ full clear reach 150kg
‌
‌
‌
‌
‌
