Code: HEWRSETSB550

Warrior Semi-Manual Counterbalanced Crane | 1510h x 910w x 1650d mm | 550kg Capacity | Max Lift: 2600mm

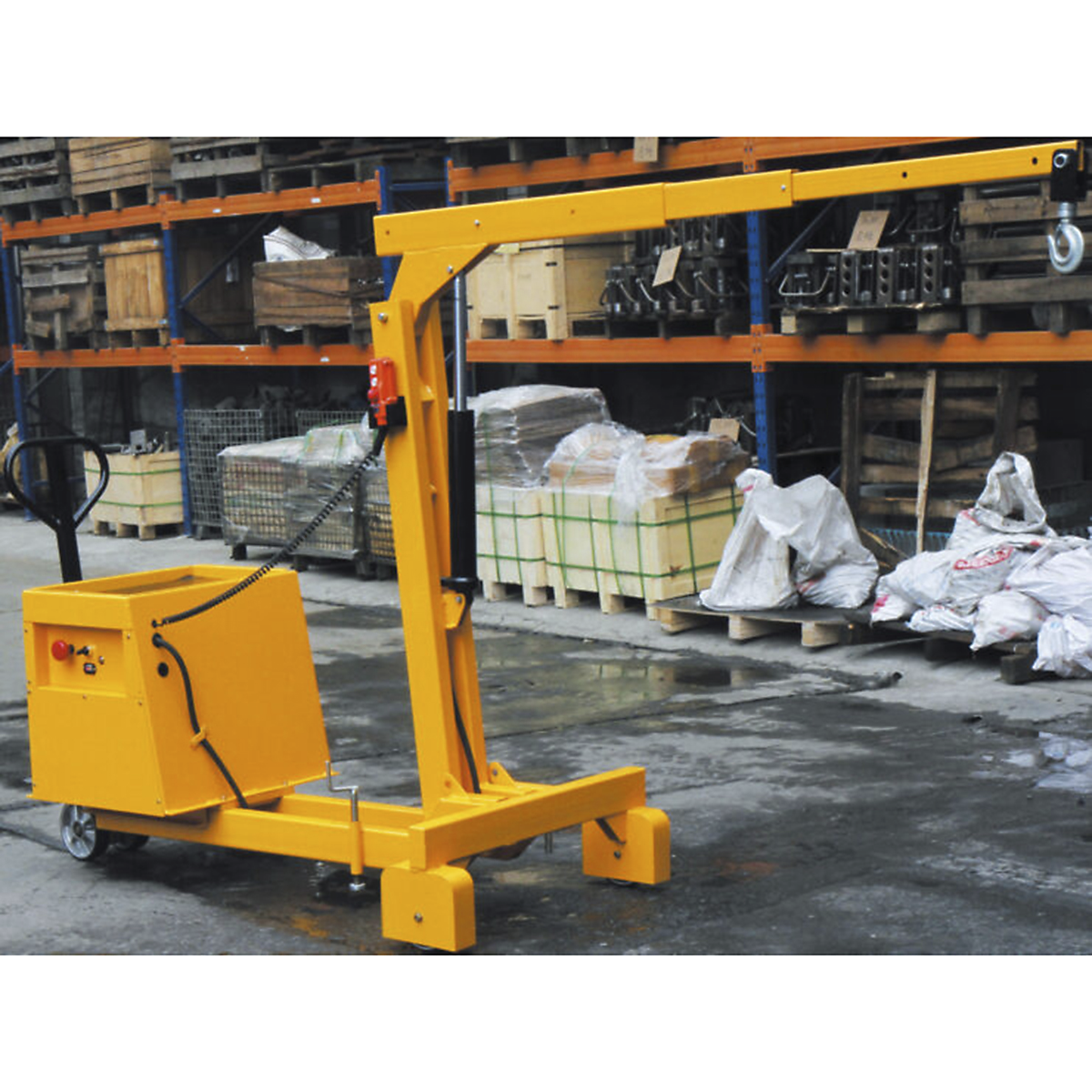

Warrior Counterbalanced Mobile Semi-Electric Workshop Crane

Delivery time: 6-10 Working Days
Product description

The Warrior Counterbalanced Mobile Semi-Electric Workshop Crane is a freestanding unit designed for efficient lifting in restricted spaces. It features a 5-position telescopic jib with 5 variable capacity settings.  The crane is manual movement/electric lift including a heavy duty swivel hook with safety catch and exceptional manoeuvrability to suit a fast paced operation.

  • Load capacity of up to 550kg
  • Freestanding unit ideal for restricted spaces
  • Counterbalanced design for full jib access
  • 5-position telescopic jib for adjustable capacity settings
  • Secure handling with a heavy-duty swivel hook and safety catch
  • Electric lifting and manual movement for ease of use
  • Pressure relief valve to prevent overloading
  • Easy maneuverability and versatile lift height (2600mm max, floor-level min)
  • Handle Height: 1210mm
  • Battery: 12V/60Ah lead acid
  • Charger: 12V/8ah external

Specifications

Specifications Warrior Counterbalanced Mobile Semi-Electric Workshop Crane
Chassis Length 1650mm
Chassis Width 910mm
Overall Height 1510mm (jib level)
Capacity @ Jib position 550kg @ 925mm
400kg @ 1210mm
300kg @ 1500mm
220kg @ 1800mm
150kg @ 2080mm
Battery 60Ah
Power/Voltage 0.8Kw/12V
