Code: SIP05691

SIP WELDMATE PRO 200A DV ARC/TIG Inverter Welder | 310h x 170w x 410d mm

SIP WELDMATE PRO 200A DV ARC/TIG Inverter Welder
Delivery time: 2-3 Working Days
Product description

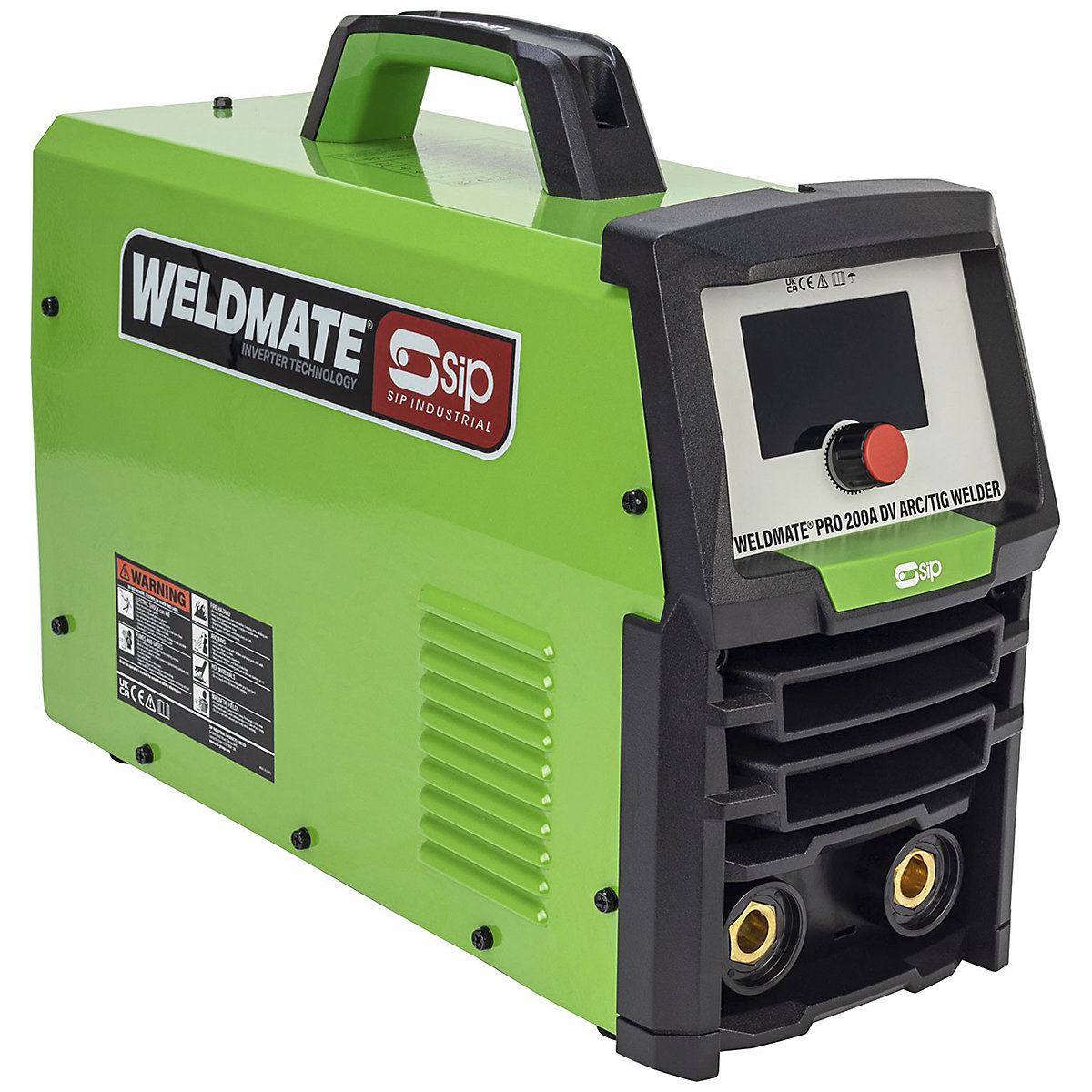

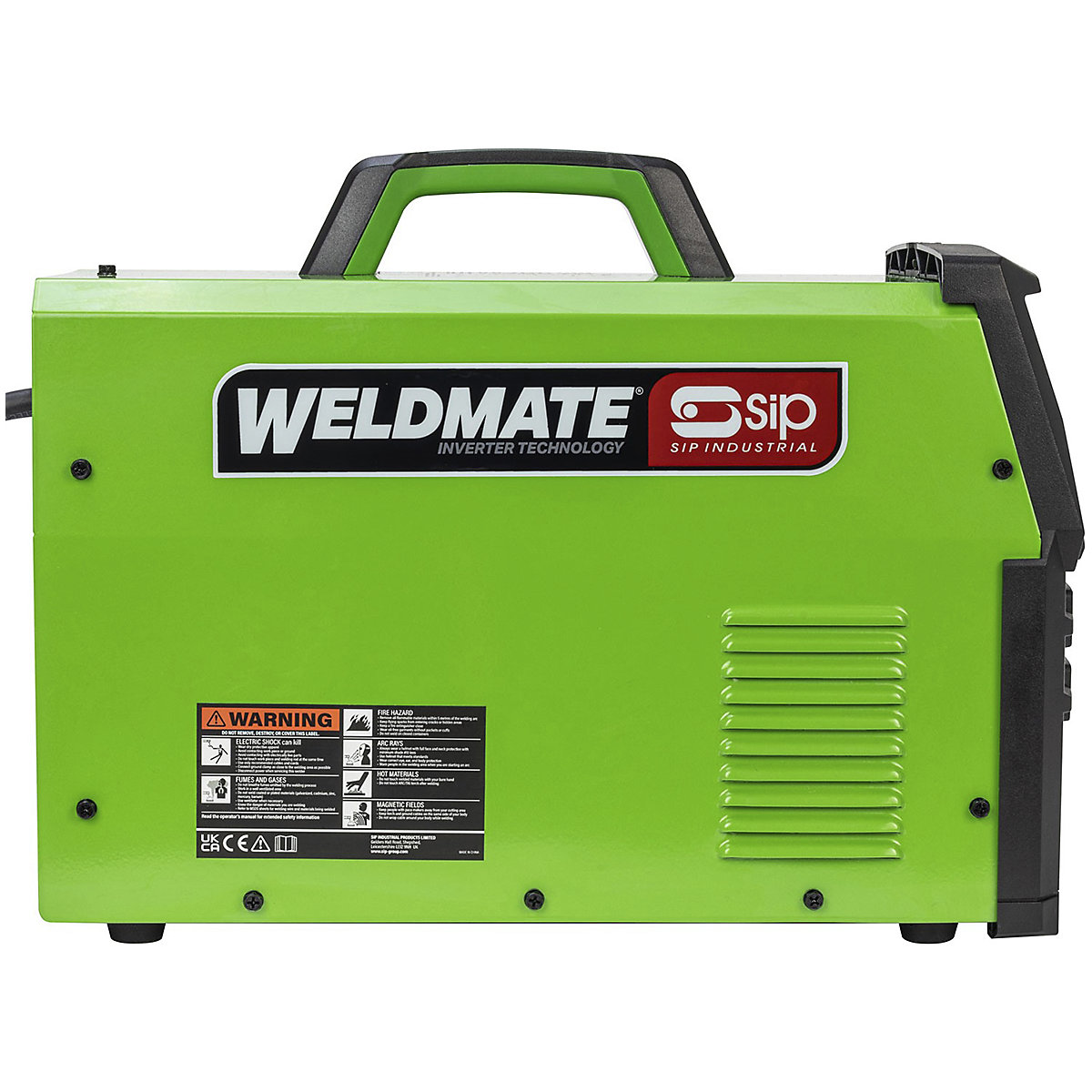

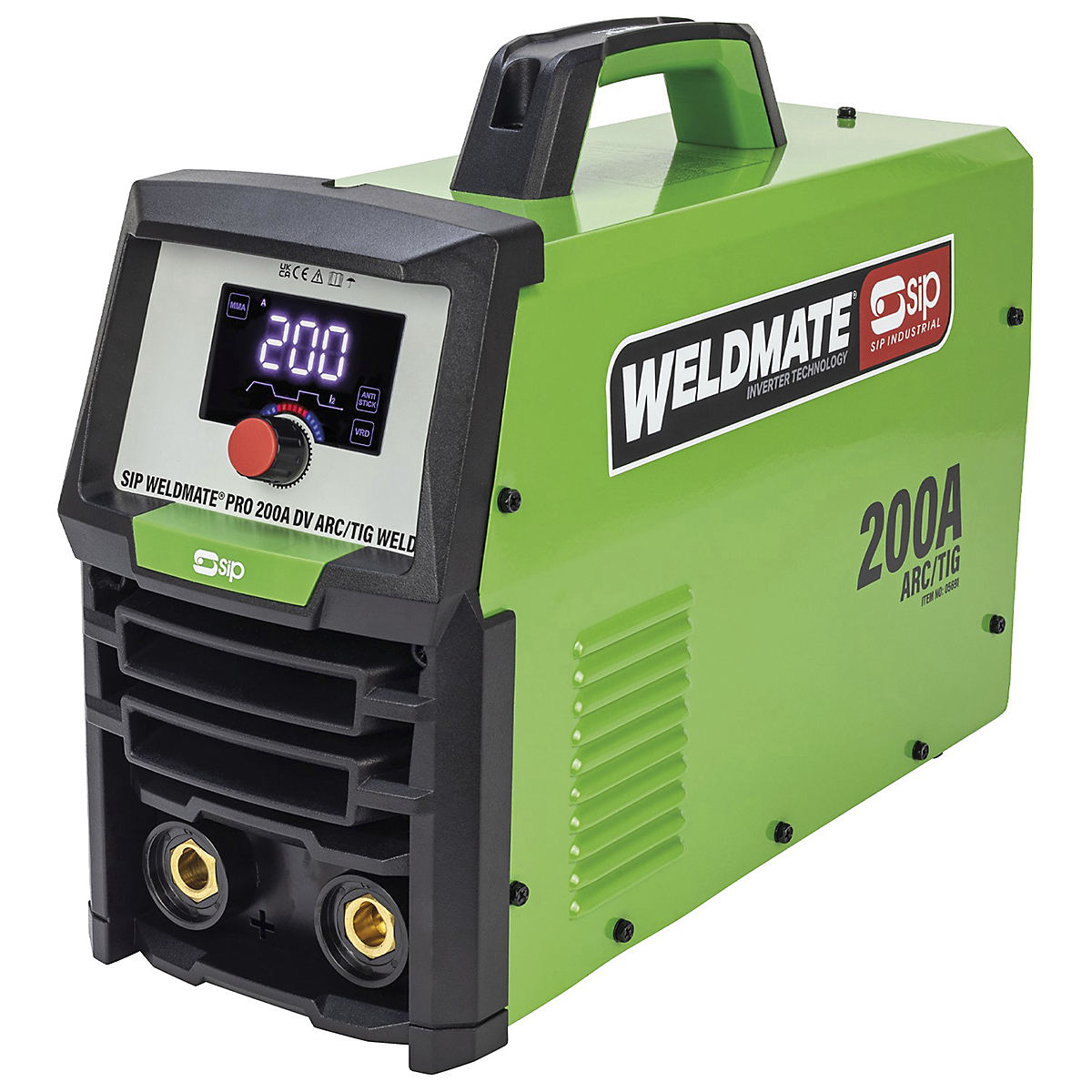

The SIP WELDMATE® PRO 200A DV ARC/TIG Inverter Welder is a dual process inverter welder with dual voltage functionality. Ideal for use in professional fabrication workshops and onsite environments, this welder can be powered from either a 230v/16A or 110v/16A supply.

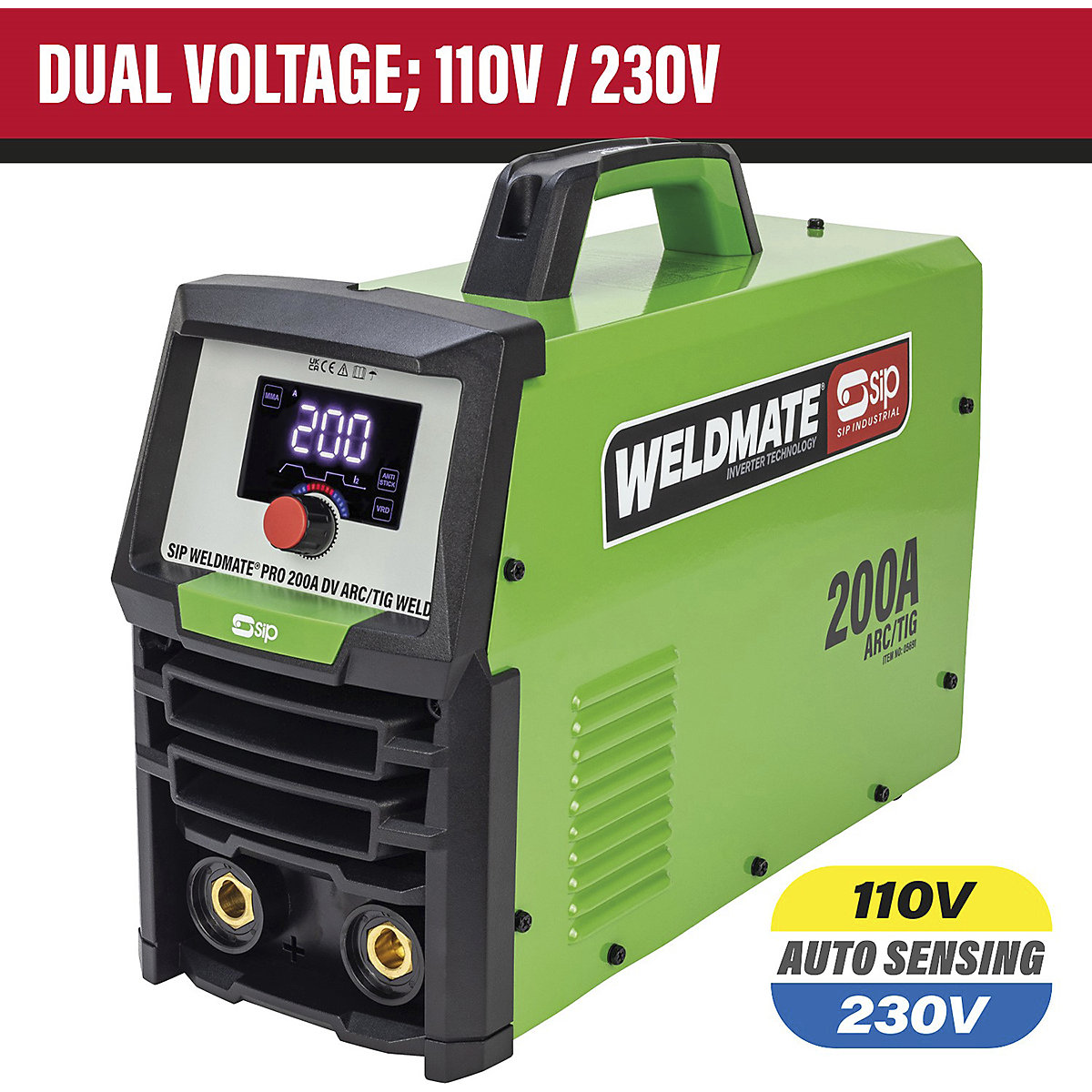

  • Dual process ARC/TIG welder with 230v and 110v supply outputs
  • Fully compliant with Reg EU 2019/1784 (Eco Design for Welding Equipment)

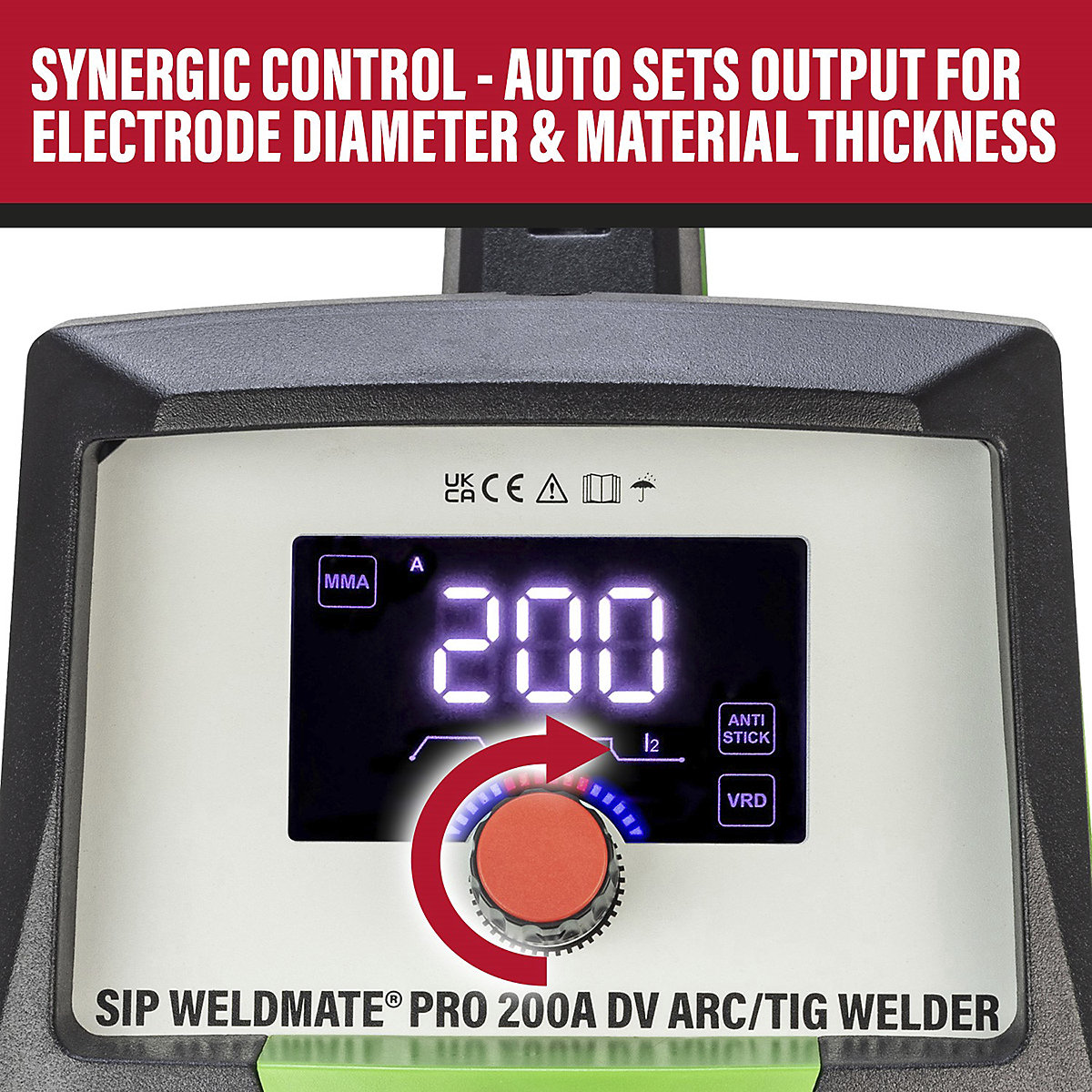

  • Synergic control auto sets output for electrode diameter and material thickness
  • Infinitely variable dial offers a smoother stepless output adjustment

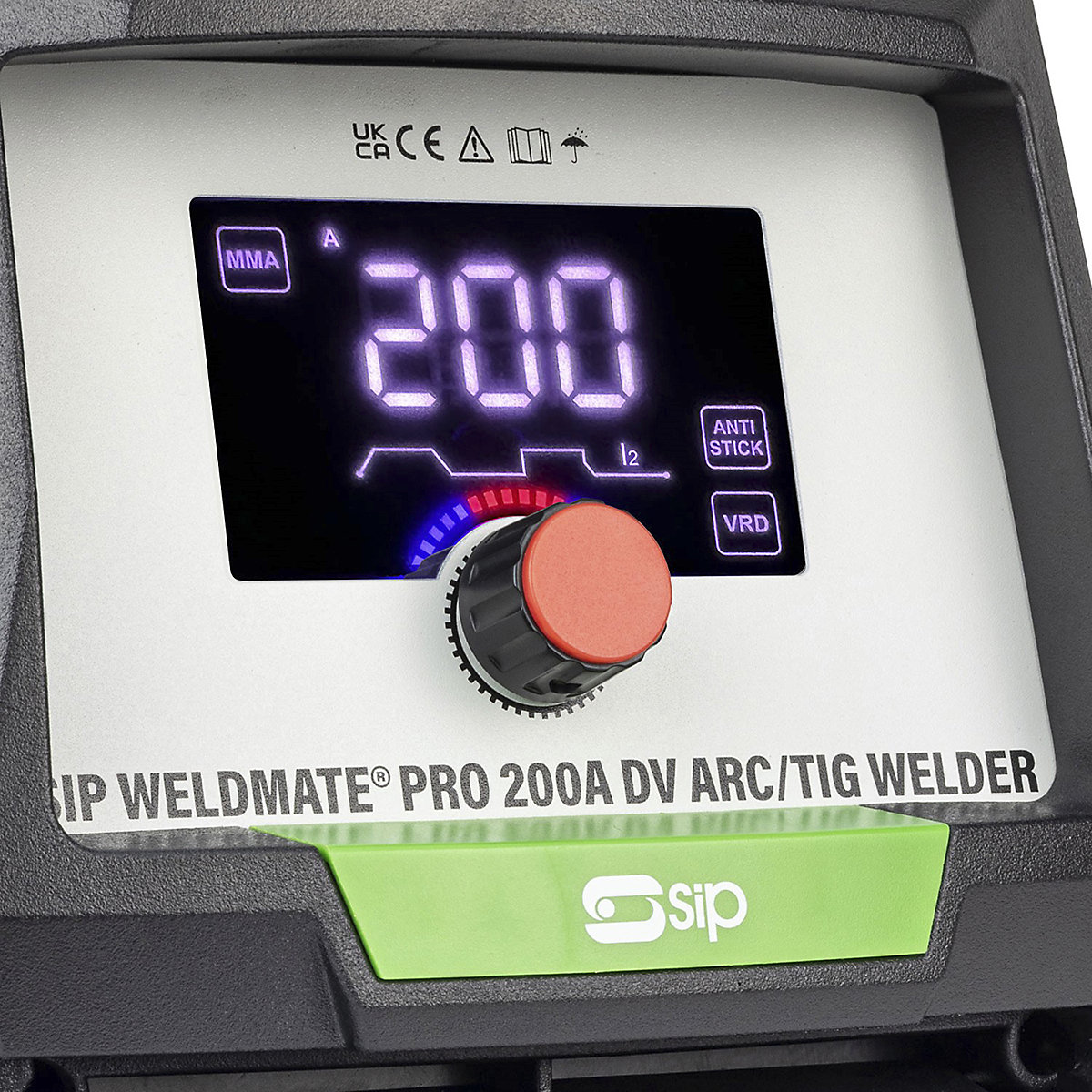

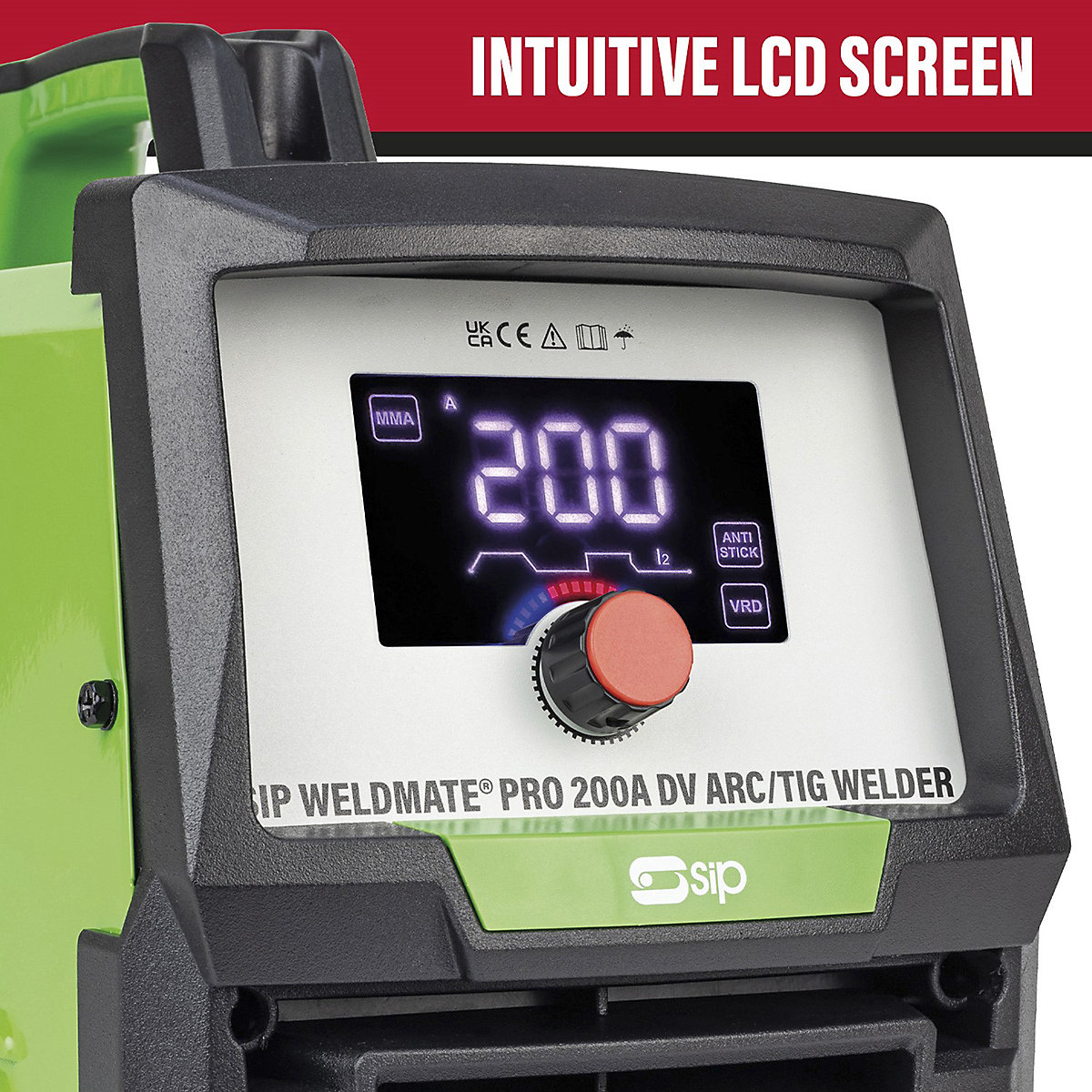

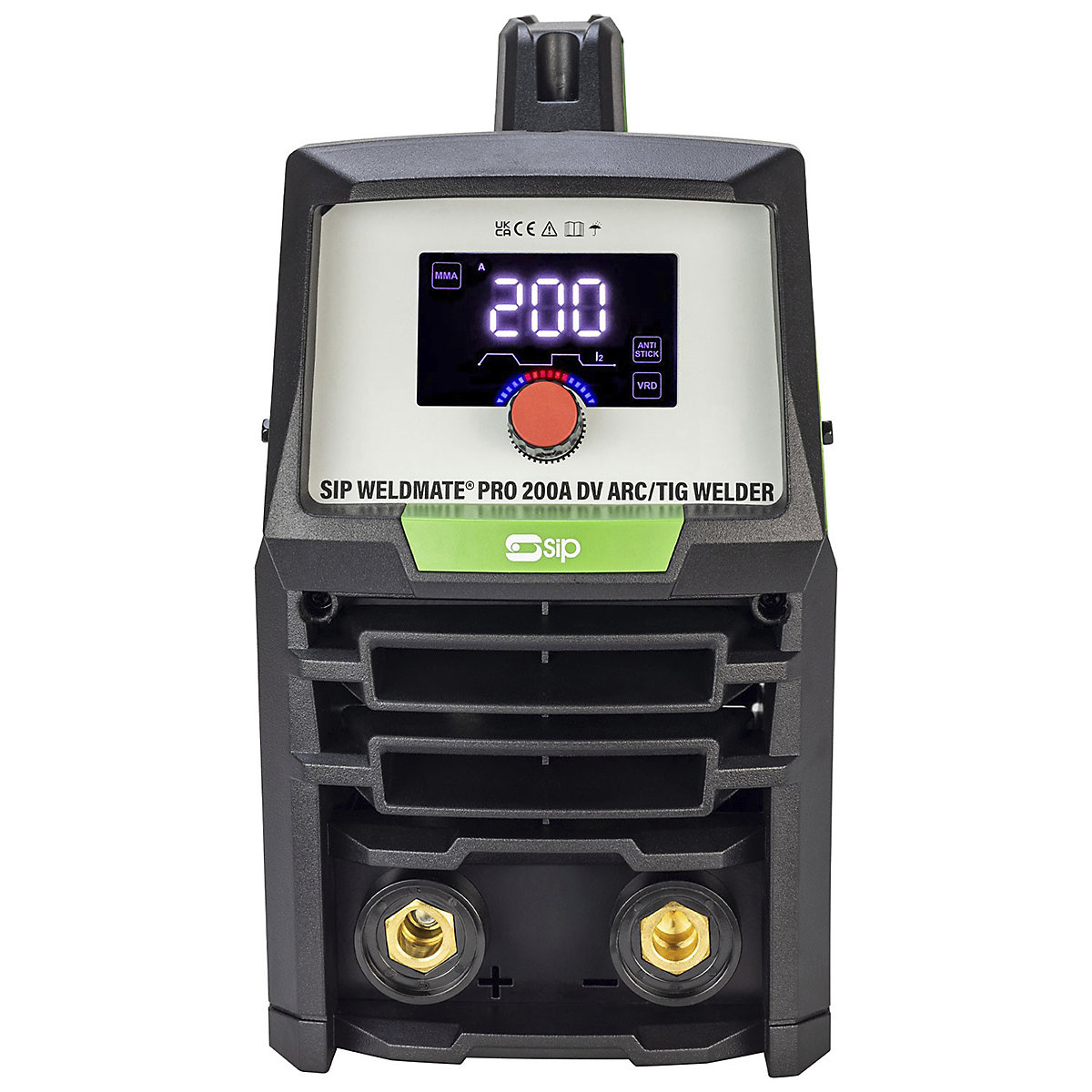

  • Intuitive LCD screen for setting output and selecting welding functions

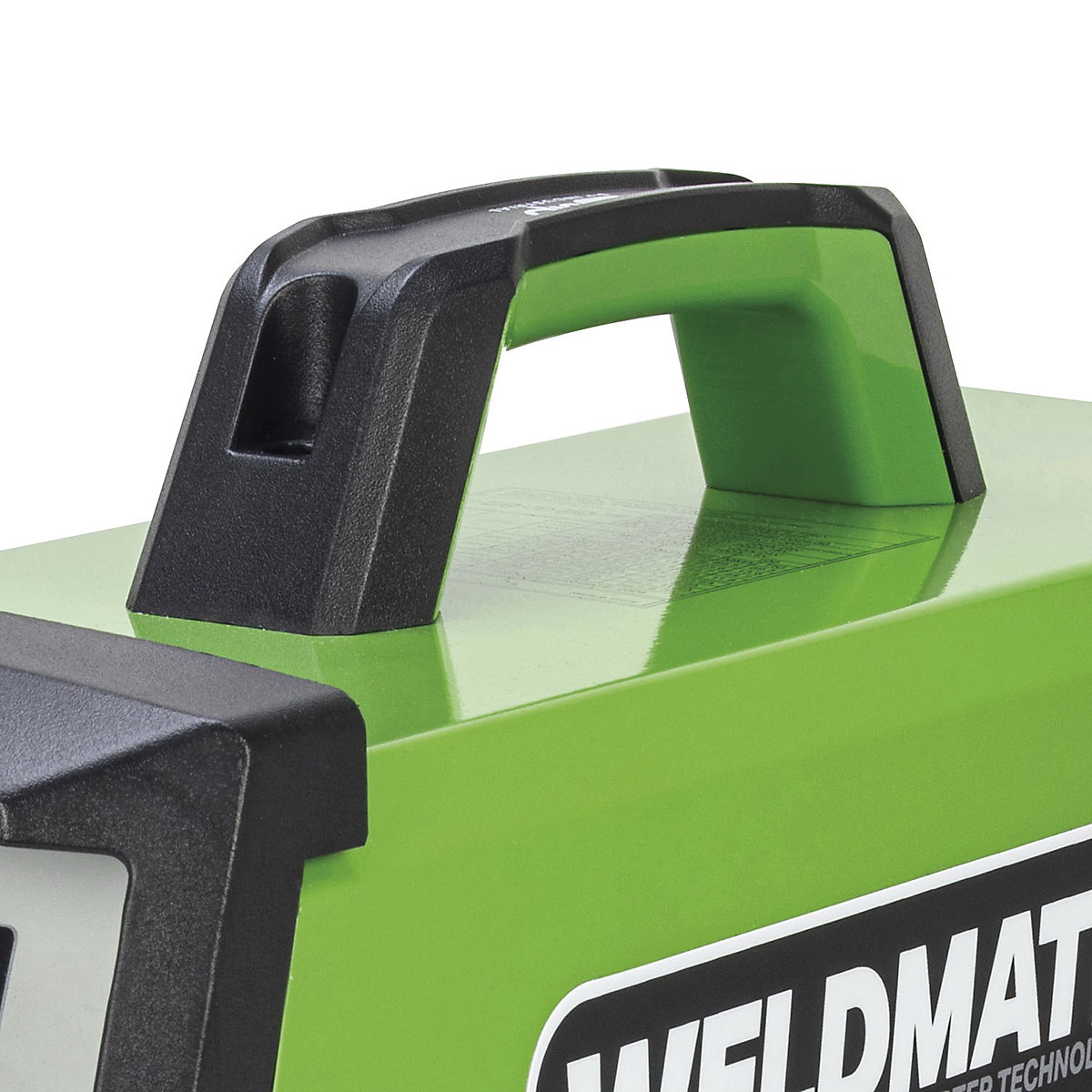

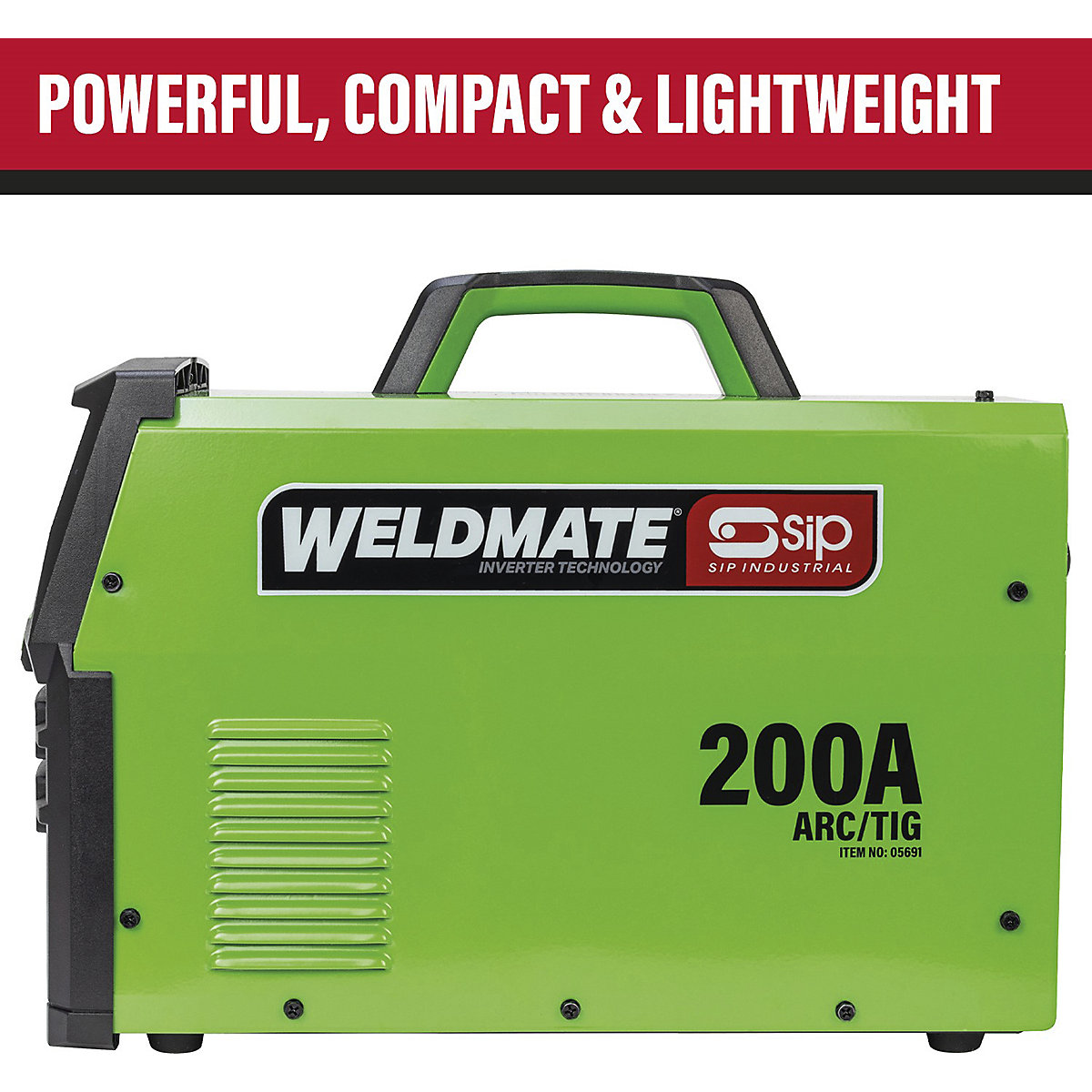

  • Compact and lightweight design for easy work area movement
  • Voltage Reduction Device (VRD) prevents accidental arc strike-up for greater user safety
  • Anti-stick function prevents the welding electrode from sticking to the workpiece when striking-up for a smoother welding process
  • ARC force stabilises the arc for greater welding control and improved welding efficiency
  • Hot start delivers a short burst of higher welding current output, to improve arc ignition and help to penetrate thicker materials

Specifications

Data Field SIP WELDMATE® PRO 200A DV ARC/TIG Inverter Welder

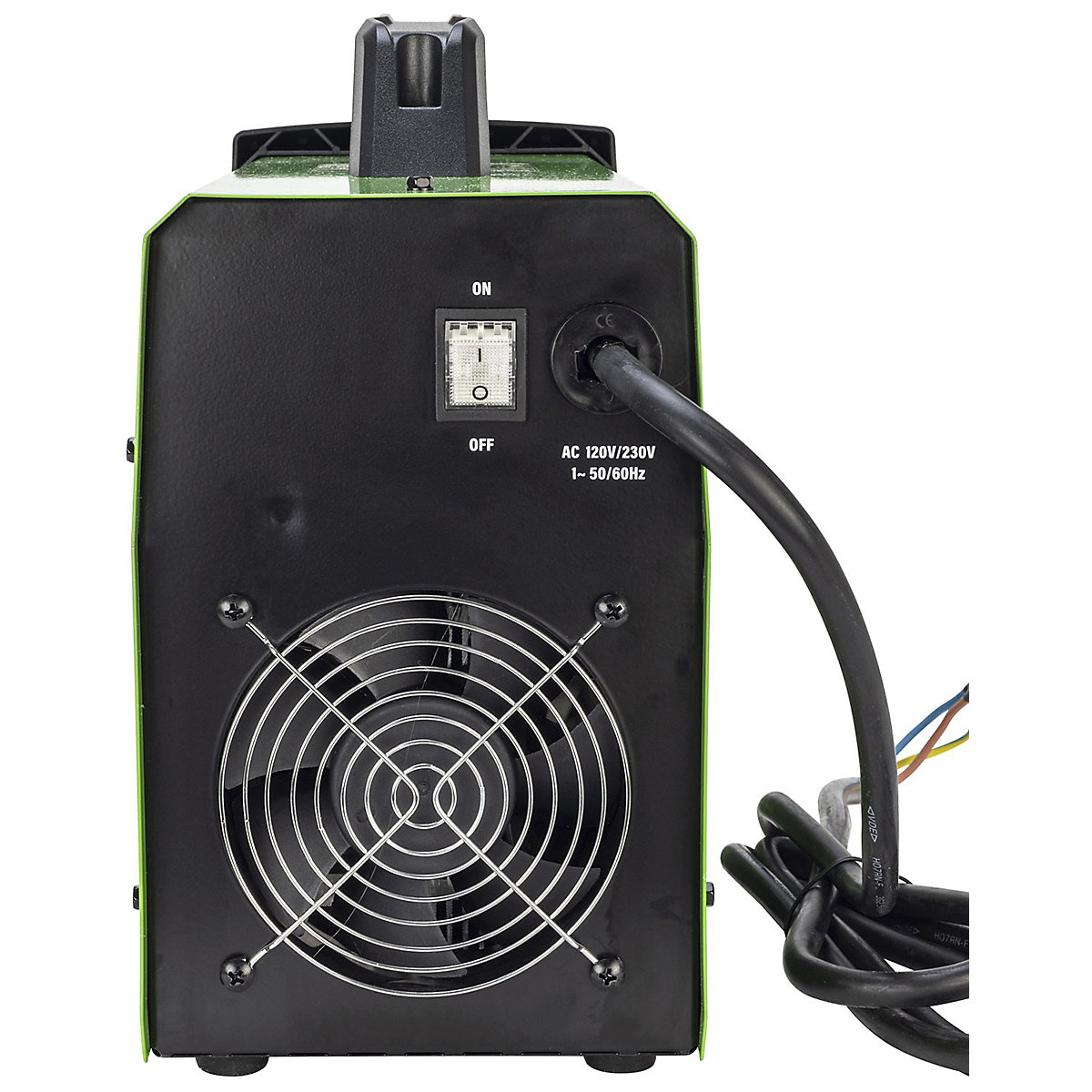

Input Supply 230v (16A) / 110v (16A)
Welding Material Thickness 1.5mm - 10.5mm (mild steel) (230v) / 1.5mm - 5.5mm (mild steel) (110v)
Protection / Insulation F

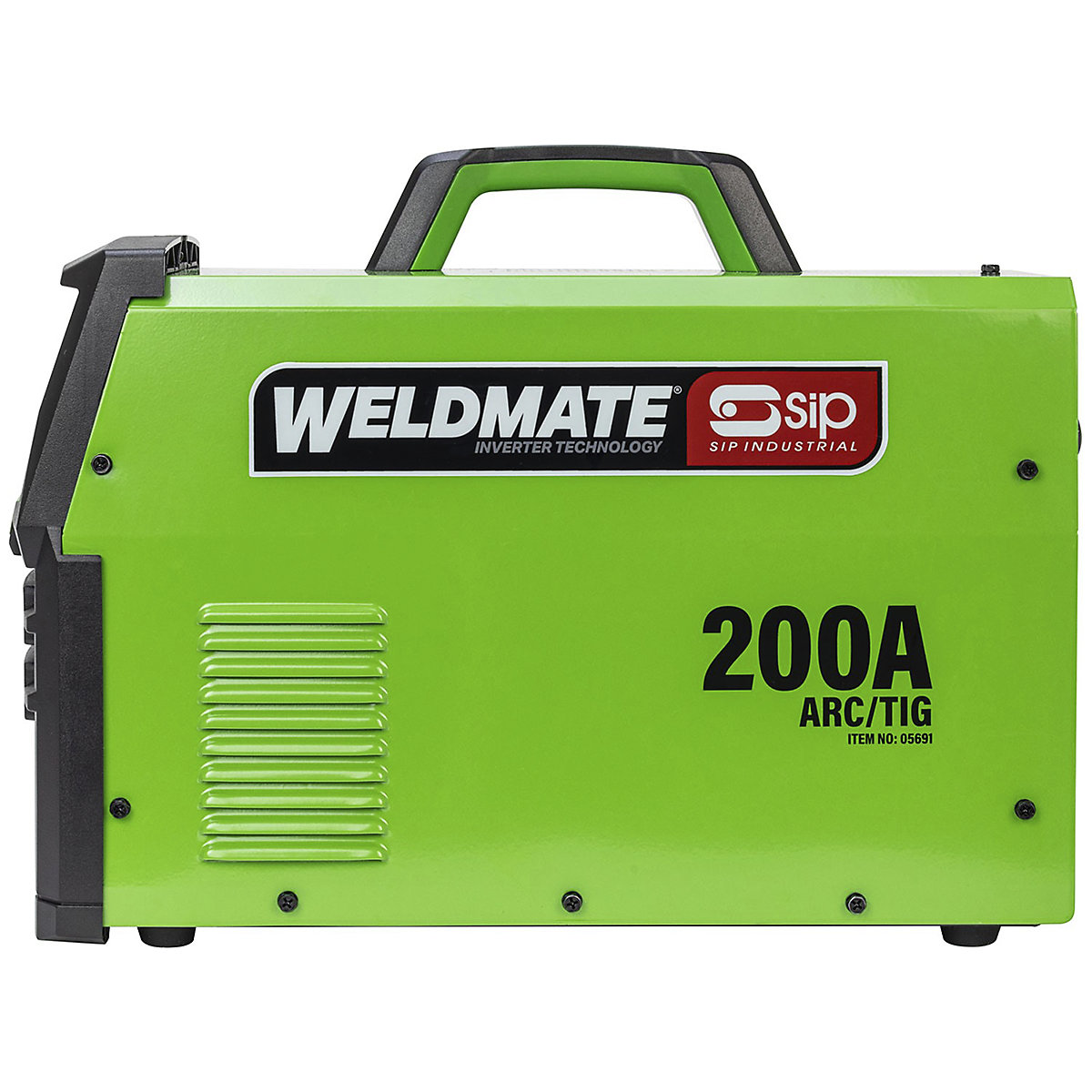

Dimensions 310h x 170w x 410d mm
Weight 8.2kg


Welding Process ARC TIG
Output Current 10A - 200A | 10A - 100A 10A - 200A | 10A - 100A
Output Voltage (230v | 110v) 20.4v - 28v | 20.4v - 24v 20.4v - 28v | 20.4v - 24v
Duty Cycle @ 20°C 200A @ 40% | 100A @ 20% 200A @ 40% | 100A @ 20%
‌
‌
‌
