Code: SIP05695

SIP WELDMATE PRO 200A DC TIG/ARC Inverter Welder | 270h x 145w x 370d mm

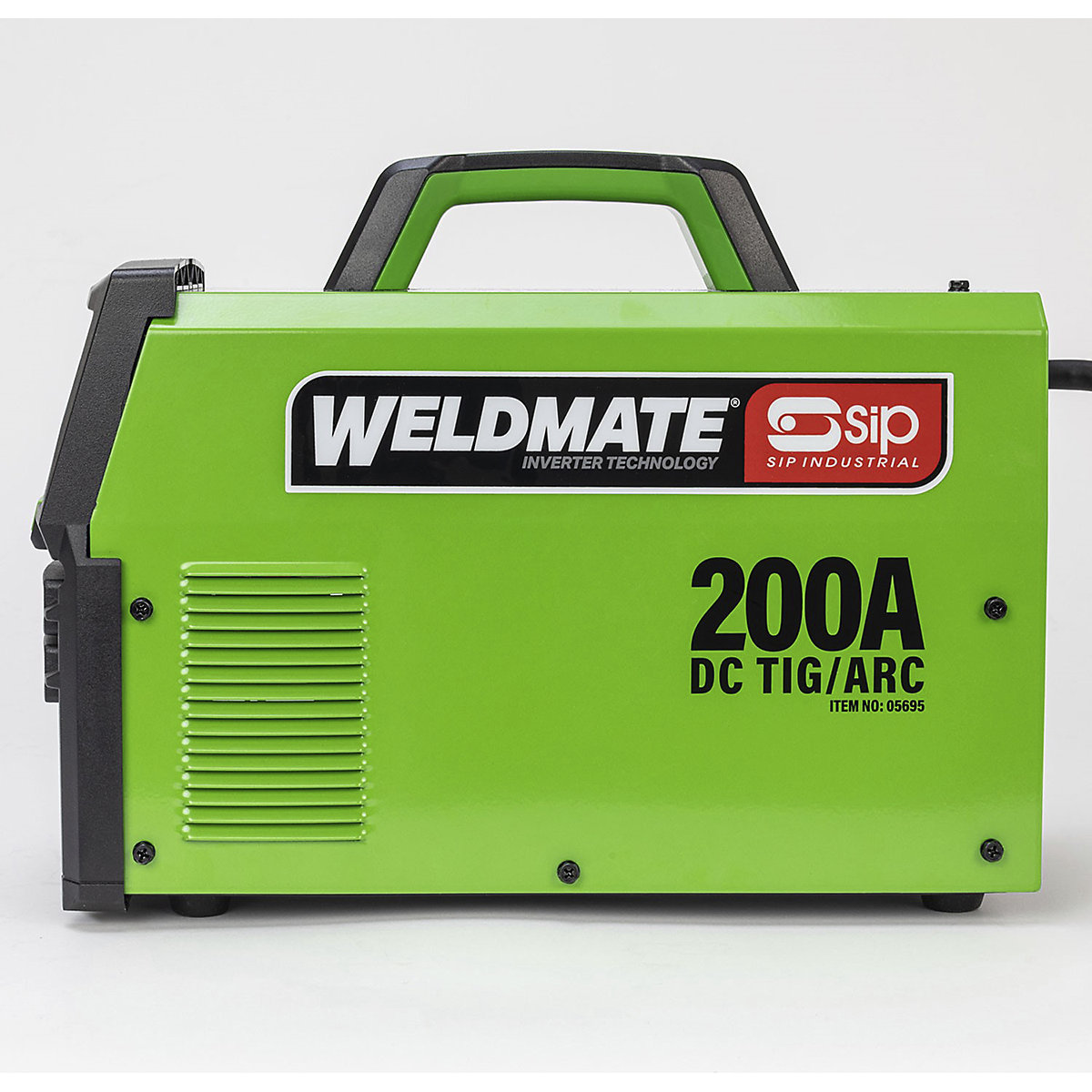

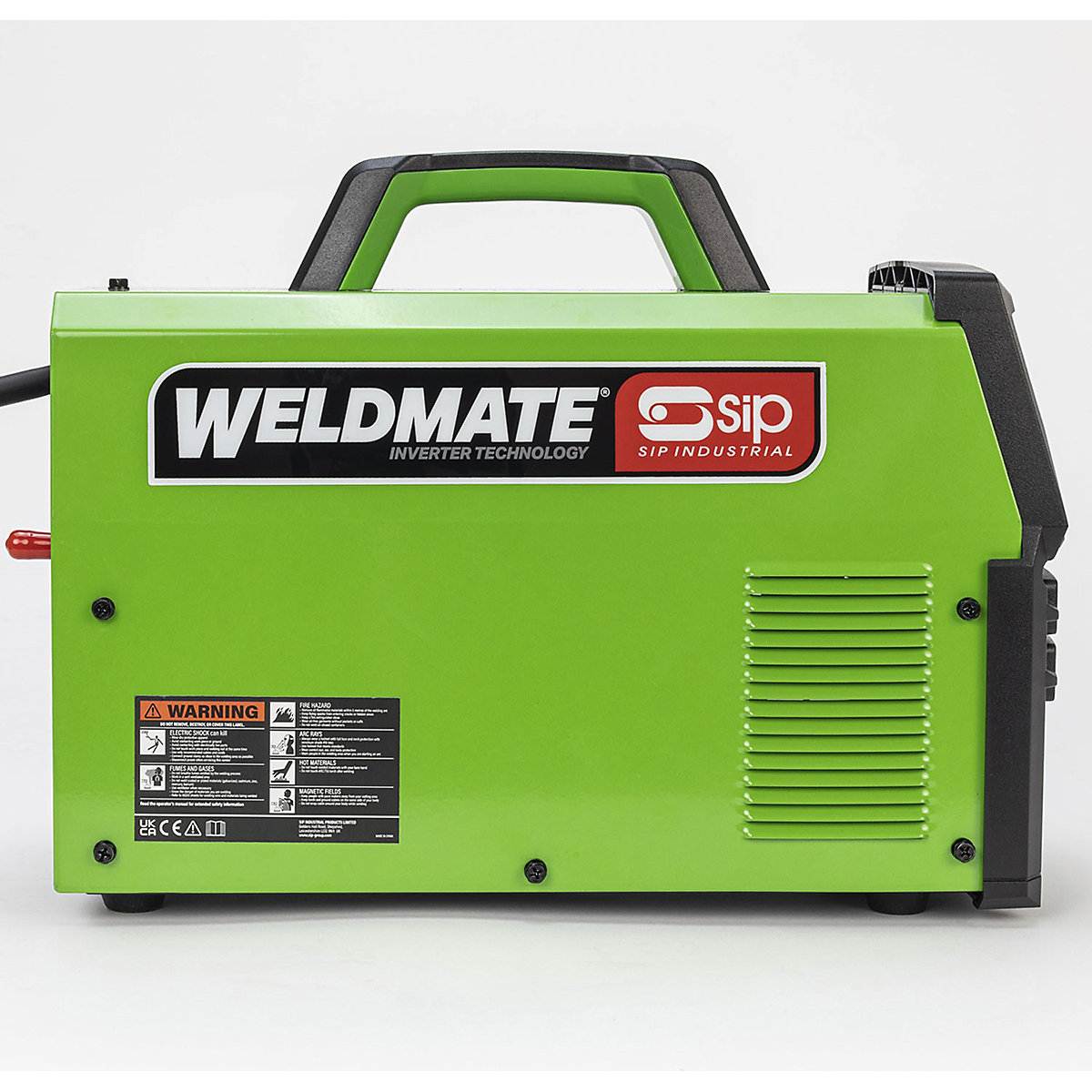

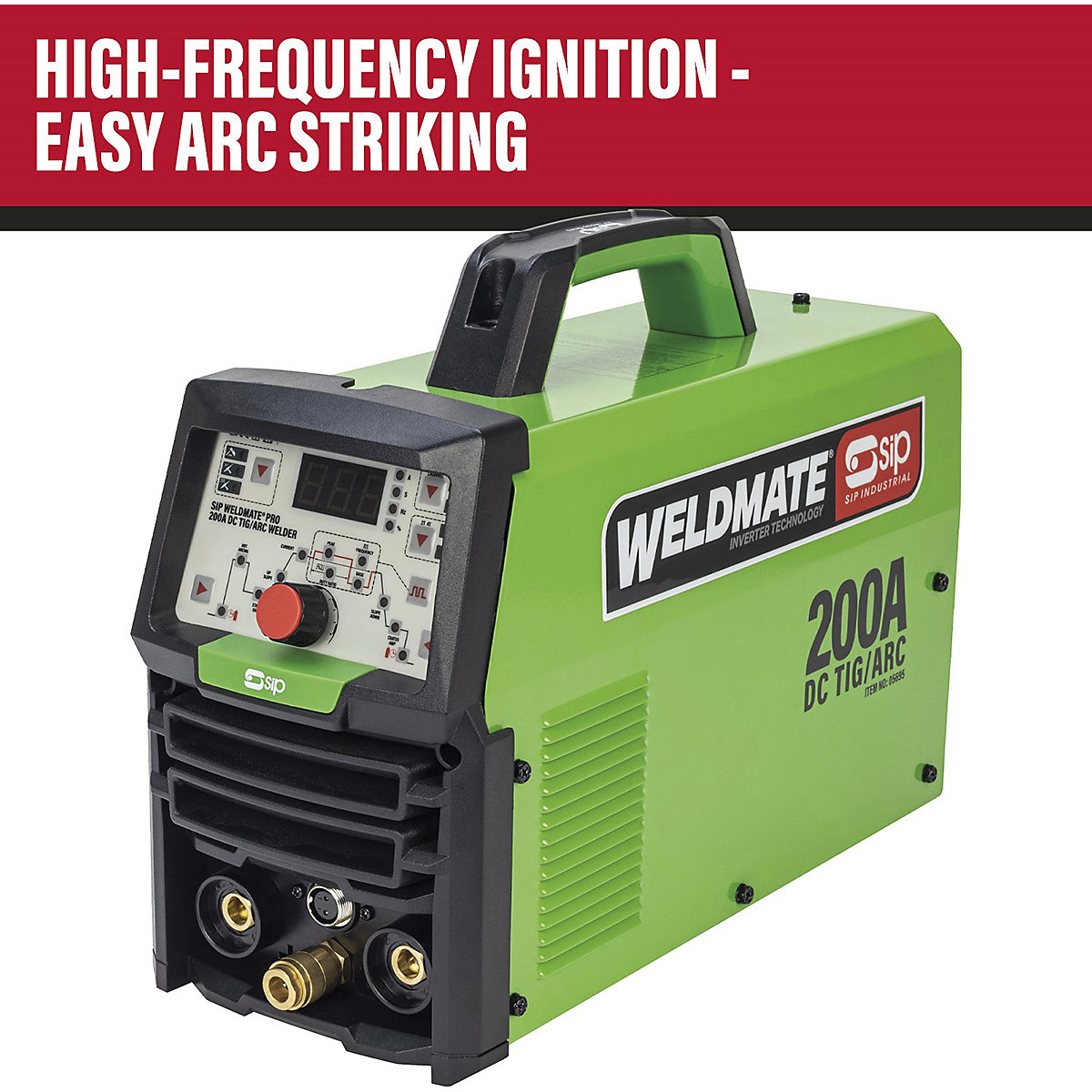

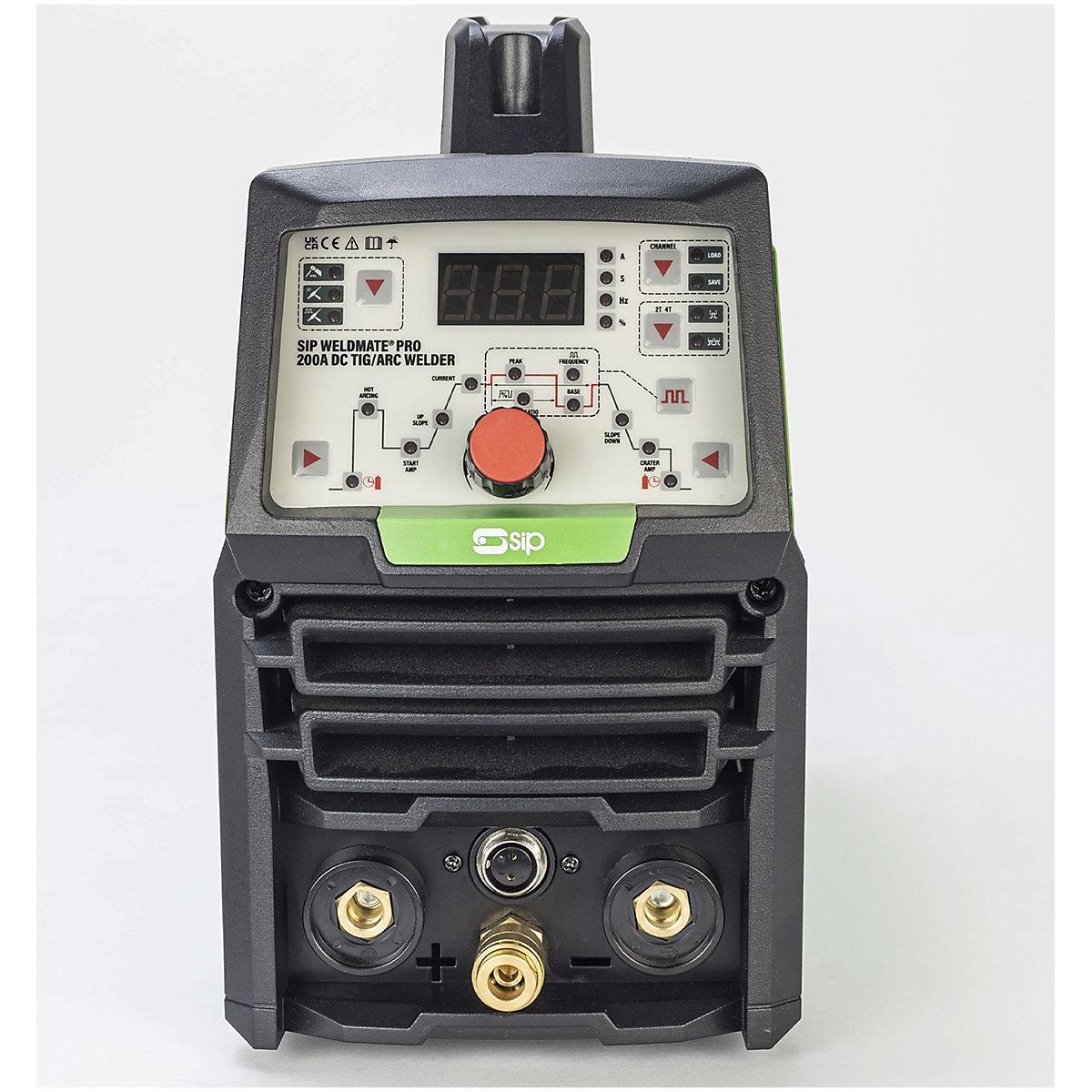

SIP WELDMATE PRO 200A DC TIG/ARC Inverter Welder
Delivery time: 2-3 Working Days
Product description

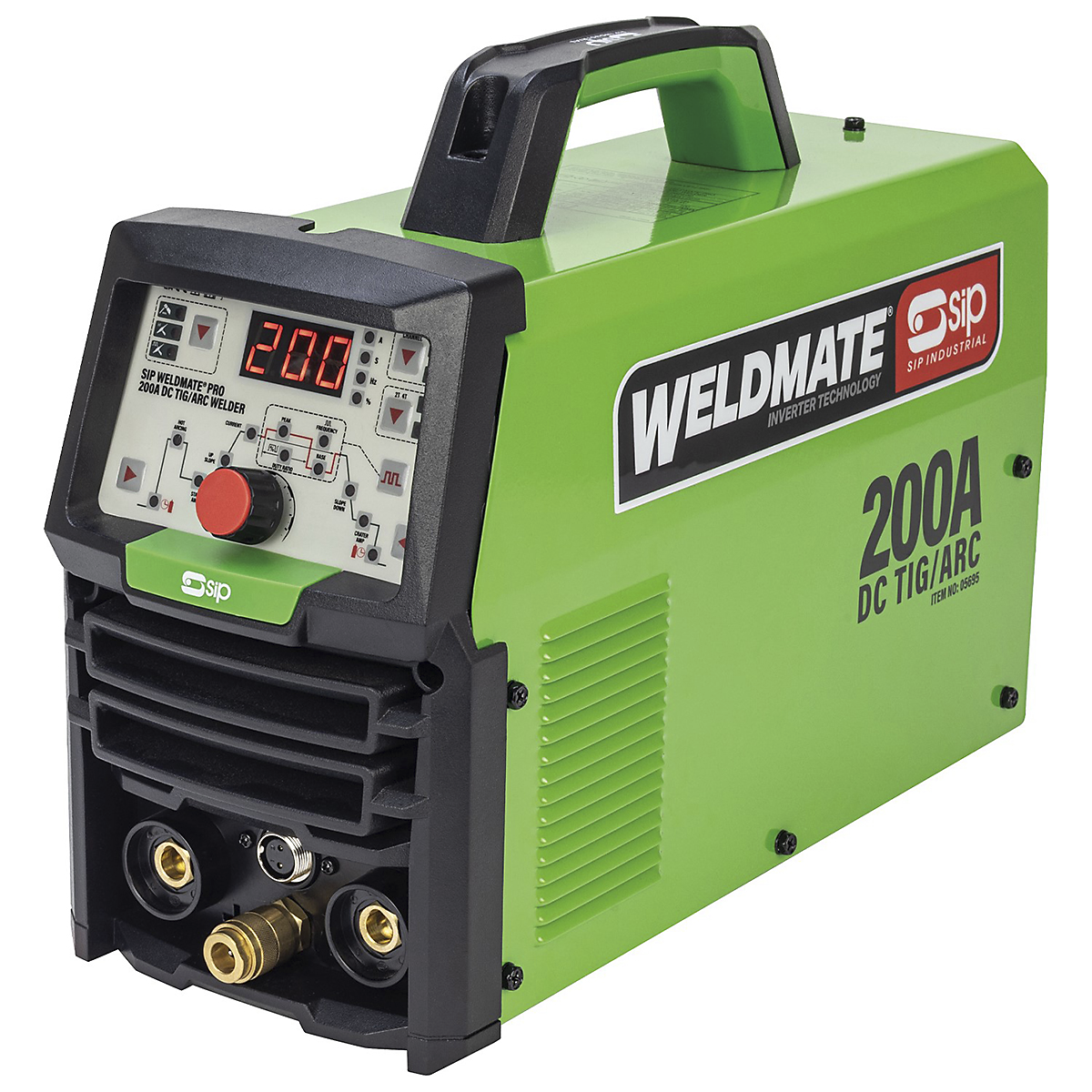

The SIP WELDMATE® PRO 200A DC TIG/ARC Inverter Welder is a dual process inverter welder specifically designed for use in professional fabrication workshops and sheet metal applications.

  • Dual process TIG/ARC DC welder for greater versatility at high duty cycles
  • Fully compliant with Reg EU 2019/1784 (Eco Design for Welding Equipment)

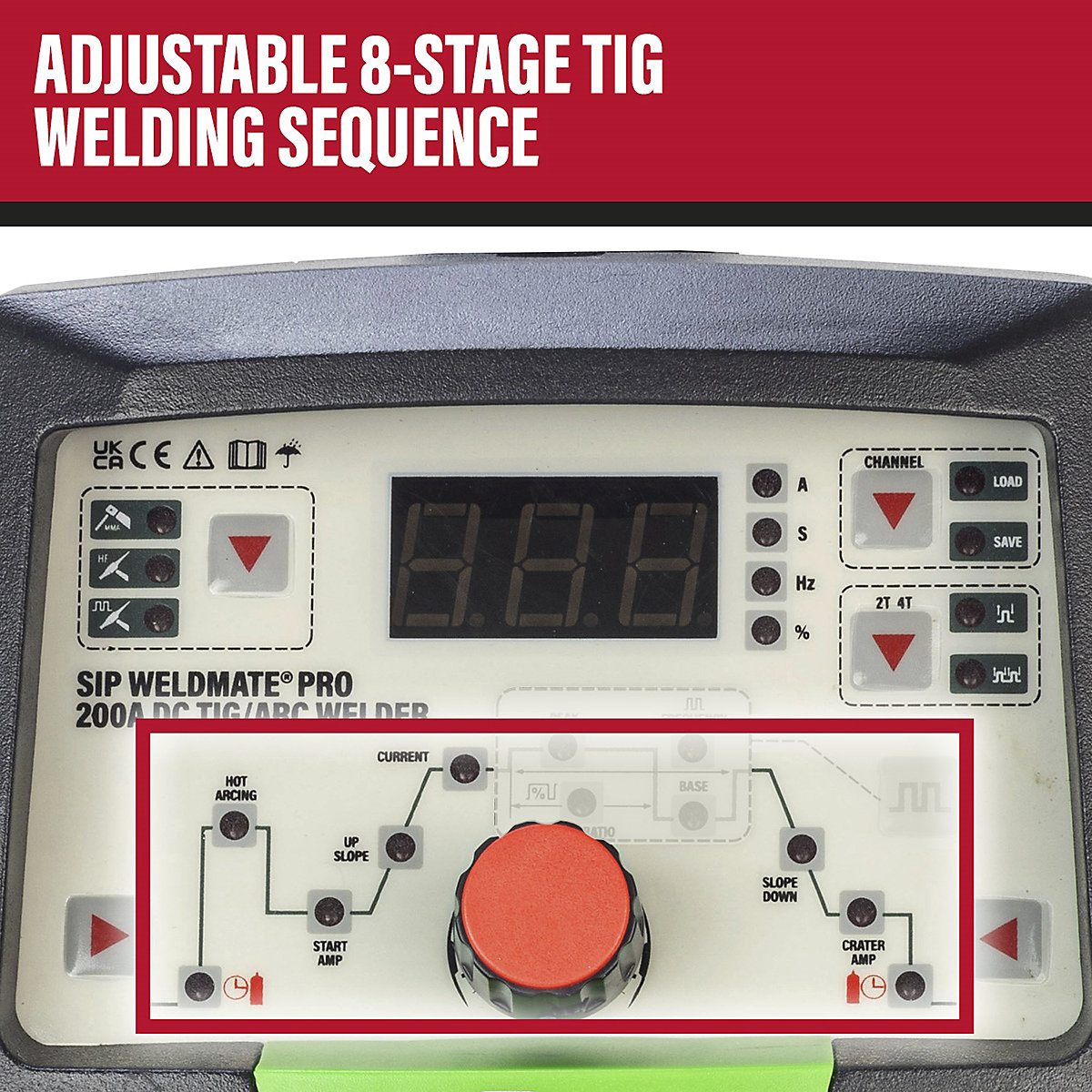

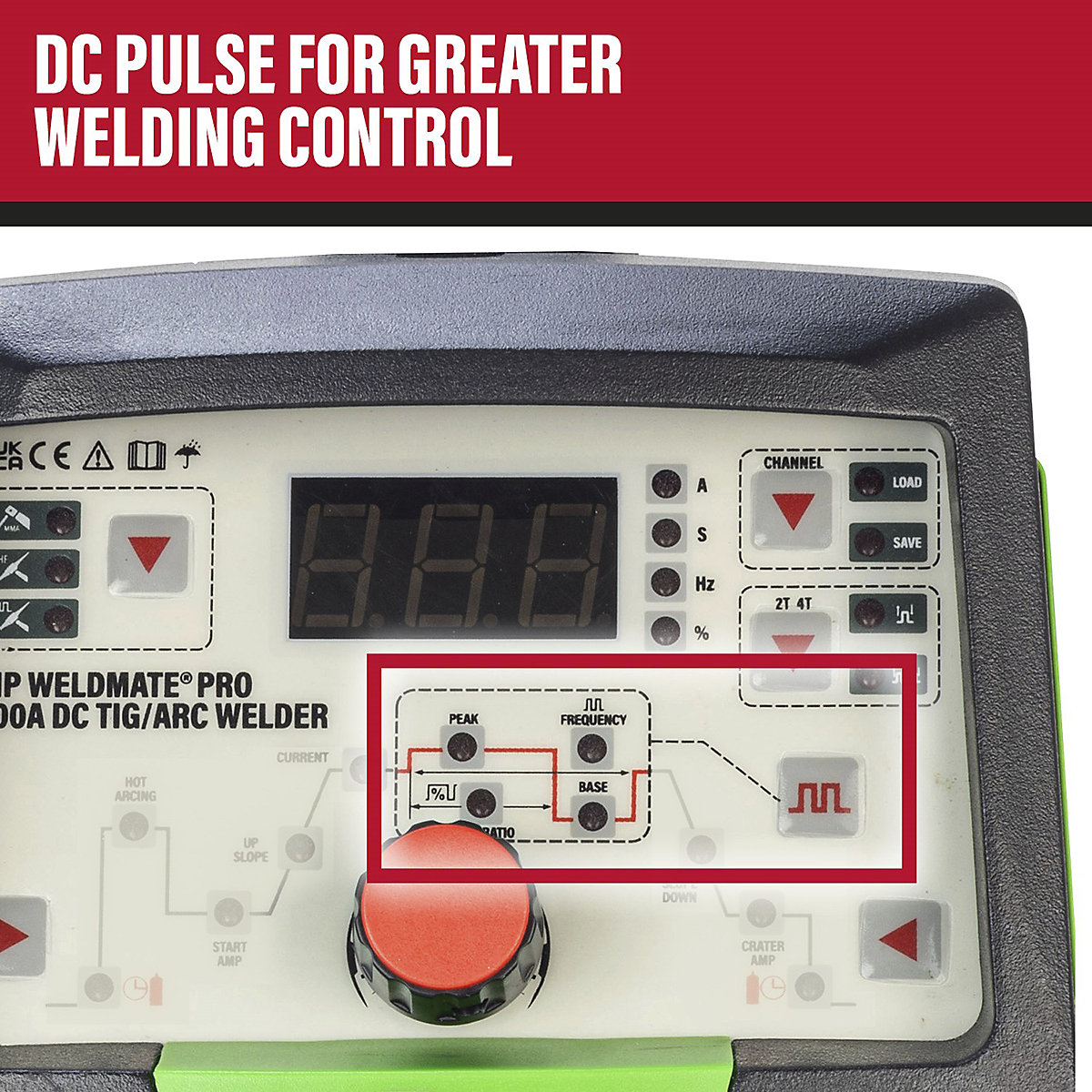

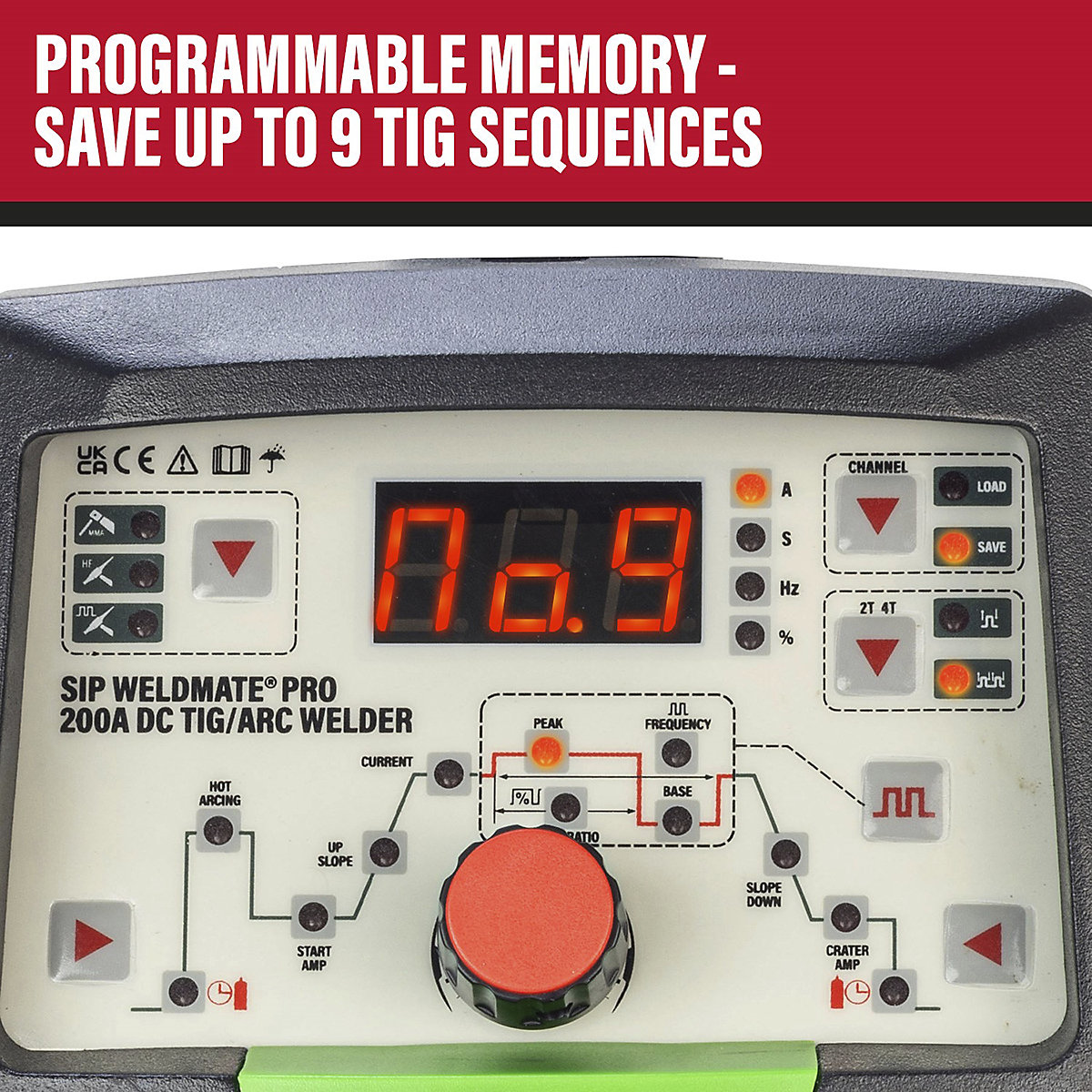

  • Features an adjustable 8-stage TIG welding sequence with Pulse TIG parameters
  • Pre/post gas setting to prevent oxidation for a clean and higher quality weld

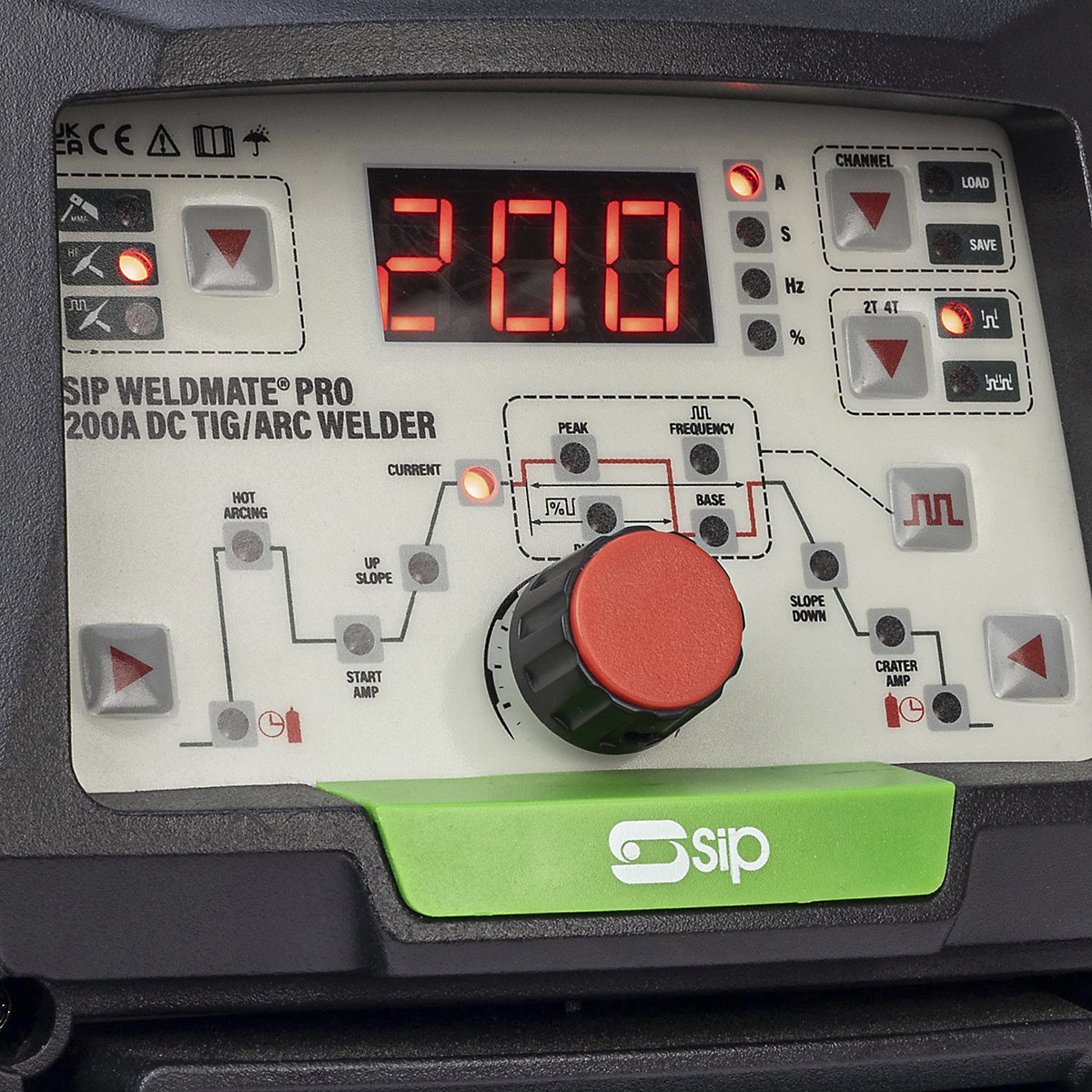

  • Infinitely variable dial with LED display offer smoother output adjustment

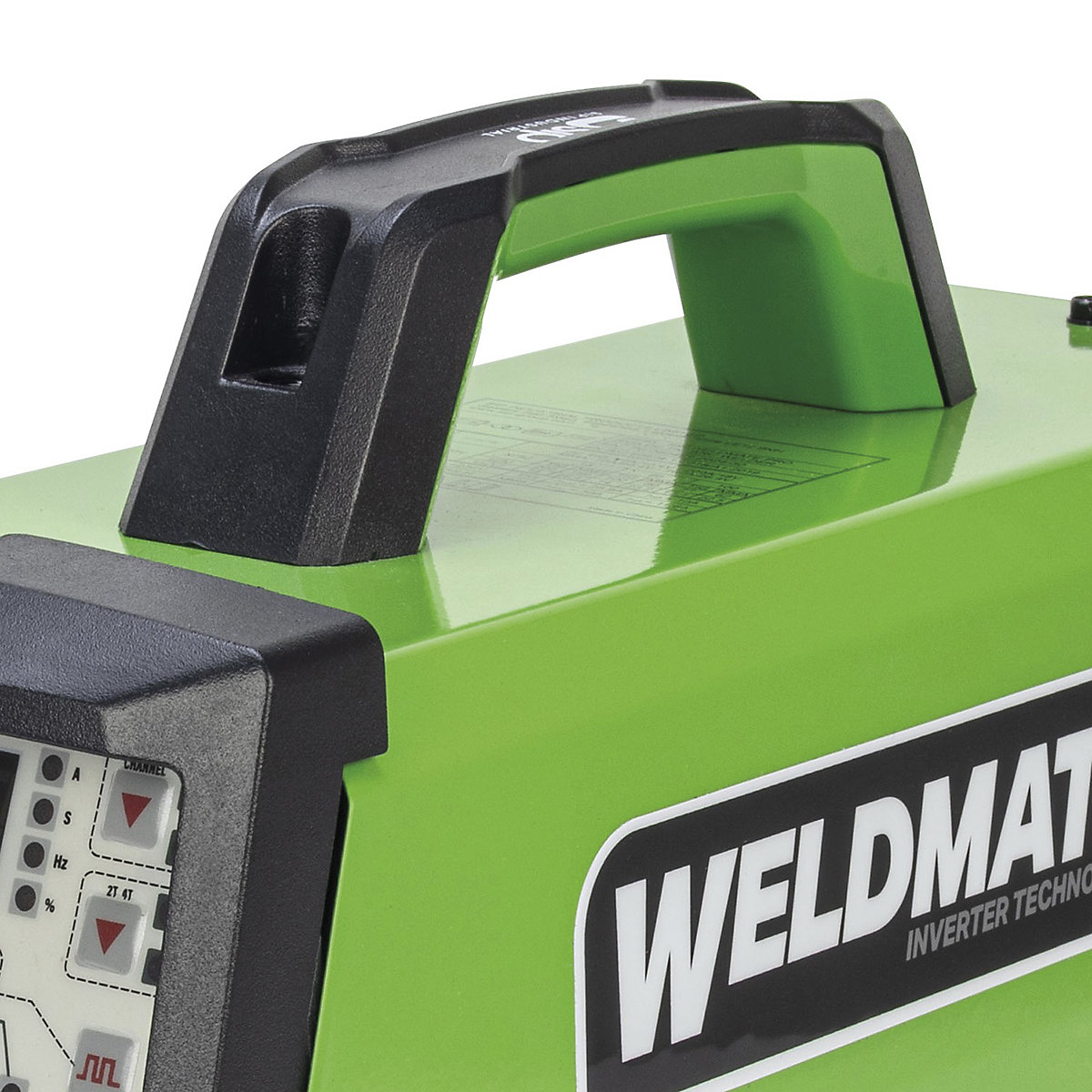

  • Compact and lightweight design for easy work area movement

Specifications

Data Field SIP WELDMATE® PRO 200A DC TIG/ARC Inverter Welder

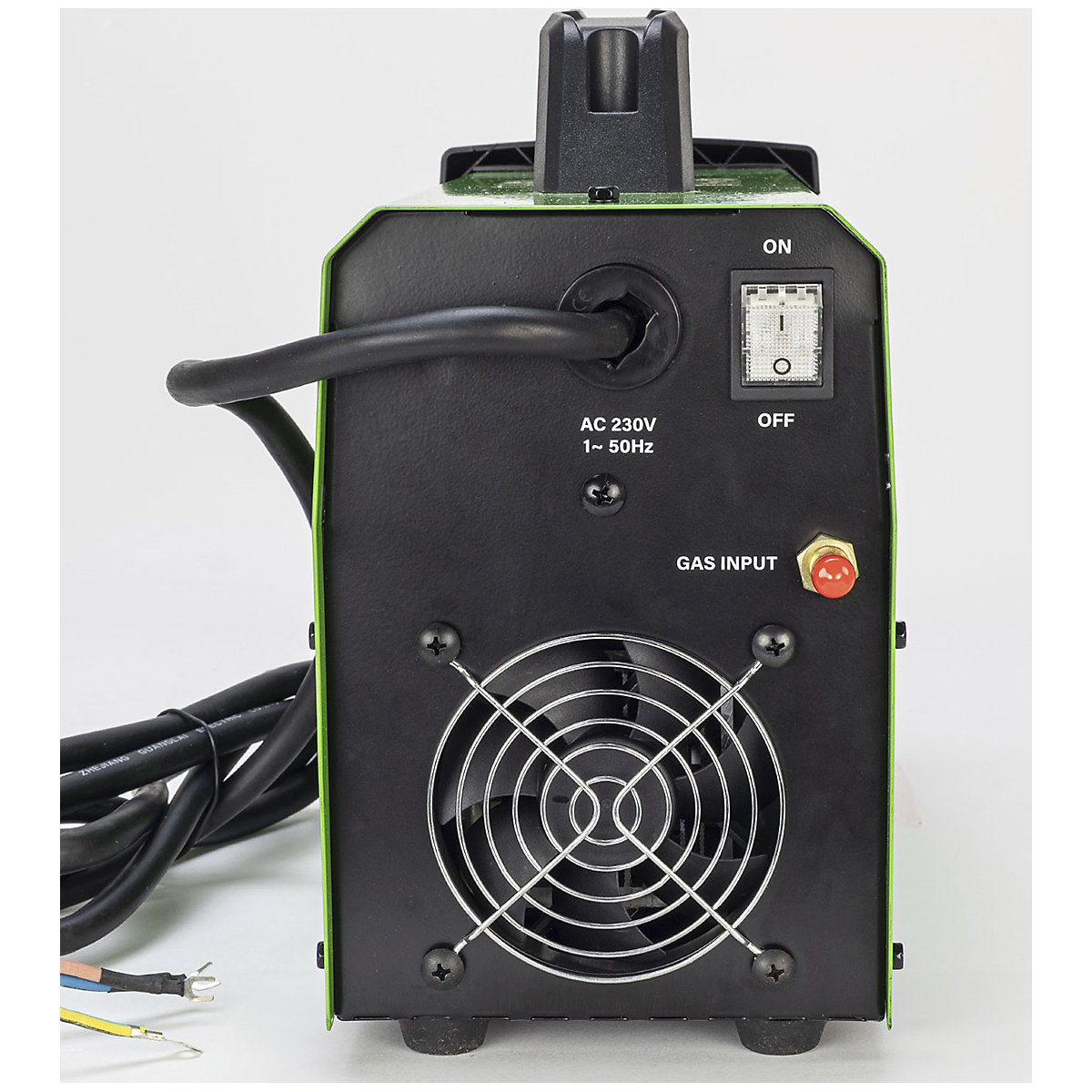

Input Supply 230v (16A)
Output Current (TIG | MMA) 10A - 200A | 10A - 160A
Output Voltage (TIG | MMA) 10.4v - 18v: 70v DC Open Circuit Volts | 20.4v - 26.4v: 70v DC Open Circuit Volts
Duty Cycle @ 20°C (TIG | MMA) 200A @ 30% | 200A @ 30%
Welding Material Thickness (TIG | MMA) 0.5mm - 7mm (mild steel) | 1.5mm - 8mm (mild steel)
Protection / Insulation F
Dimensions 270h x 145w x 370d mm
Weight 7.8kg
‌
‌
‌
‌
‌
