Code: SIP05694

SIP WELDMATE PRO 160A DC TIG/ARC Inverter Welder | 310h x 150w x 370d mm

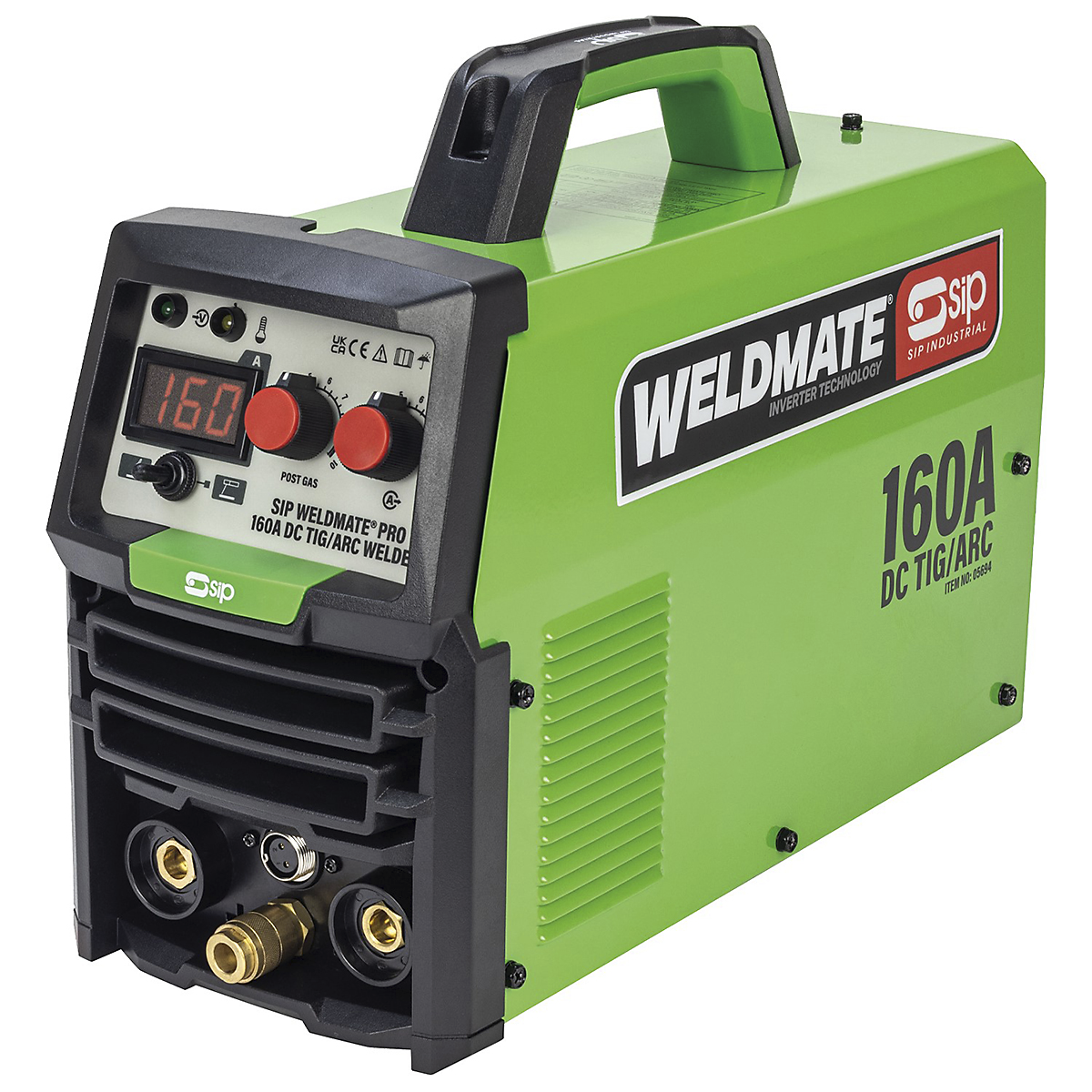

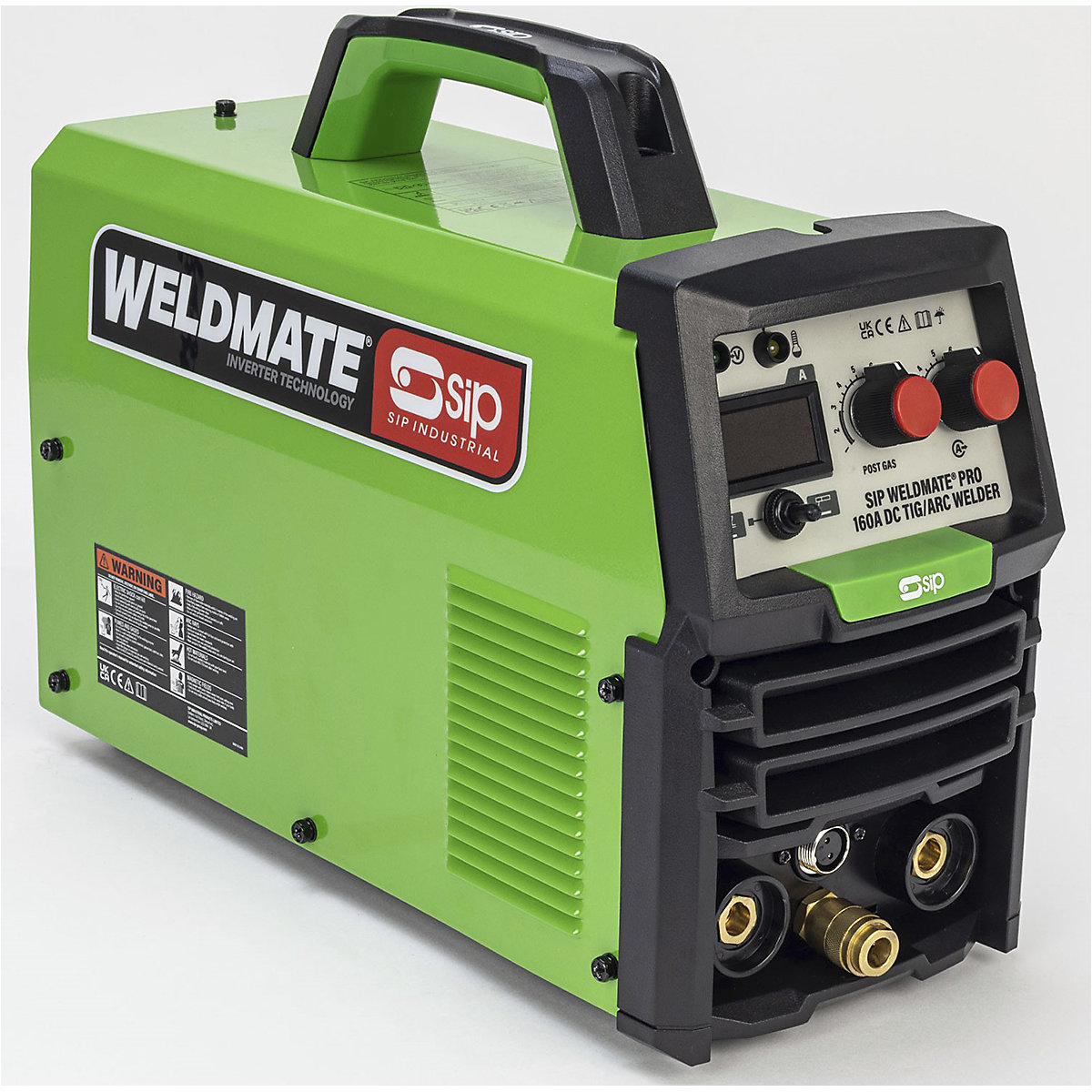

SIP WELDMATE PRO 160A DC TIG/ARC Inverter Welder
Delivery time: 2-3 Working Days
Product description

The SIP WELDMATE® PRO 160A DC TIG/ARC Inverter Welder is a dual process inverter welder specifically designed for use in professional fabrication workshops, sheet metal applications and home workshops.

  • Dual process TIG/ARC DC welder for greater versatility at high duty cycles
  • Fully compliant with Reg EU 2019/1784 (Eco Design for Welding Equipment)
  • Infinitely variable dials offer smoother stepless output and setting adjustment

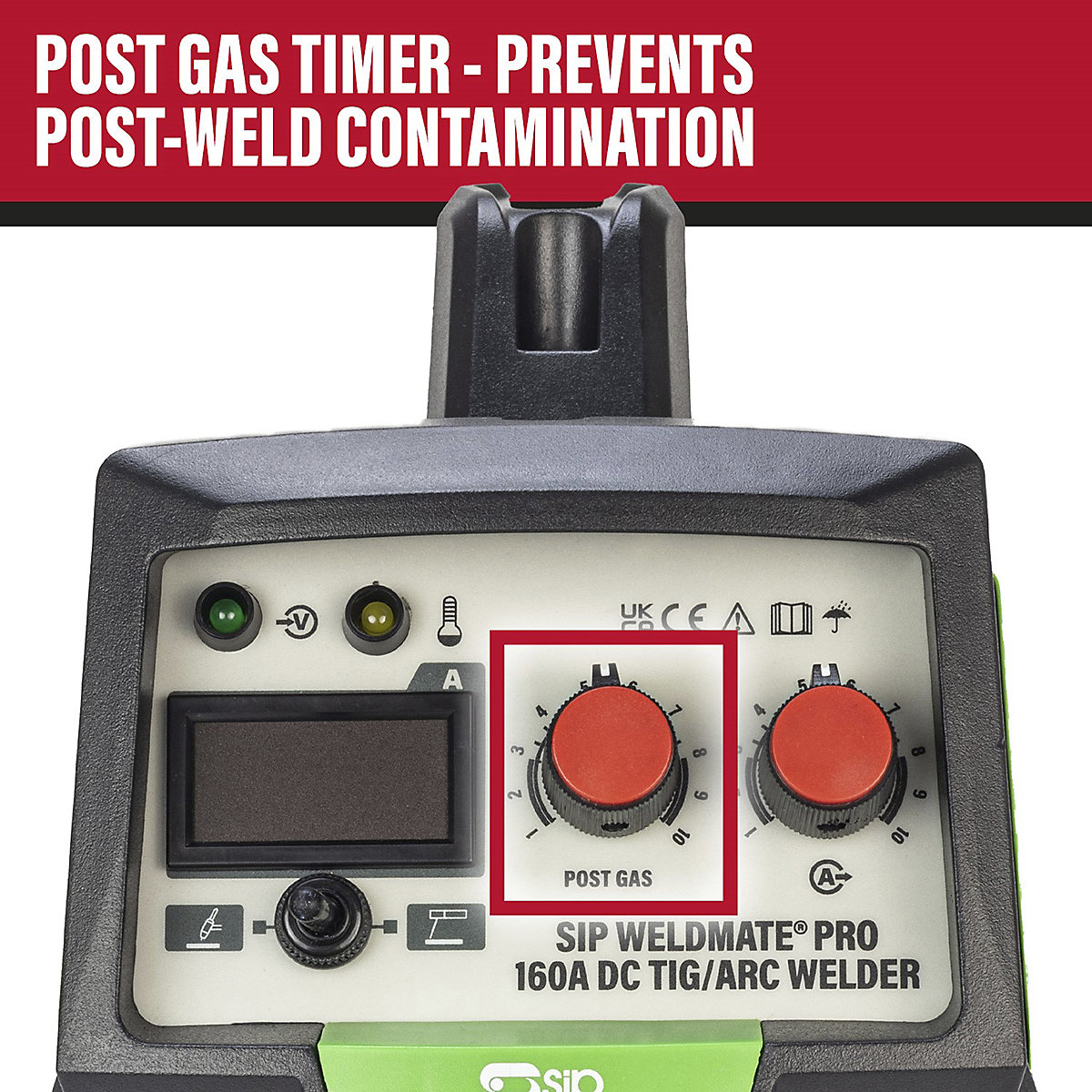

  • Post gas setting to prevent oxidation for a clean and higher quality weld

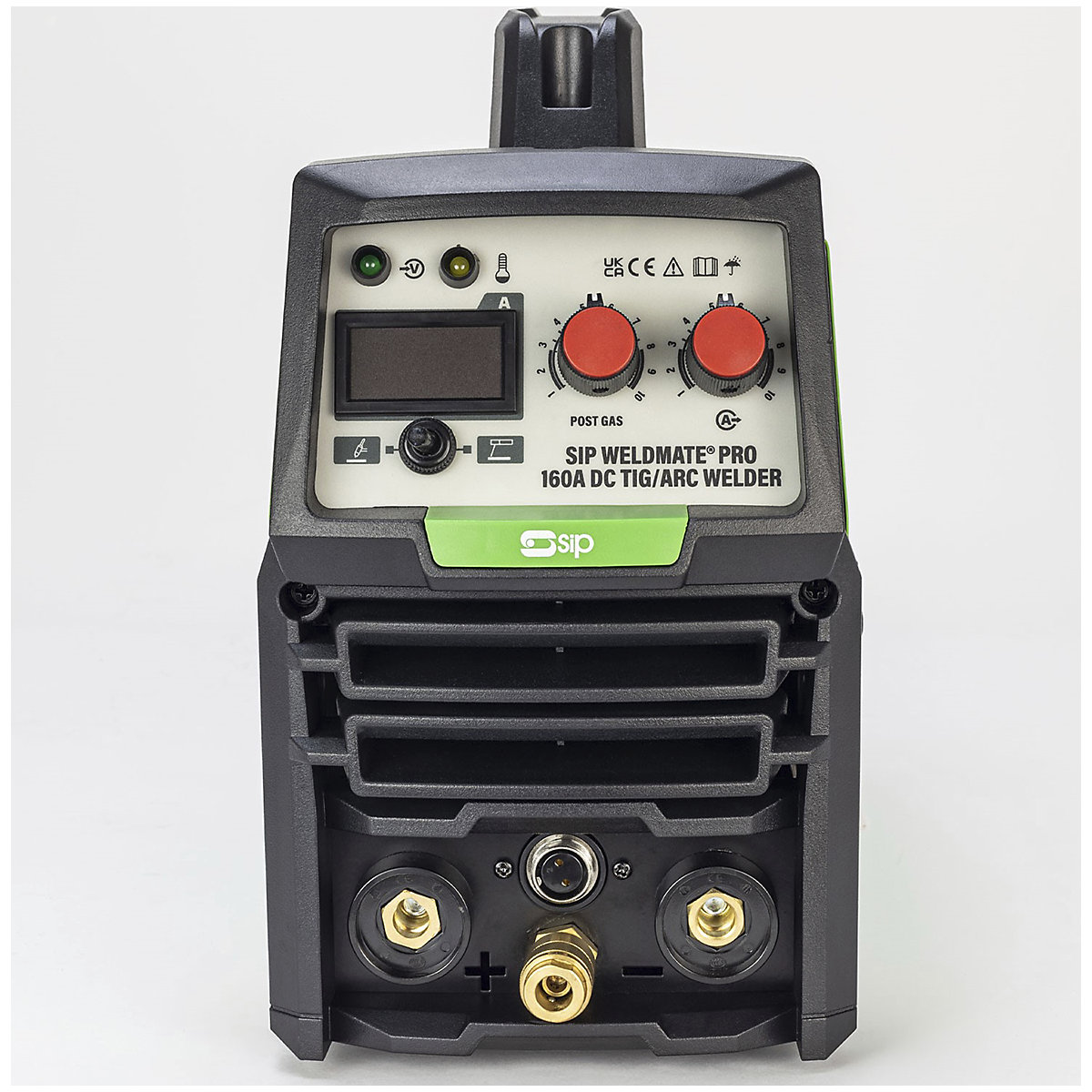

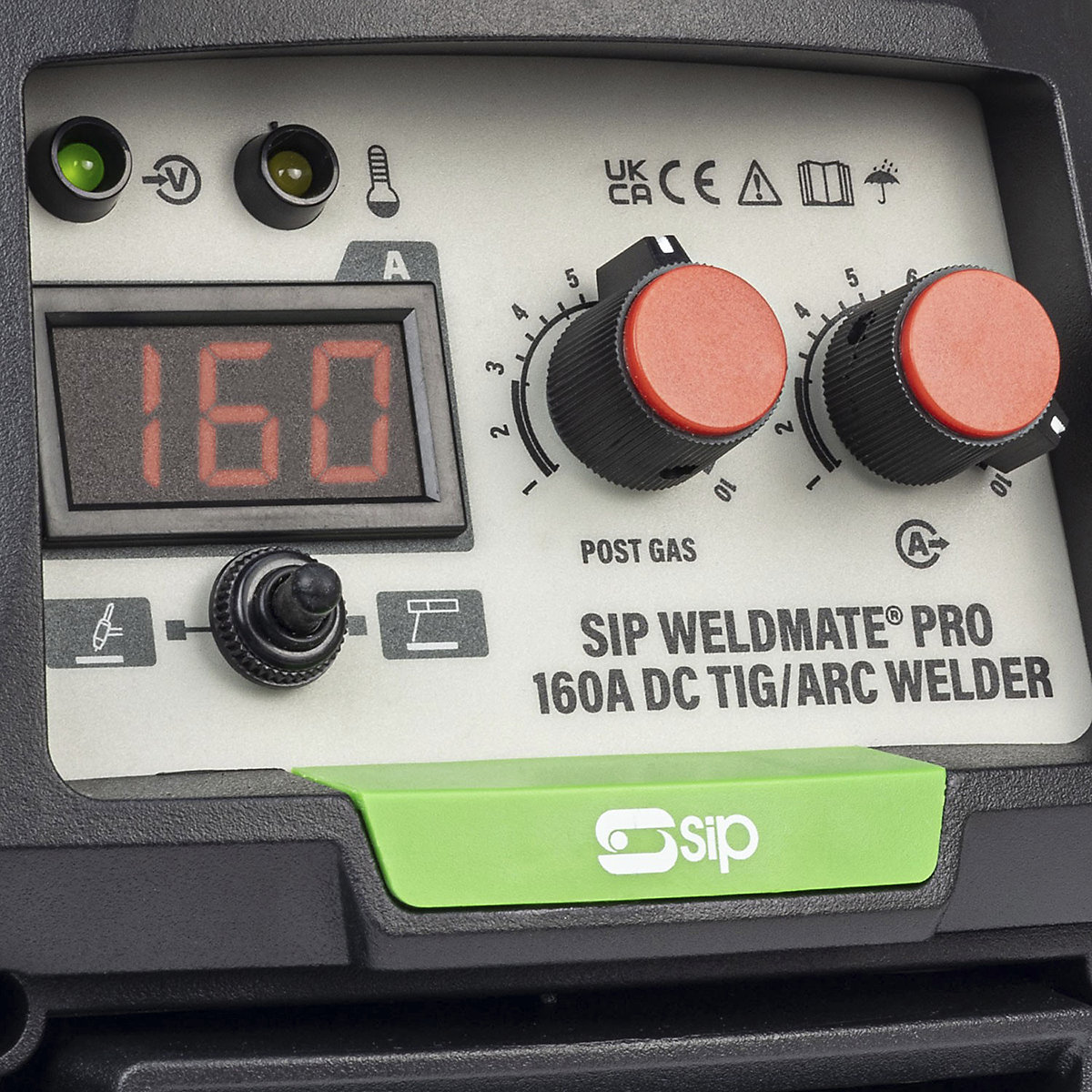

  • LED display for indicating welding outputs and function settings

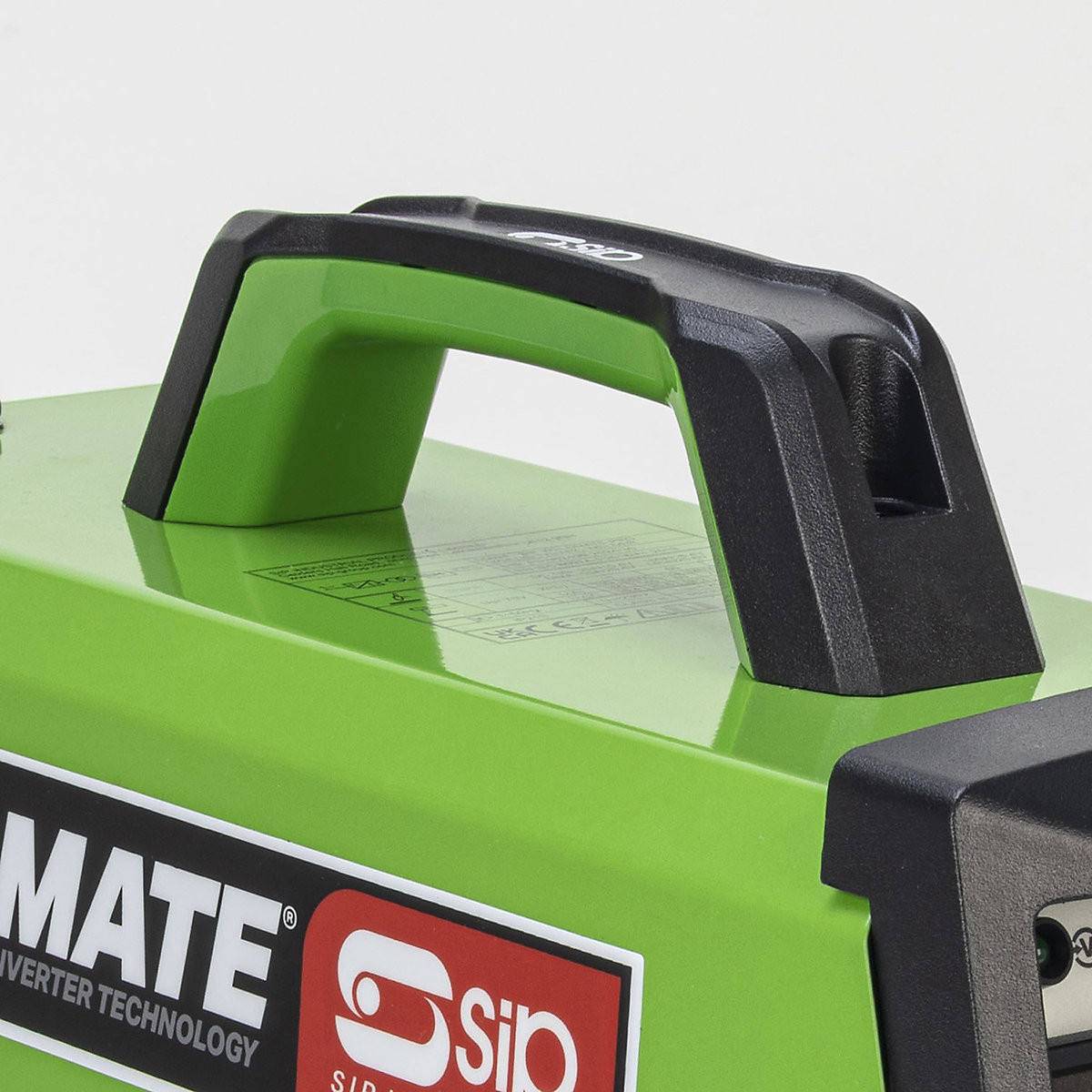

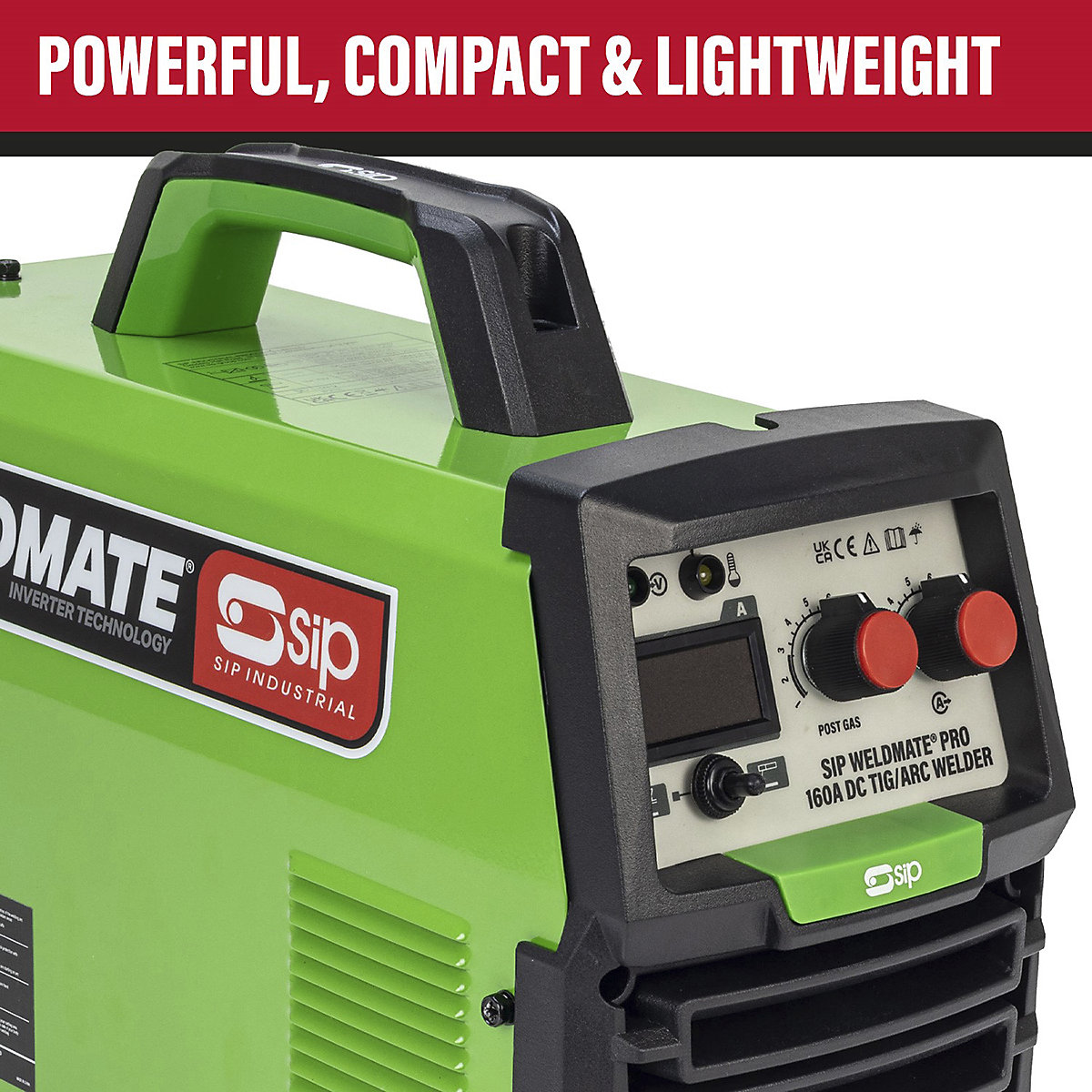

  • Compact and lightweight design for easy work area movement

Specifications

Data Field SIP WELDMATE® PRO 160A DC TIG/ARC Inverter Welder
Input Supply 230v (16A)
Output Current (TIG | MMA) 10A - 160A | 10A - 140A
Output Voltage (TIG | MMA) 10.4v - 14.8v: 70v DC Open Circuit Volts | 20.4v - 24v: 70v DC Open Circuit Volts
Duty Cycle @ 20°C (TIG | MMA) 160A @ 30% | 160A @ 30%
Welding Material Thickness (TIG | MMA) 0.5mm - 6mm (mild steel) | 1.5mm - 7mm (mild steel)
Protection / Insulation F
Dimensions 310h x 150w x 370d mm
Weight 7.2kg
‌
‌
‌
‌
‌
