Code: SIP05690

SIP WELDMATE PRO 140A ARC/TIG Inverter Welder | 235h x 120w x 270d mm

SIP WELDMATE PRO 140A ARC/TIG Inverter Welder
Delivery time: 2-3 Working Days
Product description

The SIP WELDMATE® PRO 140A ARC/TIG Inverter Welder is a dual process inverter welder specifically designed for use in professional fabrication workshops. Featuring Synergic Control which adjusts the welding current output according to the electrode diameter selected for optimal penetration and bead formation.

  • Dual process ARC/TIG welder for greater flexibility at high duty cycles
  • Fully compliant with Reg EU 2019/1784 (Eco Design for Welding Equipment)

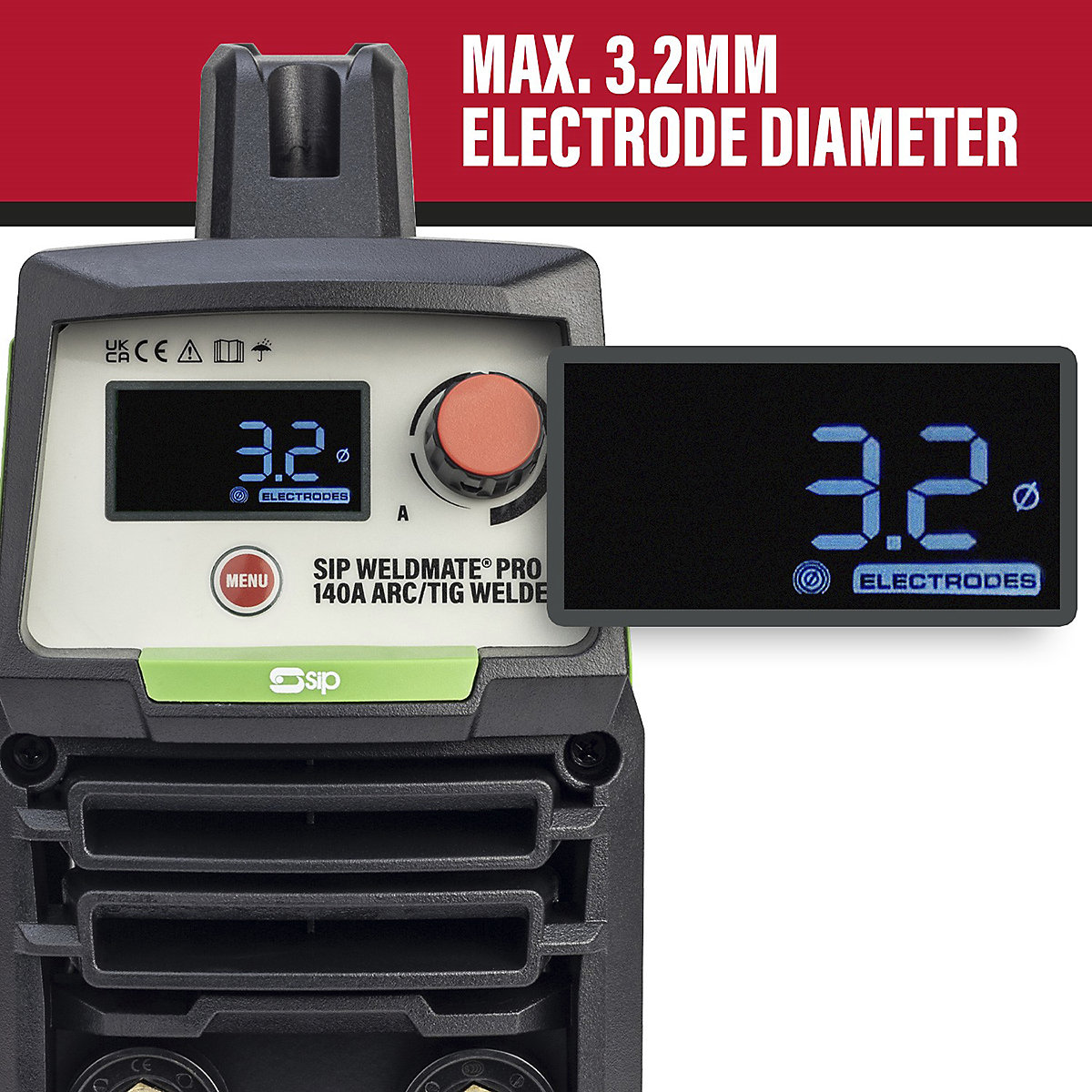

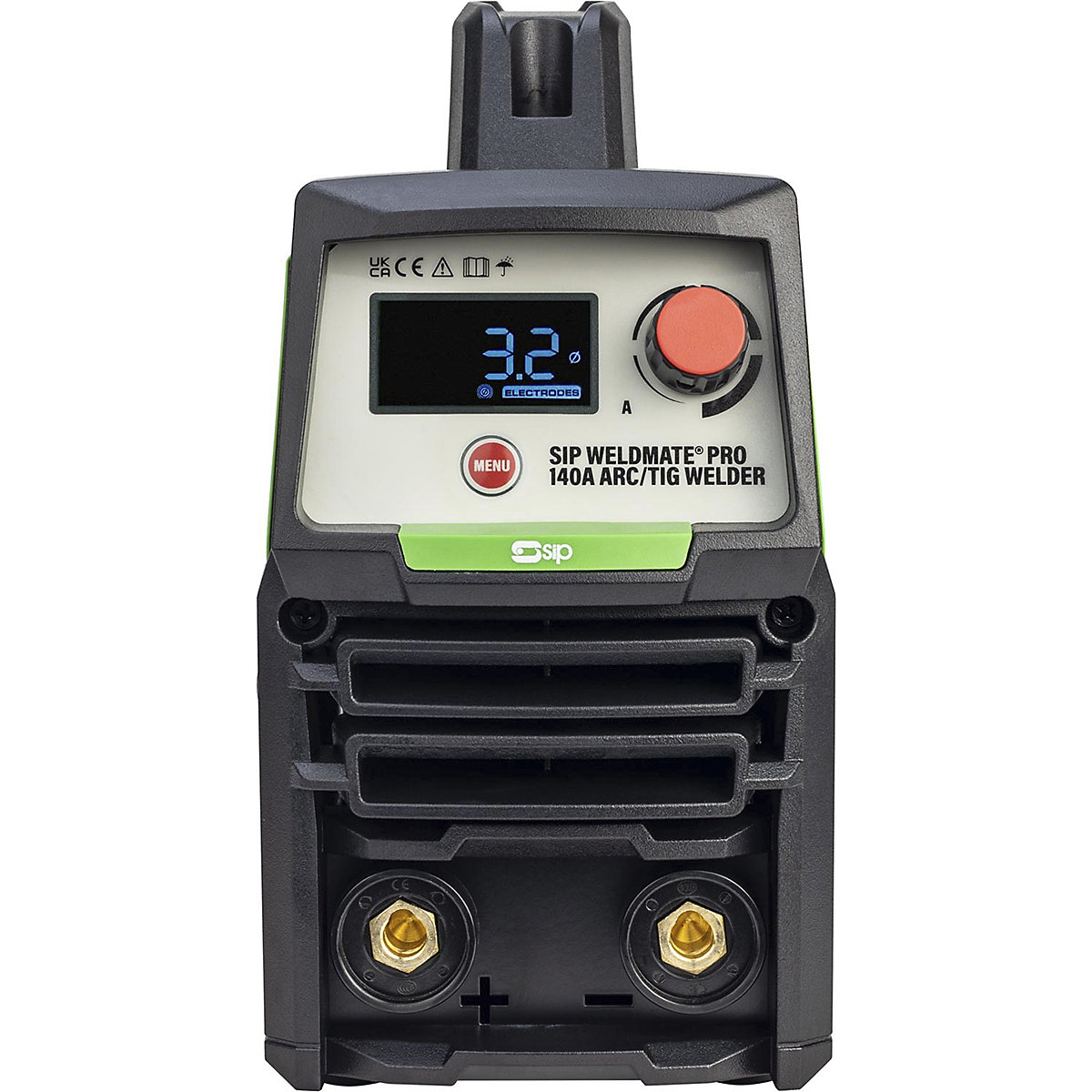

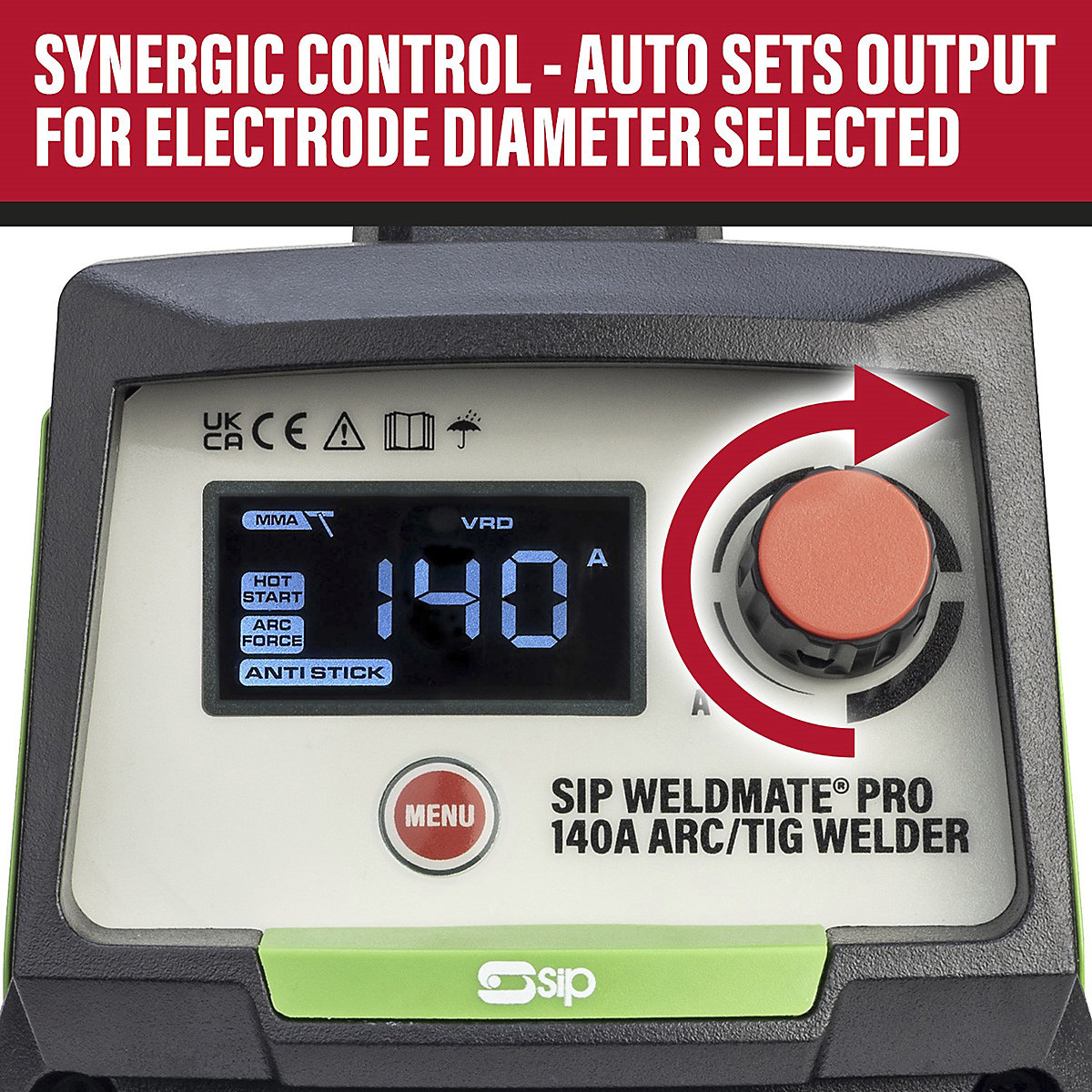

  • Synergic control auto sets welding current output for electrode diameter selected
  • Infinitely variable dial offers a smoother stepless output adjustment

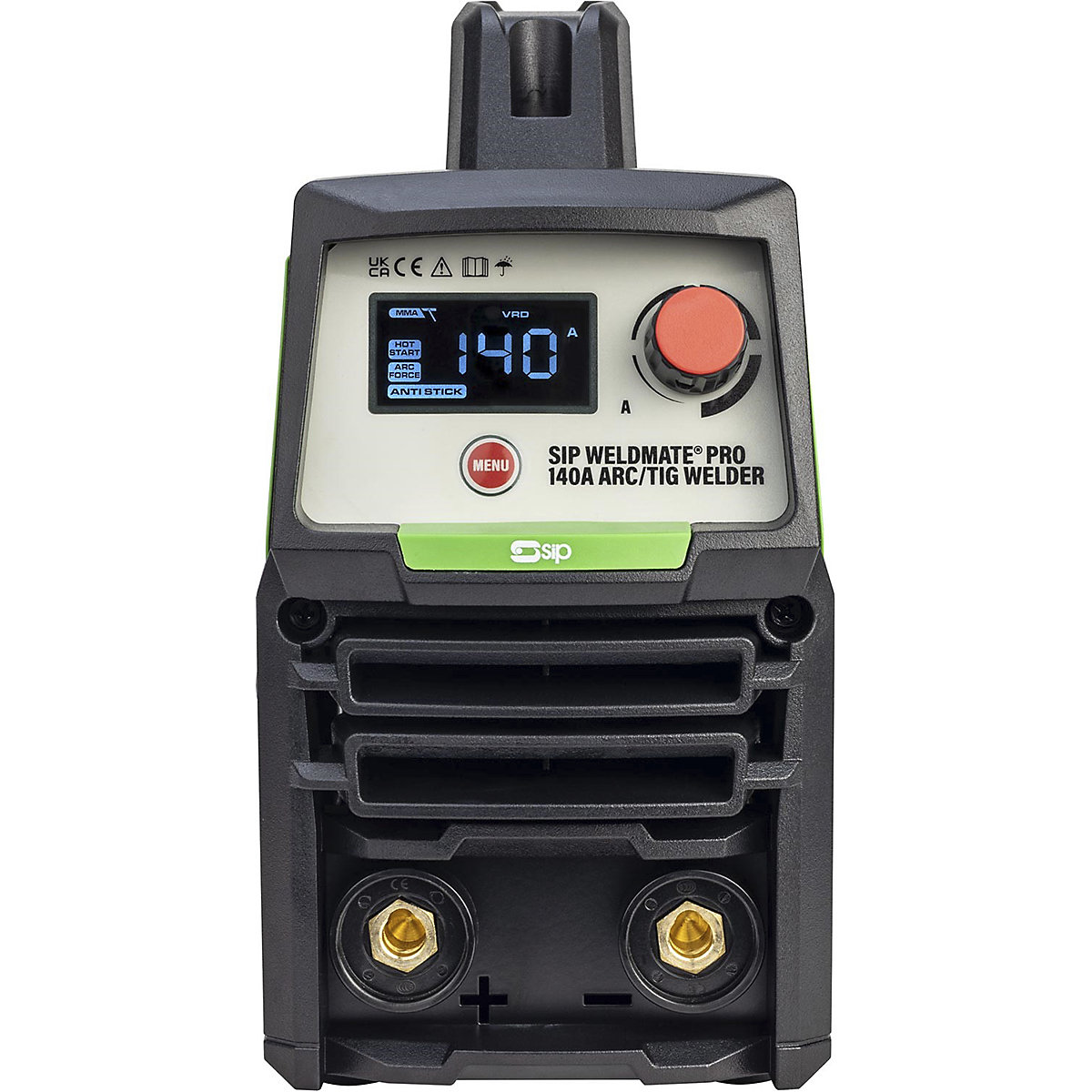

  • Intuitive LCD screen for setting output and selecting welding functions

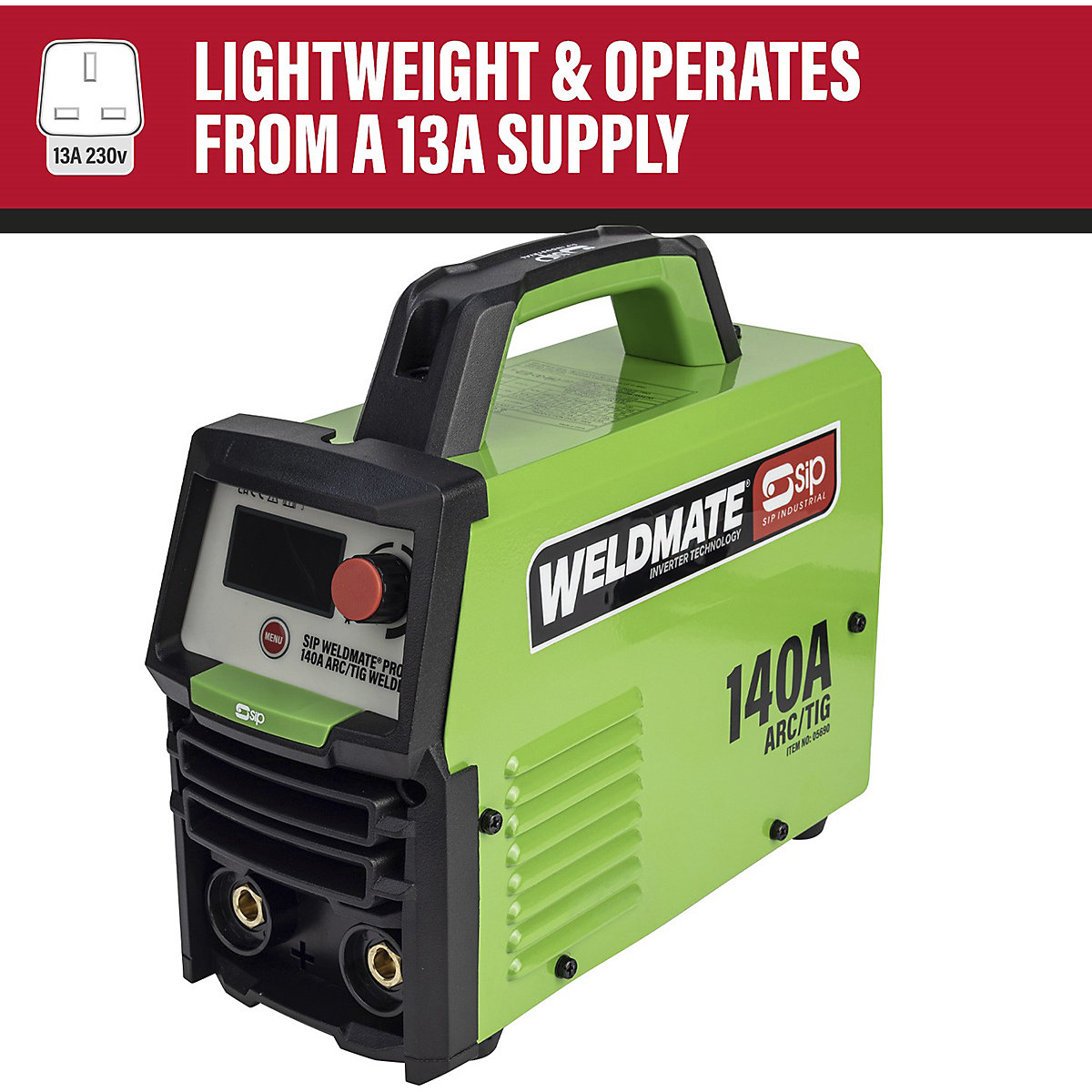

  • Compact and lightweight design for easy work area movement
  • Voltage Reduction Device (VRD) prevents accidental arc strike-up for greater user safety
  • Anti-stick function prevents the welding electrode from sticking to the workpiece when striking-up for a smoother welding process
  • ARC force stabilises the arc for greater welding control and improved welding efficiency
  • Hot start delivers a short burst of higher welding current output, to improve arc ignition and help to penetrate thicker materials

Specifications

Data Field SIP WELDMATE PRO 140A ARC/TIG Inverter Welder

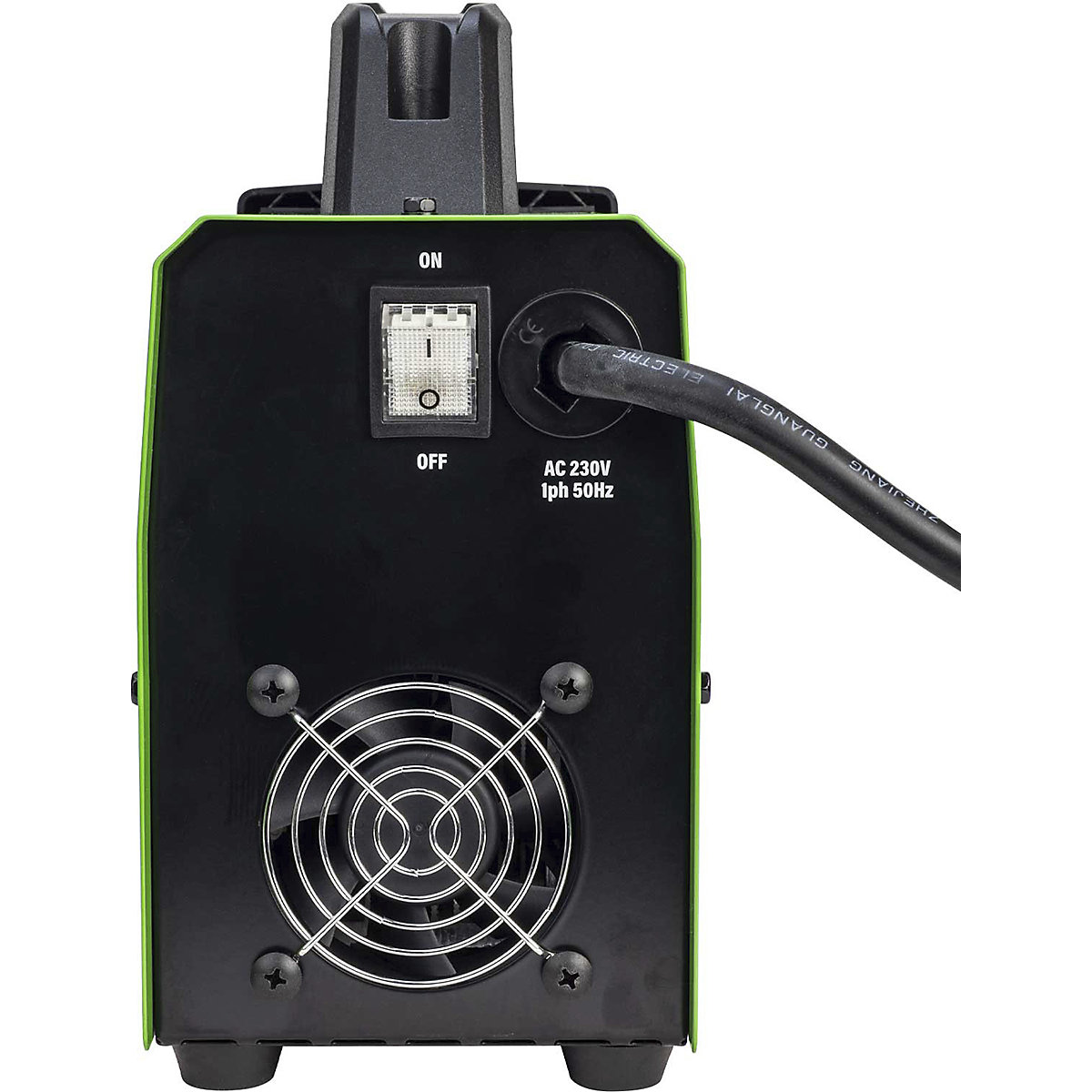

Input Supply 230v (13A)

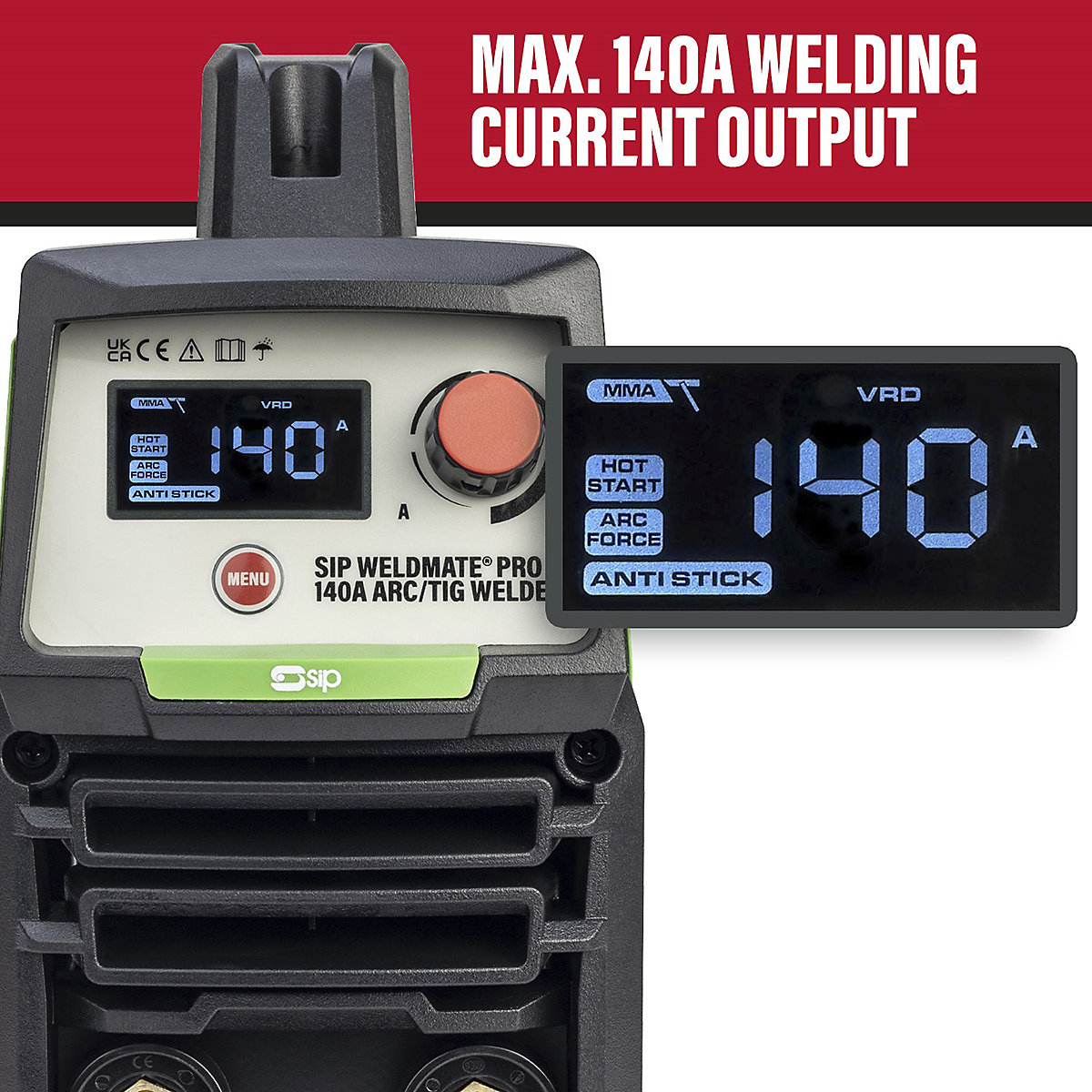

Output Current (ARC | TIG) 10A - 140A | 10A - 140A
Output Voltage (ARC | TIG) 20.4v - 25.6v | 10.4v - 15.6v
Duty Cycle @ 20°C (ARC | TIG) 140A @ 30% | 140A @ 30%
Welding Material Thickness 1.6mm - 7mm (mild steel)
Protection / Insulation F
Dimensions 275h x 120w x 270d mm
Weight 4.4kg
‌
‌
‌
