Code: SEPPF100S

Sealey Viking Air/Hydraulic Floor Type Press with Sliding | 100 Tonne | Floor Type | Heavy-Duty

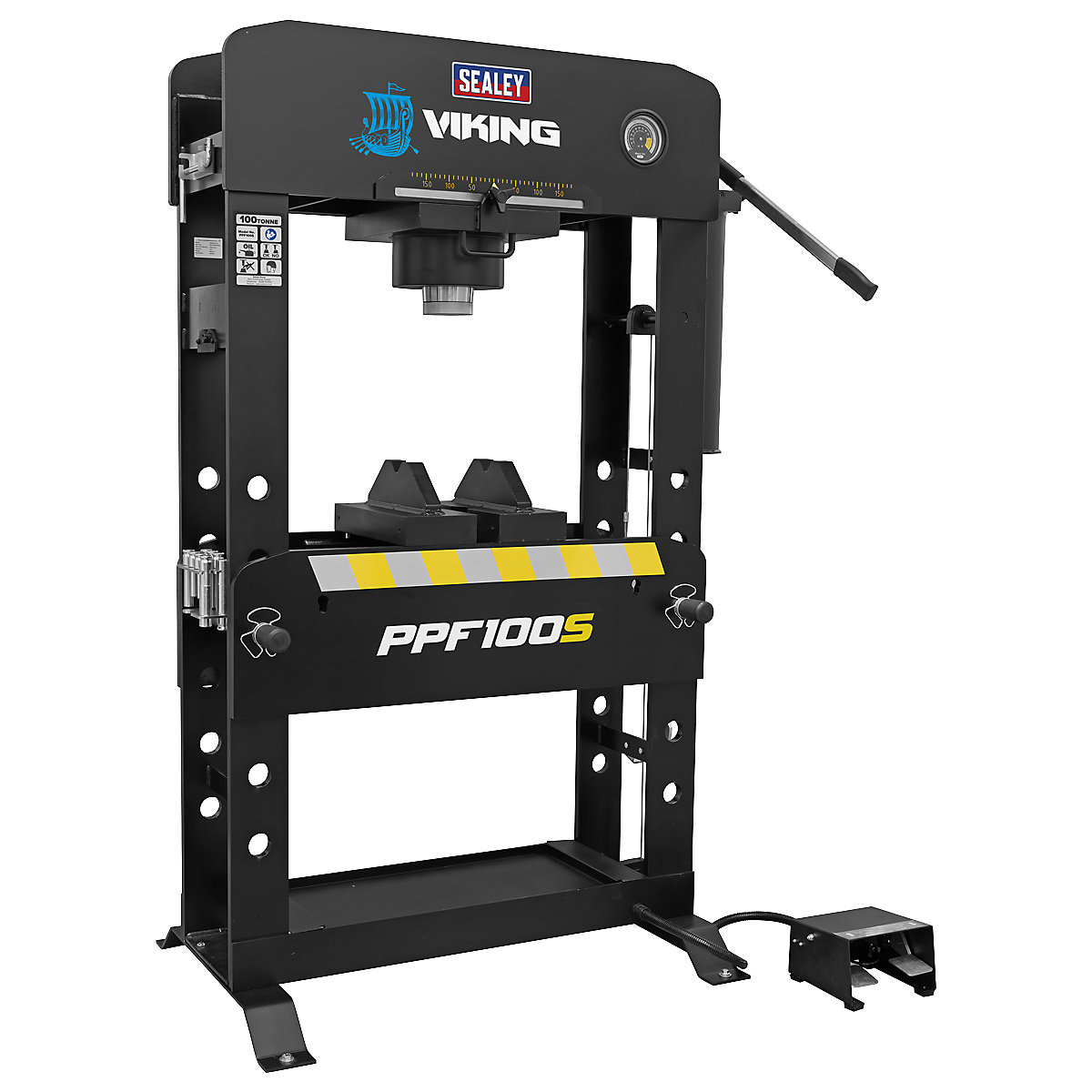

Sealey Viking Air/Hydraulic Floor Type Press with Sliding
Sealey Viking Air/Hydraulic Floor Type Press with Sliding, Sealey Viking Air/Hydraulic Floor Type Press with Sliding, Sealey Viking Air/Hydraulic Floor Type Press with Sliding | 100 Tonne | Floor Type | Heavy-Duty-0
Sealey Viking Air/Hydraulic Floor Type Press with Sliding, Sealey Viking Air/Hydraulic Floor Type Press with Sliding, Sealey Viking Air/Hydraulic Floor Type Press with Sliding | 30 Tonne | Floor Type | Heavy-Duty-1
Sealey Viking Air/Hydraulic Floor Type Press with Sliding (Product illustration 3)-2
Sealey Viking Air/Hydraulic Floor Type Press with Sliding (Product illustration 4)-3
Sealey Viking Air/Hydraulic Floor Type Press with Sliding (Product illustration 5)-4
Capacity
Delivery time: 4-5 Working Days
Product description

Heavy-duty steel frame construction with integral air motor powering hydraulic pump unit.

  • Adjustable work area with removable tray
  • Sliding hydraulic ram assembly giving 200/280/360mm of lateral travel for off-centre pressing applications
  • Frame head fitted with ram pressure gauge
  • Winch assisted press table adjustment
  • Storage for press pins included in frame (pins not included)
  • Supplied with flat pressing plate/V-blocks.

Specifications

SEPPF301S SEPPF501S SEPPF100S
Air Consumption: 4.5cfm 4.5cfm 6.5cfm
Bench or Floor Mounting: Floor Floor 6.5cfm
Capacity: 30 Tonne 50 Tonne 100 Tonne
Gauge Included: Yes Yes Yes
Lateral Ram Travel: 200mm 280mm 360mm
Maximum Height - Ram to Table: 875mm 860mm 885mm
Maximum Height - Ram to Table: 25mm 80mm 185mm
Nett Weight: 162.5kg 249.2kg 682kg
Overall Height: 1800mm 1900mm 1938mm
Overall Width: 770mm 930mm 1255mm
Ram Diameter: Ø102mm Ø121mm Ø179mm
Ram Stroke: 145mm 145mm 300mm
Screw Extension: 75mm 75mm N/A
Table Aperture: 168mm 224mm 324mm
Type: Floor Floor Floor
Working Table Depth: 188mm 248mm 364mm
Working Table Width: 710mm 930mm 850mm
‌
‌
‌
‌
‌
