Code: CL596SD

Heavy-Duty Double-Sided Cantilever Racking Starter Bay, 12 Arms, 5000h x 900w x 600d mm

Heavy-Duty 5M High Double-Sided Cantilever Racking System
Heavy-Duty 5M High Double-Sided Cantilever Racking System, Heavy-Duty 5M High Double-Sided Cantilever Racking System, Heavy-Duty Double-Sided Cantilever Racking Starter Bay, 12 Arms, 5000h x 900w x 600d mm-0
Heavy-Duty 5M High Double-Sided Cantilever Racking System (Product illustration 2)-1
Heavy-Duty 5M High Double-Sided Cantilever Racking System (Product illustration 3)-2
Heavy-Duty 5M High Double-Sided Cantilever Racking System (Product illustration 4)-3
Heavy-Duty 5M High Double-Sided Cantilever Racking System (Product illustration 5)-4
Width [mm]
Depth [mm]
Delivery time: 16-20 Working Days
Product description

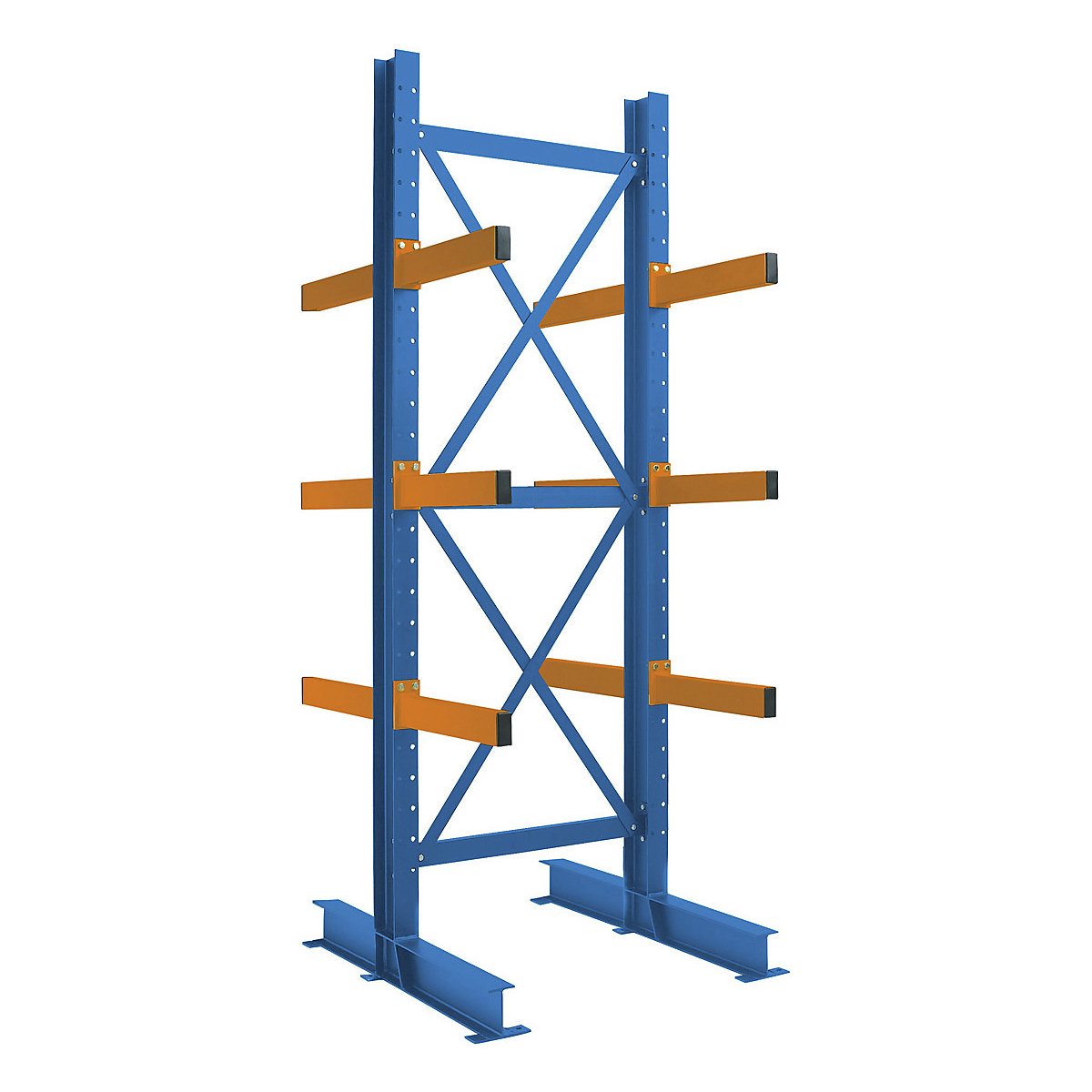

Improve the safe storage and accessibility of heavy hardware and material, including steel, pipes, plastic, and timber lengths, with BiGDUG’s Heavy-Duty Double-Sided Cantilever Racking System. Our cantilever warehouse racks stand 5m in height and have a load capacity of up to 1000kg UDL* per arm, providing the perfect storage solution for long or bulky materials. This double-sided format maximises storage density while ensuring easy, unobstructed access to materials from both sides. The height-adjustable arms can be repositioned every 150mm and are fixed securely with high-tensile bolts for safety and flexibility.

  • Load Capacity: 500kg-1000kg UDL* per arm
  • Powder-coated blue and orange steel frame
  • Supplied with 12x height-adjustable arms and bracing (starter bay)
  • 5m high back-to-back racking - allows double-sided access
  • Add-on extension bays to create additional storage space

Double-Sided Cantilever Warehouse Racks

  • Designed for heavy-duty applications, storing lengths of timber, piping, and steel
  • Manufactured from structural steel sections and tested and certified to British Safety Standards
  • Arms can be adjusted every 150mm and are secured with 2x high-tensile steel bolts
  • Also available in single-sided bays

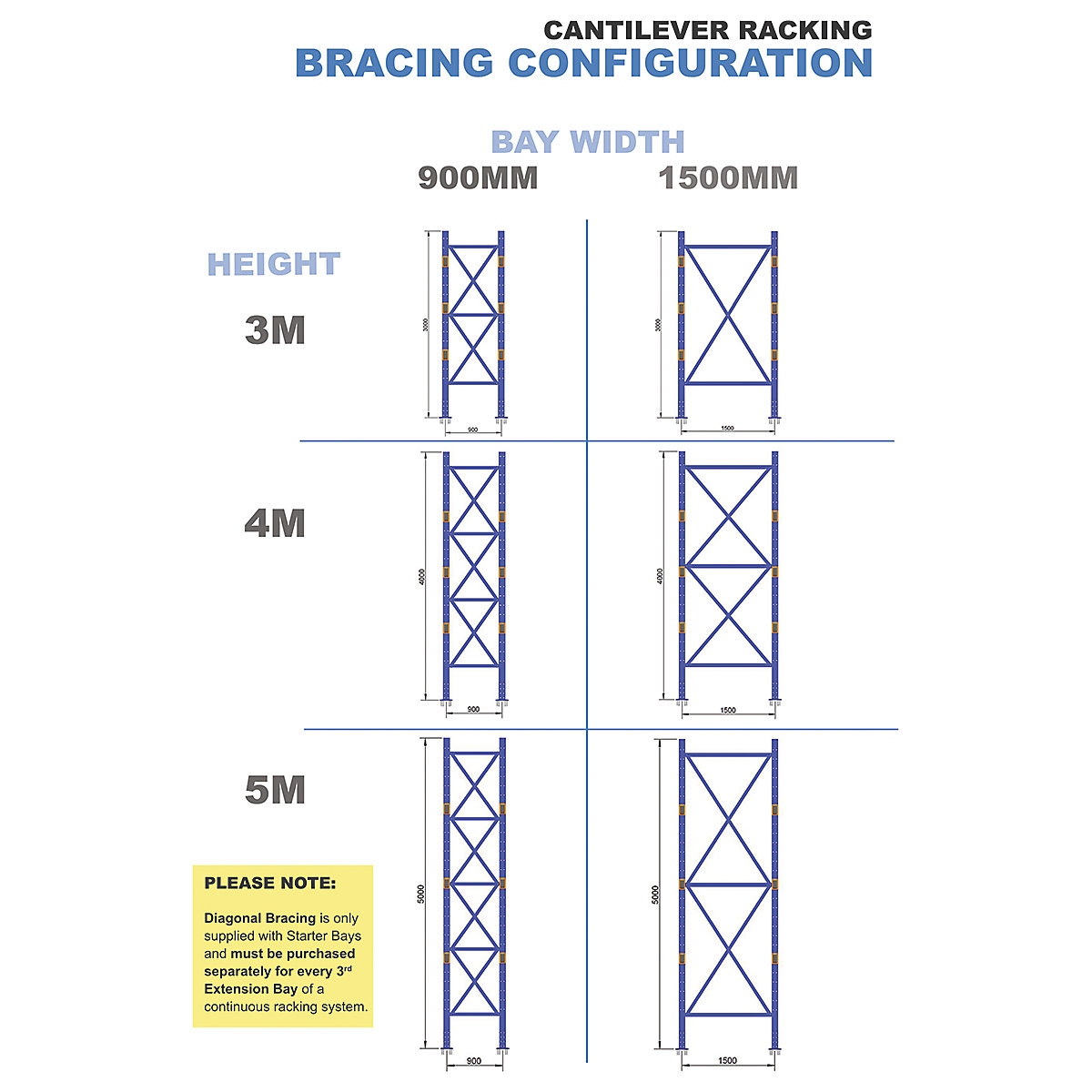

  • Cross bracing kits are also available separately (includes bracing, beams & fixings)

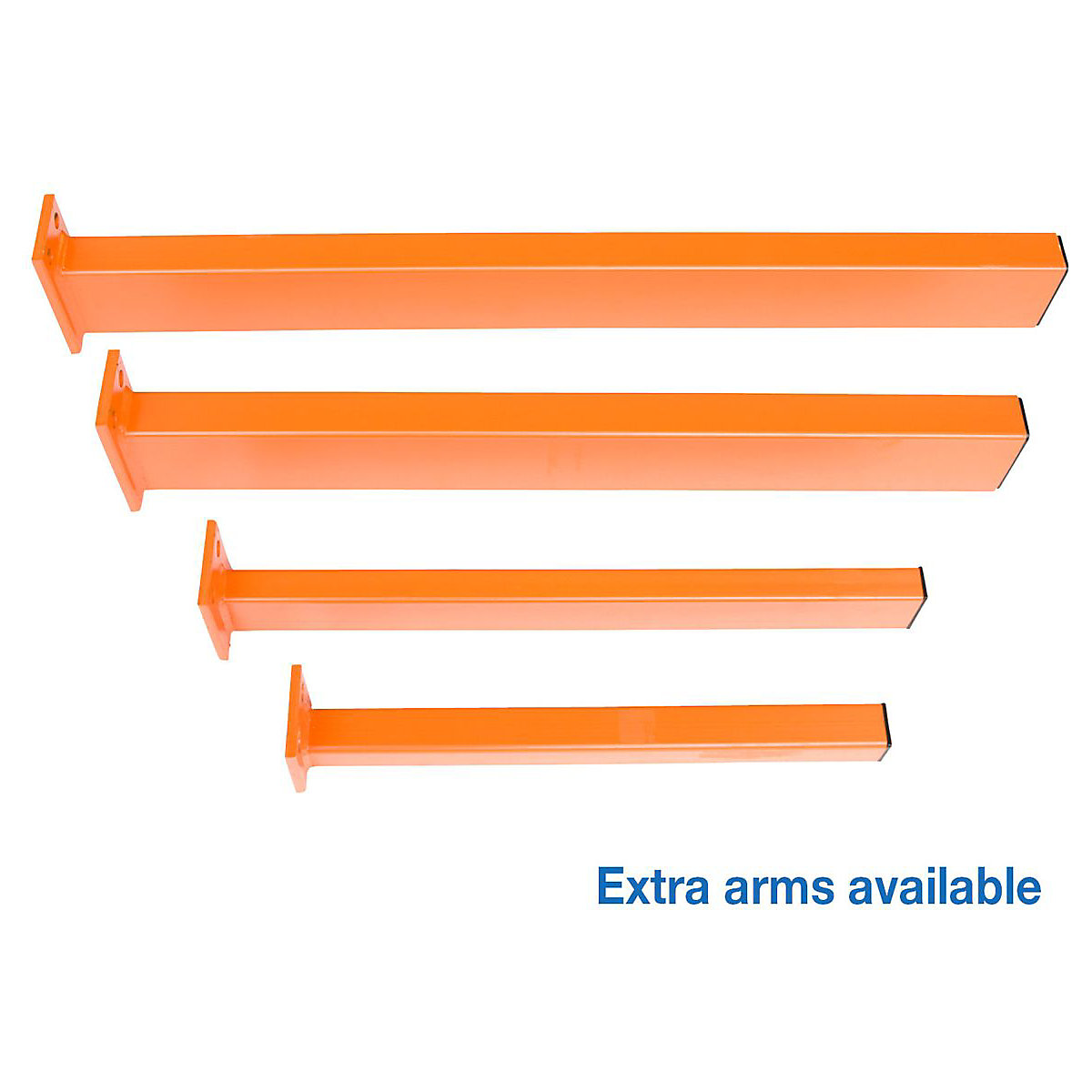

Please contact us for pricing if you wish to order arms separately as an additional cost and a delivery charge will apply.

* UDL = Uniformly Distributed Load

Please note: Load capacities given are per arm and should not be exceeded. Additional arms may be added, providing the total bay capacity of 8 tonnes is not exceeded for each starter bay, and 4 tonnes per each extension bay.

Please note: this product is made to order and therefore cannot be cancelled once ordered. As these items are made specifically to your request, they are also excluded from our returns policy unless damaged or faulty. Please contact our friendly sales team should you need further help or advice before ordering: 0333 200 5299.

Maximum Load Capacity:

Arm size: Load Capacity per arm (UDL):
600mm 500kg
750mm 500kg
1000mm 1000kg
1200mm 1000kg

What Is Cantilever Racking?

Cantilever racking is a heavy-duty storage system that holds long, awkward, or bulky items such as piping, steel bars, sheet materials, and timber. Unlike traditional racking, cantilever racks do not have vertical uprights on the front edge, allowing full access along the entire shelf length. This makes it easier to load and unload items with forklifts or manually, particularly in warehouses where efficiency and safe access are critical.

What Are The Advantages Of Cantilever Racking?

Cantilever racking offers a highly efficient solution for storing long, oversized, or irregularly shaped items that cannot be easily accommodated on standard pallet racking systems. BiGDUG’s cantilever racking system has no front-facing columns, so it provides completely unobstructed access to materials along the entire shelf length, making it easier and faster to load and unload using forklifts or by hand. This open-front design also reduces the risk of product damage during handling. It also features adjustable arms that allow you to adapt the racking layout to suit the size and quantity of your stock.

Is BiGDUG’s Cantilever Racking Safe For Busy Environments?

Our cantilever racks are tested and certified to British Safety Standards to ensure security in the workplace. The bright blue frame and orange powder-coated arms increase visibility in high-traffic zones to reduce collisions. The high-strength arm fixings, certified structural steel, and fully tested load capacities ensure long-term durability and reliable performance under pressure. Always ensure materials are distributed evenly and load limits are not exceeded.
