Code: HEESL122

Powered Wrapover Stacker | 1200kg Capacity | Li-ion Battery

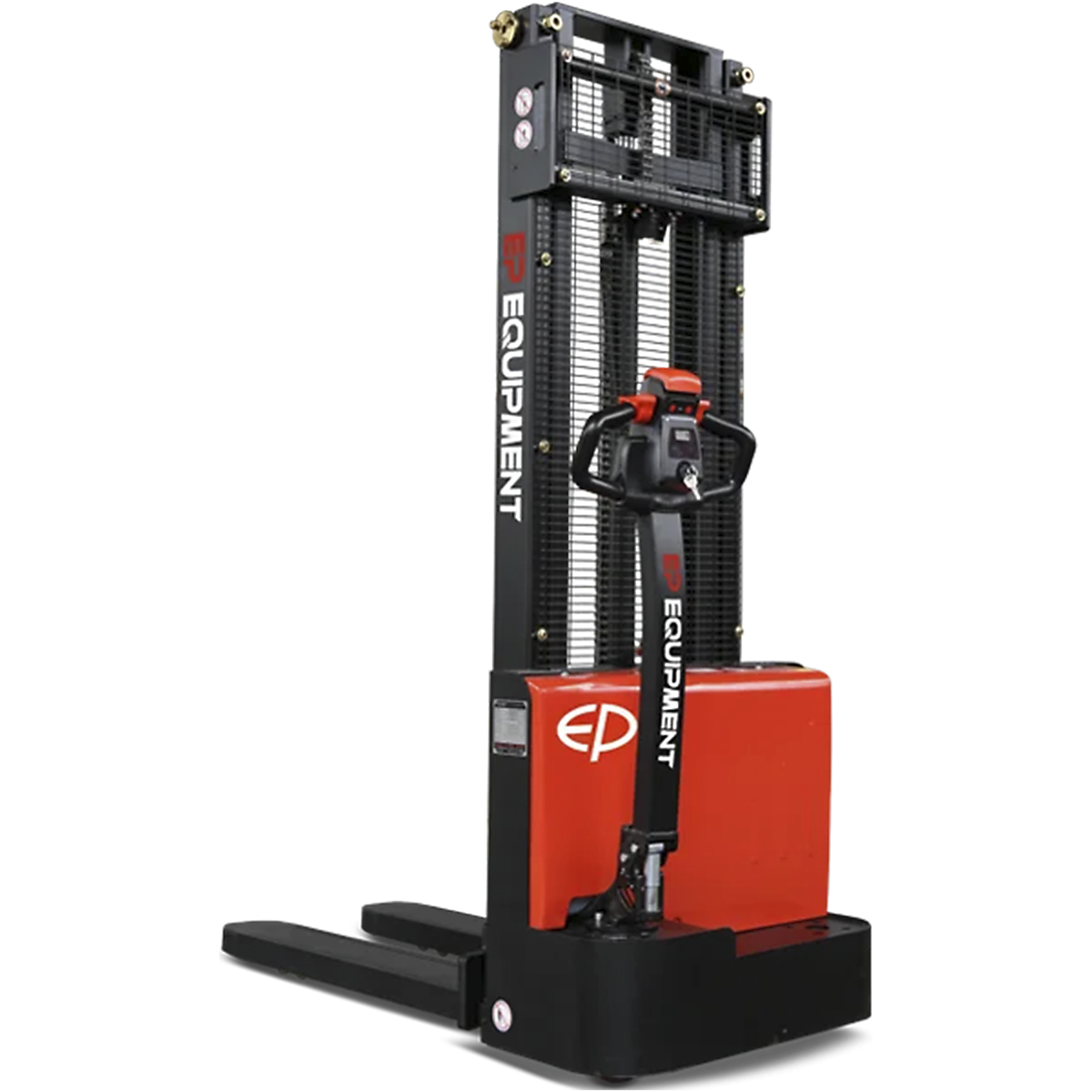

Powered Wrapover Stacker
Code: HEESL122
Product description

The Powered Wrapover Stacker is a space-saving lifting solution that offers both efficiency and strength. Equipped with a robust Li-ion battery and resilient duplex mast, this stacker optimizes material handling in warehouses and other constrained environments.

  • Compact duplex mast stacker for light-duty applications with Li-Ion battery benefits
  • Rigid frame and lateral drive ensure stability during operation
  • Industry-proven components create a simple yet reliable design
  • Turtle button for easy maneuvering in tight spaces
  • Fast charging via integrated charger for convenience and efficiency

Specifications

Specifications Powered Wrapover Stacker
Drive Electric
Load Capacity 1200kg
Load Center Distance 600mm
Service Weight 570kg
Retracted Mast Height 1856mm
Lift Height 2430mm
Length to Face of Forks 563mm
Overall Width 792mm
Fork Dimensions 60/170/1150mm
Turning Radius 1458mm
Max. Gradeability 3/10%
Travel Speed 4.2/4.5 km/h
Lifting Speed 0.08/0.14 m/s
Lowering Speed 0.1/0.1 m/s
Battery Voltage/Nominal Capacity 24/80 V/Ah
‌
‌
‌
‌
‌
