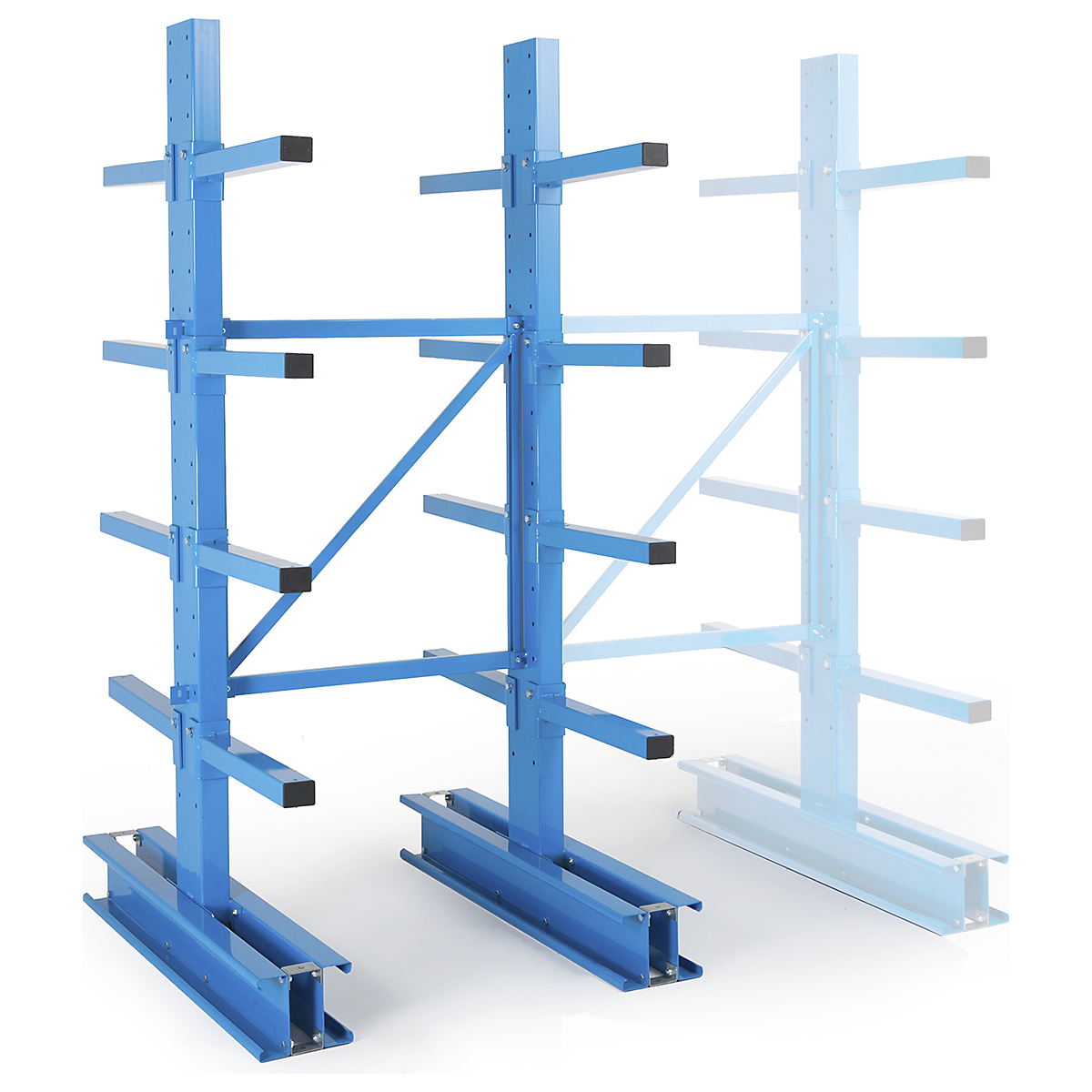

Safely store and access long lengths of various hardware and materials, including timber, pipe, mouldings and metal, with our medium-duty double-sided cantilever racking systems. Perfect storage solutions for medium-industrial and commercial use, designed to store long or bulky materials of just about any length up to 1,200kg per level. Cantilever racking shelves have no vertical obstructions and are ideal for easier loading and unloading without front column obstructions.
- Load up to 1200kg per level UDL*
- Blue powder-coated steel frame
- Choice of arm lengths to suit your items
- Available as a single-sided or double-sided racking
- Use with our extension bays to create further storage
- Bolted steel frame with 8x single-sided arms, or 16x double-sided arms
- Load capacity: up to 1,925 kgs (per single-sided bay)
- Adjustable-height arms - adjust every 100mm
- Powder-coated blue steel frame
- Choice of arm lengths to suit your items
- Steel end-stops available to prevent piping from rolling forward
- Available as a single-sided or double-sided racking
- Floor bolts are available to purchase separately
- Delivered flat-packed, for a simple self-assembly

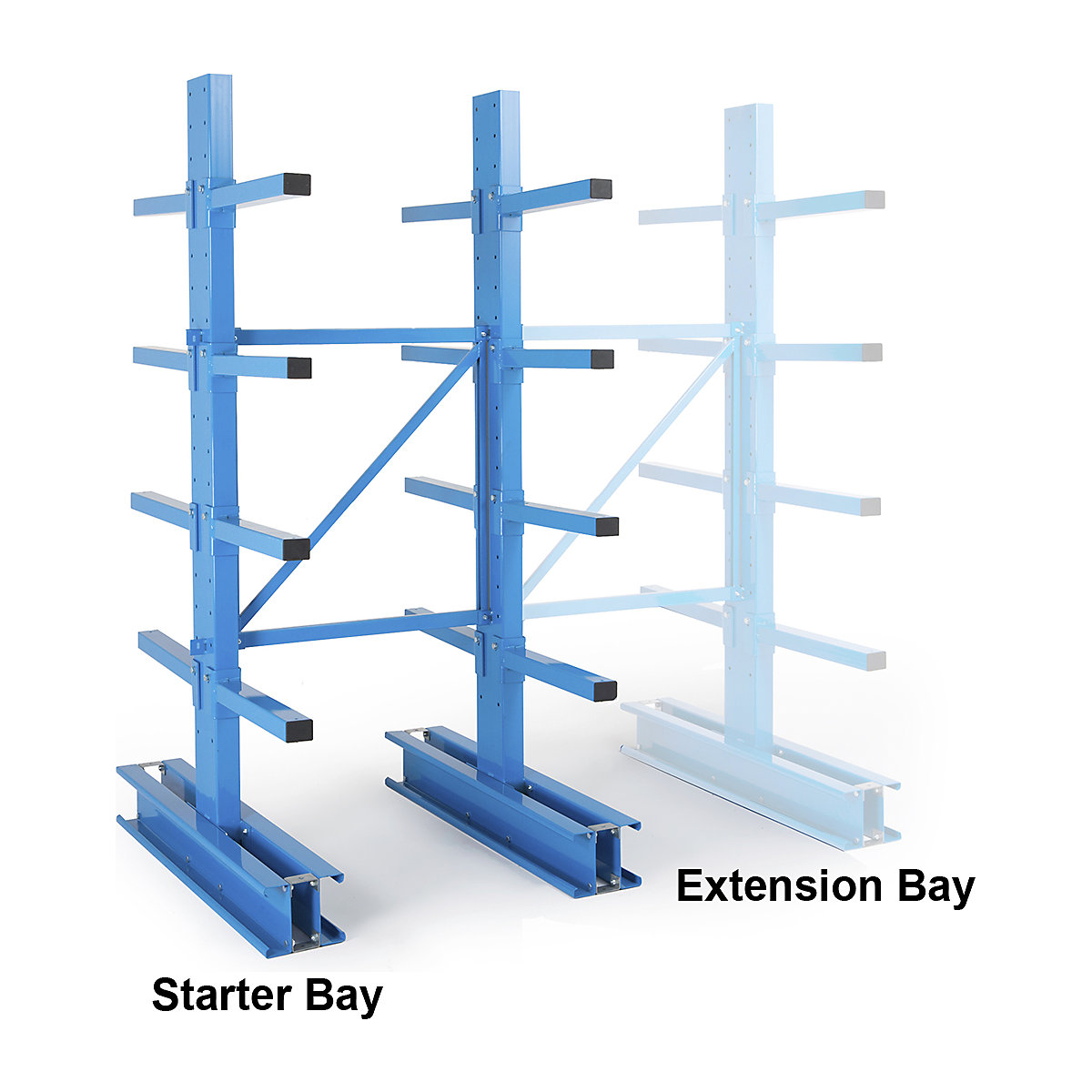

- This system allows multiple extension bays to be added for continuous spans of storage
- Note: It is recommended that this product is secured to a level concrete floor and is used for manual loading only
* UDL = Uniformly Distributed Load
Racking Specifications:
- Arm dimensions: 60h x 80w mm
- Upright dimensions: 2500h x 80w x 200d mm
- Bracing: 1000w mm wide (centre to centre)
- Total width = number of bracings x 1000mm + 246mm
- Total depth = arm length + 200mm for single-sided and 2 x arm length + 200mm for double-sided units
- Base dimensions: 200h mm and + 275mm arm length (single sided)
Load capacity per arm (UDL):
- 500mm deep = 600kg
- 600mm deep = 500kg
- 700mm deep = 400kg
- 800mm deep = 350kg
- 1000mm deep = 275kg
- 1200mm deep = 200kg
Please note: this product is made to order and therefore cannot be cancelled once ordered. As these items are made specifically to your request, they are also excluded from our returns policy unless damaged or faulty. Please contact our friendly sales team should you need further help or advice before ordering: 0333 200 5299.
