Code: LSP2021603S

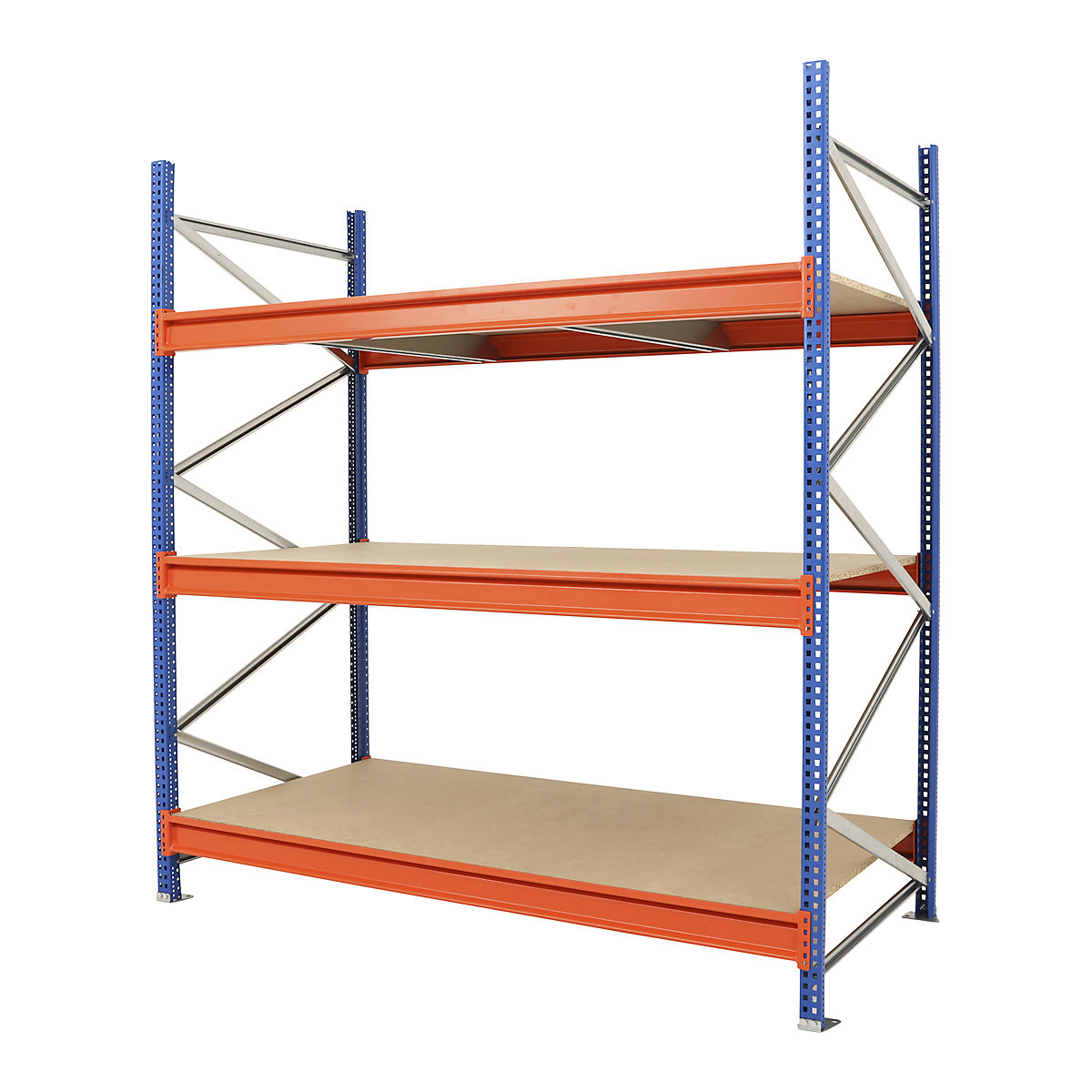

Longspan Shelving Starter Kit, 3x 22mm Chipboard Shelves, 2000h x 2140w x 600d mm 1000kg UDL

Longspan Shelving Starter Kit
Size
CLEARANCE

Delivery time: 2-3 Working Days
Order until 15:00 for next day delivery
Product description

Discover the Longspan Shelving Starter Kit for optimal workplace storage. Accommodate bulky loads with this premium-grade shelving. Designed for manual loading in industrial, commercial, and retail environments, this longspan shelving starter kit is a fantastic and safe storage solution that comes in two depths. Please note: This kit only includes the starter bay.

  • Load capacity per frame of up to 4000kg UDL* with the first level at a 500mm maximum height
  • Three 22mm-thick P2 chipboard shelves
  • Designed for larger loads and intensive use
  • Each level can be adjusted every 25mm to support different-sized items
  • Limited time special offer
  • Pre-assembled end frames with blue powder-coated finish and galvanised cross-bracing
  • Suitable for floor-level pallet storage if the lower level is raised
  • Ideal for industrial environments

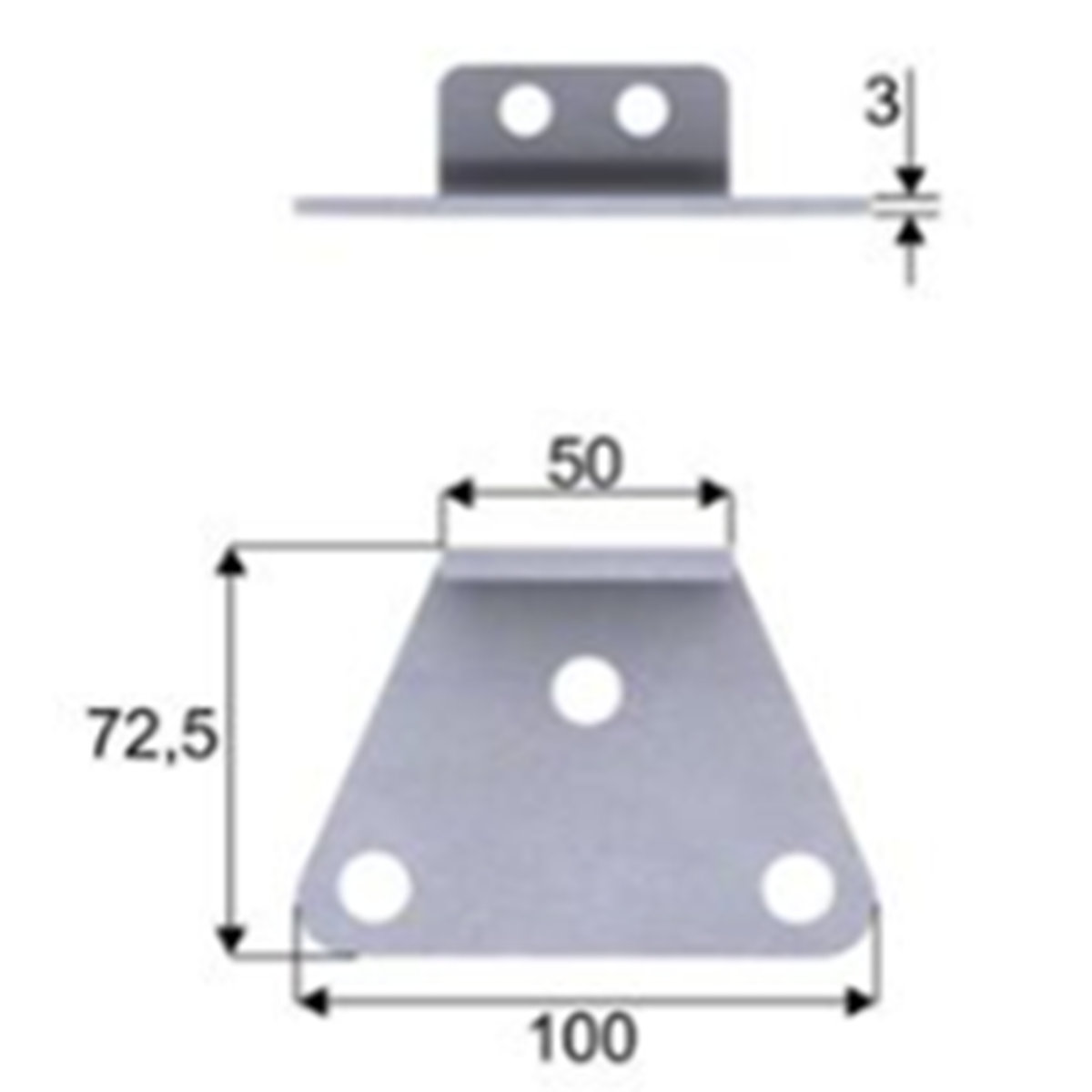

  • Footplate dimensions: 100 x 72.5
  • Limited stock, when it's gone it's gone!

If you're planning a large project and need some personal assistance, we can call to your site for a visit to assess your requirements. For anything else, please contact us on 0333 200 5299.

*UDL = Uniformly Distributed Load

Please note - extra large 22mm boards so the boards do sit slightly above the level of the beam.

Please note: This product is not compatible with Mecalux Longspan Shelving or accessories.

Shelving Specifications

Data Field 1785mm Width 2140mm Width 2675mm Width
Upright Type One Piece One Piece One Piece
Upright Steel Thickness 1.5mm 1.5mm 1.5mm
Beam Steel Thickness 2mm 2mm 2mm
Shelf Adjustment Increments 25mm 25mm 25mm
Chipboard Thickness 22mm 22mm 22mm
Steel Shelf Panel Thickness 1mm 1mm 1mm
Total Bay Capacity 4000kg 4000kg 4000kg
Clear Width 1785mm 1785mm 1785mm
Extra Levels Available Y Y Y

* Maximum frame capacity 4000kg UDL when distance between levels is 500mm
