Code: JRCLIC1045LG

Justrite Lithium-Ion Battery Charging Cabinet | 610h x 1092w x 457d mm | 4kWh TECR | 2 Doors | Manual Close

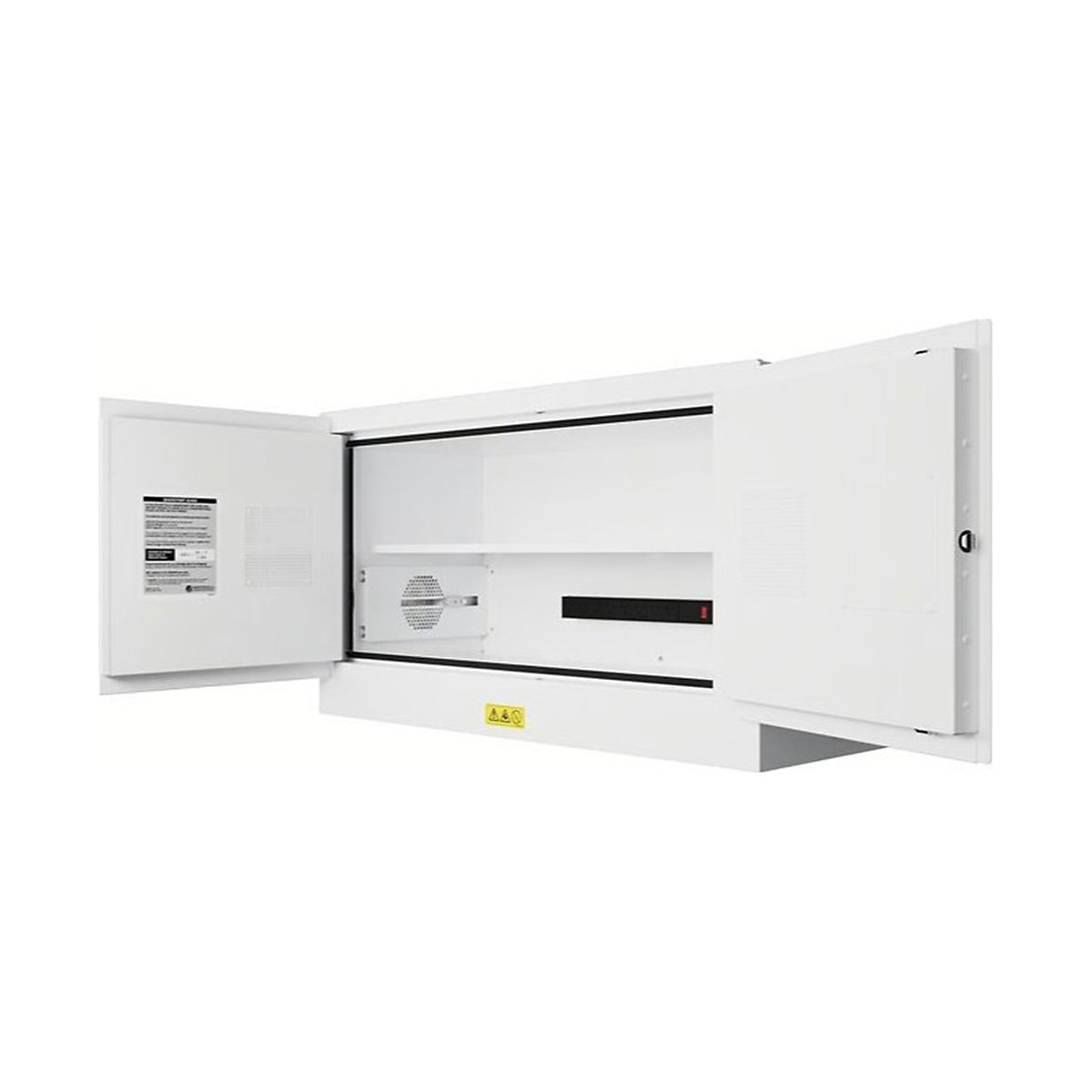

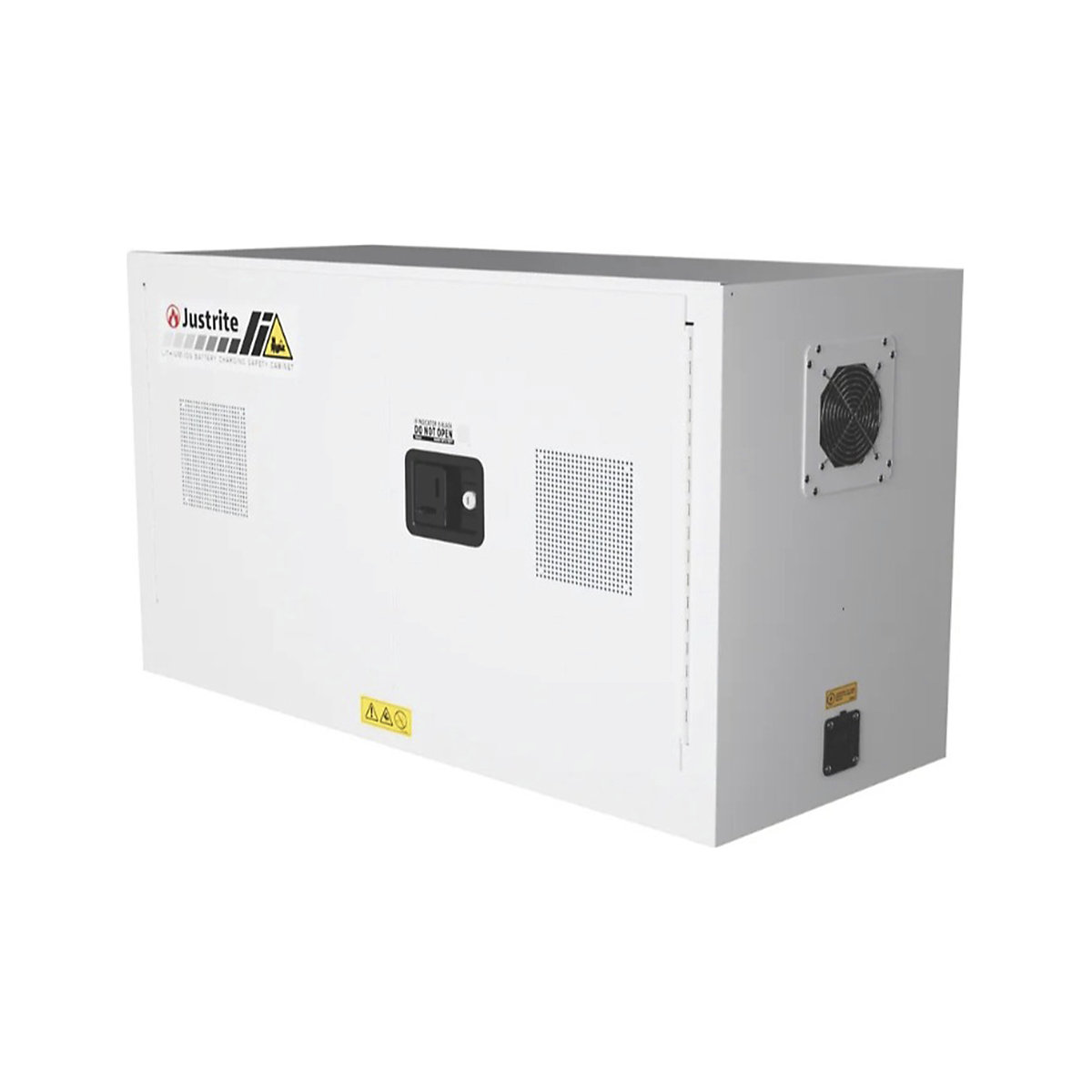

Justrite Lithium-Ion Battery Charging Cabinet
Delivery time: 4-5 Working Days
Product description

Justrite’s Lithium-Ion battery Charging Safety Cabinet is designed for the safe charging and storage of lithium batteries. It features a proprietary 9-layer ChargeGuardTM system that helps reduce the risk of fire, smoke, and explosions caused by lithium batteries. Engineered with a pressure relief vent system and a double wall with air gap to help maintain a safe-to-touch temperature outer shell with color-changing tabs, and a filtration system to filter and absorb toxins emitted from Lithium-ion battery fires.

  • Double-wall Cabinet Construction-Welded double-wall steel provides an solid structure that keeps potential explosions contained
  • Pressure Relief Vent System-Vented door panels dampen the explosive force from thermal runaway and battery failure
  • Reinforced Steel Door Latch Plates-Steel latch rods made with reinforced latch cradle plates ensure the cabinet doors remain closed
  • Door Hinge Flame Guards-Tight sealing door hinge with flame guard prevents fires escaping through the door hinges, preventing secondary fires outside the cabinet
  • Spring Loaded Dampers-Automatic Damper flaps close when the cabinet temperature reaches 135°F to reduce the release of harmful smoke and gases by as much as 99%

The cabinet also includes a grounding attachment, leveling feet, and a three-point stainless steel bullet latching system, ensuring a secure and reliable door closure while enhancing resistance to heat and corrosion. The flush mounted door handle comes with a key lock for added security.

  • Heat Activated Expanding Door Seals-Intumescent seals swell as temperatures rise to prevent smoke, fumes, and flames from escaping from the door frame
  • One Axial fan helps to regulate temperature and features sliding doors that close and obstruct the fan opening if the internal temperature exceeds 135° Fahrenheit
  • The Cabinet is expertly crafted from sturdy 18-gauge (1 mm) steel, ensuring durability and security
  • The design includes double-walled sides, top, and bottom
  • The manual-close doors feature baffled vents with a unique flame arrester pattern, supported by continuous piano hinges

This product is intended to be plugged into a dedicated 120VAC/60Hz GFCI supply using a minimum14 gauge cord. (Supply cord not included with cabinet)

Specifications

Specification JRCLIC1045LG
Model No 231703
UPC 697841272095
Colour Grey
Material Specifications 18-Gauge CR Steel
Number of Doors 2
Door Type Manual Close
Number of Shelves 1
Adjustable Shelves No
Exterior Dimensions 610h x 1092w x 457d mm
Interior Dimensions 495h x 1003w x 370d mm
Net Weight 58.5kg
‌
‌
‌
‌
‌
