Code: AH32A5M

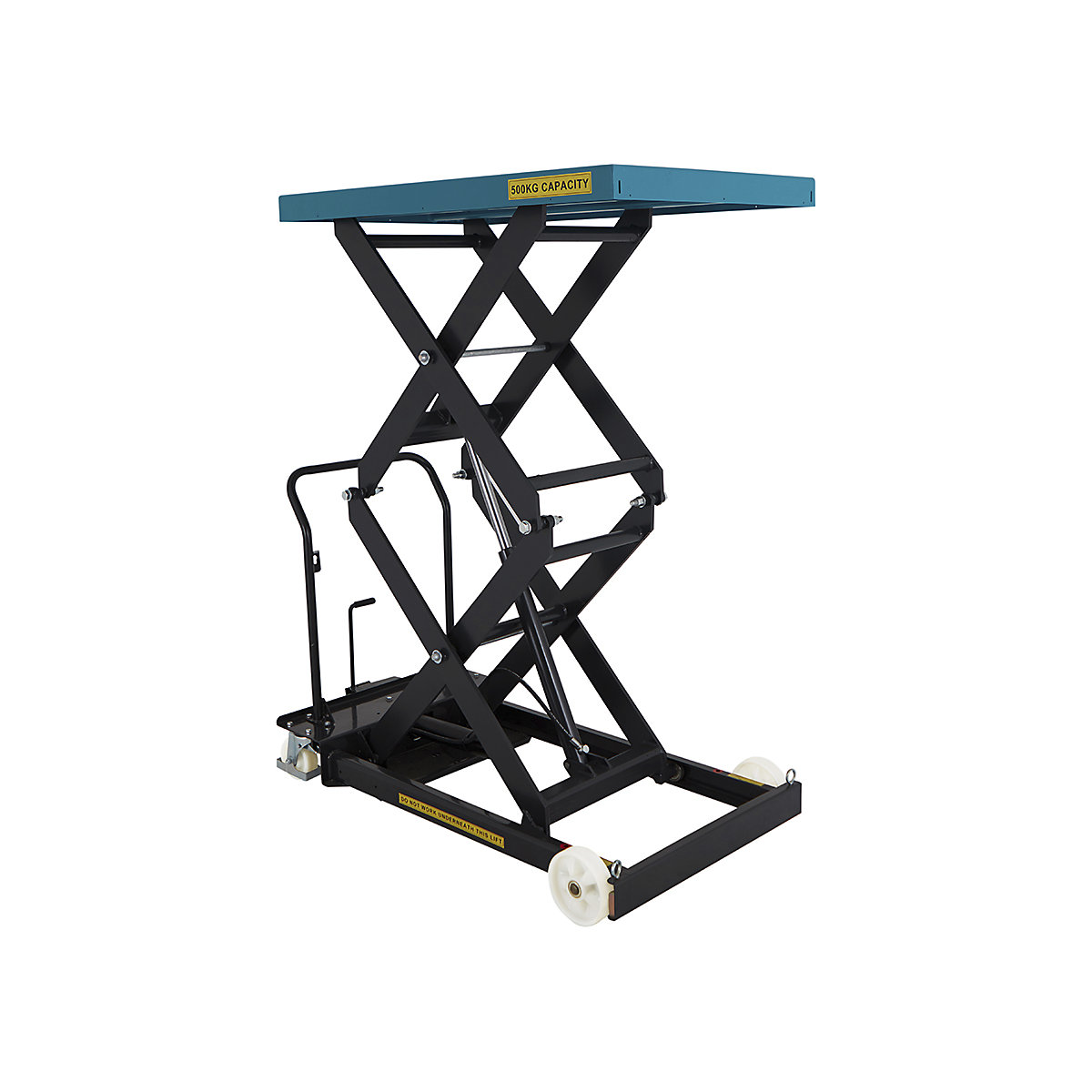

500kg Double Scissor Lift Table | Lift Height: 490mm To 1900mm | Platform Size: 840 x 1350mm

500kg - 1250kg Heavy Duty Scissor Lifts
Capacity
Lock Type
£2,407.89
£2,268.86
Price / pack (Excl. VAT)
Free delivery on orders over £1000 ex VAT / £1200 inc VAT
Delivery time: 2-15 Working Days
Product description

The largest of our range of manually-operated Scissor Lift Tables extends the lifting capacity up to 1250kg. Used to maintain loads at suitable working heights, aid unloading/loading from shelves/transport or just extend working surfaces.

  • Available as a single, double or triple lift
  • Low maintenance, manual hydraulic lift
  • Overload and slow lowering valve
  • Total stop brake
  • Low closed height
  • 2 x swivel/braked castors and 2 x fixed
  • Wheel Diameter: 150mm/125mm (all models)
  • Safety cut-off bar on underside of platform
  • Overall Dimensions (width x length): 860mm x 1650mm (500kg, 800kg and 1250kg); 1000mm x 2350mm (1000kg)
  • Handle Height: 1010mm (all models)
  • Roller top platform available below
  • Fully compliant with European safety standards EN1570 and BS:5323:1980.
  • 12 month parts and labour warranty.
    • Code Platform Capacity Lift Height Lift Time
    AH31A8M 840 x 1350mm 800kg 360mm To 1050mm 80 Pumps
    AH29C5M 610 x 1030mm 500kg 340mm To 900mm 40 Pumps
    AH31C1M 840 x 1350mm 1250kg 360mm To 1050mm 80 Pumps
    AH31E1M 1000 x 2000mm 1000kg 360mm To 1050mm 80 Pumps
    AH32A5M 840 x 1350mm 500kg 490mm To 1900mm 80 Pumps
    AH32C8M 840 x 1350mm 800kg 490mm To 1900mm 160 Pumps
    AH33A5M 840 x 1350mm 500kg 650mm To 2900mm 468 Pumps

    Please note: this product is made to order and therefore cannot be cancelled once ordered. As these items are made specifically to your request, they are also excluded from our returns policy unless damaged or faulty. Please contact our friendly sales team should you need further help or advice before ordering: 0333 200 5299.

‌
‌
‌
‌
‌
