Code: ECOS50GR

EcoGrid S50 Flexible Ground Reinforcement Tiles | Pack of 9 Tiles | 1 Metre Square | 50h x 330w x 330d mm | Green

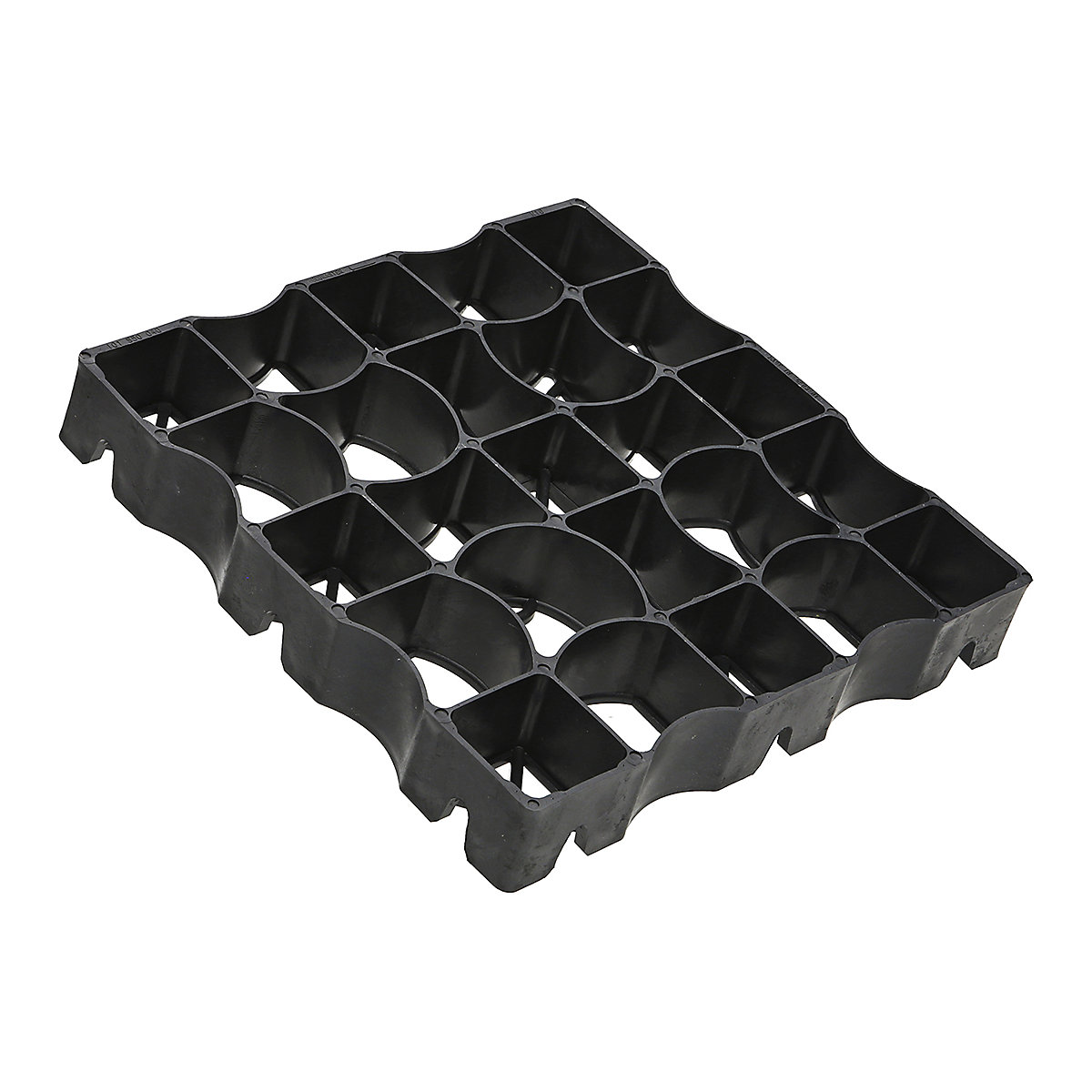

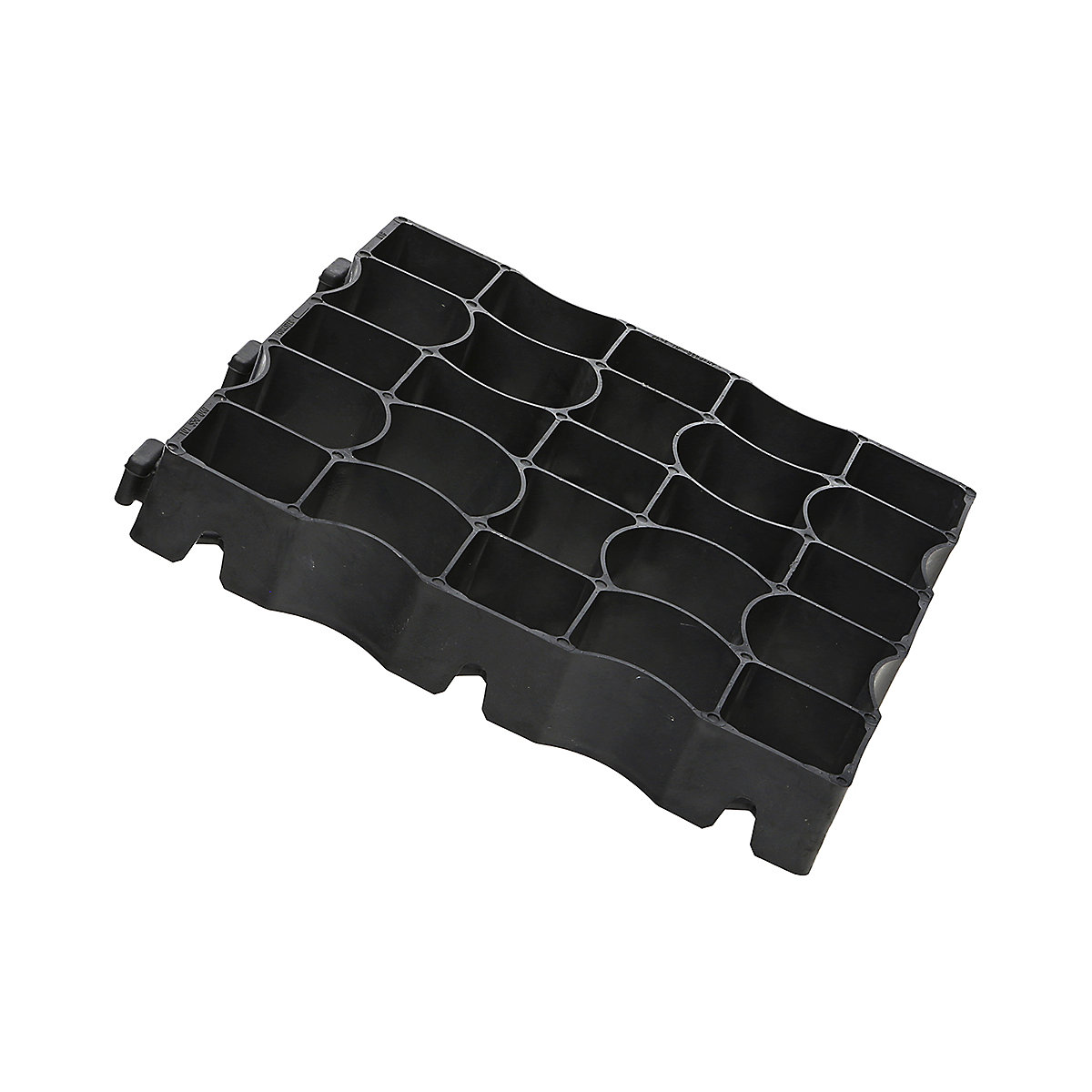

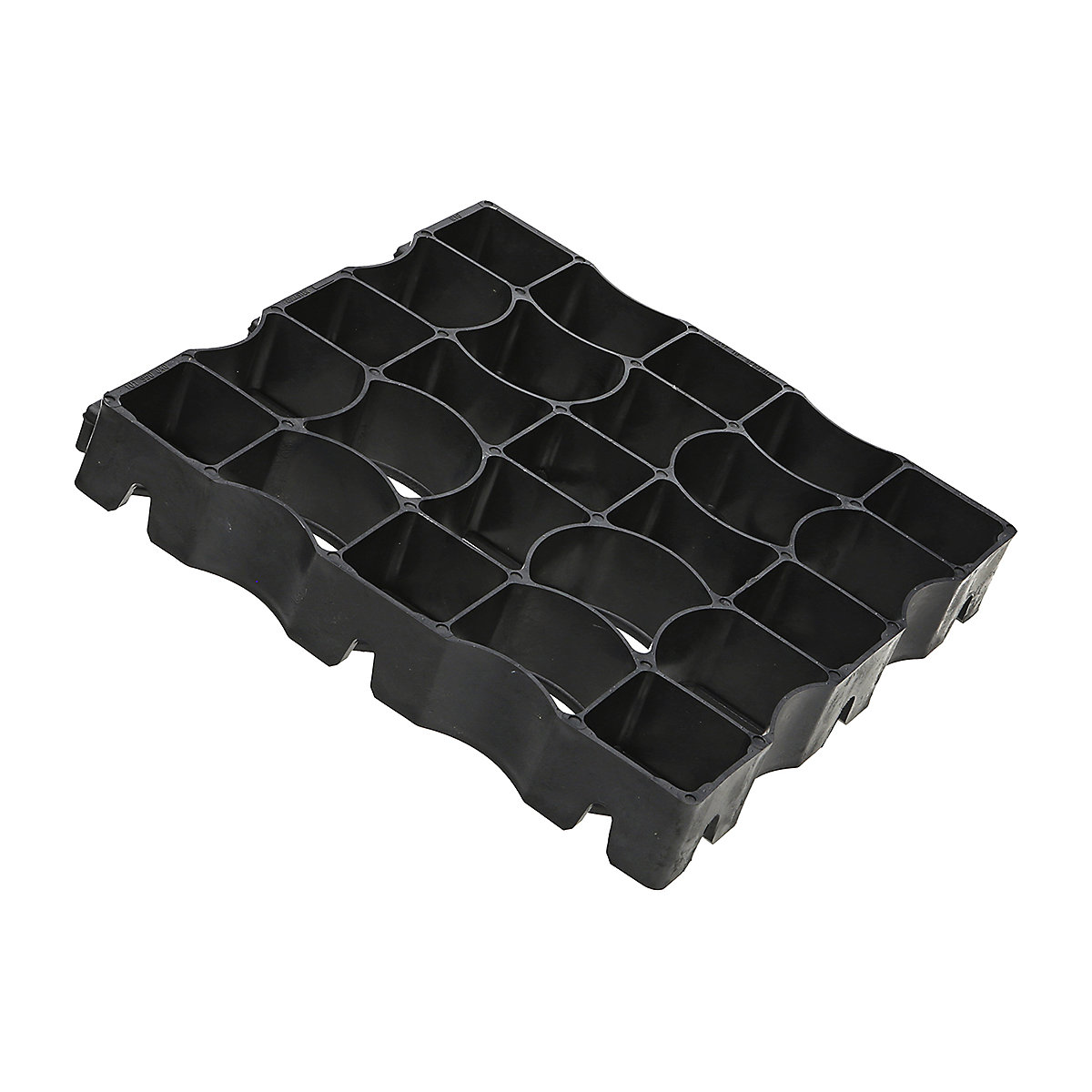

EcoGrid S50 Flexible Ground Reinforcement Tiles
EcoGrid S50 Flexible Ground Reinforcement Tiles, EcoGrid S50 Flexible Ground Reinforcement Tiles, EcoGrid S50 Flexible Ground Reinforcement Tiles | Pack of 9 Tiles | 1 Metre Square | 50h x 330w x 330d mm | Green-0
EcoGrid S50 Flexible Ground Reinforcement Tiles (Product illustration 2)-1
EcoGrid S50 Flexible Ground Reinforcement Tiles (Product illustration 3)-2
EcoGrid S50 Flexible Ground Reinforcement Tiles (Product illustration 4)-3
EcoGrid S50 Flexible Ground Reinforcement Tiles (Product illustration 5)-4
Colour
NEW PRODUCT
Delivery time: 2-3 Working Days
Product description

The EcoGrid S50 is our flexible grid, lightweight and strong from applications where elasticity is paramount including, equestrian areas, swales and ditches, light aircraft and emergency access roads. Grids feature a unique patented locking system to ensure that they remain locked together even under the most demanding conditions.

  • Tile dimensions: 330 x 330 x 50mm
  • Supplied in packs of 9 tiles
  • Carrying Load: Up to 500 t/sqm filled
  • Manufactured from 100% recycled polyethylene
  • Resistant to acids, alkalis, alcohols and petrol (de-icing salt etc)
  • 20-year guarantee for long-term assurance and peace of mind

    • Ideal to reinforce the likes of the following:

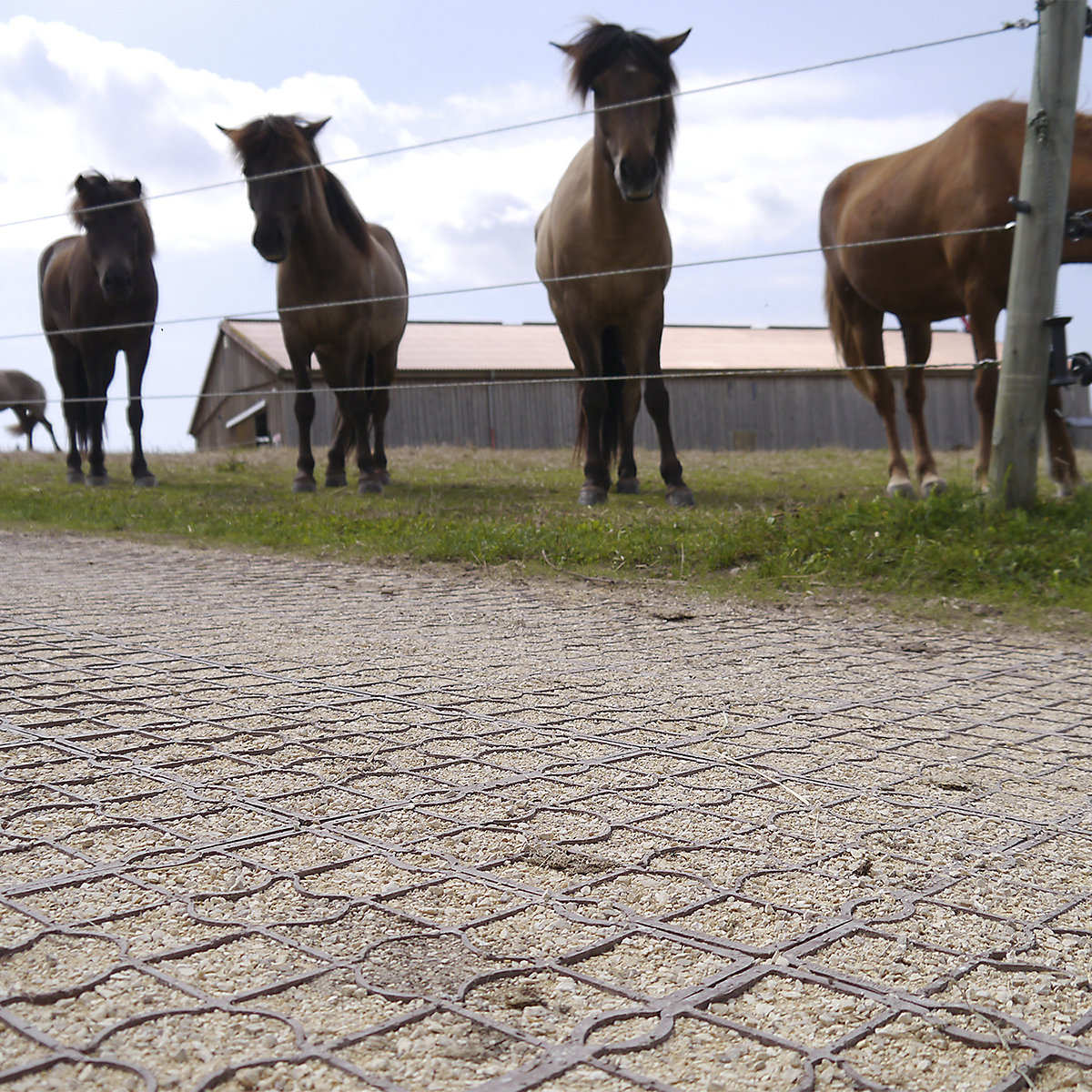

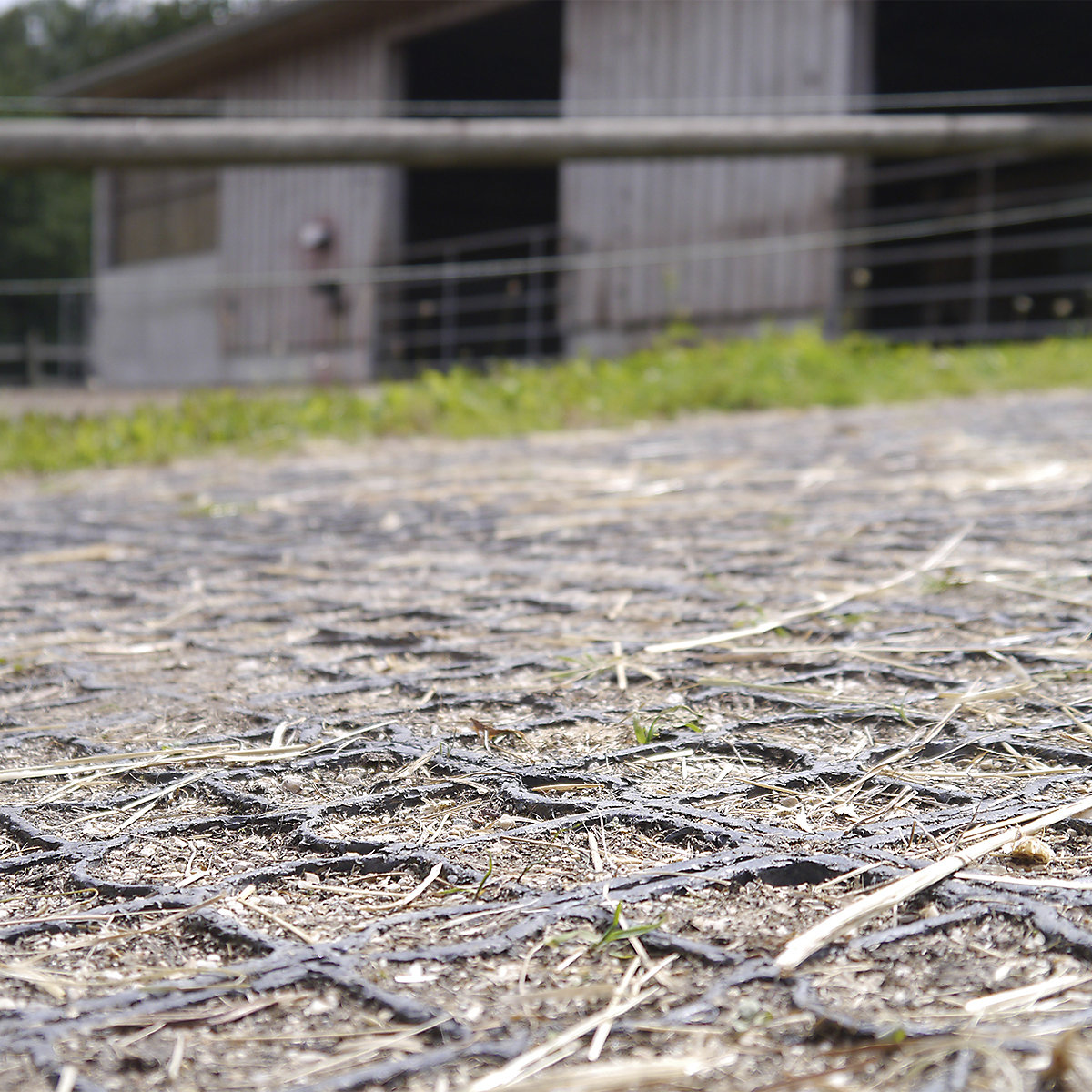

    • Horse Arenas
    • Light Aircraft Runways
    • Swales and Ditches
    • Emergency Access Roads
    • Landscape Construction

    Specifications

    Technical Specifications
    Dimensions 330 x 330 x 50mm
    Wall Thickness 2.5mm
    Carrying Load Up to 500 t/sqm filled
    Weight (sqm) 6.84kg
    Weight (pce) 0.76kg
    Wall Height 50mm
    Material 100% Recycled Polyethylene
    Pressure Resistance Up to 20t Axle Load (DIN 1072)
    Dimensional Stability Temp Range -50° to +80°
    Deformation 0.5% (at normal temp as above)
    Moisture Absorption 0.01%
    Solubility Resistant to Acids, Alkalis, Alcohols and Petrol (De-Icing Salt etc)

    Please note: this product is made to order and therefore cannot be cancelled once ordered. As these items are made specifically to your request, they are also excluded from our returns policy unless damaged or faulty. Please contact our friendly sales team should you need further help or advice before ordering: 0333 200 5299.

    ‌
    ‌
    ‌
    ‌
    ‌
