Code: ECOE50BK

EcoGrid E50 Heavy Duty Ground Reinforcement Tiles | Pack of 9 Tiles | 1 Metre Square | 50h x 330w x 330d mm | Black

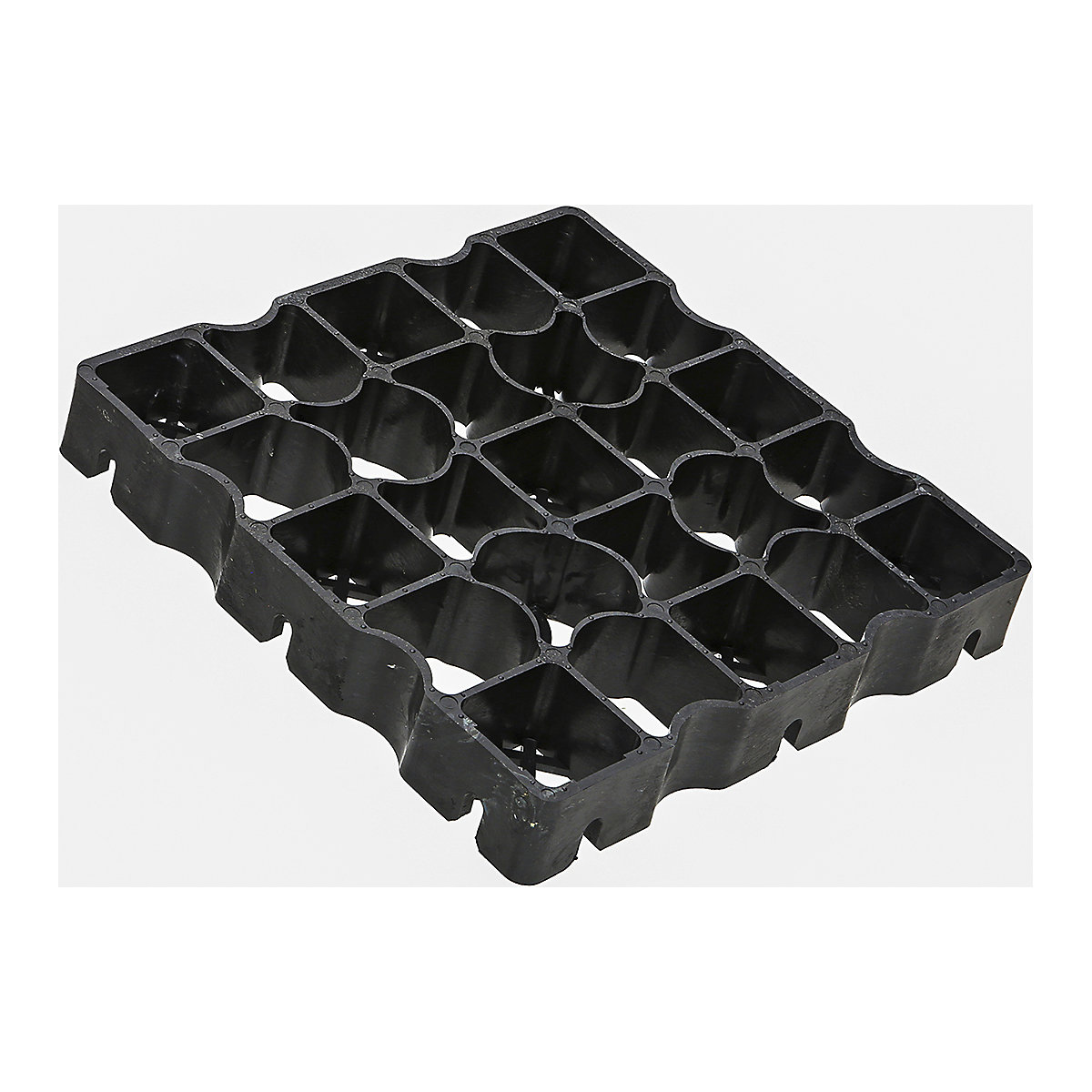

EcoGrid E50 Heavy Duty Ground Reinforcement Tiles
Colour
NEW PRODUCT
Delivery time: 2-3 Working Days
Product description

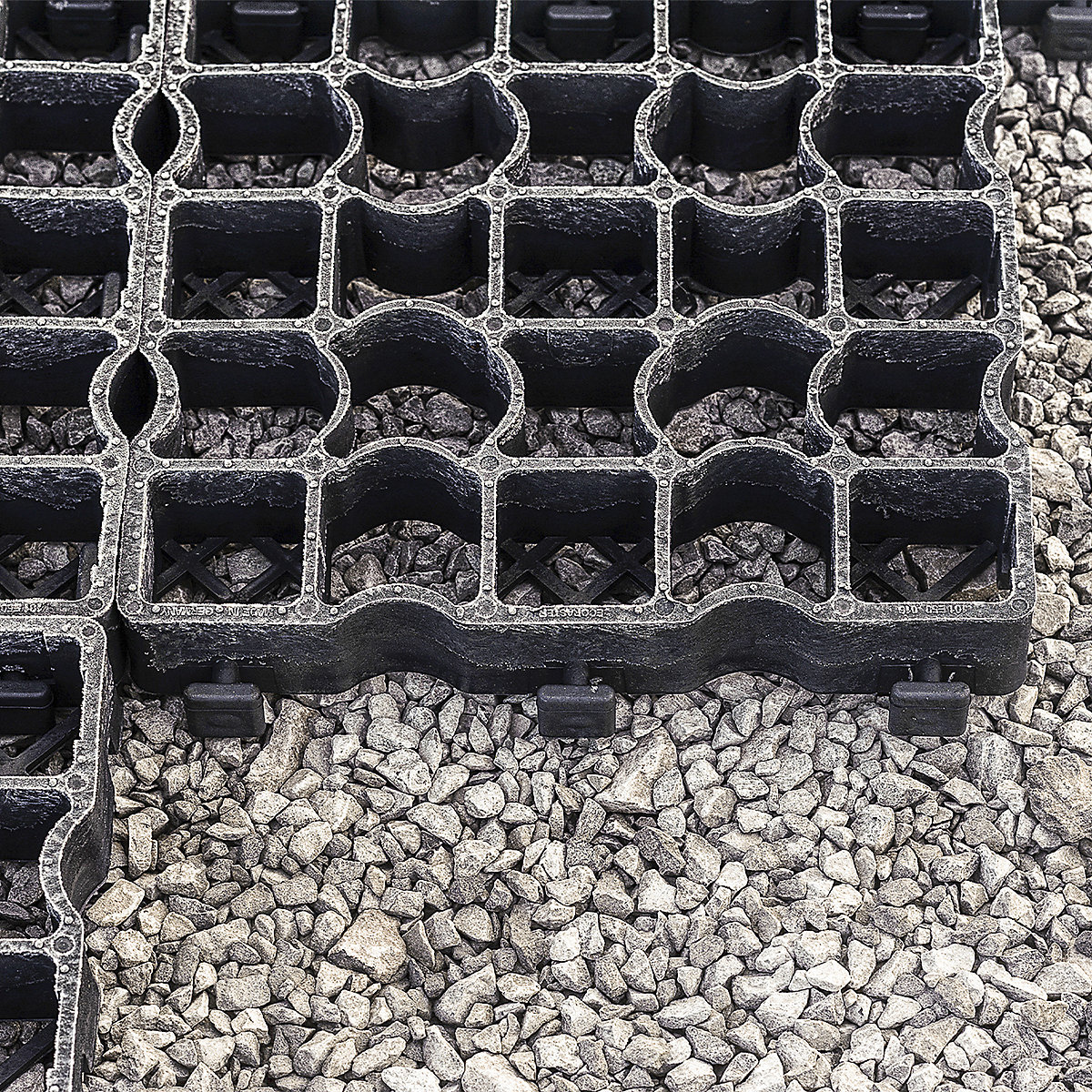

The EcoGrid E50 is our highest loading grid. High lateral loading characteristics for a variety of applications where strength and rigidity is paramount including, exterior warehousing, car & lorry parking areas, light aircraft and emergency access roads. Grids feature a unique patented locking system to ensure that they remain locked together even under the most demanding conditions.

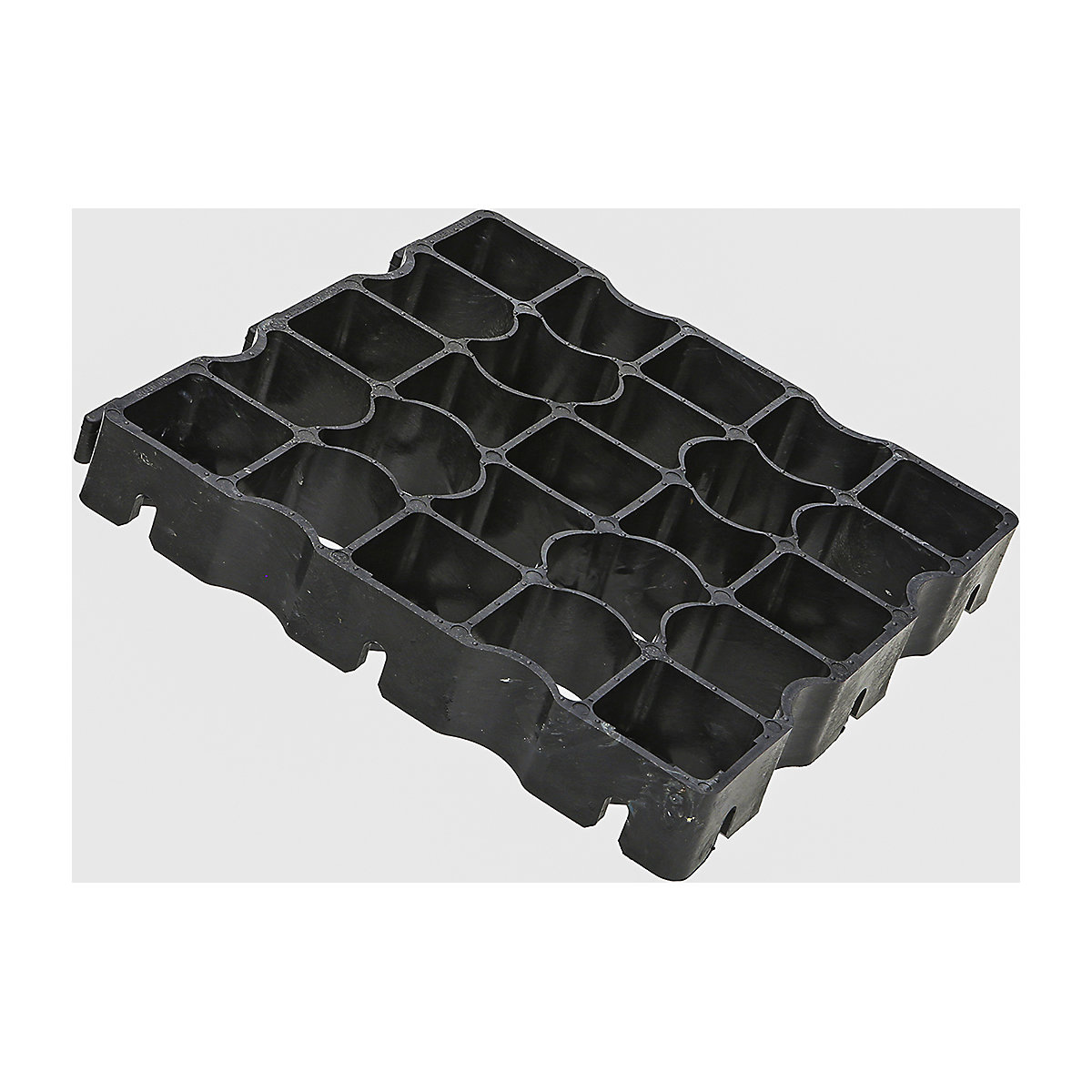

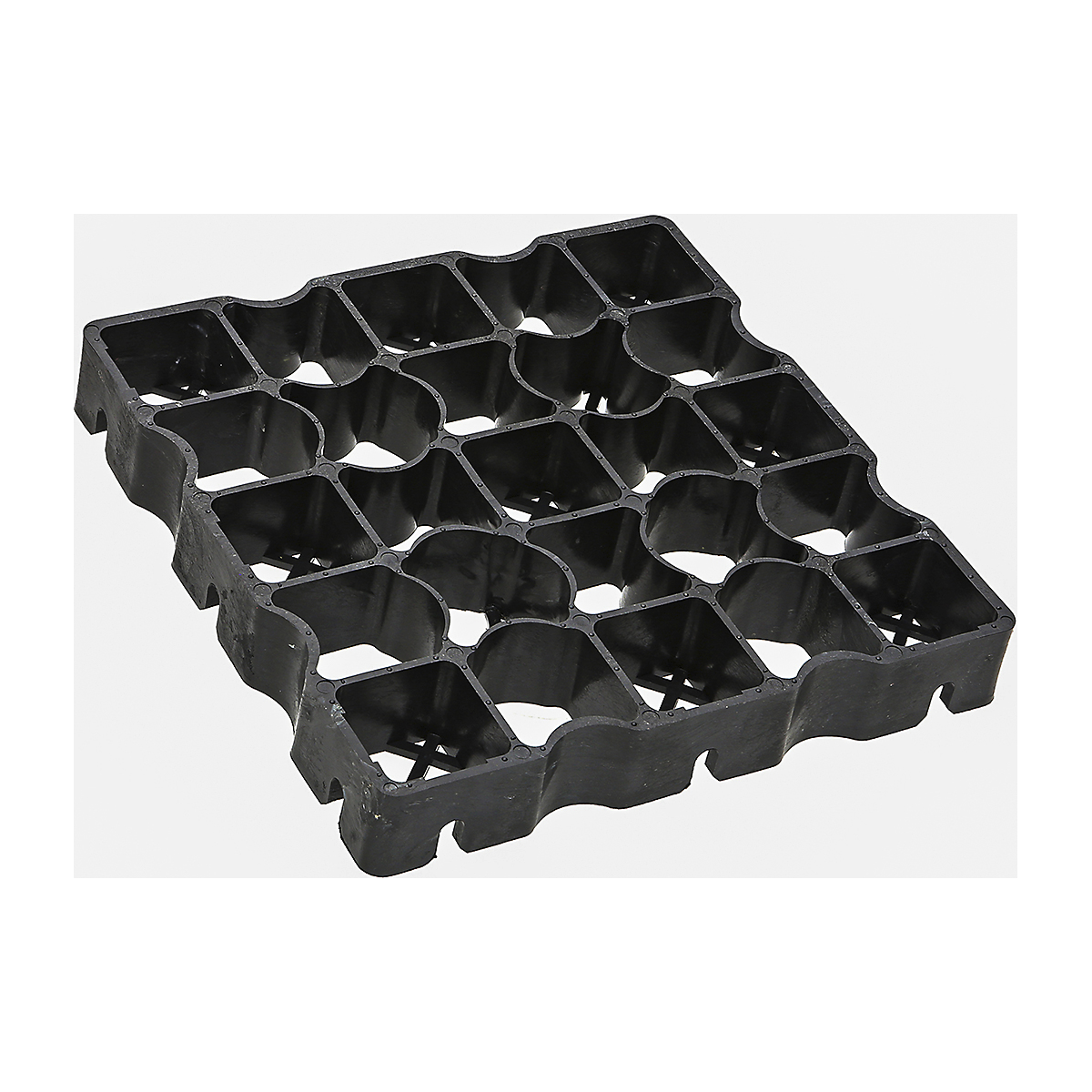

  • Tile dimensions: 330 x 330 x 50mm
  • Supplied in packs of 9 tiles

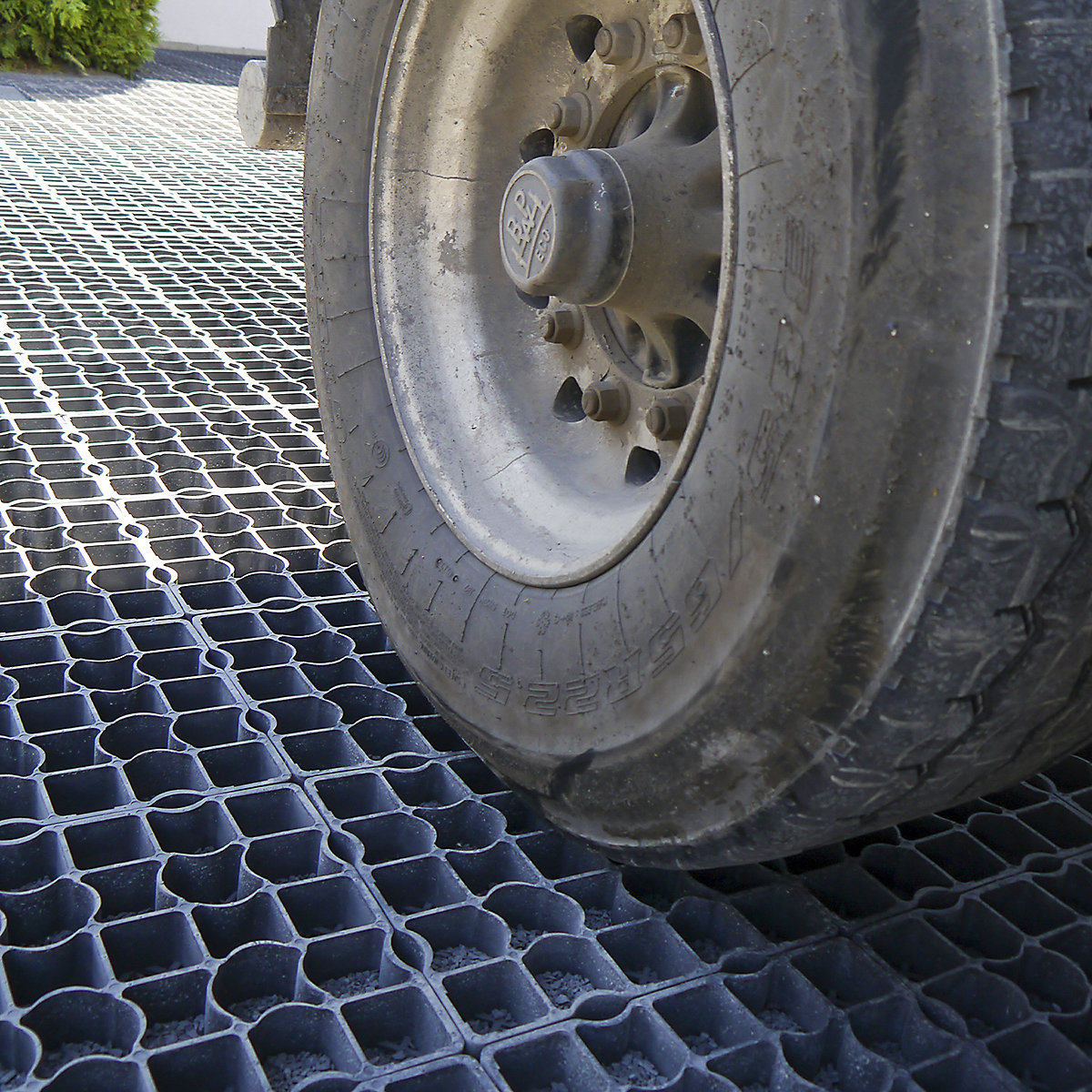

  • Carrying Load: Up to 1000+ t/sqm filled
  • Manufactured from 100% recycled polyethylene
  • Resistant to acids, alkalis, alcohols and petrol (de-icing salt etc)
  • 20-year guarantee for long-term assurance and peace of mind

    • Ideal to reinforce the likes of the following:

    • Tree Root Protection
    • Military Applications

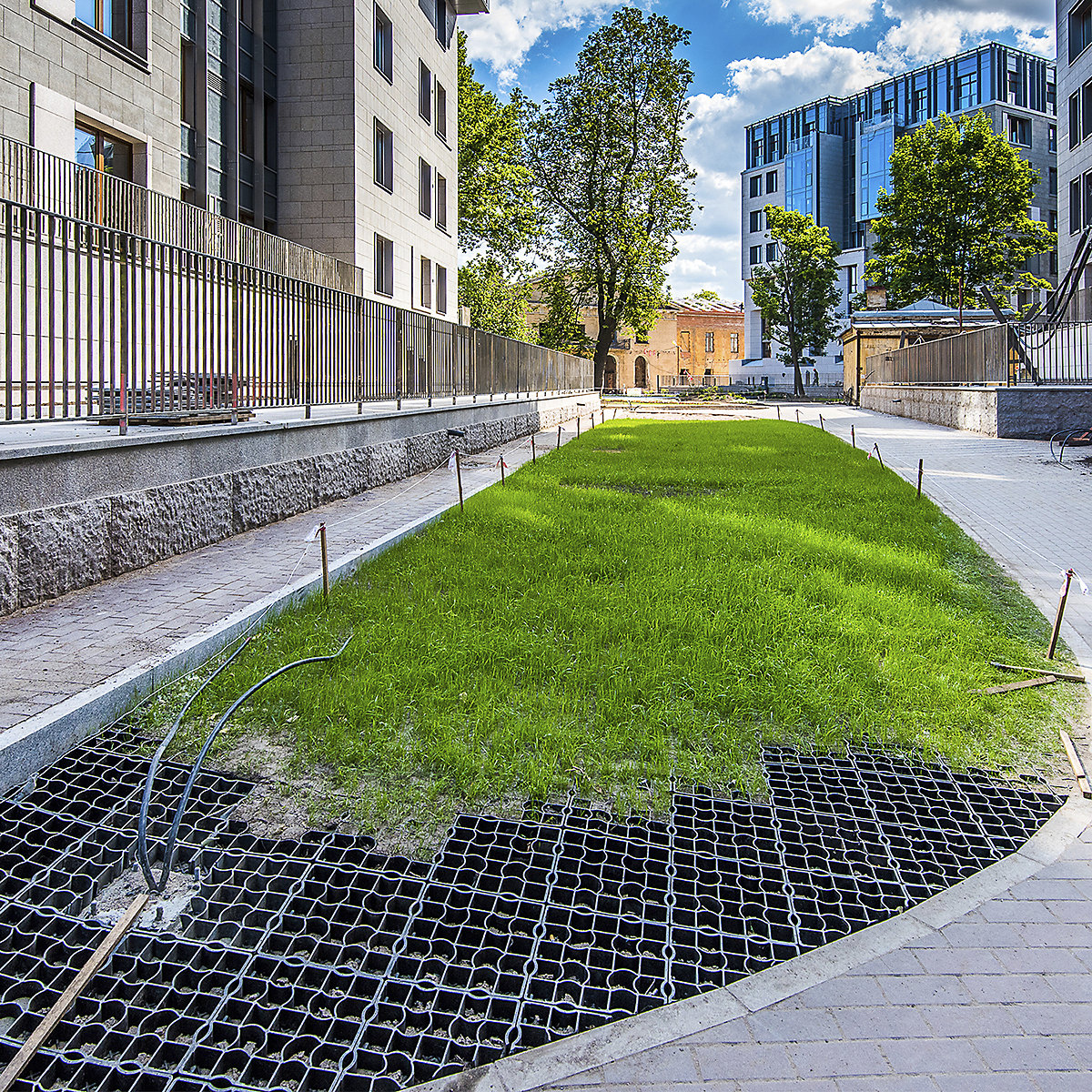

    • Grassed Fill Parking

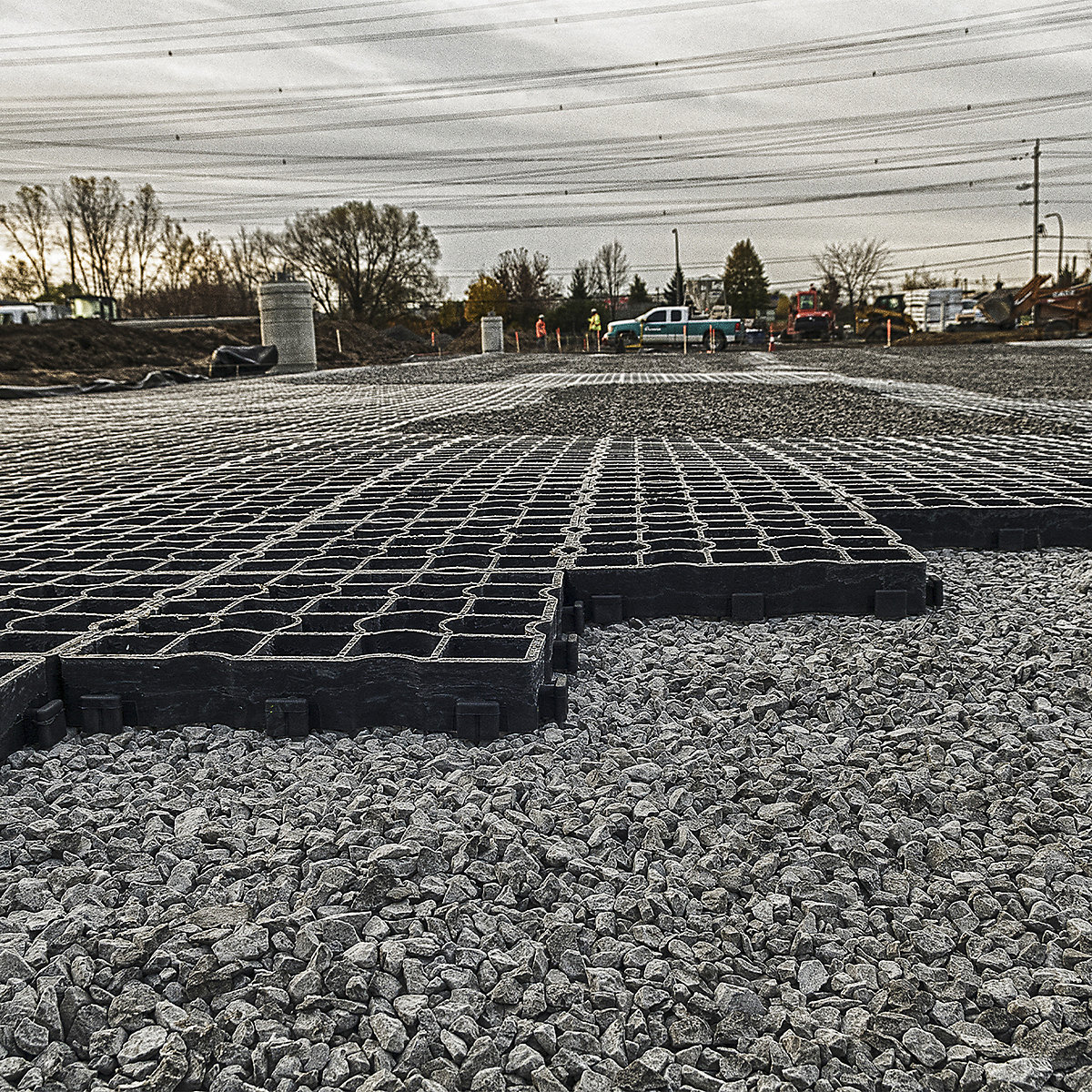

    • Gravel Fill Parking
    • Resin Stone Base
    • Exterior Warehousing
    • Emergency Access Roads Horiculture
    • Landscaping
    • Lorry Parks
    • Light Aircraft
    • SuDS Approved

    Specifications

    Technical Specifications
    Dimensions 330 x 330 x 50mm
    Wall Thickness 5mm
    Carrying Load 1000+ t/sqm filled
    Weight (sqm) 9.55kg
    Weight (pce) 1.06kg
    Wall Height 50mm
    Material 100% Recycled Polyethylene
    Pressure Resistance Up to 40t Axle Load (DIN 1072)
    Dimensional Stability Temp Range -50° to +80°
    Deformation 0.5% (at normal temp as above)
    Moisture Absorption 0.01%
    Solubility Resistant to Acids, Alkalis, Alcohols and Petrol (De-Icing Salt etc)

    Please note: this product is made to order and therefore cannot be cancelled once ordered. As these items are made specifically to your request, they are also excluded from our returns policy unless damaged or faulty. Please contact our friendly sales team should you need further help or advice before ordering: 0333 200 5299.

    ‌
    ‌
    ‌
    ‌
    ‌
