Code: ECOE40XXLBK

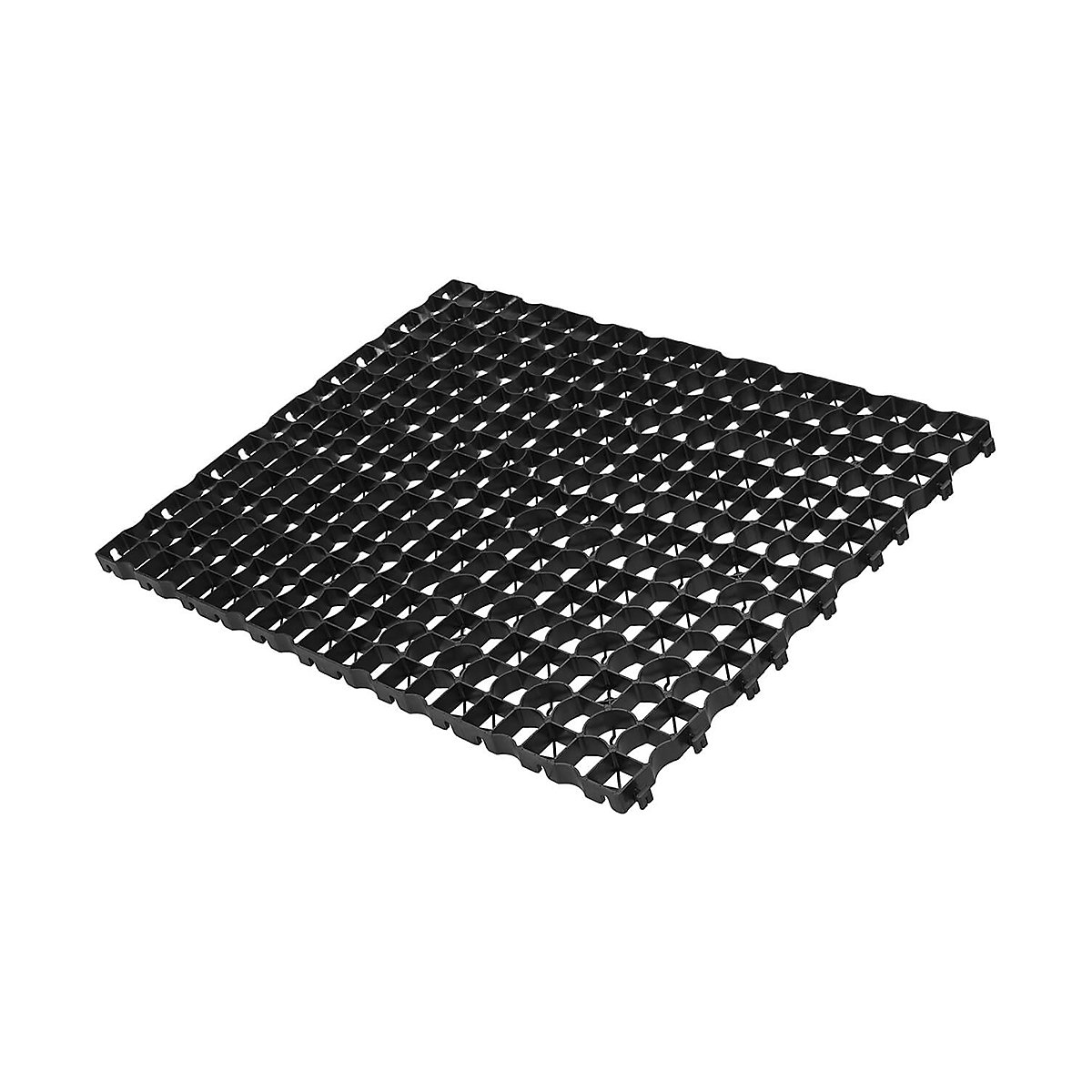

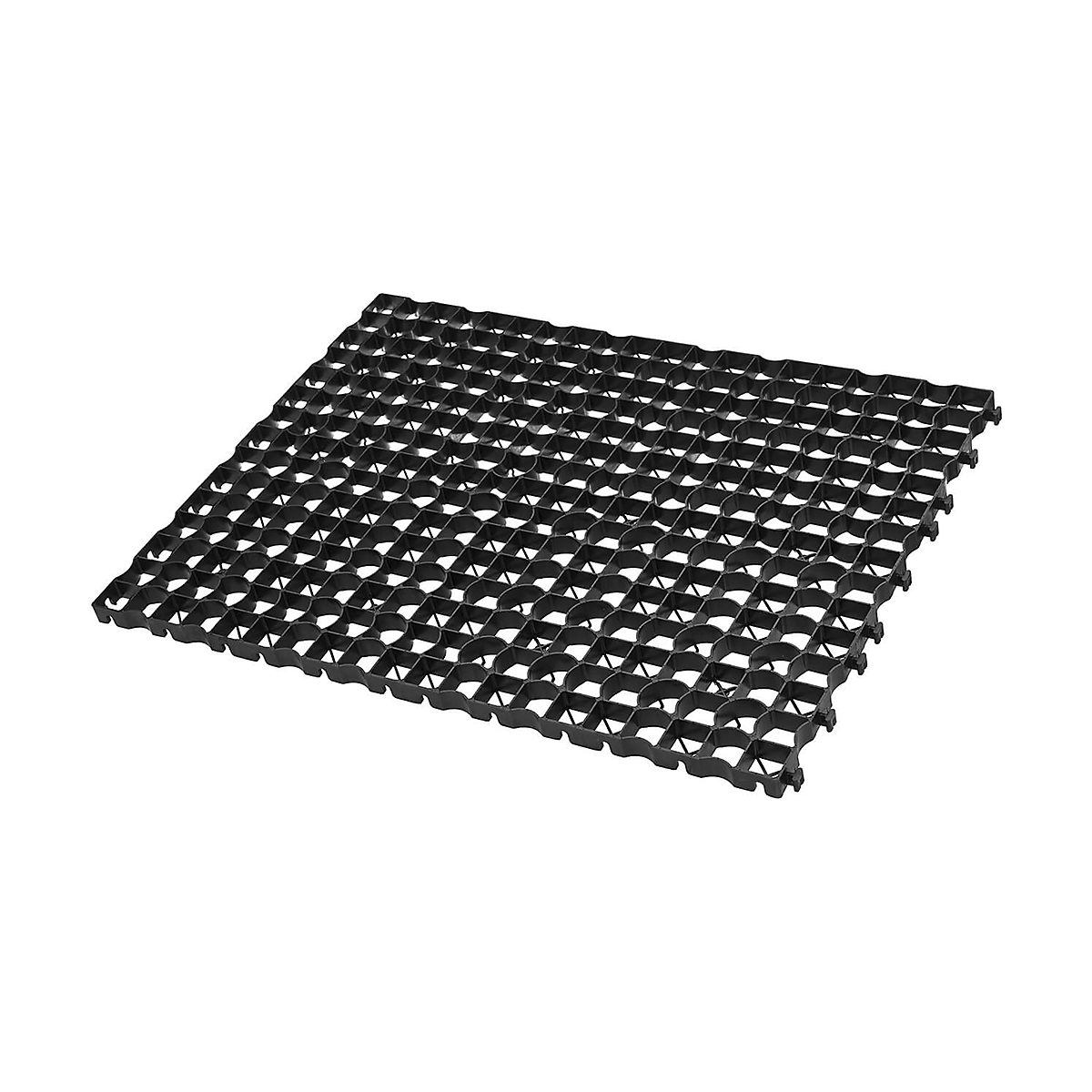

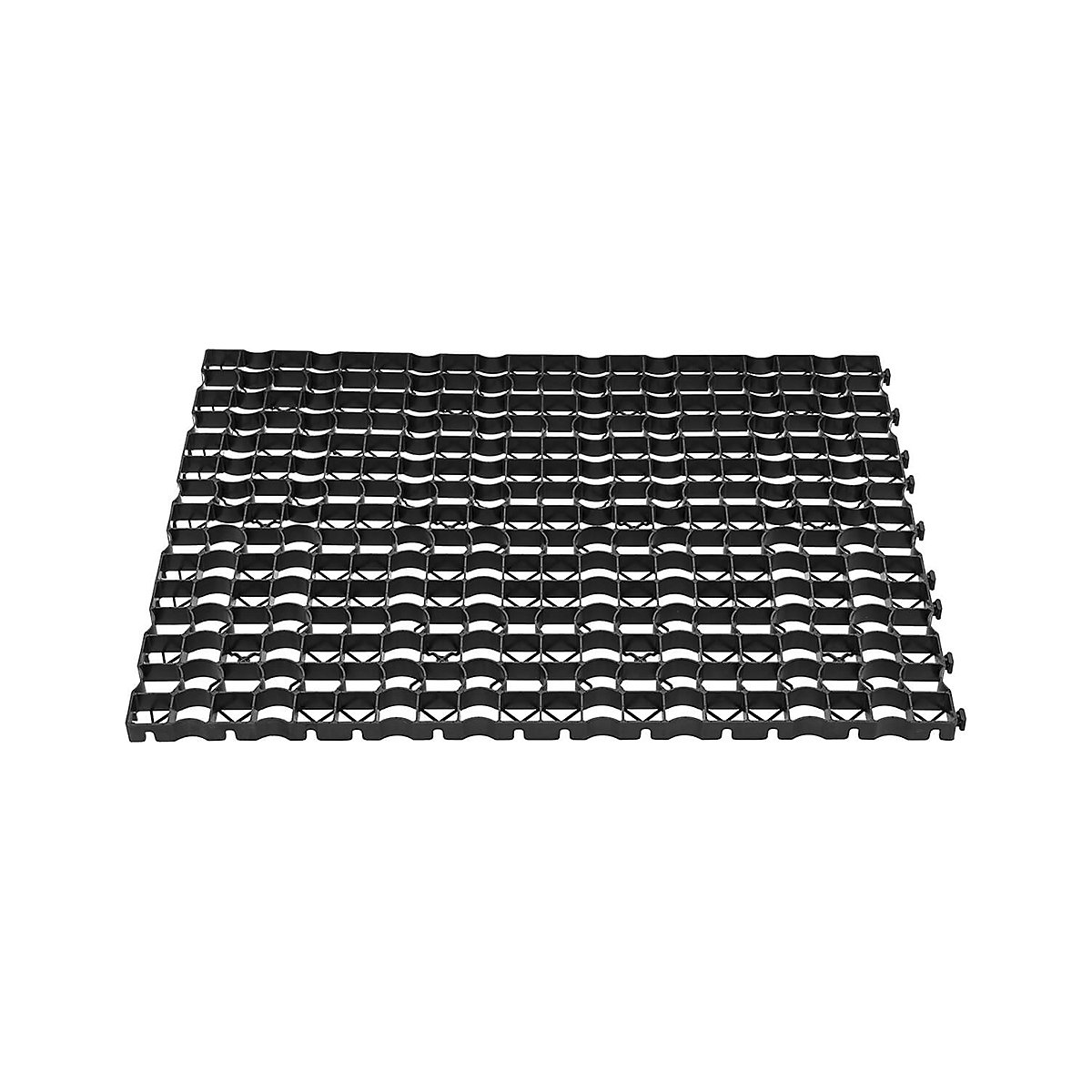

EcoGrid E40 XXL Universal Ground Reinforcement Tiles | 1 Metre Square Tile | 40h x 1000w x 1330d mm | Black

EcoGrid E40 XXL Universal Ground Reinforcement Tiles
NEW PRODUCT
Delivery time: 2-3 Working Days
Product description

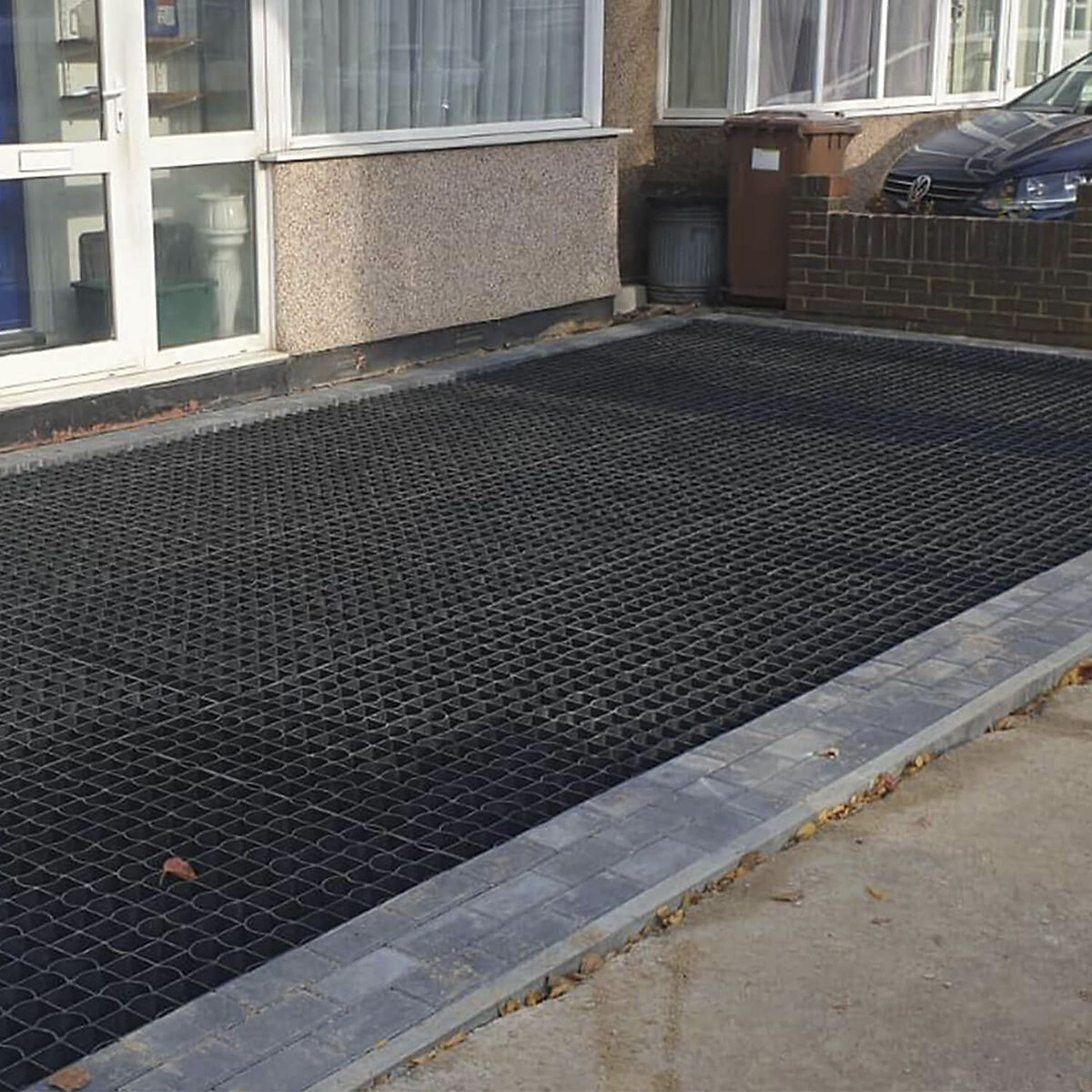

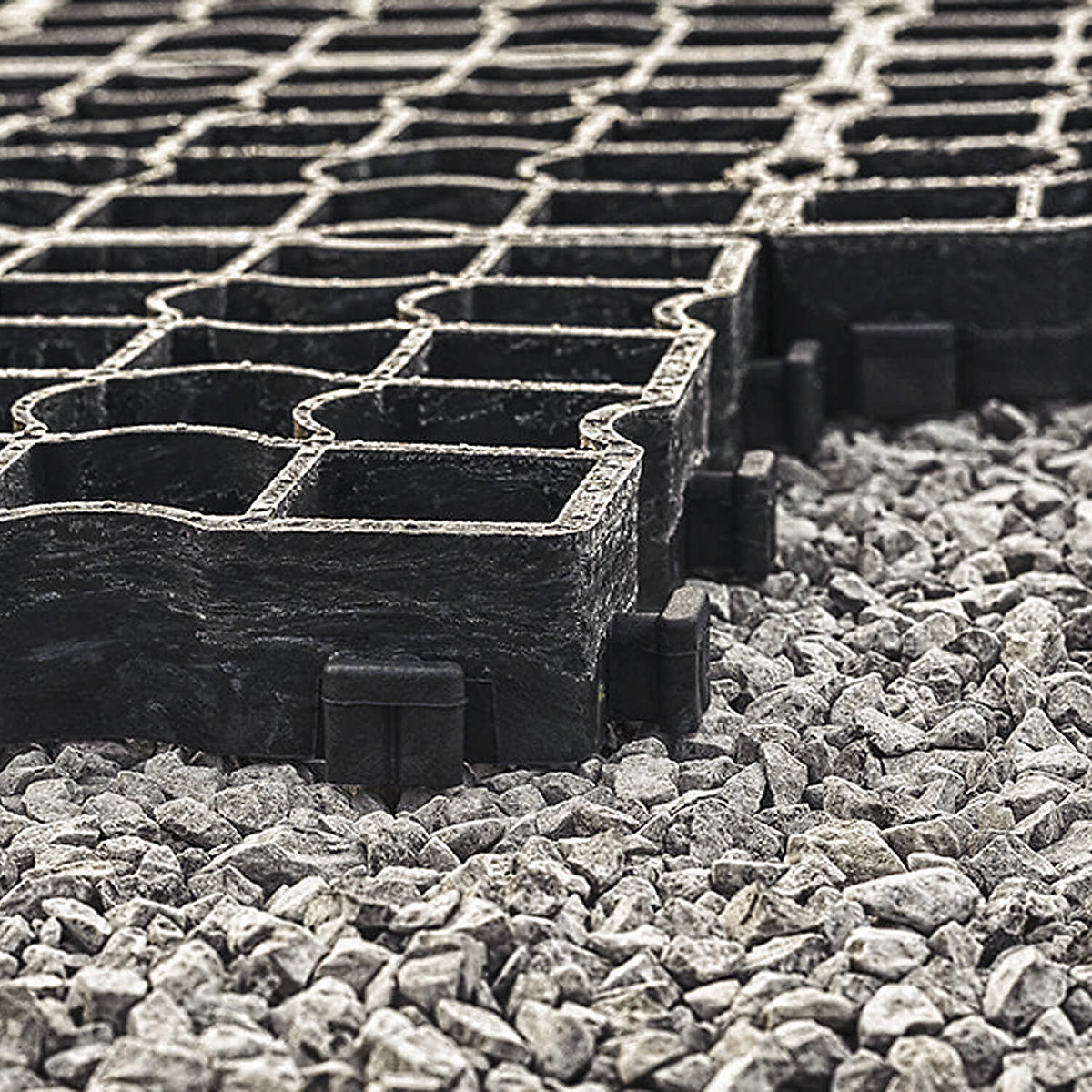

The EcoGrid E40 XXL has the same functionality as the EcoGrid E40 and it is recommended for resin installs with less joins. An all-rounder for a multitude of low to medium load bearing applications including landscape construction, gravel & grass car parking areas and garden office bases. Grids feature a unique patented locking system to ensure that they remain locked together even under the most demanding conditions.

  • Tile dimensions: 1000 x 1330 x 40mm
  • Supplied as a single tile
  • Carrying Load: Up to 800 t/sqm gravel infilled
  • Manufactured from 100% recycled polyethylene
  • Resistant to acids, alkalis, alcohols and petrol (de-icing salt etc)
  • 20-year guarantee for long-term assurance and peace of mind

    • Ideal to reinforce the likes of the following:

    • Landscape Construction
    • Gravel Parking Systems
    • Grassed Parking Systems
    • Garden Office Bases
    • Pedestrian Walkways
    • Construction Sites
    • Tree Root Protection
    • Animal Compounds

    Specifications

    Technical Specifications
    Dimensions 1m x 1.33m x 4cm
    Wall Thickness 3mm
    Carrying Load Up to 800 t/sqm gravel infilled
    Weight (sqm) 4.8kg
    Weight (pce) 6.35kg
    Wall Height 4cm
    Material 100% Recycled Polyethylene
    Pressure Resistance Up to 20t Axle Load (DIN 1072)
    Dimensional Stability Temp Range -50° to +90°
    Deformation 0.5% (at normal temp as above)
    Moisture Absorption 0.01%
    Solubility Resistant to Acids, Alkalis, Alcohols and Petrol (De-Icing Salt etc)

    Please Note: Tiles are priced 1 metre squared

    Please note: this product is made to order and therefore cannot be cancelled once ordered. As these items are made specifically to your request, they are also excluded from our returns policy unless damaged or faulty. Please contact our friendly sales team should you need further help or advice before ordering: 0333 200 5299.

    ‌
    ‌
    ‌
    ‌
    ‌
