Code: LODMSLT1

Double Manual Scissor Lift Table 500w x 830l mm Platform and 435-1415 mm Lift Height 150kg Capacity 91kg Weight

(1)
Double Manual Scissor Lift Tables
Capacity
Delivery time: 4-5 Working Days
Product description

A safe and versatile  lifting aid in industrial, workshop, and warehouse environments, the Double Manual Scissor Lift Table is designed to reduce strain and improve safety. Each manual double-scissor lift table features a dual-scissor mechanism, enabling a greater maximum lift height compared to single scissor models. With a lift range from 295mm to 1620mm, and load capacities ranging from 150kg to 800kg (model-dependent), this versatile table adapts to a variety of lifting needs.

  • Double, manually operated scissor lift table
  • Accurate height adjustment
  • Overload valve
  • 2x total stop brakes
  • Footpump-operated hydraulic platform

Double Scissor Lift Table

  • Maintains height even when not in use
  • Hand lever to release/lower platform
  • Polyurethane swivel wheels maximise manoeuvrability and prevent damage to flooring
  • Lift height between 295 and 1620mm
  • Epoxy powder-coated red finish

Specifications

Stock Code: Capacity: Platform Size: Lift Height:

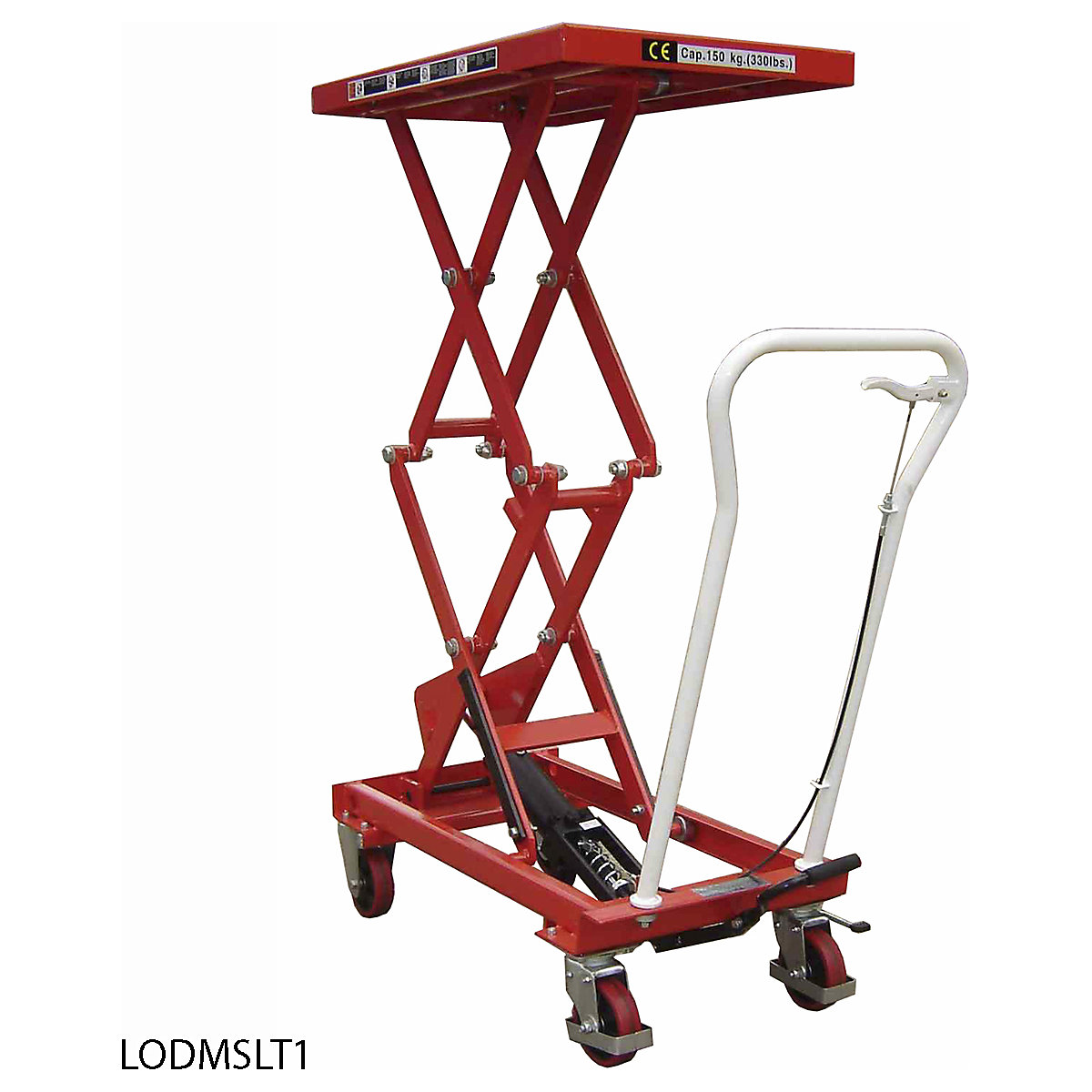

LODMSLT1 150kg 500w x 830l mm 435-1415 mm

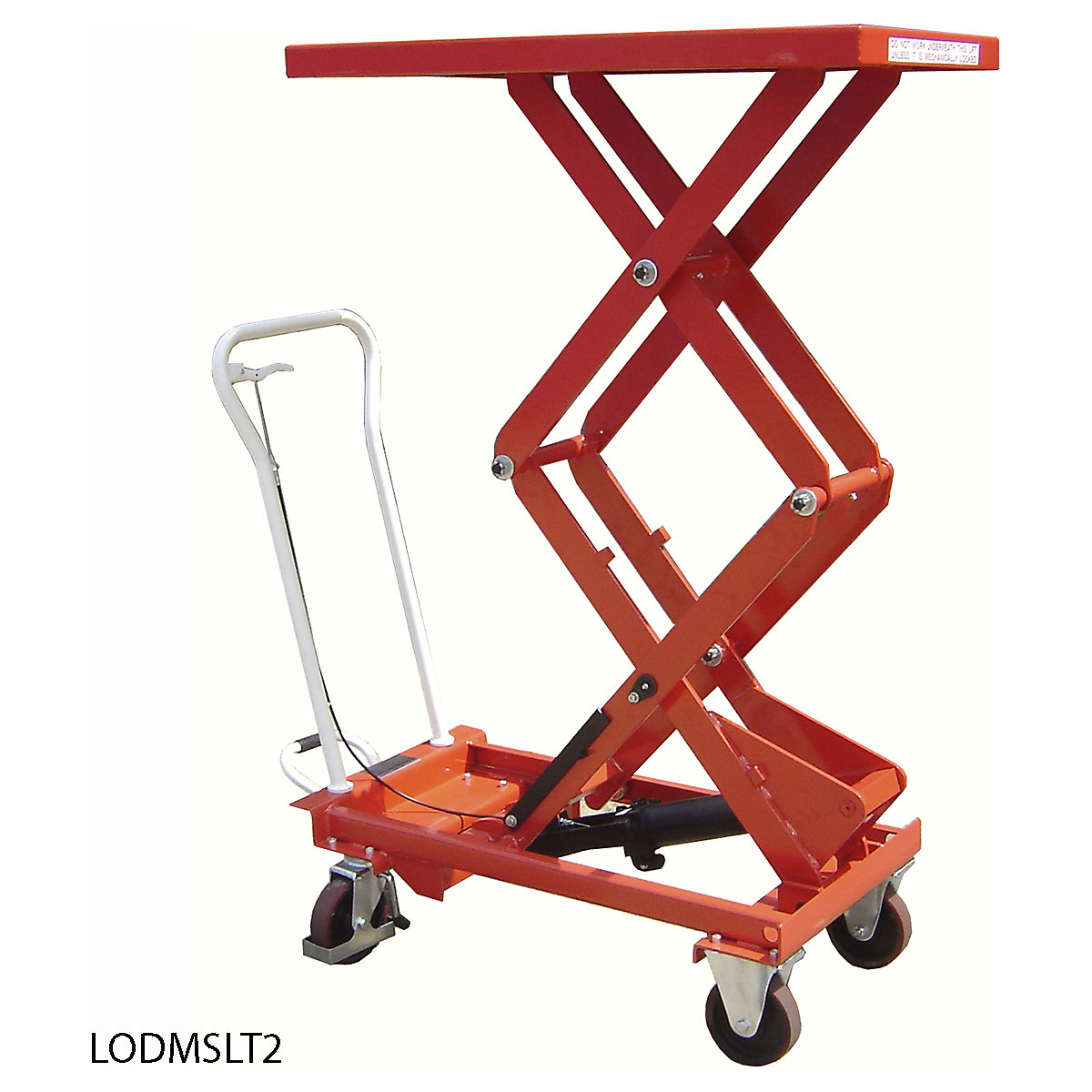

LODMSLT2 300kg 520w x 1010l mm 435-1620 mm

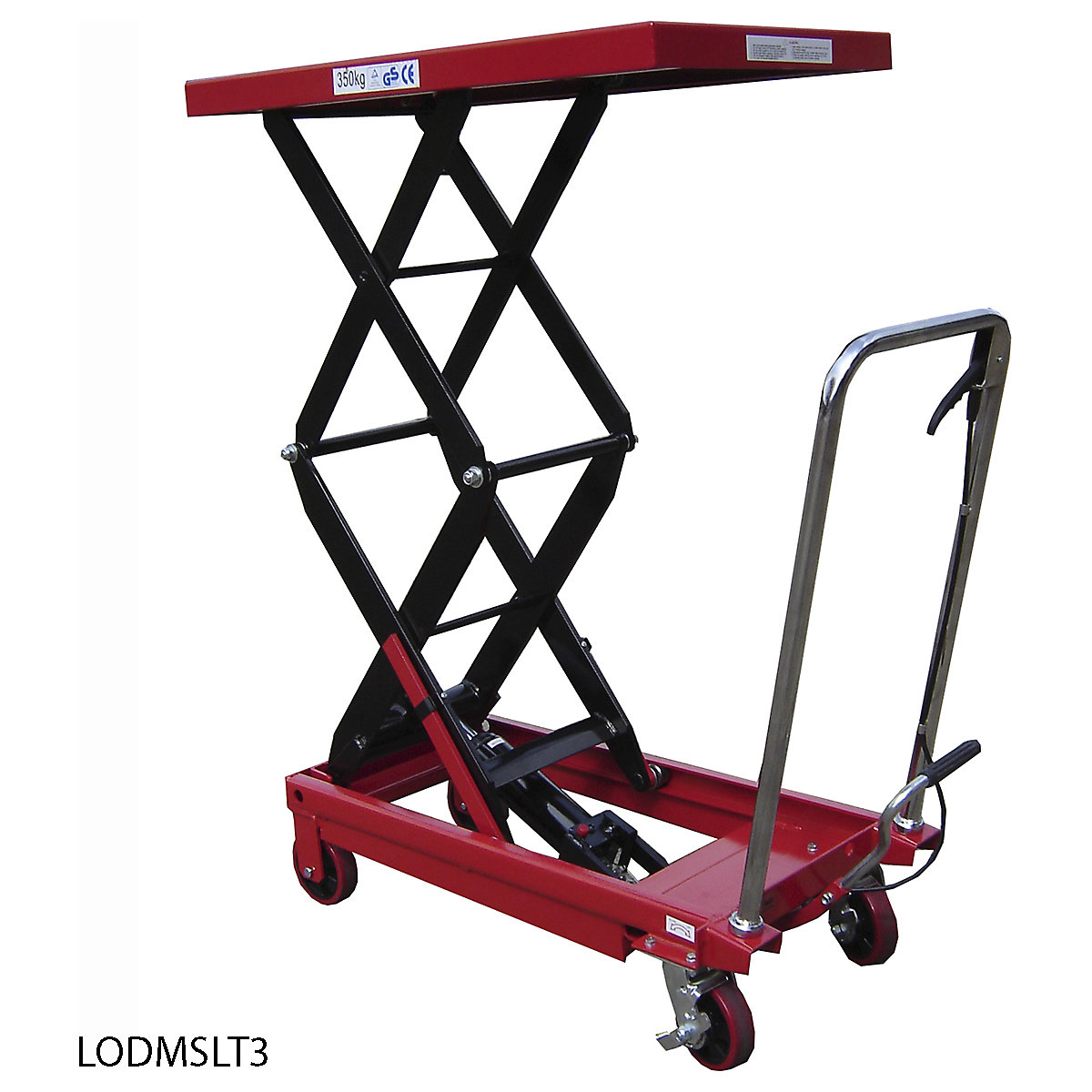

LODMSLT3 350kg 500w x 910l mm 350-1300 mm

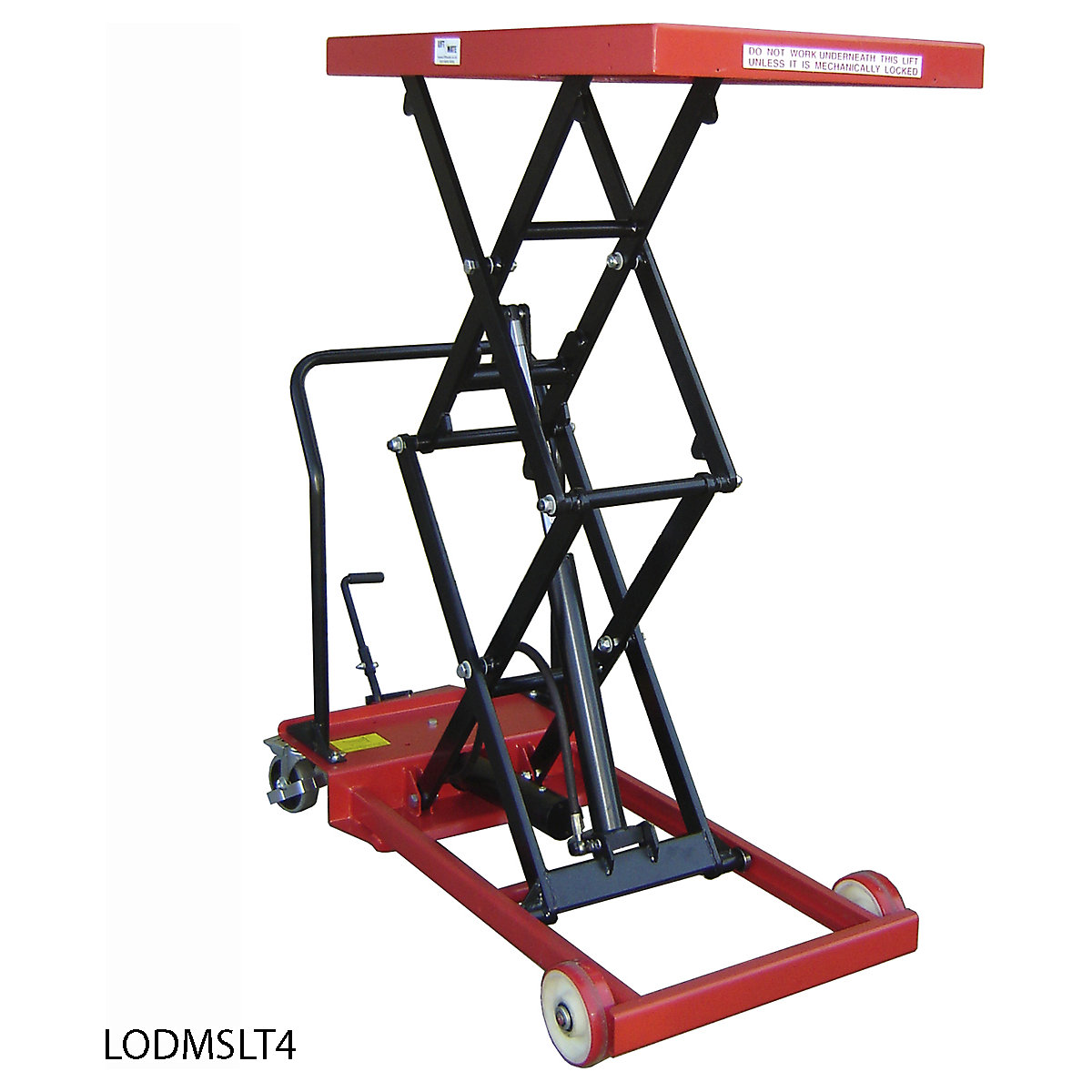

LODMSLT4 450kg 610w x 1030l mm 295-1555 mm

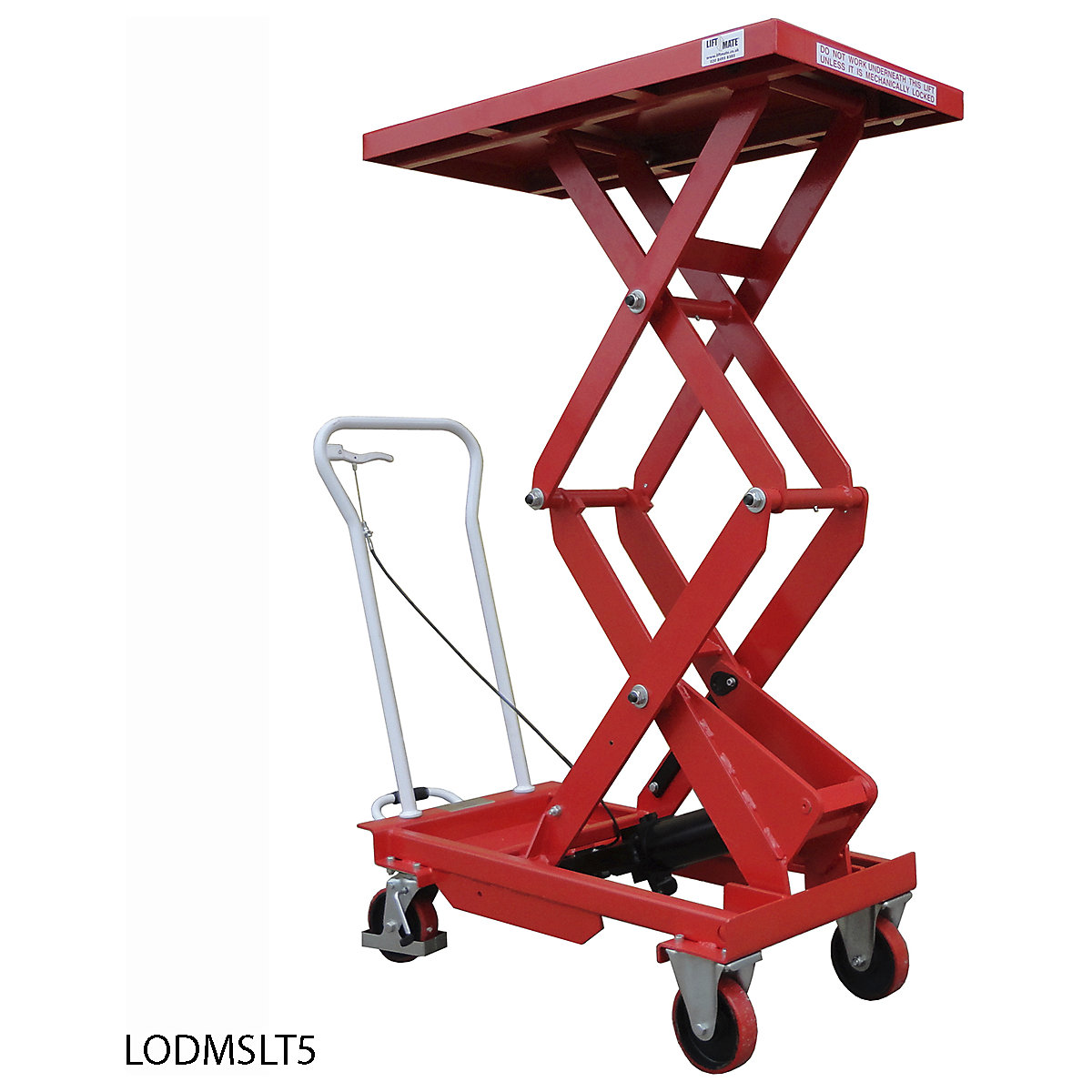

LODMSLT5 500kg 520w x 1010l mm 450-1550 mm

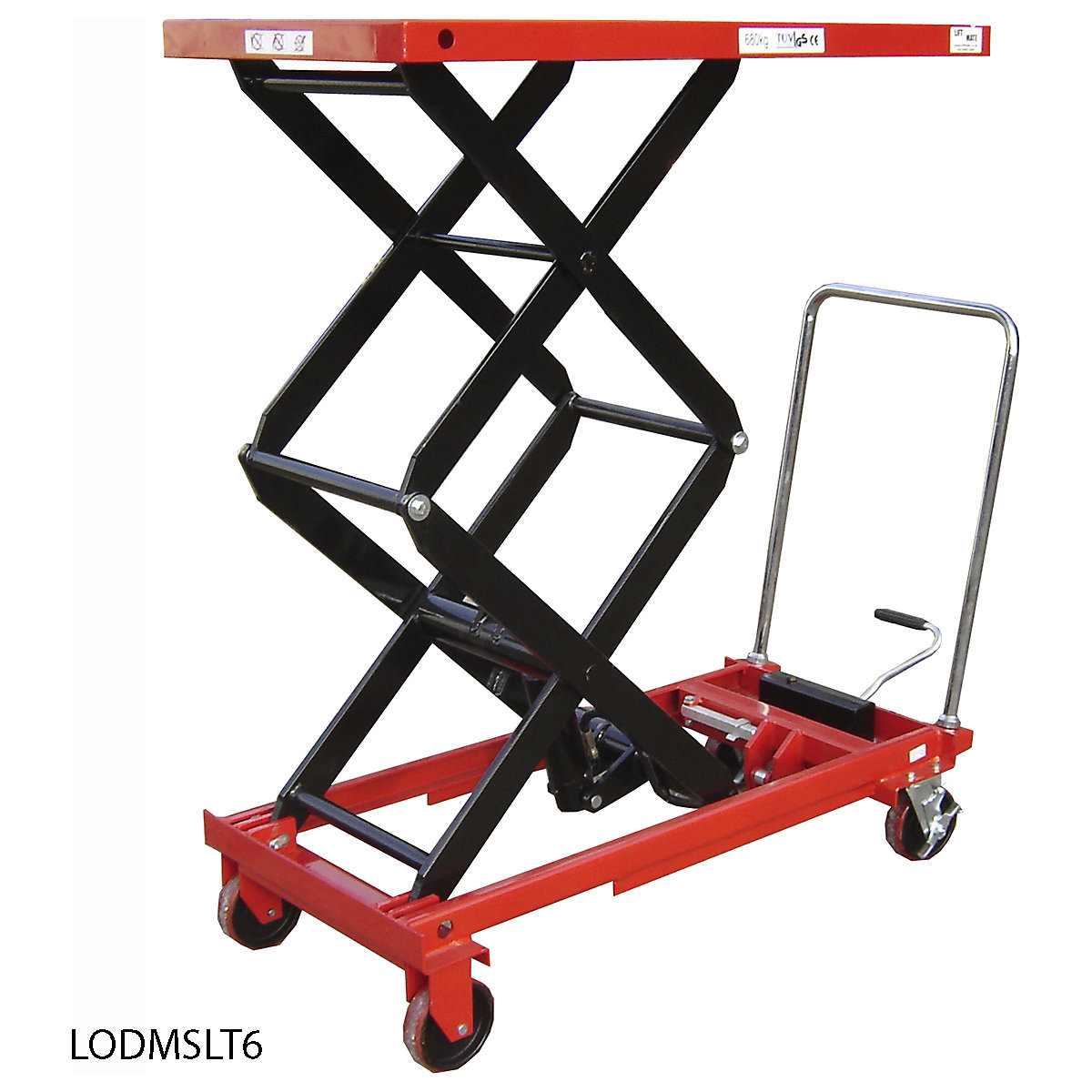

LODMSLT6 680kg 610w x 1210l mm 475-1510 mm

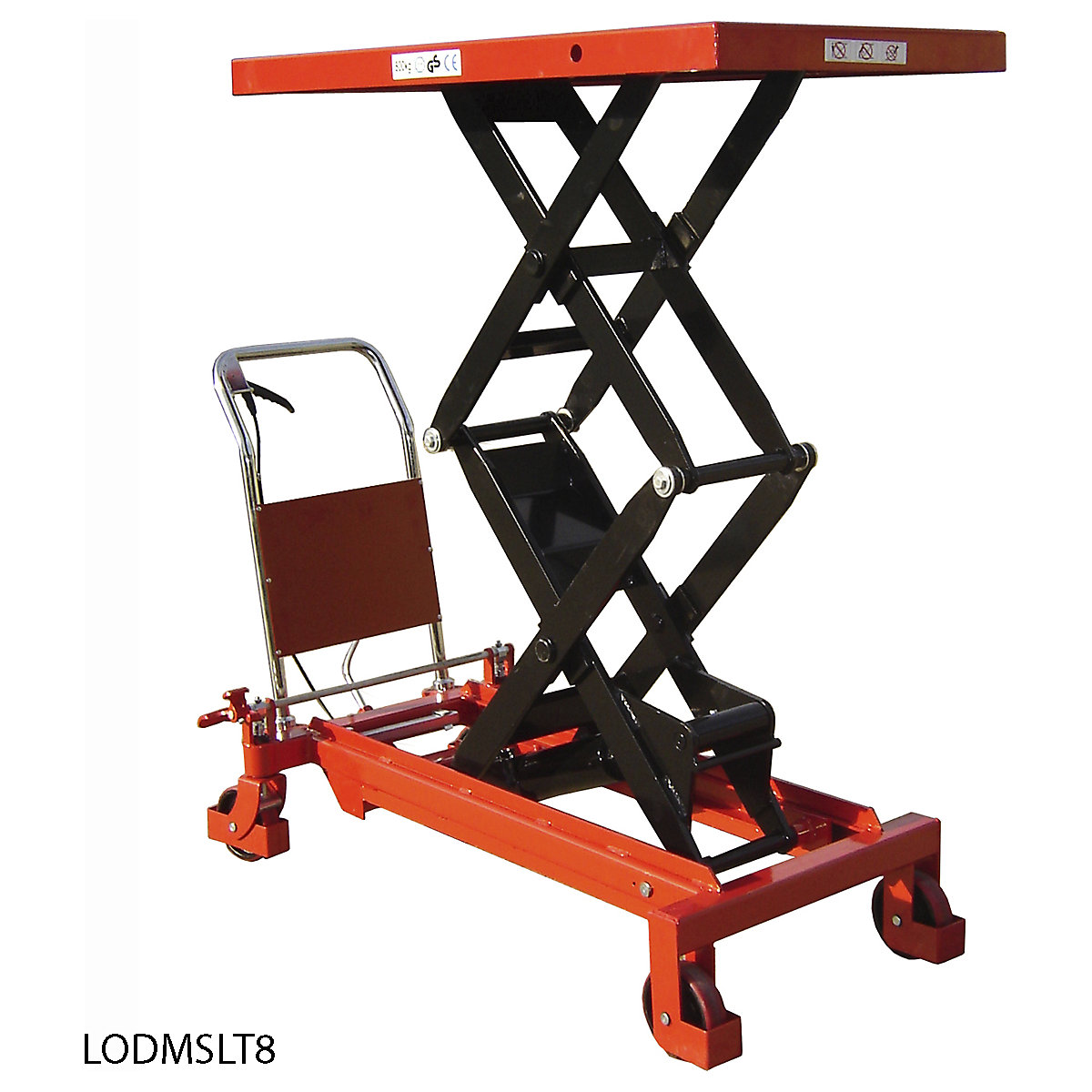

LODMSLT8 800kg 610w x 1220l mm 485-1500 mm

What’s The Difference Between A Single And Double Scissor Lift Table?

The key difference between a single and double scissor lift table is the height range they offer. A single scissor model typically has one set of lifting arms, making it suitable for lower lifting tasks. The manual double scissor lift table features two stacked lifting mechanisms, allowing for significantly higher elevation. This makes it ideal for tasks that require working at greater heights or transferring goods to and from taller platforms, conveyors, or shelving.

How Do Scissor Lift Tables Help Lifting Operations?

 Scissor lift tables improve lifting operations by reducing the need for manual bending, lifting, and awkward handling, which helps prevent workplace injuries and fatigue. They provide a stable and adjustable-height surface that allows users to lift heavy loads safely and ergonomically. By enabling more efficient material positioning, they also increase productivity and reduce the risk of damage to goods or strain on staff.

How Much Weight Can Double Scissor Lift Tables Carry?

This double scissor lift table has lifting capacities ranging from 150kg up to 800kg, depending on the size and model selected. Each table is clearly marked with its maximum load capacity and is equipped with an overload valve that prevents lifting beyond this limit. This wide capacity range ensures there’s a suitable option for light-duty, medium, or heavy-duty lifting applications, making the table adaptable to various settings.
