Code: CNCTC5924V18

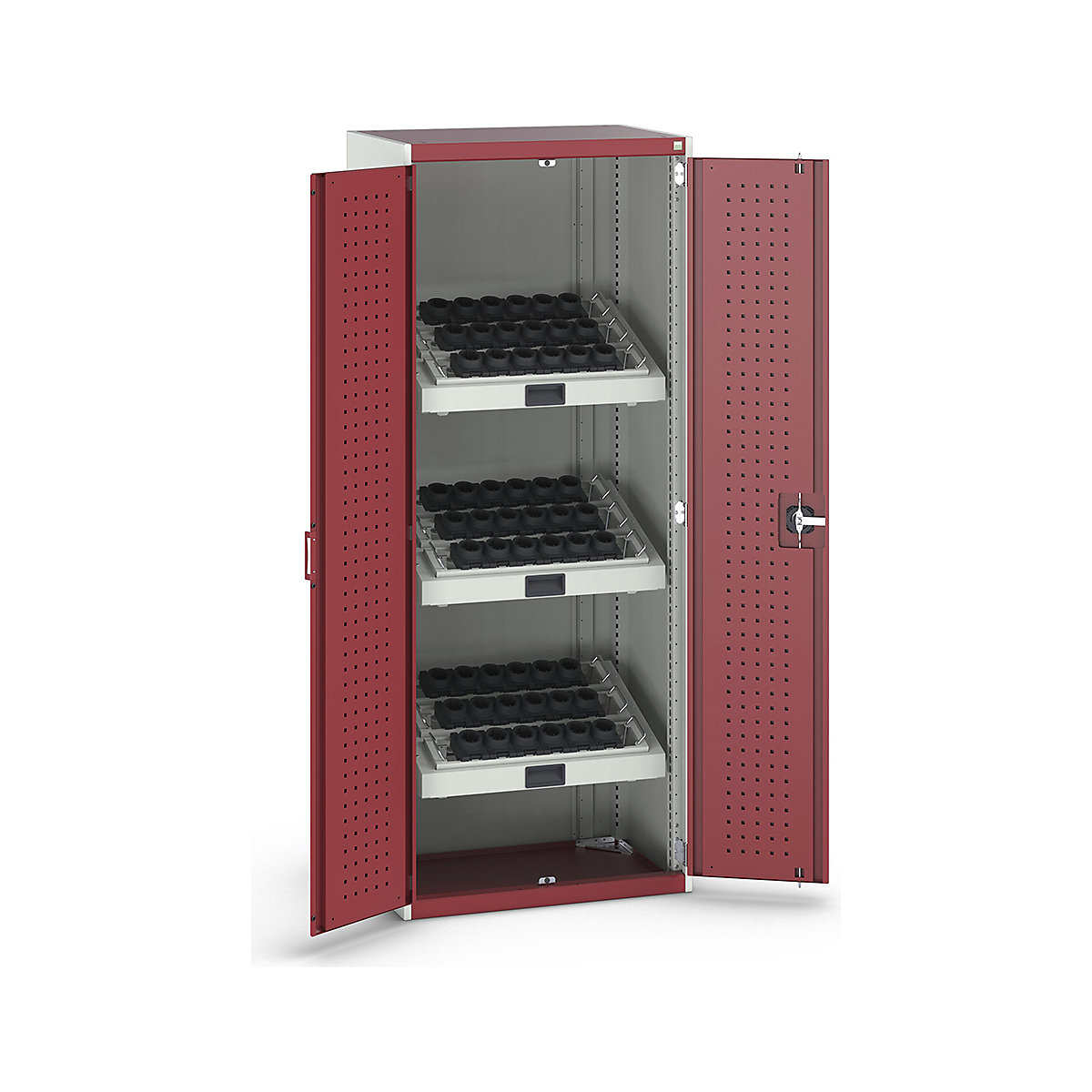

Bott Cubio CNC Cupboard with Perfo Doors | 2000h x 800w x 525d mm | Tool Carrier Kit | VDI 40 (27x) | Crimson Red Doors

Bott Cubio CNC Cupboard Kits | Louvre or Perfo Doors
Width [mm]
Type
Key Feature
Doors
Door Colours

Delivery time: 11-15 Working Days
Product description

Protect your CNC tools with Bott's secure cupboards featuring Perfo or Louvre lined doors.

  • Robust, heavy-duty steel construction built to withstand industrial environments
  • Up to 1500kg total load capacity for heavy-duty storage needs
  • Rigid, perfo/louvre panel-lined doors with 180-degree opening for easy access
  • Secure 3-point locking system for peace of mind
  • Protective powder-coated finish for enhanced durability
  • Protective powder-coated finish for enhanced durability
  • Customization available upon request: accessories (worktops, tray, mat), base options (plinth or forklift), and advanced locking systems (master, electronic)
  • Please Note: This product is made to order and therefore cannot be cancelled once ordered. As these items are made specifically to your request, they are also excluded from our returns policy unless damaged or faulty. Please contact our friendly sales team should you need further help or advice before ordering: 0333 200 5299.

    Tool Carrier Kits

    Specifications

    Tool Carrier Type     Total Tool Carriers         Total Tool Locations         Insert Diameter         Insert Width
    ISO 30 / BT30 / SK30 / Morse 3 9 36 28mm 50mm
    ISO 40 / BT40 9 27 41mm 75mm
    CNC1500206116 ISO 50 / BT50 2 67mm 100mm 4
    ISO 50 / BT50 9 18 67mm 100mm
    VDI 30 9 27 30mm 75mm
    VDI 40 9 27 40mm 75mm
    VDI 50 9 18 50mm 100mm
    HSK A63 / C63 / E63 / B80 9 27 48mm 75mm
    HSK A100 / C100 / E100 / F100 / B125 9 18 60mm 100mm

    Tool Insert Kits

    Specifications

    Insert Type     Total Tool Locations (500w / 1050w)         Insert Diameter         Insert Width
    HSK A40 / C40 / E40 / F40 / B50 108 / 144 28mm 50mm
    ISO 40 / BT40 / SK40 72 / 99 41mm 75mm
    ISO 45 / BT45 /SK45 / Morse 5 72 / 99 67mm 100mm
    VDI 50 / C80 / E80 / F80 / B100 54 / 72 30mm 75mm
    HSK A80 54 / 72 40mm 75mm
    Capto C4 108 / 144 50mm 100mm
‌
‌
‌
‌
