Code: BDIFTRBK

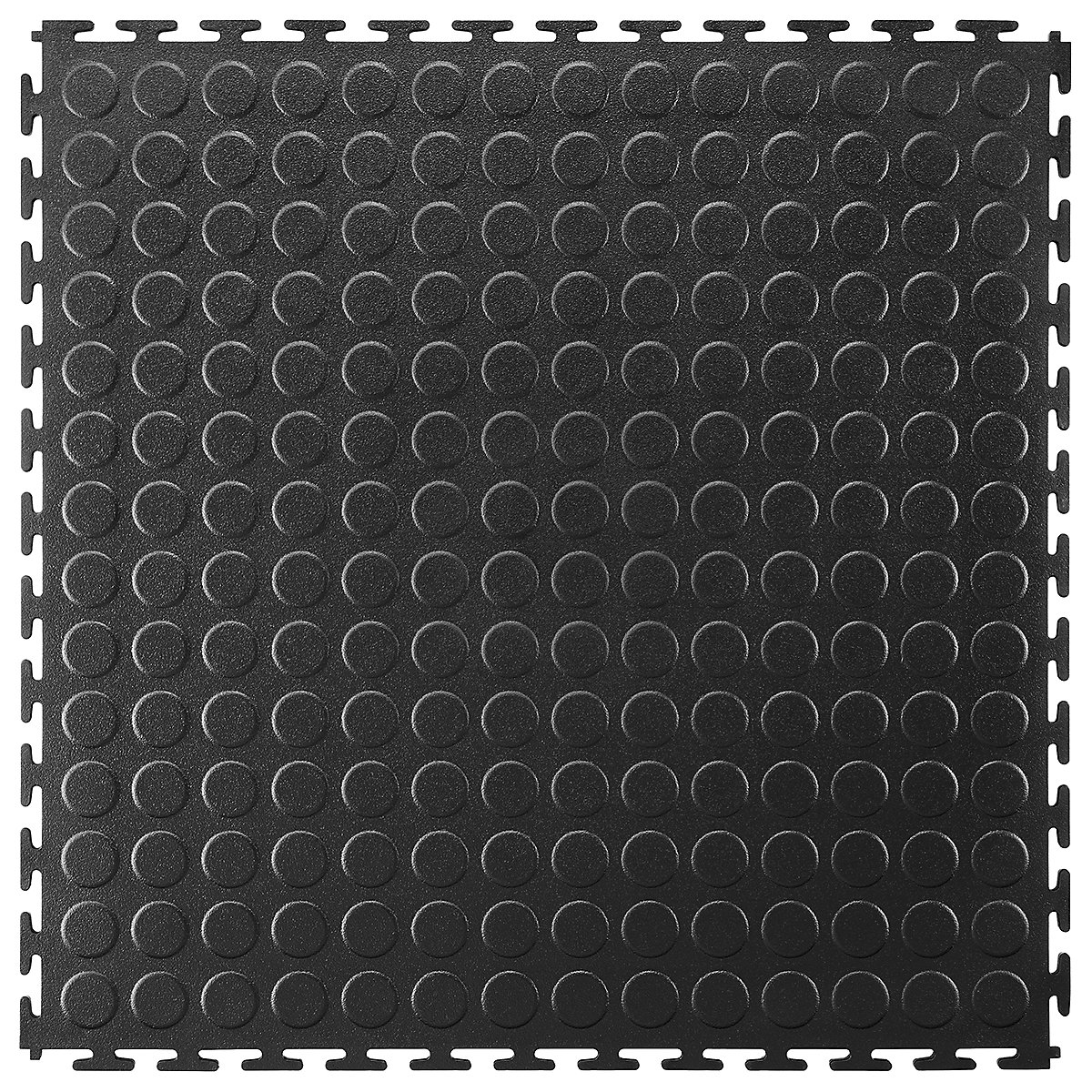

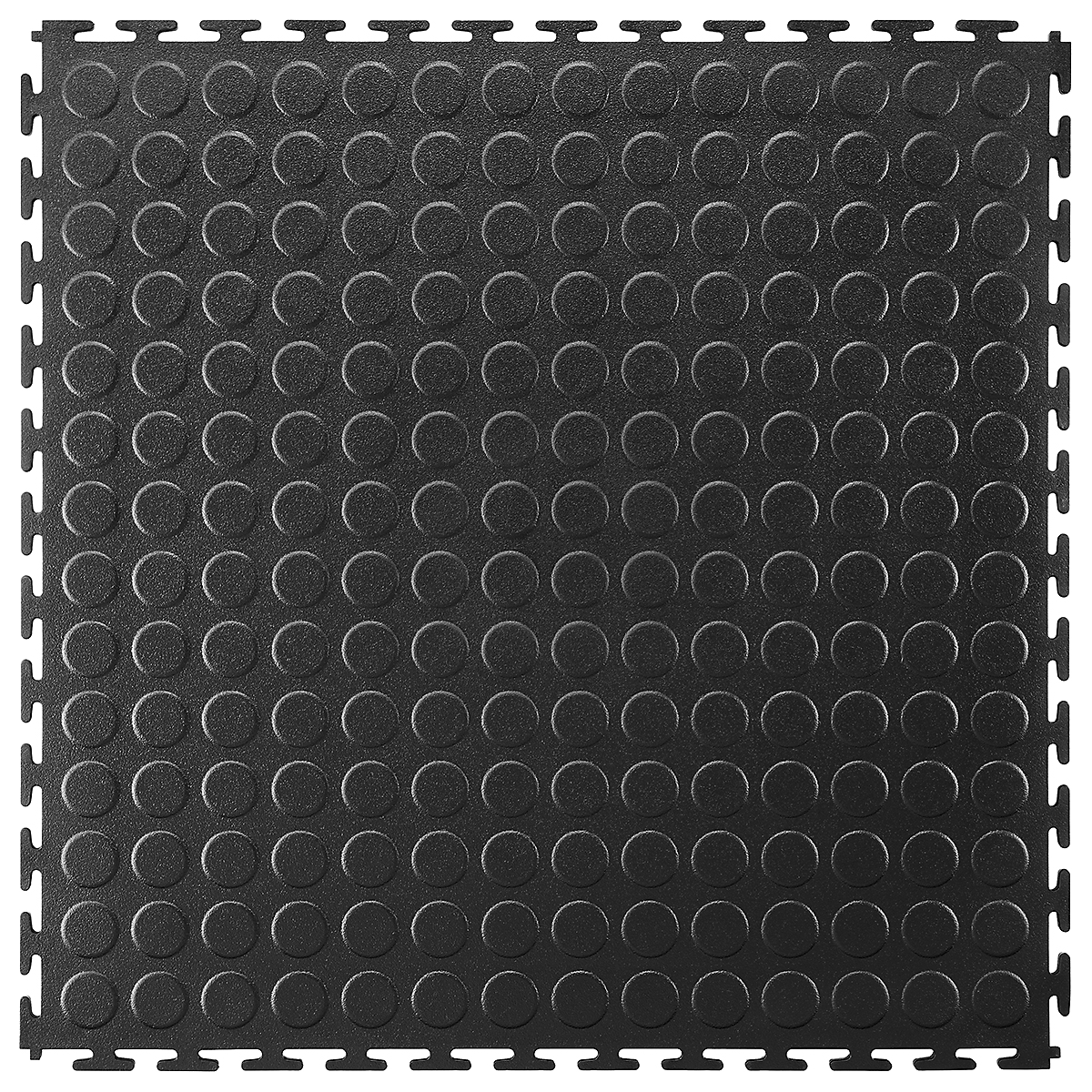

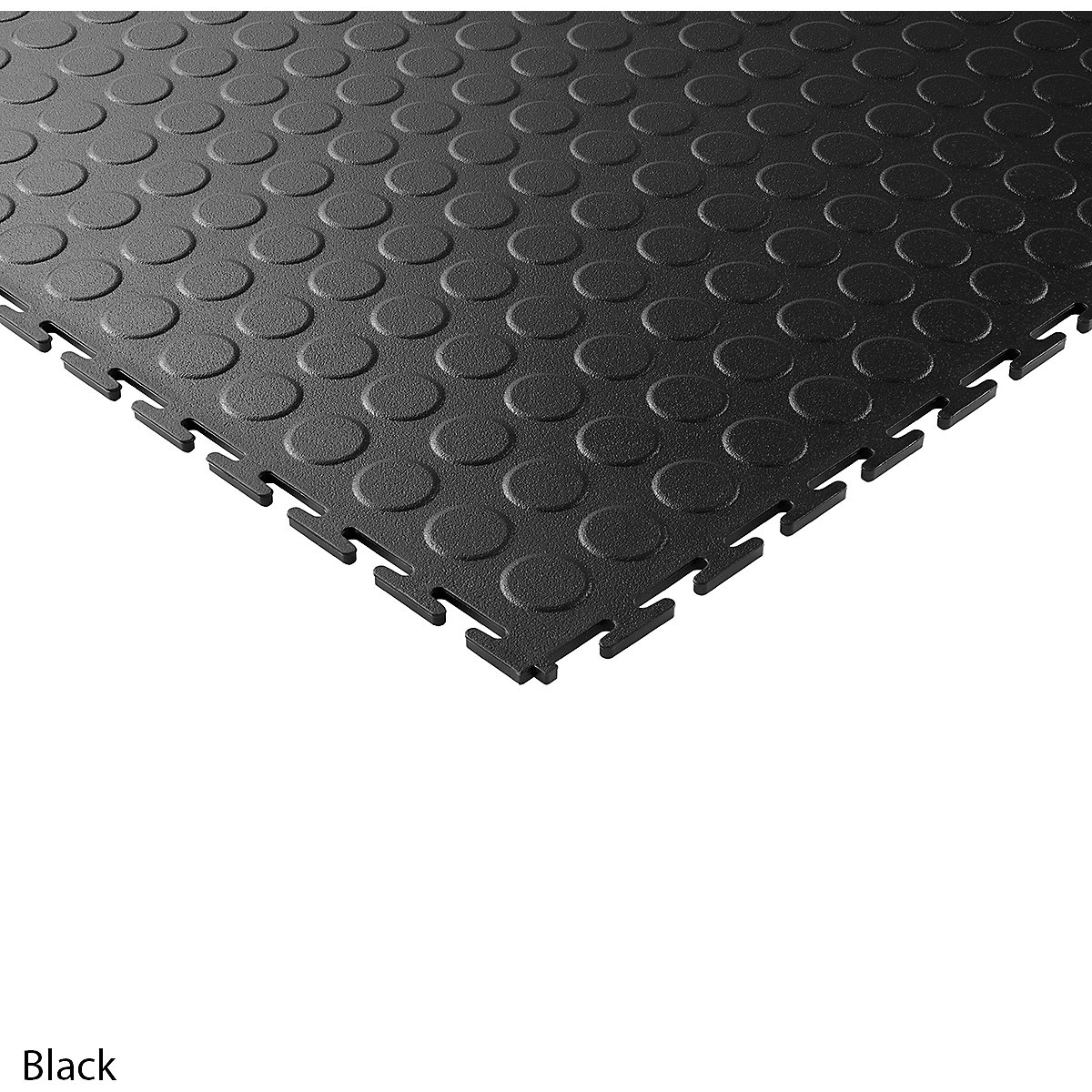

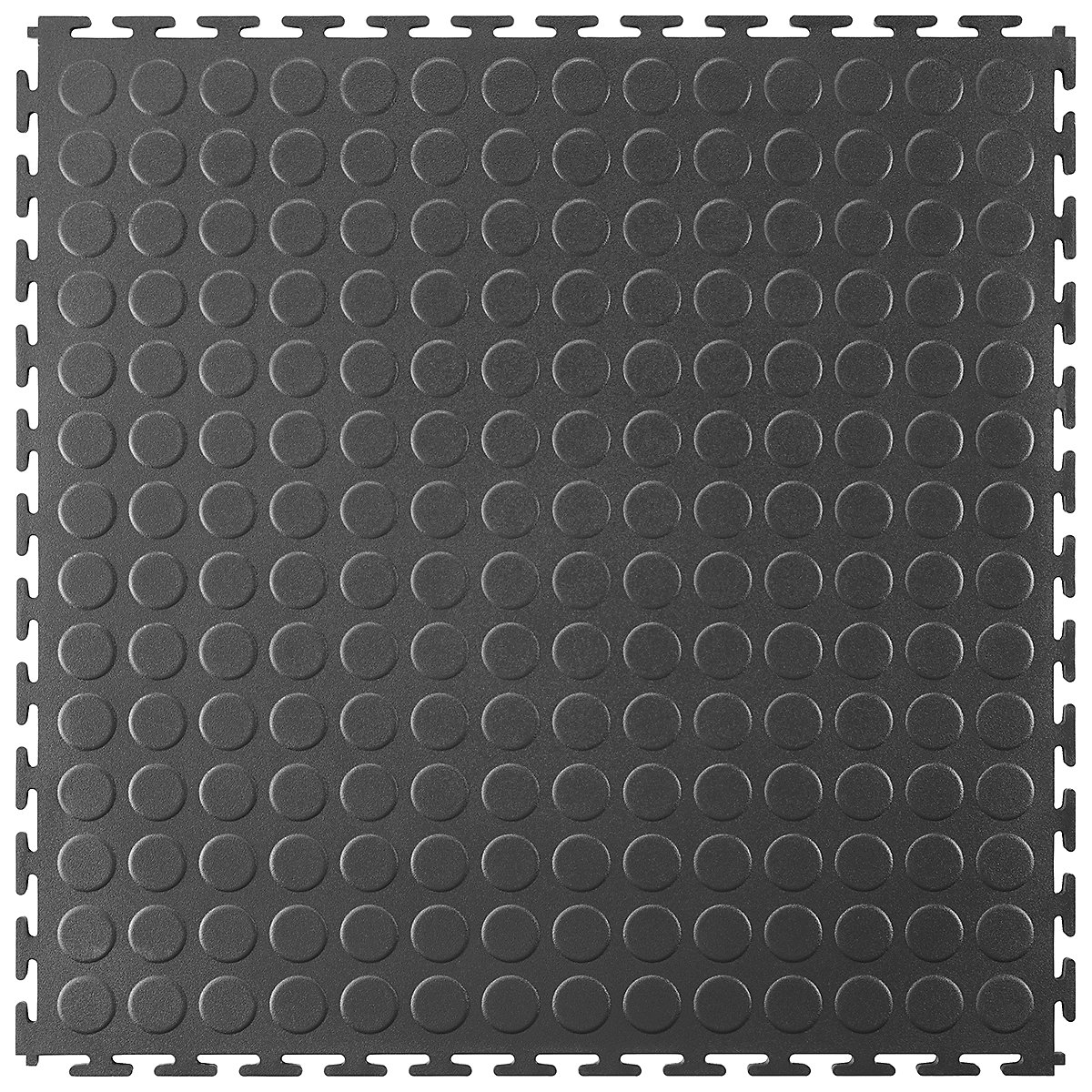

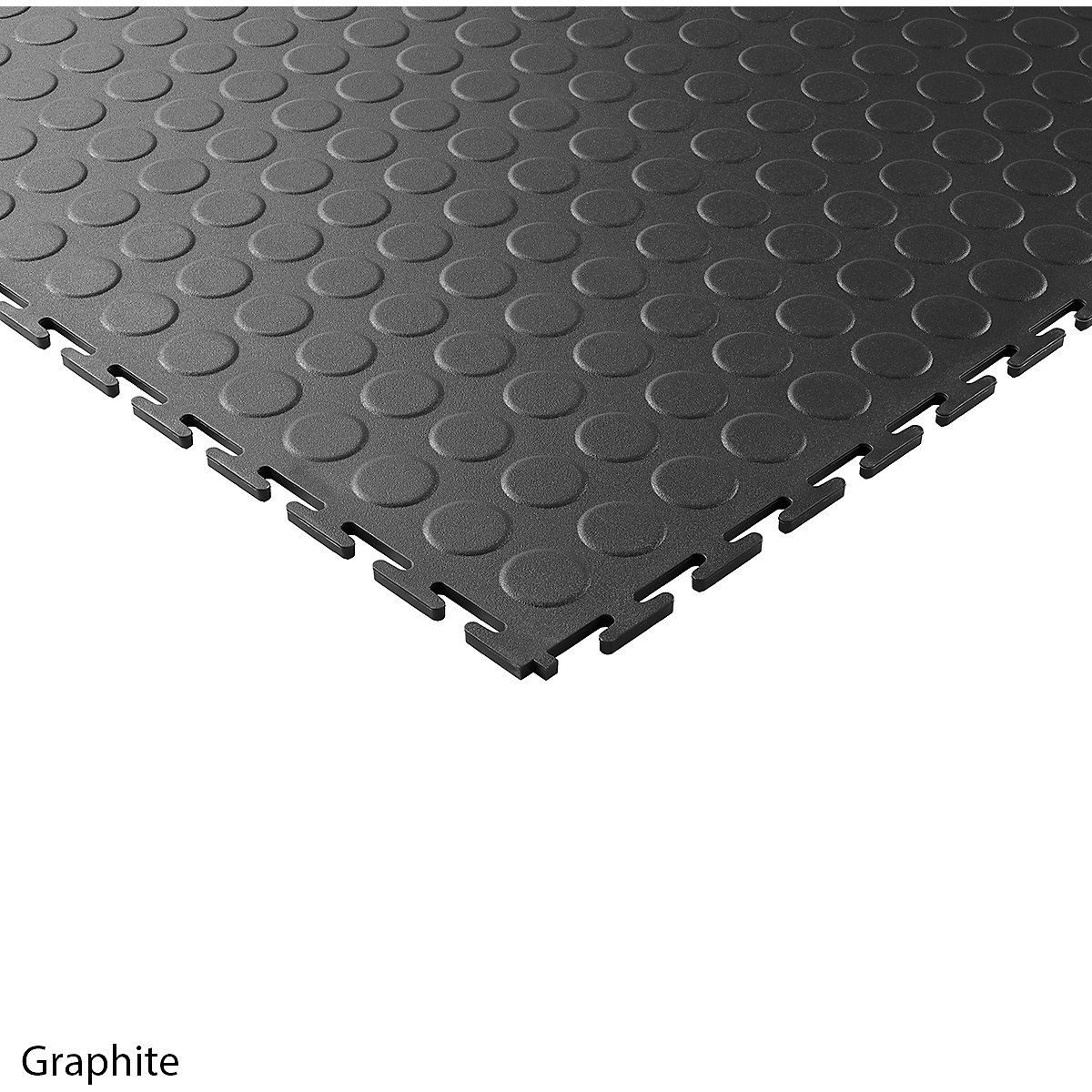

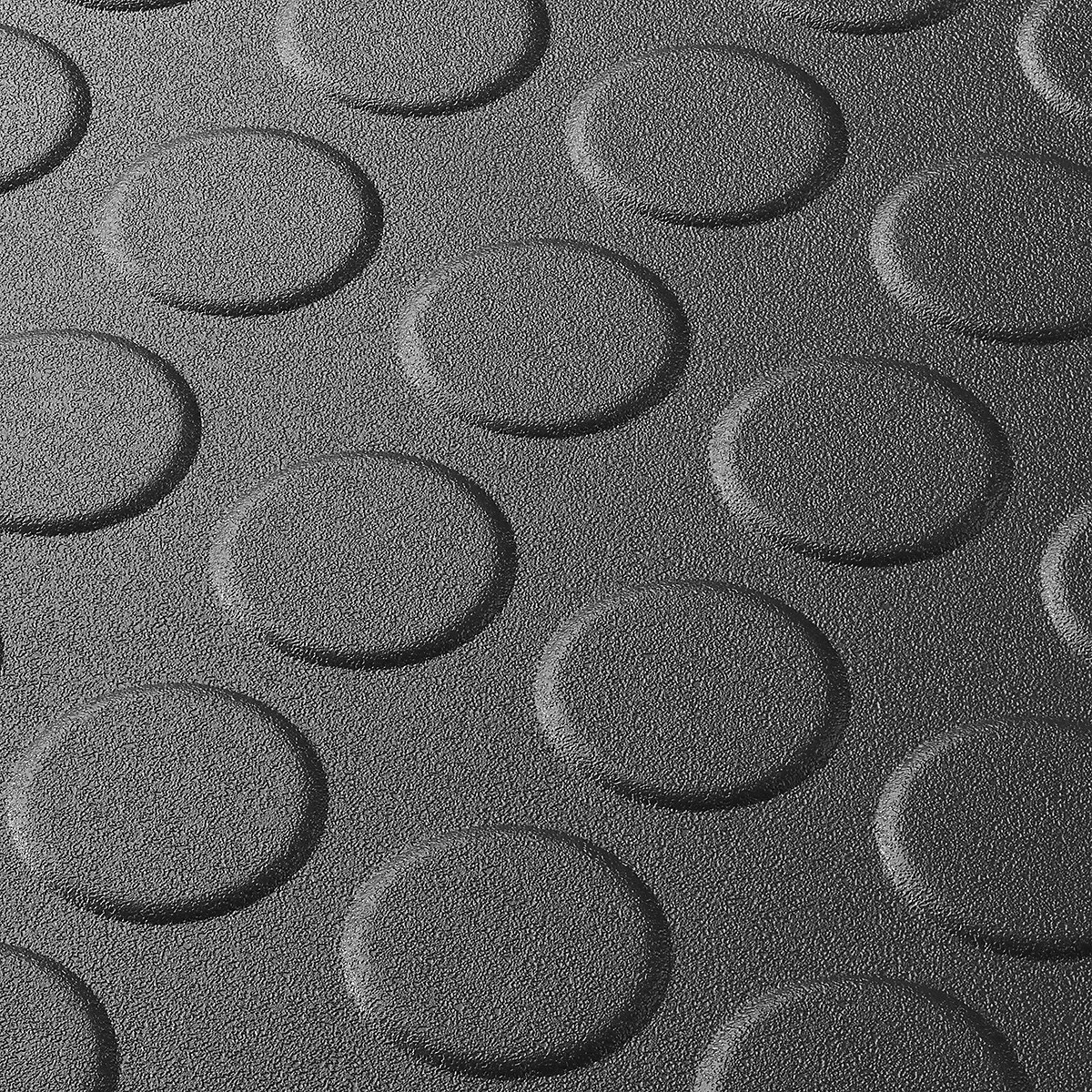

BiGDUG Industrial Floor Tile | Raised Disc | 7h x 500w x 500d mm | Pack of 4 | Black

BiGDUG Industrial Floor Tiles | Raised Disc
Colour
Delivery time: 4-5 Working Days
Product description

BiGDUG’s Industrial Floor Tiles offer a durable and practical flooring solution for heavy-duty workspaces. They install quickly over existing floors without adhesives, reducing downtime and disruption. Resistant to chemicals, fire, and impact, these heavy-duty industrial floor tiles are perfect for demanding environments and provide long-lasting protection for your subfloors while enhancing safety and appearance.

  • Ideal for industrial or commercial environments, including factories, warehouses, garages, gyms and offices
  • Designed to be installed directly over existing hard floor surfaces
  • Ideal for damp, dusty or contaminated floors
  • Protects subfloors from wear and damage
  • Install without disruption or downtime
  • Smooth PVC Surface
  • Tiles tightly lock together without the need for adhesives (unless exposed to a heat source like direct sunlight)
  • Anti-slip and resistant to fire, chemicals and impacts
  • Movable & Reusable
  • Suitable for heavy vehicle use

Specifications

Specifications BiGDUG Industrial Floor Tile | Rasied Disc
Dimentions (mm) 500 x 500
Thickness (mm) 7.6 +/- 0.3
Weight (kg) 9.1/m²
Guarantee 10 Years
Anticipated Service Life 25 Years +
Material PVC
Joint Dovetail
Pack Size 4 Tiles
Slip Resistance EN 14041:2004 & DIN 51130:2004 - Pass R10
Fire Performance BS 476: Part 7 DIN 13501: 2004 - Class 1 Spread of Flame Bfl-S1 Does not support combustion
Stain Resistance EN 423 - Good
Abrasion Wear Resistance EN 13845 & EN 649 - 50K Cycles Group T
Mechanical Resistance DIN 53516 - 17N/mm²
Resistance to Hot Objects/Solder Good
Thickness of Wear Layer EN 429 - 6 to 10mm
Hardness ISO 868 - 89-92 Shore A
Impact Resistance EN 13329-549 - 549kg/cm²
Noise Reduction EN 140-8 - >46db
Thermal Insulation 1.1 m²K/W
Determination of Length, Squareness & Straightness BS EN 428:1993 - < 0.13% / 0.5mm max.
Chemical Resistance EN 13529 - Good resistance to most commonly used chemicals. Common acid oils & gas oil - No deterioration / Solvents - Not resistant to prolonged contact
Colour Fastness EN 50105-BO21 - 5

What Makes These Floor Tiles Suitable For Industrial Use?

BiGDUG’s floor tiles are manufactured from high-grade PVC that stands up to harsh industrial conditions. Their strength allows them to support heavy vehicles and machinery without cracking or shifting. The anti-slip surface improves workplace safety, and its resistance to fire, chemicals, oil, and abrasions means it lasts even under constant pressure.

Where Can Heavy-Duty Industrial Floor Tiles Be Used?

These heavy-duty industrial floor tiles are suitable for a wide range of environments, such as commercial garages, gyms, workshops, retail spaces, and offices, where durability and ease of cleaning are important. Their smooth, professional appearance also makes them great for public-facing areas. Thanks to their resistance to water and contaminants, they’re a great alternative to traditional flooring in damp or dusty settings.

Are These Floor Tiles Easy To Install?

Yes, our industrial  floor tiles are designed for simple, hassle-free installation. They interlock securely without adhesive, which means there’s no need for special tools or surface preparation. You can lay them directly over concrete, tiles, or uneven flooring. If your workspace layout changes, the tiles can be lifted and reused elsewhere.
