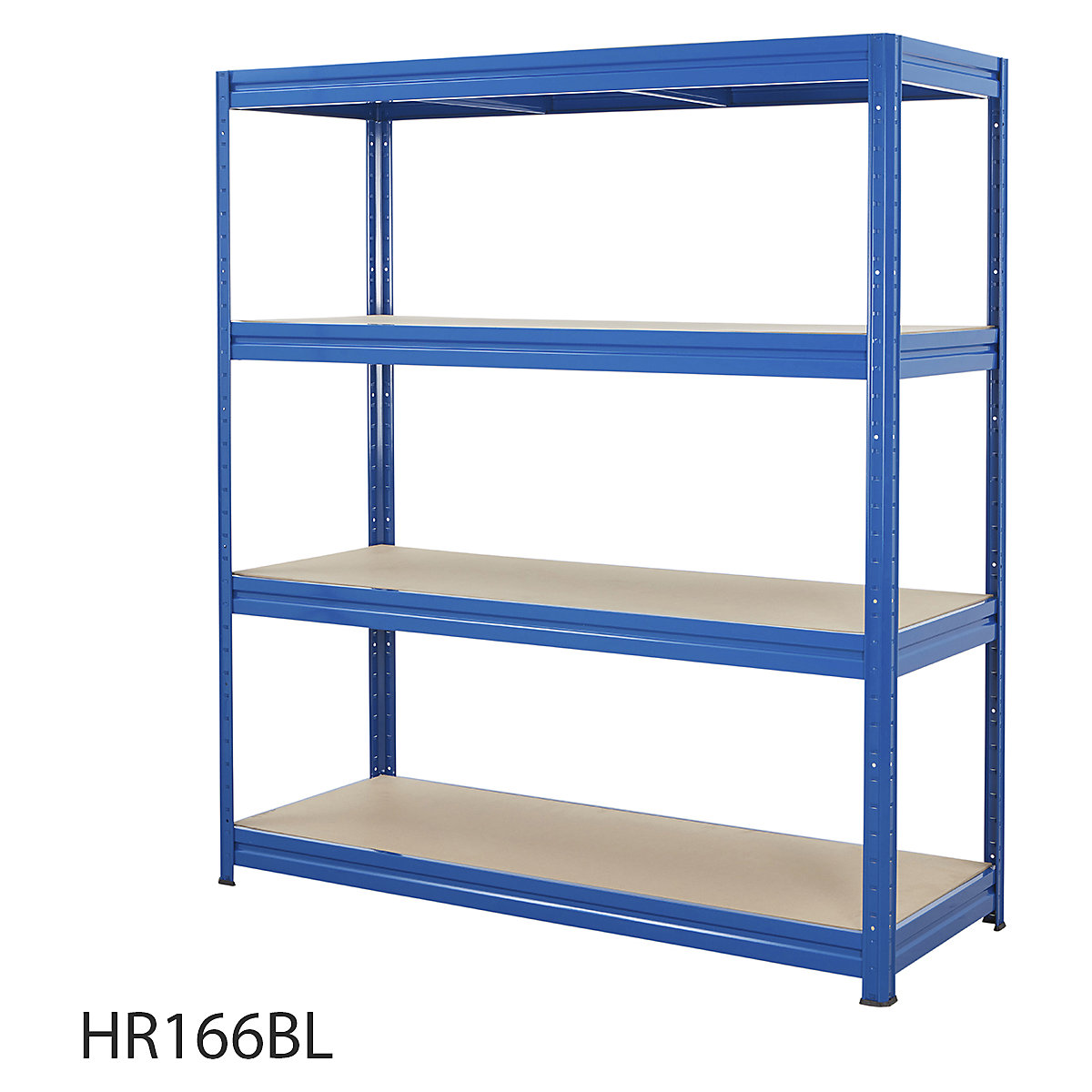

Code: HR166BL

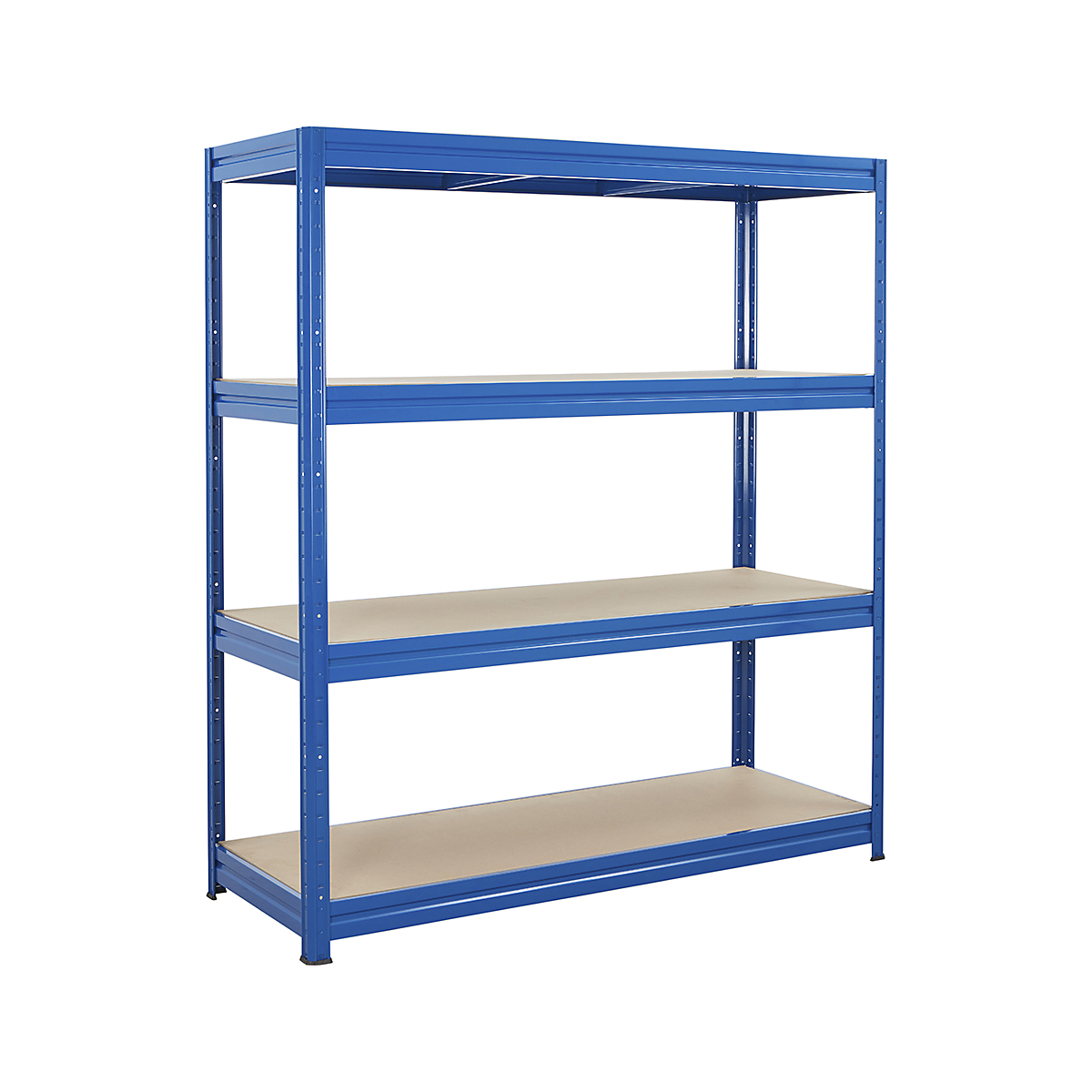

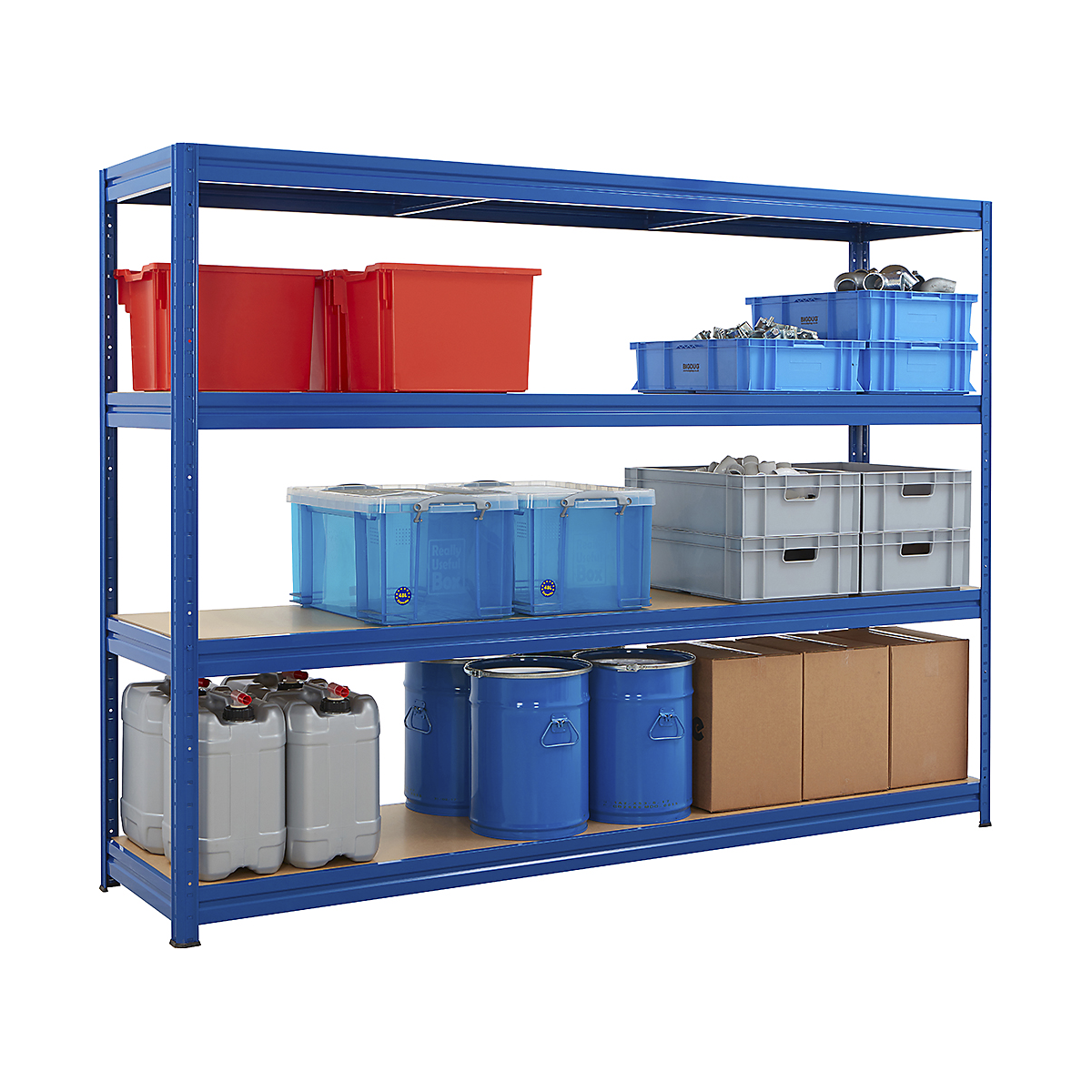

BiGDUG Essentials Longspan Shelving | 1770h x 1600w x 600d mm | Blue | 4 Levels | 600kg UDL

BiGDUG Essentials Longspan Shelving
Width [mm]
HALF PRICE PICK BINS
£165.00
£119.00
Price / pack (Excl. VAT)
Free delivery on orders over £1000 ex VAT / £1200 inc VAT
Delivery time: 2-3 Working Days
Order until 15:00 for next day delivery
Product description

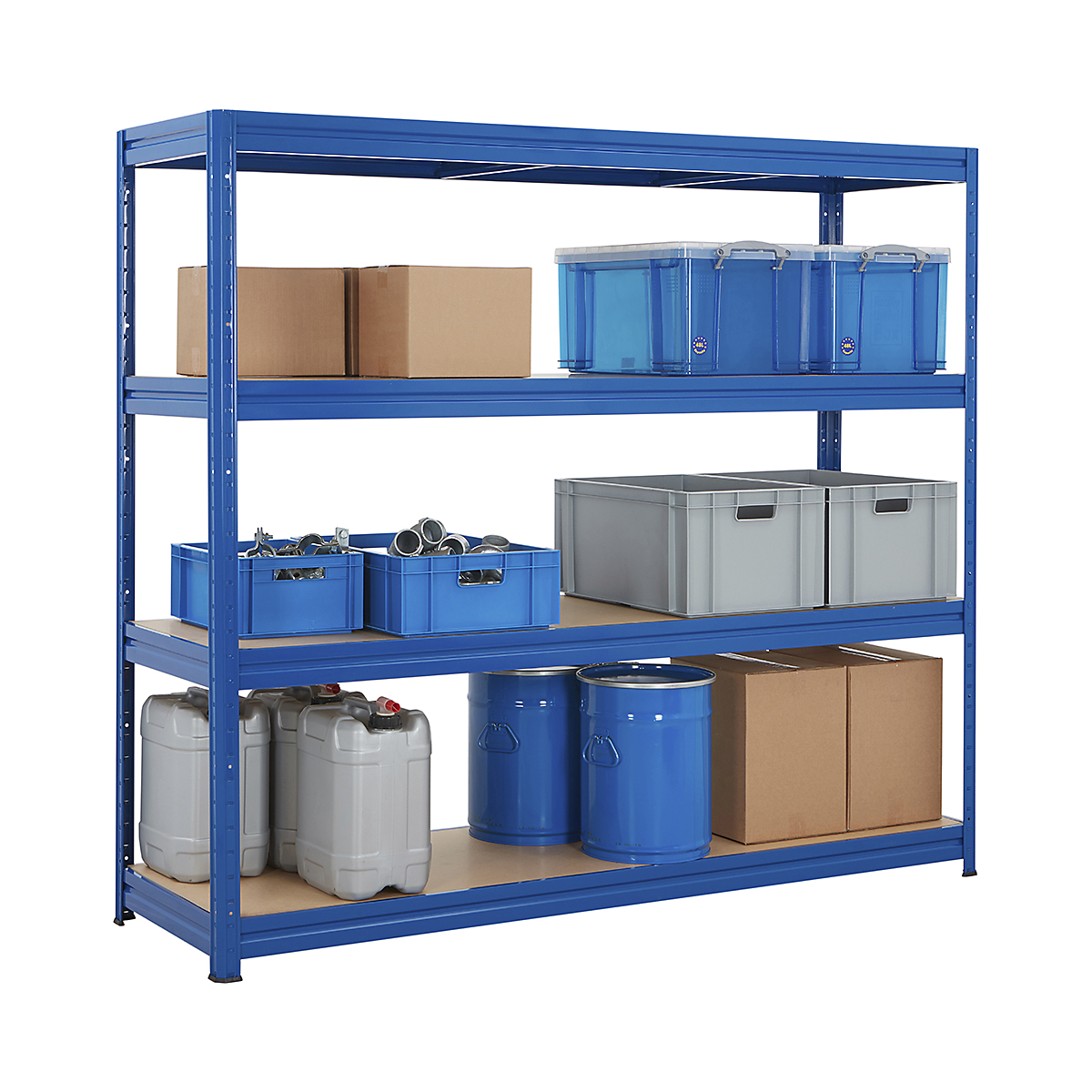

Maximum storage space with our BiGDUG Essentials Longspan Shelving. The ideal system for storage and picking in stockrooms and various industrial settings.

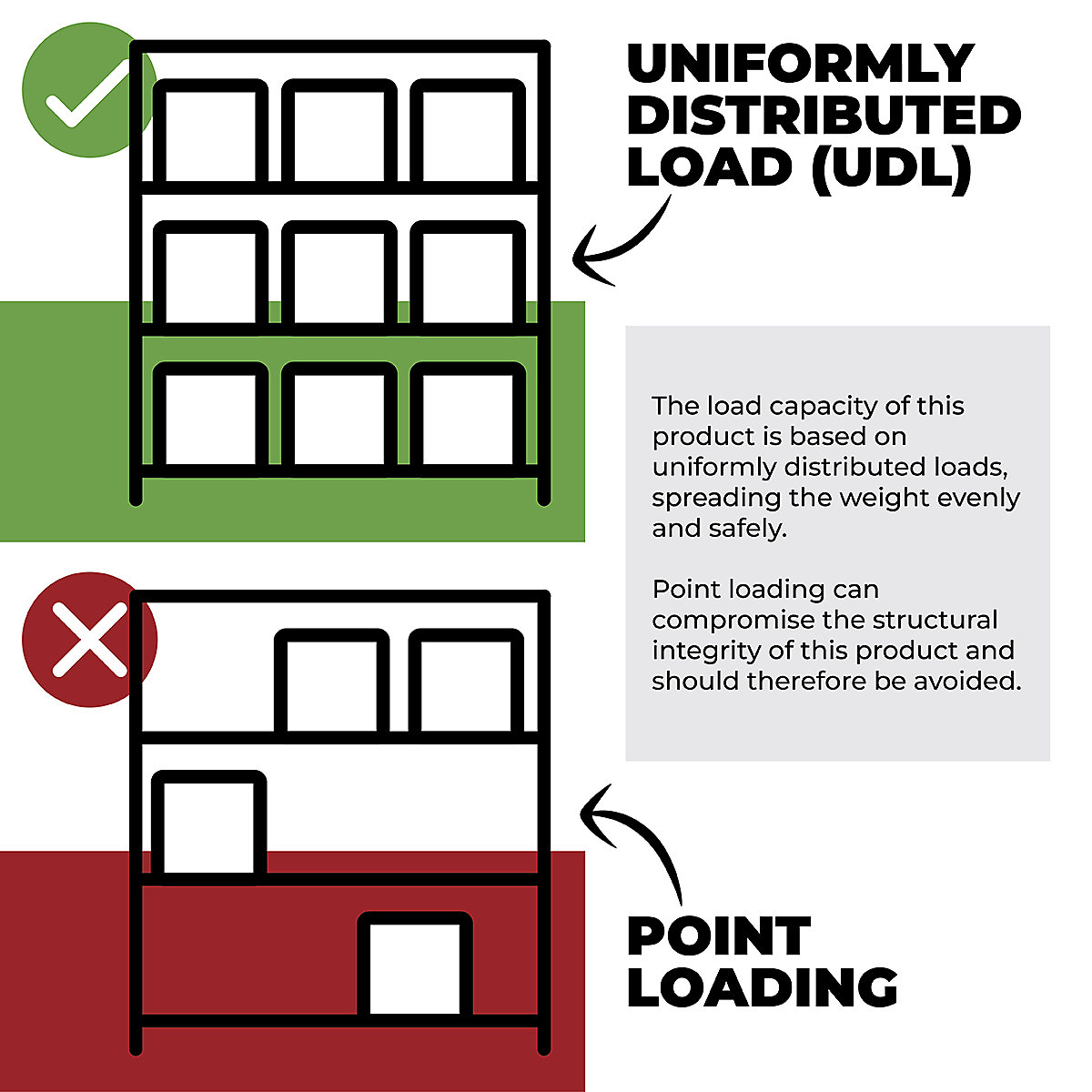

  • Load capacity of up to 600kg UDL* per shelf

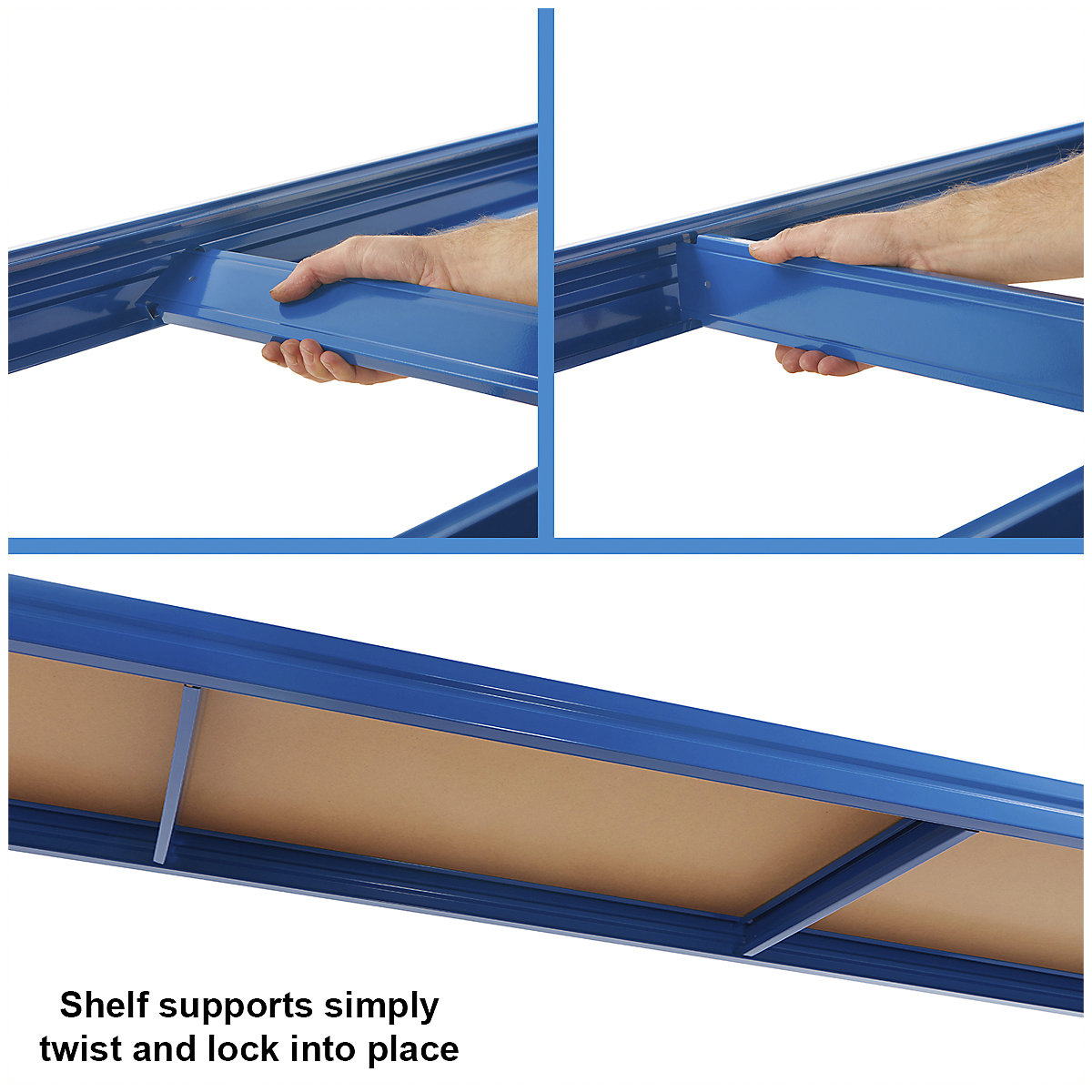

  • Fitted with 4 x adjustable MDF shelves and supports

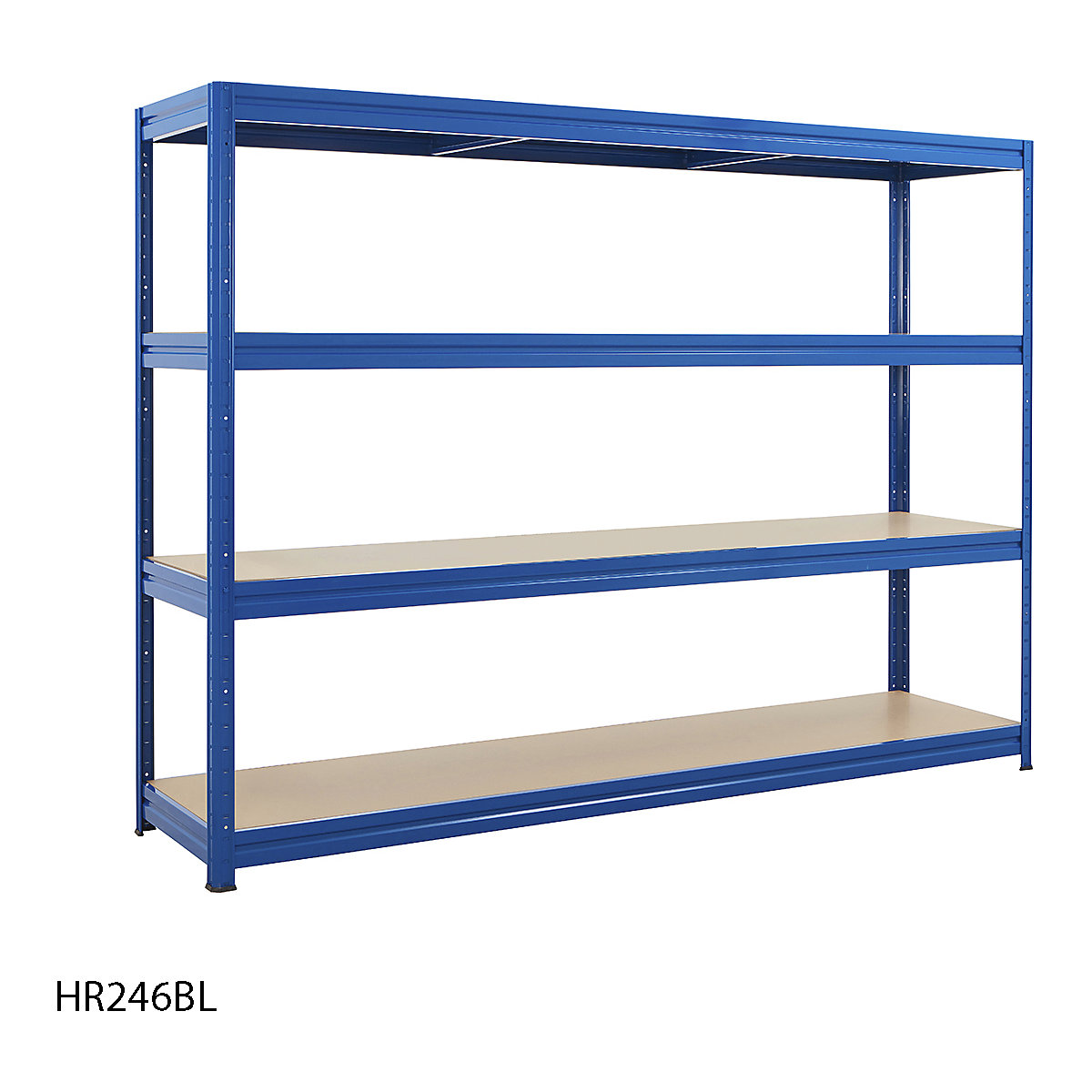

  • Available in widths up to 2.4m for greater storage capacity
  • Powder-coated European steel frame manufactured to ISO 9001 with a 5 year warranty
  • Double-sided access for easy picking
  • Adjustable levels can be raised or lowered every 50mm

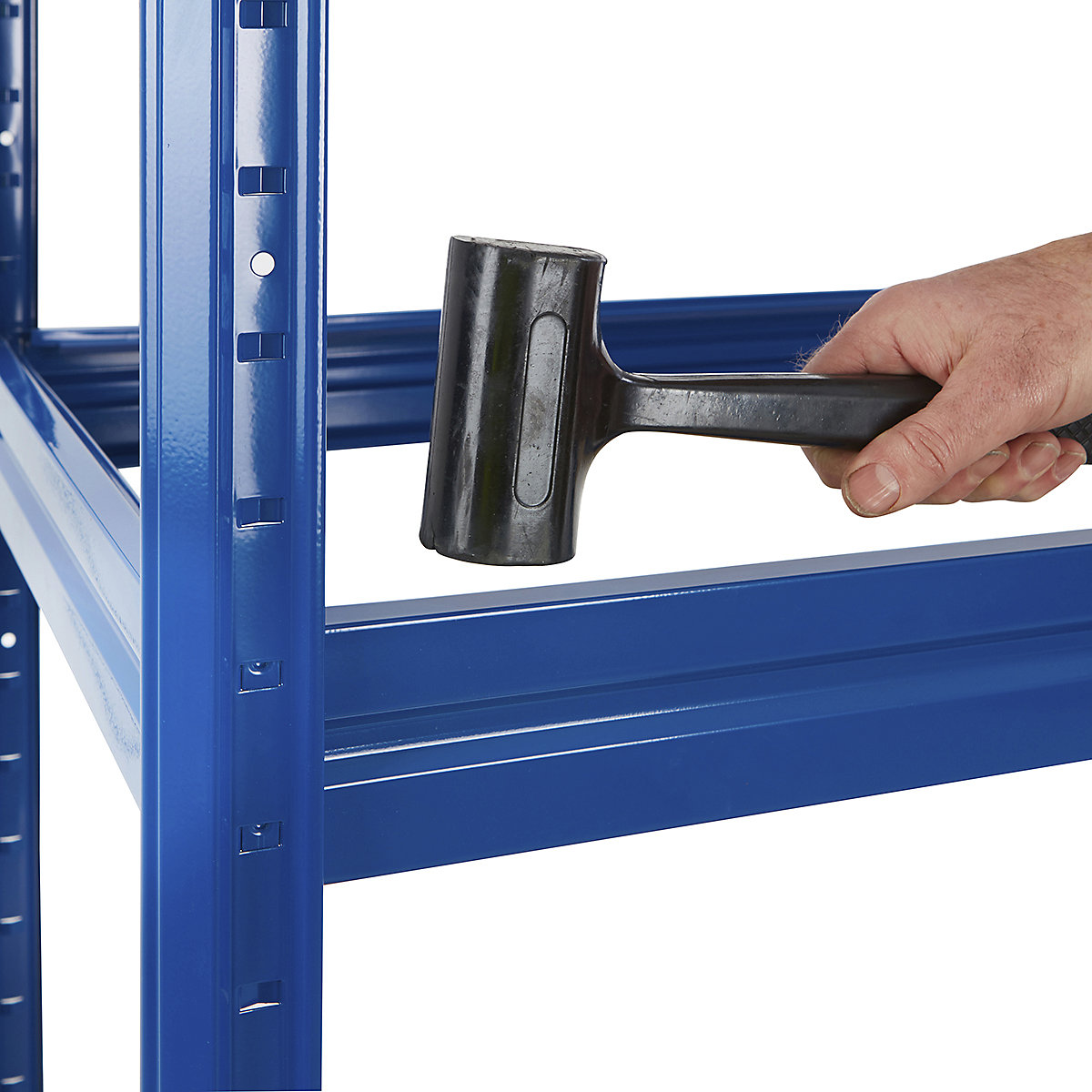

  • Simple boltless assembly, just tap together with a rubber mallet
  • Ideal for use in industrial environments

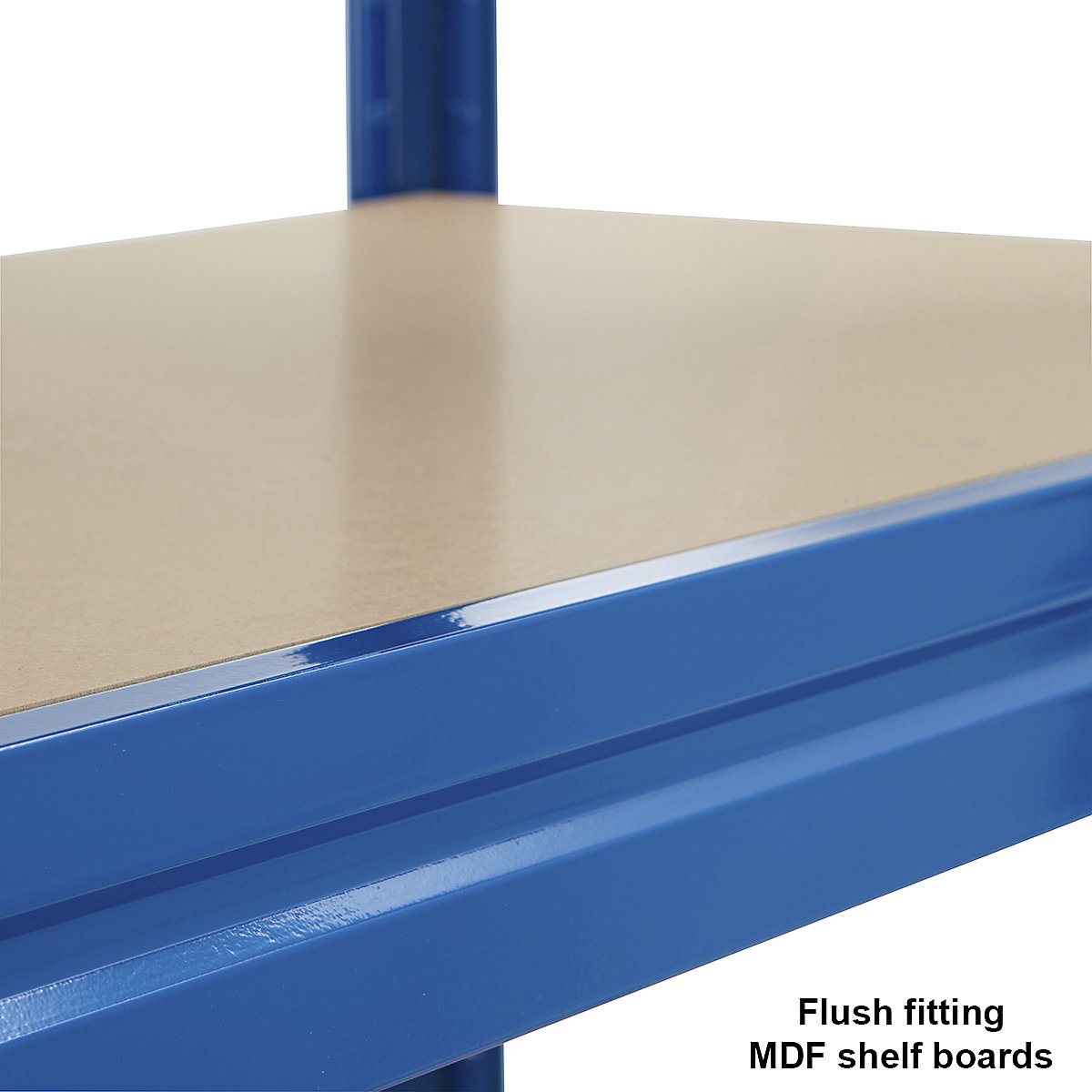

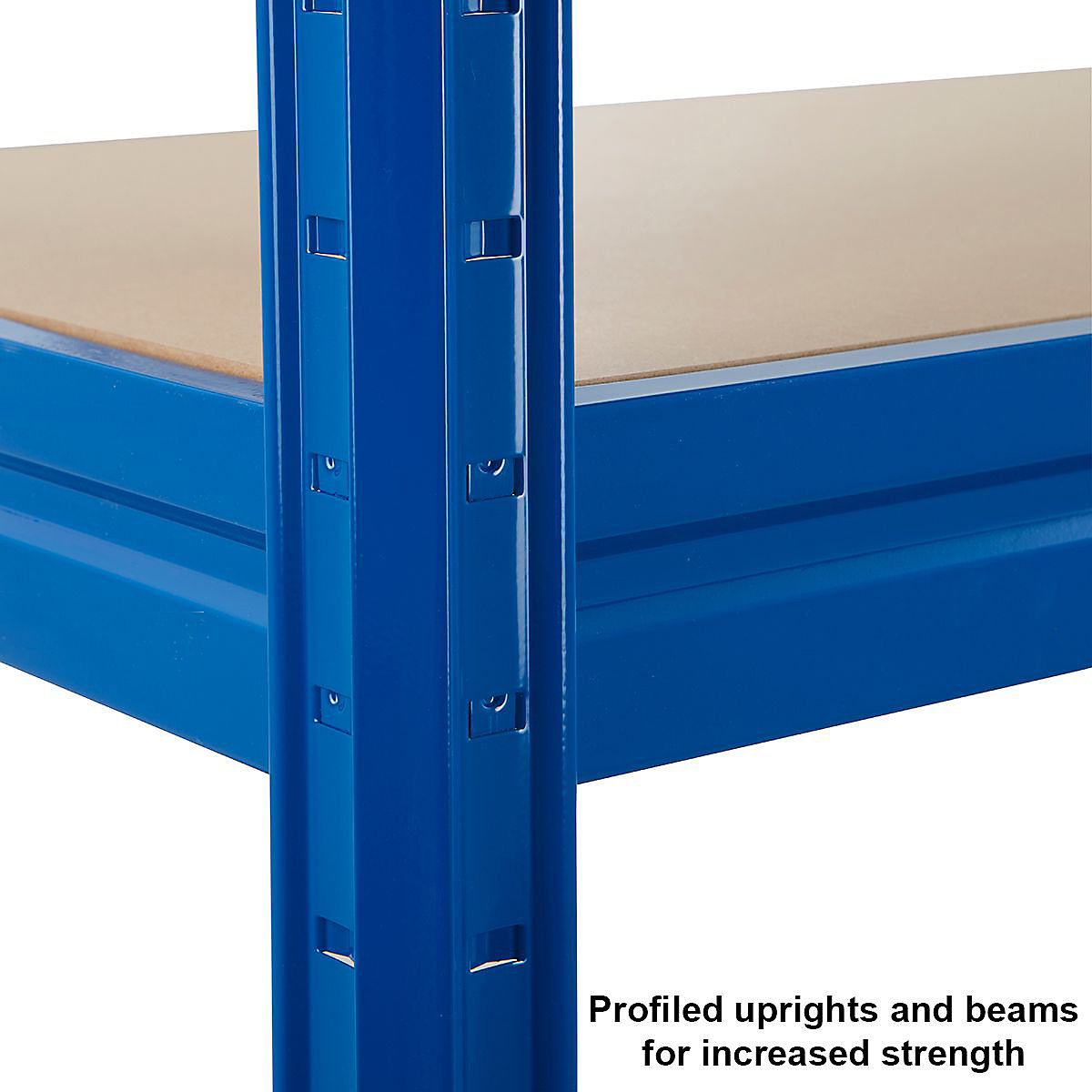

  • Profiled steelwork provides large uniformly distributed load capacity using flush fitting 6.5mm MDF shelf decks
  • Optional range of accessories available to order

Shelving Specifications

Data Field     1600mm Wide         2000mm Wide         2400mm Wide
Upright Type One Piece One Piece One Piece
Upright Steel Thickness 0.7mm 0.7mm 0.7mm
Beam Steel Thickness 0.7mm 0.7mm 0.7mm
Shelf Adjustment Increments 50mm 50mm 50mm
Shelf Height 82mm 82mm 82mm
MDF Thickness 6.5mm 6.5mm 6.5mm
Total Bay Capacity 2400kg 2000kg 1800kg
Clear Width 1505mm 1905mm 2305mm
Extra Levels Available No No No

BiGDUG Essentials

Explore BiGDUG Essentials, your go-to choice for cost-effective, great quality workplace solutions. From shelving and workbenches to office furniture and packaging, we've got you covered. All items come with a 3-year warranty* and are available from stock for super fast delivery. With the BiGDUG Essentials product family you can upgrade your workplace today for a more efficient and comfortable workspace within budget, click here to see full range.

Industrial-grade steel

Made from industrial-grade European steel for durability in industrial environments, stockrooms, and more. Powder coating finish offers superior resistance to wear and corrosion.

Contact BiGDUG

BiGDUG is a reliable supplier of garage shelving. If you're planning a large project and need some personal assistance, we can call to your site for a visit to assess your requirements.

For anything else, please contact us on 0333 200 5299.

Please note: If used in a damp or humid environment BiGDUG recommends MDF shelving decks are treated with a high quality wood varnish or sealant

Please note: These shelving bays are not recommended for the storage of fitness weights - please see our  gym racking range for specialist products

‌
‌
‌
‌
‌
