BiGDUG ESD Interlocking Floor Tile | X-Joint | 7h x 500w x 500d mm | Pack of 4 | Dark Grey

BiGDUG ESD Interlocking Floor Tiles | X-Joint

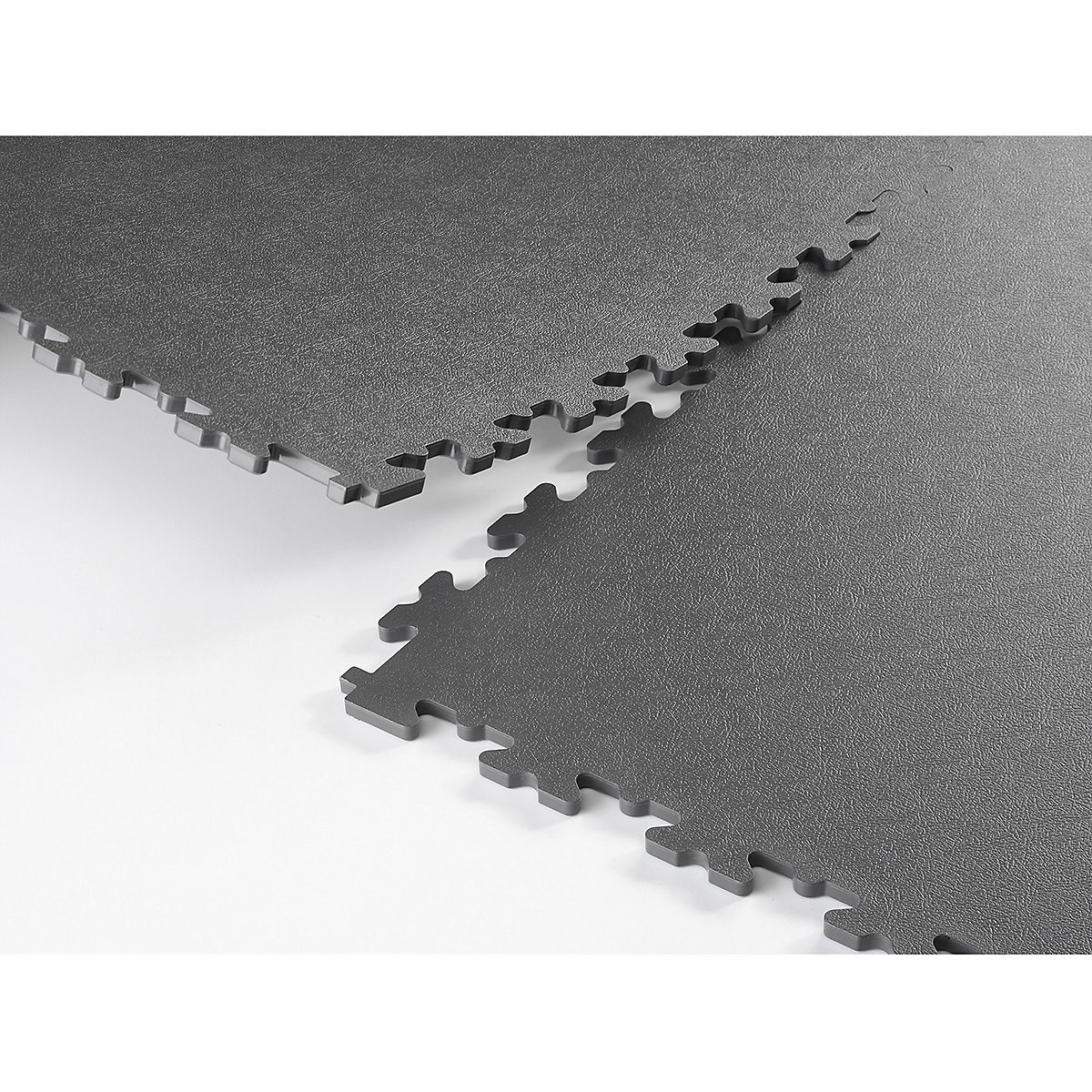

BiGDUG ESD Interlocking Floor Tiles | X-Joint, BiGDUG ESD Interlocking Floor Tiles | X-Joint, BiGDUG ESD Interlocking Floor Tile | X-Joint | 7h x 500w x 500d mm | Pack of 4 | Dark Grey-0

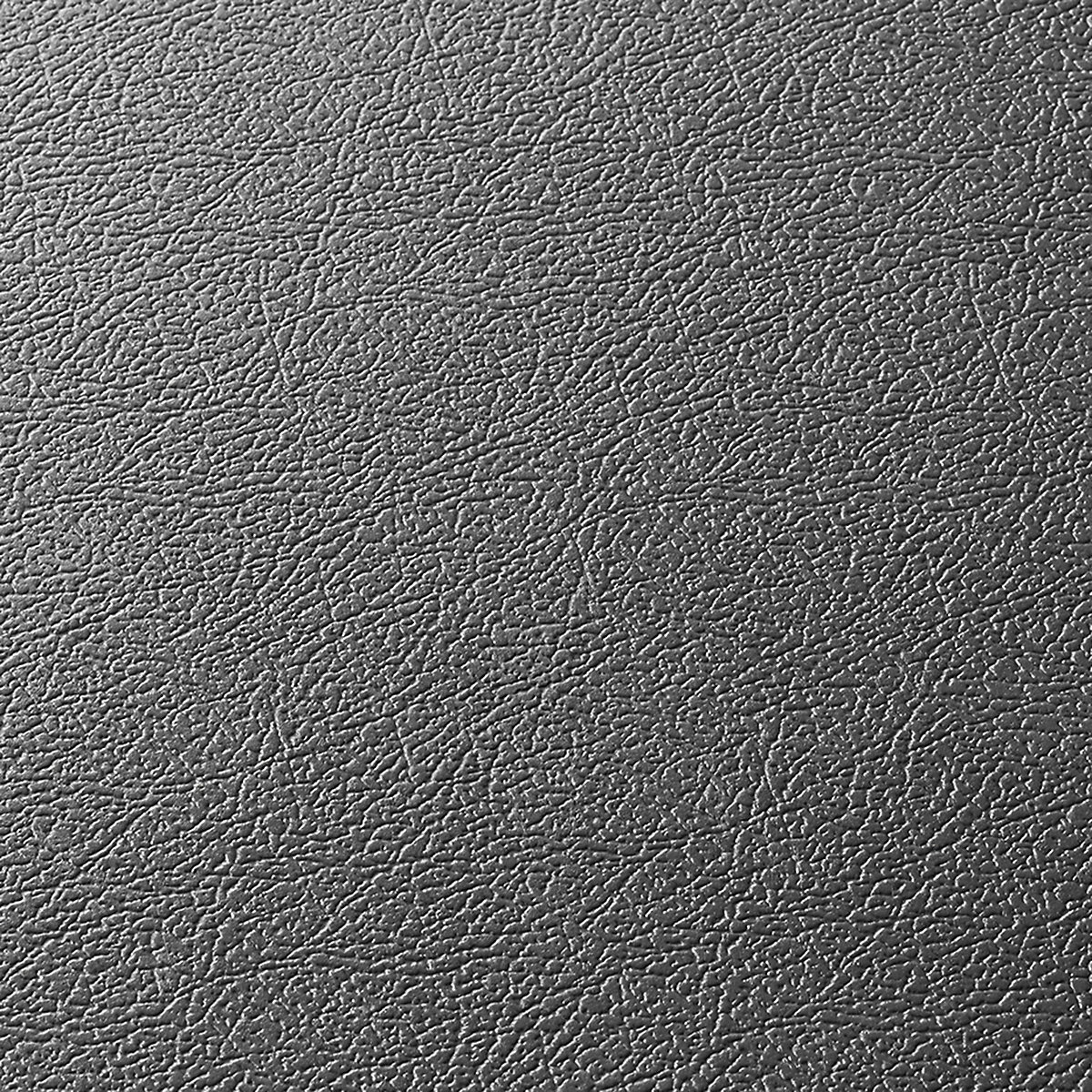

BiGDUG ESD Interlocking Floor Tiles | X-Joint (Product illustration 2)-1

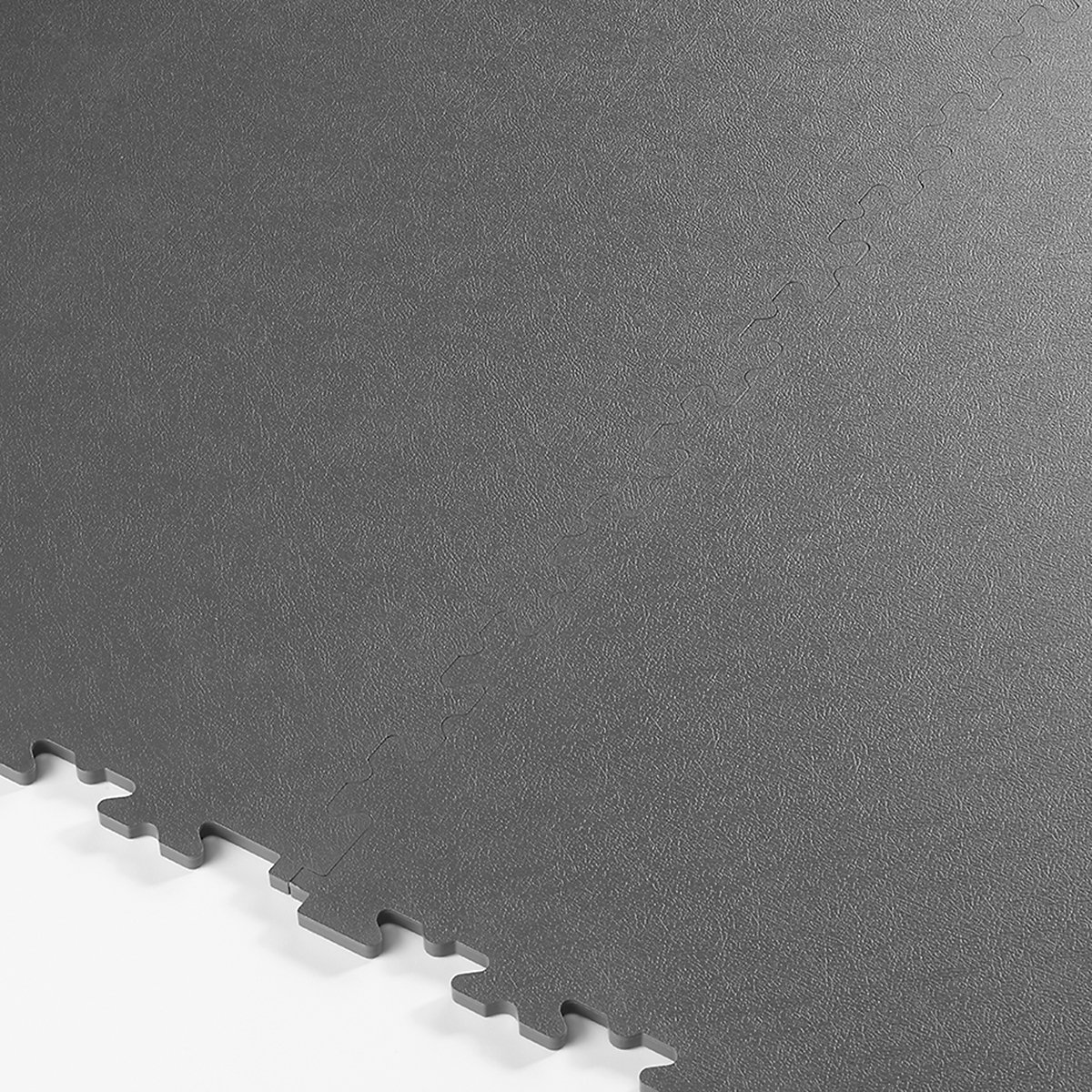

BiGDUG ESD Interlocking Floor Tiles | X-Joint (Product illustration 3)-2
Delivery time: 4-5 Working Days
Product description

High performance static-dissipative floor tiles that protect microelectronics, static-sensitive devices and explosives from damage caused by static discharge.

  • Provides a traceable path to ground (> 3.4 x 104Ω and ≤ 5.0 x 106Ω)
  • Prevents static generation (< 100 volts)
  • Perfect to replace a failed/worn floor or create a new ESD protected zone
  • No disruption or downtime during installation
  • Can be lifted quickly (ideal for leased/temporary spaces)
  • No wear layer is required. Ecotile ESD tiles do not loose their ESD properties over time
  • A tile with a grounding stud is installed every 50m² and is connected to an earthing point, allowing static to complete its circuit and flow safely to ground
  • Ecotile ESD flooring is installed over a grid of conductive tape laid on the subfloor which unifies conductivity through installed tiles

Specifications

Specifications BiGDUG ESD Interlocking Floor Tile
Dimentions (mm) 497 x 497 +/- 0.3mm
Thickness (mm) 6.8
Weight (kg) 8.40/m²
Guarantee Life Time Manufacturer's Guarantee
Anticipated Service Life 25 Years +
Material PVC
Joint X-Joint
Pack Size 4
Slip Resistance EN 14041:2004 & DIN 51130:2004 - Pass R10
Fire Performance BS 476: Part 7 DIN 13501: 2004 - Class 1 Spread of Flame Bfl-S1 Does not support combustion
Stain Resistance EN 423 - Good
Abrasion Wear Resistance EN 13845 & EN 649 - 50K Cycles Group T
Mechanical Resistance DIN 53516 - 17N/mm²
Resistance to Hot Objects/Solder Good
Thickness of Wear Layer EN 429 - 6 to 10mm
Hardness ISO 868 - 89-92 Shore A
Impact Resistance EN 13329-549 - 549kg/cm²
Noise Reduction EN 140-8 - >46db
Thermal Insulation 1.1 m²K/W
Determination of Length, Squareness & Straightness BS EN 428:1993 - <0.13% / 0.5mm max.
Chemical Resistance EN 13529 - Good resistance to most commonly used chemicals. Common acid oils & gas oil - No deterioration / Solvents - Not resistant to prolonged contact
Colour Fastness EN 50105-BO21 - 5
‌
‌
‌
‌
‌
