Code: BDGT10

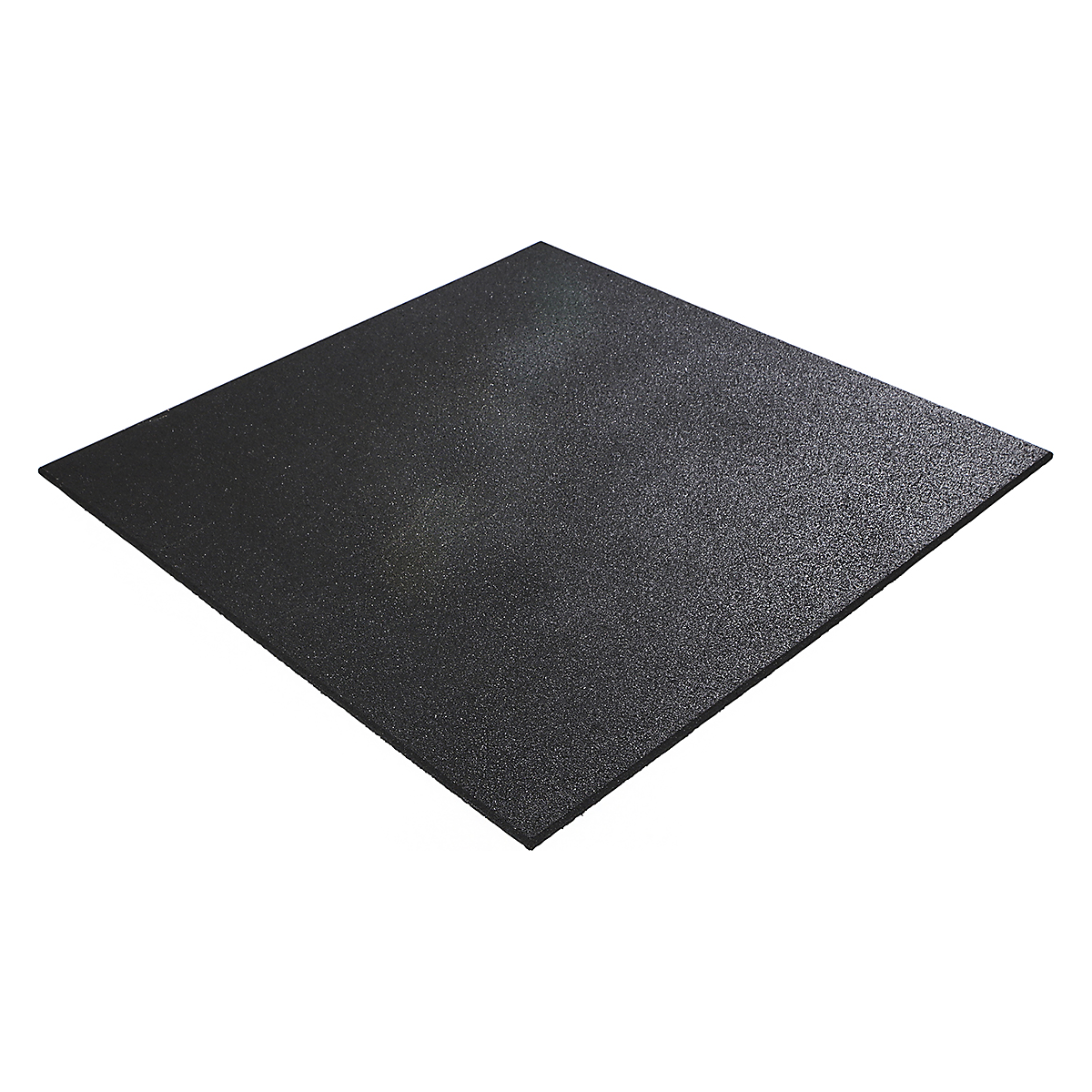

BiGDUG 10mm Rubber Heavy Duty Gym Tile | 1000w x 1000d mm | Black

(2)
BiGDUG Rubber Heavy Duty Gym Tiles
Height [mm]
Delivery time: 2-3 Working Days
Order until 15:00 for next day delivery
Product description

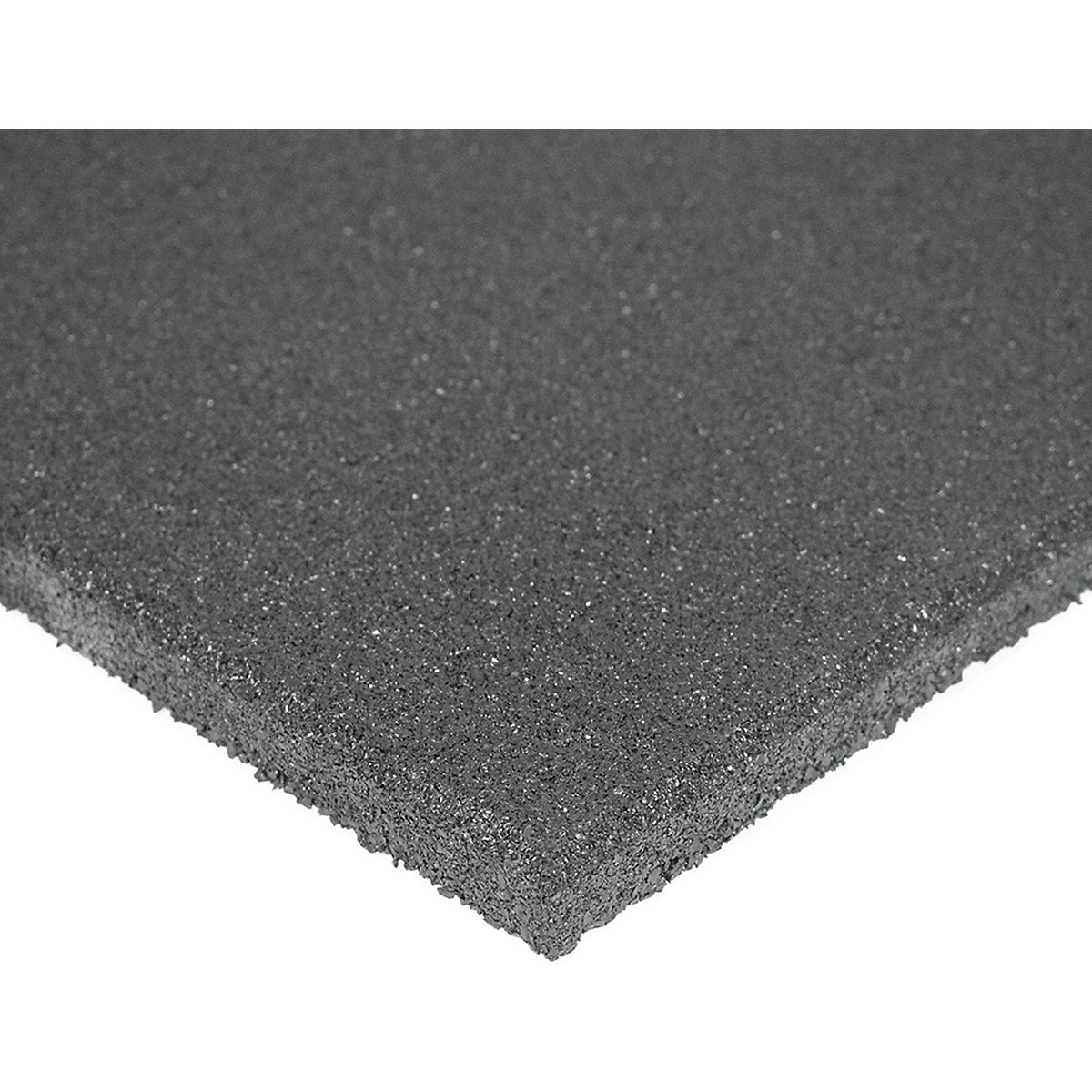

The BiGDUG Rubber Heavy Duty Gym Tile is manufactured with a 2-layer system with coarse granules on the bottom and the top 5mm using fine granules. Designed for Freeweight areas in gyms and cross fit centres to provide shock absorption, sound insulation and a non-slip surface

  • Dimensions: 1000mm x 1000mm
  • Ideal for medium weight dumbbell areas
  • Nonslip surface
  • Protection of the subfloor
  • Provides sound isolation

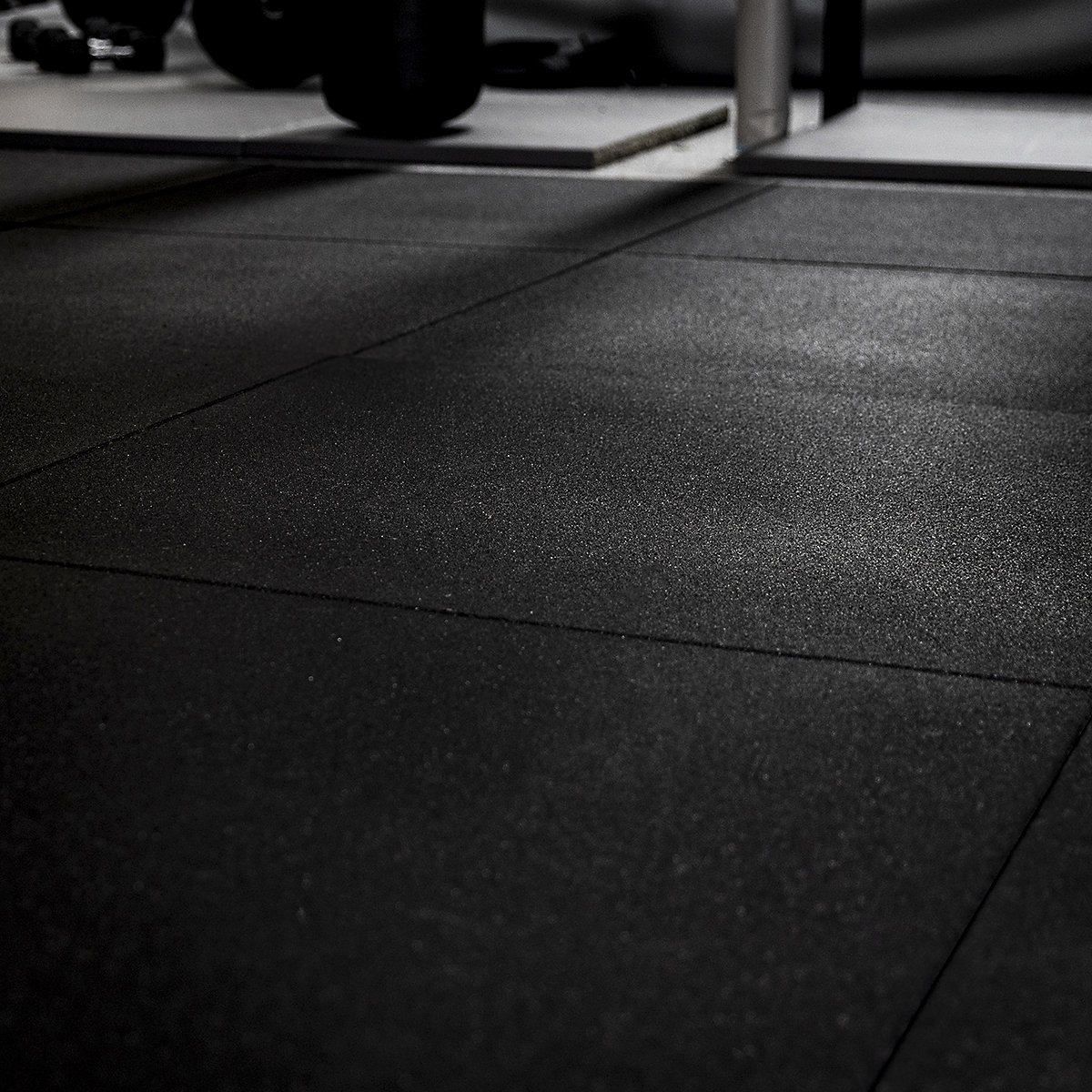

The tiles and edges can be loose laid or bonded using suitable adhesive. Using a utility knife or jigsaw, the tiles and edges can be trimmed to size. We advise that the subfloor is dry and flat prior to fitting and that tiles are laid in a half brick pattern.

Suitable for use with under floor heating.

For basic guidelines on cleaning and installation please see the downloadable attachment.

  • TOLERANCES: Length and width ± 1.5%, thickness ± 2 mm
  • SLIP RESISTANCE DRY CONDITIONS: <105PTV EN 13036-4:2004
  • SLIP RESISTANCE WET CONDITIONS: <75PTV EN 13036-4:2004
  • ABRASION RESISTANCE, MG: <560EN ISO 5470-1:2001
  • TENSILE STRENGHT, MPA: >0,65
  • ELONGATION AT BREAK: >40% EN 12230:2005
  • HARDNESS: 55 up to 75 SHORE A ISO 868 PN-93 / C-04206
  • DENSITY: 950 to 1.000kg/m3 EN ISO 845:2010
  • FIRE CLASSIFICATION: EFL s1 (DFL & CFL Available) NOT TESTED

Applications

  • 10mm - Small/light dumbbell areas in gyms, protection of the subfloor and sound isolation
  • 15mm - Small/light dumbbell areas in gyms, better protection of the subfloor and sound isolation
  • 20mm - Medium weight dumbbell areas, protection of the subfloor and sound isolation
