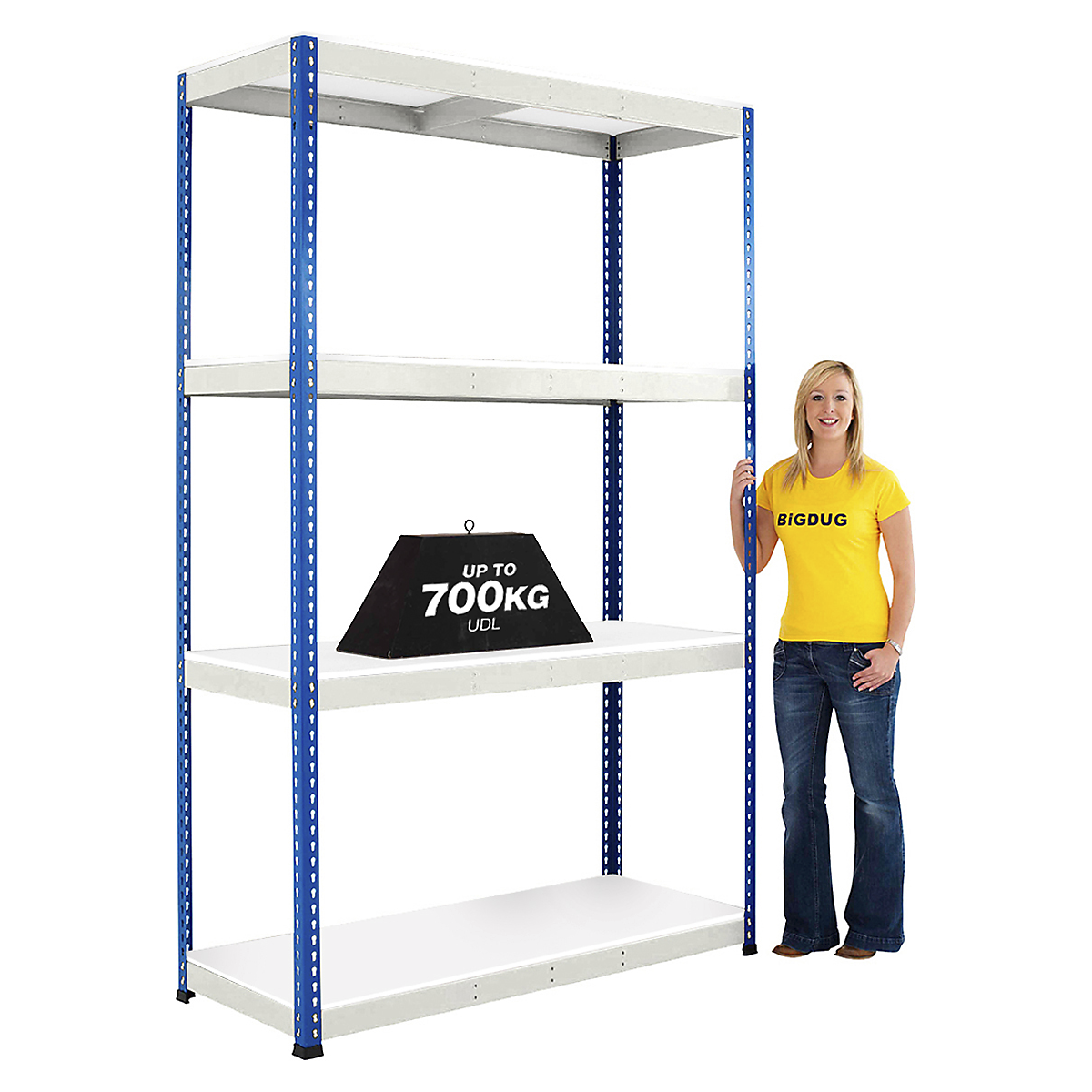

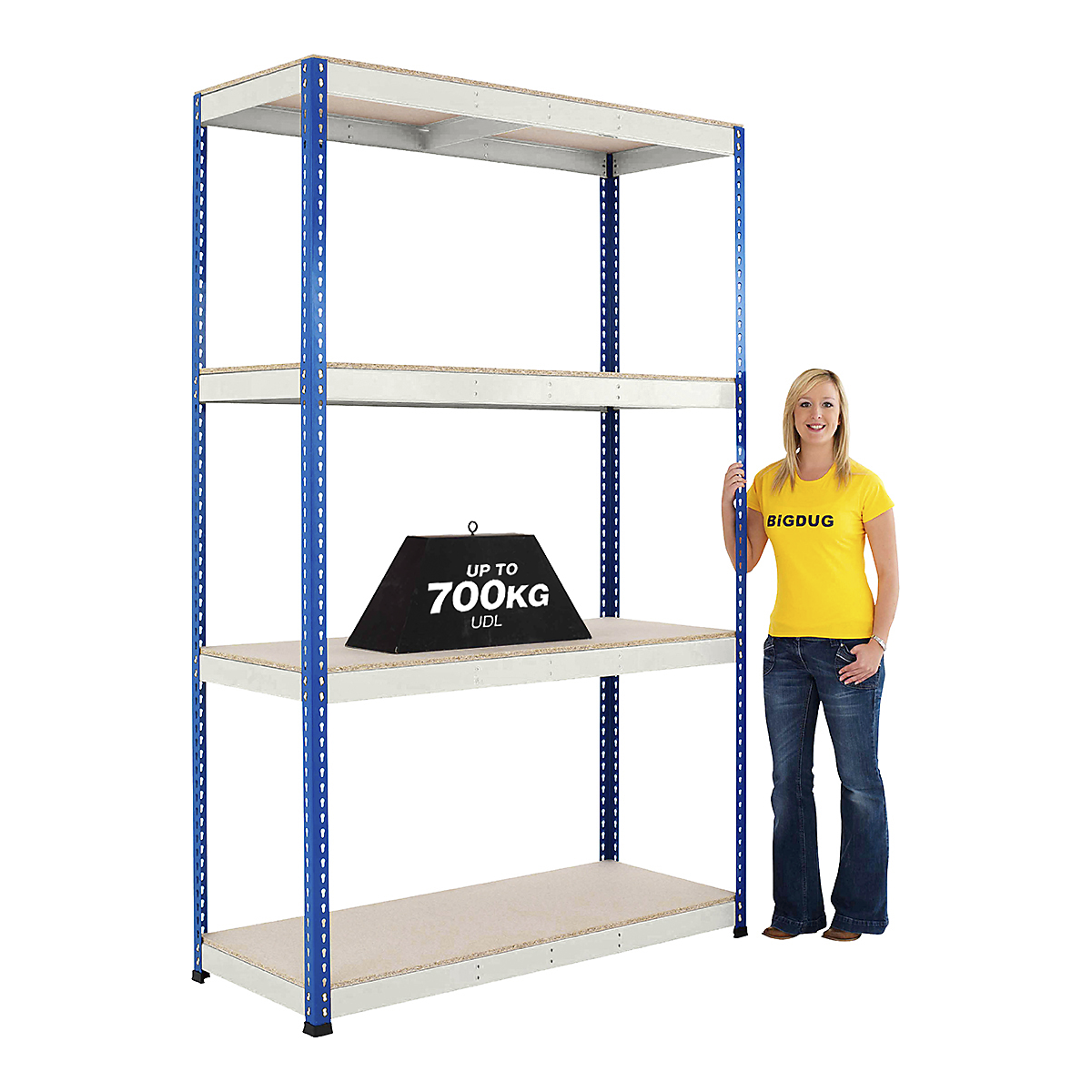

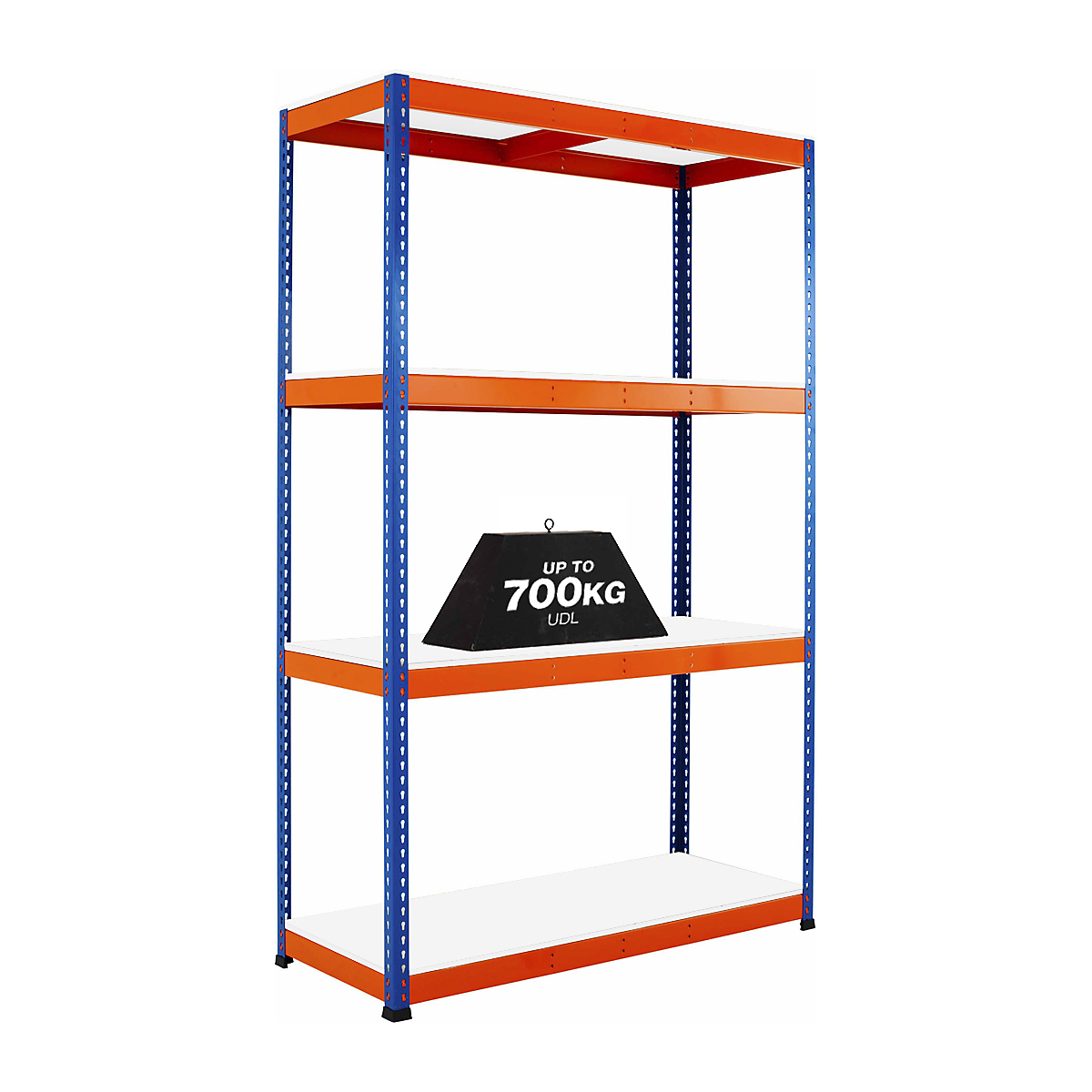

BiG800 Racking 2440h x 1525w x 455d mm 4 Levels 700kg UDL Blue & Grey
BiG800 Racking 2440h x 1525w x 455d mm 4 Levels 700kg UDL Blue & Grey
- Next day delivery available, in stock products only
- Find a lower price & we'll match it
- Large Project? Call for site visit & quote
Friday 8am - 4:30pm
Excluding Bank Holidays

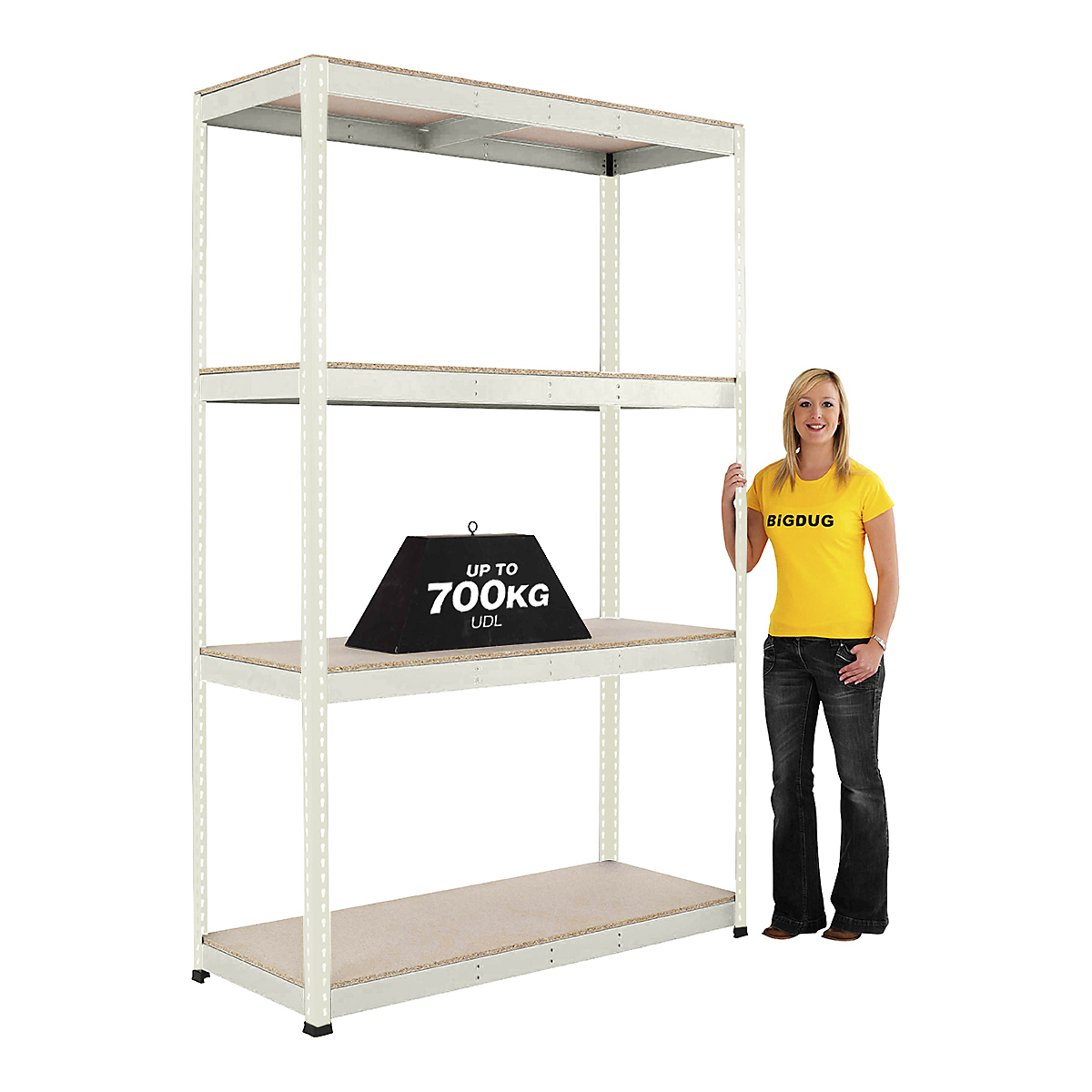

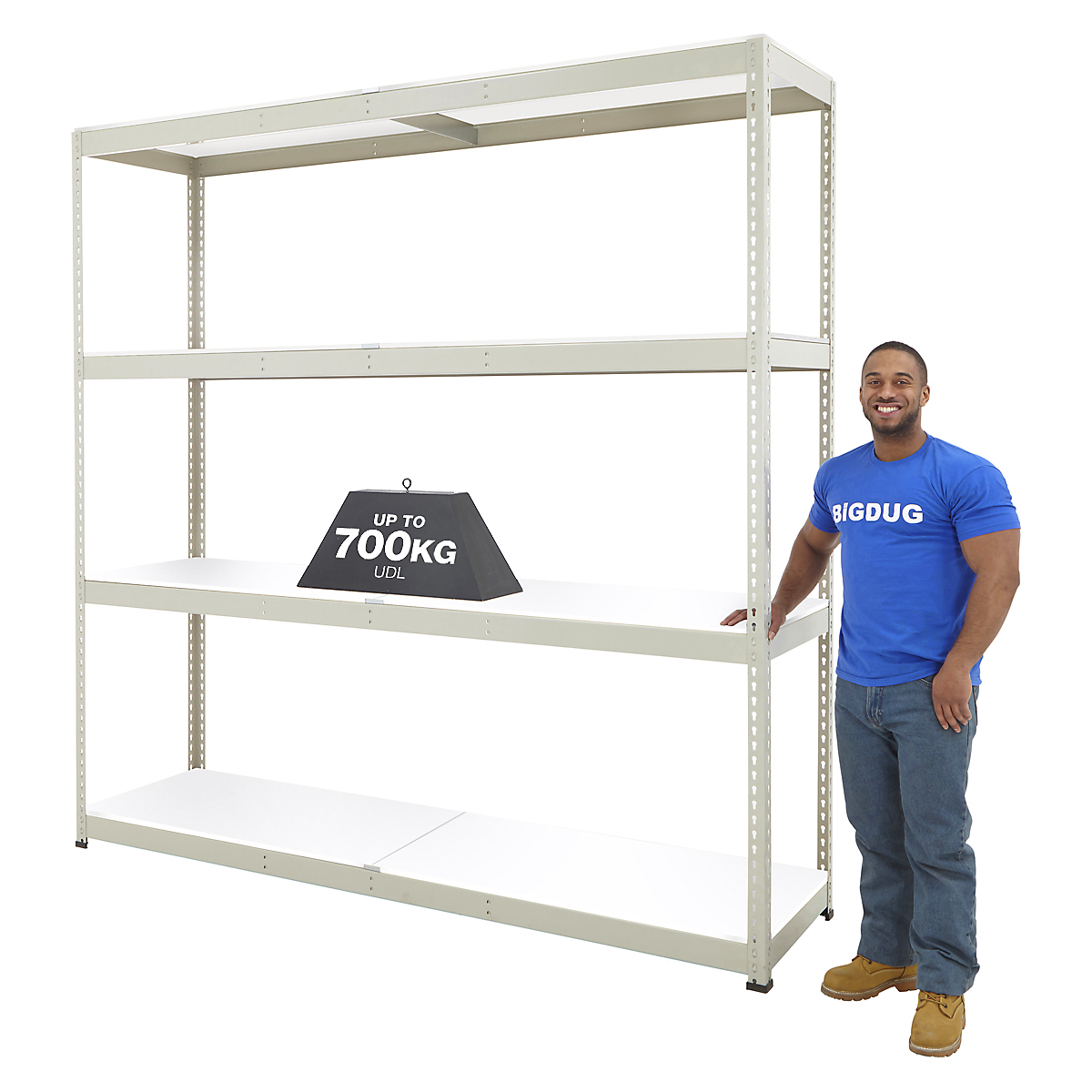

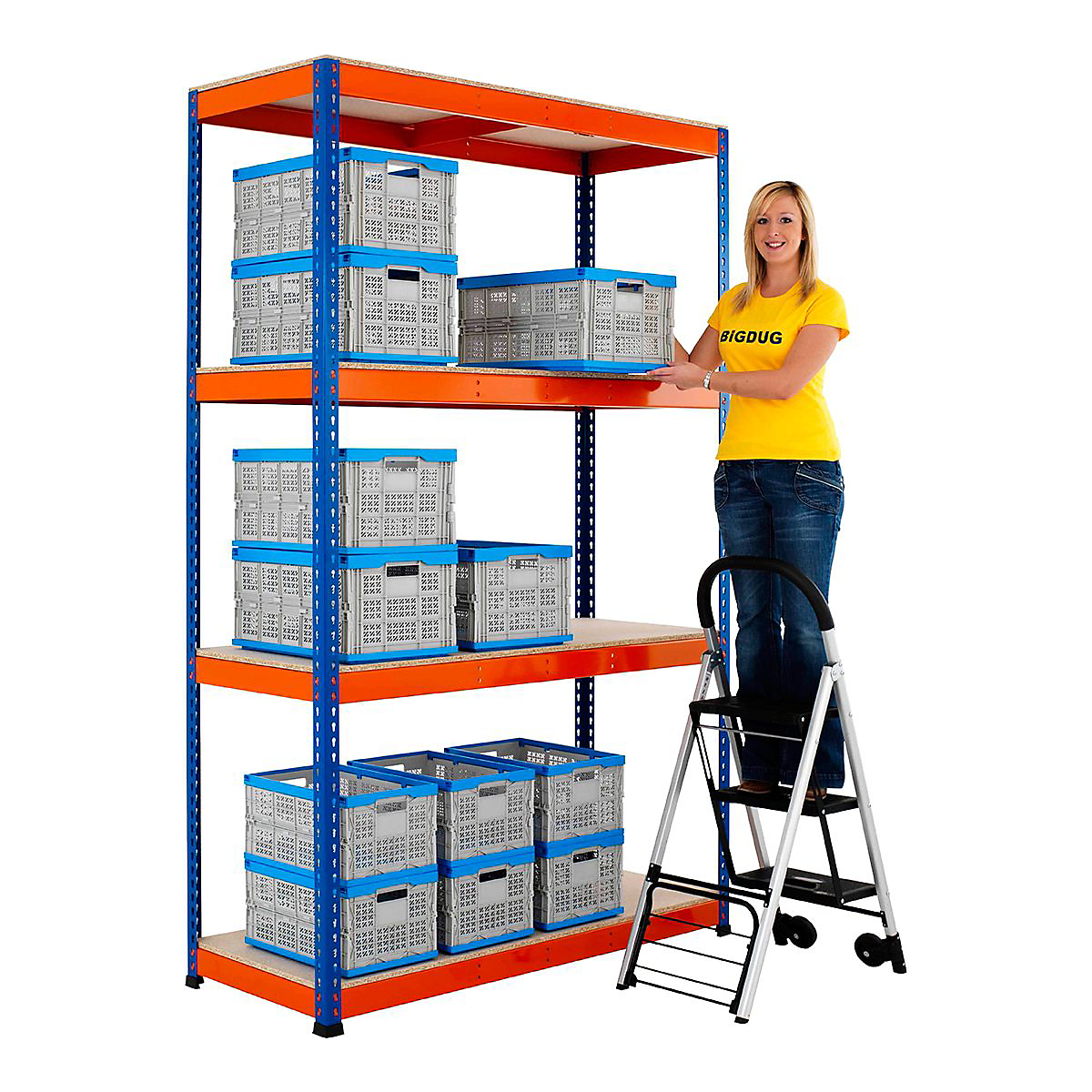

Meet your heavy-duty storage needs with the BiG800 Grey 2440mm High Racking. Our industrial racking range provides an impeccable solution for demanding commercial environments where safety is paramount. Manufactured from industrial-grade steel, it can safely hold up to 700kg UDL* per shelf, allowing a total load of up to 2800kg UDL* per bay. It is available in various heights, widths, and depths, with a choice of chipboard, melamine, or steel shelf panels.

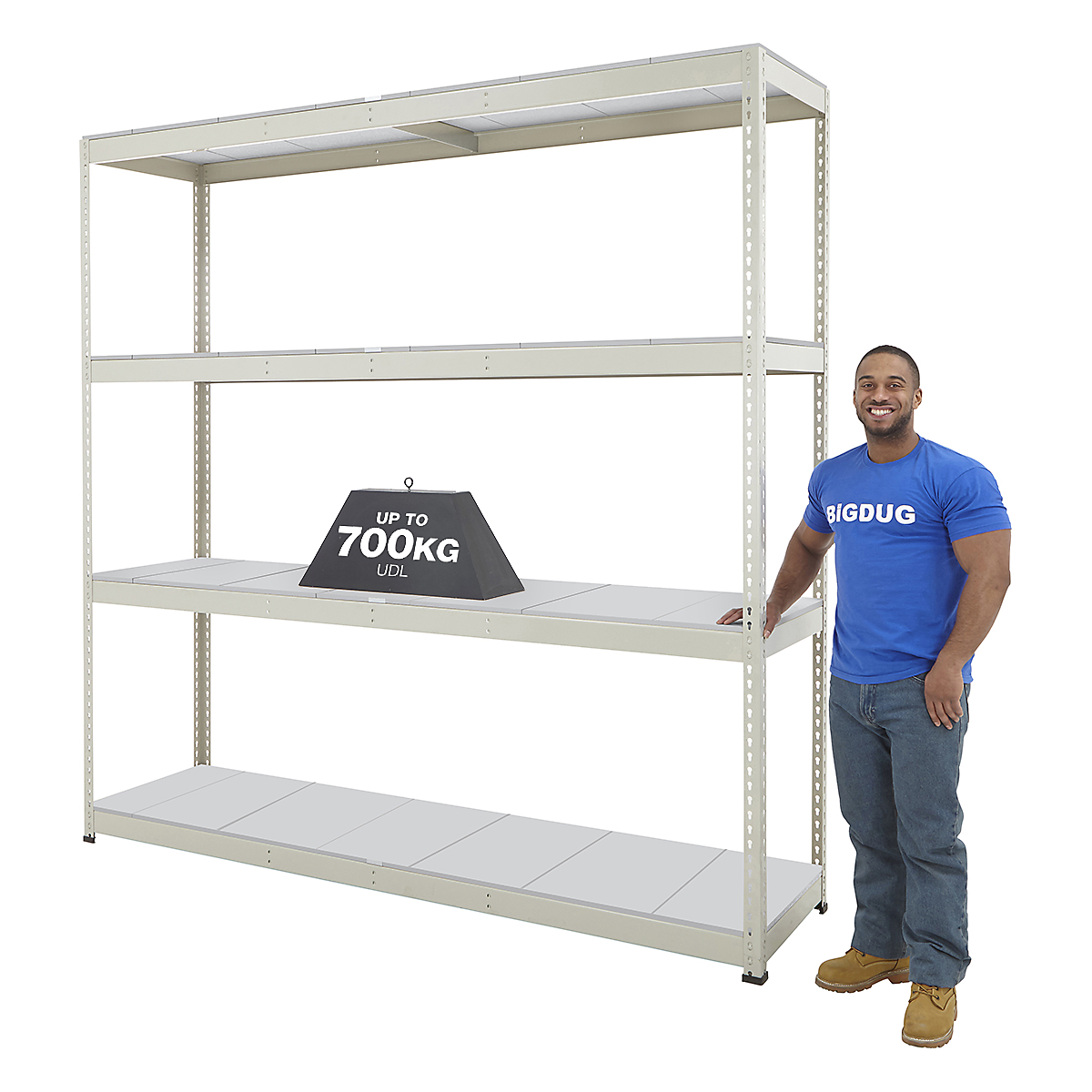

- Up to 700kg per shelf UDL*/2800kg UDL* per bay depending on shelf size
- Choice of chipboard, melamine or steel shelves
- Manufactured from premium, industrial-grade European steel
- Each shelf is fully adjustable in height every 38mm (1.5 inches)

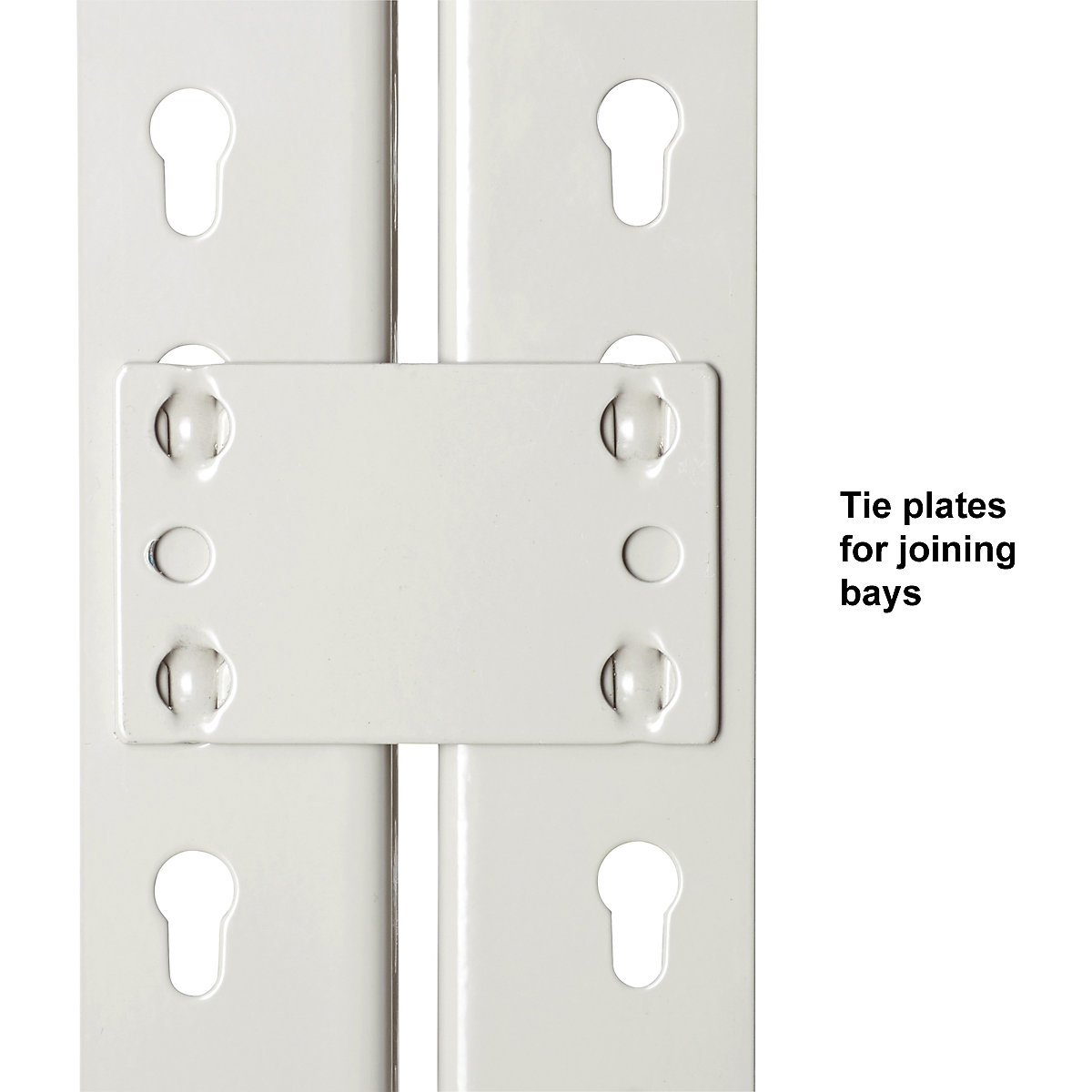

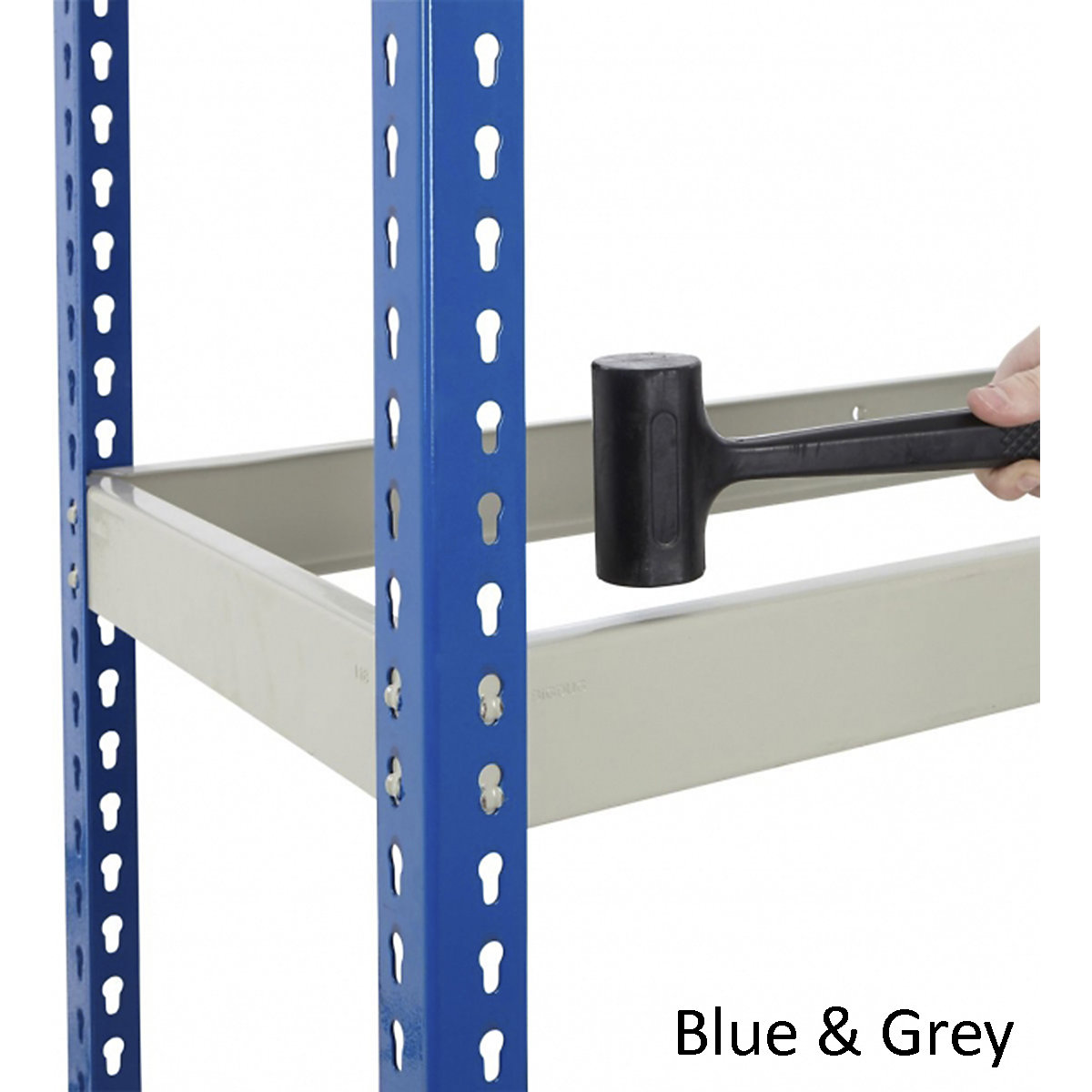

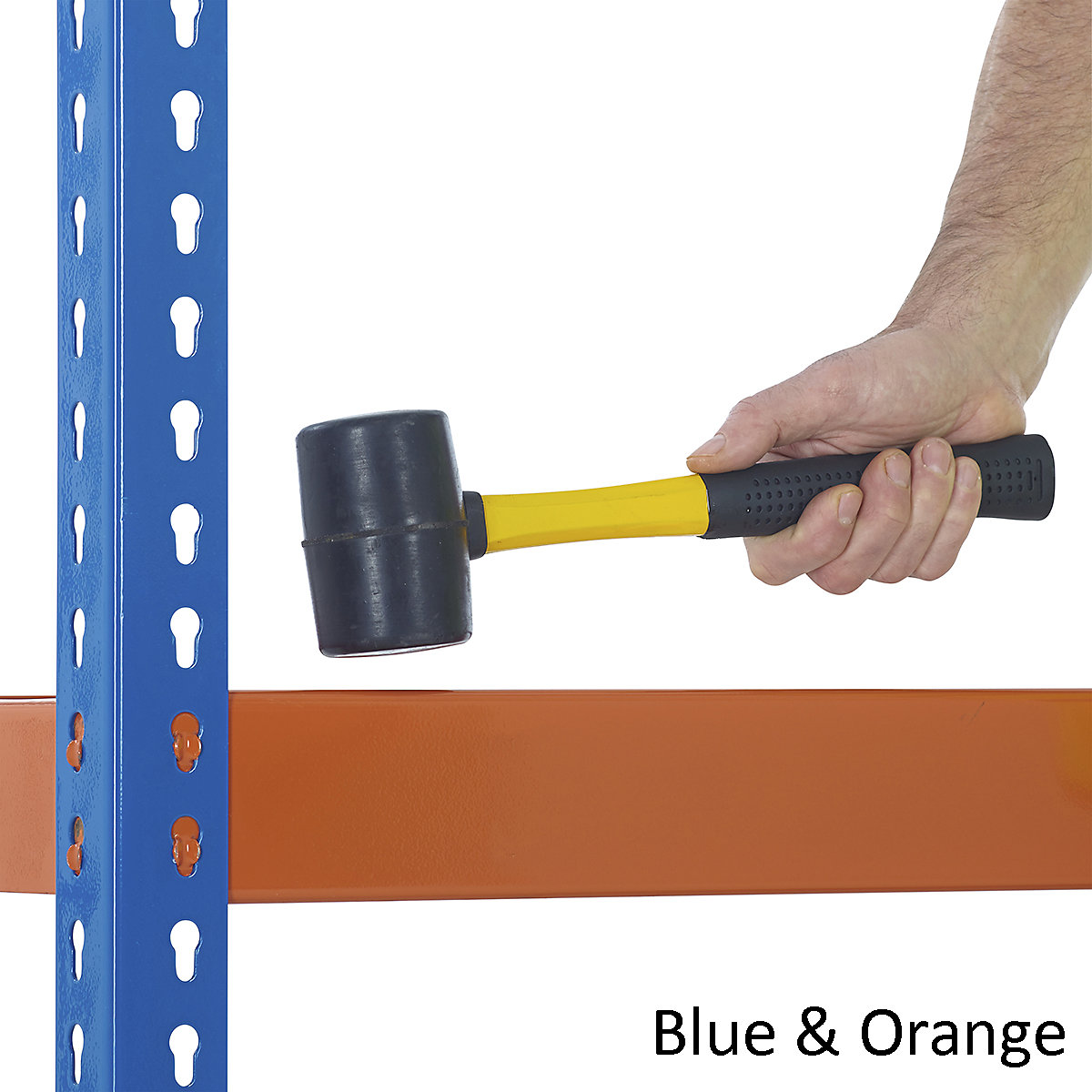

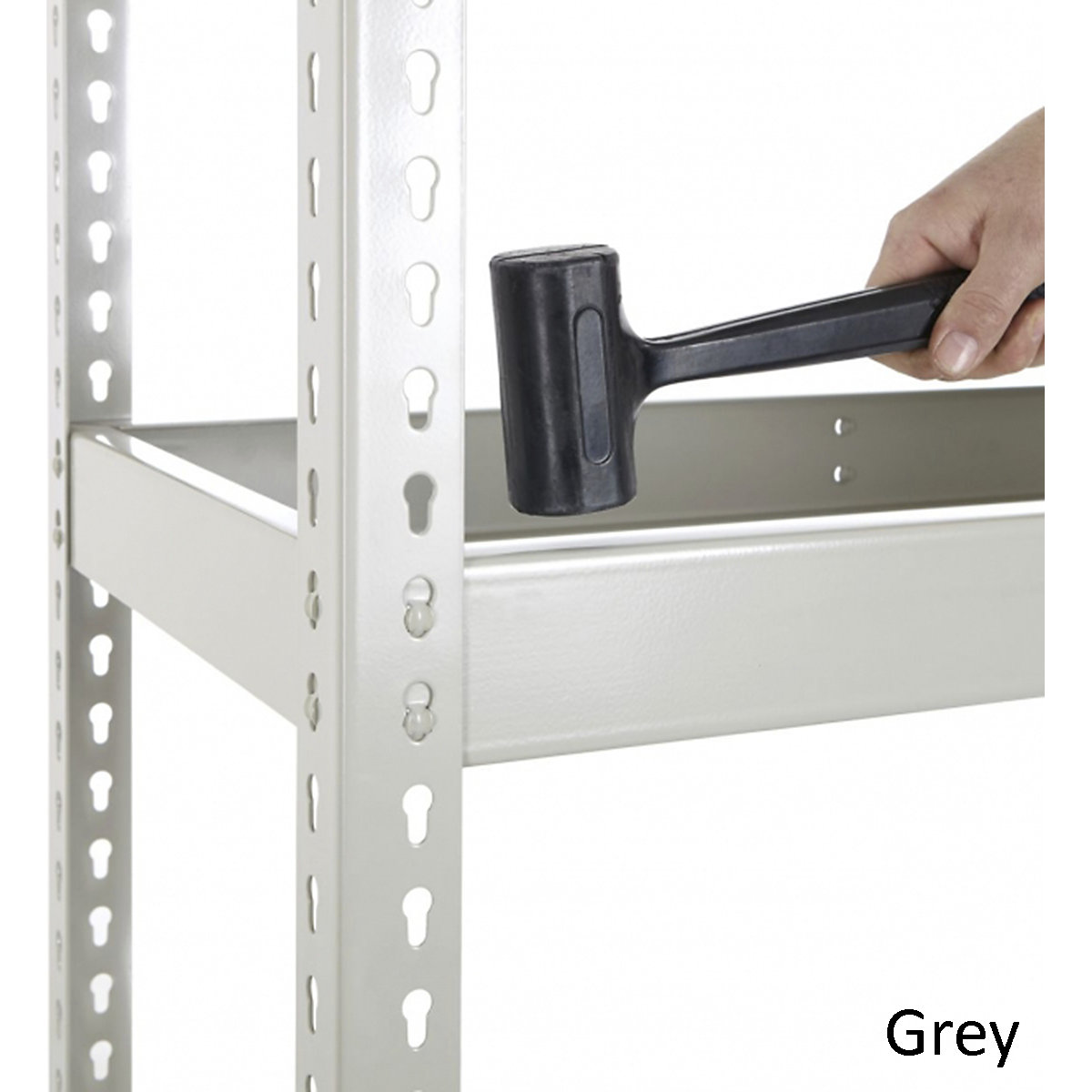

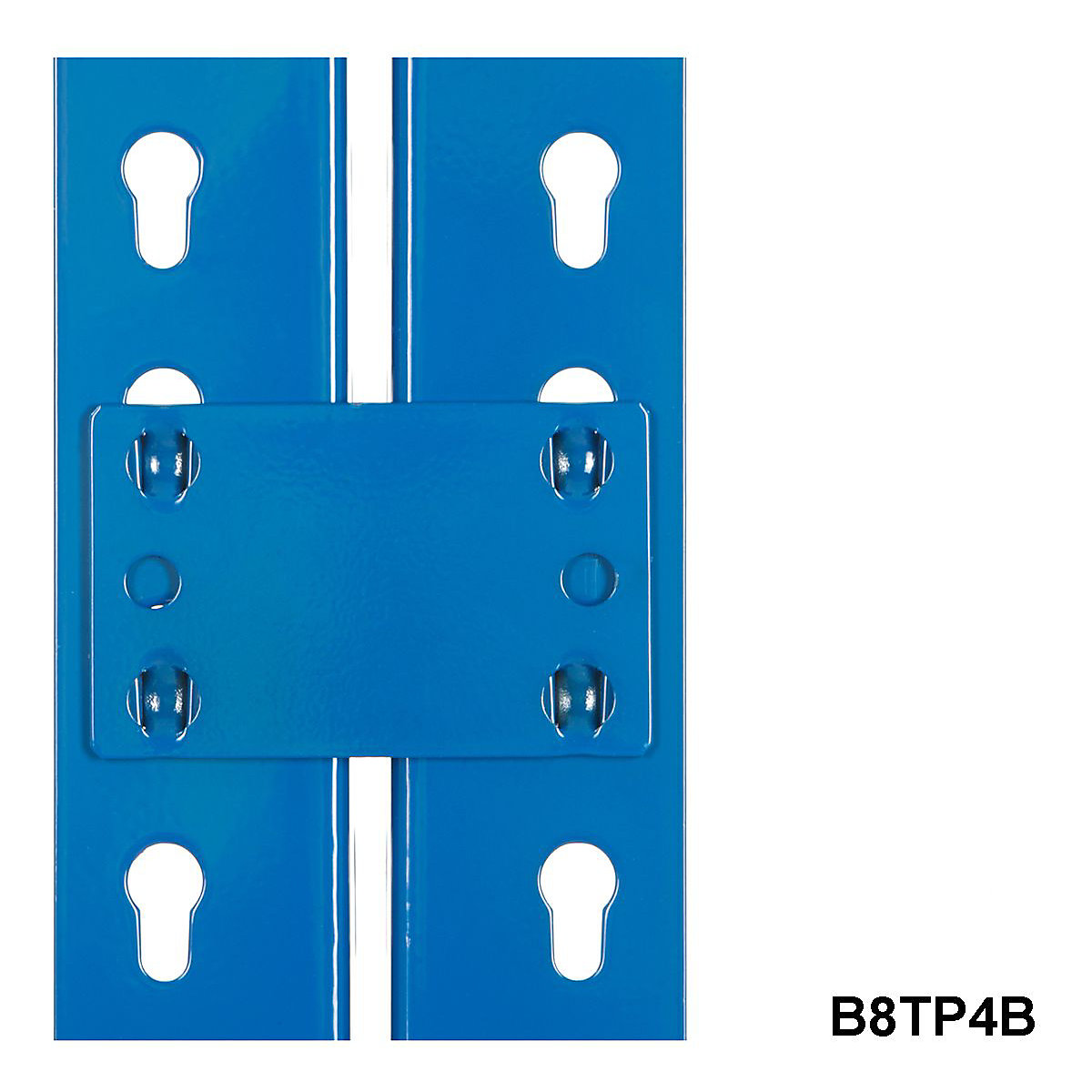

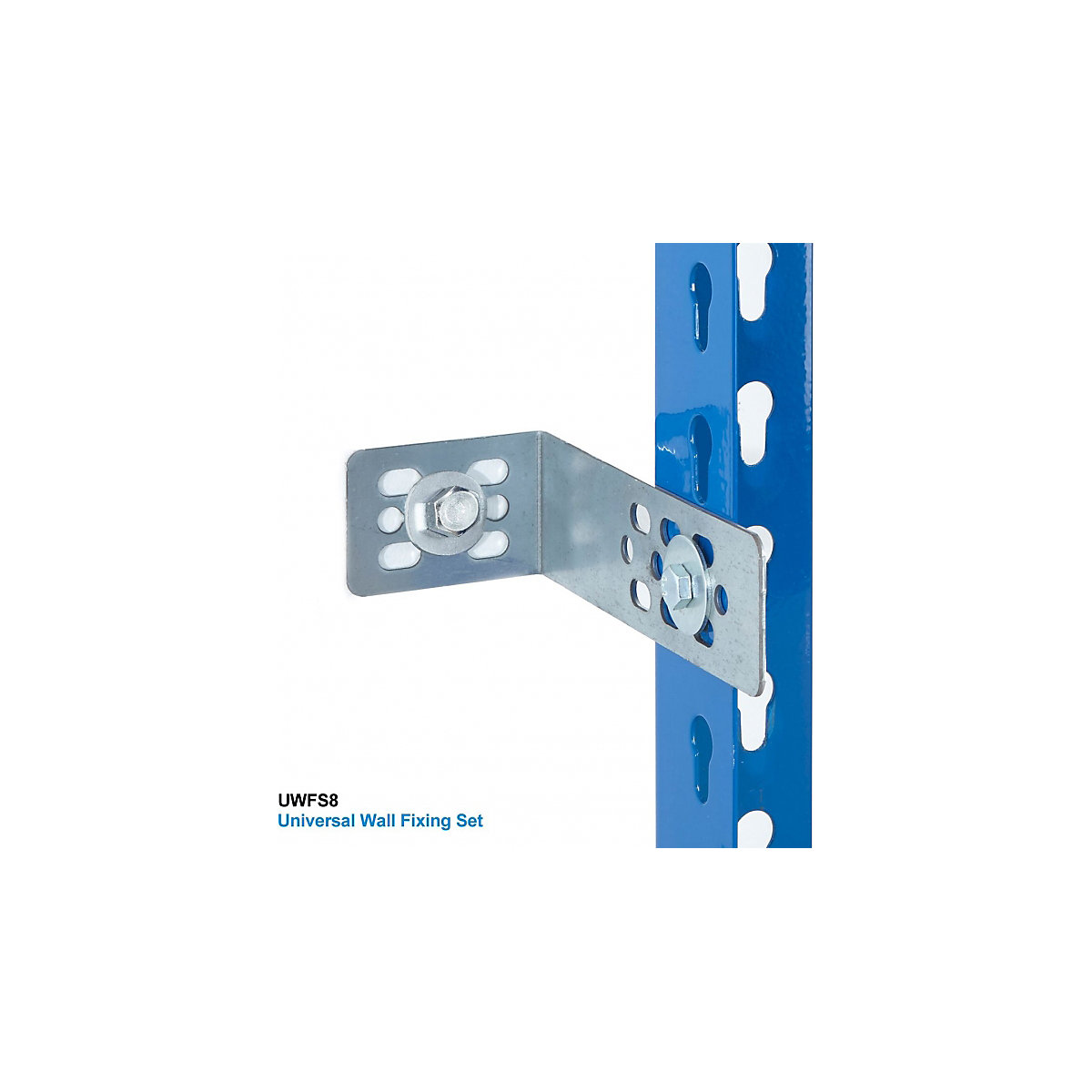

- Additional shelves, tie plates, wall brackets, and assembly mallet available separately
Heavy-Duty Commercial Racks
- Manufactured and certified to FEM standards
- Suitable for industrial environments
- Powder-coated light grey finish
- Requires no cross bracing so suitable for double-sided access
- Available from stock and eligible for our Next Day Delivery service
* UDL = Uniformly Distributed load.
Please note: Actual shelf capacity varies according to shelf size. Please refer to invidiual product description for maximum loads
Please note: for bays 2135mm or wider, the chipboard is supplied in 2 pieces per level.
Shelving Specifications
| Data Field | 1525mm Width | 1830mm Width | 2135mm Width | 2440mm Width |
|---|---|---|---|---|
| Upright Type | One Piece | One Piece | One Piece | One Piece |
| Upright Steel Thickness | 2mm | 2mm | 2mm | 2mm |
| Beam Steel Thickness | 2mm | 2mm | 2mm | 2mm |
| Shelf Adjustment Increments | 38.1mm | 38.1mm | 38.1mm | 38.1mm |
| Shelf Thickness | 94mm | 94mm | 94mm | 94mm |
| Chipboard Thickness | 15mm | 15mm | 15mm | 15mm |
| MDF Thickness | n/a | n/a | n/a | n/a |
| Melamine Thickness | 15mm | 15mm | 15mm | 15mm |
| Steel Panel Thickness | 0.8mm | 0.8mm | 0.8mm | 0.8mm |
| Total Bay Capacity 2440h mm | 2800kg | 2800kg | 2800kg | 2800kg |
| Clear Width | 1440mm | 1745mm | 2050mm | 2355mm |
| Extra Levels Available | Y | Y | Y | Y |

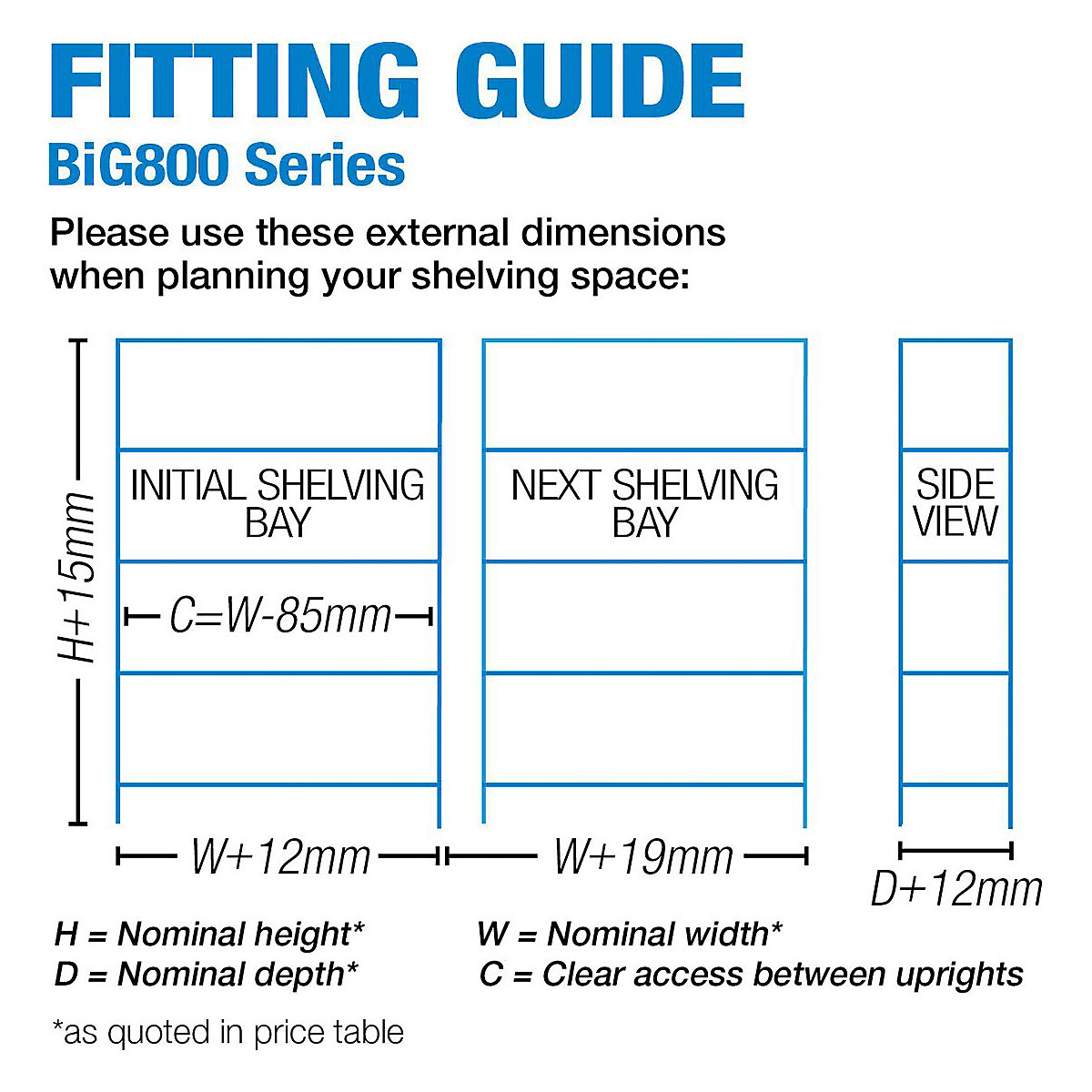

Fitting Guide
Please check our guides for each range when planning your shelving space.
| Nominal Shelf Width mm: | Clear Entry mm: | Initial Bay External mm: | Next Bay External mm: |
|---|---|---|---|
| 1525 | 1440 | 1537 | 1544 |
| 1830 | 1745 | 1842 | 1849 |
| 2135 | 2050 | 2147 | 2154 |
| 2440 | 2355 | 2452 | 2459 |
External Height = H+15 Pitch = 38.1
Clear height between shelves = (No. x pitch) -94
All dimensions in Millimetres
Is BiGDUG’s Heavy-Duty Industrial Racking Long-lasting?
Manufactured to certified FEM standards using premium European steel, our commercial racks offer a far superior build quality compared to entry-level racking. That means less wear over time, fewer replacements, and reduced maintenance costs. Its durability makes it a cost-effective long-term investment, especially in high-traffic, high-volume stock areas, and for heavy-duty industrial usage.
Can I Add Extra Shelf Levels?
Additional shelves are available and fully compatible with the existing framework. Shelves can be adjusted in height every 38mm, allowing for customised storage layouts, whether you're storing bulky machinery, stacked stock, or boxed inventory. Be sure not to exceed the maximum total bay capacity of 2800kg UDL*. If you’re unsure about the load capacity with additional levels, please contact us for guidance. Upgrade with tie plates, wall brackets, and other accessories to enhance safety and stability.
Can I Customise These Commercial Racks?

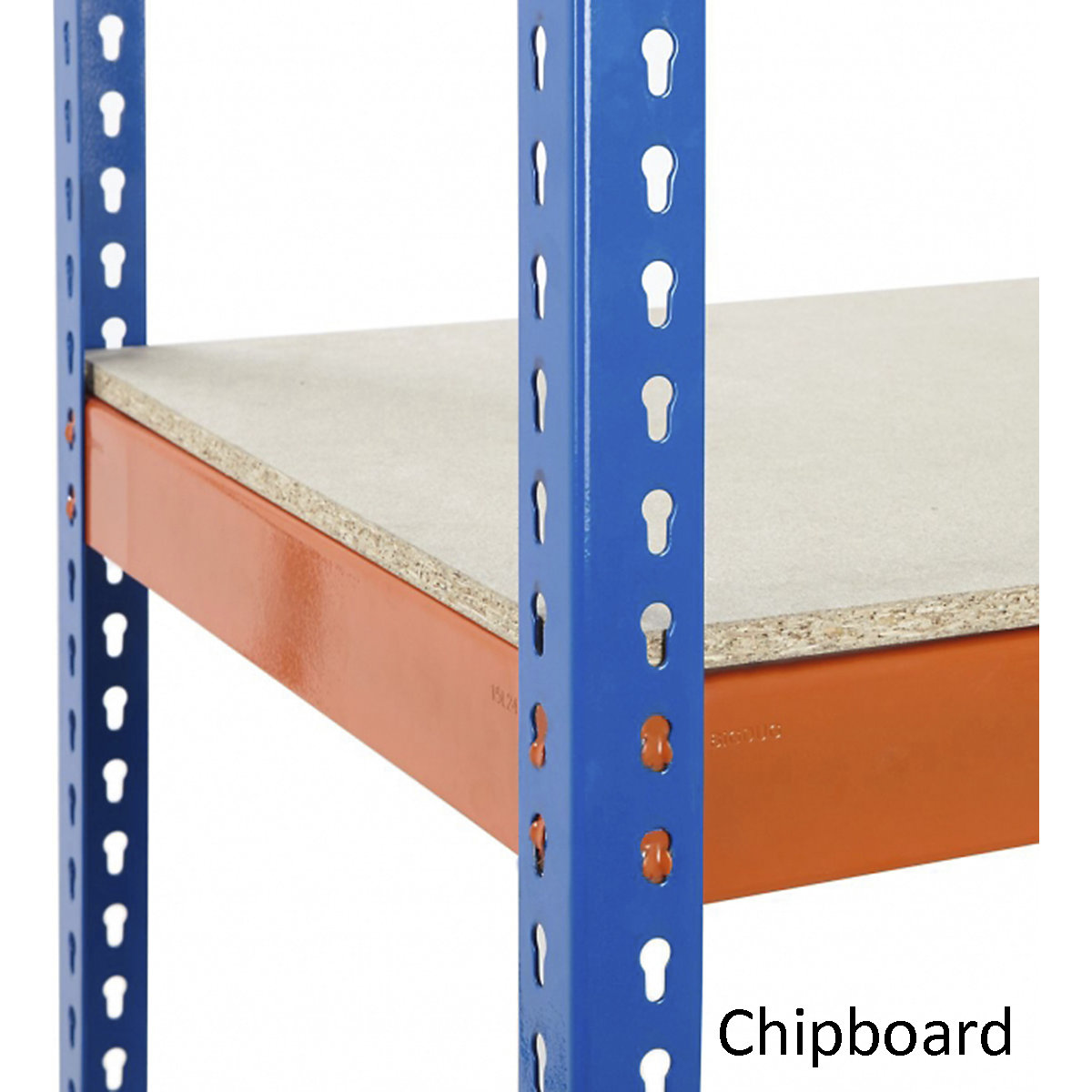

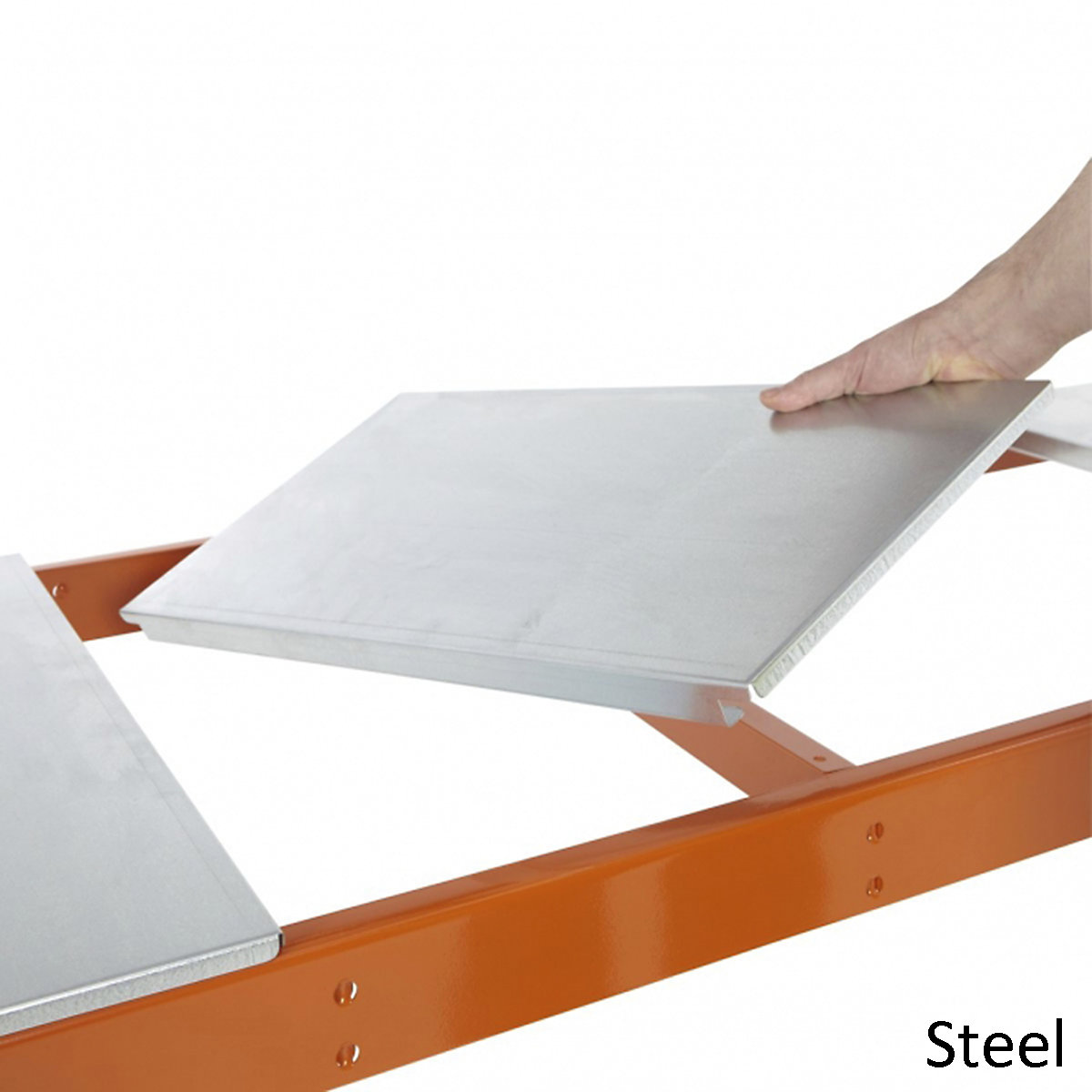

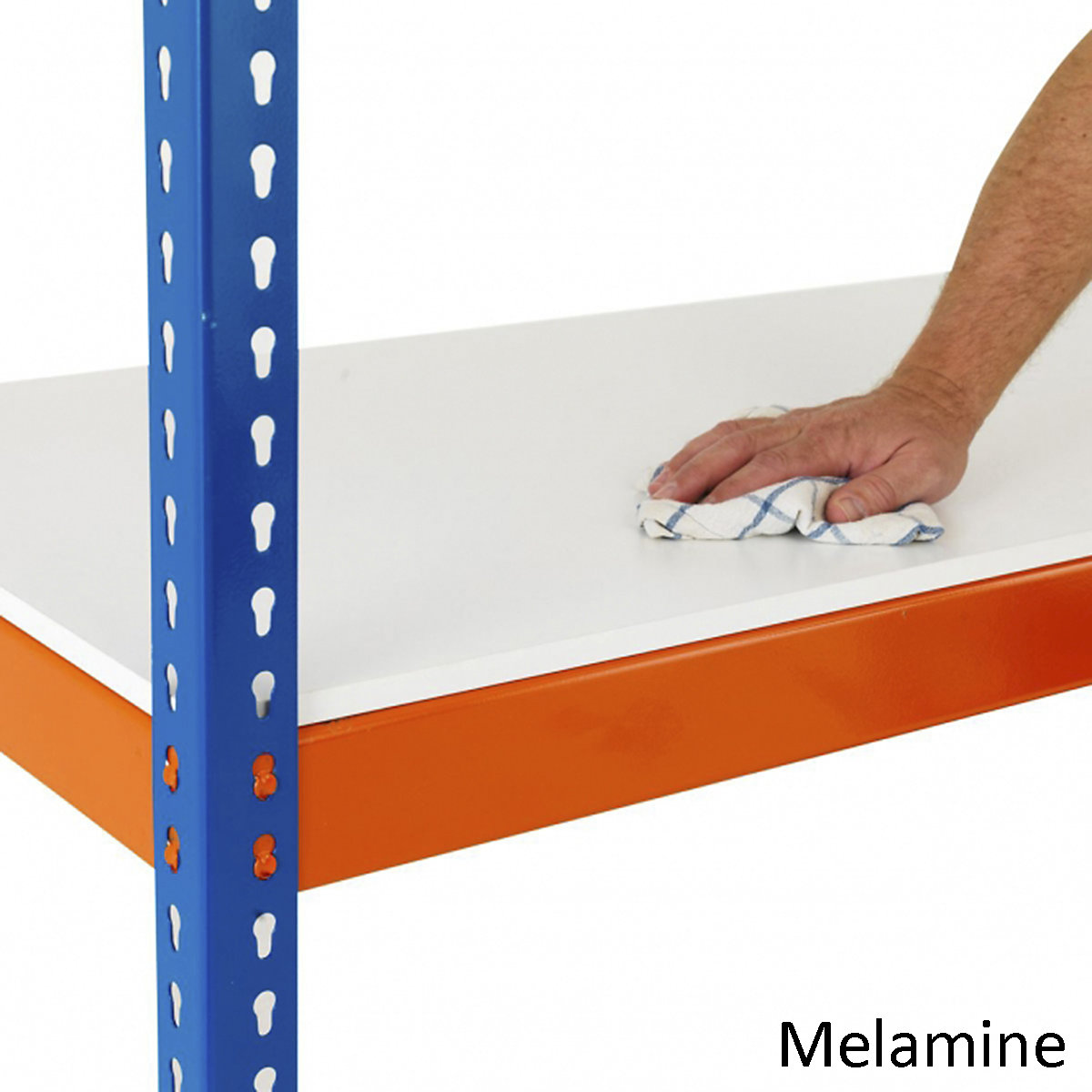

BiGDUG’s BiG800 Racking is a modular, flexible industrial storage solution. Choose your preferred shelving material: chipboard, designed for dry goods and general-purpose storage; melamine, suitable for high-volume, dust-free storage areas and for storing products that require regular wipe-down cleaning; or steel, for storing larger quantities of oil-based products and containers of liqiuids, appropriate for use in Chill rooms and Cold Storage Units. Available in multiple heights, depths, and widths, this racking system can be tailored to fit specific warehouse layouts and workflow requirements. For more elaborate racking systems, our Business Solutions team offers a free consultation for bespoke storage.
