Code: B419B4

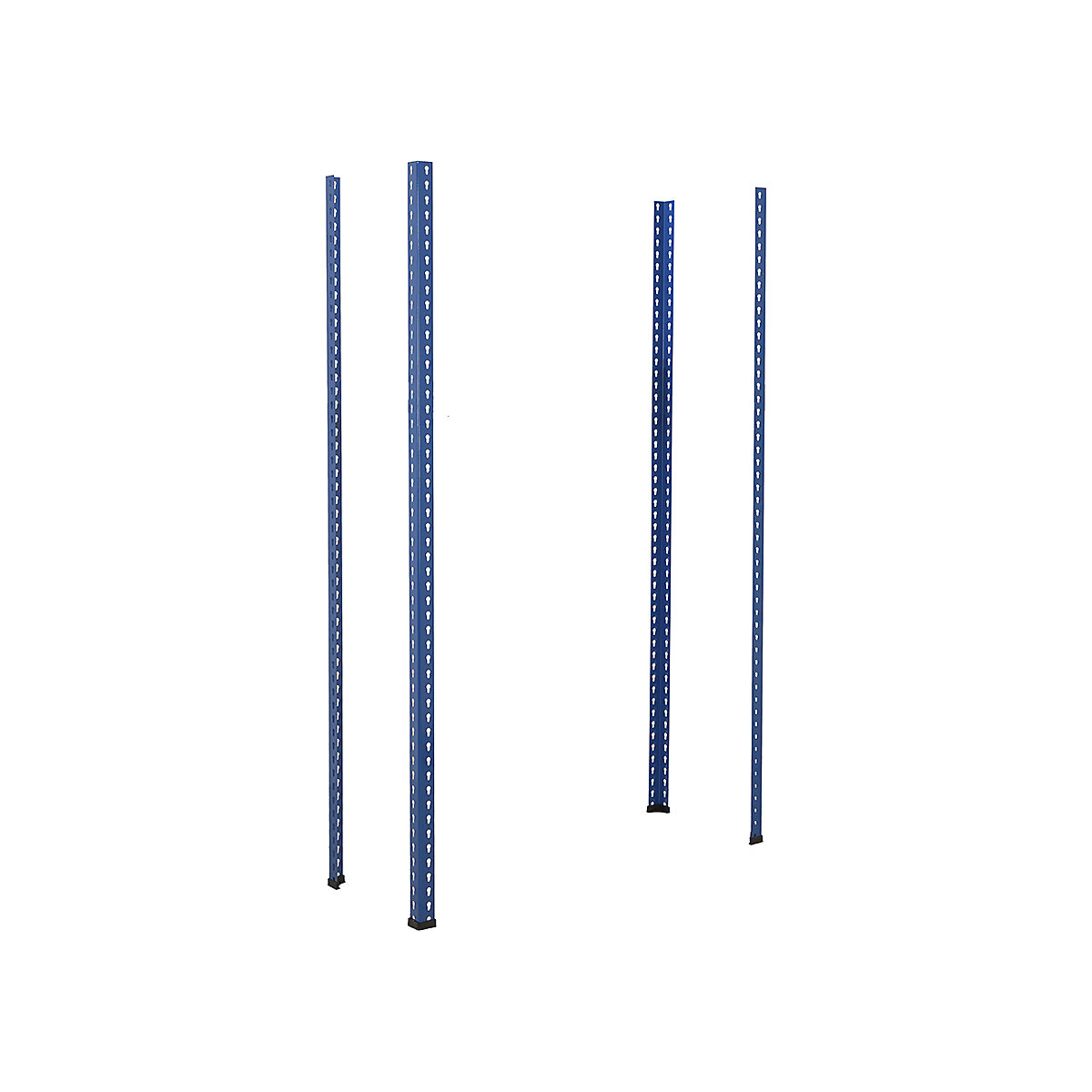

BiG400 Racking 1980h Upright Posts Blue x 4

BiG400 Build-A-Bay Shelving System
Height [mm]
Width [mm]
Depth [mm]
Type
Beam Colour
Delivery time: 2-3 Working Days
Order until 15:00 for next day delivery
Product description

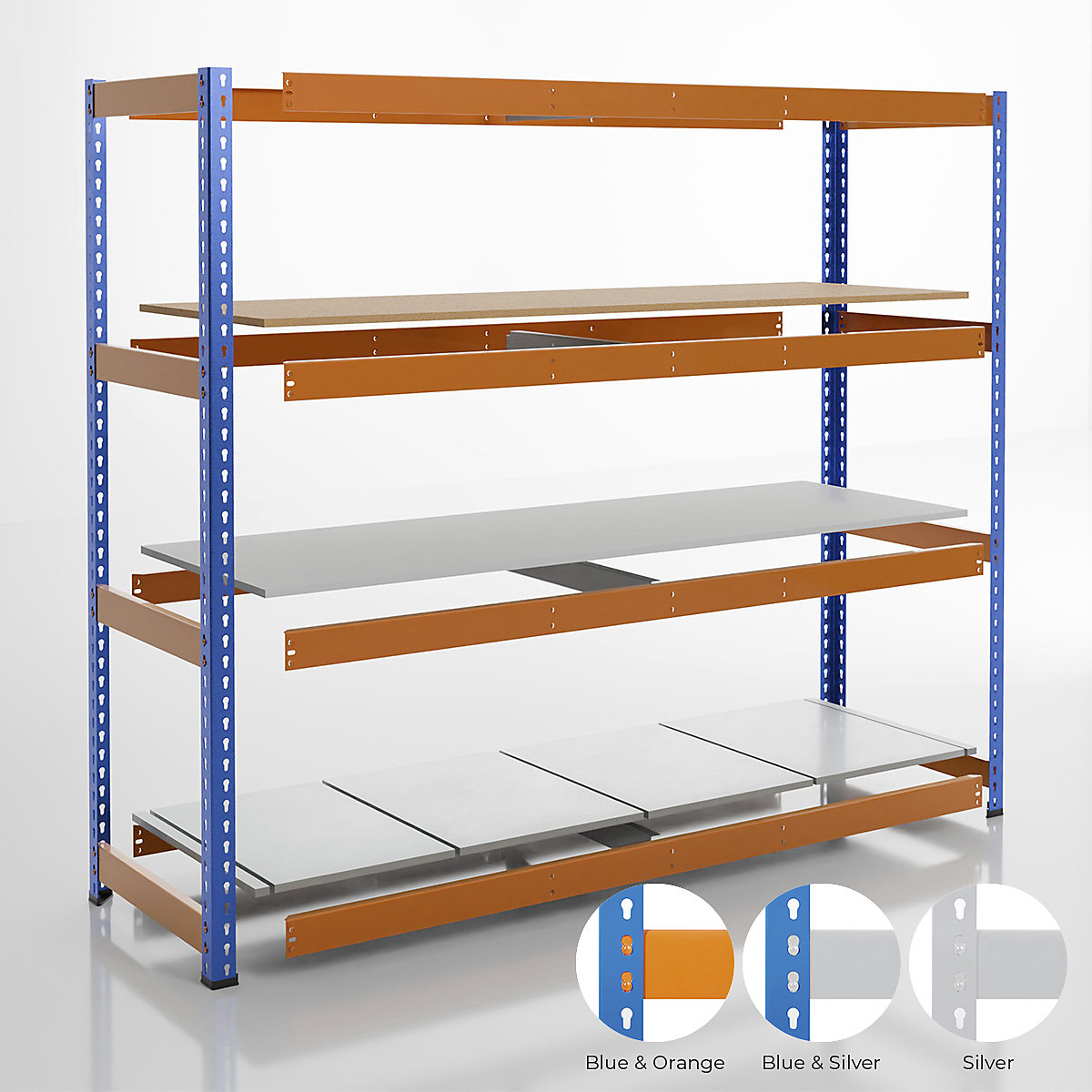

Create and customise your very own BiG400 Racking System with our Build A Bay configurator! Trusted by countless businesses for its value and performance, BiG400 racking combines quality with enhanced visibility, ensuring safe and reliable storage. Uncover endless storage opportunities with our easy-to-use configurator, allowing you to buy exactly what you need to suit your personal requirements. Simply follow the steps below, selecting your uprights and chipboard, melamine, or steel shelf levels to enjoy optimised storage for industrial and commercial spaces!

  • Step 1: Select 4 uprights posts per shelving bay in blue, silver or black and add them to your basket
  • Step 2: Select from chipboard, melamine or steel shelf levels and select your beam colour
  • Step 3: Select the total number of shelving levels required across all bays and add to your basket
  • Note: Load capacities will vary, please ensure you refer to the load capacity chart in the download section below
  • Simple boltless stud-and-keyhole design (just tap together with a rubber mallet)
  • No cross bracing required - suitable for double-sided access
  • Supplied with protective plastic feet
  • Manufactured and certified to FEM standards
  • Wall fixing sets, bay tie plates (blue or silver) and assembly mallets available to buy separately

* UDL = Uniformly Distributed load

Please note: for bays 2135mm or wider, the chipboard is supplied in 2 pieces per level.

Please note: Steel shelves are made up of a number of smaller panels, please refer to the Assembly Instructions available in the 'Downloads' tab for more information.

Please note: Please ensure you refer to the load capacity chart in the ‘Downloads’ tab.

Shelving Specifications

Data Field 1220mm Width 1525mm Width 1830mm Width 2135mm Width 2440mm Width
Upright Type One Piece One Piece One Piece One Piece One Piece
Upright Steel Thickness 1.5mm 1.5mm 1.5mm 1.5mm 1.5mm
Beam Steel Thickness 1.5mm 1.5mm 1.5mm 1.5mm 1.5mm
Shelf Adjustment Increments 38.1mm 38.1mm 38.1mm 38.1mm 38.1mm
Shelf Thickness 94mm 94mm 94mm 94mm 94mm
Chipboard Thickness 15mm 15mm 15mm 15mm 15mm
Melamine Thickness 15mm 15mm 15mm 15mm 15mm
Steel Panel Thickness 0.8mm 0.8mm 0.8mm 0.8mm 0.8mm

Fitting Guide

Please check our guides for each range when planning your shelving space.

Nominal Shelf Width mm: Clear Entry mm: Initial Bay External mm: Next Bay External mm:
1220 1135 1232 1239
1525 1440 1537 1544
1830 1745 1842 1849
2135 2050 2147 2154
2440 2355 2452 2459

External Height = H+12       Pitch = 38.1

Clear height between shelves = (No. x pitch) -94

All dimensions in Millimetres

‌
‌
‌
‌
‌
