Code: B4ASHD25BO

BiG400 Heavy Duty Archiving With 25 Boxes 1997h x 1830w x 455d mm 400kg UDL Blue & Orange

BiG400 Archive Storage Racking With Heavy Duty Boxes
Type
£350.00
£340.00
Price / pack (Excl. VAT)
Free delivery on orders over £1000 ex VAT / £1200 inc VAT
Delivery time: 2-3 Working Days
Order until 15:00 for next day delivery
Product description

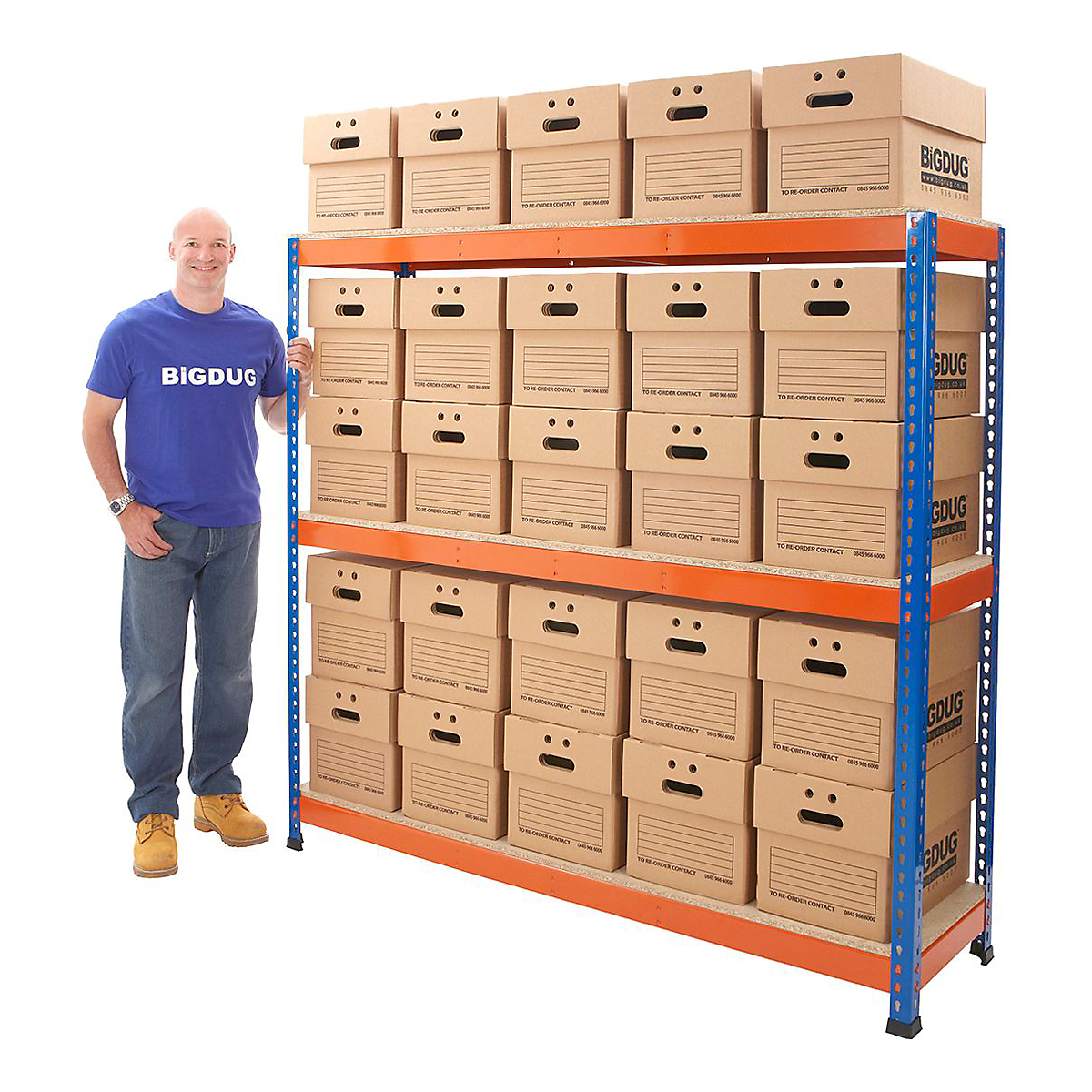

Industrial-grade racking with heavy-duty document boxes. Ideal for frequent access to large volumes of stored documents and for longer term archiving.

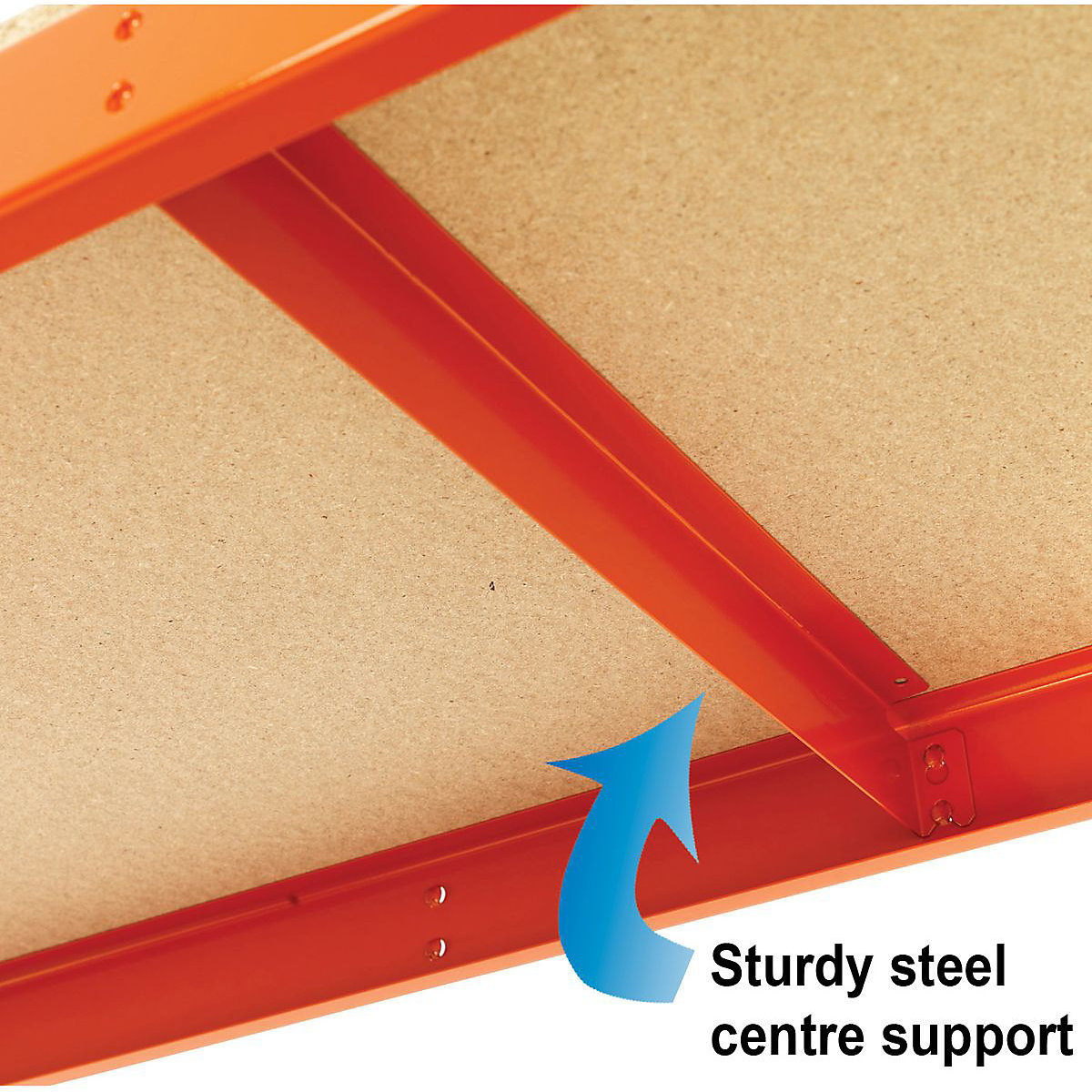

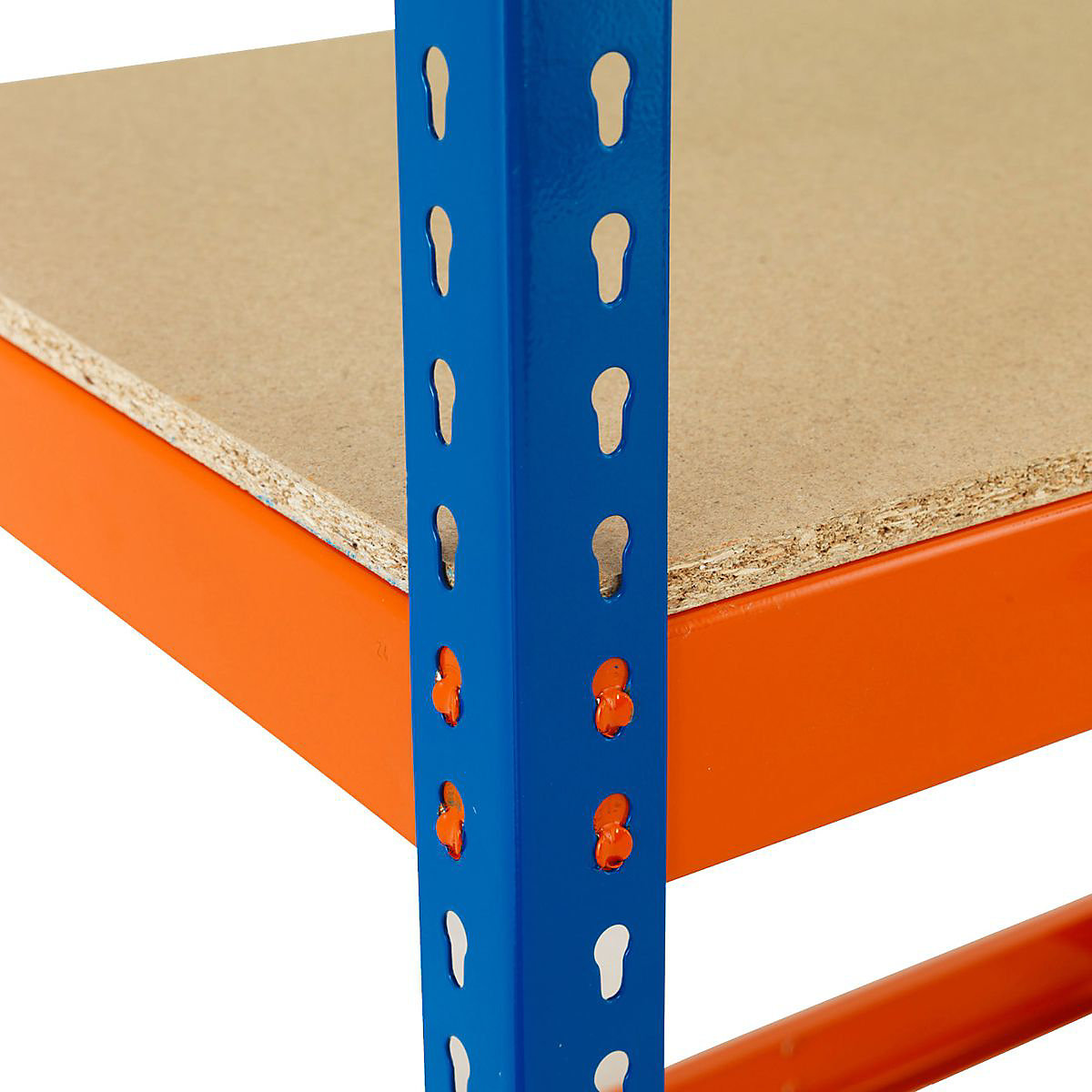

The BiG400 has a load capacity of up to 400kg UDL* per shelf and is built with strong C-section beams and high-density chipboard shelves with steel central-support beams. The 15mm thick chipboard shelves sit on top of the beams and flush inside the protecting steel uprights. This enhances the overall rigidity of the racking and gives the bay a neat, snag-free finish.

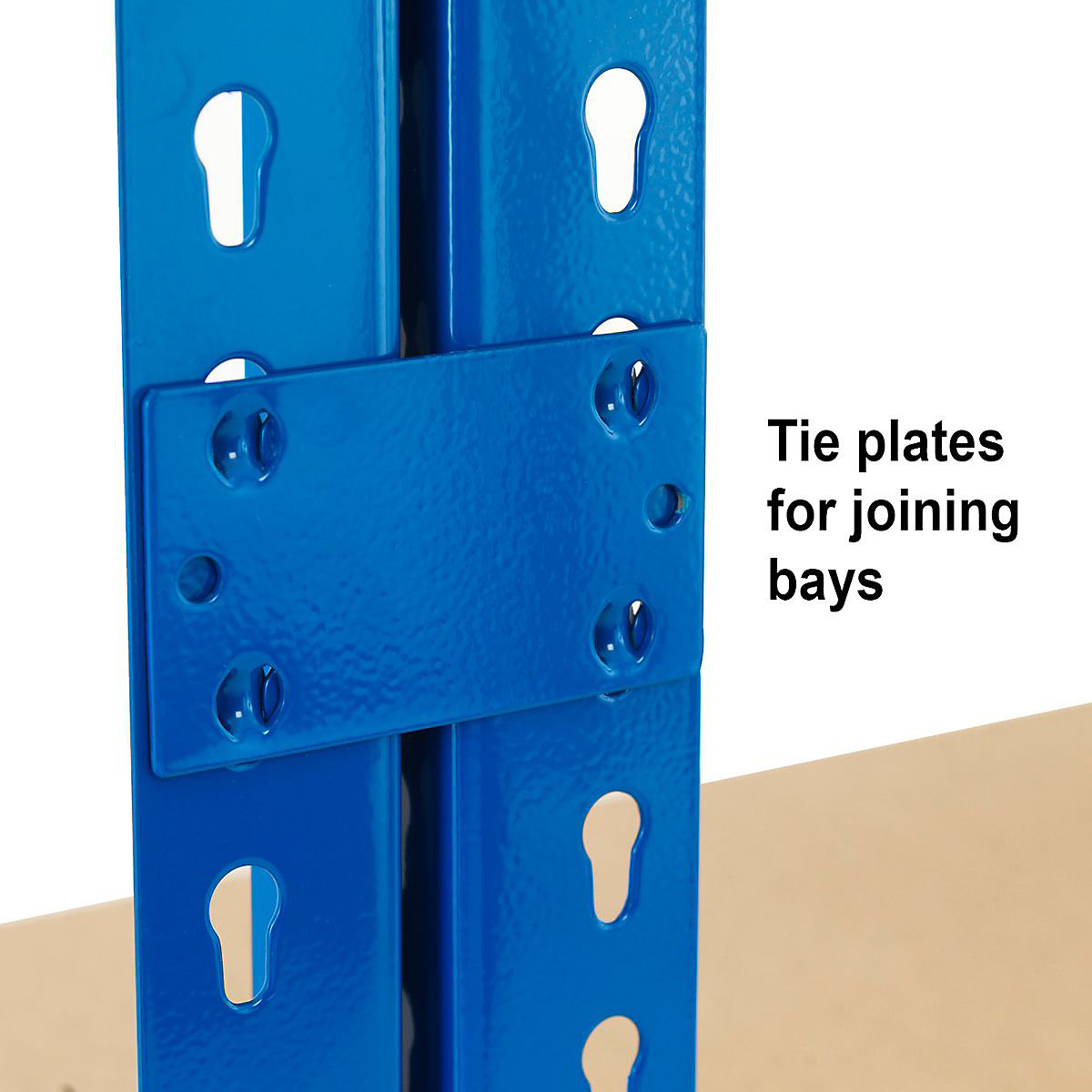

Using the simple assembly principles of the boltless, stud-and keyhole design, the fully modular construction of the BiG400 Racking means that it can be easily configured to both the size of the archiving and, with the addition of tie-plates, the available storage space too.

  • Profiled, premium-grade European steel with 3x high-density chipboard shelves**
  • Supplied with custom-fitting, heavy-duty document boxes
  • Extra-large boxes designed for oversize documents and box files
  • Box lids can be secured with cable ties (supplied separately)

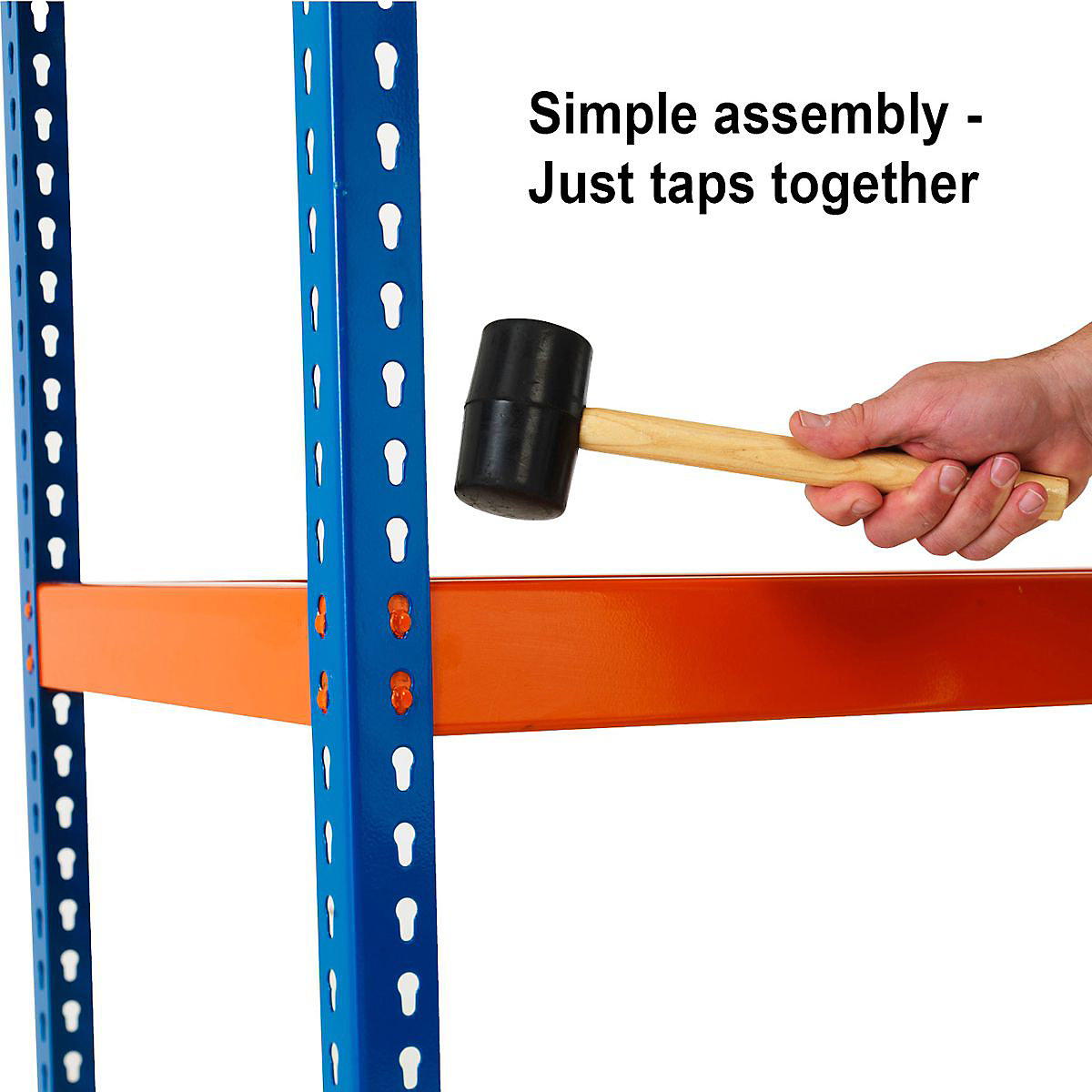

  • Simple boltless assembly - just tap together with a rubber assembly mallet
  • Load capacity per shelf: up to 400kg UDL*
  • Powder coated in Blue and high visibility Orange
  • Flush-fitting decks and compatible document boxes ensure neat, uncluttered finish
  • Shelves adjust on a 38mm pitch (1.5 inches)
  • Document Box dimensions: 320h x 322w x 480d
  • Additional document boxes, shelves and cable ties are all available separately
  • Available from stock and eligible for our Next Day Delivery service

* UDL= Uniformly Distributed Load. Please note that actual capacity varies according to shelf size.

Shelving Specifications

Data Field 1220mm Width 1525mm Width 1830mm Width 2135mm Width 2440mm Width
Upright Type One Piece One Piece One Piece One Piece One Piece
Upright Steel Thickness 1.5mm 1.5mm 1.5mm 1.5mm 1.5mm
Beam Steel Thickness 1.5mm 1.5mm 1.5mm 1.5mm 1.5mm
Shelf Adjustment Increments 38.1mm 38.1mm 38.1mm 38.1mm 38.1mm
Shelf Thickness 94mm 94mm 94mm 94mm 94mm
Chipboard Thickness 15mm 15mm 15mm 15mm 15mm
MDF Thickness n/a n/a n/a n/a n/a
Melamine Thickness 15mm 15mm 15mm 15mm 15mm
Steel Panel Thickness 0.8mm 0.8mm 0.8mm 0.8mm 0.8mm
Total Bay Capacity 1677h mm 1600kg 1600kg 1600kg 1600kg 1600kg
Total Bay Capacity 1980h mm 1600kg 1600kg 1600kg 1600kg 1600kg
Total Bay Capacity 2440h mm 1320kg 1320kg 1320kg 1320kg 1320kg
Clear Width 1135mm 1440mm 1745mm 2050mm 2355mm
Extra Levels Available Y Y Y Y Y
‌
‌
‌
‌
‌
