BiG400 Steel Racking 2440h X 1525w X 610d Mm 4 Levels 330kg UDL Blue & Galvanised
BiG400 Steel Racking 2440h X 1525w X 610d Mm 4 Levels 330kg UDL Blue & Galvanised
- Next day delivery available, in stock products only
- Find a lower price & we'll match it
- Large Project? Call for site visit & quote
Friday 8am - 4:30pm
Excluding Bank Holidays

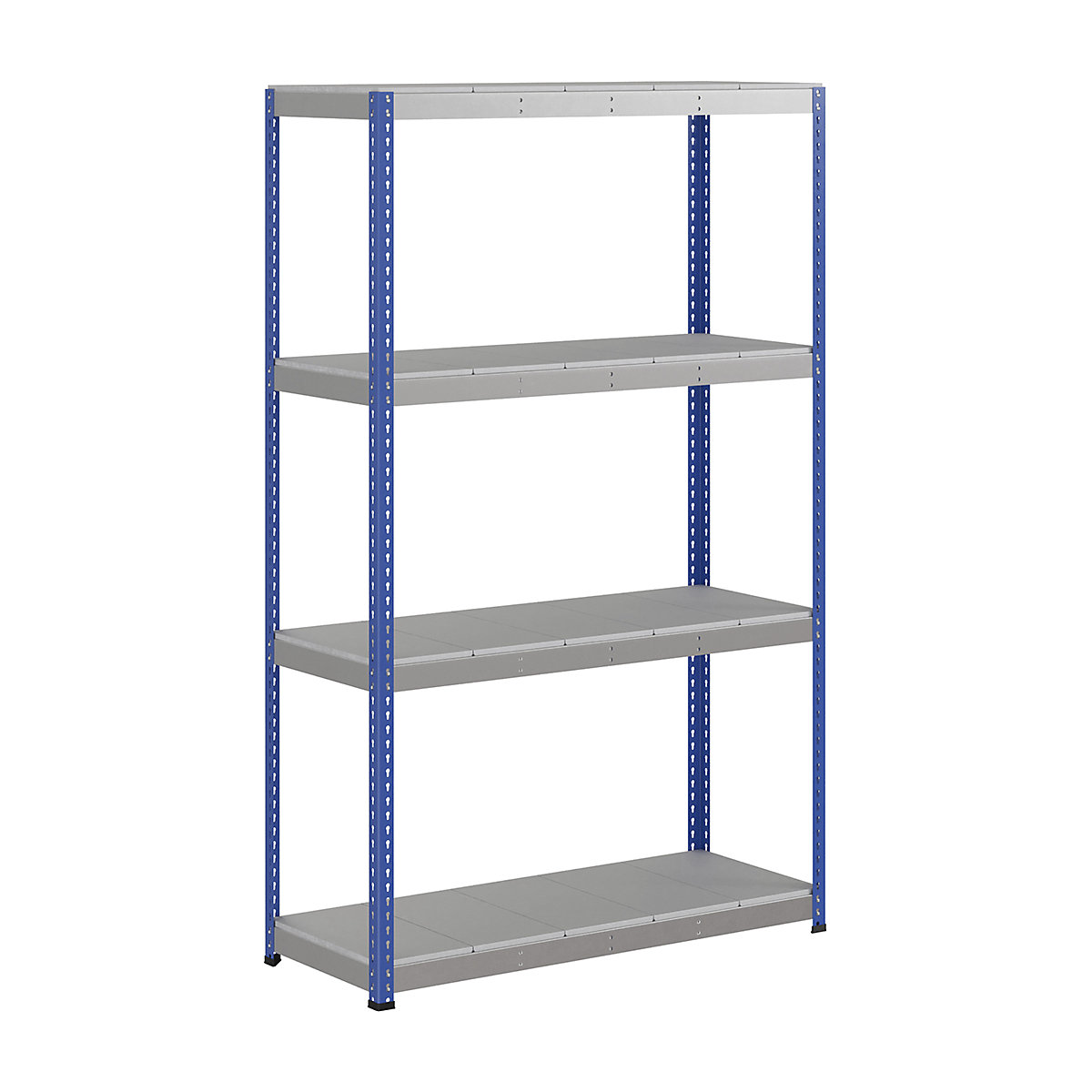

Enhance storage space and optimise workflow with the BiG400 2440mm High Racking. This commercial steel racking system is perfect for intensive use and bulky loads, thanks to its premium European steel frame and shelf load capacity of 330kg UDL*. With a simple boltless design, it is easy to assemble and adjust, allowing you to optimise your storage space effortlessly. Highly recommended for many applications, including but not limited to, bulk storage, regular picking, large volume archive and document storage. With additional accessories available, our BiG400 racking range is a versatile and adaptable system.
- Load capacity per shelf: up to 330kg UDL*
- Choice of chipboard, melamine or steel shelves
- Manufactured from premium, industrial-grade European steel
- Each shelf is fully adjustable in height every 38mm (1.5 inches)
- Additional shelves, tie plates, wall brackets and assembly mallet available separately
Commercial Steel Racking
- Manufactured to certified FEM standards
- Simple boltless stud-and-keyhole design - just tap together with a rubber assembly mallet
- Available in three different colour finishes
- Supplied with protective plastic feet
- Requires no cross bracing so suitable for double-sided access
* UDL = Uniformly Distributed load. Actual capacity varies according to shelf size.
Please note: For bays 2135mm or wider, the chipboard is supplied in 2 pieces per level.
Shelving Specifications
| Data Field | 1220mm Width | 1525mm Width | 1830mm Width | 2135mm Width | 2440mm Width |
|---|---|---|---|---|---|
| Upright Type | One Piece | One Piece | One Piece | One Piece | One Piece |
| Upright Steel Thickness | 1.5mm | 1.5mm | 1.5mm | 1.5mm | 1.5mm |
| Beam Steel Thickness | 1.5mm | 1.5mm | 1.5mm | 1.5mm | 1.5mm |
| Shelf Adjustment Increments | 38.1mm | 38.1mm | 38.1mm | 38.1mm | 38.1mm |
| Shelf Thickness | 94mm | 94mm | 94mm | 94mm | 94mm |
| Chipboard Thickness | 15mm | 15mm | 15mm | 15mm | 15mm |
| Melamine Thickness | 15mm | 15mm | 15mm | 15mm | 15mm |
| Steel Panel Thickness | 0.8mm | 0.8mm | 0.8mm | 0.8mm | 0.8mm |
| Total Bay Capacity 24400h mm | 1650kg | 1650kg | 1650kg | 1650kg | 1650kg |
| Clear Width | 1135mm | 1440mm | 1745mm | 2050mm | 2355mm |
| Extra Levels Available | Y | Y | Y | Y | Y |
Fitting Guide
Please check our guides for each range when planning your shelving space.
| Nominal Shelf Width mm: | Clear Entry mm: | Initial Bay External mm: | Next Bay External mm: |
|---|---|---|---|
| 1220 | 1135 | 1232 | 1239 |
| 1525 | 1440 | 1537 | 1544 |
| 1830 | 1745 | 1842 | 1849 |
| 2135 | 2050 | 2147 | 2154 |
| 2440 | 2355 | 2452 | 2459 |
External Height = H+12 Pitch = 38.1
Clear height between shelves = (No. x pitch) -30
All dimensions in Millimetres
Can I Add Extra Shelf Levels To This Commercial Steel Racking?
Our BiG400 Racking system is completely modular and allows you to add extra shelf levels whenever needed. Choose from chipboard, ideal for general-purpose storage; melamine, which is easy to wipe clean; or steel, suitable for moisture-resistant storage in hygienic environments. Browse our additional shelving tab to see our different shelving materials in various sizes. Each shelf can be adjusted in height every 38mm, so you can reconfigure the setup to suit different-sized items. Please note that adding extra levels can impact overall shelf capacity; contact us for further advice.
Where Can BiG400 Racking Be Used?
This racking system is designed to meet the demands of a wide variety of environments. It's commonly used in warehouses, stockrooms, offices, garages, and workshops. Whether you're storing bulk goods, archive boxes, or equipment, BiG400 racking delivers strength and flexibility. If you need a more robust storage solution for intensive use, browse our BiG800 racking range.
What Safety Features Does This Racking Have?
The BiG400 racking system has several built-in safety features to keep your workspace secure. Its vibrant uprights and beams are designed to stand out, reducing the chance of accidental collisions in busy environments. It doesn’t require cross bracing, allowing full access from both sides while maintaining excellent stability. The racking is also FEM-certified and comes with protective plastic feet to help protect floors and support the overall structure. You can also purchase wall brackets for added safety in high-traffic areas.
Contact BiGDUG
BiGDUG is a reliable supplier of BiG400 racking. If you’re planning a large project and need some personal assistance, we can call to your site to assess your requirements.
For anything else, please contact us on 0333 200 5299 or via Live Chat on Monday to Thursday 9am - 5pm, and Friday 9am - 4:30pm.
