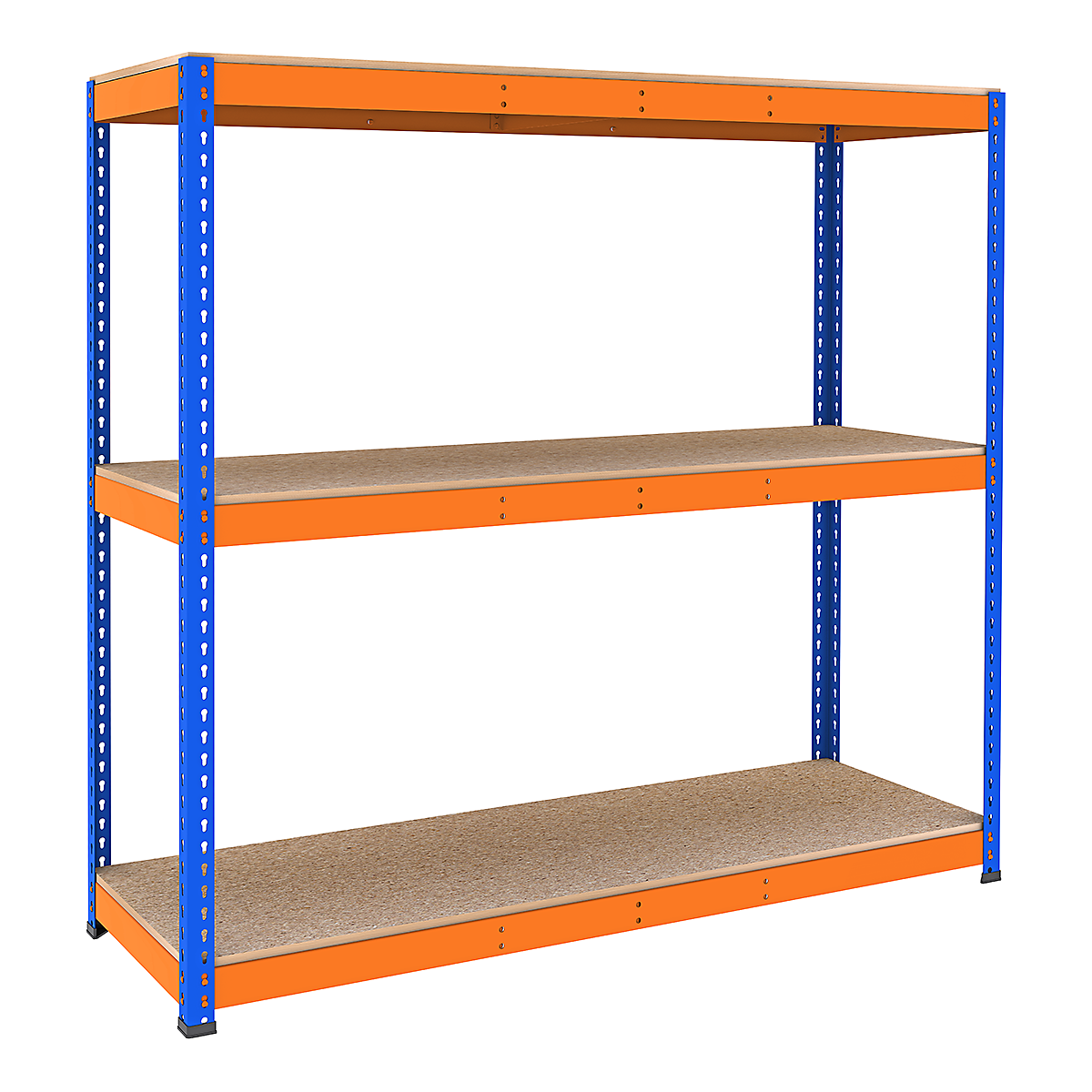

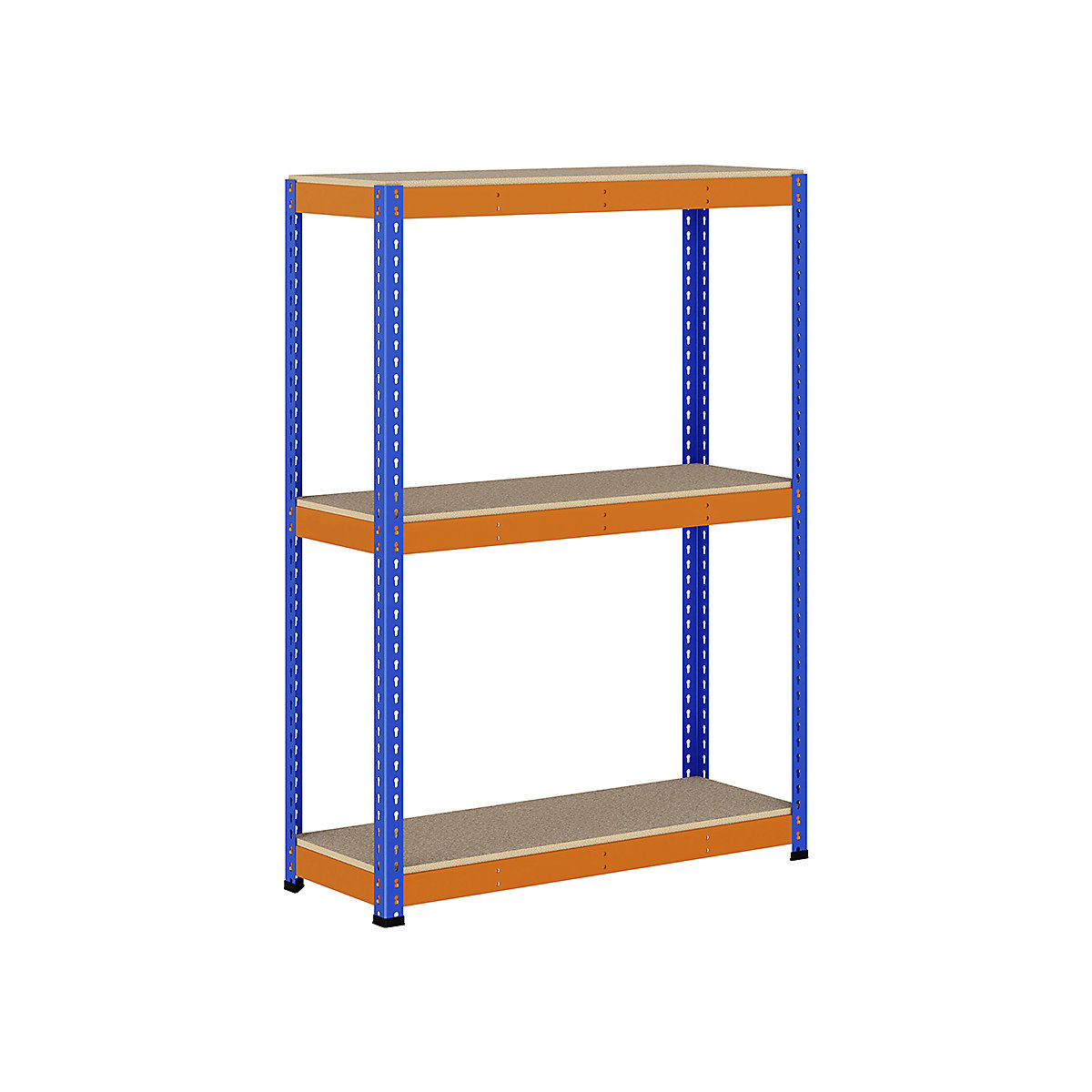

BiG400 Racking 1677h x 1220w x 455d mm 3 Levels 375kg UDL Blue & Orange
BiG400 Racking 1677h x 1220w x 455d mm 3 Levels 375kg UDL Blue & Orange
- Next day delivery available, in stock products only
- Find a lower price & we'll match it
- Large Project? Call for site visit & quote
Friday 8am - 4:30pm
Excluding Bank Holidays
Maximise efficiency and streamline operations with BiG400 racking, our most popular commercially used racking system and the answer to your business needs. With its simple boltless design, the BiG400 1677mm High Racking is easy to assemble and adjust, allowing you to optimise your storage space effortlessly. With additional accessories and extra levels available, this commercial racking system proves to be a versatile and adaptable system, perfect for business.
- Up to 375kg UDL per shelf for 3 level bays & up to 400kg UDL per shelf for 4 level bays

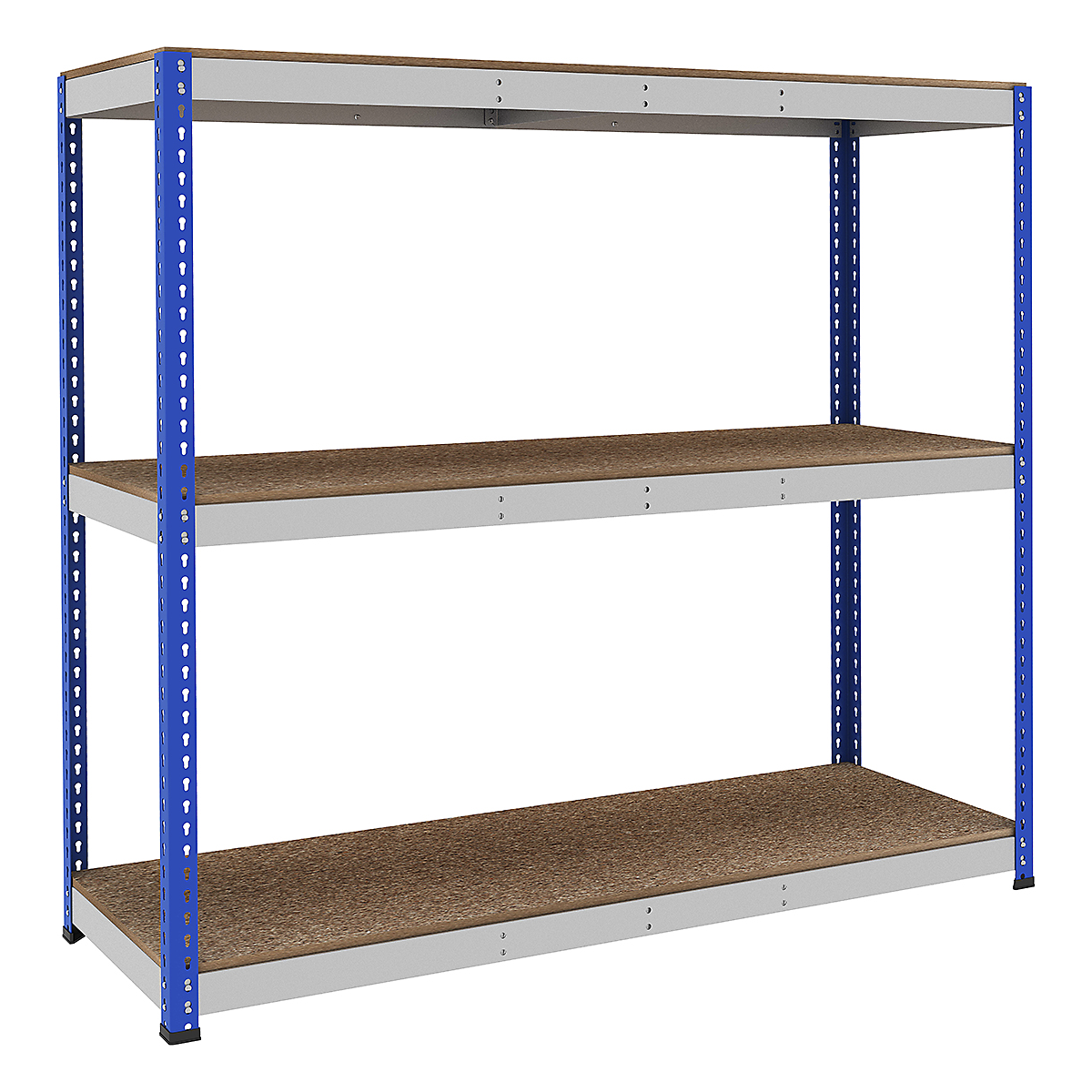

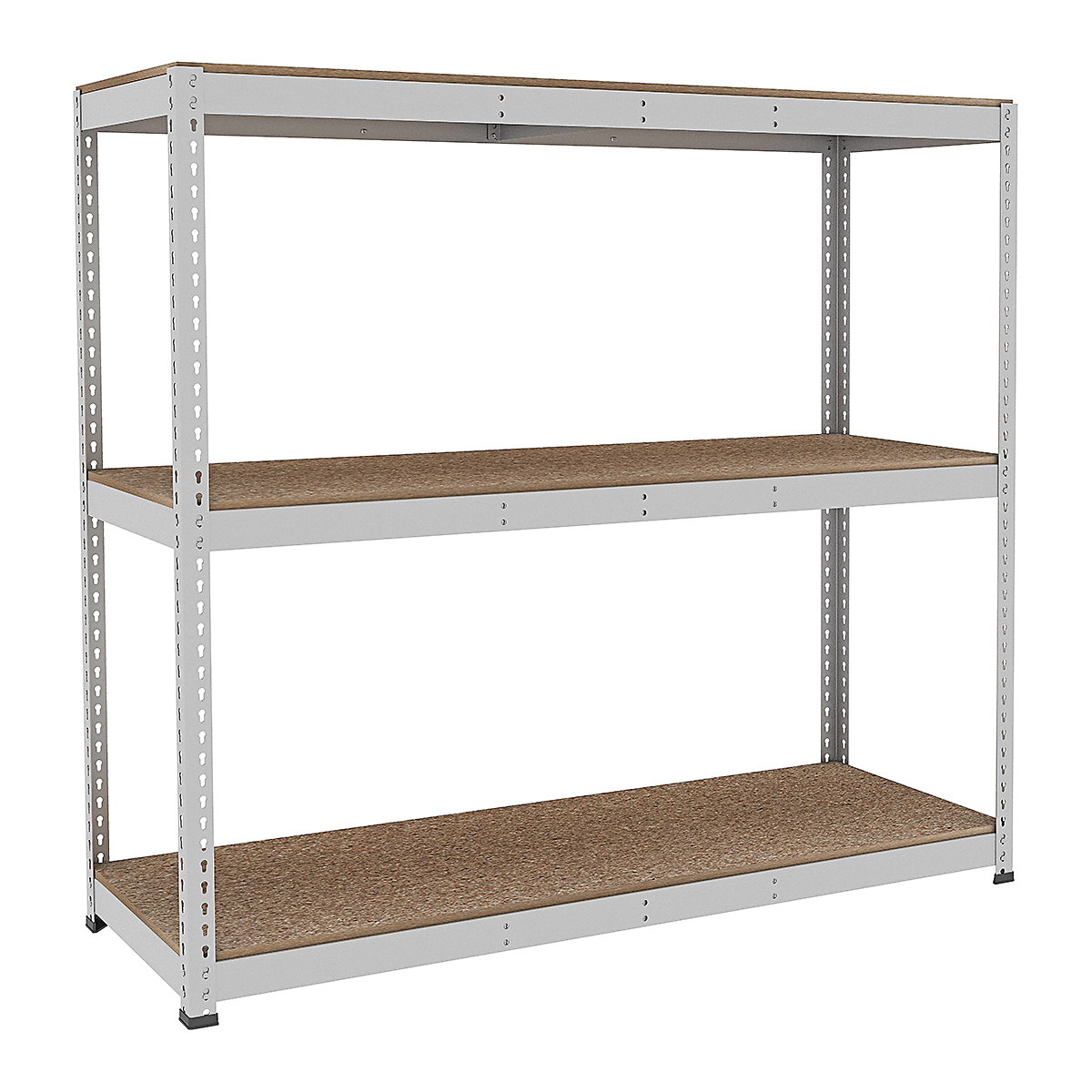

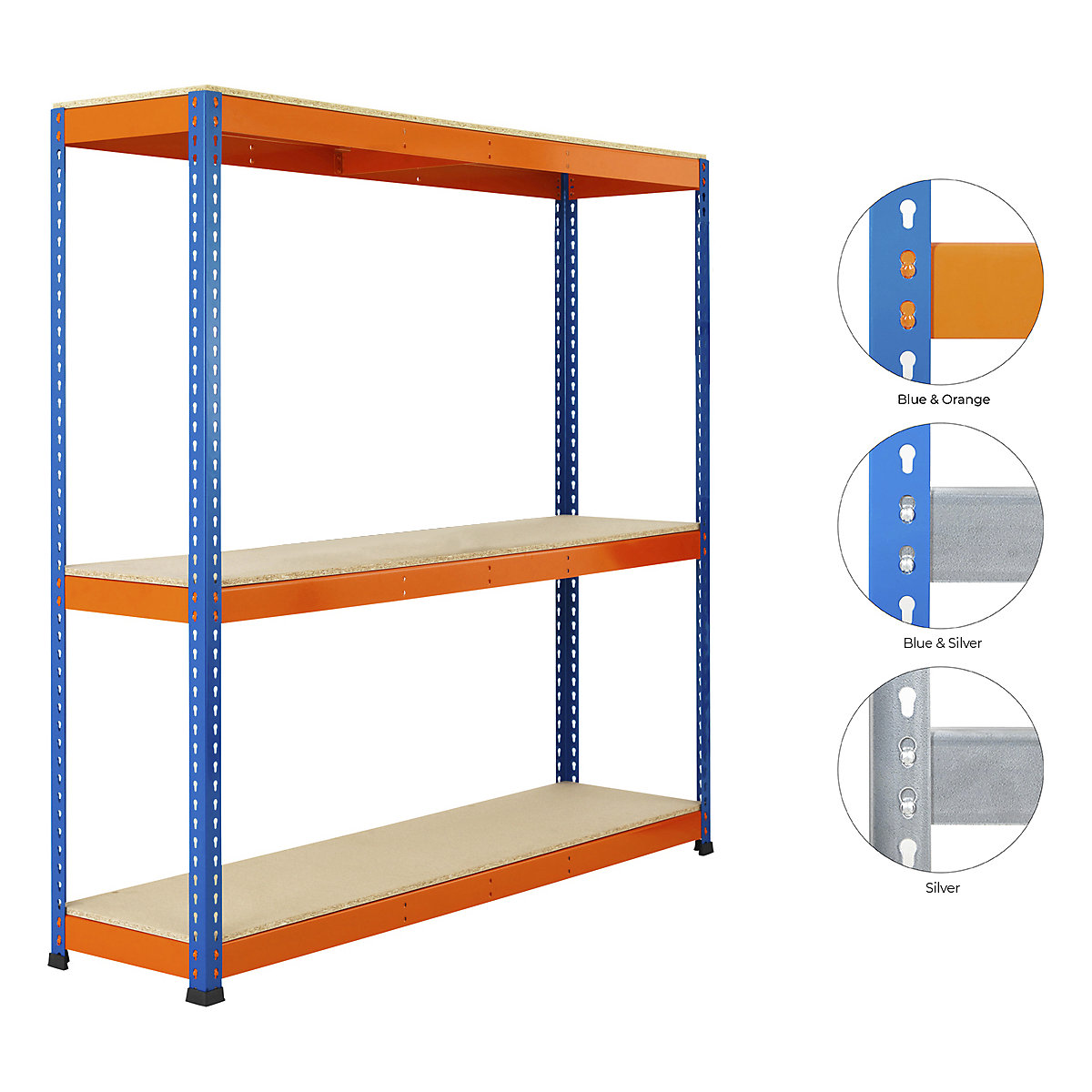

- Choose from three colours and two level options
- Manufactured from premium, industrial-grade European steel
- Tie plates ( blue B4TP4B or galvanised B4TP4Z), wall brackets and assembly mallet available separately
Commercial Racking System
- Manufactured to certified FEM standards
- Simple boltless stud-and-keyhole design - just tap together with a rubber assembly mallet
- Available in five widths and five depths
- Supplied with protective plastic feet
- Requires no cross-bracing, so it is suitable for double-sided access
* UDL = Uniformly Distributed load. Actual capacity varies according to shelf size.
Please note: for bays 2135mm or wider, the chipboard is supplied in 2 pieces per level.
Please note: It is recommended to wear gloves when assembling and using the galvanised racking.
Shelving Specifications
| Data Field | 1220mm Width | 1525mm Width | 1830mm Width | 2135mm Width | 2440mm Width |
|---|---|---|---|---|---|
| Upright Type | One Piece | One Piece | One Piece | One Piece | One Piece |
| Upright Steel Thickness | 1.5mm | 1.5mm | 1.5mm | 1.5mm | 1.5mm |
| Beam Steel Thickness | 1.5mm | 1.5mm | 1.5mm | 1.5mm | 1.5mm |
| Shelf Adjustment Increments | 38.1mm | 38.1mm | 38.1mm | 38.1mm | 38.1mm |
| Shelf Thickness | 94mm | 94mm | 94mm | 94mm | 94mm |
| Chipboard Thickness | 15mm | 15mm | 15mm | 15mm | 15mm |
| Melamine Thickness | 15mm | 15mm | 15mm | 15mm | 15mm |
| Steel Panel Thickness | 0.8mm | 0.8mm | 0.8mm | 0.8mm | 0.8mm |
| Total Bay Capacity 1677h mm | 1600kg* | 1600kg* | 1600kg* | 1600kg* | 1600kg* |
| Clear Width | 1135mm | 1440mm | 1745mm | 2050mm | 2355mm |
| Extra Levels Available | Y | Y | Y | Y | Y |
Please note: 3 level bays are 1125kg UDL.
Fitting Guide
Please check our guides for each range when planning your shelving space.
| Nominal Shelf Width mm: | Clear Entry mm: | Initial Bay External mm: | Next Bay External mm: |
|---|---|---|---|
| 1220 | 1135 | 1232 | 1239 |
| 1525 | 1440 | 1537 | 1544 |
| 1830 | 1745 | 1842 | 1849 |
| 2135 | 2050 | 2147 | 2154 |
| 2440 | 2355 | 2452 | 2459 |
External Height = H+12 Pitch = 38.1
Clear height between shelves = (No. x pitch) -30
All dimensions in Millimetres
Where Can BiGDUG’s Commercial Racking System Be Used?
Our commercial racking system is designed to be used in various industrial and commercial environments, providing a reliable storage solution for equipment, tools, and stock. It can be used for bulk storage, picking and packing, and large-volume archive and document storage in office storerooms.
How Does Warehouse Racking Streamline Operations?
BiGDUG’s BiG400 1677h High Racking can significantly streamline operations by optimising space, improving inventory management, and enhancing workflow efficiency. This leads to faster order fulfilment, reduced labour costs, and improved overall productivity.
Contact BiGDUG
BiGDUG is a reliable supplier of BiG400 racking. If you’re planning a large project and need some personal assistance, we can call to your site to assess your requirements.
For anything else, please contact us on 0333 200 5299 or via Live Chat on Monday to Thursday 9am - 5pm, and Friday 9am - 4:30pm.
