Code: B3LA20BG

BiG340 20 Lever Arch File Shelving 915h x 915w x 305d mm 3 Levels 340kg UDL Blue & Grey

(3)
BiG340 Lever Arch File Storage Shelving
Height [mm]
Depth [mm]
Colour
Delivery time: 2-3 Working Days
Order until 15:00 for next day delivery
Product description

Lever Arch archive storage system combining BiG340 shelving with custom-fitting file holders. Available as a single or double depth bay and with 3 or 6 shelves.

  • Profiled European steel shelving bay with adjustable shelf levels
  • Wipe-clean melamine-faced chipboard top
  • 15mm thick high-density chipboard shelves
  • Shelf adjustment levels: 38mm (1.5 inches)
  • Load capacity per shelf: up to 340kg UDL*
  • Simple boltless assembly - just tap together with a rubber assembly mallet
  • Available in a powder-coated Blue & Orange, Blue & Grey or Grey finish
  • Flat-packed corrugated cardboard file holders
  • Pre-folded board with self-locking tabs
  • Single holder can hold 5x Lever Arch files

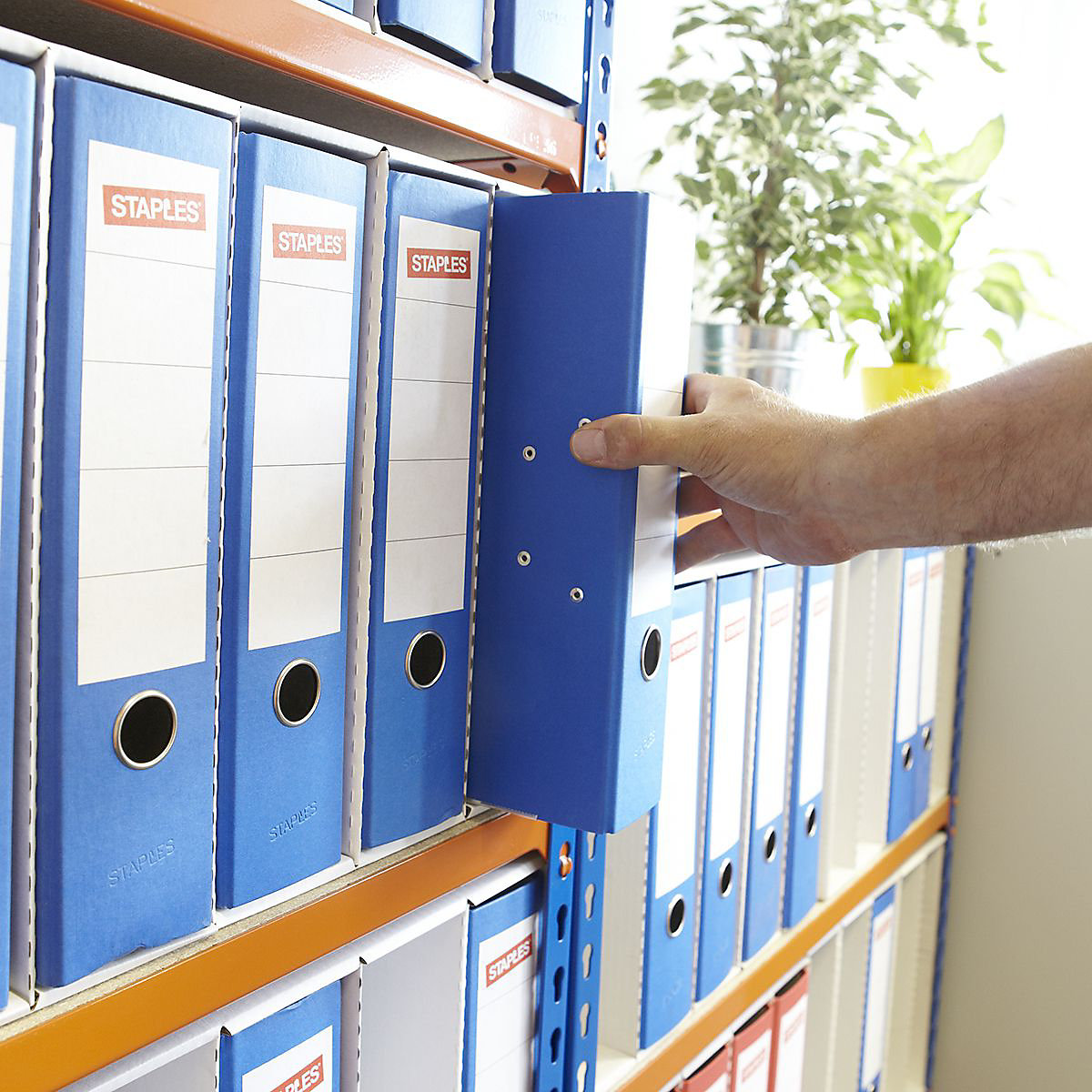

  • Used to organise filing systems and to prevent shelved-files from falling sideways

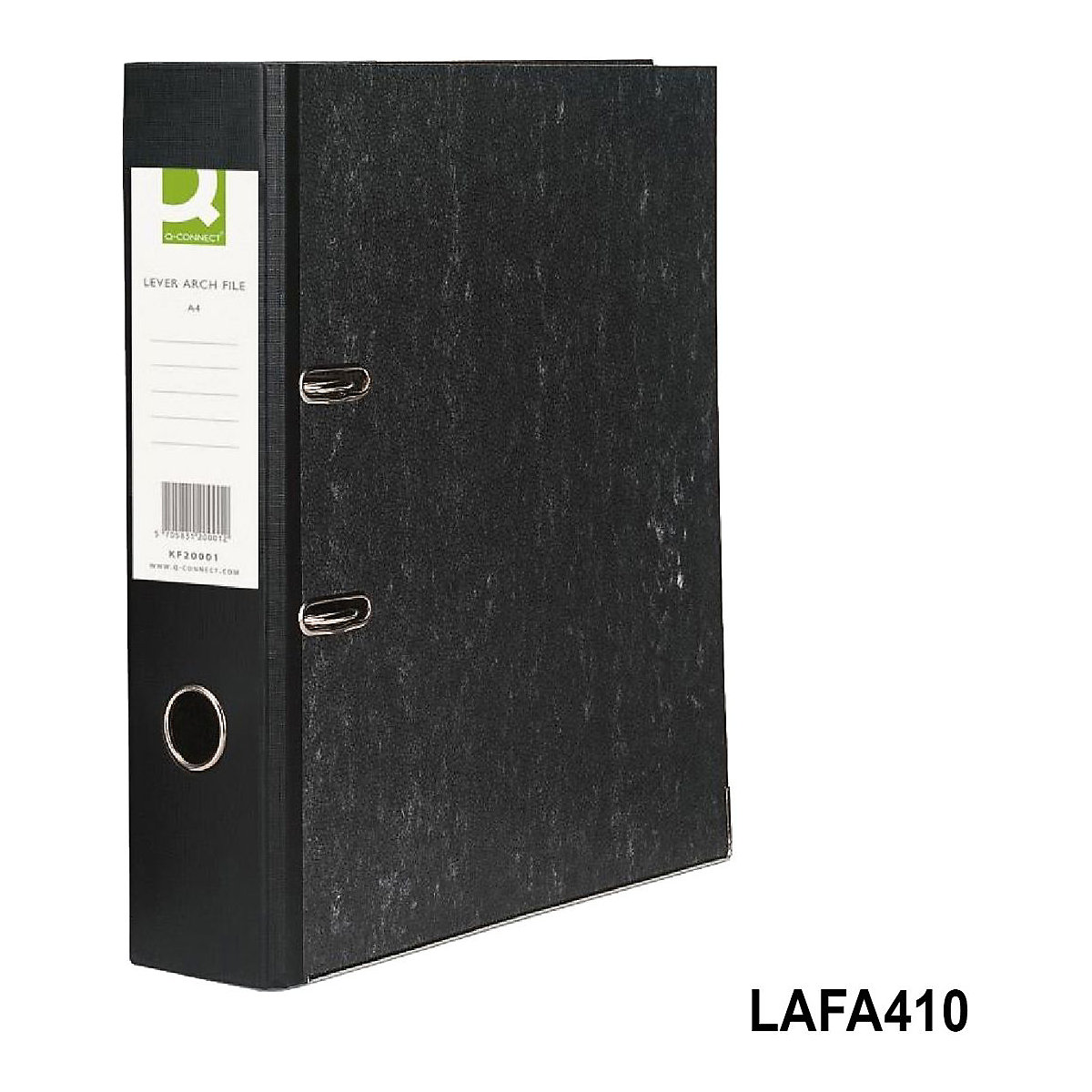

  • Note: Packs of Lever Arch files are available separately and are shown for illustration purposes

* UDL= Uniformly Distributed Load

Shelving Specifications

Data Field 915mm Width 1220mm Width 1525mm Width
Upright Type One Piece One Piece One Piece
Upright Steel Thickness 1.8mm 1.8mm 1.8mm
Beam Steel Thickness 2mm 2mm 2mm
Shelf Adjustment Increments 38.1mm 38.1mm 38.1mm
Shelf Thickness 30mm 30mm 30mm
Chipboard Thickness 15mm 15mm 15mm
MDF Thickness n/a n/a n/a
Melamine Thickness 15mm 15mm 15mm
Steel Panel Thickness 0.8mm 0.8mm 0.8mm
Total Bay Capacity 1980h mm 2869kg 2869kg 2869kg
Total Bay Capacity 2440h mm 2475kg 2475kg 2475kg
Total Bay Capacity 3050h mm 1745kg 1745kg 1745kg

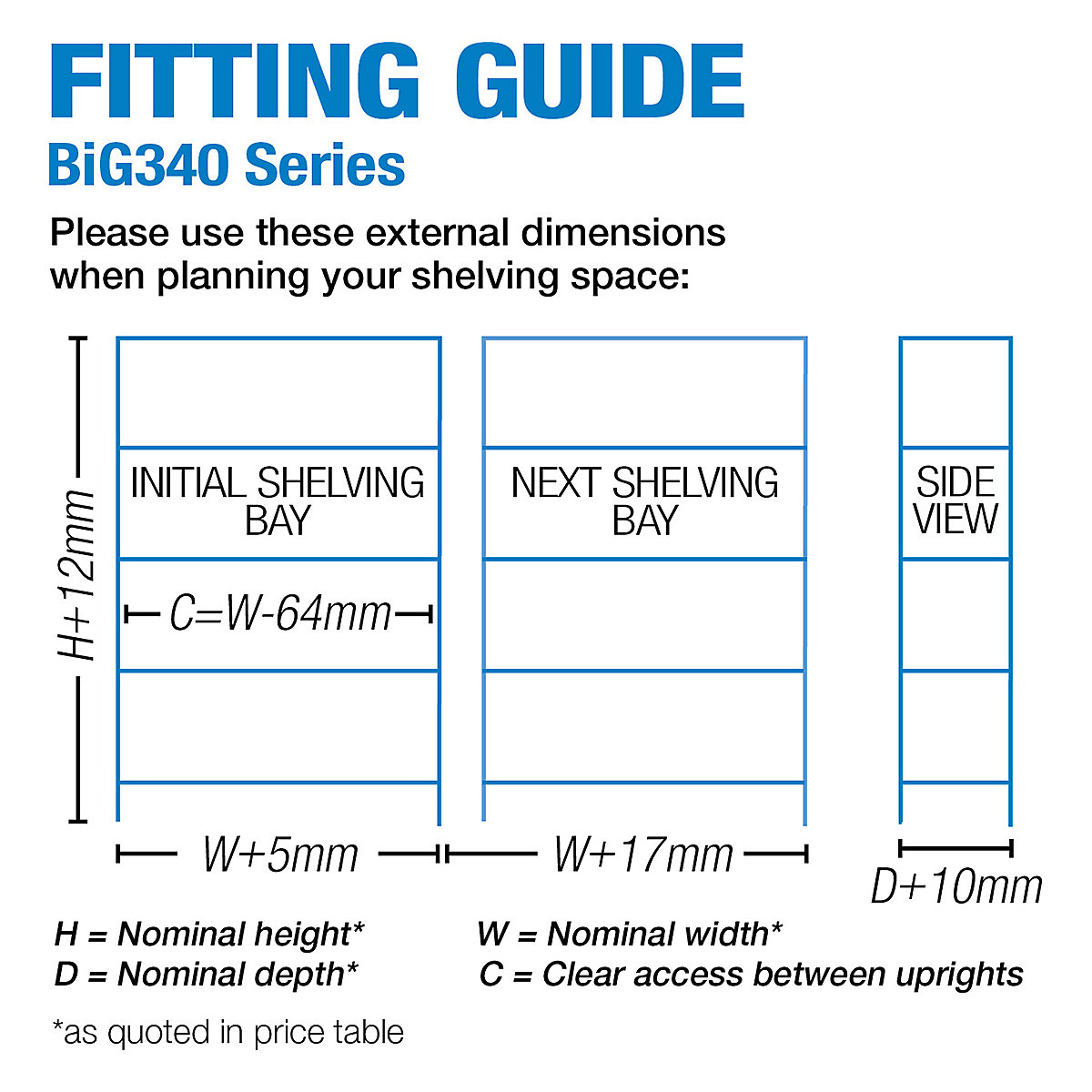

Clear Width 851mm 1156mm 1461mm
Extra Levels Available Y Y Y
‌
‌
‌
‌
‌
Versions
B3LA20GG_1
B3LA20GG

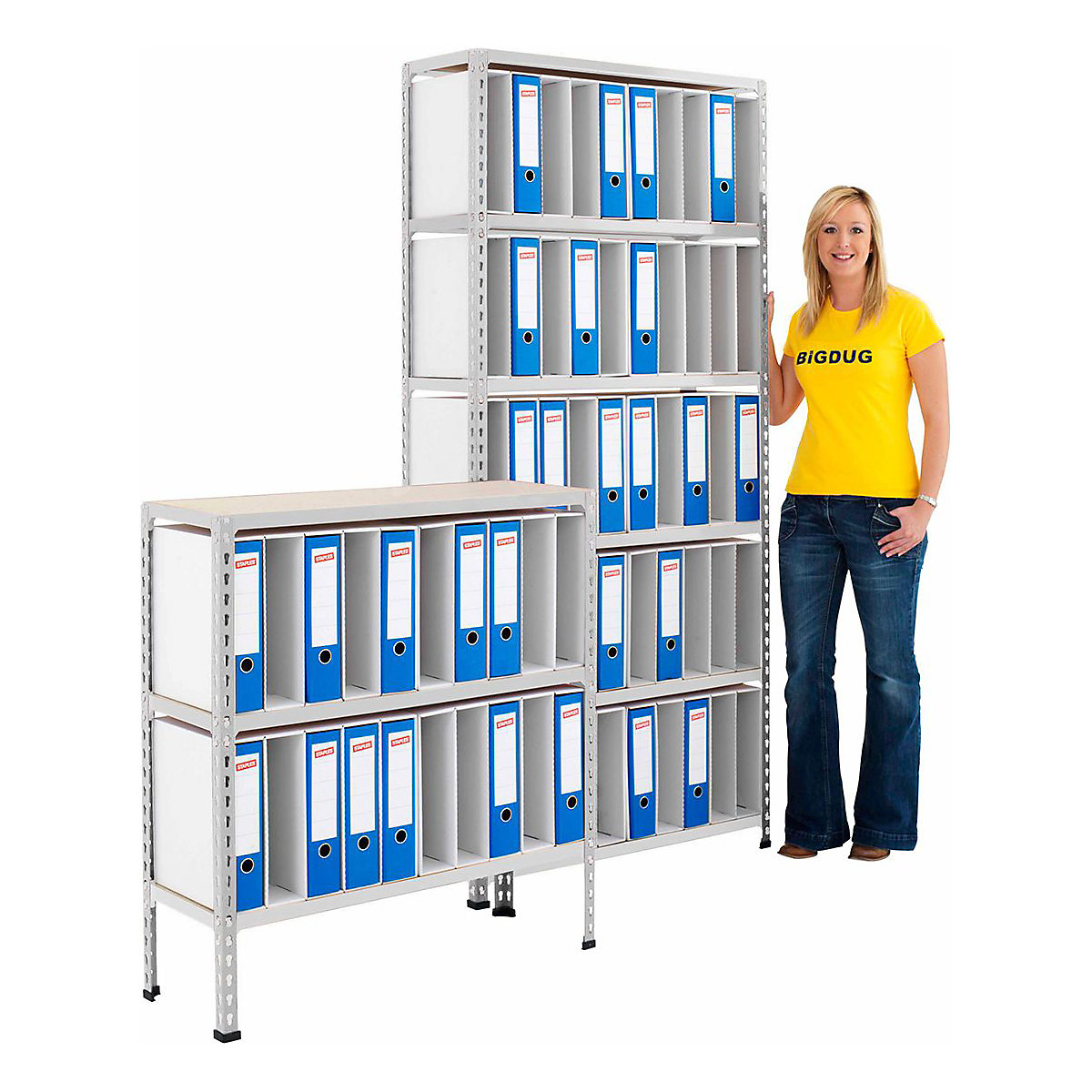

BiG340 20 Lever Arch File Shelving 915h x 915w x 305d mm 3 Levels 340kg UDL Grey

Price Excl. VAT
£123.00

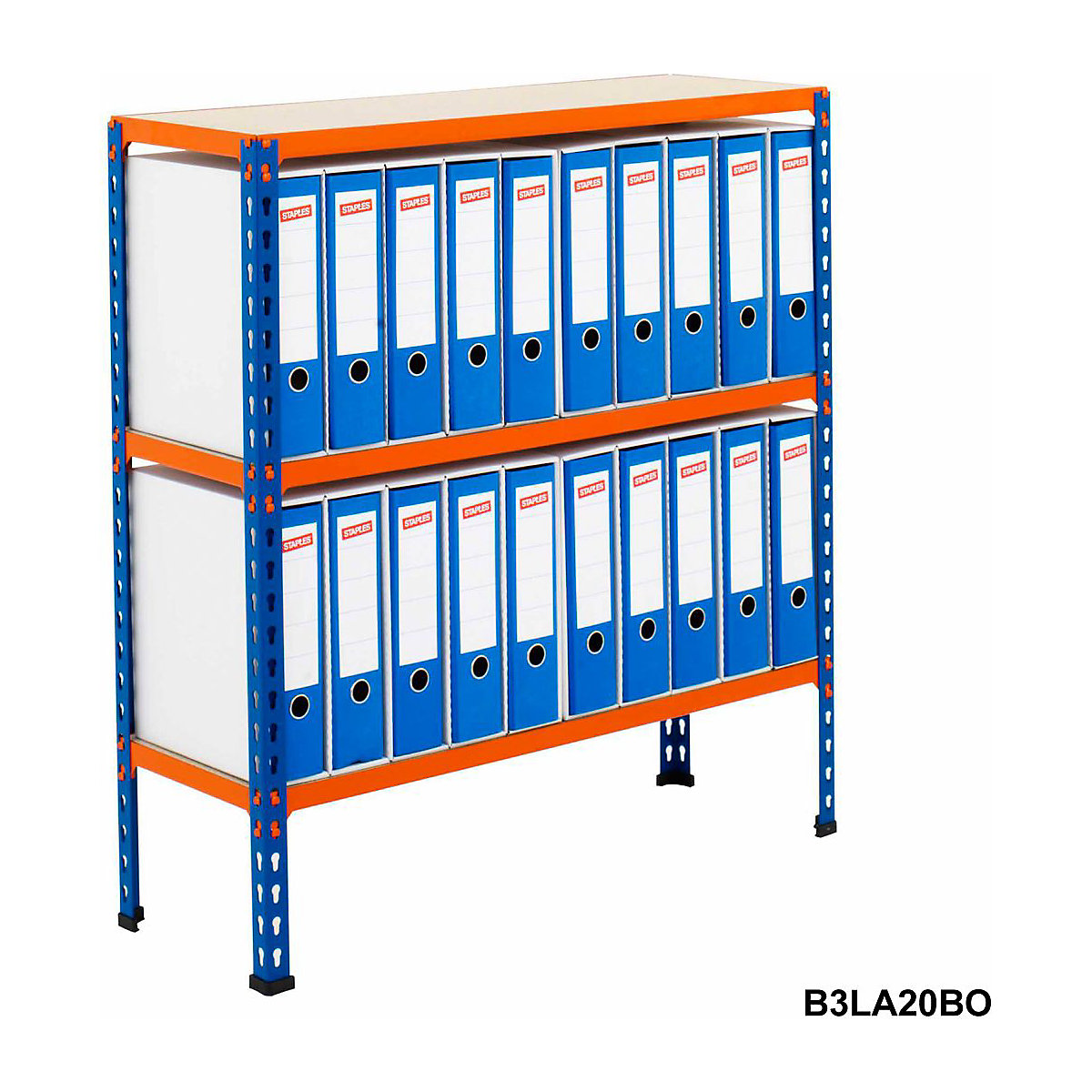

B3LA20BO_1
B3LA20BO

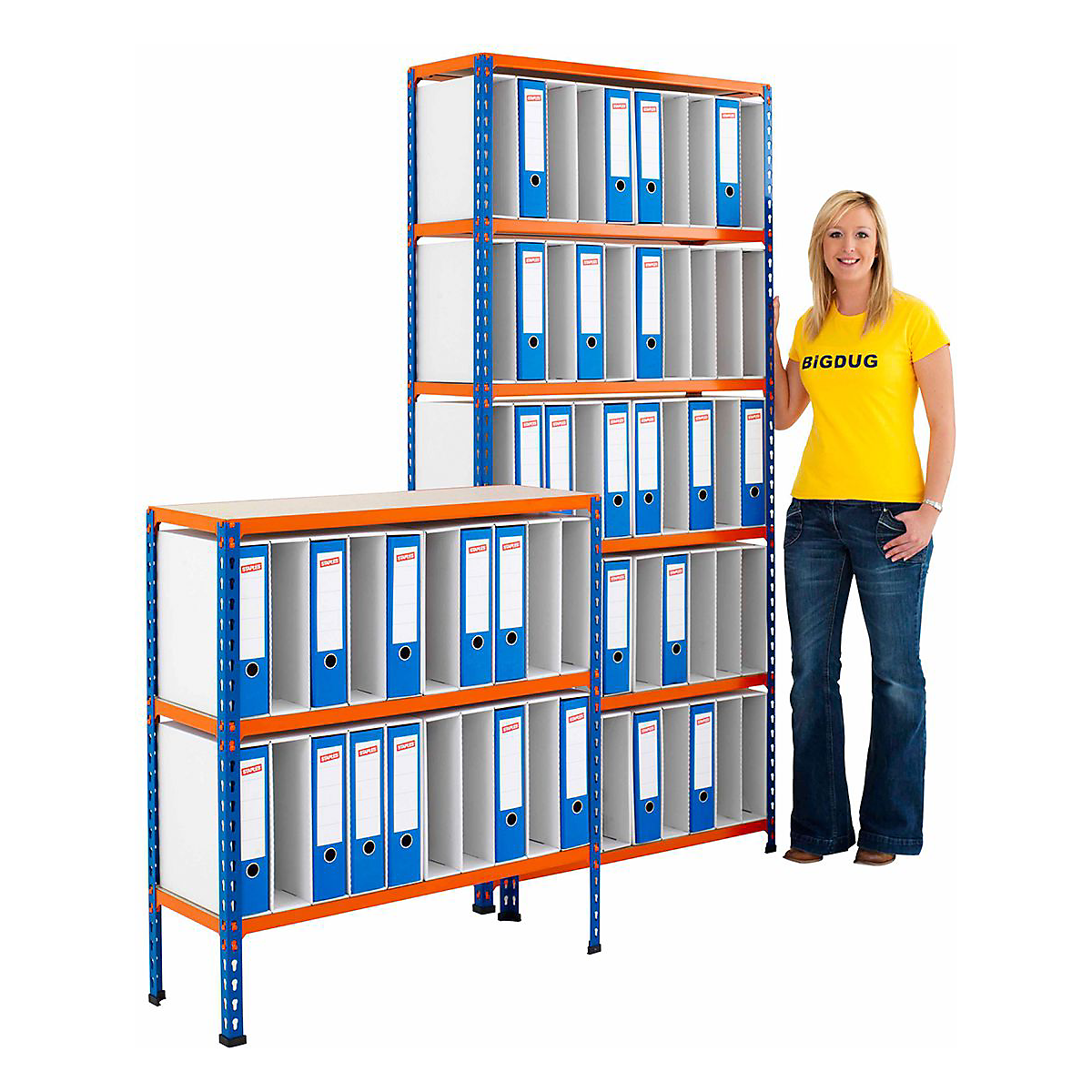

BiG340 20 Lever Arch File Shelving 915h x 915w x 305d mm 3 Levels 340kg UDL Blue & Orange

Price Excl. VAT
£123.00
B3LA20BG_1
B3LA20BG

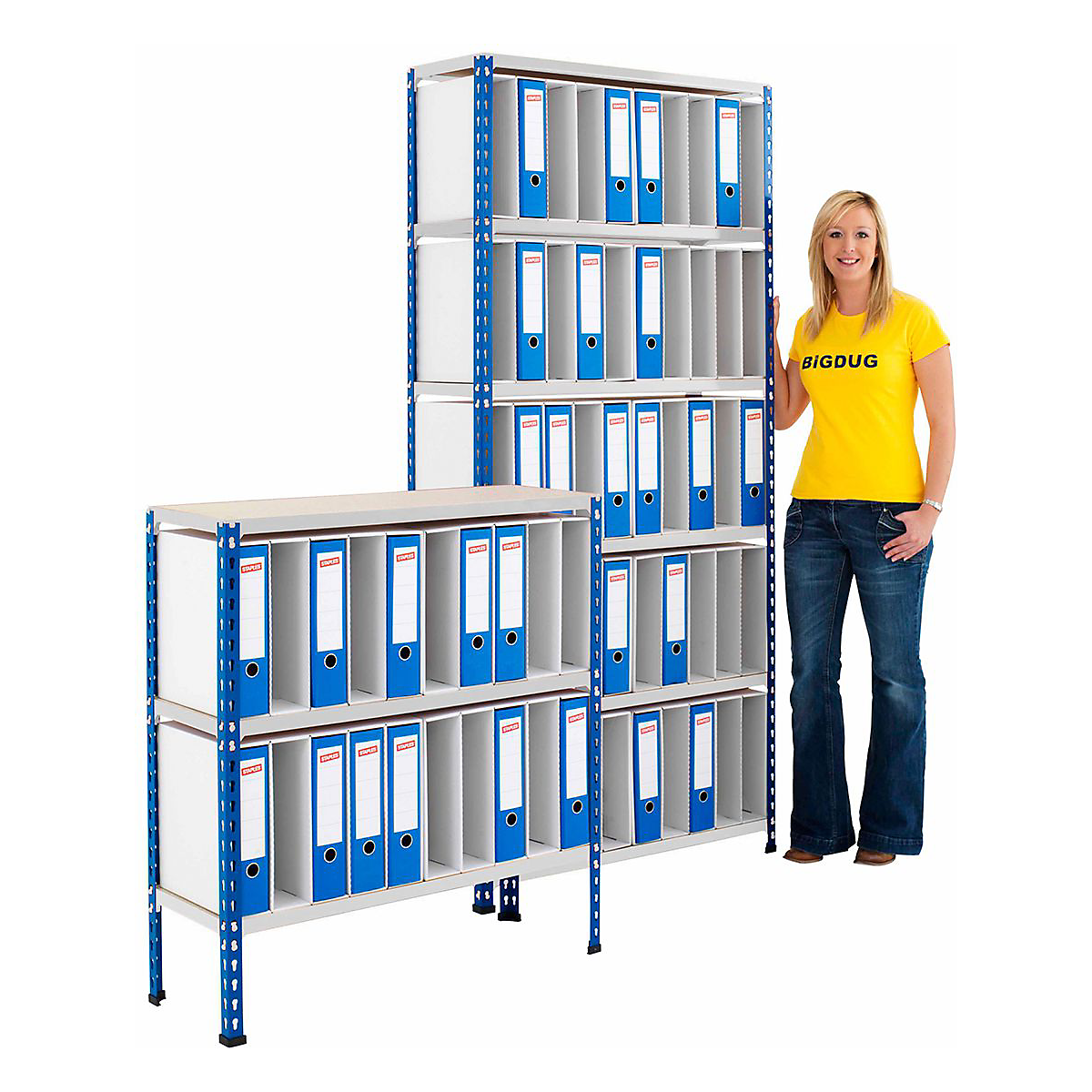

BiG340 20 Lever Arch File Shelving 915h x 915w x 305d mm 3 Levels 340kg UDL Blue & Grey

Price Excl. VAT
£123.00
B3LA40GG_1
B3LA40GG

BiG340 40 Lever Arch File Shelving 915h x 915w x 610d mm 3 Levels 340kg UDL Grey

Price Excl. VAT
£177.00
B3LA40BG_1
B3LA40BG

BiG340 40 Lever Arch File Shelving 915h x 915w x 610d mm 3 Levels 340kg UDL Blue & Grey

Price Excl. VAT
£177.00
B3LA40BO_1
B3LA40BO

BiG340 40 Lever Arch File Shelving 915h x 915w x 610d mm 3 Levels 340kg UDL Blue & Orange

Price Excl. VAT
£177.00
B3LA50BO_1
B3LA50BO

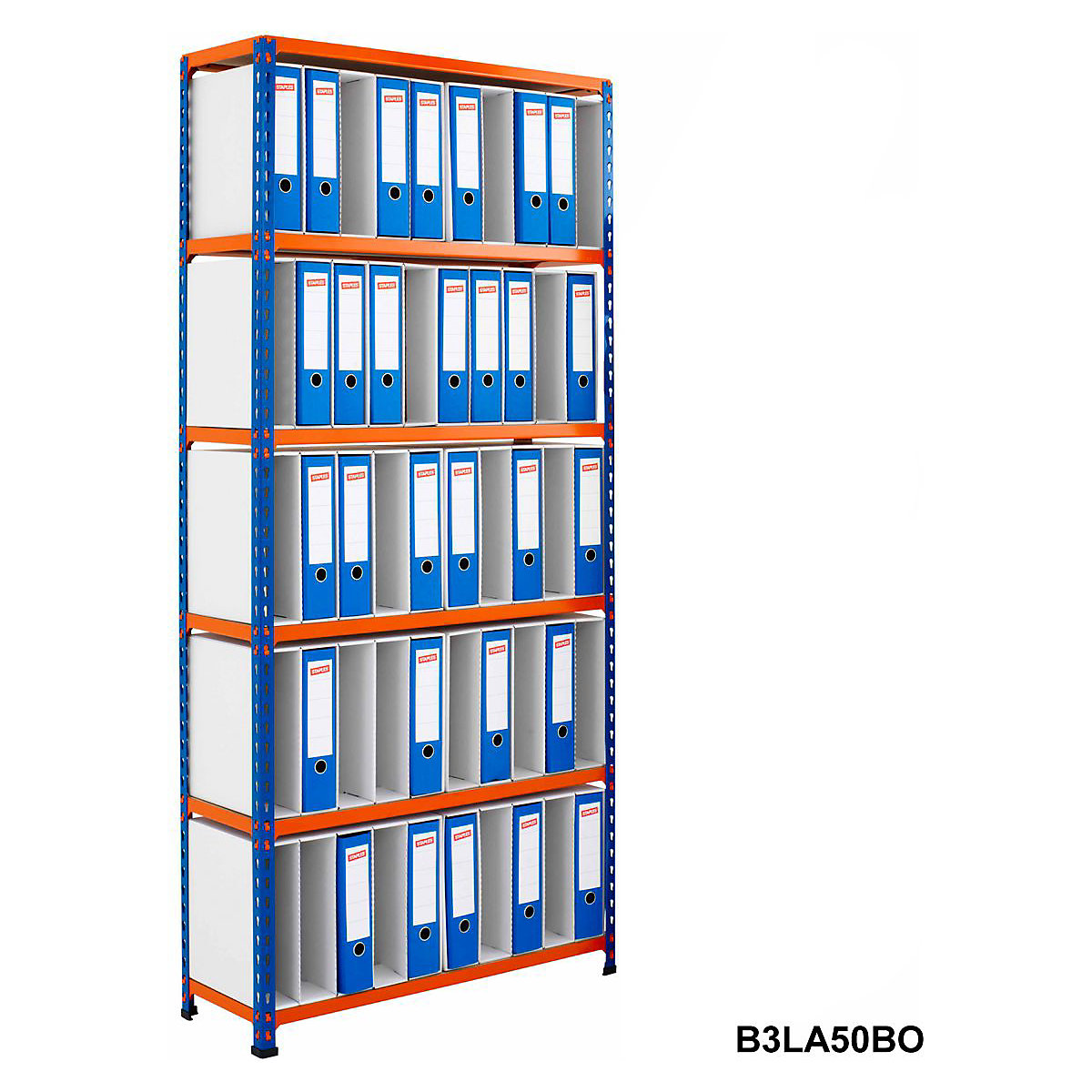

BiG340 50 Lever Arch File Shelving 1980h x 915w x 305d mm 6 Levels 340kg UDL Blue & Orange

Price Excl. VAT
£210.00
£176.00
B3LA50GG_1
B3LA50GG

BiG340 50 Lever Arch File Shelving 1980h x 915w x 305d mm 6 Levels 340kg UDL Grey

Price Excl. VAT
£211.00
£176.00
B3LA50BG_1
B3LA50BG

BiG340 50 Lever Arch File Shelving 1980h x 915w x 305d mm 6 Levels 340kg UDL Blue & Grey

Price Excl. VAT
£211.00
£176.00
B3LA100BG_1
B3LA100BG

BiG340 100 Lever Arch File Shelving 1980h x 915w x 610d mm 6 Levels 340kg UDL Blue & Grey

Price Excl. VAT
£298.00
£258.00
B3LA100BO_1
B3LA100BO

BiG340 100 Lever Arch File Shelving 1980h x 915w x 610d mm 6 Levels 340kg UDL Blue & Orange

Price Excl. VAT
£296.00
£258.00
B3LA100GG_1
B3LA100GG

BiG340 100 Lever Arch File Shelving 1980h x 915w x 610d mm 6 Levels 340kg UDL Grey

Price Excl. VAT
£298.00
£258.00
‌
