BiG340 2x Bay Garage Shelving Kit | 5 Shelves | 1980h x 915w x 455d mm | 340kg UDL | Blue & Orange | Includes Free Assembly Mallet

BiG340 2x Bay Garage Shelving Kit
Width [mm]
Depth [mm]
£266.00
£218.00
Price / pack (Excl. VAT)
Free delivery on orders over £1000 ex VAT / £1200 inc VAT
Delivery time: 2-3 Working Days
Order until 15:00 for next day delivery
Product description

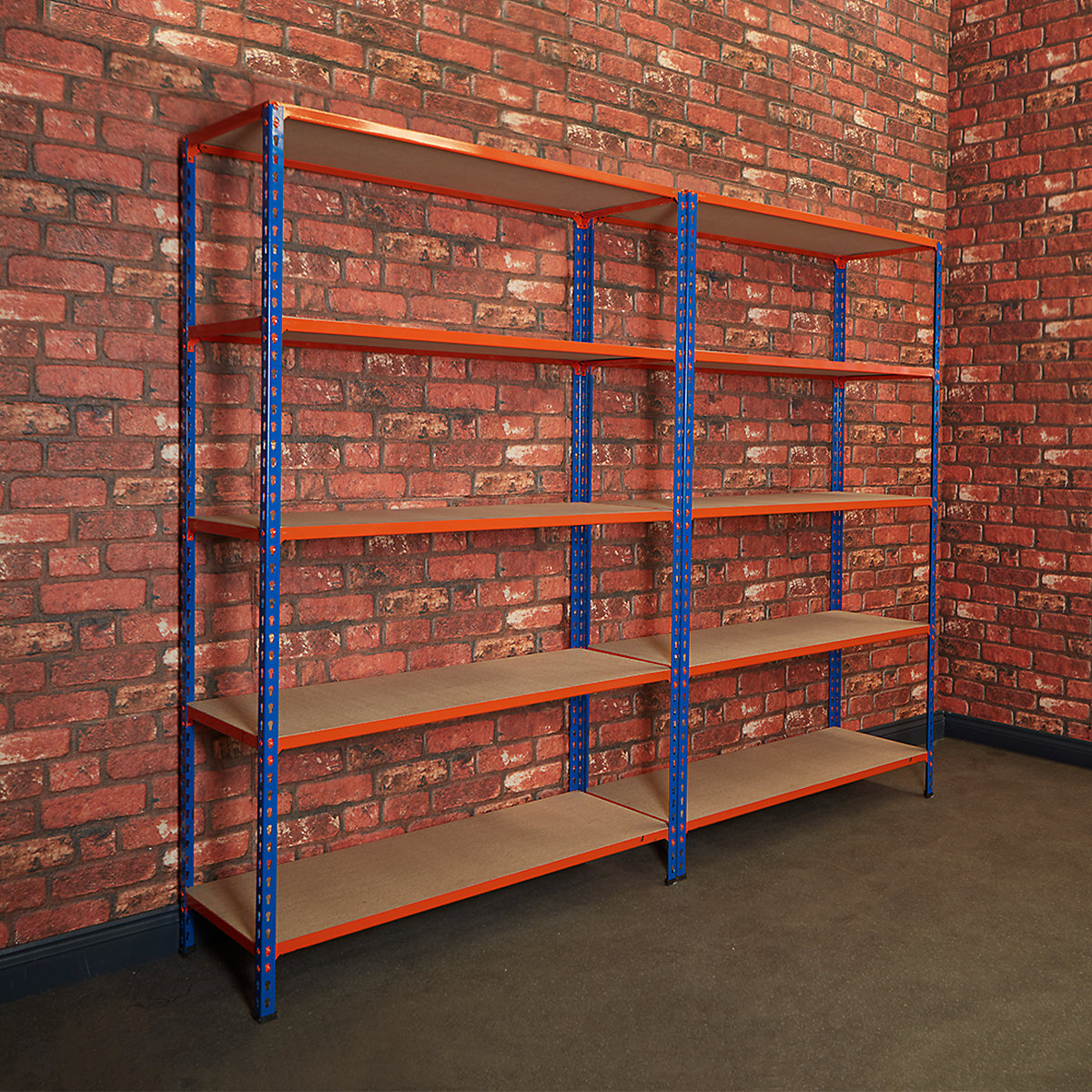

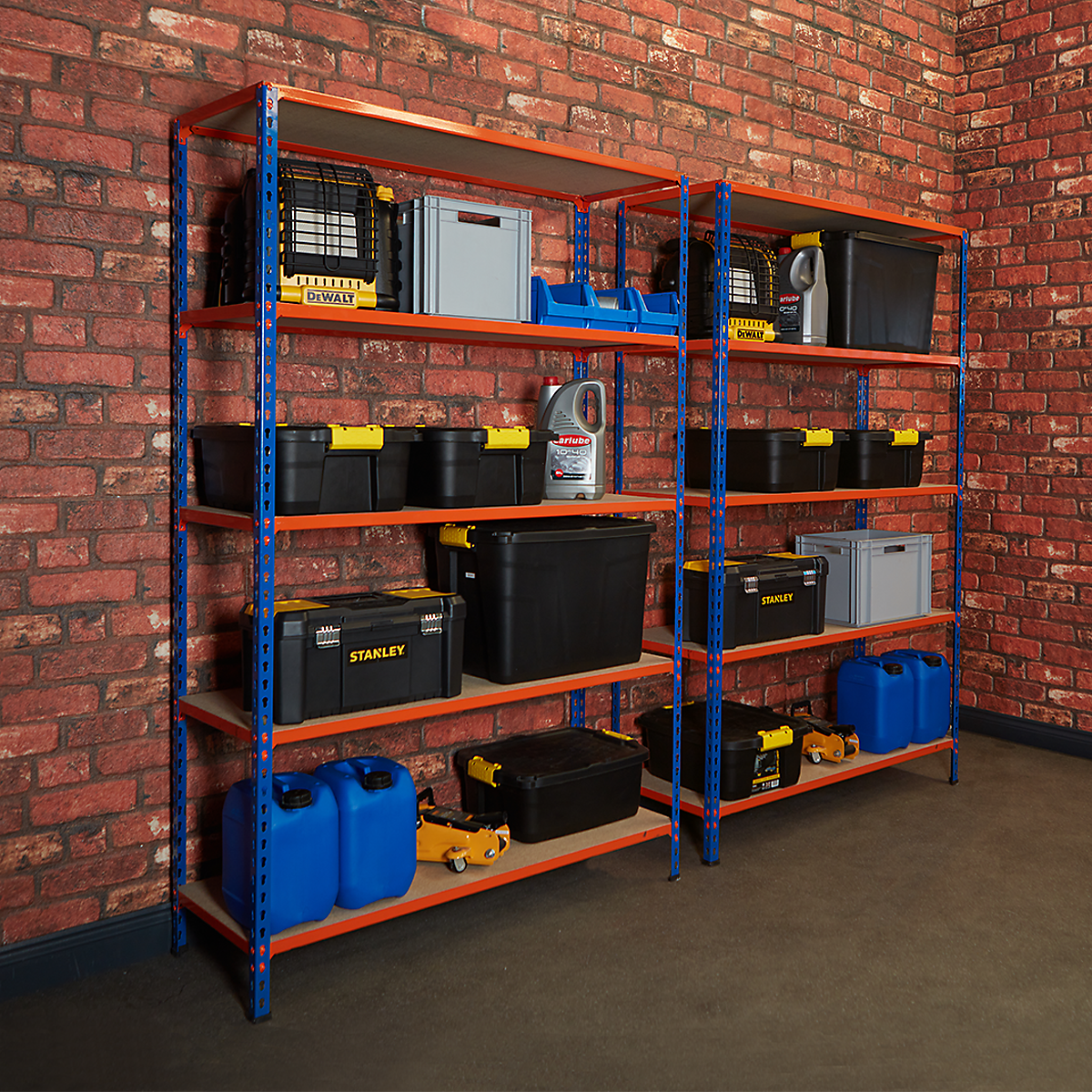

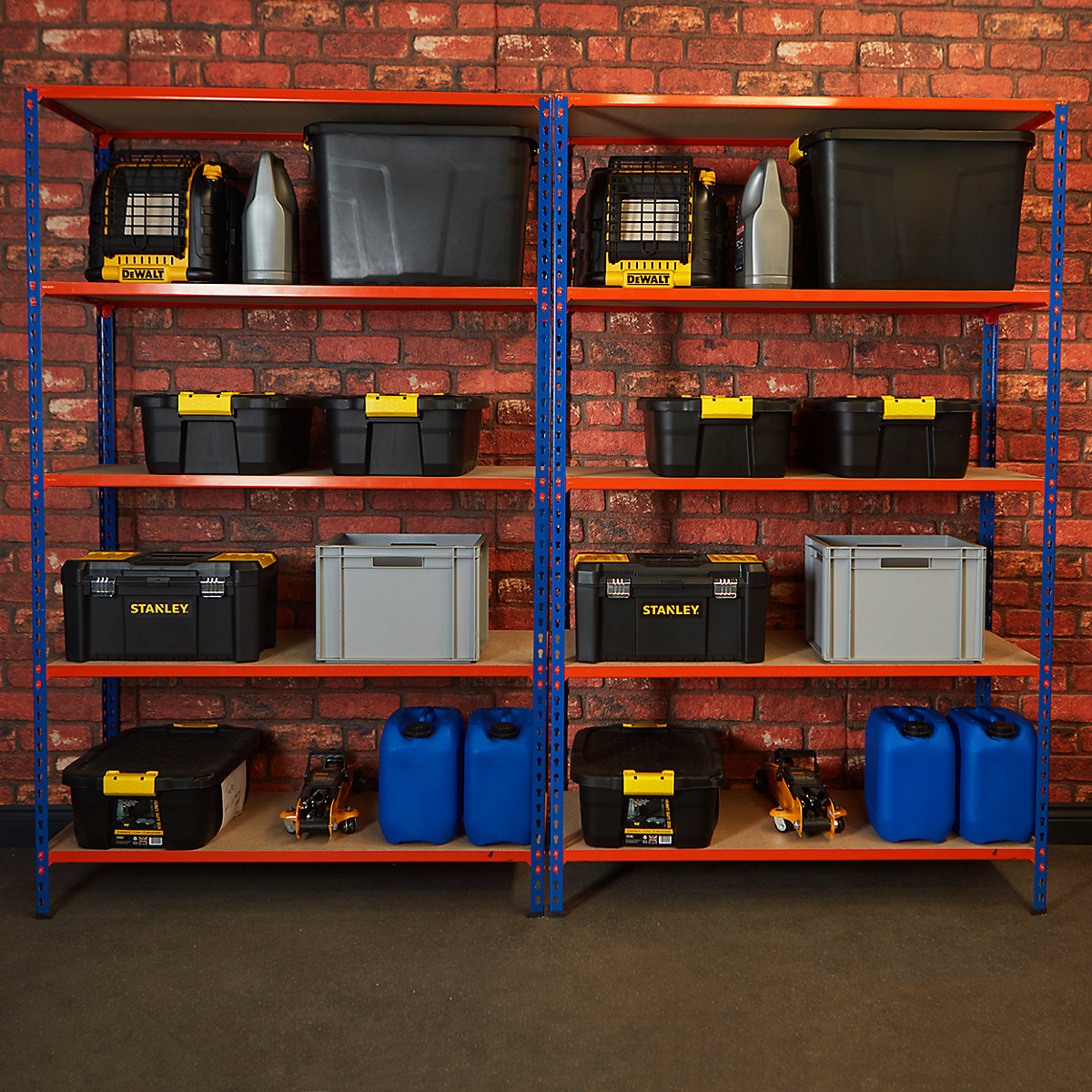

Double up your storage space with our BiG340 2x Bay Garage Shelving Kit. Ideal for any garage, workshop, or domestic setting. Free assembly mallet and tie plates included.

  • 340kg per shelf UDL*

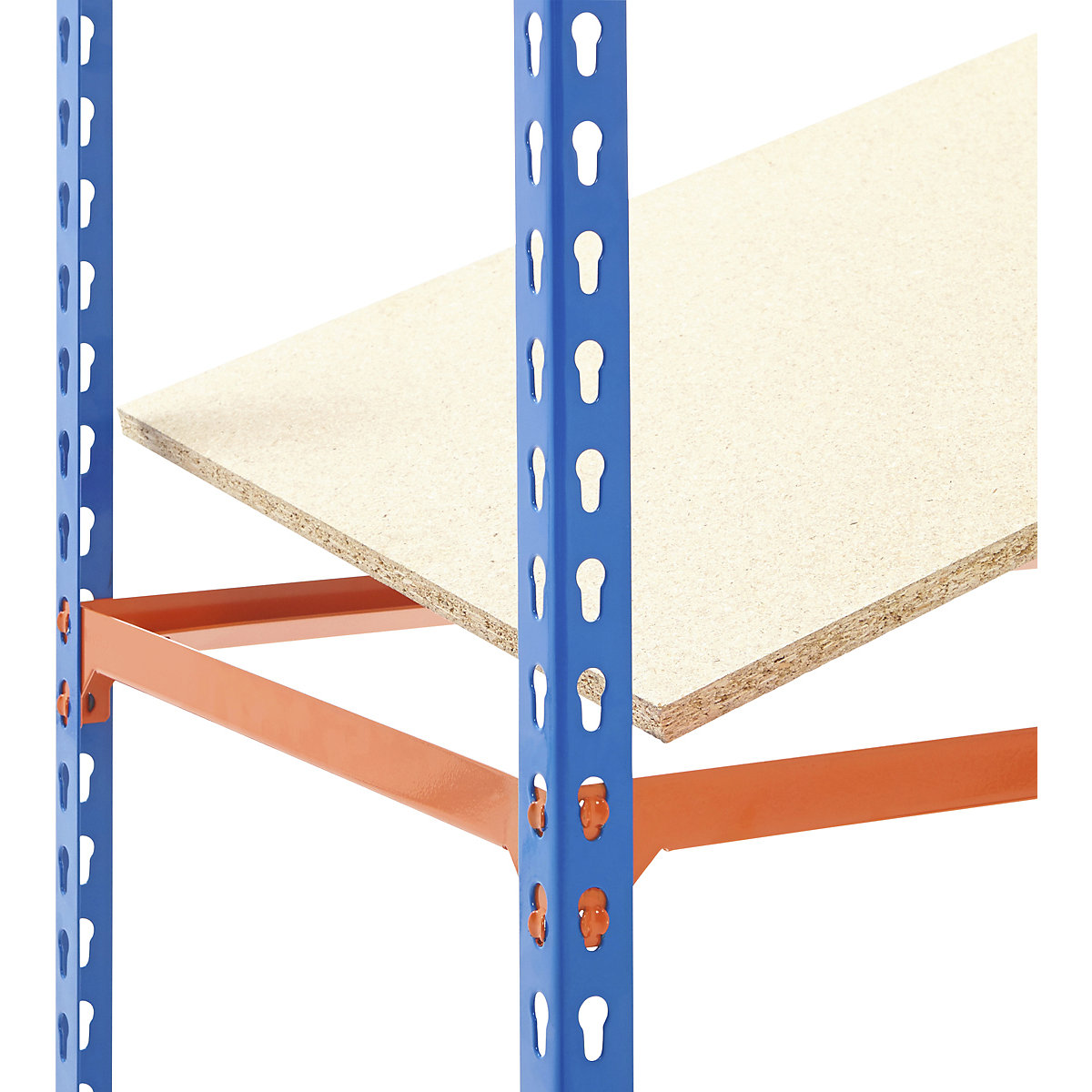

  • 5 adjustable chipboard shelves per bay
  • Premium-grade, European steel frames

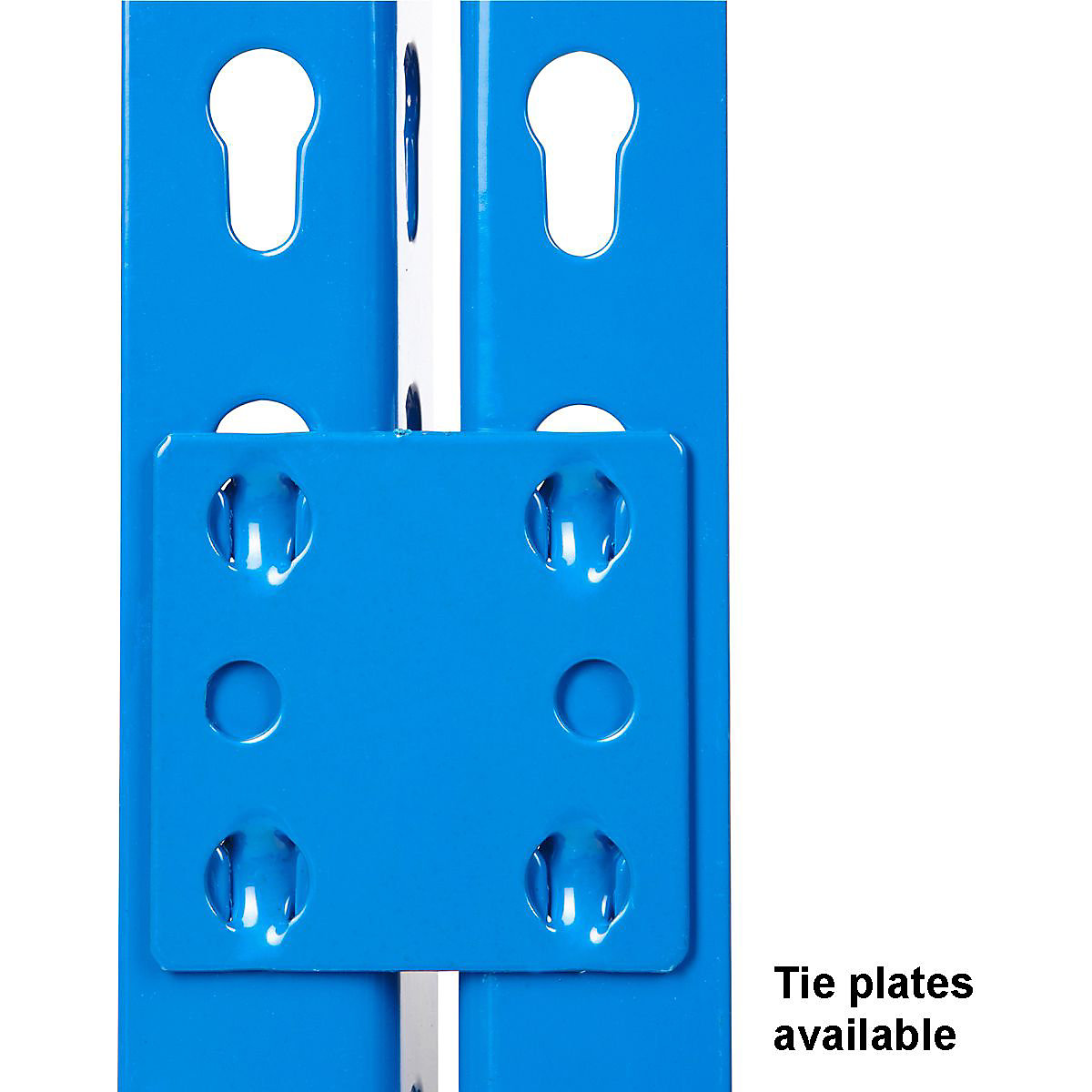

  • Includes free assembly mallet and tie plates

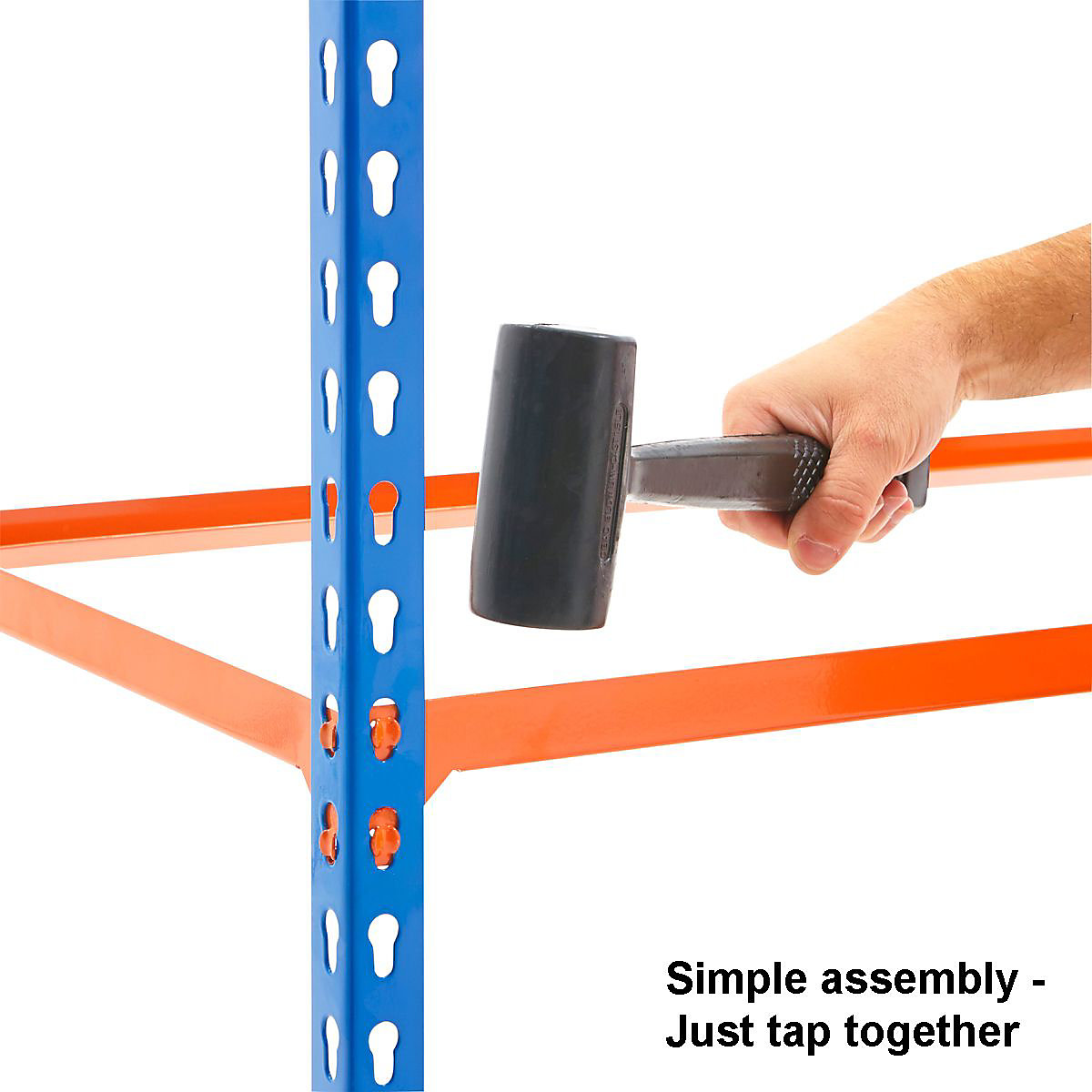

  • Simple and quick to build - just tap together with a rubber mallet
  • Powder coated in hardwearing blue and high visibility orange

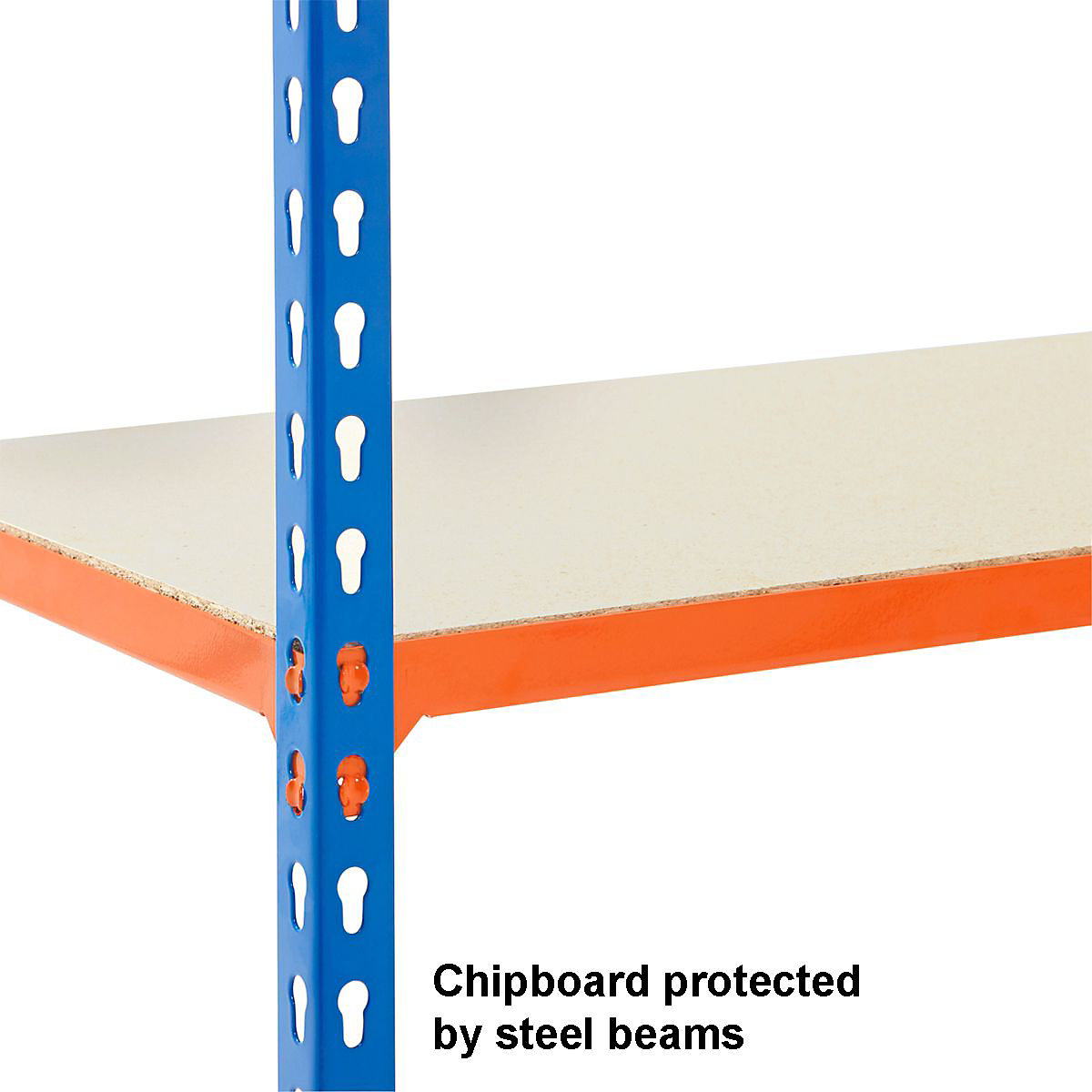

  • Flush-fitting decks protected from impact by surrounding steel beams
  • Shelves adjust on a 38mm pitch (1.5 inches)
  • European manufactured to certified FEM standards
  • No cross bracing permits double-sided access
  • Available from stock & eligible for our Next Day Delivery service

*UDL= Uniformly Distributed Load

Shelving Specifications

Data Field     915mm Width         1220mm Width
Upright Type One Piece One Piece
Upright Steel Thickness 1.8mm 1.8mm
Beam Steel Thickness 2mm 2mm
Shelf Adjustment Increments 38.1mm 38.1mm
Shelf Thickness 30mm 30mm
Chipboard Thickness 15mm 15mm
Total Bay Capacity 1980h mm 1700kg 1700kg
Clear Width 851mm 1156mm
Extra Levels Available Y Y

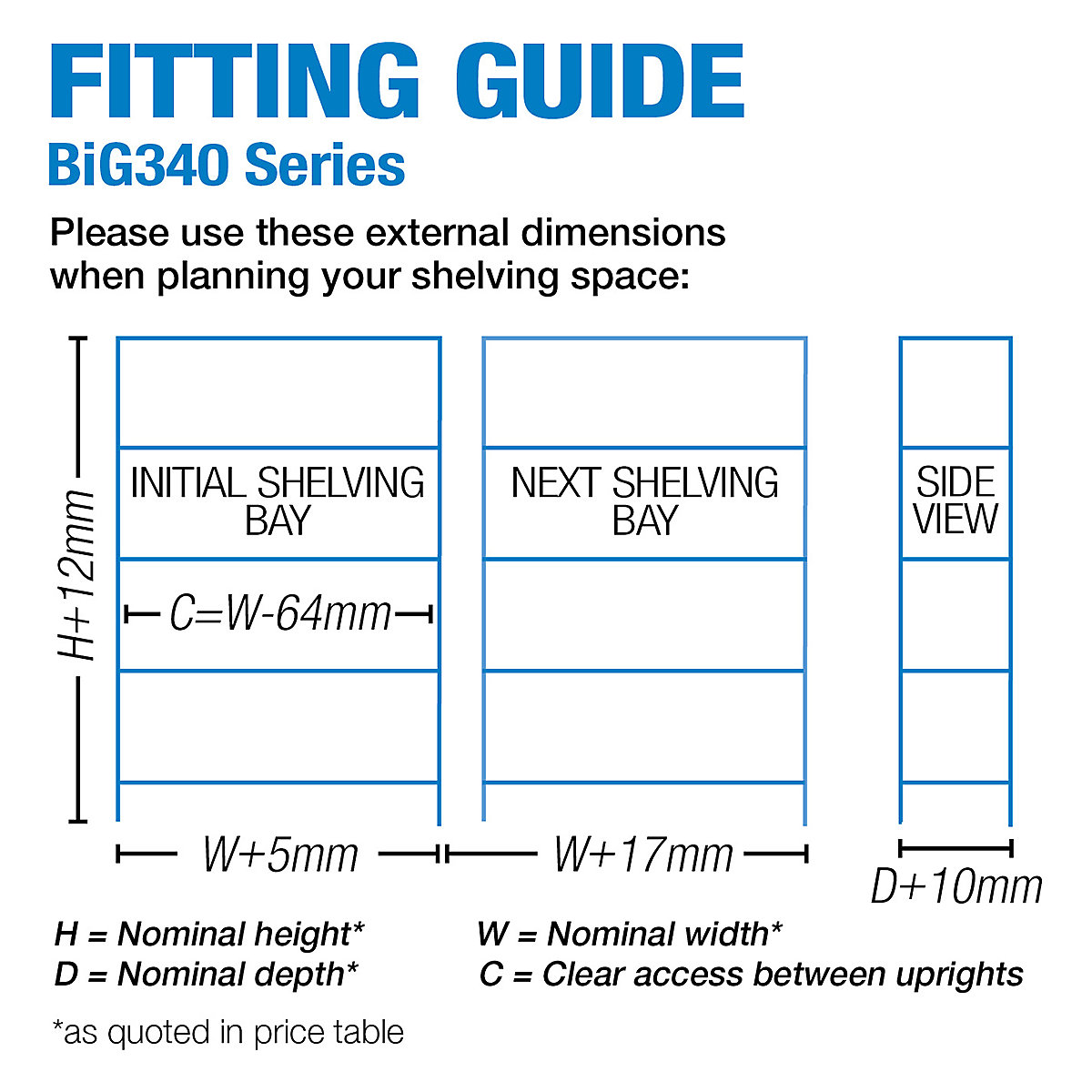

Fitting Guide

Please check our guides for each range when planning your shelving space.

Nominal Shelf Width mm: Clear Entry mm: Initial Bay External mm: Next Bay External mm:
915 1851 925 932
1220 1156 1230 1237

External Height = H+12

Pitch = 38.1

Clear height between shelves = (No. x pitch) -30

All dimensions in Millimetres

‌
‌
‌
‌
‌
