Code: B32409036BG

BiG340 Shelving 2440h X 915w X 305d Mm 6 Levels 340kg UDL Blue & Grey

(5)

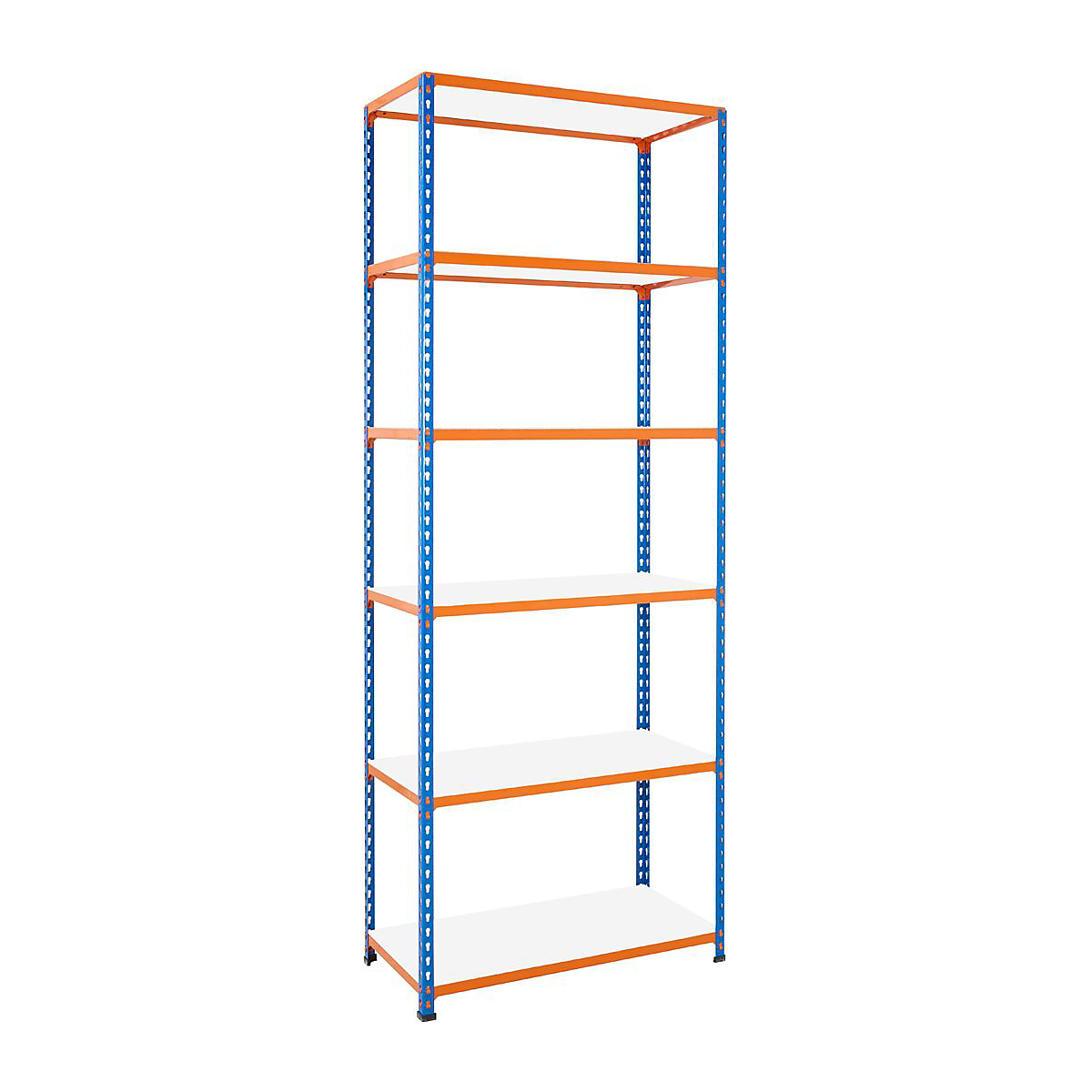

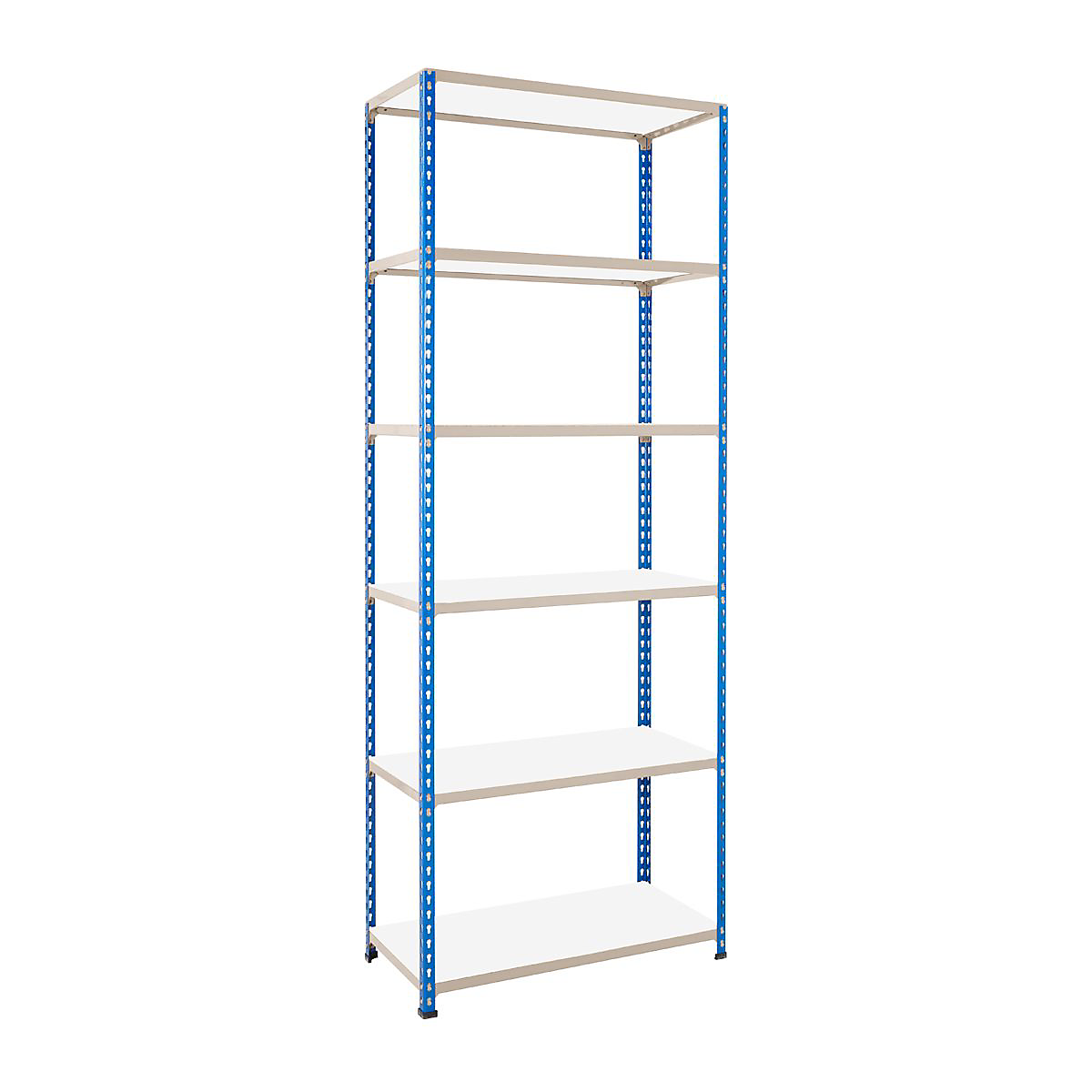

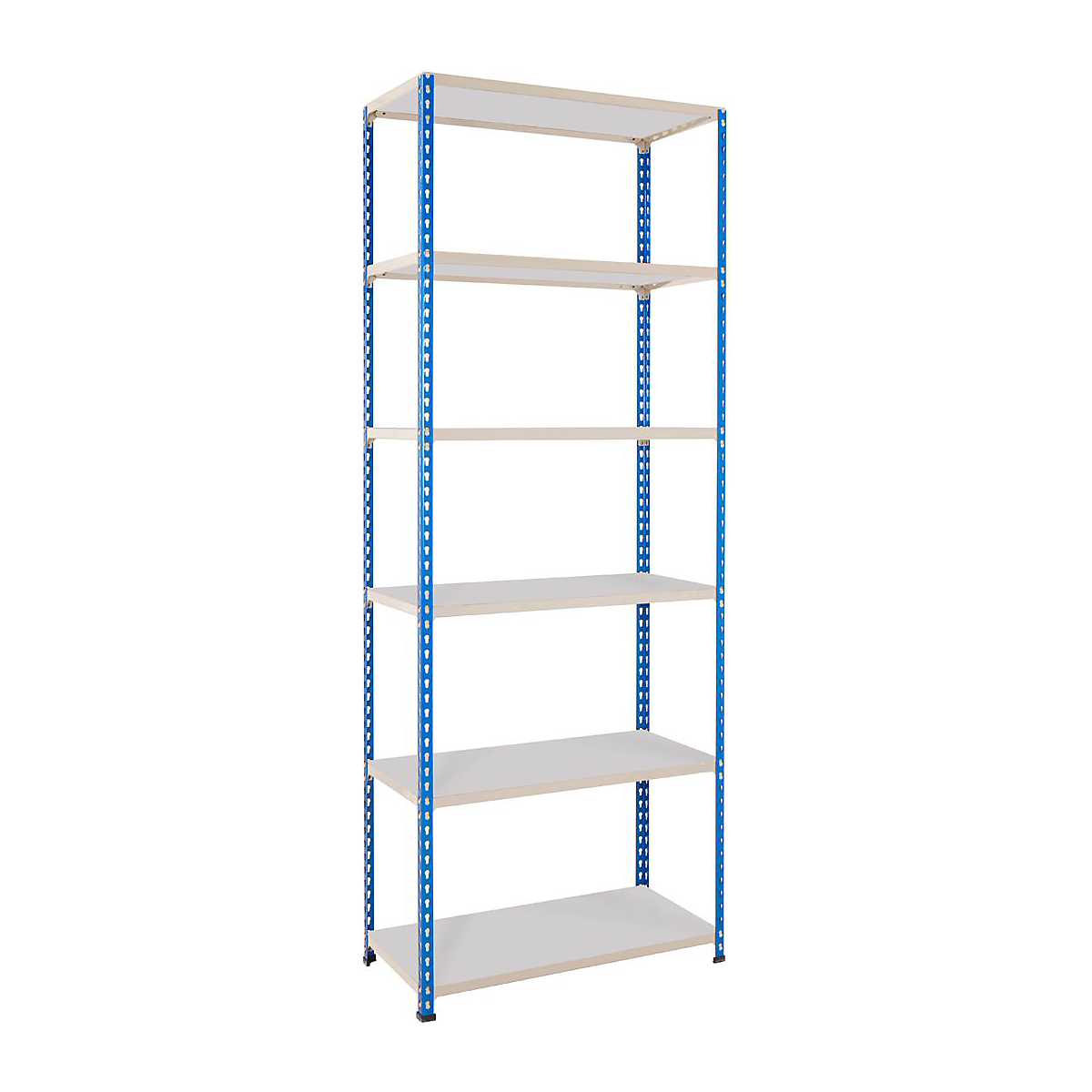

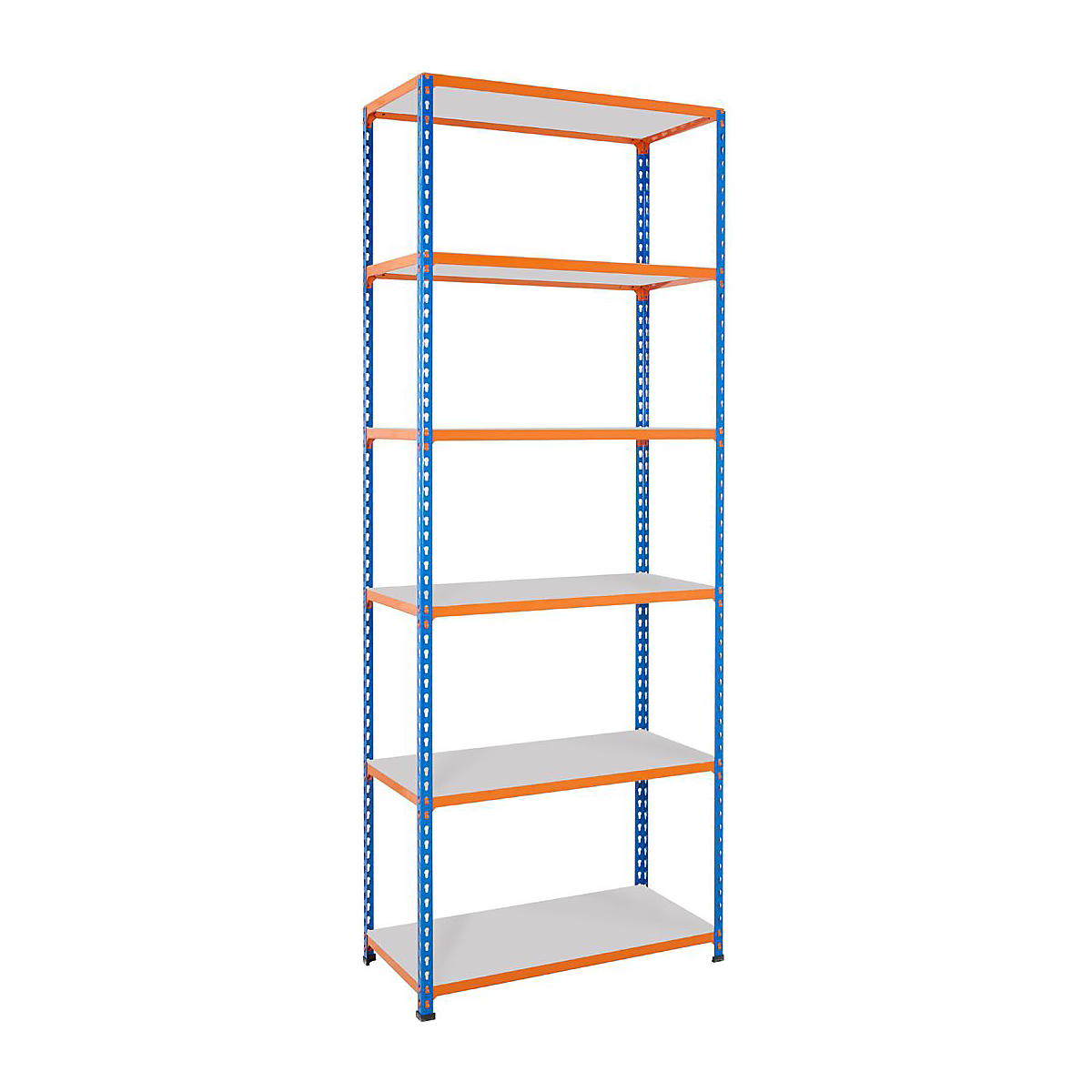

BiG340 2440mm High Shelving
Width [mm]
Depth [mm]
Type
Colour
Delivery time: 2-3 Working Days
Order until 15:00 for next day delivery
Product description

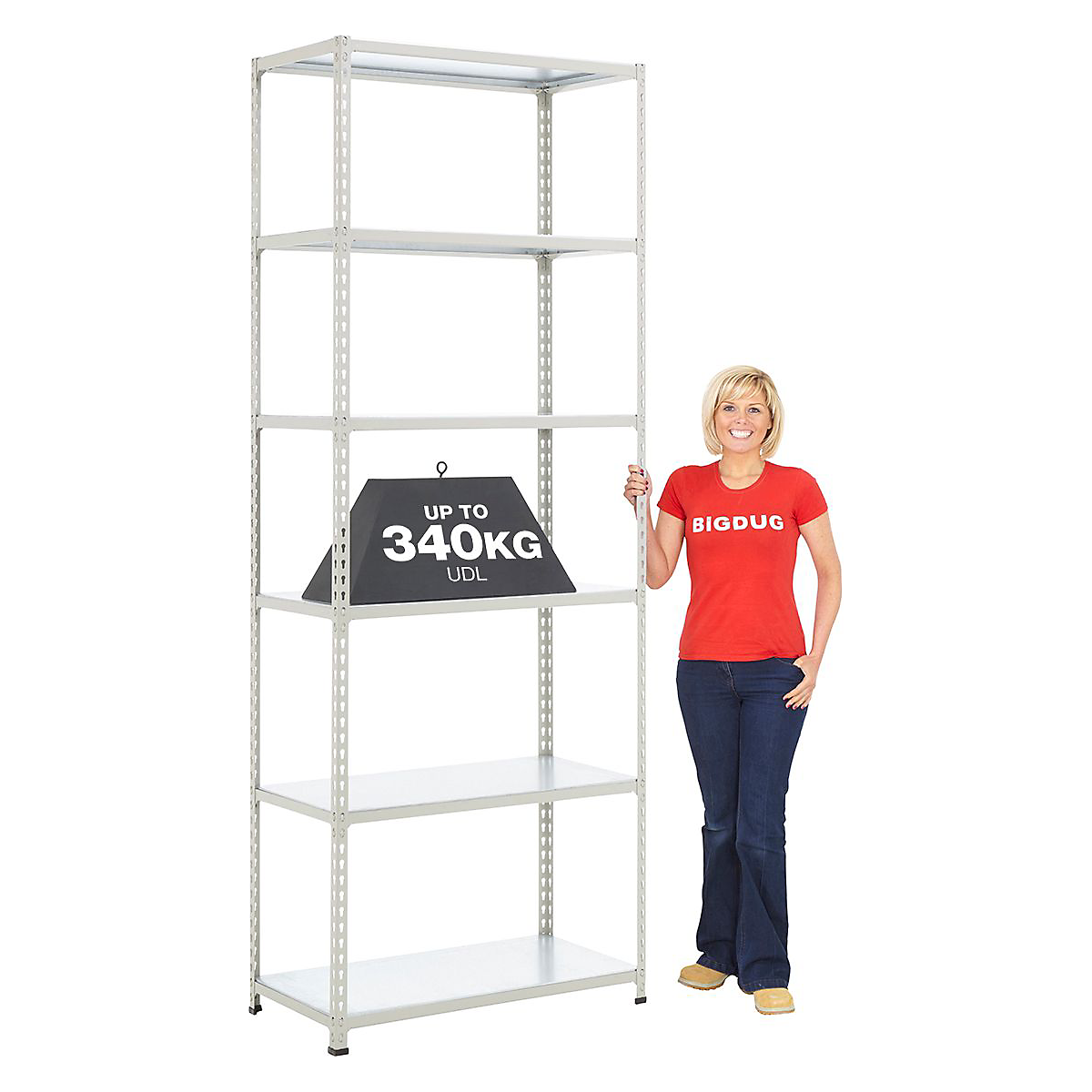

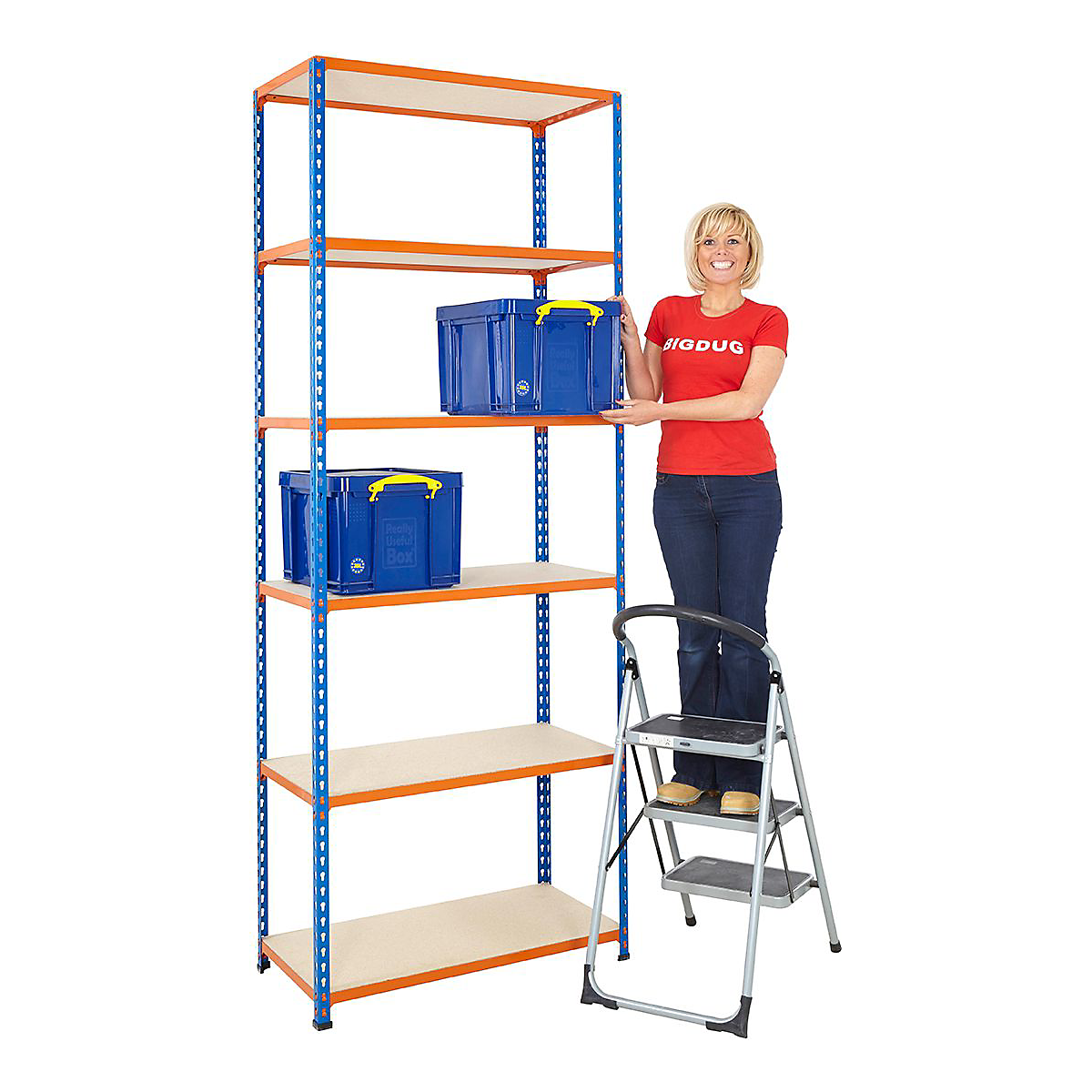

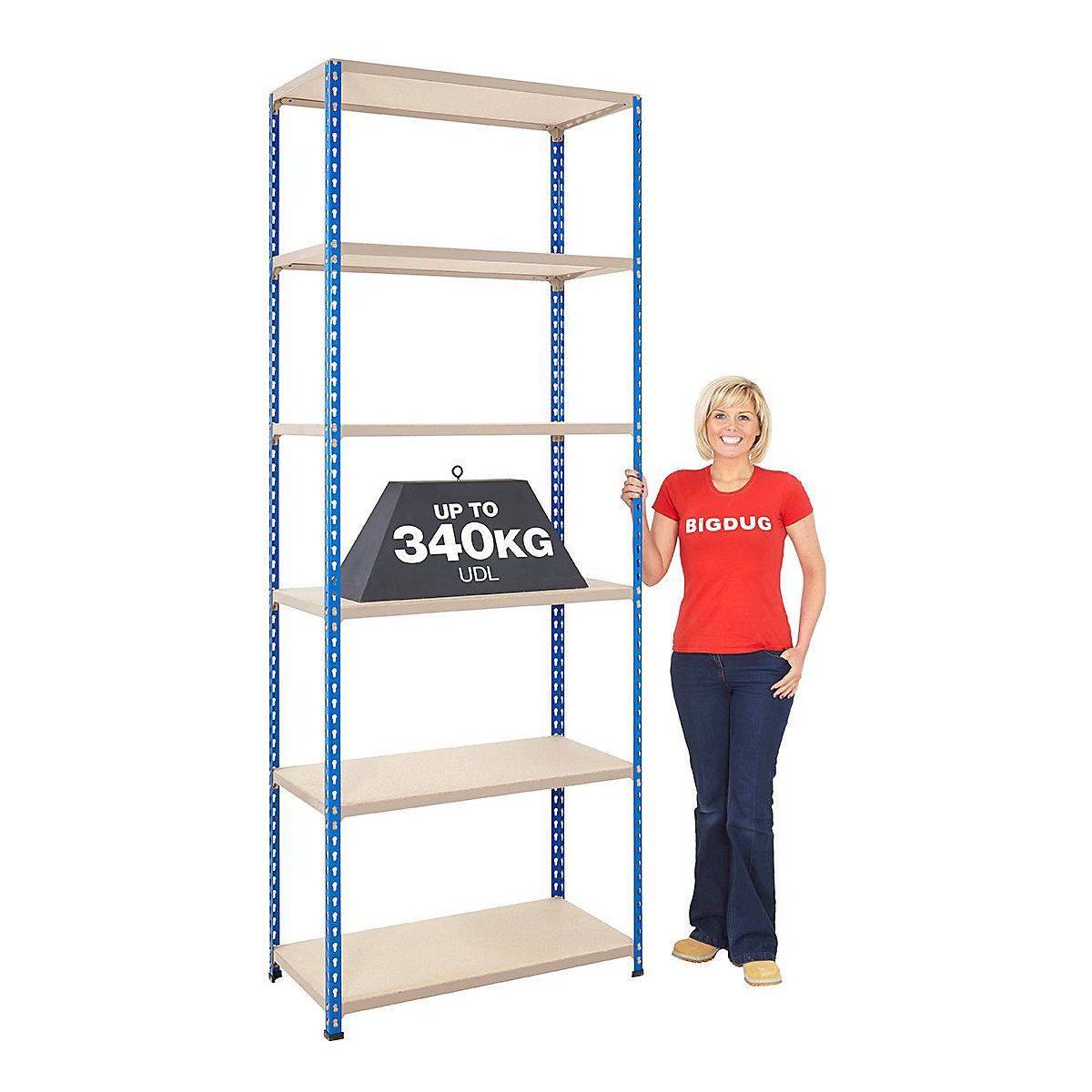

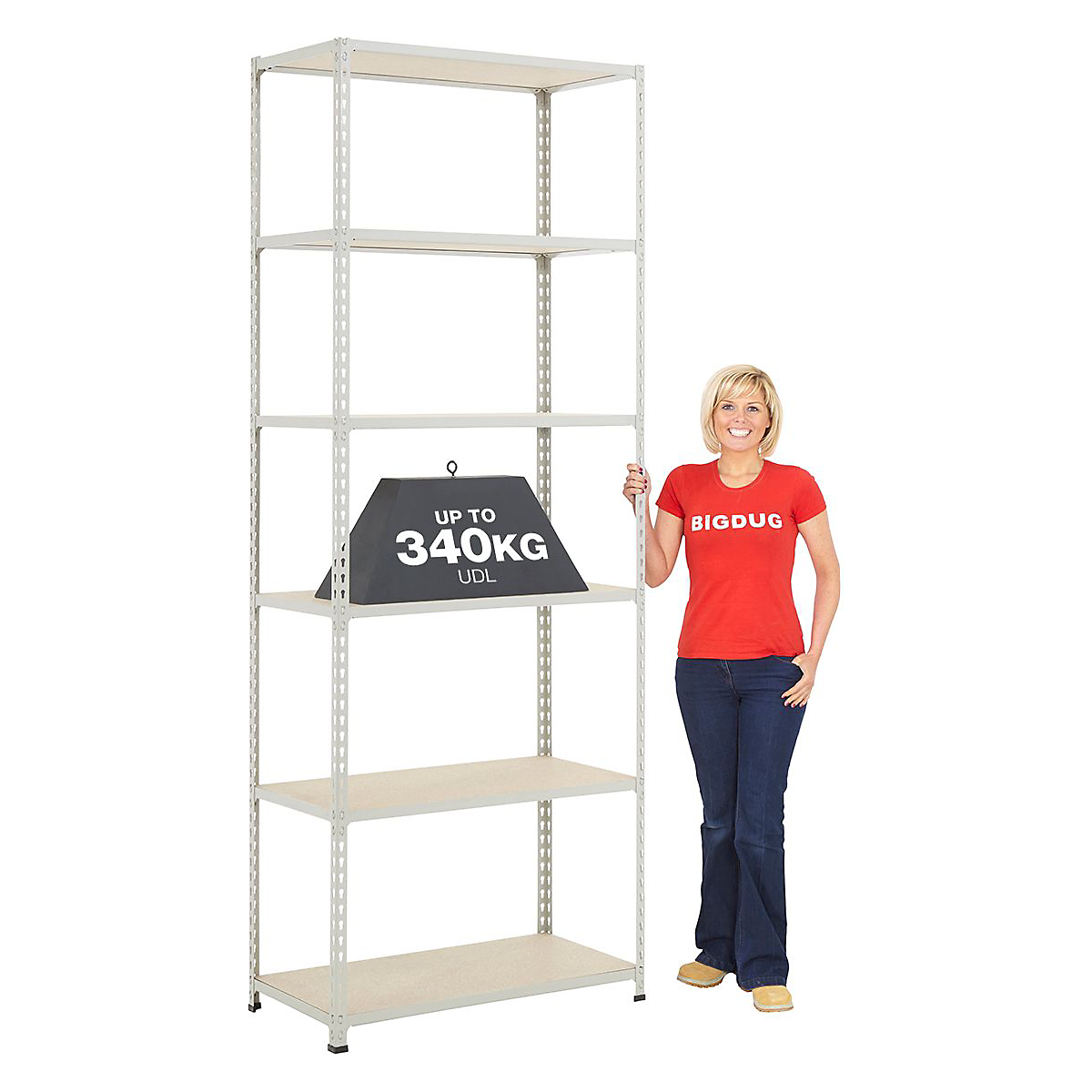

Optimise storage and save floor space with BiGDUG’s BiG340 industrial shelving. Capable of organising any industrial or retail environment, our 2440mm high shelving is a durable storage solution ideal for use in stockrooms and storerooms. Manufactured from premium-grade European steel with each shelf supporting up to 340kg UDL*, it offers robust and reliable storage.

  • Load capacity of up to 340kg UDL* per shelf
  • Manufactured from premium-grade European steel

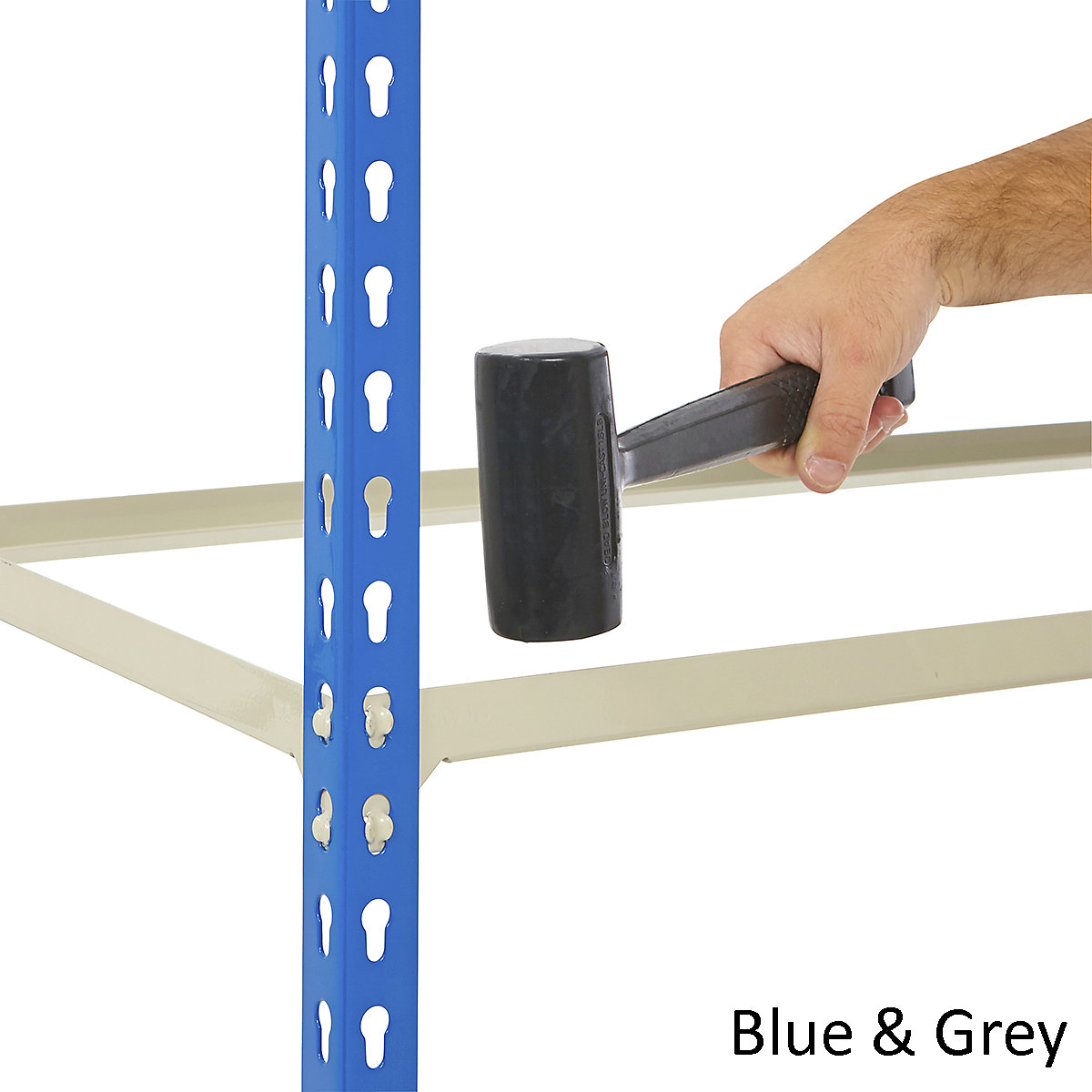

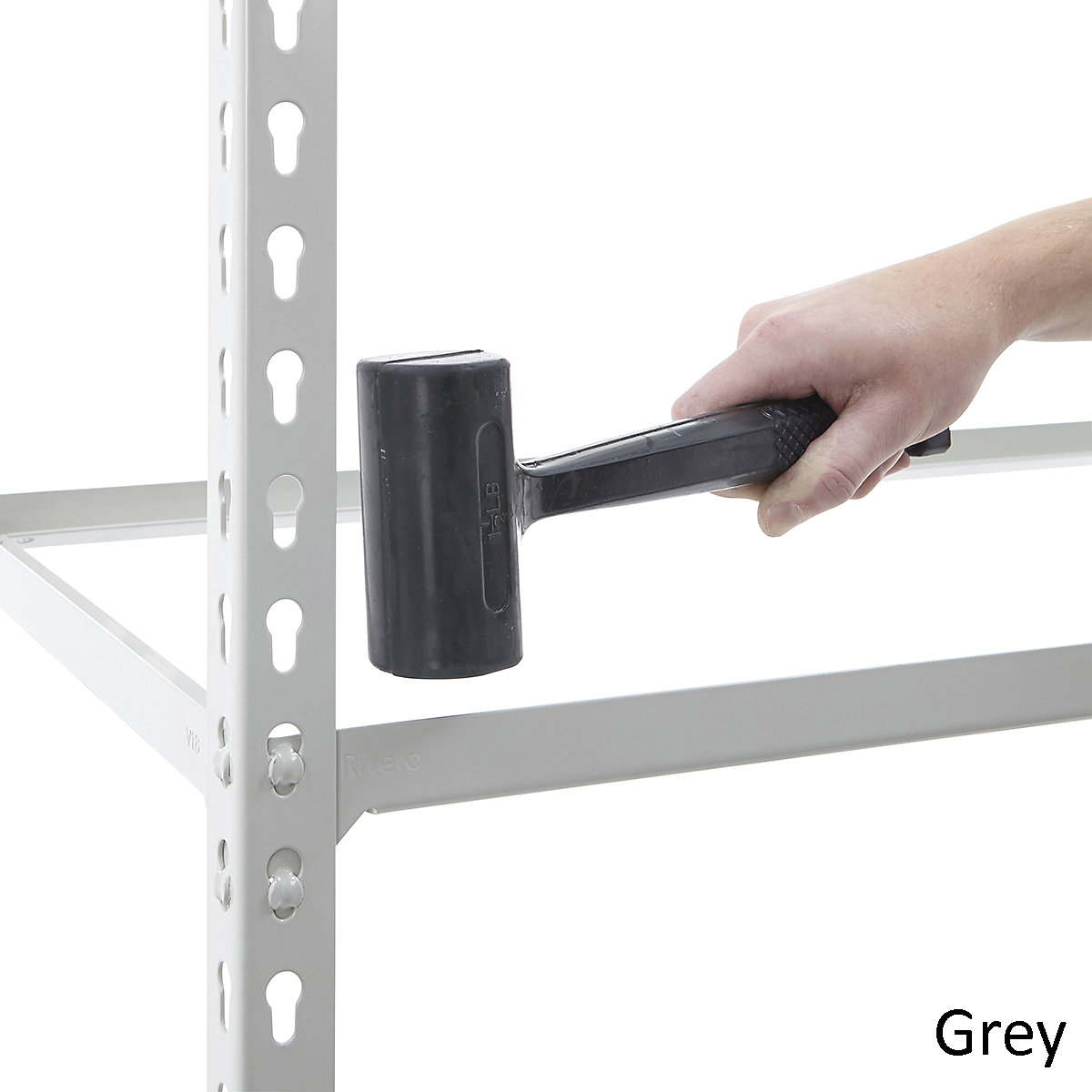

  • Choice of three colour finishes
  • Available with chipboard, melamine, or steel shelves
  • Extra levelsare available

BiG340 Industrial Shelving

* UDL= Uniformly Distributed load. Please note that actual capacity varies according to shelf size.

Shelving Specifications

Data Field 915mm Width 1220mm Width 1525mm Width
Upright Type One Piece One Piece One Piece
Upright Steel Thickness 1.8mm 1.8mm 1.8mm
Beam Steel Thickness 2mm 2mm 2mm
Shelf Adjustment Increments 38.1mm 38.1mm 38.1mm
Shelf Thickness 30mm 30mm 30mm
Chipboard Thickness 15mm 15mm 15mm
Melamine Thickness 15mm 15mm 15mm
Steel Panel Thickness 0.8mm 0.8mm 0.8mm
Total Bay Capacity 2440h mm 2475kg 2475kg 2475kg
Clear Width 851mm 1156mm 1461mm
Extra Levels Available Y Y Y

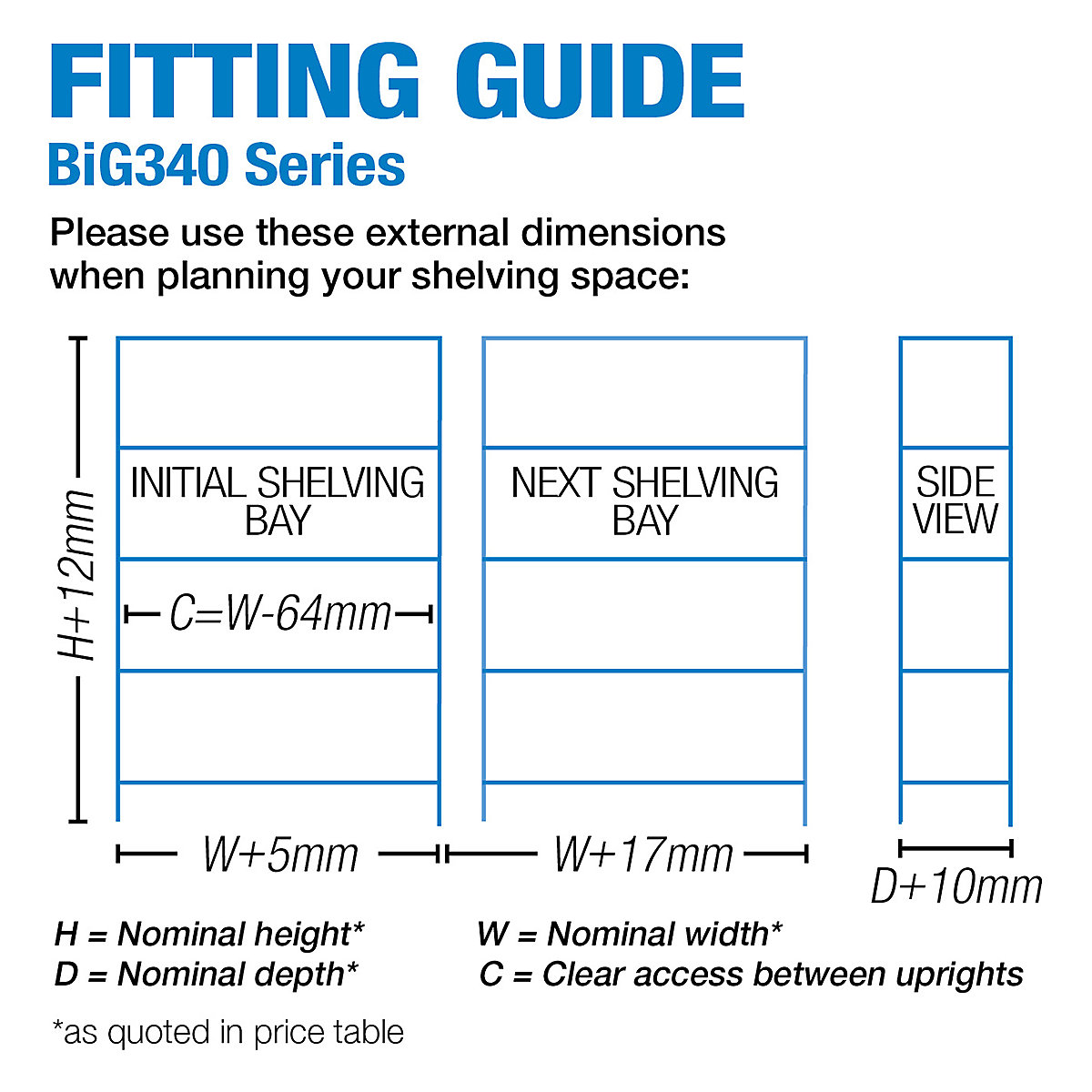

Fitting Guide

Please check our guides for each range when planning your shelving space.

Nominal Shelf Width mm: Clear Entry mm: Initial Bay External mm: Next Bay External mm:
915 851 925 932
1220 1156 1230 1237
1525 1461 1535 1542

External Height = H+12       Pitch = 38.1

Clear height between shelves = (No. x pitch) -30

All dimensions in Millimetres

What’s The Benefit Of Industrial Shelving?

Industrial shelving is designed to optimise vertical space – these shelving units can increase storage capacity without taking up much floor space. This is invaluable in commercial or industrial settings where floor space is often limited and costly. BiGDUG’s BiG340 2440mm high industrial shelving also features six levels that can each support up to 340kg UDL*, for reliable and long-term storage of diverse heavy goods.

Which Shelf Type Should I Choose For My Application?

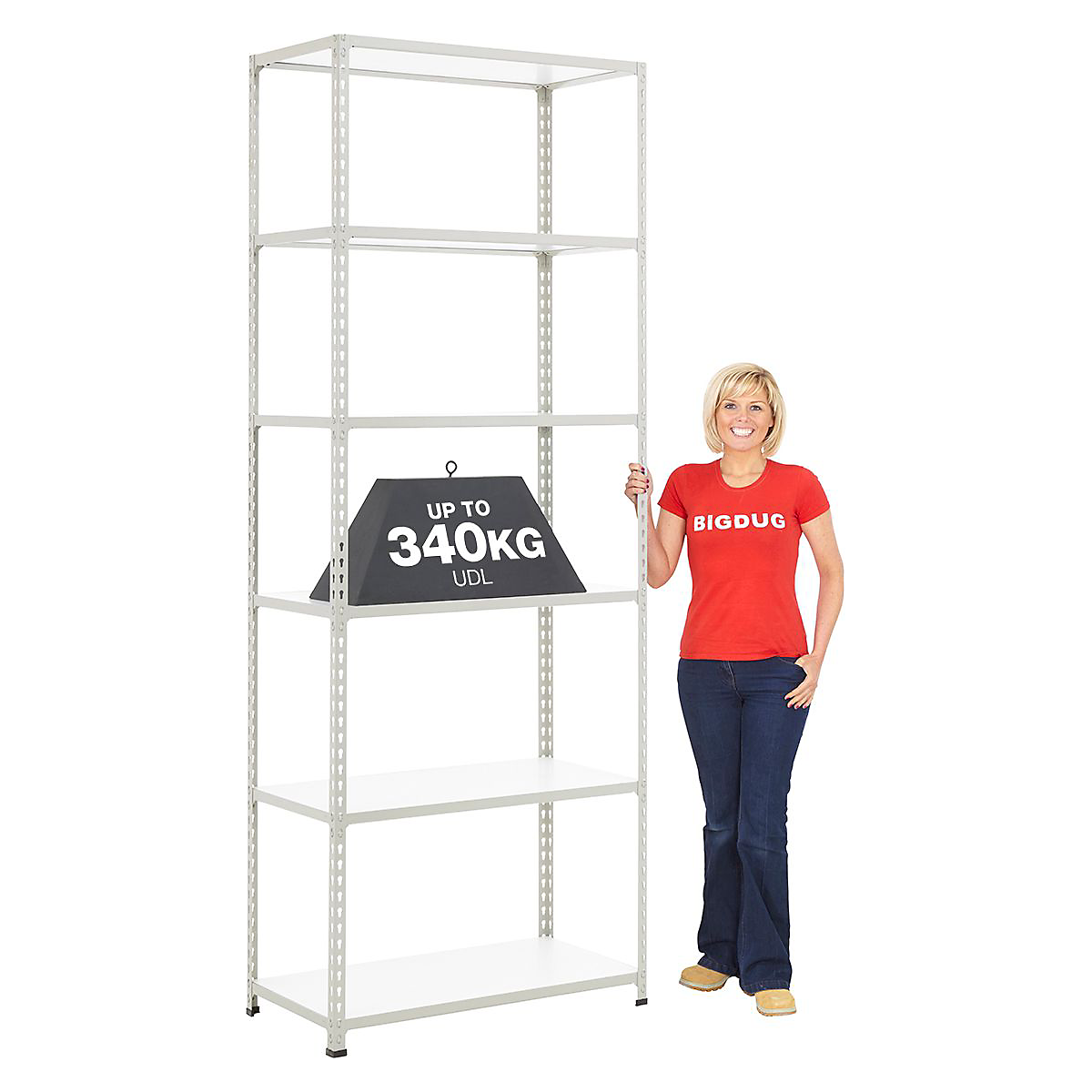

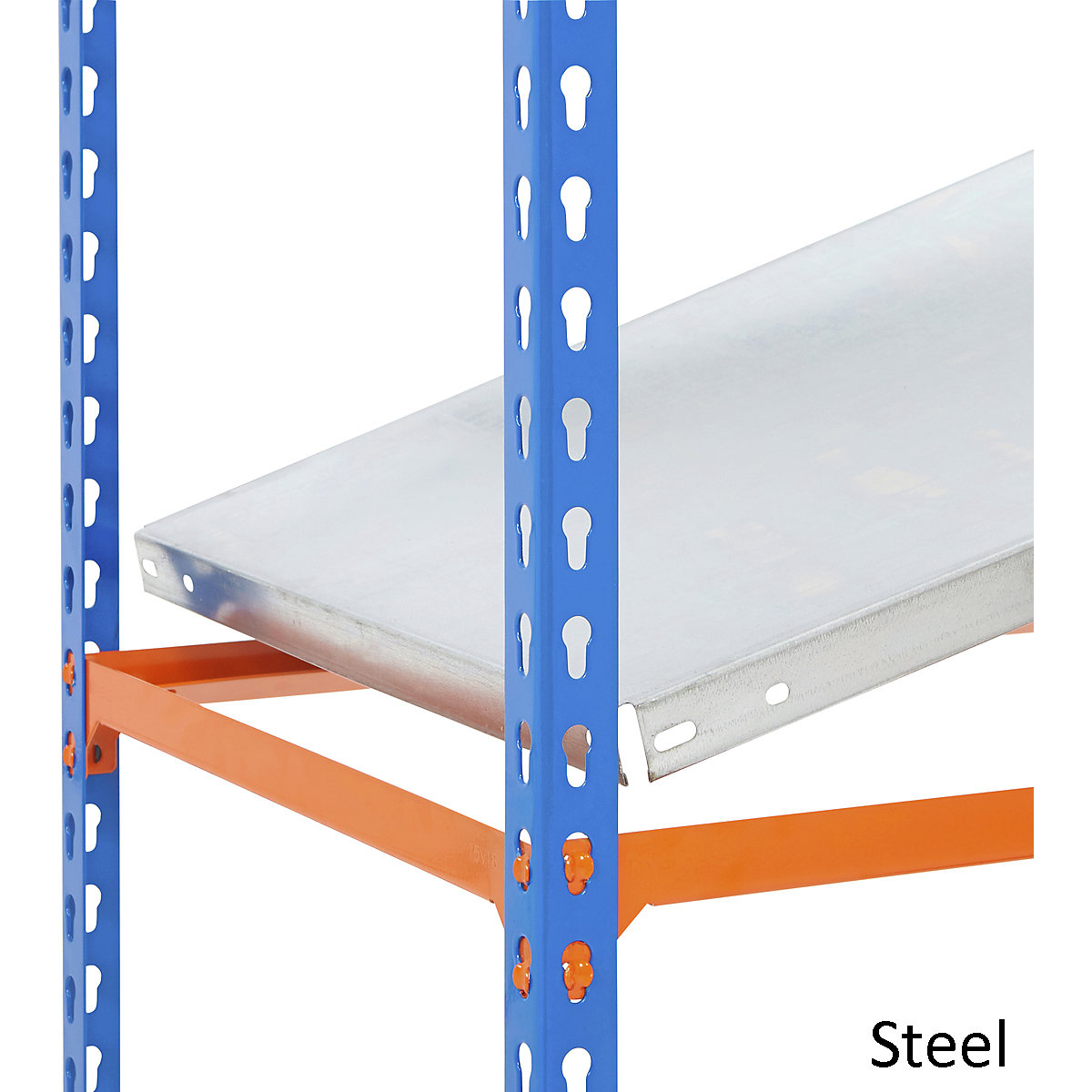

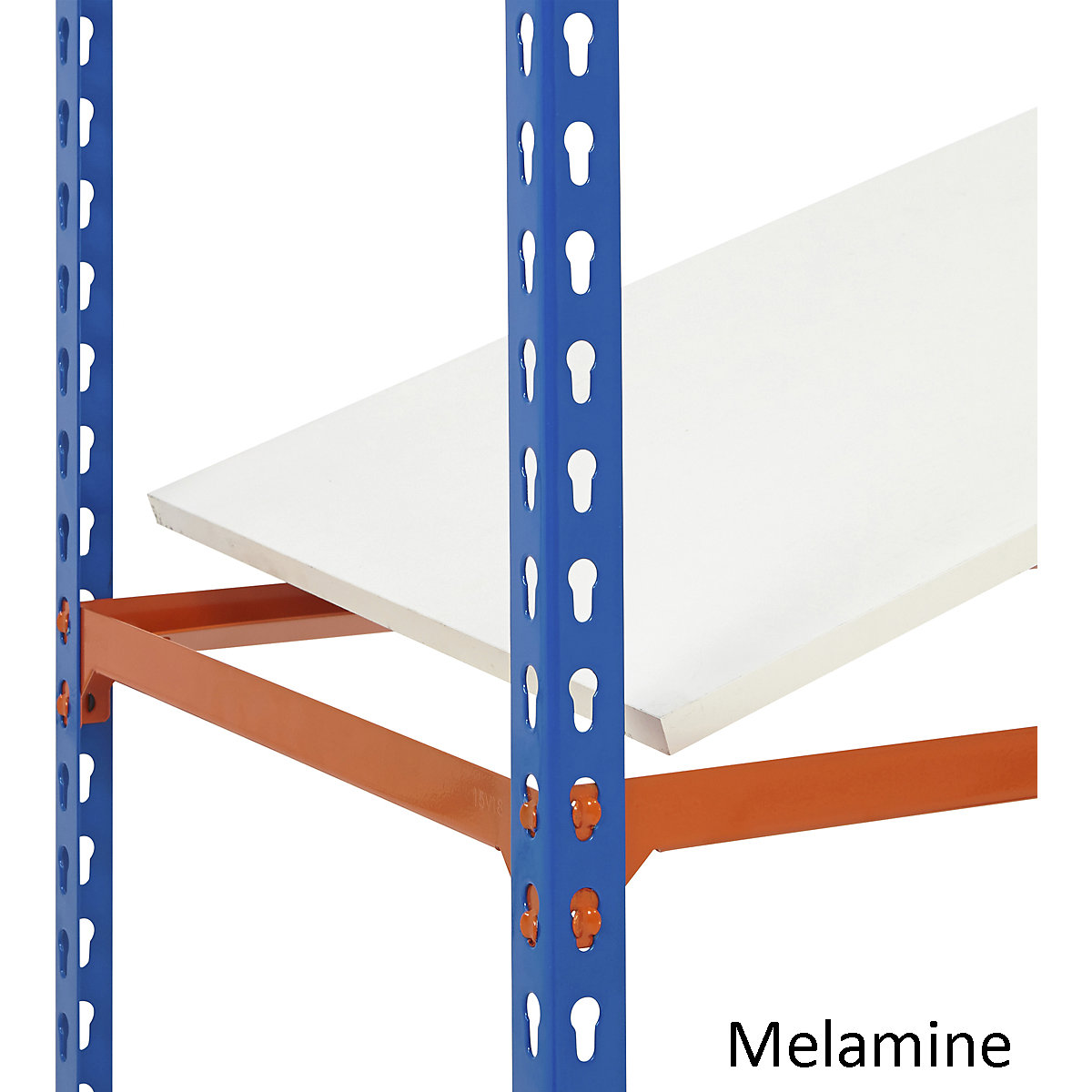

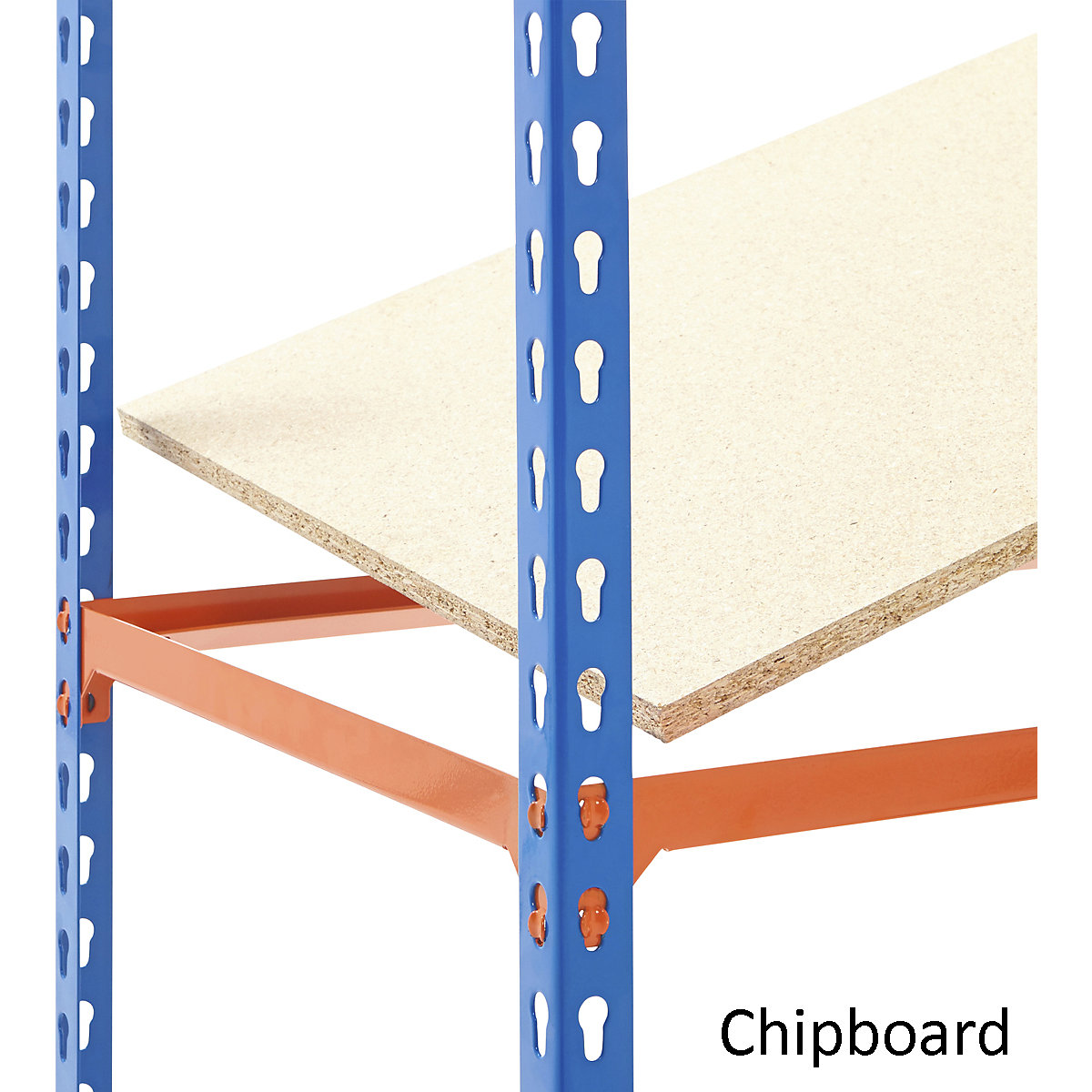

Chipboard shelves are our most economical and widely used option, offering a robust surface for most general-purpose dry storage applications in stockrooms or workshops. Melamine shelves offer a smooth, wipe-clean surface, making them ideal for environments that require easy cleaning or are prone to occasional spillages, such as retail backrooms or light-duty food storage areas. Steel shelves provide the maximum durability and resistance to chemical spills and moisture. They are the best choice for heavy-duty industrial environments, garages, or workshops.

How Can I Optimise BiGDUG’s 2440mm High Shelving?

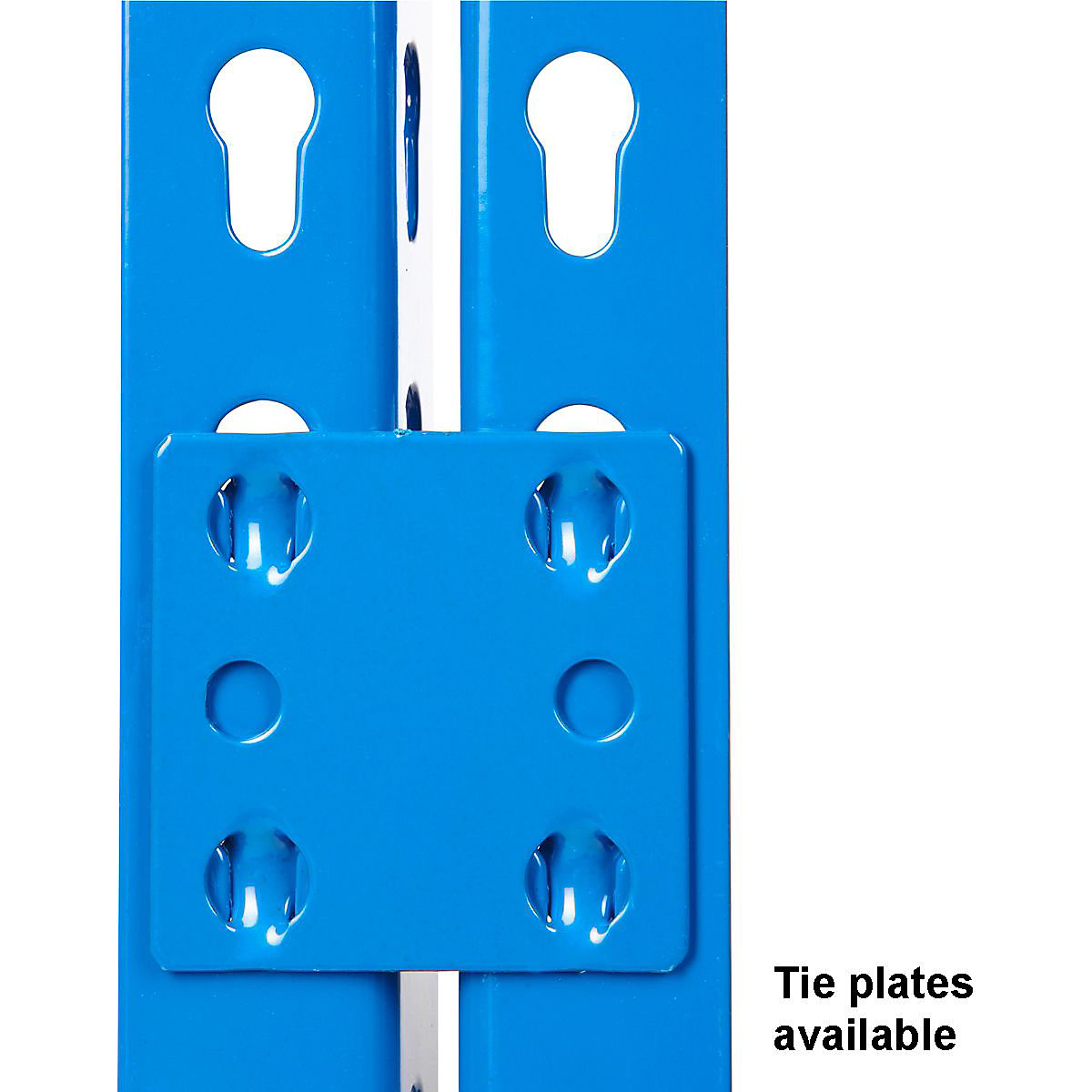

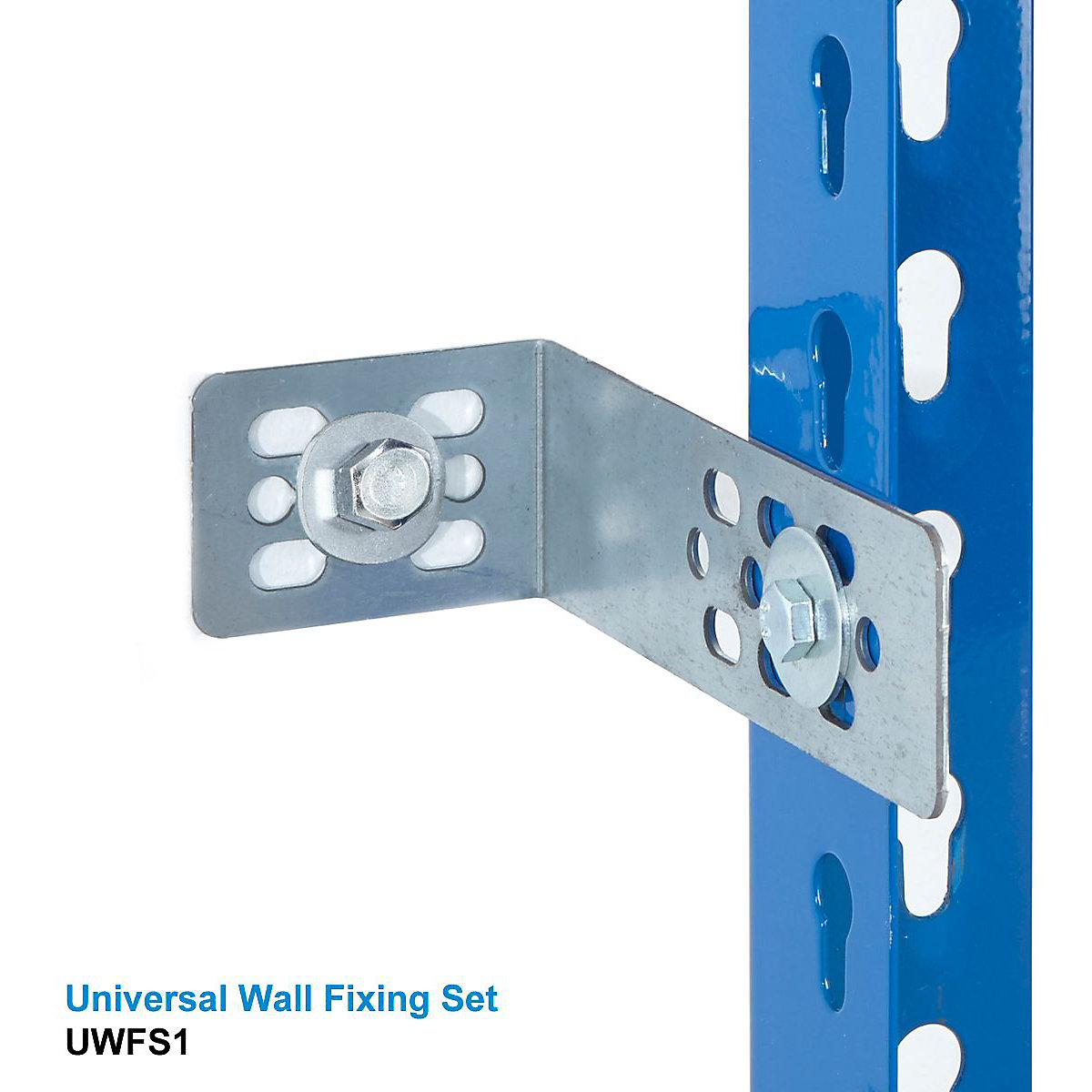

BiGDUG offers a selection of additional accessories you can purchase alongside our industrial shelving unit to optimise its usage and enhance storage space. Tie plates can be used to create continuous storage runs, while extra levels are also available for enhancing storage without the need to purchase another shelving unit. Secure the unit using wall fixings or steel feet to reduce the risk of tipping or collapse. To improve organisation and facilitate equipment retrieval, shelf dividers and label holders are also available.
