BiG340 Shelving 1980h x 915w x 305d mm 6 Levels & 10 Dividers 340kg UDL Blue & Grey
BiG340 Shelving 1980h x 915w x 305d mm 6 Levels & 10 Dividers 340kg UDL Blue & Grey
- Next day delivery available, in stock products only
- Find a lower price & we'll match it
- Large Project? Call for site visit & quote
Friday 8am - 4:30pm
Excluding Bank Holidays

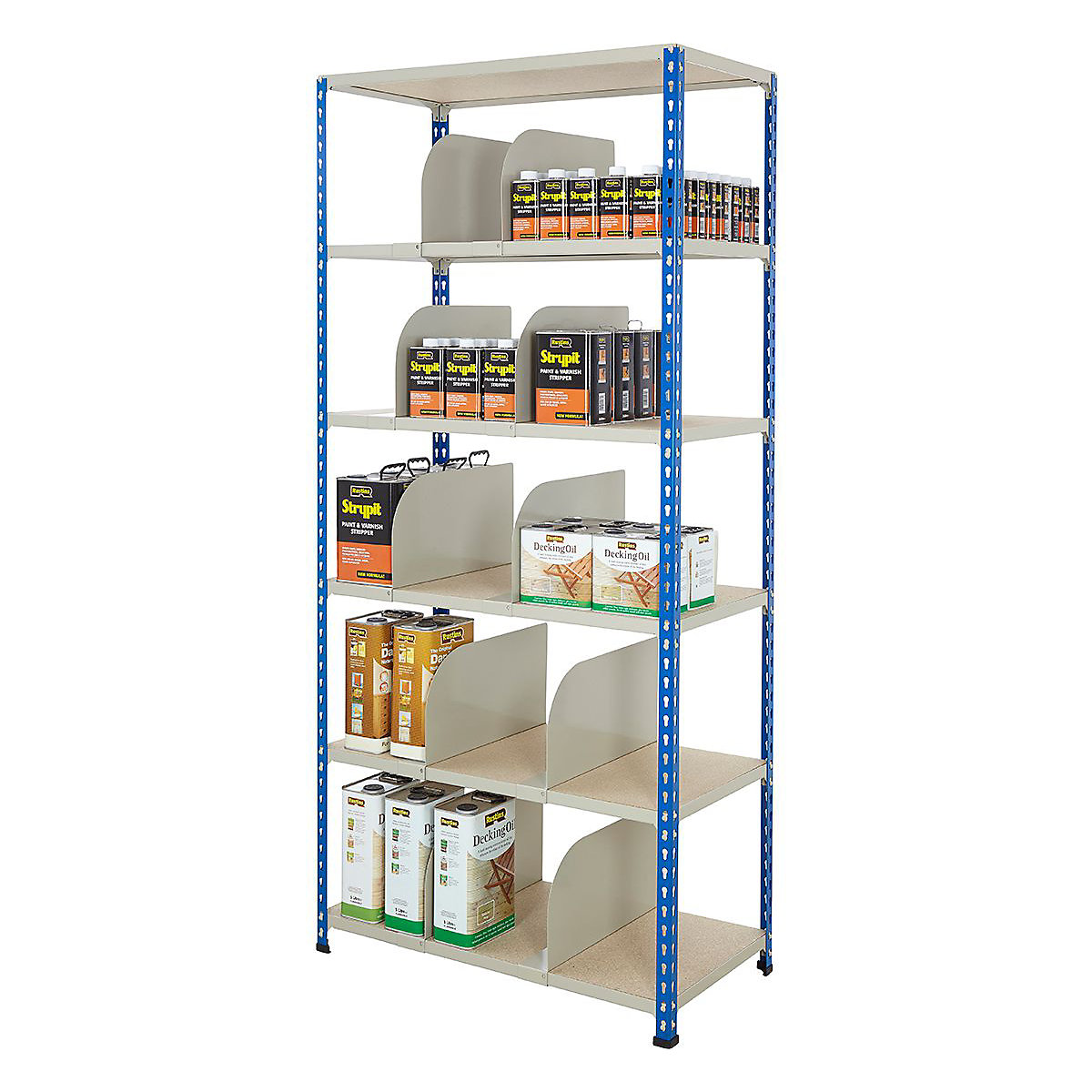

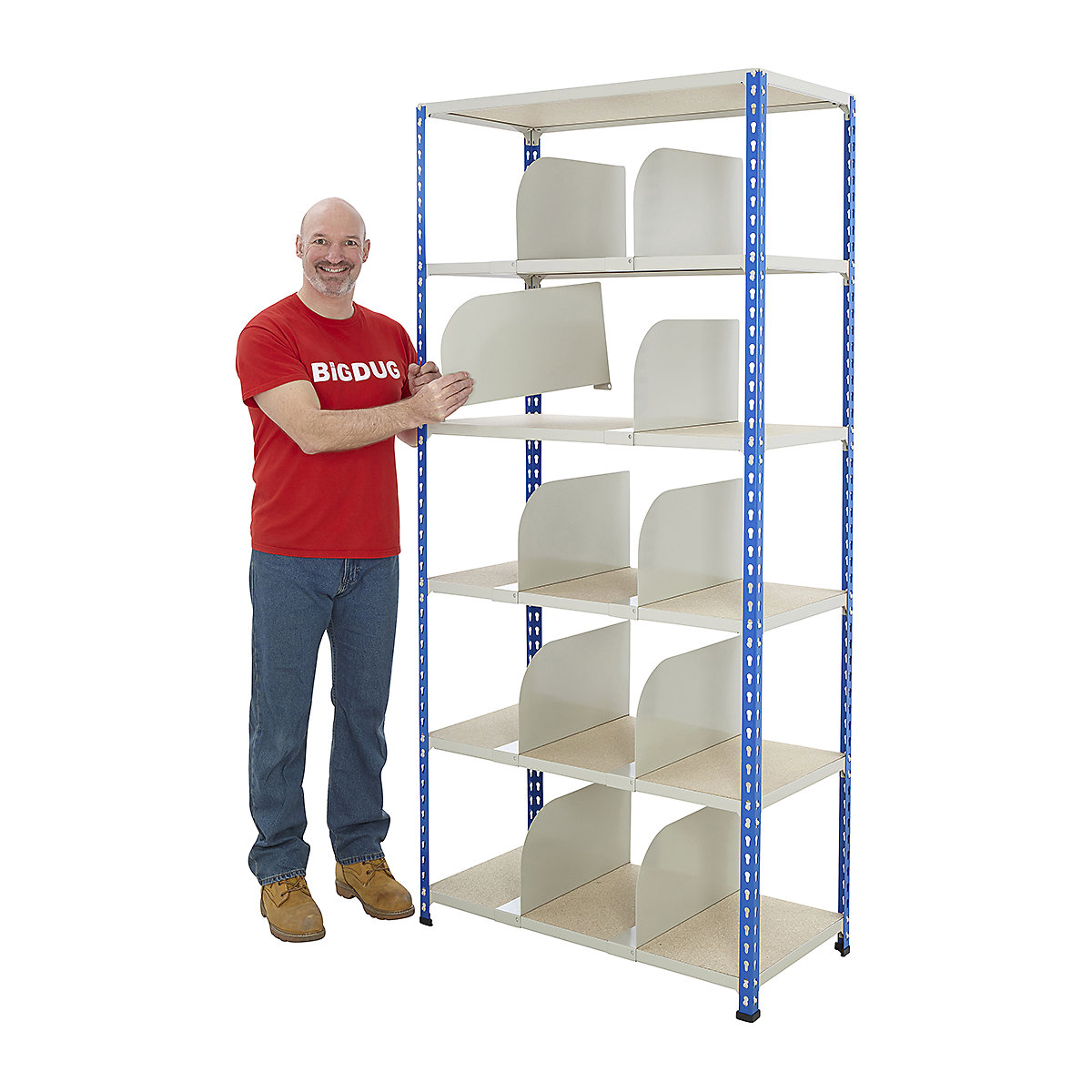

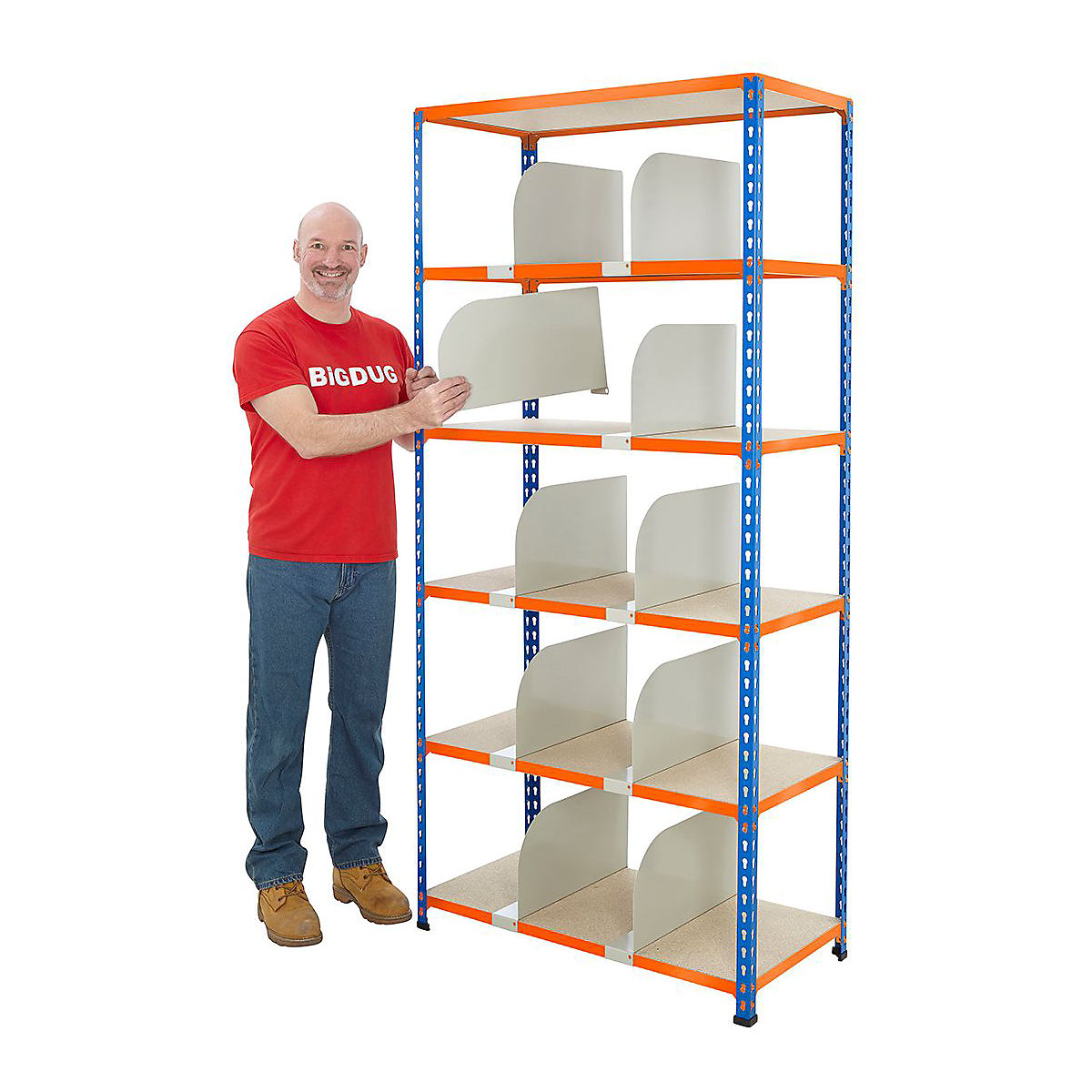

Our BiG340 1980mm High Shelving With Chipboard Shelves & 10 Dividers is an adaptable and versatile shelving system used in warehouses, stockrooms, factories and industrial units. This shelving unit can be used in a variety of ways, such as for regular picking and storage of goods up to 340kg UDL* per shelf. Available in three colours, it features six adjustable shelves and ten shelf dividers, ideal for organising items efficiently.
- Load capacity per shelf: up to 340kg UDL*

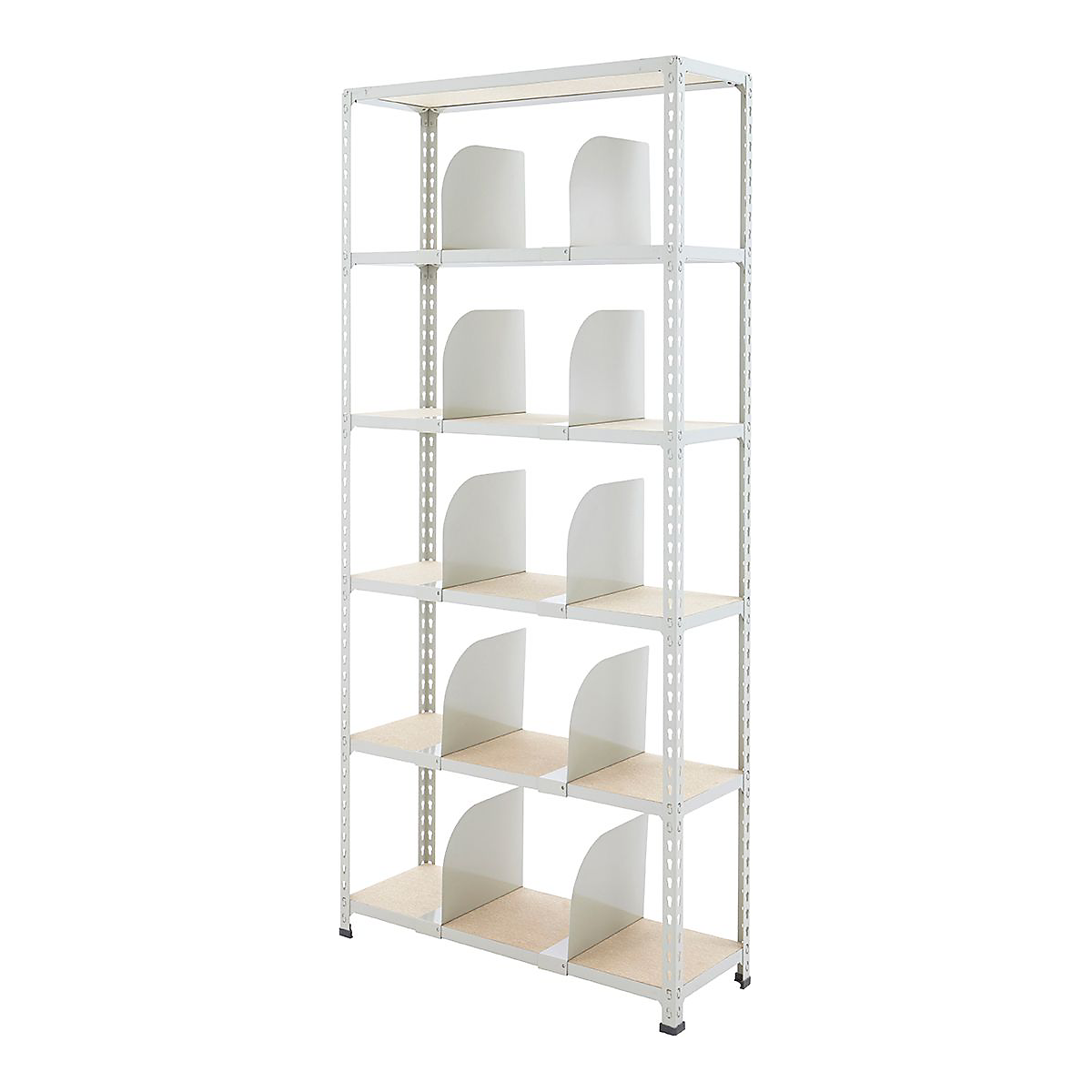

- 6 fully-adjustable, high-density chipboard shelves with 10 shelf dividers

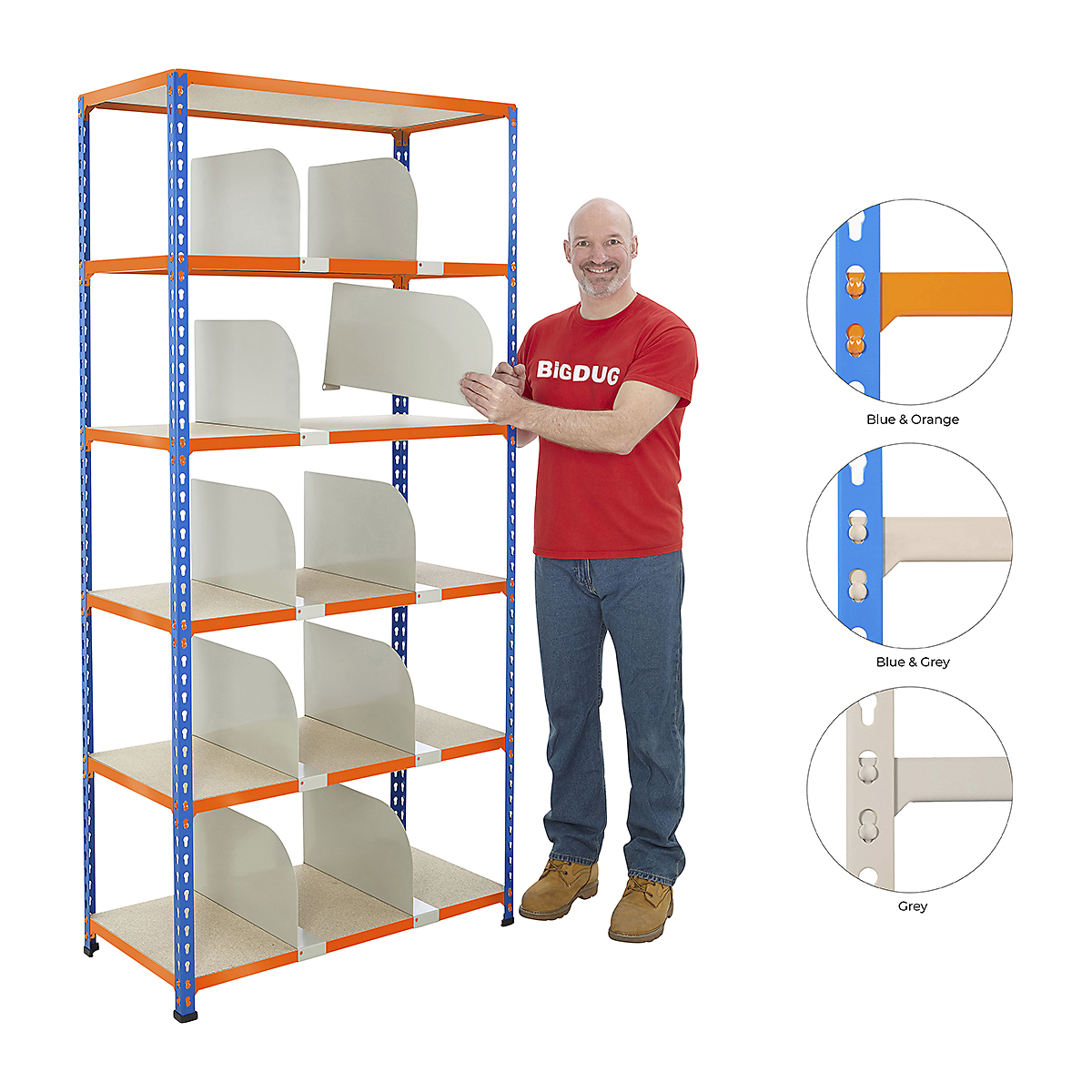

- Available in three colours
- Manufactured from premium-grade European steel
- Each shelf is fully adjustable in height every 38mm (1.5 inches)
- Height of dividers: 250mm

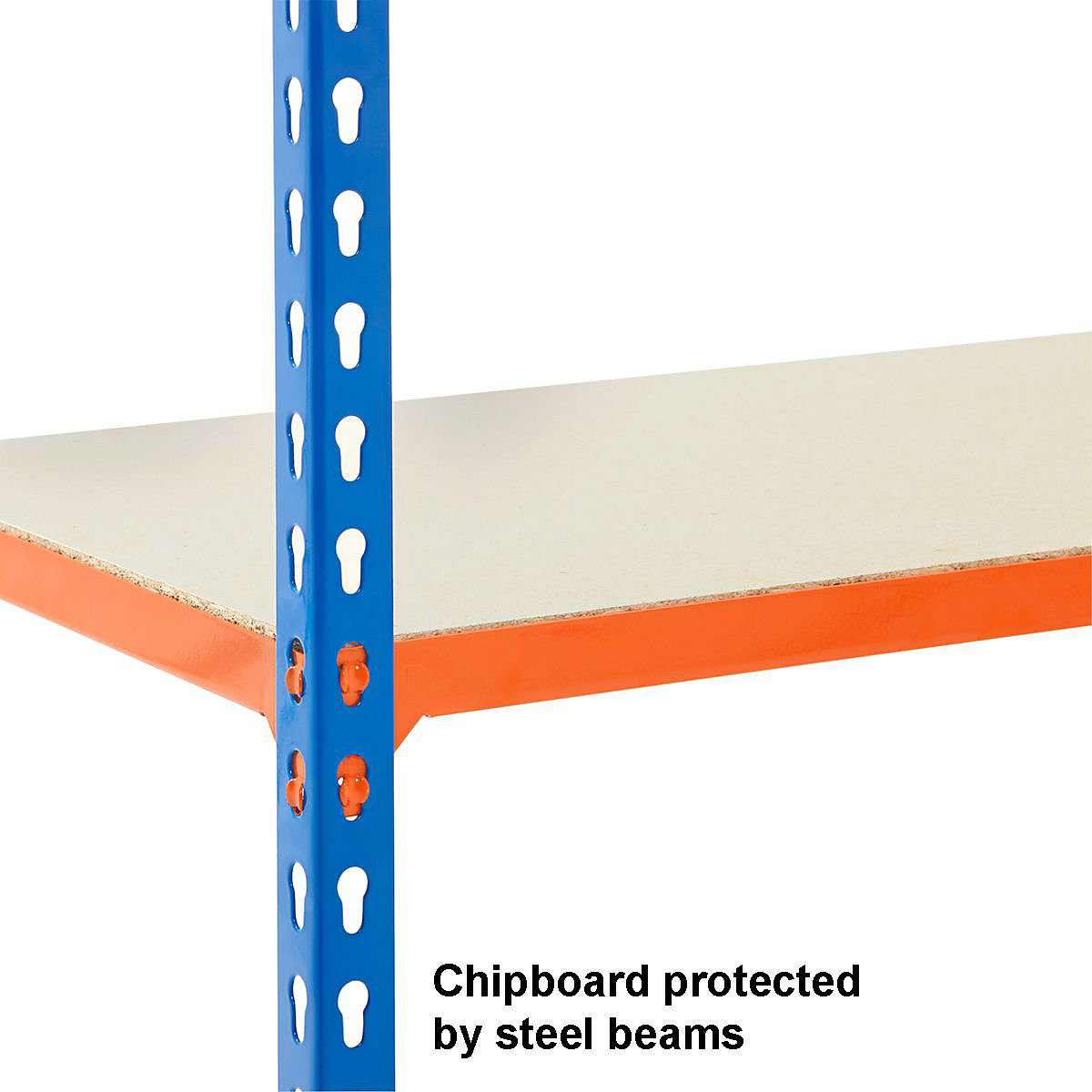

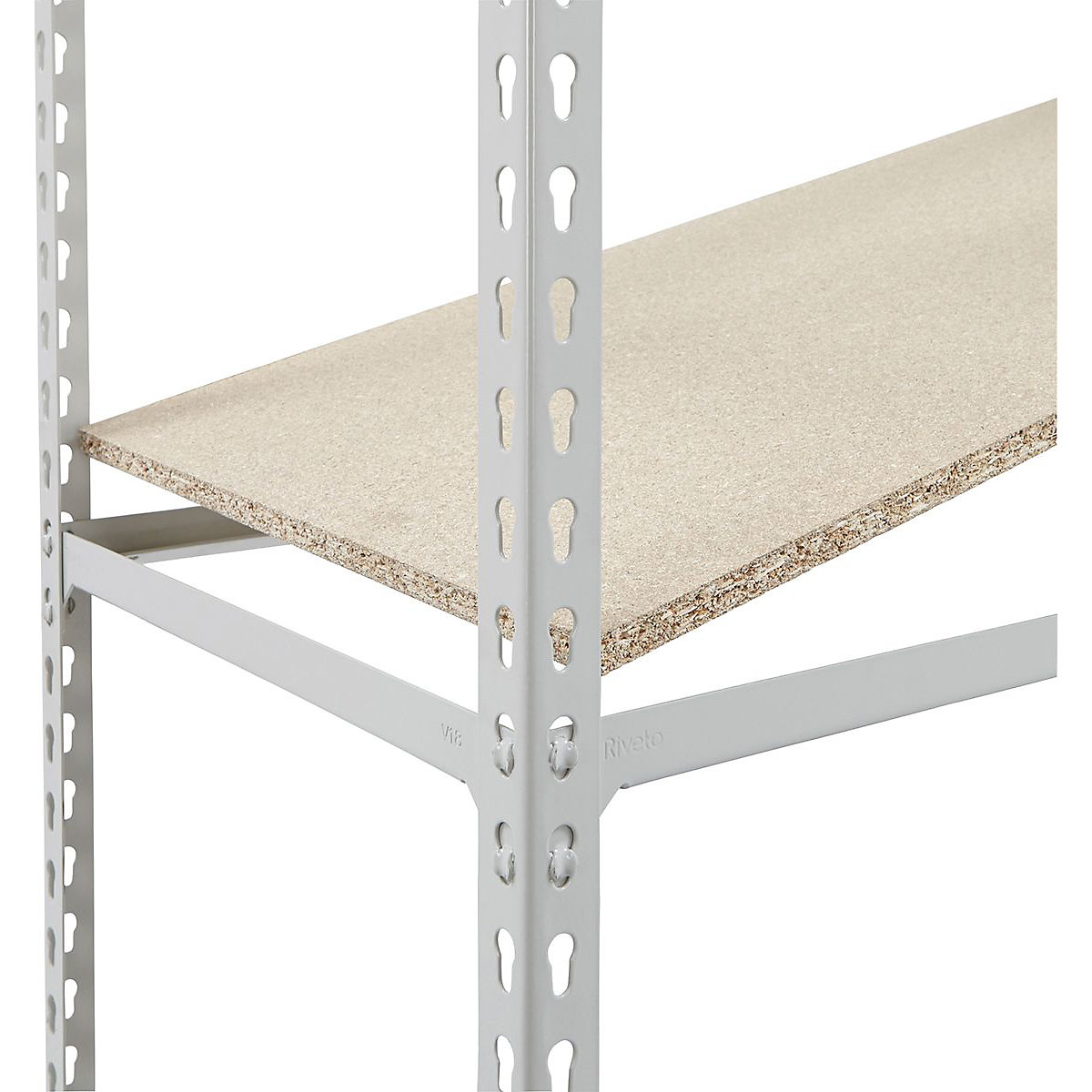

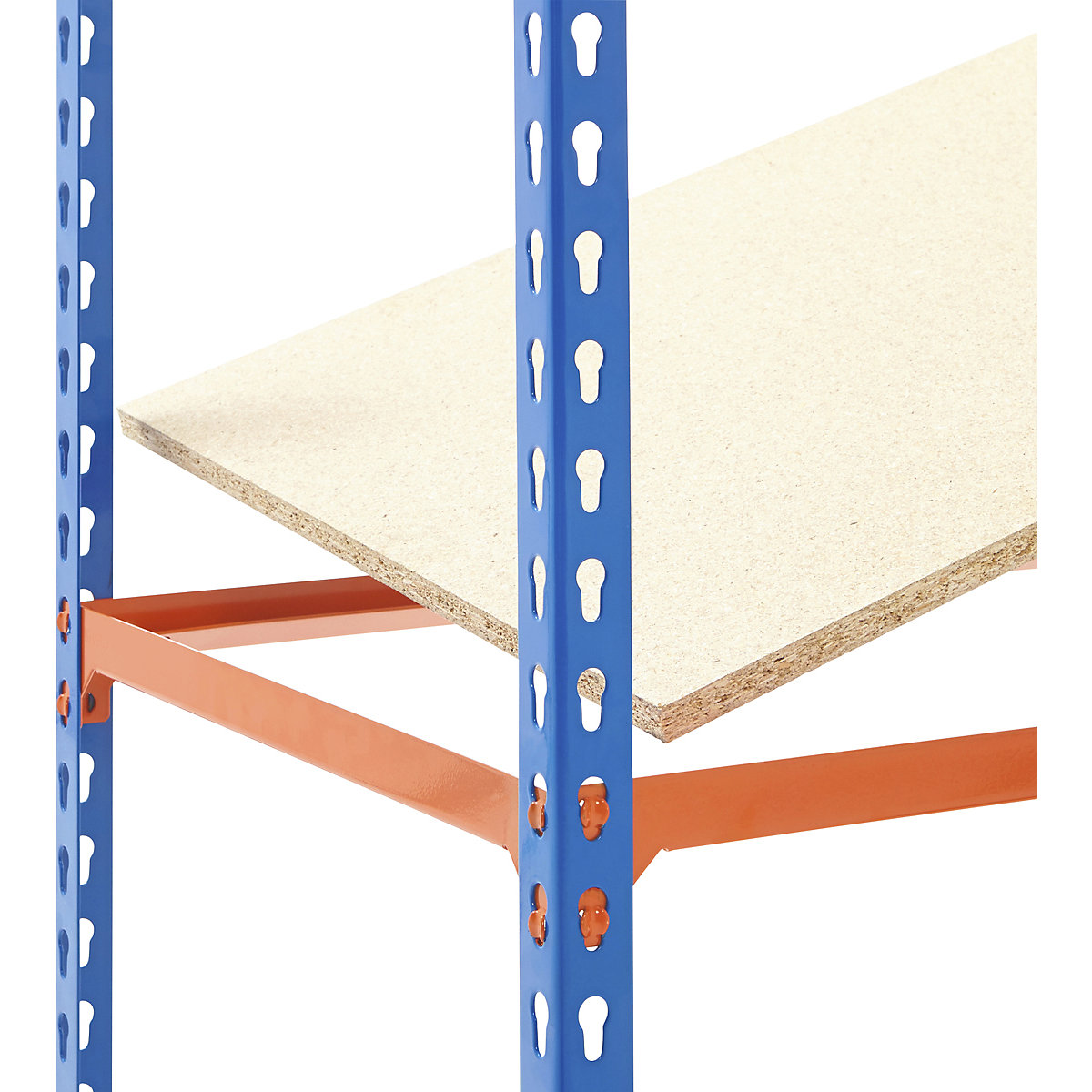

- Flush-fitting chipboard protected from impact and snagging by surrounding steel beams
- Manufactured to certified FEM standards
- Available from stock and eligible for our Next Day Delivery service

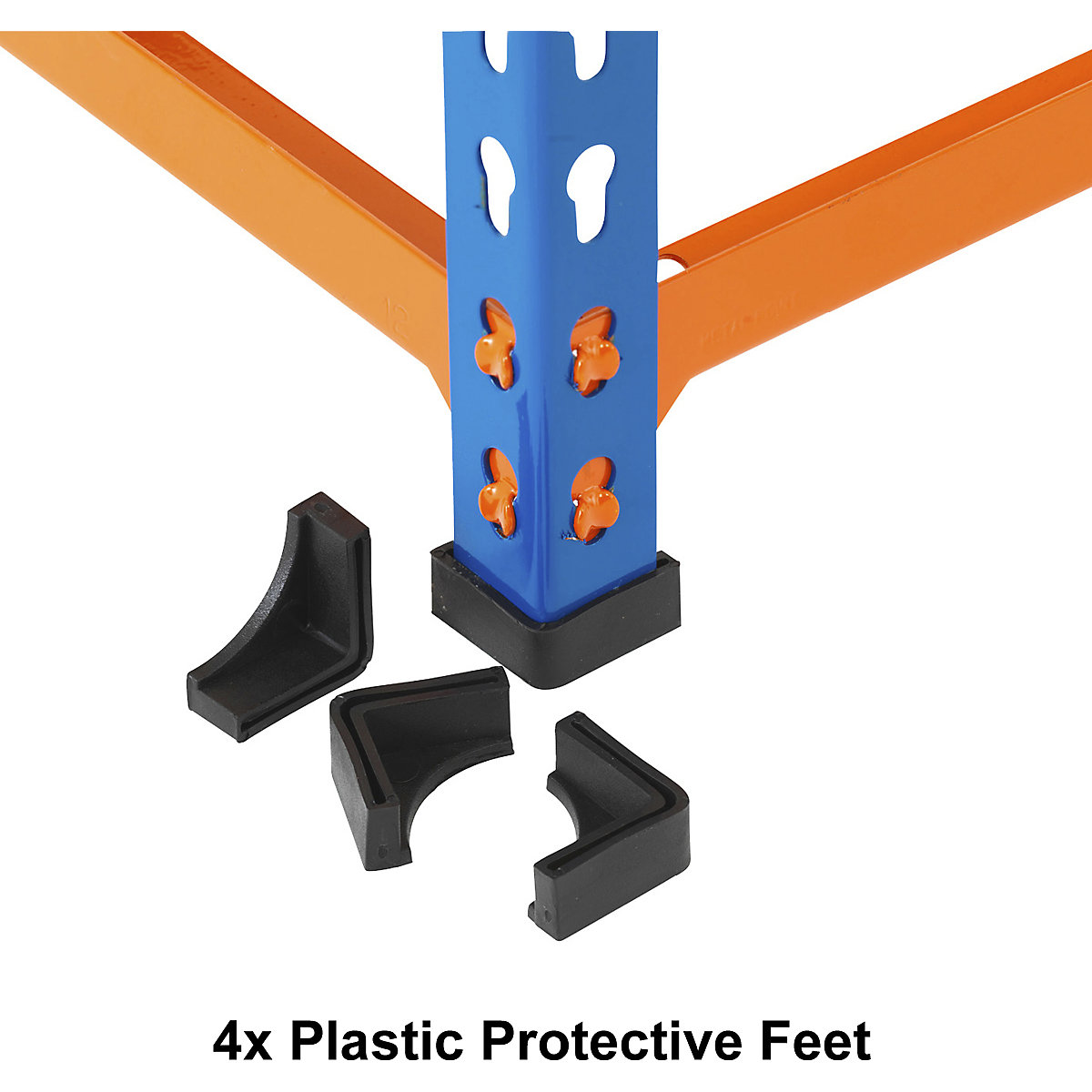

- Supplied with protective plastic feet
* UDL = Uniformly Distributed load.
Please note that actual capacity varies according to shelf size.
Shelving Specifications
| Data Field | 915mm Width | 1220mm Width | 1525mm Width |
|---|---|---|---|
| Upright Type | One Piece | One Piece | One Piece |
| Upright Steel Thickness | 1.8mm | 1.8mm | 1.8mm |
| Beam Steel Thickness | 2mm | 2mm | 2mm |
| Shelf Adjustment Increments | 38.1mm | 38.1mm | 38.1mm |
| Shelf Thickness | 30mm | 30mm | 30mm |
| Chipboard Thickness | 15mm | 15mm | 15mm |
| MDF Thickness | n/a | n/a | n/a |
| Melamine Thickness | 15mm | 15mm | 15mm |
| Steel Panel Thickness | 0.8mm | 0.8mm | 0.8mm |
| Total Bay Capacity 1980h mm | 2869kg | 2869kg | 2869kg |
| Total Bay Capacity 2440h mm | 2475kg | 2475kg | 2475kg |
| Total Bay Capacity 3050h mm | 1745kg | 1745kg | 1745kg |
| Clear Width | 851mm | 1156mm | 1461mm |
| Extra Levels Available | Y | Y | Y |

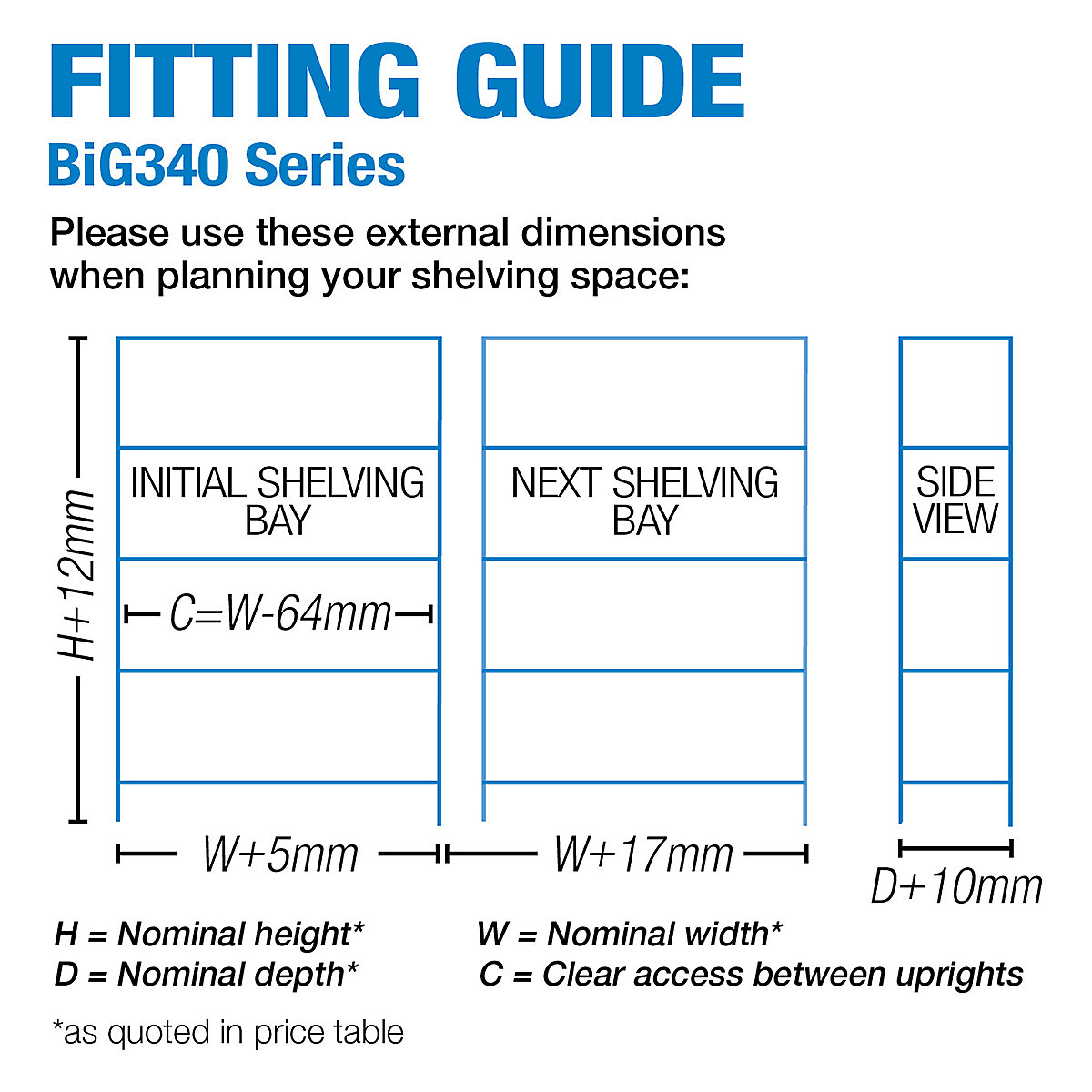

Fitting Guide
Please check our guides for each range when planning your shelving space.
| Nominal Shelf Width mm: | Clear Entry mm: | Initial Bay External mm: | Next Bay External mm: |
|---|---|---|---|
| 915 | 851 | 925 | 932 |
| 1220 | 1156 | 1230 | 1237 |
| 1525 | 1461 | 1535 | 1542 |
External Height = H+12 Pitch = 38.1
Clear height between shelves = (No. x pitch) -30
All dimensions in Millimetres
