Code: B3BK3C

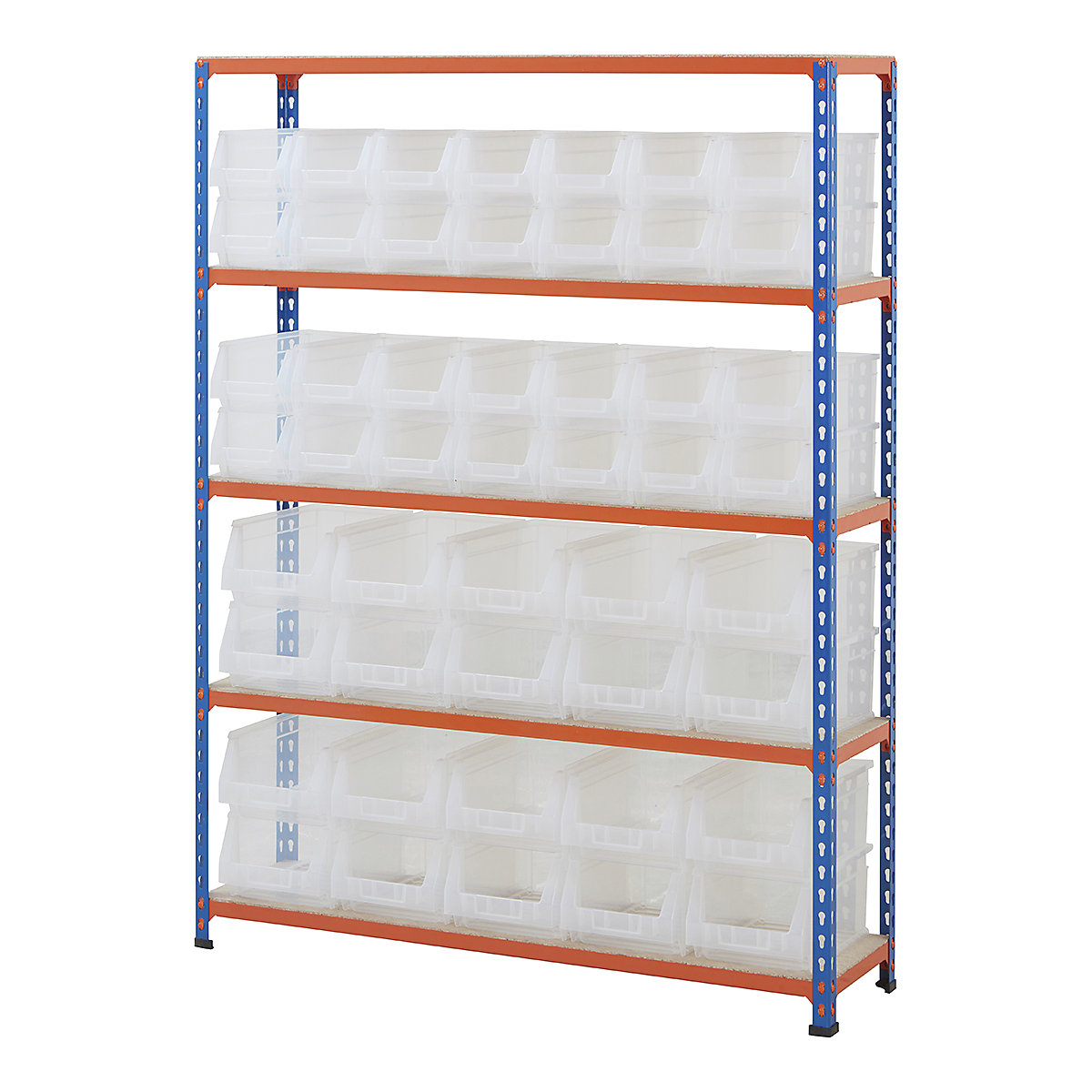

BiG200 Shelving with Plastic Parts Bins, 1600h x 1220w x 305d mm, 140kg UDL with 28x B53 & 20x B54 Clear Bins

(5)
BiG200 Blue & Orange Shelving With Plastic Bins Kits
Type
Code: B3BK3C

Product description

  BiG200 shelving combined with our best-selling premium  plastic parts bins makes an ideal storage solution for workshops, warehouses, and anywhere else small parts organisation is required. Manufactured from high-grade steel, the BiGDUG BiG200 Blue Orange Shelving with Plastic Bins Kits feature powder-coated blue uprights and orange beams for a professional finish and high visibility in busy environments. The five chipboard shelf levels are supported by a strong steel frame, with a load capacity of up to 140kg per shelf UDL*, making this shelving suitable for a wide variety of storage needs.

  • Load capacity per shelf: up to 140kg UDL*
  • Six different shelving kits available with a choice of three vibrant coloured plastic parts bins
  • Shelving bays 1600mm high x 305mm deep and either 1220mm or 1525mm wide
  • Some simple self-assembly required;
  • Supplied with protective plastic feet

    Shelving With Plastic Bins

  • Shelving manufactured from premium-grade European steel
  • Flush-fitting decks benefit from the snag-free, edge protection of the surrounding steel beams
  • Choose from fully stackable plastic parts bins in two size options - B53 bin dimensions: (Ext) 130h x 160w x 336d mm - (Int) 125h x 143w x 290d mm or B54 bin dimensions: (Ext) 155h x 216w x 336d mm - (Int) 155h x 195w x 270d mm
  • Manufactured from impact-resistant, food-grade thermoplastic with reinforced sides and base
  • Integral label holder (labels available separately)

* UDL= Uniformly Distributed Load. Please note that actual capacity varies according to shelf size.

Shelving Specifications

Data Field     1220mm Width         1525mm Width
Upright Type One Piece One Piece
Upright Steel Thickness 1.5mm 1.5mm
Beam Steel Thickness 1.5mm 1.5mm
Shelf Adjustment Increments 38.1mm 38.1mm
Shelf Thickness 30mm 30mm
Chipboard Thickness 15mm 15mm
MDF Thickness n/a n/a
Melamine Thickness 15mm 15mm
Steel Panel Thickness 0.8mm 0.8mm
Total Bay Capacity 1600h mm 1200kg 1200kg
Total Bay Capacity 1830h mm 1200kg 1200kg
Clear Width 1156mm 1461mm

Fitting Guide

Please check our guides for each range when planning your shelving space.

Nominal Shelf Width mm: Clear Entry mm: Initial Bay External mm: Next Bay External mm:
1220 1156 1230 1237
1525 1461 1535 1542

External Height = H+12       Pitch = 38.1

Clear height between shelves = (No. x pitch) -30

All dimensions in Millimetres

What Are The Advantages Of Shelving With Bins?

Shelving with plastic bins can improve efficiency in any environment where small parts and components are stored. The combination of open shelving and labelled bins allows users to easily identify and retrieve items without sorting through cluttered drawers or boxes. This system supports inventory accuracy, faster picking times, and a tidier workspace, which is especially beneficial in workshops, warehouses, and retail backrooms.

How Many Bins Does My Shelving Need?

The number of bins included in each shelving kit depends on the configuration and size you select. Our kits are carefully designed to maximise bin storage capacity while keeping access clear and functional. The B53 bins are more compact, ideal for storing small parts or lightweight components. The B54 bins are larger and better suited to medium-sized items. If you're unsure which kit best matches your inventory, consider measuring the size and volume of your most frequently stored parts and comparing them with the bin dimensions listed above.

Is BiGDUG’s Shelving With Plastic Bins Easy To Assemble?

Yes, the BiG200 shelving system is designed for simple assembly. Tap the components into place using a  rubber mallet; no bolts, screws or specialist tools required. Each shelf level slots securely into the frame, and the chipboard decks fit flush within the steel beams for a clean, snag-free finish. The bins arrive ready to use and fit perfectly on the shelves. Browse our ‘Downloads’ tab for full assembly instructions. BiGDUG BiG200 Blue Orange Shelving with Plastic Bins Kits are eligible for our Next Day Delivery service.

Contact BiGDUG

BiGDUG is a reliable supplier of shelving with bins. If you're planning a large project and need some personal assistance, we can call to your site for a visit to assess your requirements.

For anything else, please contact us on 0333 200 5299 via Live Chat on Monday to Thursday 9am - 5pm, and Friday 9am - 4:30pm.
